Amazon Oil Hoses
BS EN 1765: 2016 Type L Rubber Hose
Amazon oil hoses are high-quality hoses designed for use in the oil and gas industry. These hoses are made from durable materials such as nitrile rubber, PVC, and reinforced steel wire, which make them resistant to chemicals, abrasion, and extreme temperatures. Amazon oil hoses are commonly used to transfer oil and other petroleum products between storage tanks, trucks, and pipelines. They come in a variety of sizes and are available with different fittings, including camlock, flange, and threaded connections. With their high-performance capabilities and reliability, Amazon oil hoses are an essential component in the oil and gas industry.
In addition to their use in the oil and gas industry, Amazon oil hoses are also used in chemical plants, refineries, and other industrial facilities where the transfer of hazardous or corrosive materials is required. These hoses are designed to withstand extreme conditions, such as exposure to harsh chemicals, high pressures, and high temperatures, without failing or losing their functionality. Additionally, Amazon oil hoses can be customized to meet specific industry standards and regulations, ensuring that they comply with safety and performance requirements. With their high-quality construction, durability, and flexibility, Amazon oil hoses are a reliable and efficient choice for transporting critical fluids and chemicals in industrial settings.
Hose Characteristics
1. Strict compliance with BS EN 1765: 2016 Type L Rubber Hose
2. Excellent resistance to abrasion, UV, aging and corrosive environment
3. Easy installation and less maintenance
4. Customized steel flanges are available
Application

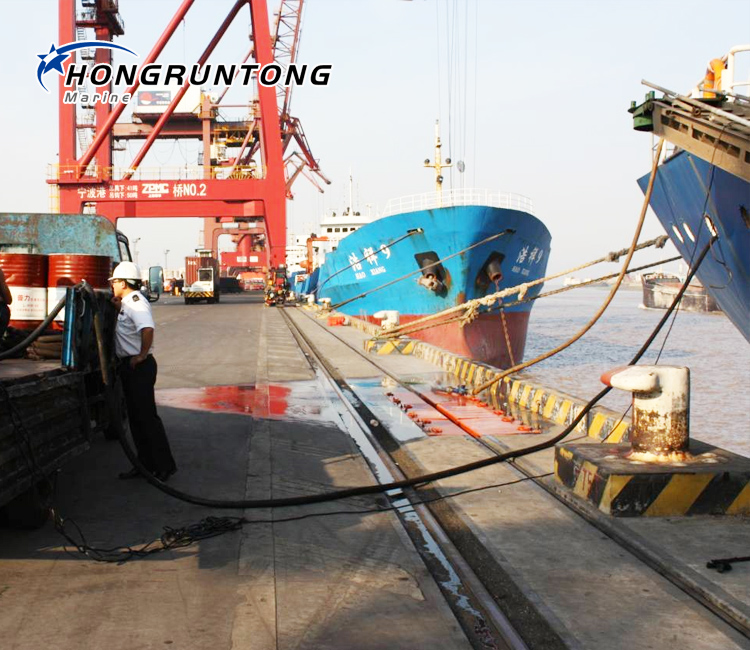

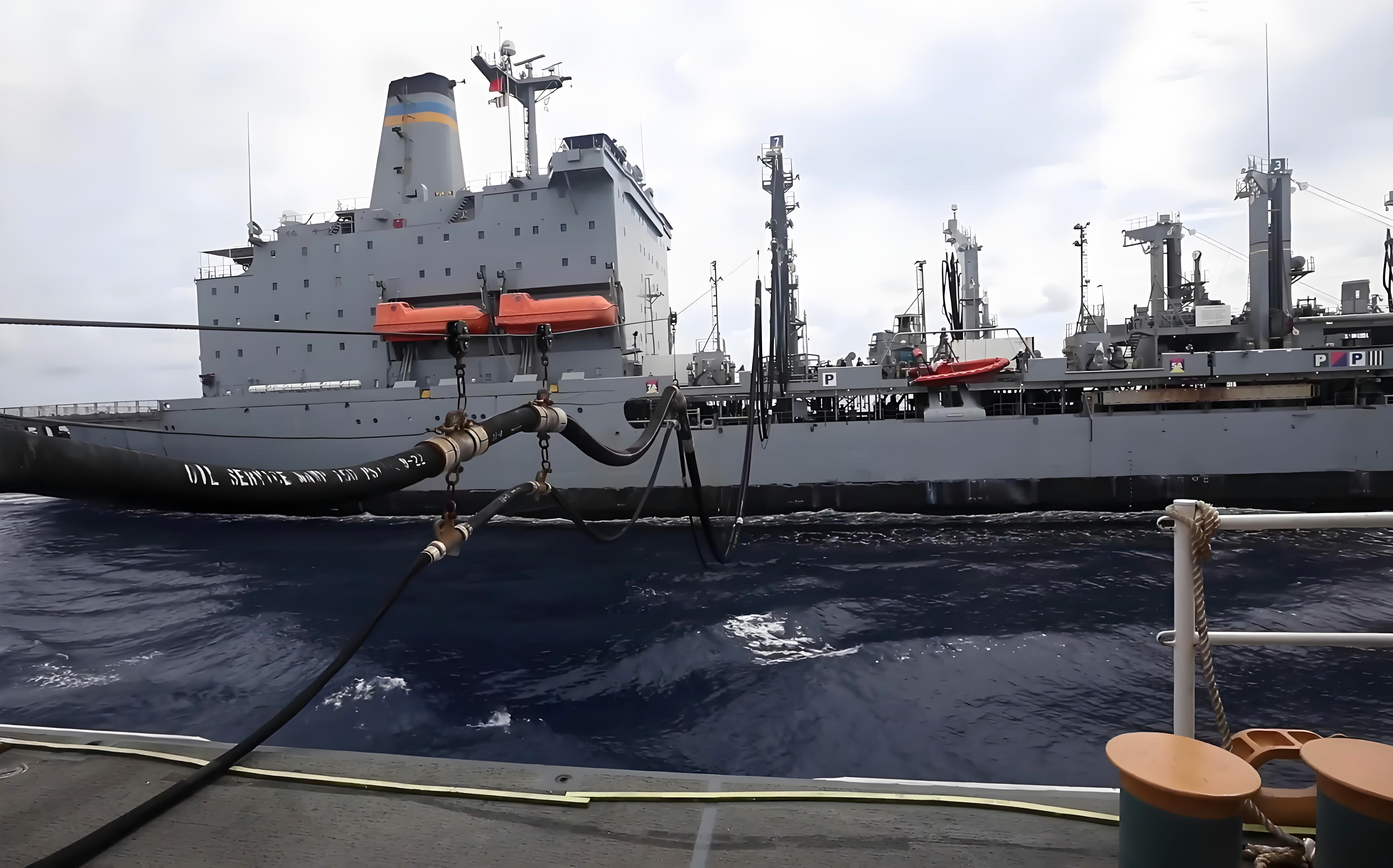

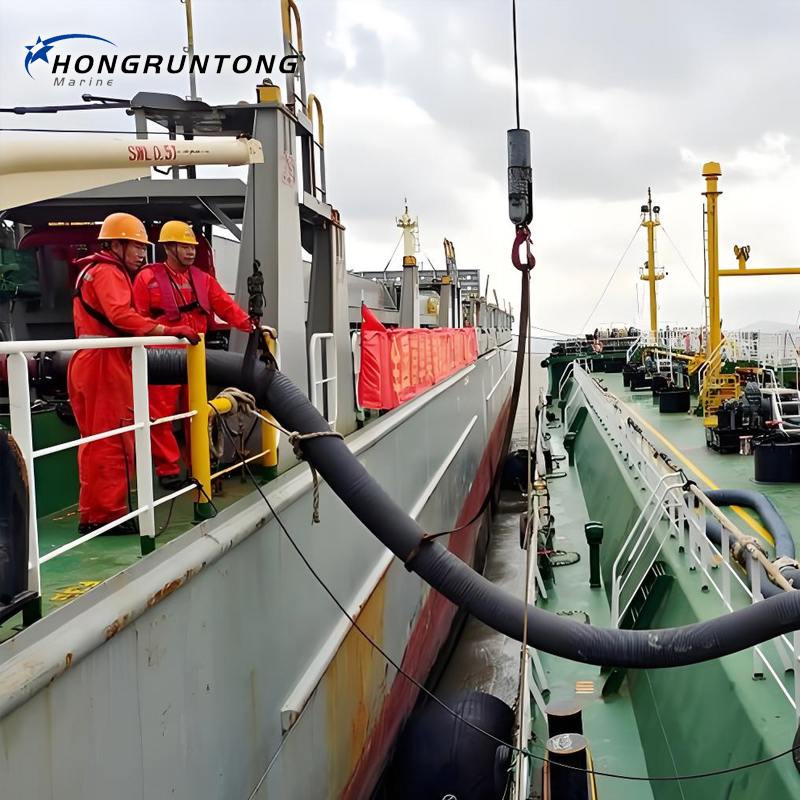

Lightweight, flexible hoses offering easy handling. Generally used at dockside and jetty locations where the working conditions call for a lightweight, flexible hose.
|
Working/Burst Pressure W.P./B.P. |
10-15/40-60 BAR |
|
Operating Temperature |
-20°C to +82°C |
|
Electrical Continuity |
Grade M: Electrically bonded or electrically discontinuous as required |
|
Maximum Lengths |
10-40 M |
Construction
|
Lining |
Synthetic rubber compound for petroleum products with an aromatic content up to 60% |
|
Main Reinforcement |
Multiple plies of high tenacity polyester cord designed for a combination of high strength and resistance to fatigue. Each layer is fully encapsulated in rubber to prevent abrasion with adjacent layers |
|
Holding ply |
Textile reinforcement to increase adhesion between hose body and cover |
|
Cover |
Weathering and abrasion resistant rubber compound |
|
Fittings |

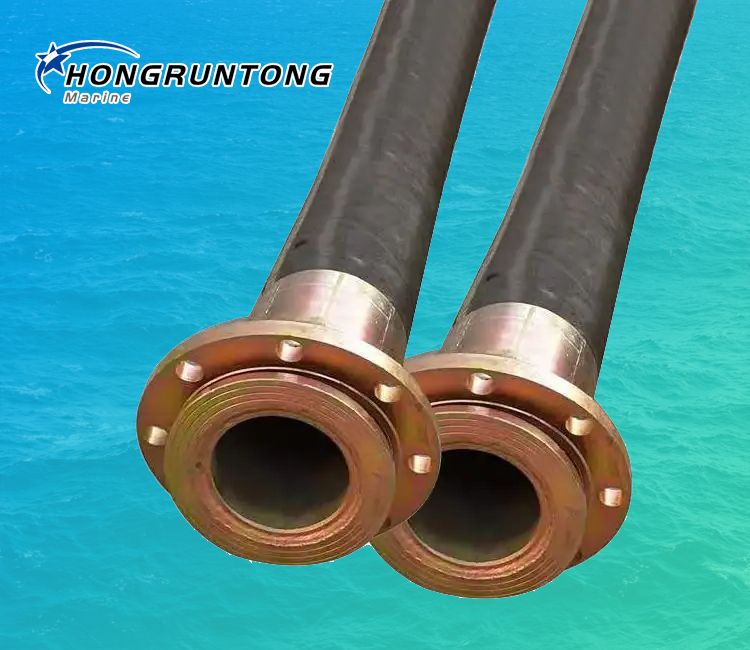

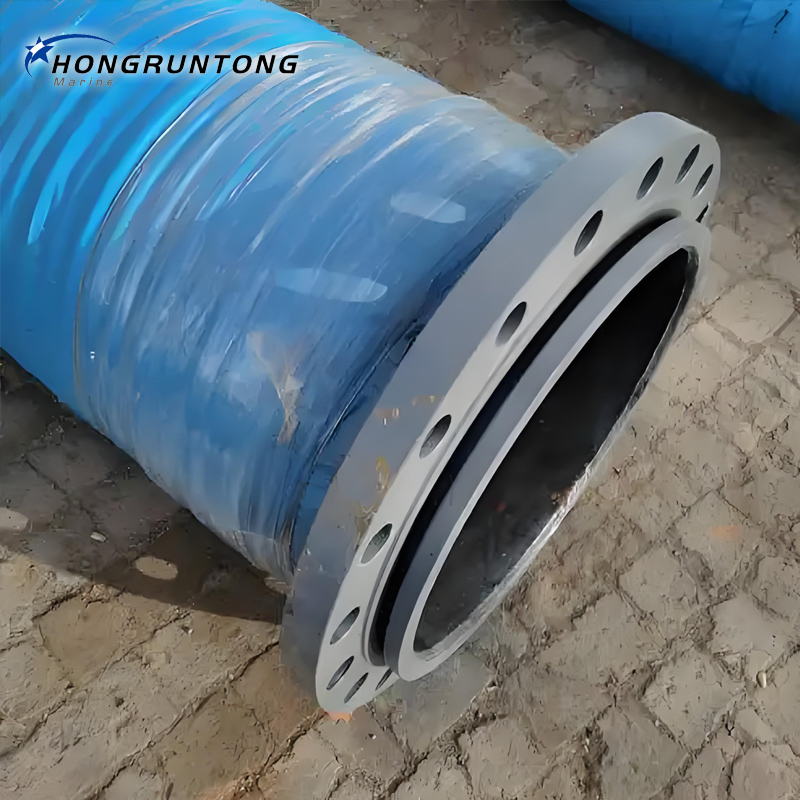

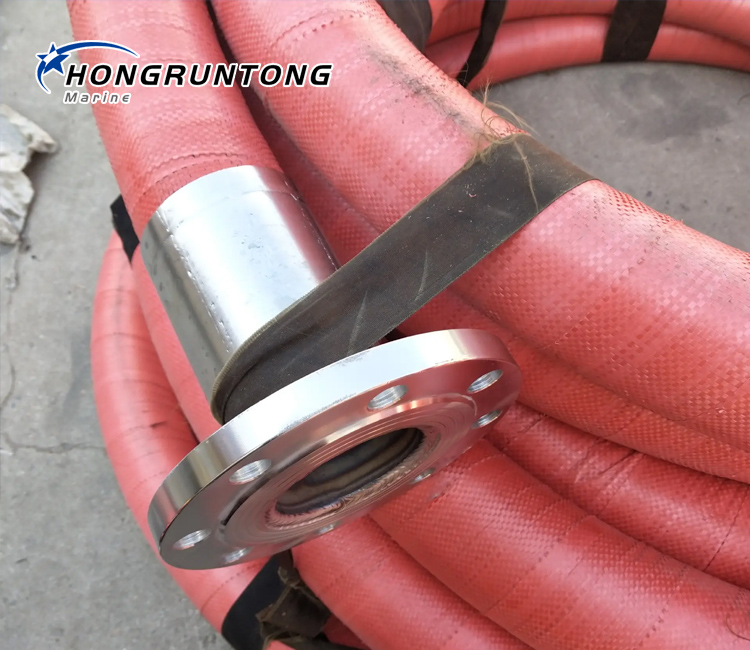

Built-in steel nipples with flanges to suit customer requirements |
Technical Design Data
|
Internal Diameter |
Outer Diameter |
Body Weight |
MBR |
||
|
in |
mm |
in |
mm |
kg/m |
mm |
|
2 |
51 |
2.8 |
71 |
2.3 |
300 |
|
3 |
76 |
3.8 |
96 |
3.3 |
460 |
|
4 |
102 |
5 |
126 |
5.4 |
600 |
|
6 |
152 |
7 |
177 |
7.8 |
900 |
|
8 |
203 |
9 |
228 |
10.2 |
1200 |
|
10 |
254 |
11 |
279 |
12.6 |
1500 |
|
12 |
305 |
13.5 |
339 |
21.3 |
1800 |

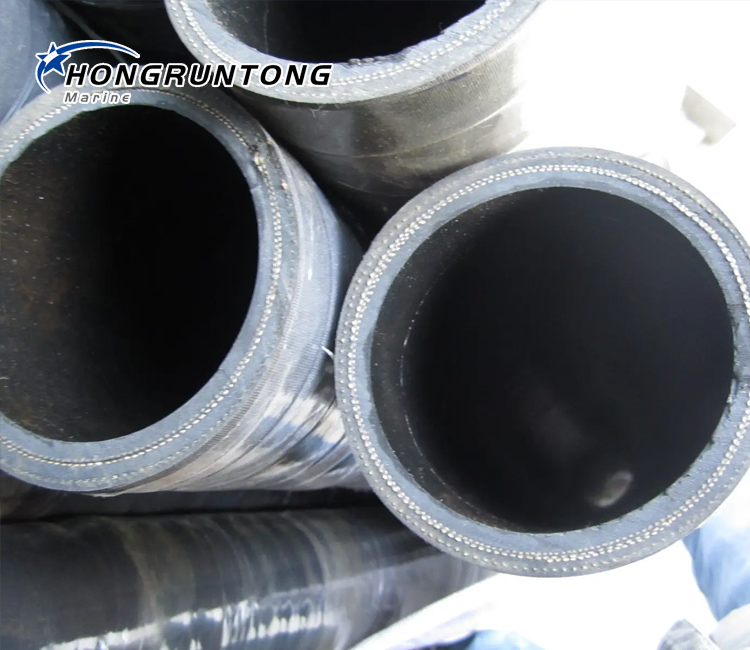

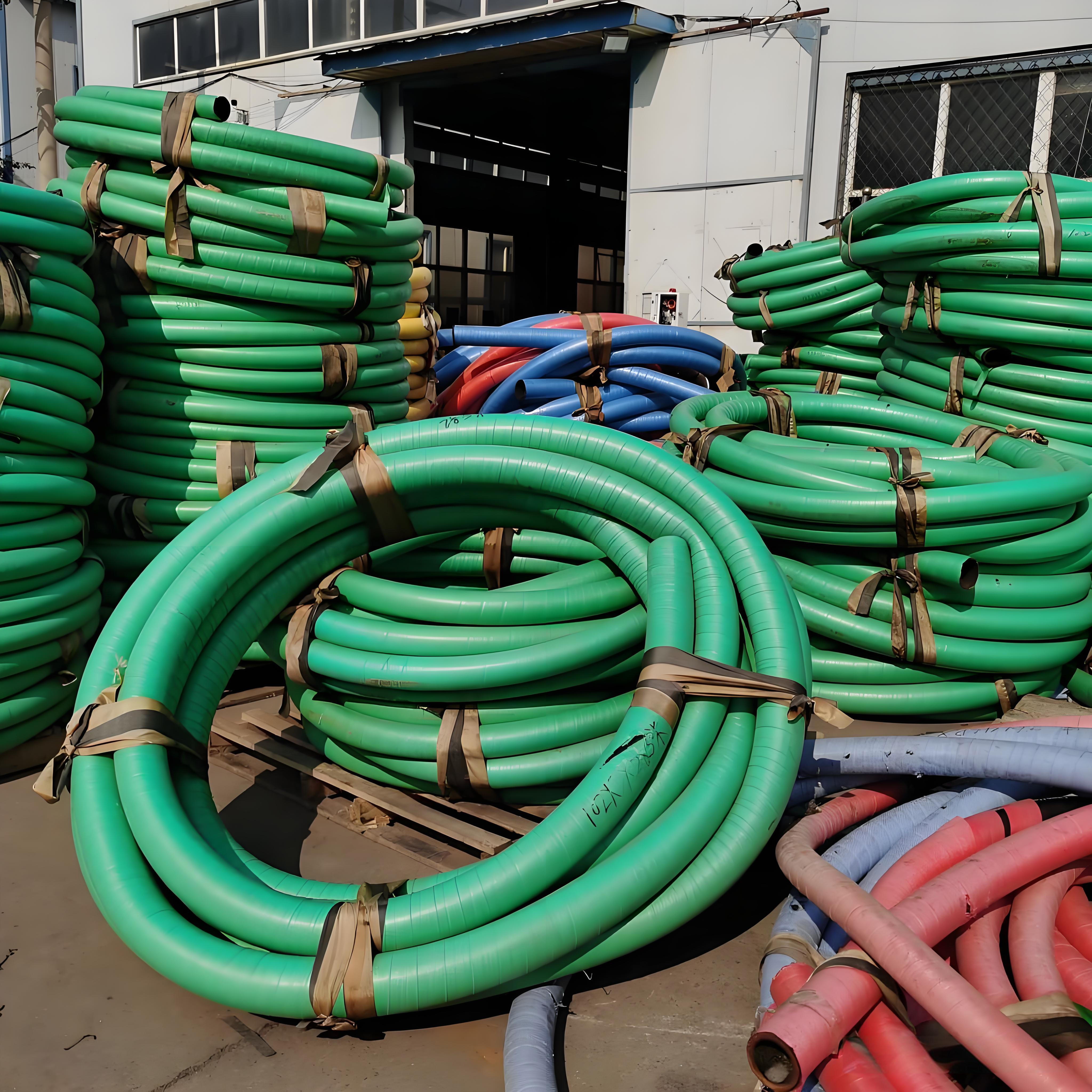

Details Images
