Jumbo Size Yokohama Pneumatic Fender
The Jumbo Yokohama Pneumatic Fender by Hongruntong Marine is built to withstand extreme marine conditions. Made from durable rubber materials, it provides high energy absorption and superior impact resistance, ensuring the safety of vessels and docking infrastructure. Our fender is widely recognized for its reliability, passing rigorous quality inspections by trusted third parties. With decades of expertise, Hongruntong Marine offers this product at a competitive price, providing exceptional value and performance for maritime operations.
Characteristics
► Fully Compliant with ISO 17357-10:2014: Meets all the requirements of the ISO 17357-10:2014 standard for pneumatic fenders, ensuring safety and quality.
► High Energy Absorption: Provides excellent shock absorption, minimizing impact damage to both vessels and docking infrastructure.
► Robust Construction: Built with durable rubber materials, designed for long-term performance in challenging marine environments.
► Reliable Quality Assurance: Undergoes rigorous testing and third-party certification, ensuring the highest quality and reliability.
► Competitive Pricing: Offers exceptional value by combining advanced technology with cost-effective pricing as a direct manufacturer.
Applications
● Port and Terminal Mooring
● Ship-to-Ship (STS) Transfer Operations
● Oil and Gas Platforms
● Heavy-Lift Vessel Docking
Dimensions
| Diameter x Length [mm] |
50kPa Performance Data |
80kPa Performance Data |
||||
| Hull Pressure at GEA / kN / m2 |
Reaction Force / kN |
Energy Absorption / kNm |
Hull Pressure at GEA / kN / m2 |
Reaction Force / kN |
Energy Absorption / kNm |
|
| 1000 x 1500 | 122 | 182 | 32 | 160 | 239 | 45 |
| 1000 x 2000 | 132 | 257 | 45 | 174 | 338 | 63 |
| 1200 x 2000 | 126 | 297 | 63 | 166 | 390 | 88 |
| 1350 x 2500 | 130 | 427 | 102 | 170 | 561 | 142 |
| 1500 x 3000 | 153 | 579 | 153 | 174 | 761 | 214 |
| 1700 x 3000 | 128 | 639 | 191 | 168 | 840 | 267 |
| 2000 x 3500 | 128 | 875 | 308 | 168 | 1150 | 430 |
| 2500 x 4000 | 137 | 1381 | 663 | 180 | 1815 | 925 |
| 2500 x 5500 | 148 | 2019 | 943 | 195 | 2653 | 1317 |
| 3300 x 4500 | 130 | 1884 | 1175 | 171 | 2476 | 1640 |
| 3300 x 6500 | 146 | 3015 | 1814 | 191 | 3961 | 2532 |
| 3300 x 10600 | 158 | 5257 | 3067 | 208 | 6907 | 4281 |
| 4500 x 9000 | 146 | 5747 | 4752 | 192 | 7551 | 6633 |
| * Other size can be produced follow client's requirements. | ||||||

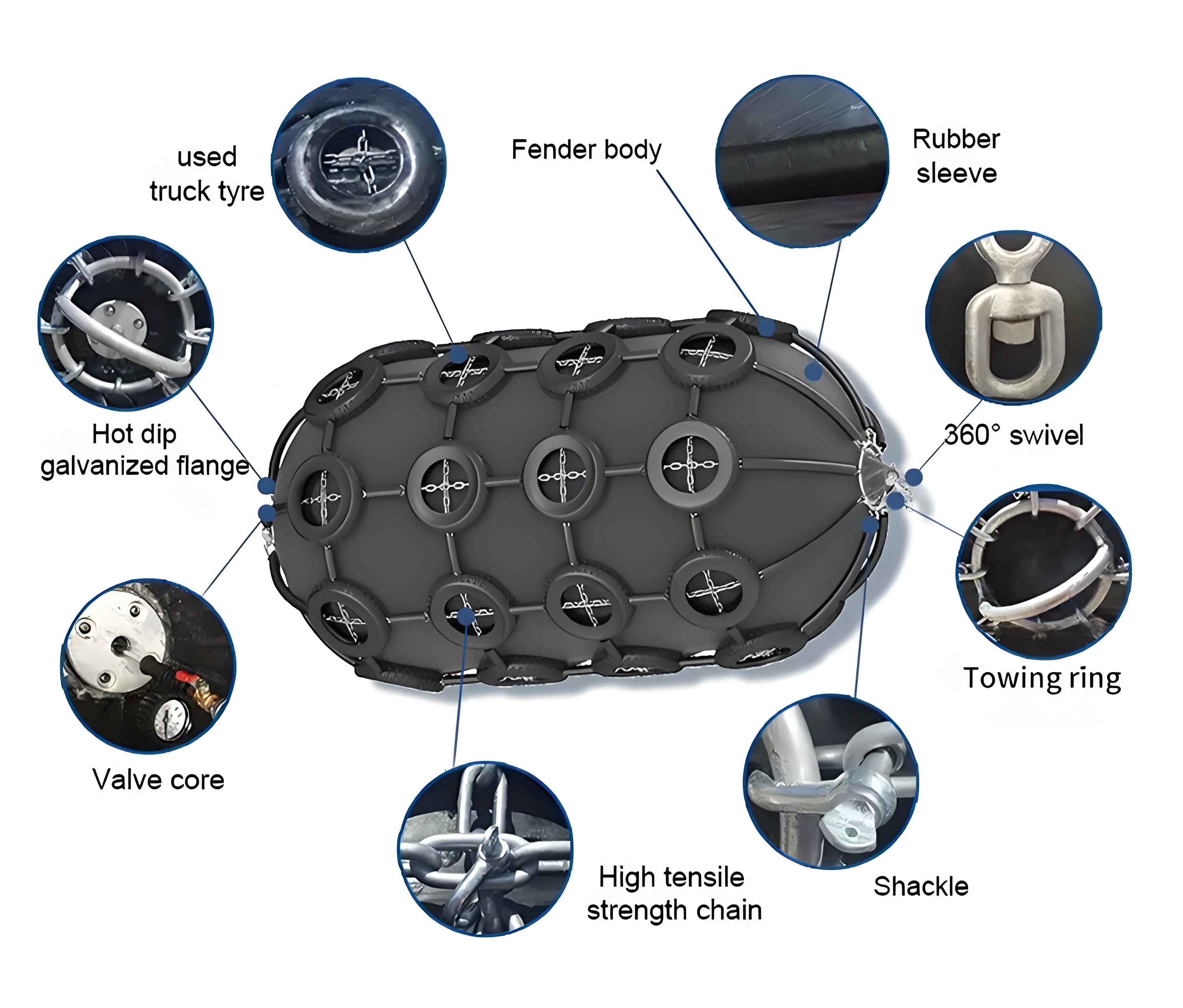

Fender Assembly
Details Images
