Lambda Type Fender
Hongruntong Lambda Type Fenders – Engineered for marine infrastructure protection, these PIANC/ISO 18292-certified rubber fenders deliver ultra-high energy absorption (65% efficiency) with low reaction forces, ideal for LNG terminals, offshore wind farms, and high-traffic ro-ro ports. Featuring saltwater-resistant SBR/NBR hybrid rubber and modular bolt-on design, they withstand harsh tidal zones, ice abrasion, and extreme temperatures (-30°C to +60°C).
Features
► SBR/NBR Hybrid Rubber Compound
► Extreme Temperature Resilience
► Modular Bolt-On System
► OCIMF Mooring Compliance
► 20+ Year Fatigue Life
Applications
● LNG Carrier Berthing at Cryogenic Terminals
● Dynamic Mooring of Floating Offshore Wind Platforms
● Rapid-Deployment Military Ro-Ro Terminals
● Arctic Icebreaker Port Infrastructure

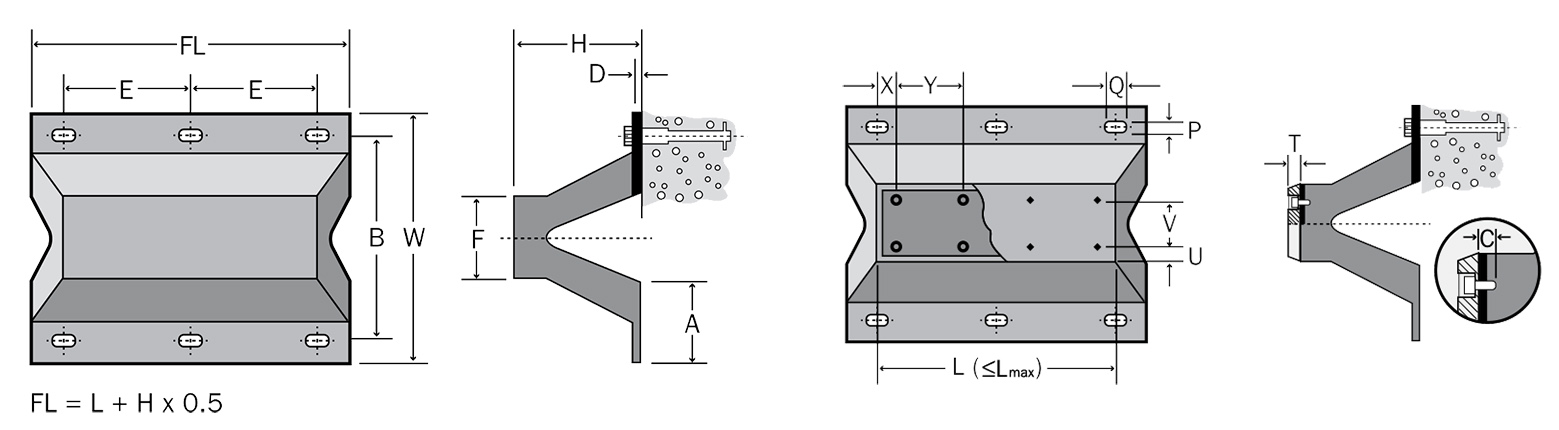

Dimensions
|
FENDER BODY DIMENSIONS |
|||||||
|
H |
A |
B |
W |
F |
D |
P |
Q |
|
HM-LT 150 |
98 |
240 |
300 |
112 |
24 |
24 |
48 |
|
HM-LT 200 |
130 |
320 |
400 |
150 |
24 |
28 |
56 |
|
HM-LT 250 |
162.5 |
410 |
500 |
187.5 |
25 |
28 |
56 |
|
HM-LT 300 |
195 |
480 |
600 |
225 |
30 |
34 |
68 |
|
HM-LT 400 |
260 |
670 |
800 |
300 |
35 |
40 |
80 |
|
HM-LT 500 |
325 |
840 |
1000 |
375 |
40 |
46 |
92 |
|
HM-LT 600 |
390 |
1010 |
1200 |
450 |
45 |
52 |
104 |
|
HM-LT 800 |
520 |
1340 |
1600 |
600 |
50 |
60 |
120 |
|
HM-LT 1000 |
650 |
1680 |
2000 |
750 |
60 |
60 |
120 |
|
FOOT BOLTING DIMENSIONS |
|||||||||||
|
Model |
Anchors / |
L = 1000 |
L = 1500 |
L = 2000 |
L = 2500 |
L = 3000 |
|||||
|
E |
Qty |
E |
Qty |
E |
Qty |
E |
Qty |
E |
Qty |
||
|
HM-LT 150 |
M20 |
855 |
4 |
675 |
6 |
620 |
8 |
750 |
8 |
715 |
10 |
|
HM-LT 200 |
M24 |
860 |
4 |
680 |
6 |
620 |
8 |
760 |
8 |
715 |
10 |
|
HM-LT 250 |
M24 |
865 |
4 |
680 |
6 |
620 |
8 |
780 |
8 |
715 |
10 |
|
HM-LT 300 |
M30 |
870 |
4 |
685 |
6 |
625 |
8 |
790 |
8 |
715 |
10 |
|
HM-LT 400 |
M36 |
900 |
4 |
700 |
6 |
635 |
8 |
800 |
8 |
725 |
10 |
|
HM-LT 500 |
M42 |
930 |
4 |
715 |
6 |
645 |
8 |
810 |
8 |
730 |
10 |
|
HM-LT 600 |
M48 |
930 |
4 |
725 |
6 |
650 |
8 |
820 |
8 |
740 |
10 |
|
HM-LT 800 |
M56 |
930 |
4 |
725 |
6 |
650 |
8 |
820 |
8 |
760 |
10 |
|
HM-LT 1000 |
M56 |
930 |
4 |
725 |
6 |
650 |
8 |
865 |
8 |
775 |
10 |
|
HEAD BOLTING DIMENSIONS |
|||||||||||
|
Model |
U |
V |
C |
UHMW-PE Face Pads |
Steel Frame |
||||||
|
X |
Y |
T |
Bolt Size |
X |
Y |
||||||
|
HM-LT 150 |
52.5 |
0 |
20–30 |
60–70 |
330–410 |
30 |
M12 |
70–90 |
250–300 |
||
|
HM-LT 200 |
30 |
80 |
30–45 |
60–70 |
330–410 |
30 |
M16 |
70–90 |
250–300 |
||
|
HM-LT 250 |
30 |
115 |
30–45 |
70–85 |
330–415 |
30 |
M16 |
70–90 |
250–300 |
||
|
HM-LT 300 |
30 |
150 |
30–45 |
70–85 |
330–415 |
40 |
M16 |
70–90 |
250–300 |
||
|
HM-LT 400 |
40 |
200 |
30–50 |
70–85 |
330–415 |
40 |
M20 |
70–90 |
250–300 |
||
|
HM-LT 500 |
40 |
270 |
30–50 |
70–85 |
330–415 |
50 |
M20 |
70–90 |
250–300 |
||
|
HM-LT 600 |
40 |
340 |
35–60 |
70–85 |
330–415 |
50 |
M24 |
70–90 |
250–300 |
||
|
HM-LT 800 |
40 |
480 |
50–70 |
70–85 |
330–415 |
60 |
M30 |
70–90 |
250–300 |
||
|
HM-LT 1000 |
50 |
600 |
50–70 |
70–85 |
330–415 |
60 |
M30 |
70–90 |
250–300 |
||

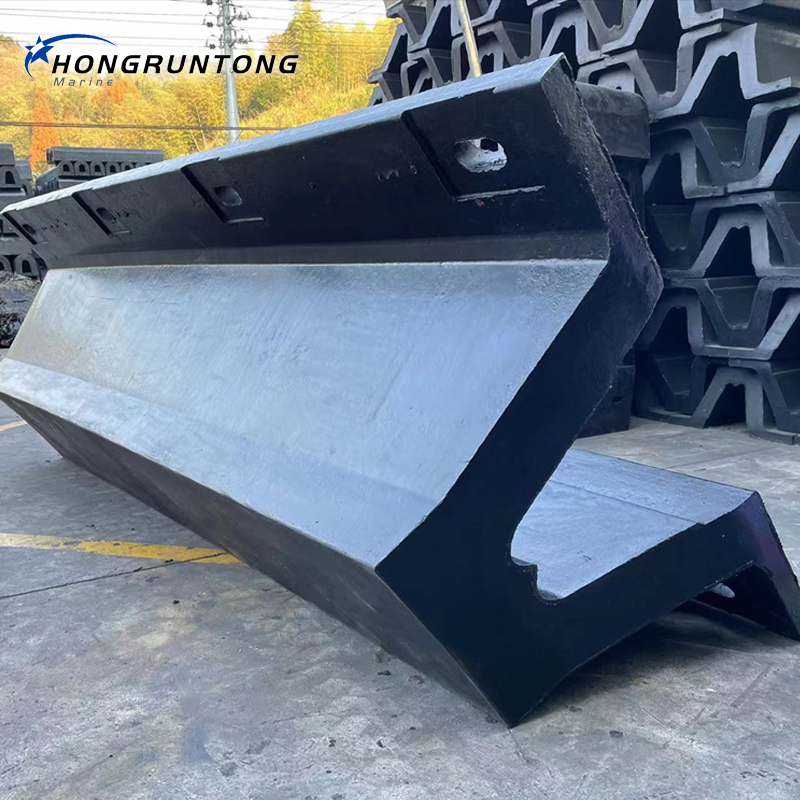

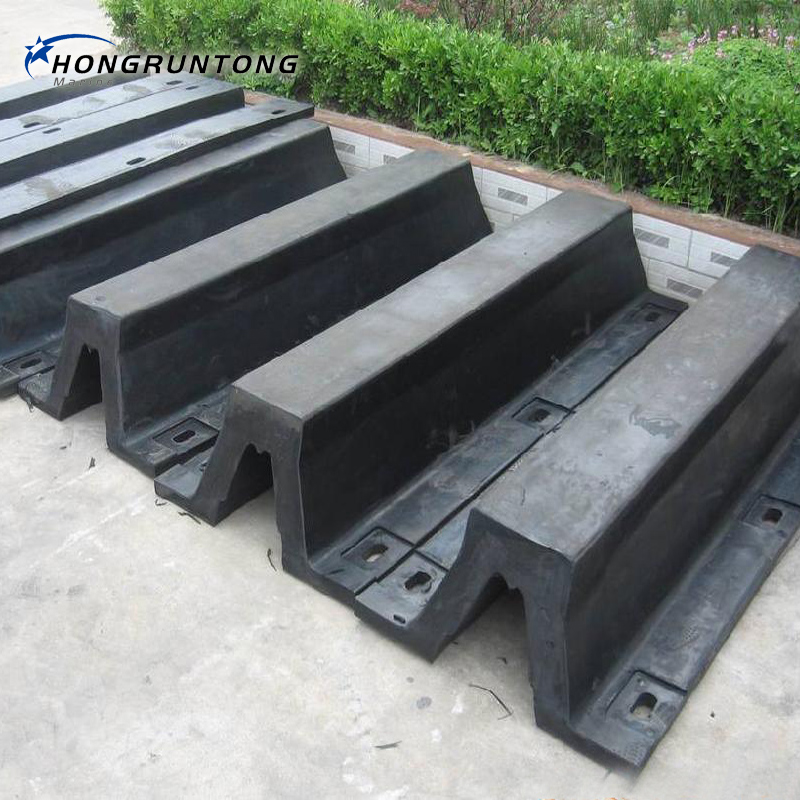

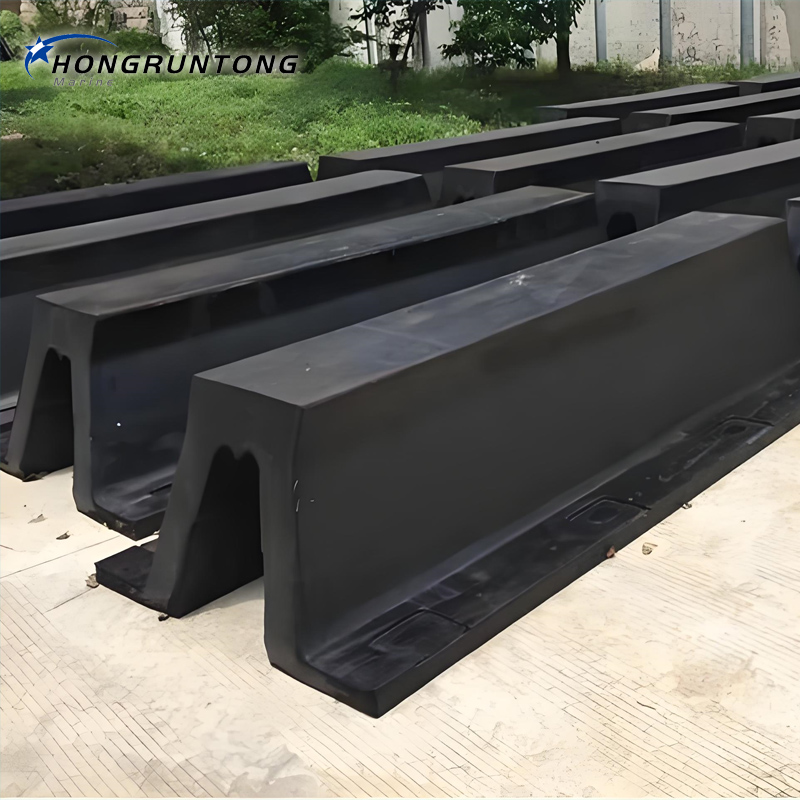

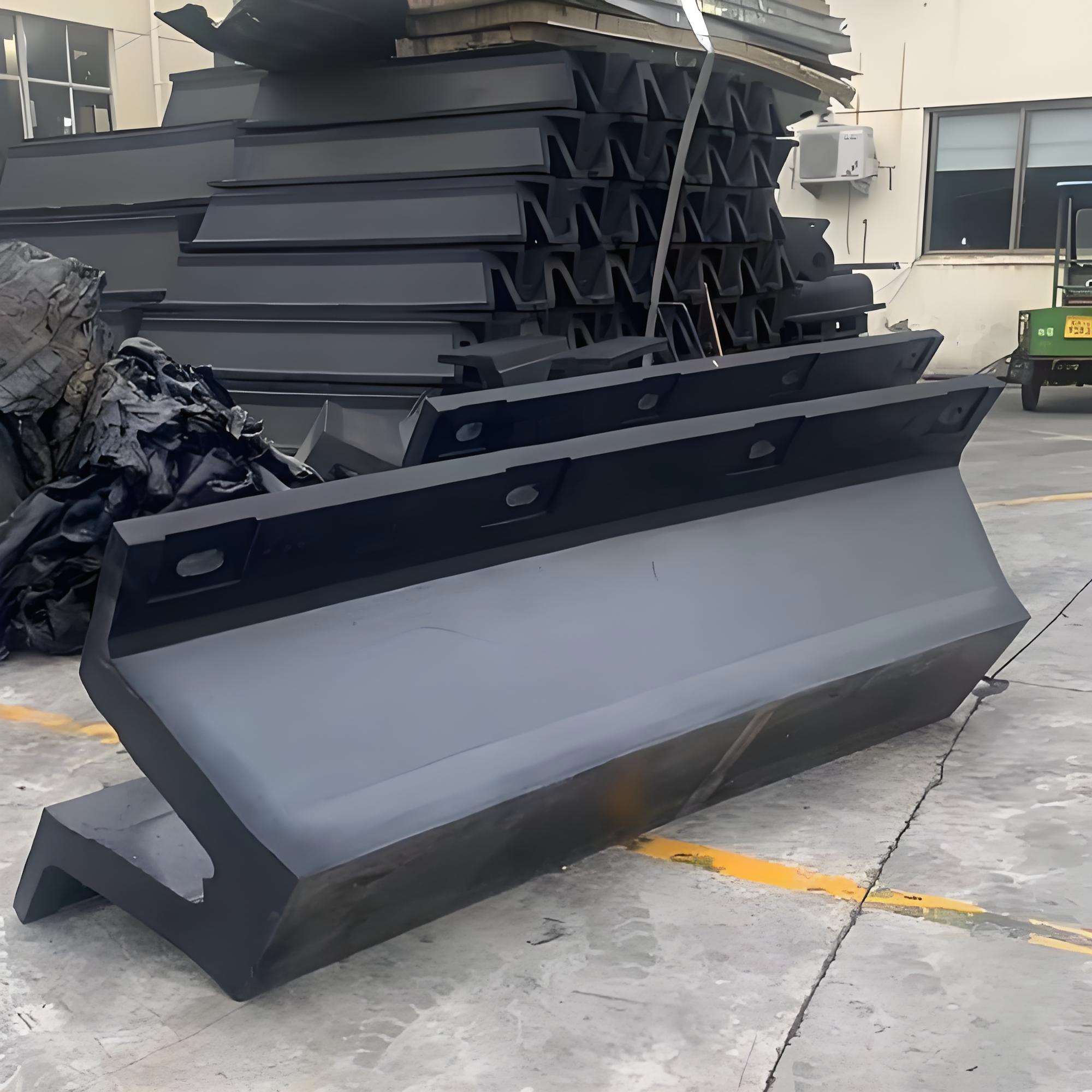

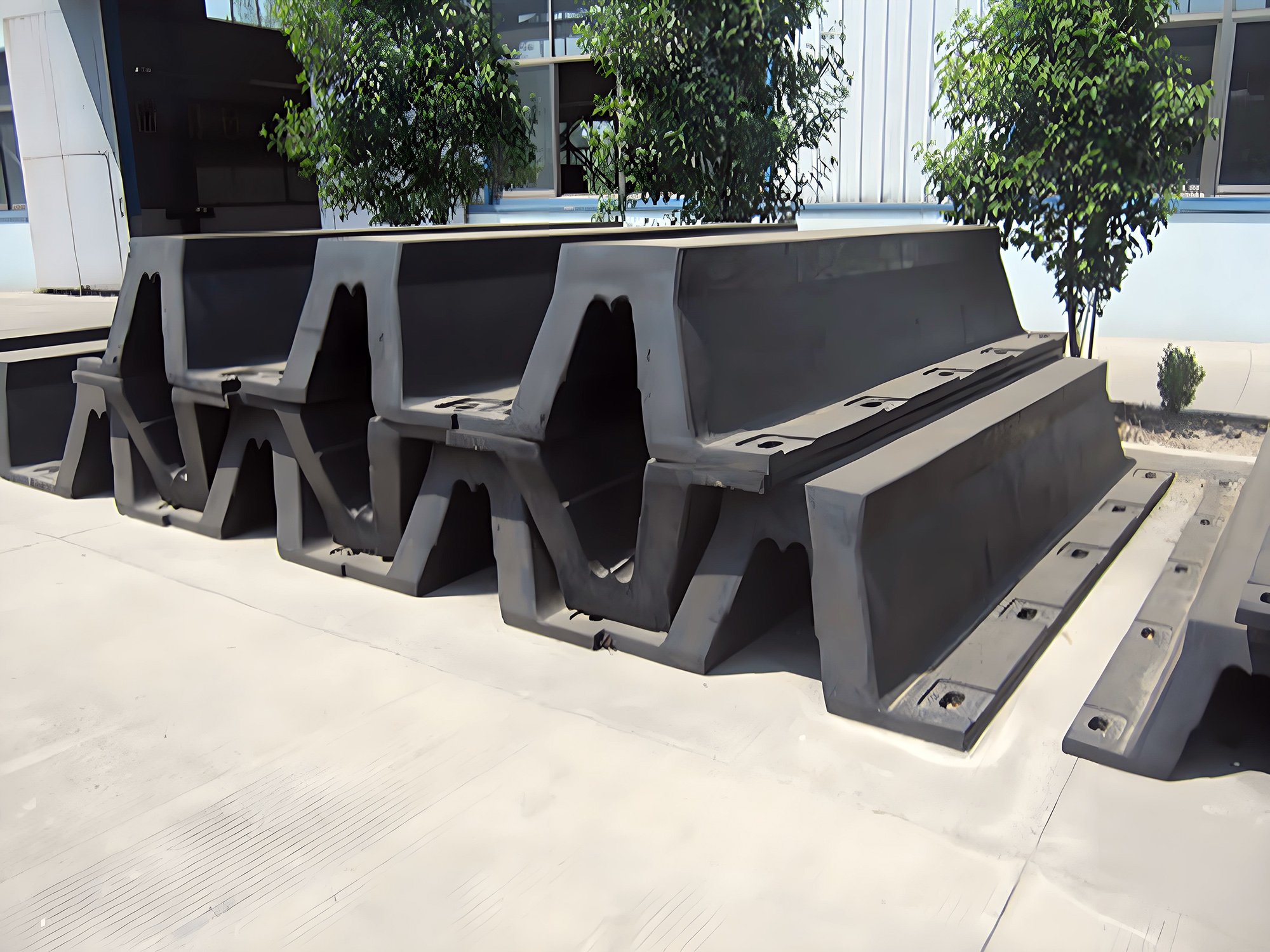

Details Photos
