Foam Filled Fenders
Hongruntong Marine Foam Fenders are foam-filled marine fenders engineered for superior energy absorption, long service life and minimal maintenance. Ideal for berth protection, ship-to-ship operations and offshore installations, our foam boat fenders offer reliable docking protection and excellent resistance to water ingress and abrasion.
Our foam-filled marine fenders combine a closed-cell foam core with a durable, weather-resistant outer skin to provide constant buoyancy and predictable impact performance. Designed for commercial ports, naval and offshore applications, these foam boat fenders minimize hull and pier damage while reducing lifecycle costs.
Key Features
-
Closed-cell foam core — prevents water ingress and maintains buoyancy.
-
High energy absorption — stable compression characteristics under repeated impacts.
-
Tough outer skin — UV, salt-spray and abrasion resistant for extended service life.
-
Self-buoyant and easy to handle — quick deployment and low operational complexity.
-
Low maintenance — no inflation required, long service intervals.
-
Customizable — densities, sizes and mounting fittings available to suit project requirements.
Benefits to Your Operation
-
Protects vessels and berth structures, reducing repair and downtime costs.
-
Predictable performance lowers engineering uncertainty in berthing design.
-
Cost-effective total ownership compared with frequent replacement or repair.
-
Suitable for harsh marine environments, ensuring reliable long-term operation.
Typical Applications
-
Quay and wharf fendering
-
Ship-to-ship (STS) transfer operations
-
Ferry and RO-RO ramps
-
Offshore platforms and service vessels
-
Emergency or temporary mooring solutions
Dimensions
| Fender Size D x L [mm] |
Low Capacity | Standard Capacity | High Capacity | |||
| Energy [kNm] |
Reaction [kN] |
Energy [kNm] |
Reaction [kN] |
Energy [kNm] |
Reaction [kN] |
|
| 700 x 1,500 | 20 | 78 | 29 | 133 | 39 | 174 |
| 1,000 x 1,500 | 28 | 128 | 49 | 174 | 62 | 227 |
| 1,000 x 2,000 | 41 | 147 | 68 | 254 | 88 | 329 |
| 1,200 x 2,000 | 54 | 167 | 91 | 280 | 118 | 365 |
| 1,350 x 2,500 | 91 | 245 | 152 | 418 | 198 | 543 |
| 1,500 x 3,000 | 140 | 343 | 232 | 578 | 301 | 752 |
| 1,700 x 3,000 | 170 | 369 | 282 | 619 | 366 | 805 |
| 2,000 x 3,500 | 273 | 507 | 455 | 845 | 592 | 1099 |
| 2,000 x 4,000 | 324 | 605 | 540 | 1006 | 701 | 1308 |
| 2,000 x 4,500 | 374 | 699 | 624 | 1161 | 811 | 1508 |
| 2,500 x 4,000 | 455 | 716 | 802 | 1197 | 1042 | 1557 |
| 2,500 x 5,500 | 720 | 1072 | 1201 | 1789 | 1562 | 2327 |
| 3,000 x 4,900 | 859 | 1063 | 1431 | 1508 | 1861 | 2309 |
| 3,000 x 6,000 | 1111 | 1379 | 1852 | 2296 | 2408 | 2986 |
| 3,300 x 4,500 | 900 | 1015 | 1499 | 1691 | 1950 | 2198 |
| 3,300 x 6,500 | 1454 | 1638 | 2423 | 2732 | 3150 | 3551 |
*Other non-standard sizes can be customized according to requirements without mold cost.

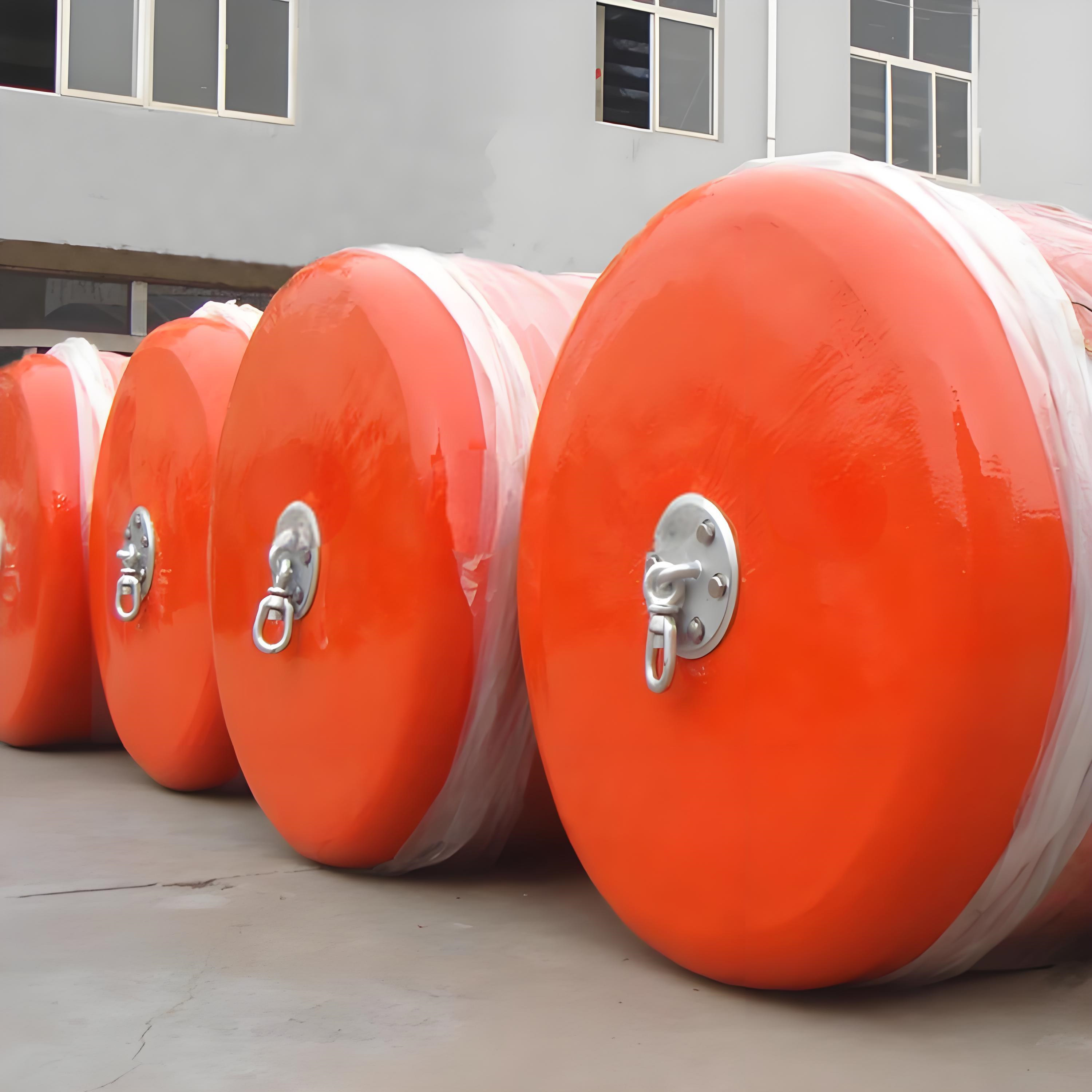

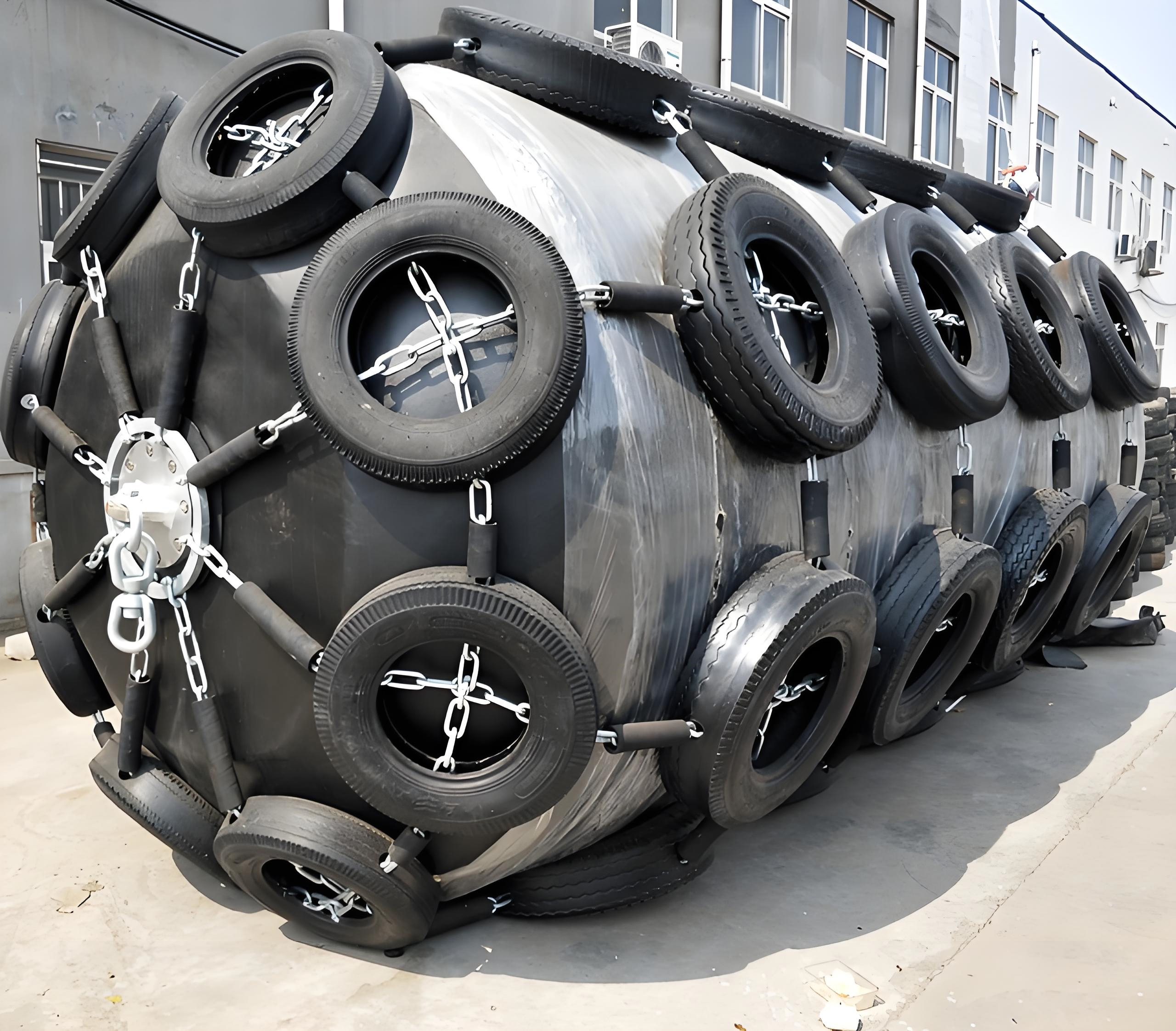

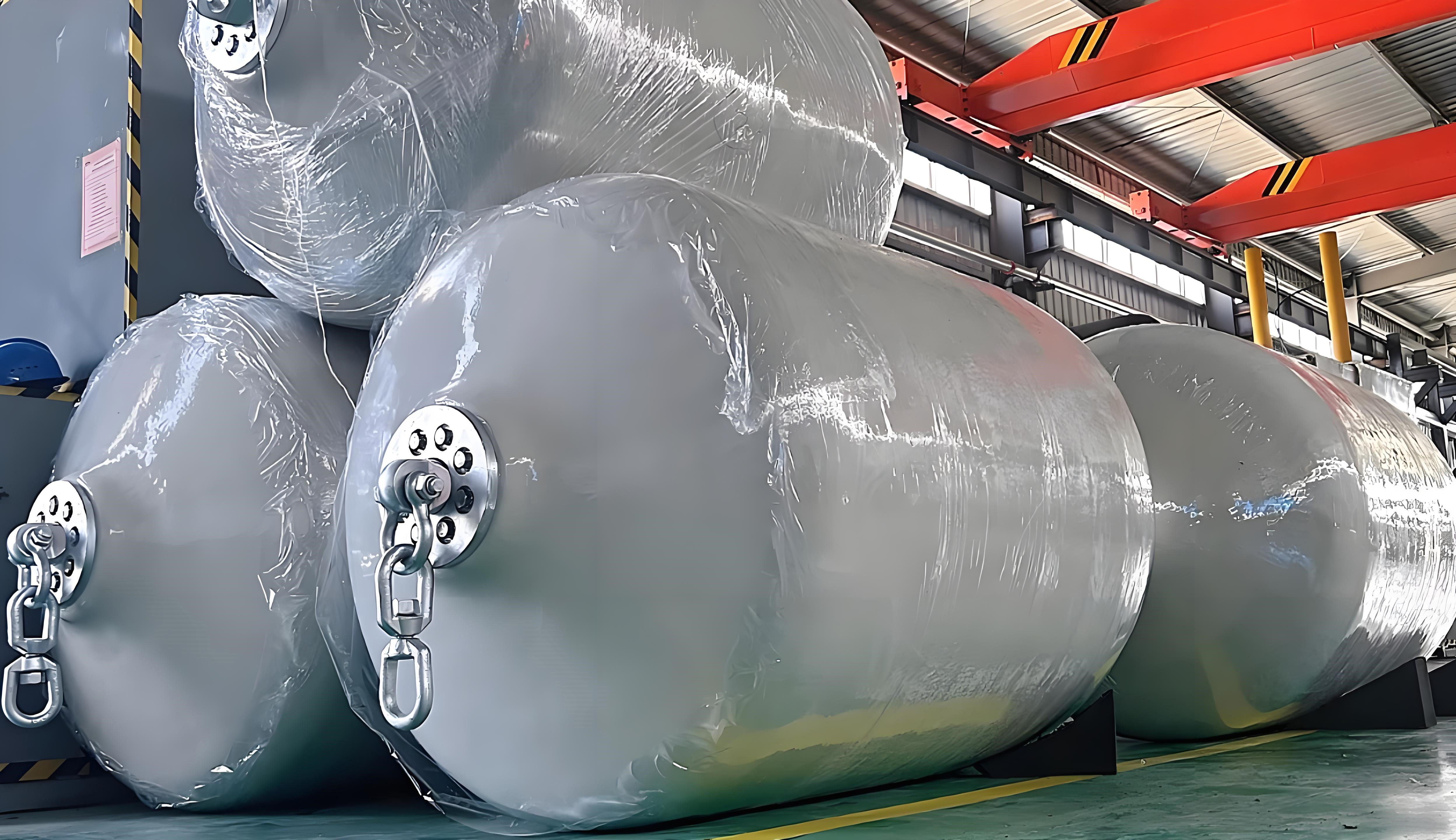

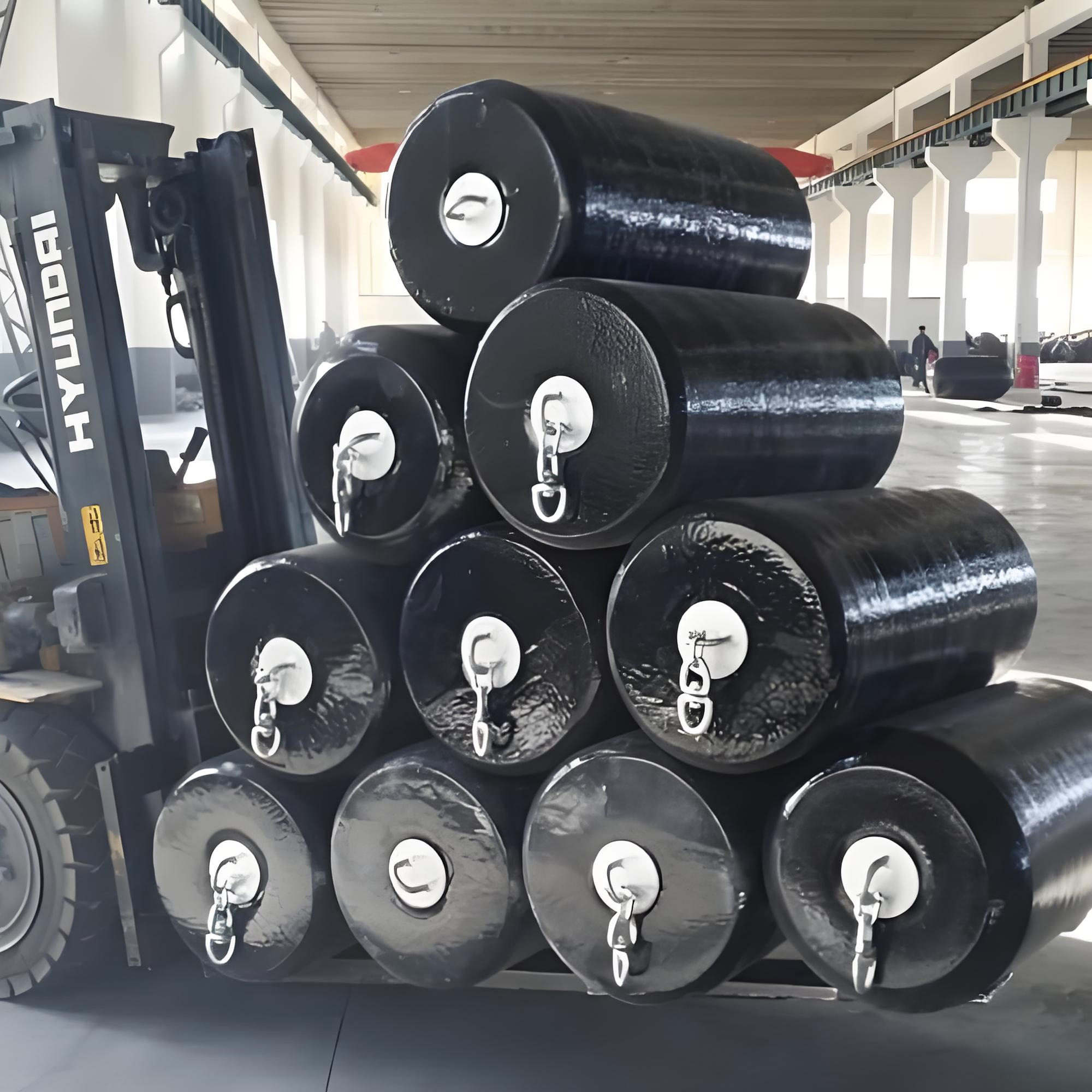

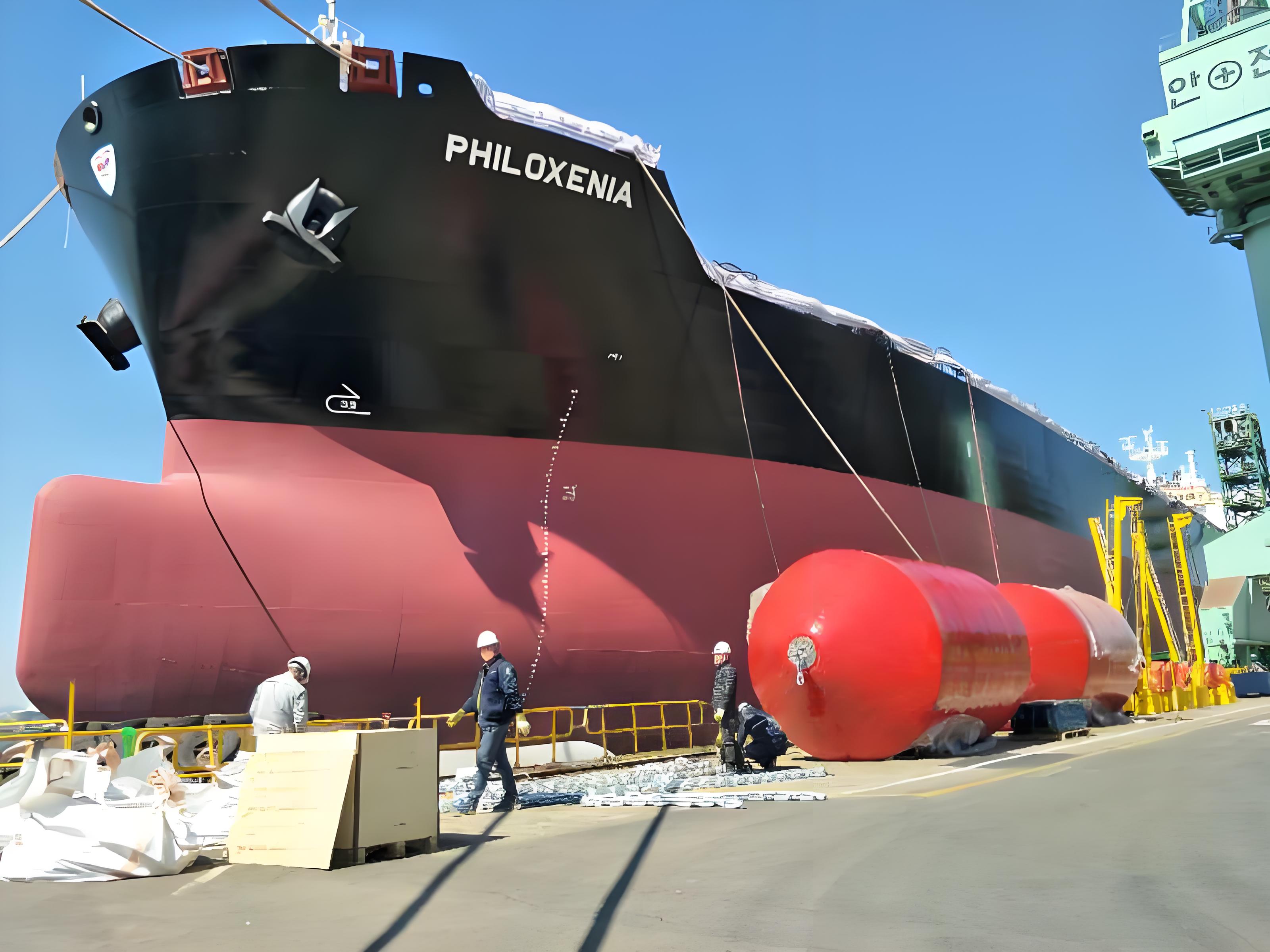

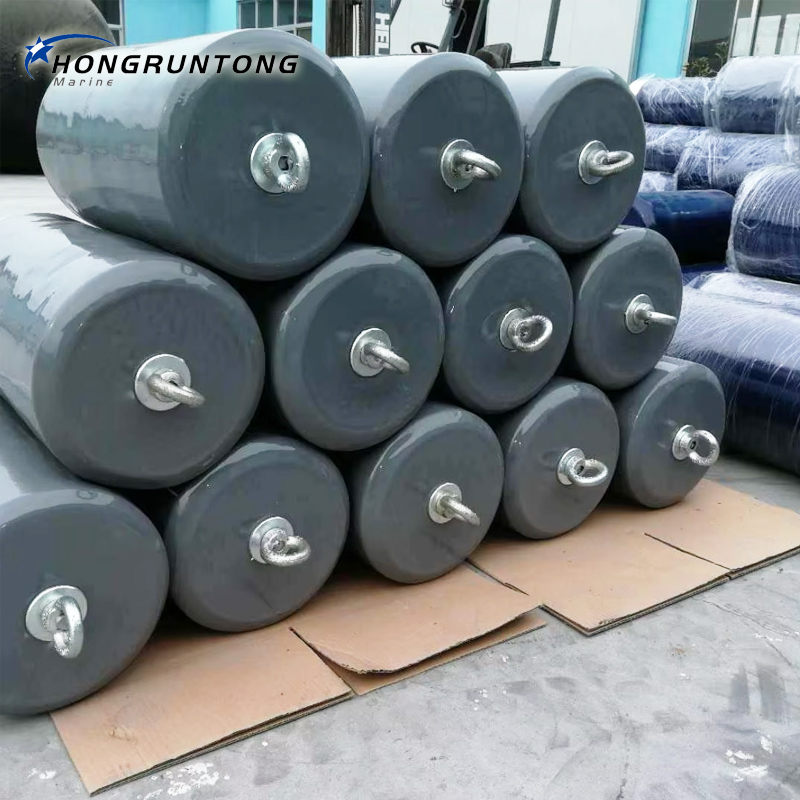

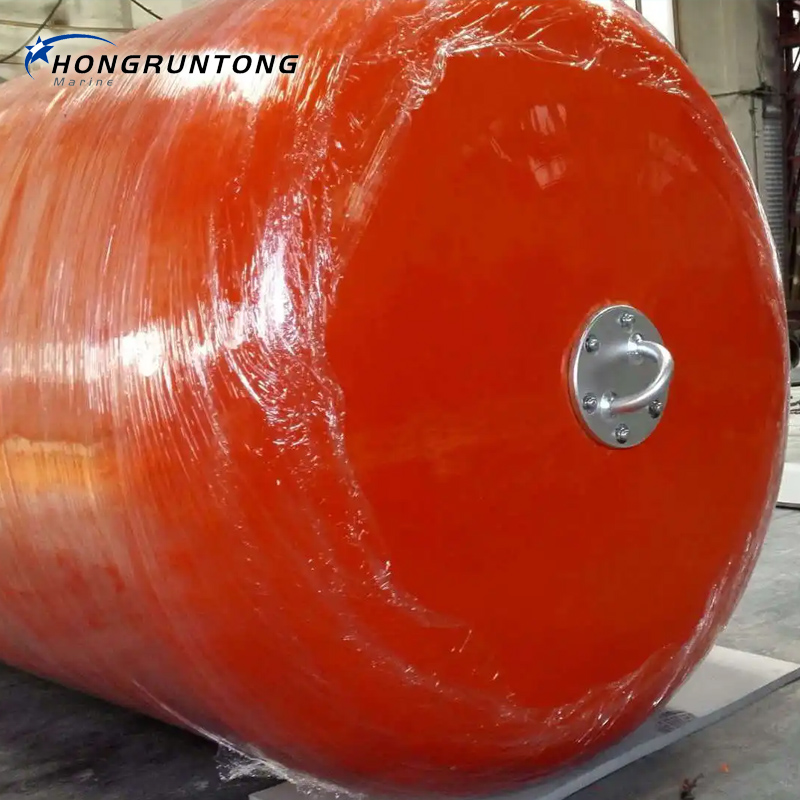

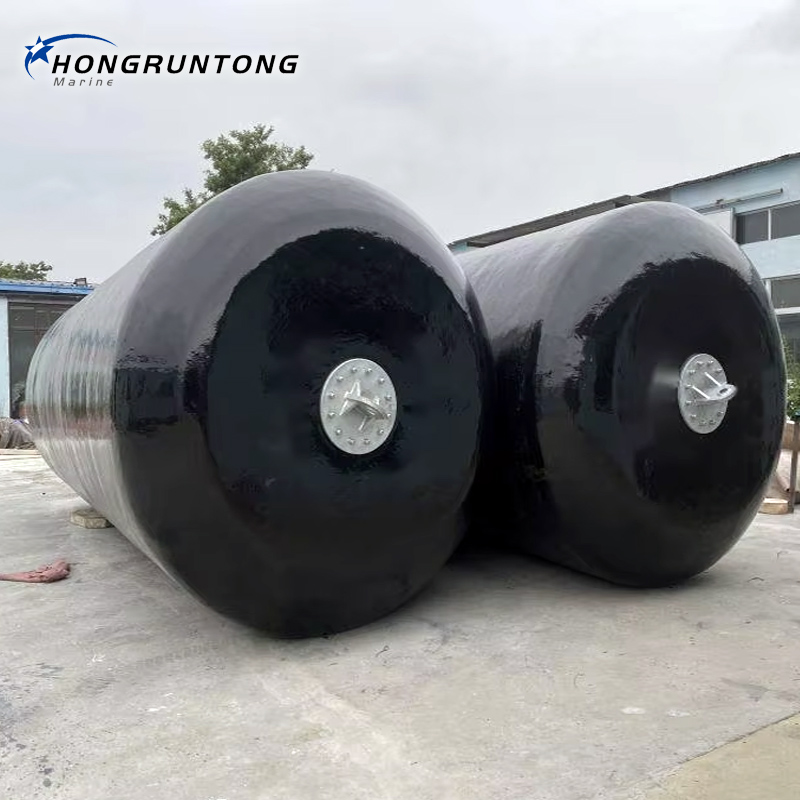

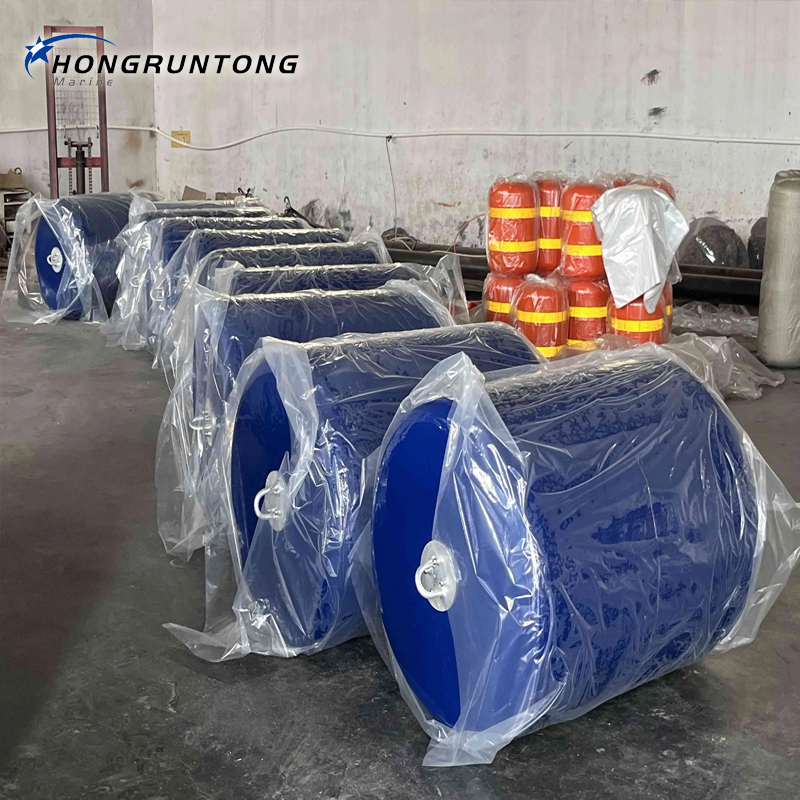

Detailed Photos
Technical Data
Standard Foam Material Properties
| Test Item | Test Method | Required Value |
| Density | ASTM D-3575 Suffix W | 62 kg / cu m (+/-10%) |
| Tensile strength | ASTM D-3575 Suffix T | 289 kPa Min. |
| Elongation | ASTM D-3575 Suffix T | 95 % Min. |
| Tear resistance | ASTM D-3575 Suffix G | 2.2 kN/m Min. |
| Compressive strength | ASTM D-3575 Suffix D | |
| 10% deflection | 27 kPa Min. | |
| 25% deflection | 48 kPa Min. | |
| 40% deflection | 77 kPa Min. | |
| 50% deflection | 110 kPa Min. | |
| Compression set average | ASTM D-3575 Suffix B | 17.2% |
| Thermal stability | ASTM D-3575 Suffix S | <0.5 % change (24 hrs at 70 deg C) |
| Water absorption | ASTM D-3575 Suffix L | <0.34 kg / sq m (skived) |
| Flammability | FMVSS302 | Pass |
| PPP-C-1752B | -54 deg c to 99 deg C |
Polyurethane Elastomer Skin Material Property Requirements
| Test Item | Test Method | Required Value |
| Shore A durometer hardness | ASTM D-2240 | 75-95 |
| Tensile strength | ASTM D-412 | 13.8 MPa Min. |
| Elongation | ASTM D-412 | 300% Min. |
| Tear strength | ASTM D-624 | 32.4 kN/m Min. |
| Flex life (ross) | ASTM D-1052 | 100,000 cycles Min. break |
| Abrasion resistance (NBS) | ASTM D-1630 | 100 |
Nylon Filament Reinforcement Material Property Requirements
| Test Item | Test Method | Required Value |
| Nylon cord weight | ASTM D-885 | 0.280 g/m avg. |
| Breaking strength | ASTM D-885 | 231 N avg. |
| Elongation (ultimate) | ASTM D-885 | 16% avg. |
Nylon Filament Reinforced Elastomer Skin Material Property Requirements
| Test Item | Test Method | Required Value |
| Tensile strength | ASTM D-412 | 31.0 Mpa Min. |
| Elongation | ASTM D-412 | 16% Min. |
| Tear strength | ASTM D-624 | 78.8 kN/m Min. |
Why Choose Hongruntong Foam Fenders?
Choosing Hongruntong Marine’s Foam Fenders means selecting a safer, more reliable and cost-effective berthing protection solution for your vessels and terminals.
-
Proven Protection Performance: Closed-cell foam core offers stable compression and predictable energy absorption to minimize hull and berth damage. Suitable for quays, STS operations, ferries and offshore platforms.
-
Lower Total Cost of Ownership: Maintenance-free operation (no inflation required) and long service life reduce lifecycle expenses and downtime.
-
Highly Customizable: Density, thickness and mounting options can be tailored to meet required EA (energy absorption), reaction force and project specifications.
-
Easy Deployment & Handling: Self-buoyant, lightweight designs allow fast installation and flexible use for temporary or permanent applications.
-
Global Supply & Project Experience: We support sample inspection, small orders and large project deliveries with on-time logistics and project coordination.
Quality & Service
We treat quality and service as the foundation for long-term partnerships.
Quality Assurance
-
Traceable Raw Materials: We select verified closed-cell foams and weather-resistant outer skins; all incoming materials undergo strict inspection.
-
Controlled Manufacturing: Quality checkpoints during production (material checks, molding control, adhesion & dimensional tests); each unit is visually and functionally inspected before shipment.
-
Third-Party Testing Available: On request we can provide independent test reports (compression set, energy absorption, salt spray, aging tests) to meet client or class society requirements.
-
Engineering Support: We provide EA, maximum deflection and reaction force calculations to support proper selection and berth design.
Service Commitment
-
Technical Support: Our engineers offer selection advice, installation guidance and on-site assistance to ensure the fenders perform as designed.
-
Flexible Customization & Delivery: Color, fittings and mounting options available; production schedules can be arranged to match project timelines.
-
After-sales & Spare Parts: Warranty coverage and responsive after-sales service; common spare parts can be supplied to minimize downtime.
-
Responsive Communication: Fast replies from inquiry to proposal — we follow up proactively to resolve issues and keep projects on track.
