Cell Rubber Fenders
Hongruntong Marine specializes in manufacturing high-performance cell rubber fender systems, designed to provide superior protection for marine structures and vessels. Our marine cell fender products feature advanced cell fender type rubber technology, offering exceptional energy absorption and impact resistance. Engineered to meet international standards including SCK CSS rubber cell fender specifications, these robust cell fenders deliver reliable performance in the most demanding marine environments. The unique cellular structure ensures maximum energy dissipation with minimal reaction force, making them ideal for ports, terminals, and offshore applications worldwide.
Features & Benefits
-
Superior Energy Absorption: Cellular design provides excellent energy dissipation with low reaction force
-
Exceptional Durability: Manufactured from high-grade rubber compounds resistant to abrasion, ozone, and saltwater corrosion
-

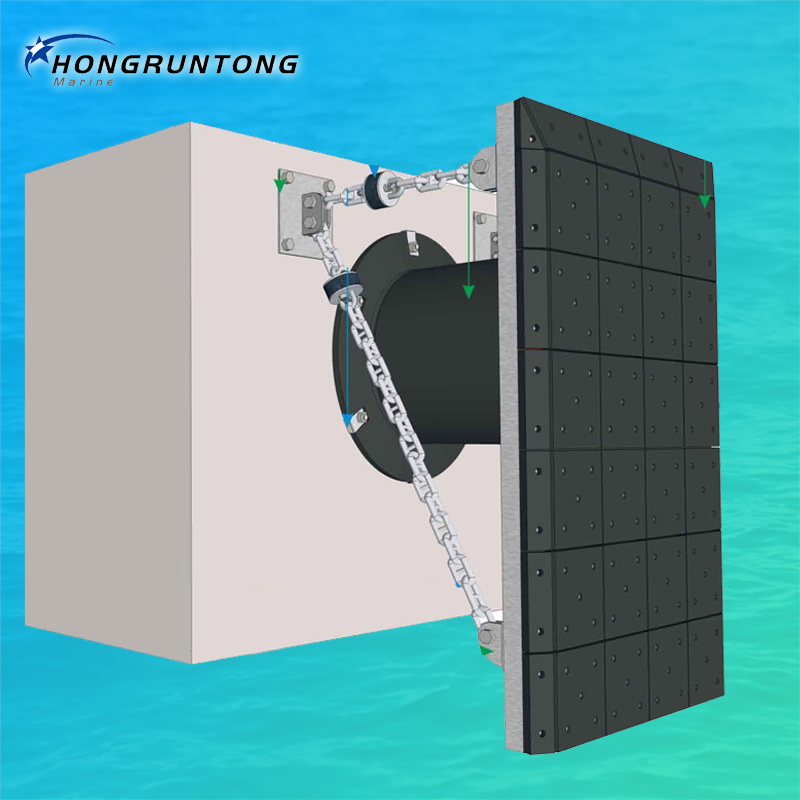

Easy Installation: Compatible with various mounting systems for quick and secure installation
-
Low Maintenance: Robust construction ensures long service life with minimal maintenance requirements
-
Cost-Effective: Delivers premium performance at competitive pricing
Applications
-

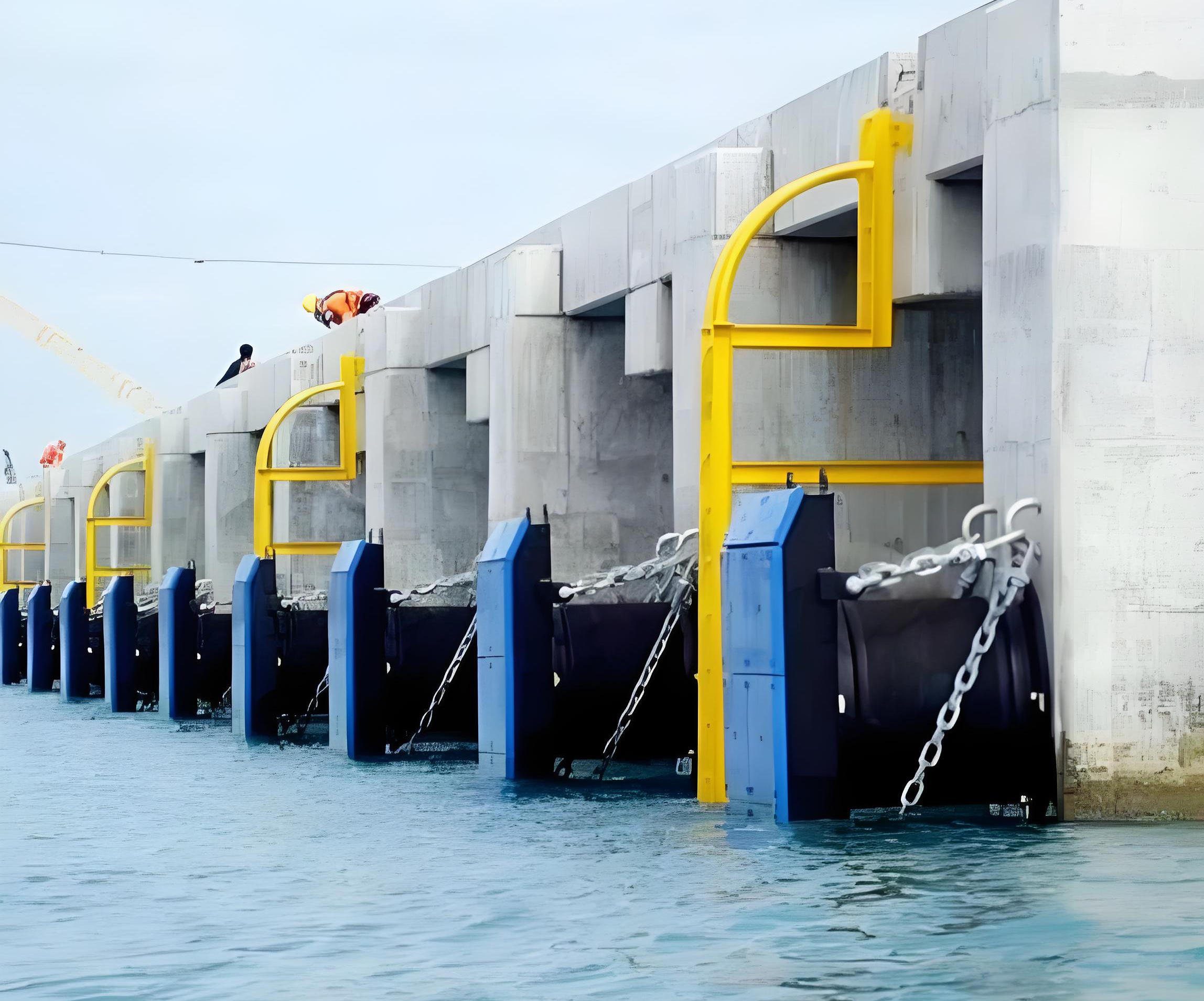

Ports and Harbors – For general cargo, container, and bulk terminals.
-
Offshore Platforms – Suitable for oil & gas and offshore marine facilities.
-
Ship-to-Ship Operations – Safe berthing for large tankers and LNG/LPG carriers.
-
Naval & Military Bases – Heavy-duty protection for navy vessels.

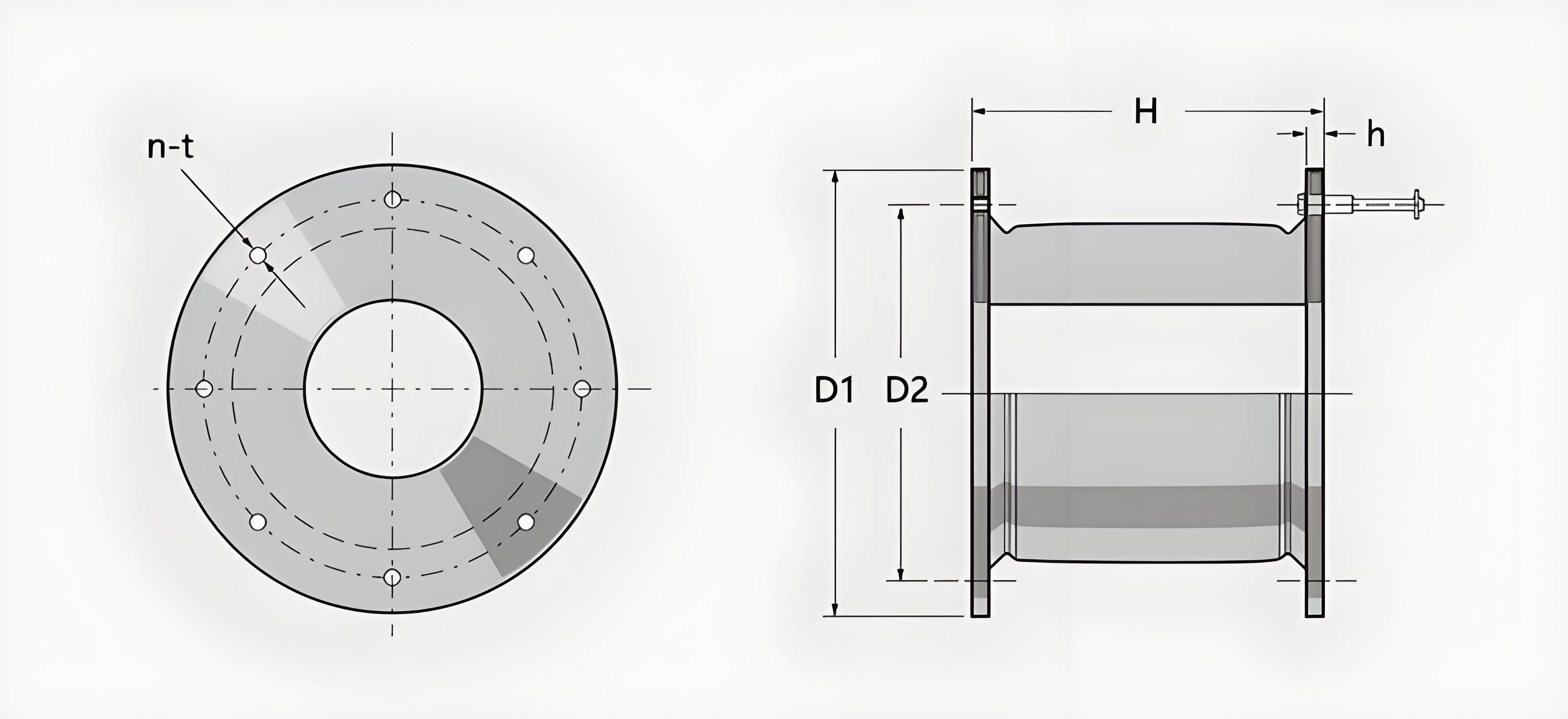

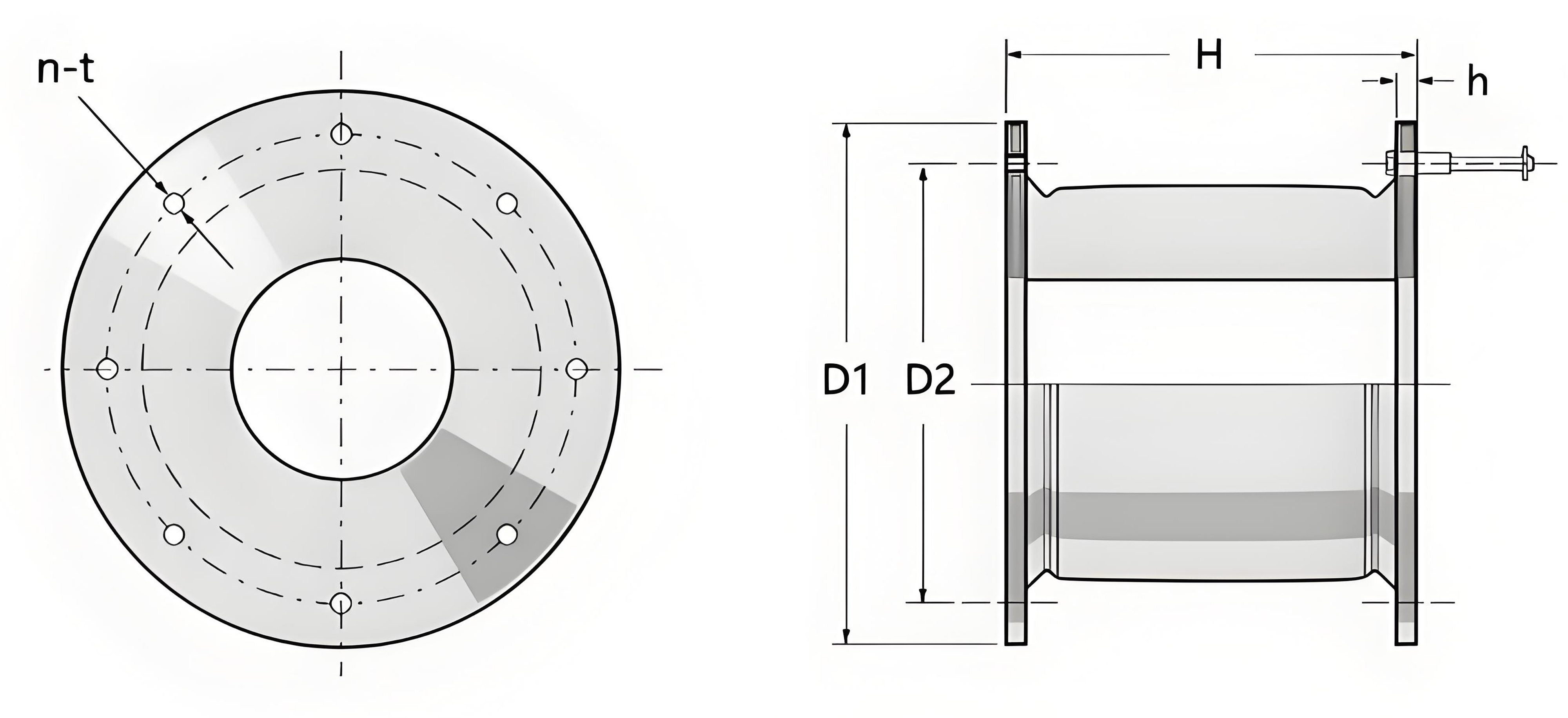

Dimensions
| Model | H | h | D1 | D2 | n-t |
| Cell | [mm] | [mm] | [mm] | [mm] | [mm] |
| HMCE-400H | 400 | 25 | 650 | 550 | 30 |
| HMCE-500H | 500 | 25 | 650 | 550 | 32 |
| HMCE-630H | 630 | 30 | 840 | 700 | 39 |
| HMCE-800H | 800 | 30 | 1050 | 900 | 40 |
| HMCE-1000H | 1000 | 35 | 1300 | 1100 | 47 |
| HMCE-1150H | 1150 | 40 | 1500 | 1300 | 50 |
| HMCE-1250H | 1250 | 45 | 1650 | 1450 | 53 |
| HMCE-1450H | 1450 | 47 | 1850 | 1650 | 61 |
| HMCE-1600H | 1600 | 50 | 2000 | 1800 | 61 |
| HMCE-1700H | 1700 | 55 | 2100 | 1900 | 66 |
| HMCE-2000H | 2000 | 55 | 2200 | 2000 | 74 |
| HMCE-2250H | 2250 | 60 | 2550 | 2300 | 74 |
| HMCE-2500H | 2500 | 70 | 2950 | 2700 | 90 |
| HMCE-3000H | 3000 | 75 | 3350 | 3150 | 90 |

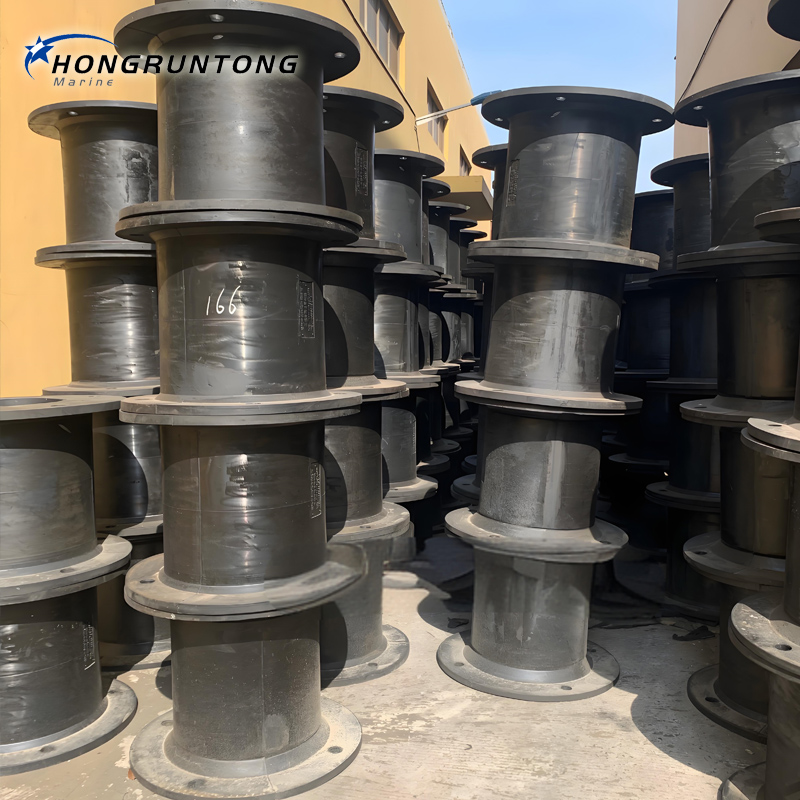

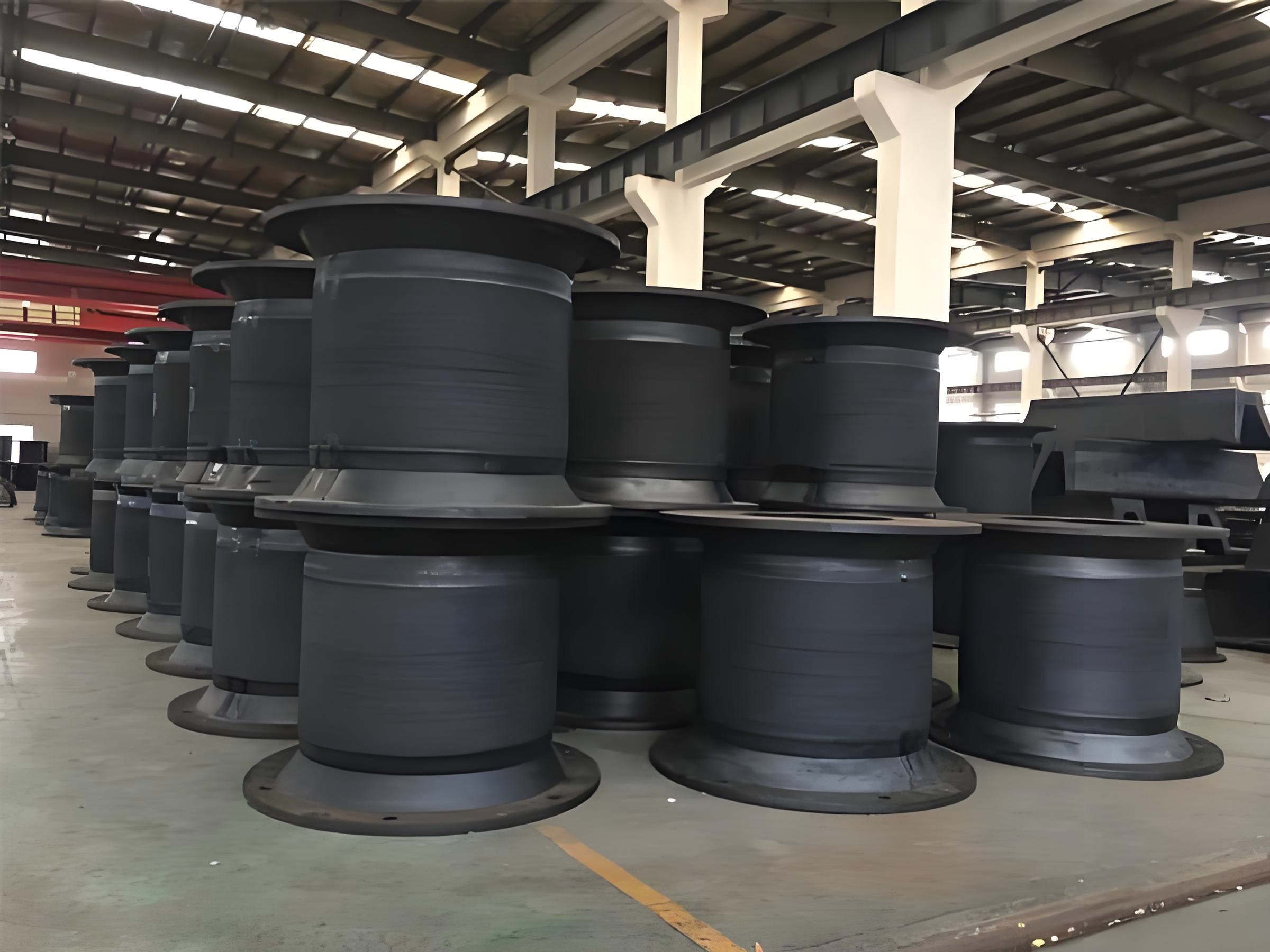

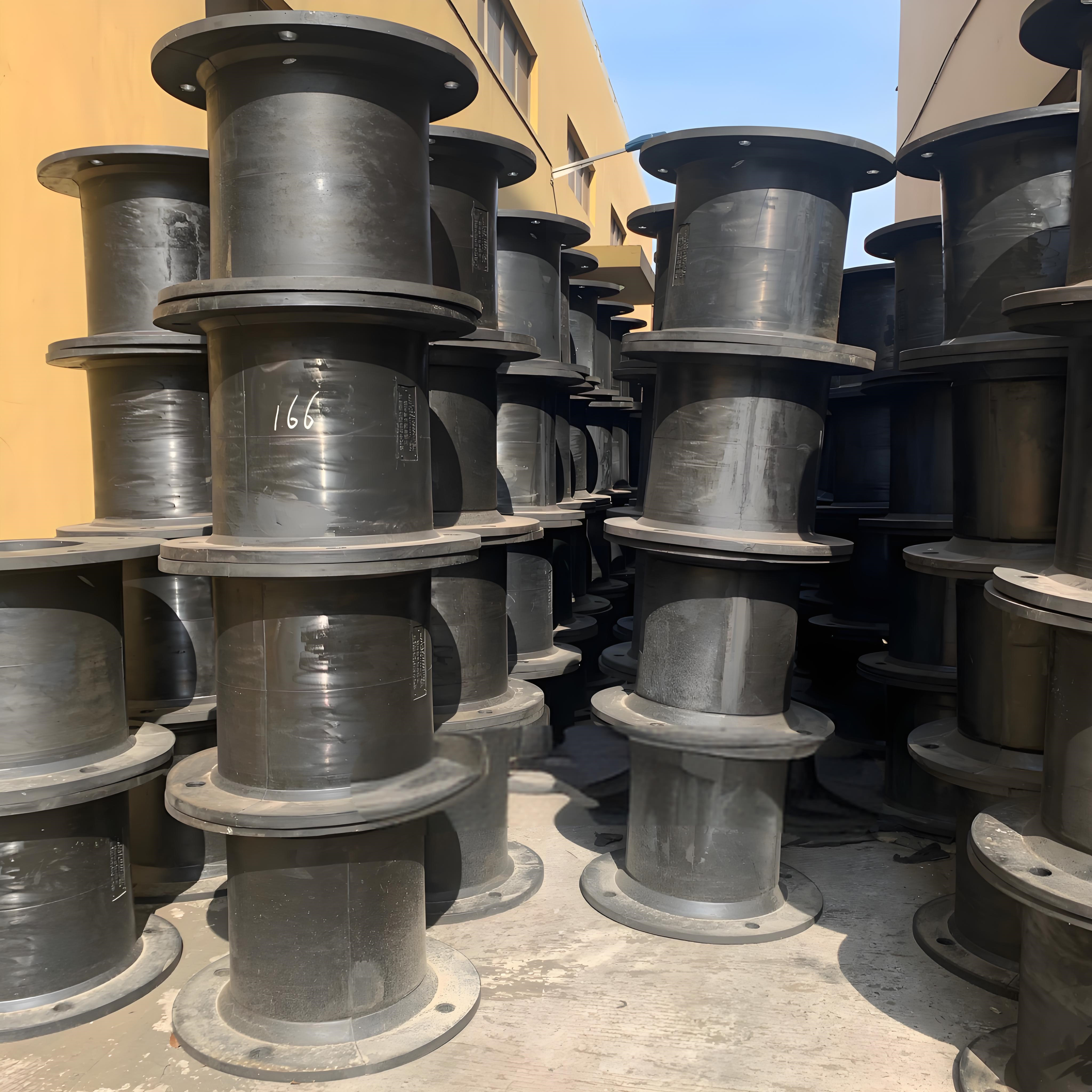

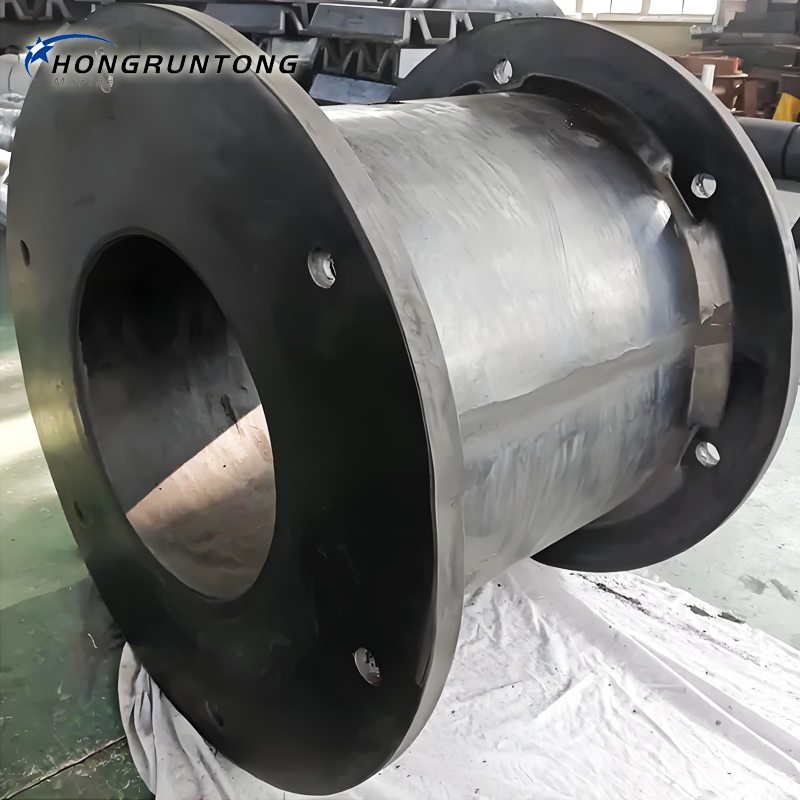

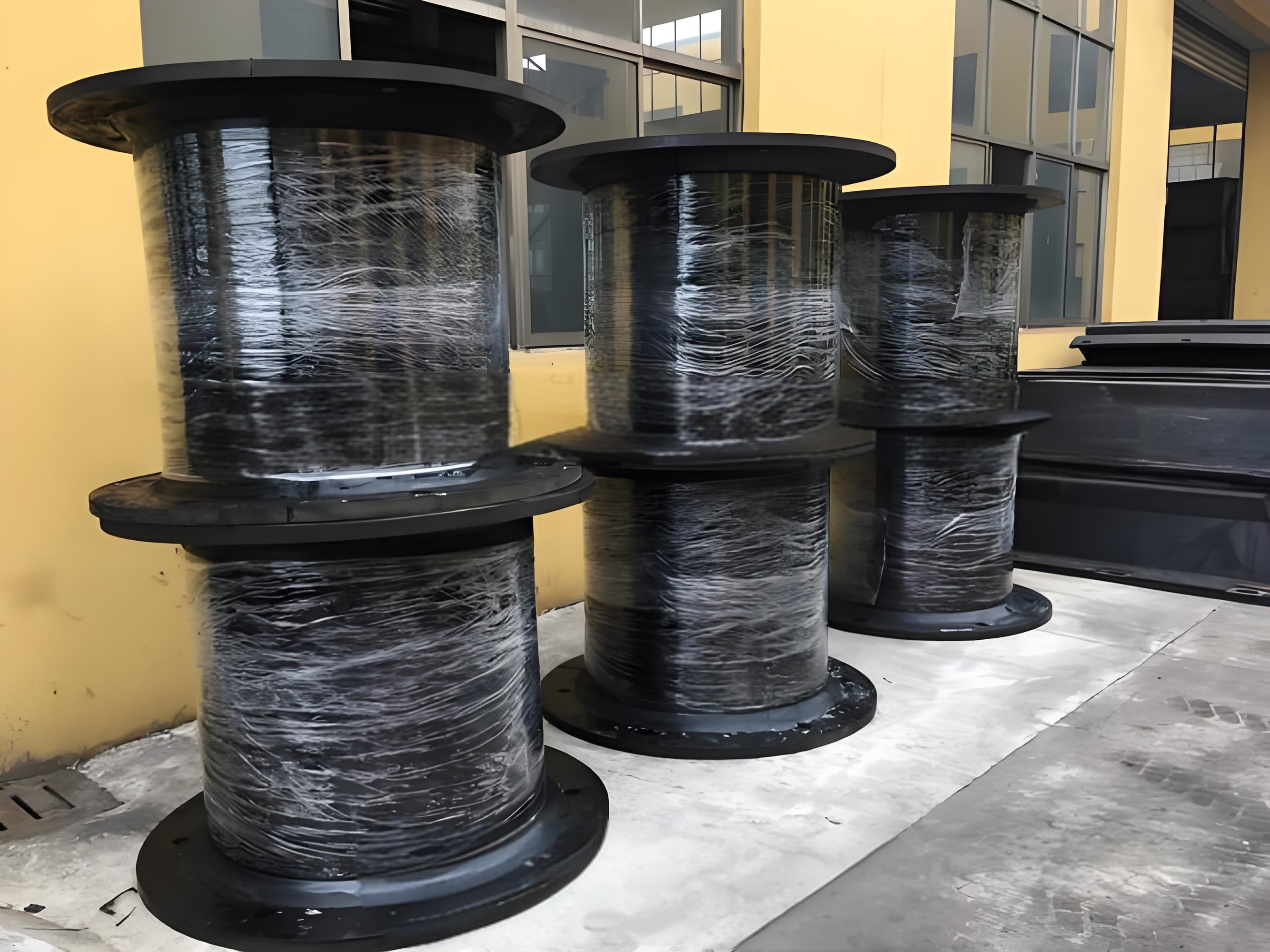

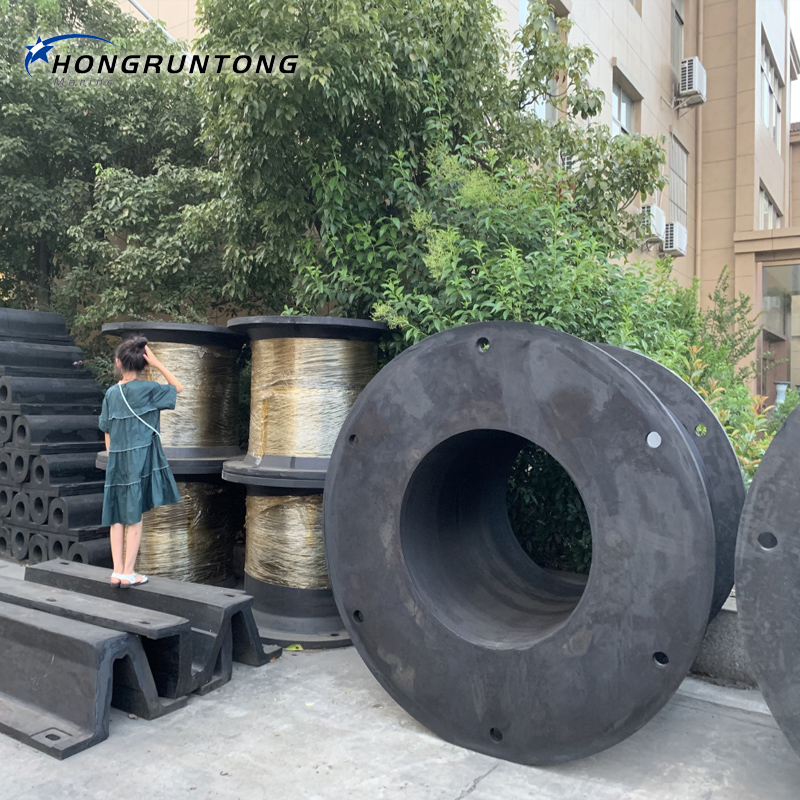

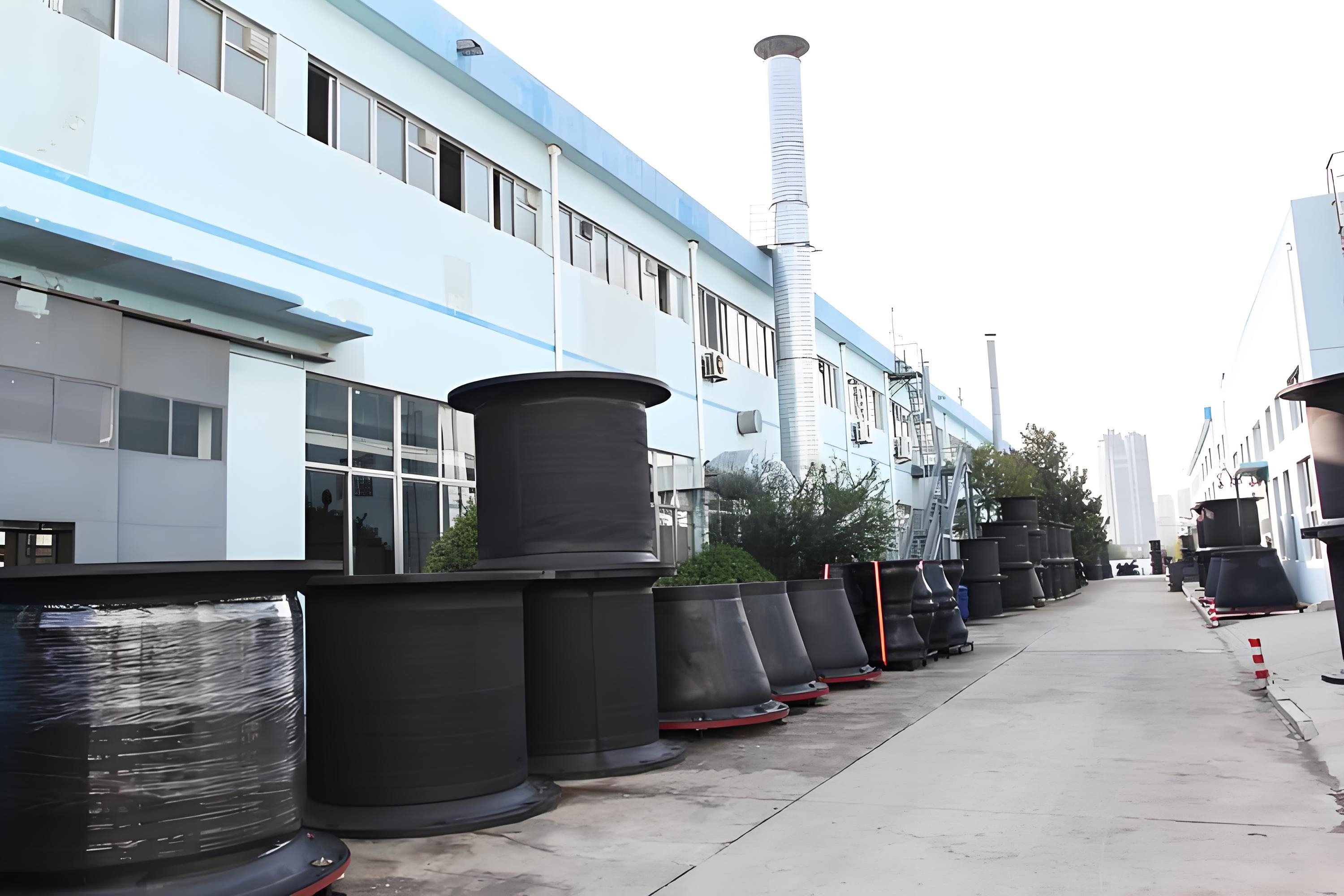

Detailed Photos
Why Choose Hongruntong Marine?
-
Proven Manufacturing Expertise – Over 30 years in marine fender production.
-
Compliance with Standards – Designed and tested to PIANC & ISO 17357 standards.
-
Customization Available – Tailored designs to meet specific project needs.
-
Global Supply Capability – Delivering to ports, terminals, and shipyards worldwide.
Quality & Service
-
Strict Quality Control – Each fender undergoes full-scale performance testing.
-
Reliable After-Sales Support – Technical guidance and installation assistance.
-
On-Time Delivery – Strong production capacity ensures timely shipments.
-
Long-Term Warranty – Guaranteeing durability and performance in harsh marine conditions.
FAQ
Q: What makes cell fenders different from other fender types?
A: The cellular design provides better energy absorption and lower reaction force compared to traditional fender designs.
Q: Are your cell fenders compatible with SCK CSS rubber cell fender systems?
A: Yes, our cell fenders are designed to be compatible with major international systems including SCK CSS specifications.
Q: What is the typical lifespan of your marine cell fender products?
A: With proper maintenance, our cell fenders typically last 10-15 years in normal marine conditions.
Q: Do you provide custom sizes for specific projects?
A: Yes, we offer customized solutions to meet specific project requirements.
Q: How do I determine the right cell fender size for my application?
A: Our technical team can provide sizing recommendations based on your specific needs and conditions.
