Super Cell Fenders
Hongruntong Marine engineers Heavy-Duty Rubber Super Cell Fenders specifically designed to meet PIANC 2002 guidelines for marine infrastructure protection. Our advanced fender systems deliver superior energy absorption (150–2,200 kN capacity) and exceptional durability in the harshest port environments, ensuring compliance with international maritime safety standards.
Key Features
-
PIANC 2002-Compliant Design
-
Energy absorption efficiency aligned with PIANC WG33 Table 5 performance criteria
-
Optimized reaction force-deflection curves for vessel displacement control
-
-
Advanced Material Technology
-
Oil-resistant SBR/NBR hybrid rubber compound (ASTM D2000 Classified)
-
Reinforced with anti-abrasion layers and marine-grade steel frames (ISO 9227 salt spray tested)
-
-
Operational Resilience
-
Temperature tolerance: -30°C to +65°C (exceeds PIANC Arctic Zone recommendations)
-
UV-stabilized formulation prevents surface cracking (ISO 4892-3 tested)
-
-
Smart Integration Capability
-
Pre-installed IoT sensor ports for real-time berthing monitoring (API compatibility)
-
Applications
-
PIANC-Classified Ports: High-traffic container terminals (Type IV/V vessels)
-
Coastal Infrastructure: Wave-exposed breakwaters and quay walls
-
Energy Terminals: LNG carrier berths, oil tanker mooring systems
-
Military & Naval: Heavy-load docks for warships and submarines
Technical Specifications
| Parameter | PIANC 2002 Compliance | HONGRUNTONG Performance |
|---|---|---|
| Energy Absorption (kNm) | 150–2,000 | 180–2,200 (+20% margin) |
| Reaction Force (kN) | ≤ Rated Capacity × 1.3 | ≤ Rated Capacity × 1.25 |
| Service Life | 10–15 years (Standard) | 15–20 years (Enhanced Compound) |
| Certifications | PIANC WG33 Guidelines | OCIMF, DNV GL, ClassNK Approved |
Why HONGRUNTONG Marine?
-
PIANC-Aligned Engineering: 40+ years of expertise in marine fender systems compliant with PIANC, IAPH, and ISO standards
-
Custom PIANC Solutions:
-
Berthing energy calculations per PIANC MarCom Report 145
-
Site-specific fender spacing optimization
-
-
Global Case Studies: Successfully deployed in 22 major ports including Rotterdam, Singapore, and Houston
-
Lifecycle Support: 3-year warranty with annual PIANC compliance audits
Dimensions
| Model | H | h | D1 | D2 | n-t |
| Cell | [mm] | [mm] | [mm] | [mm] | [mm] |
| HM-400H | 400 | 25 | 650 | 550 | 30 |
| HM-500H | 500 | 25 | 650 | 550 | 32 |
| HM-630H | 630 | 30 | 840 | 700 | 39 |
| HM-800H | 800 | 30 | 1050 | 900 | 40 |
| HM-1000H | 1000 | 35 | 1300 | 1100 | 47 |
| HM-1150H | 1150 | 40 | 1500 | 1300 | 50 |
| HM-1250H | 1250 | 45 | 1650 | 1450 | 53 |
| HM-1450H | 1450 | 47 | 1850 | 1650 | 61 |
| HM-1600H | 1600 | 50 | 2000 | 1800 | 61 |
| HM-1700H | 1700 | 55 | 2100 | 1900 | 66 |
| HM-2000H | 2000 | 55 | 2200 | 2000 | 74 |
| HM-2250H | 2250 | 60 | 2550 | 2300 | 74 |
| HM-2500H | 2500 | 70 | 2950 | 2700 | 90 |
| HM-3000H | 3000 | 75 | 3350 | 3150 | 90 |

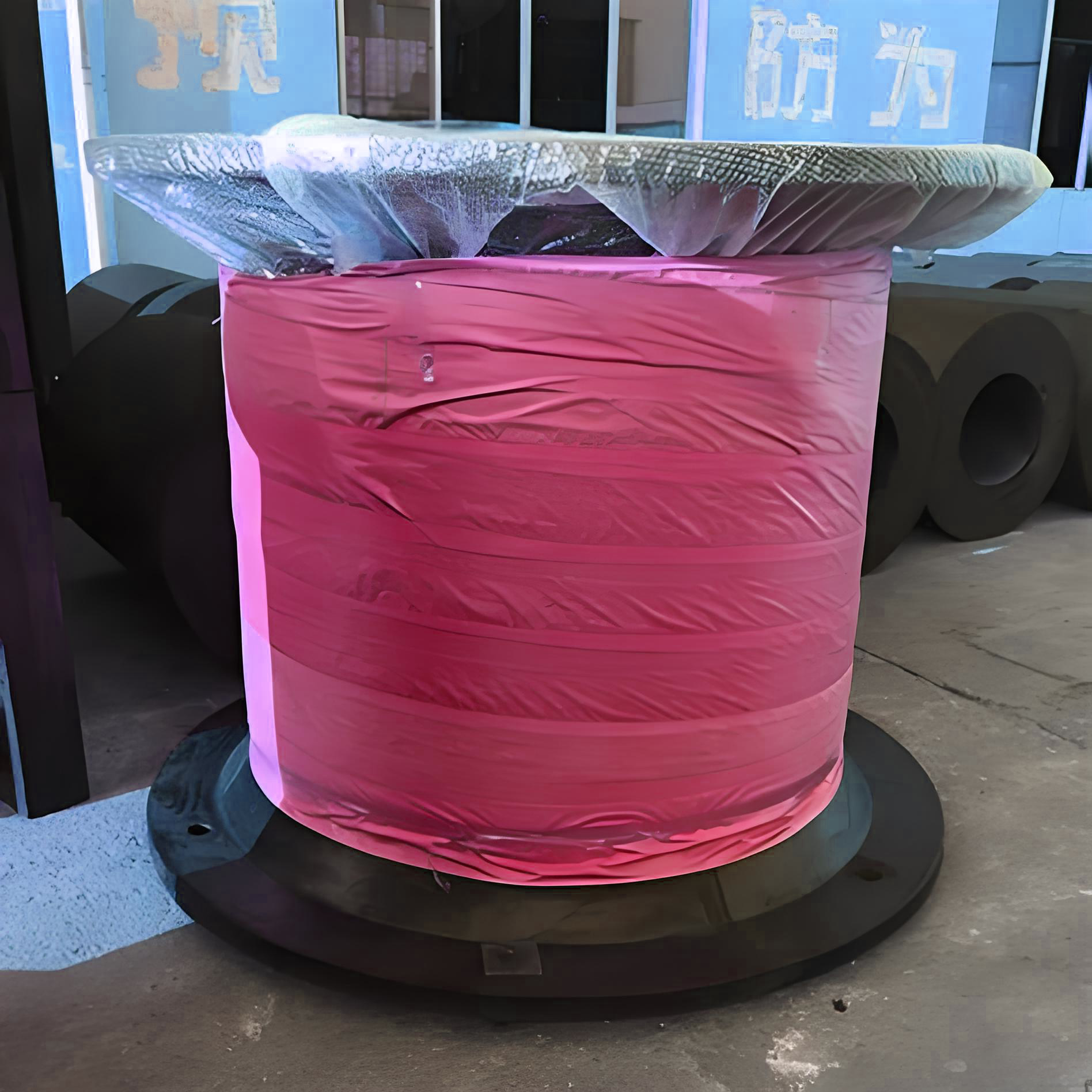

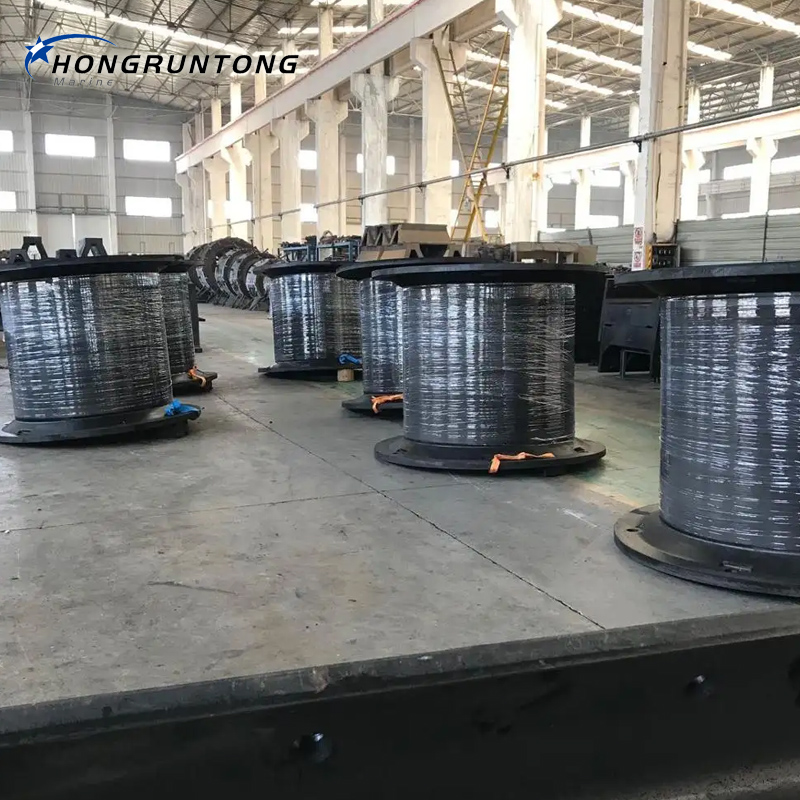

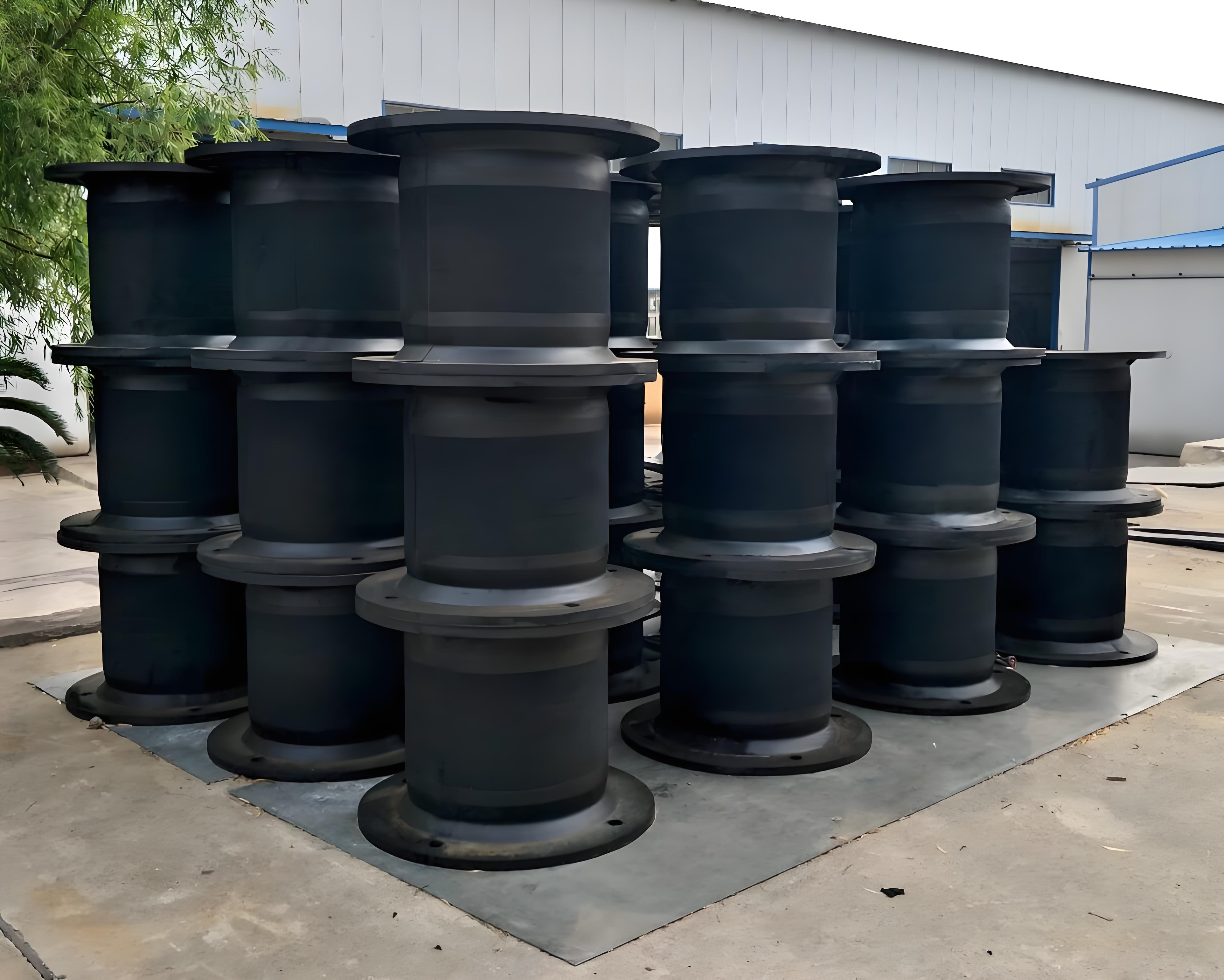

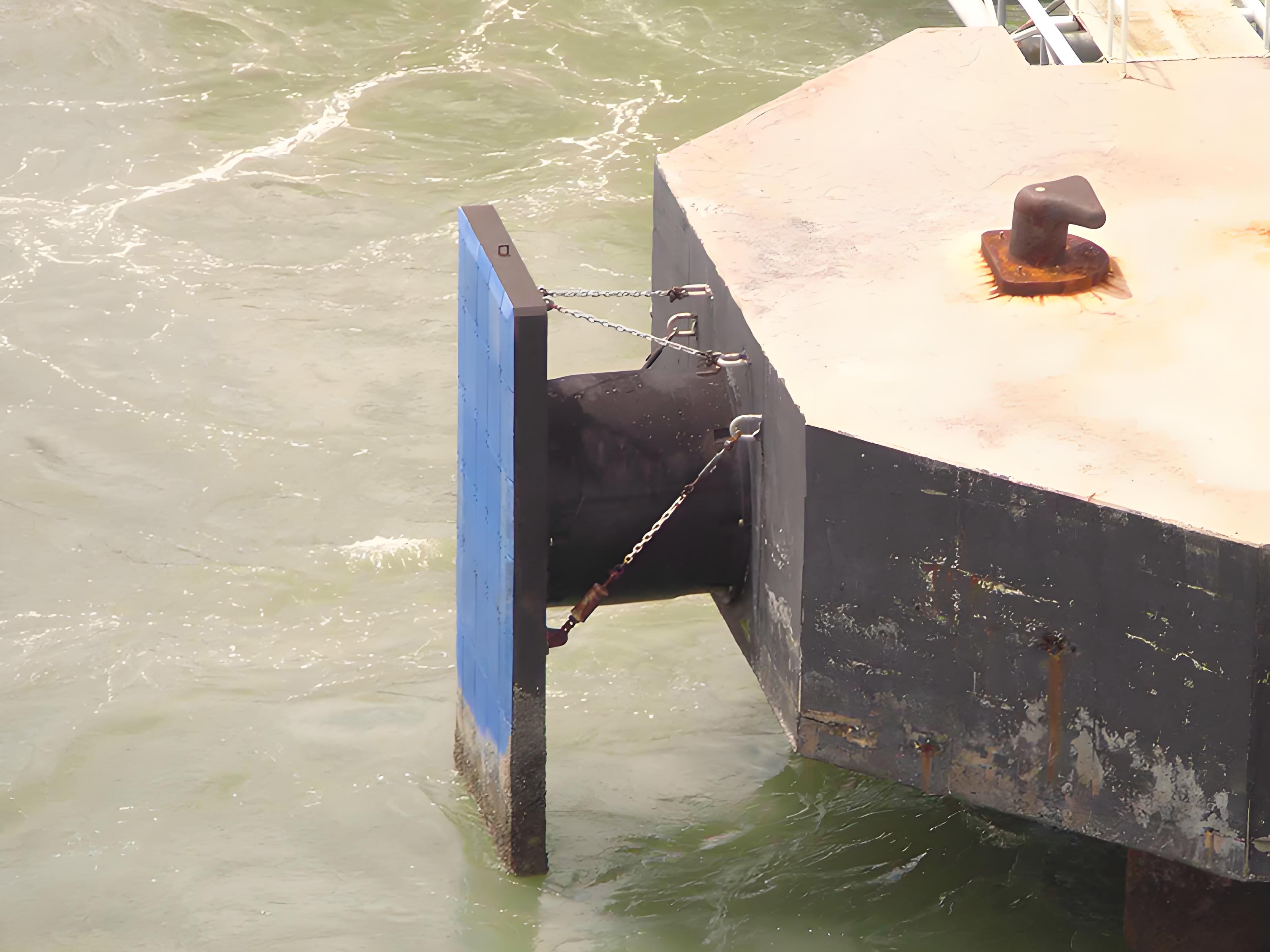

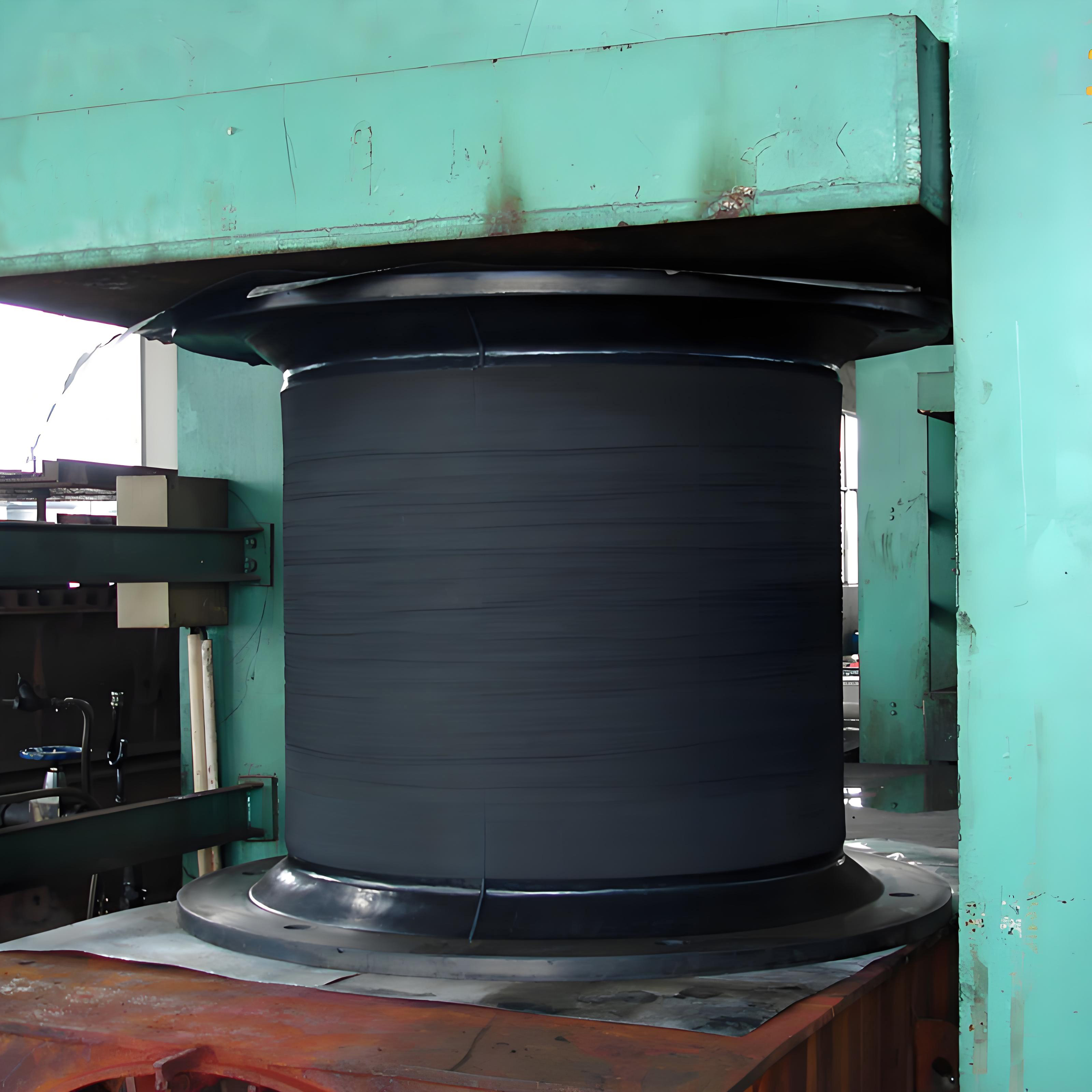

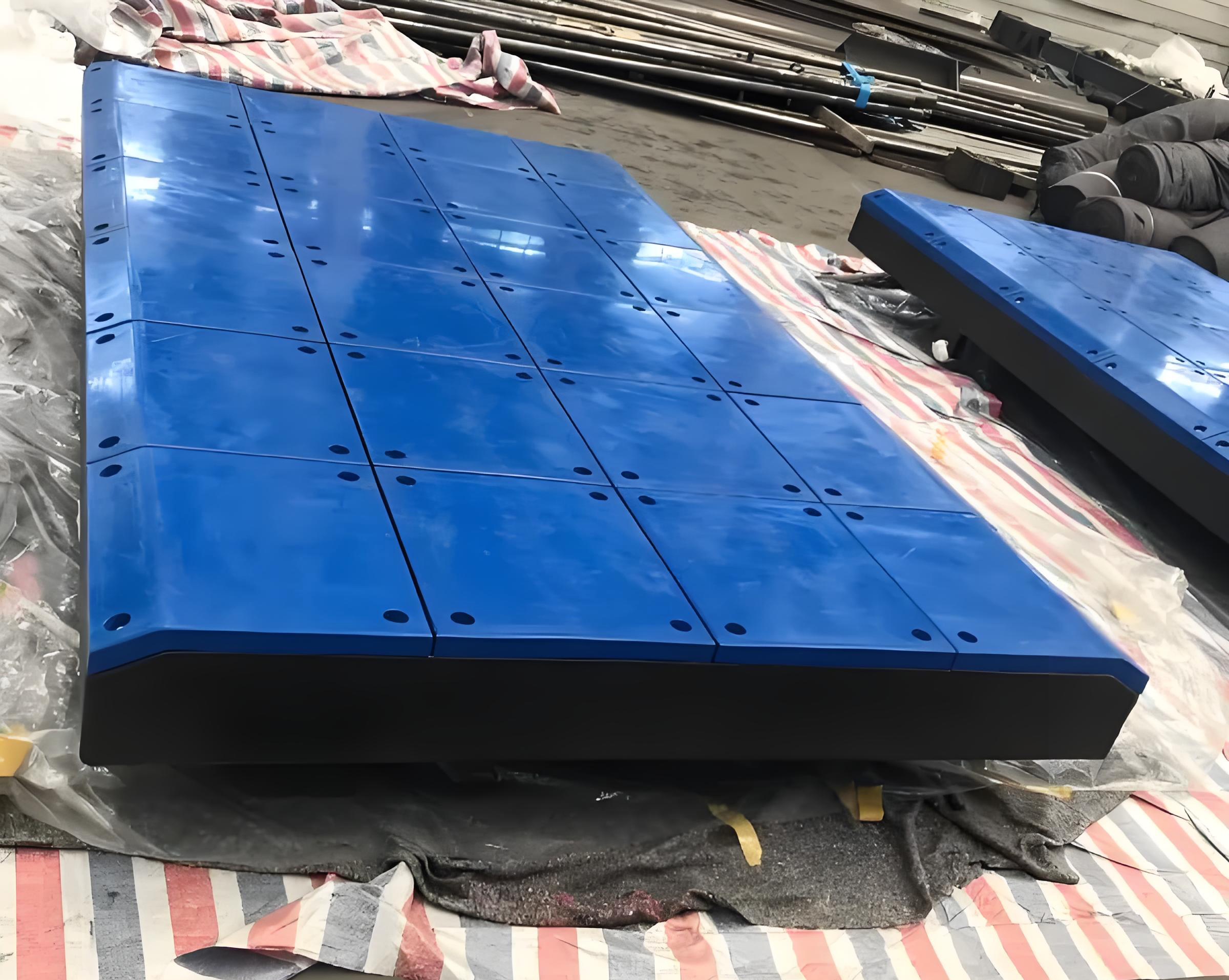

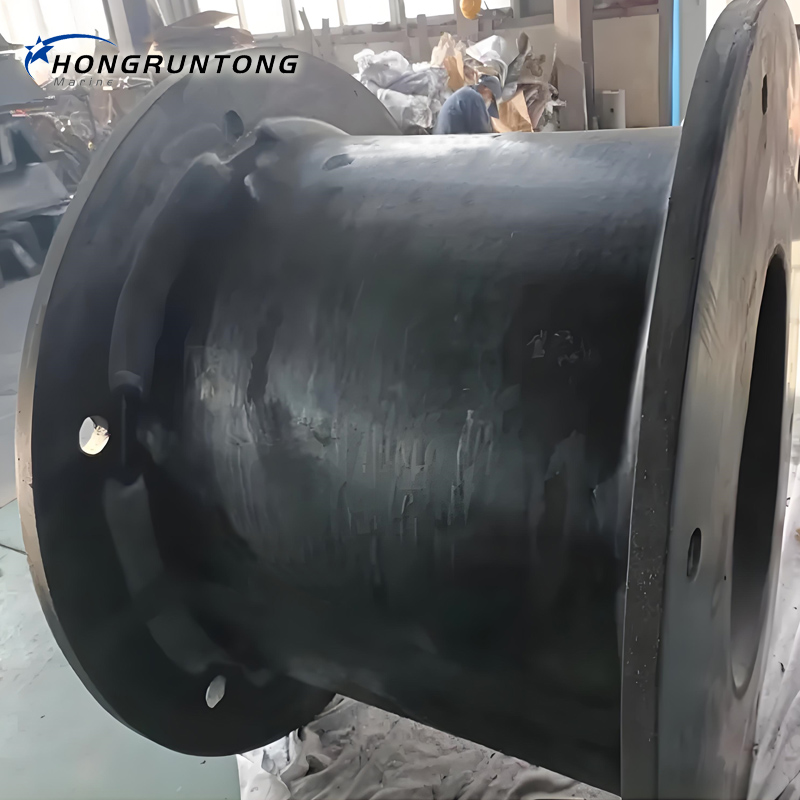

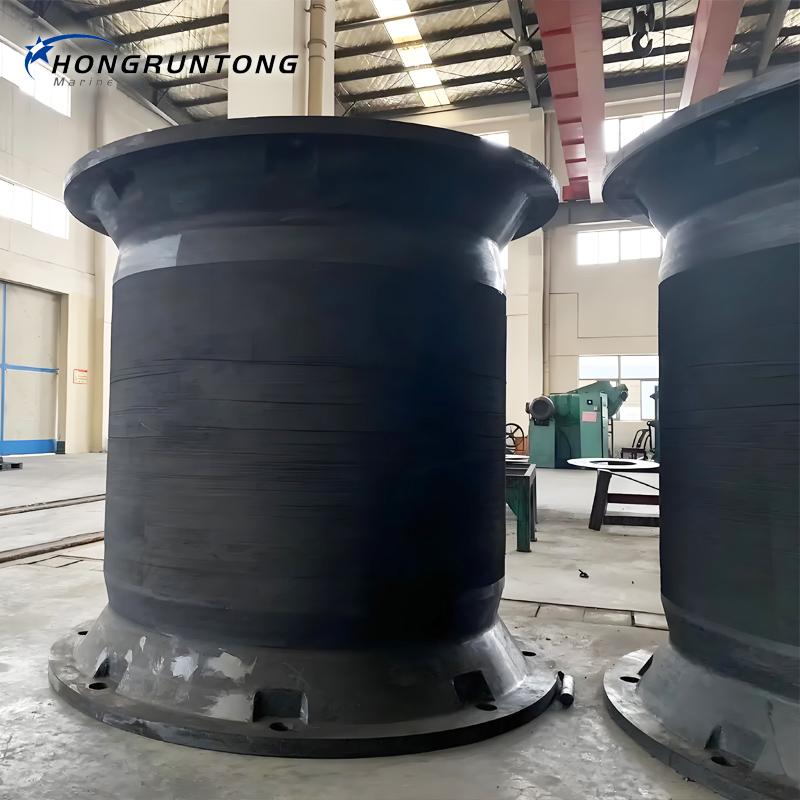

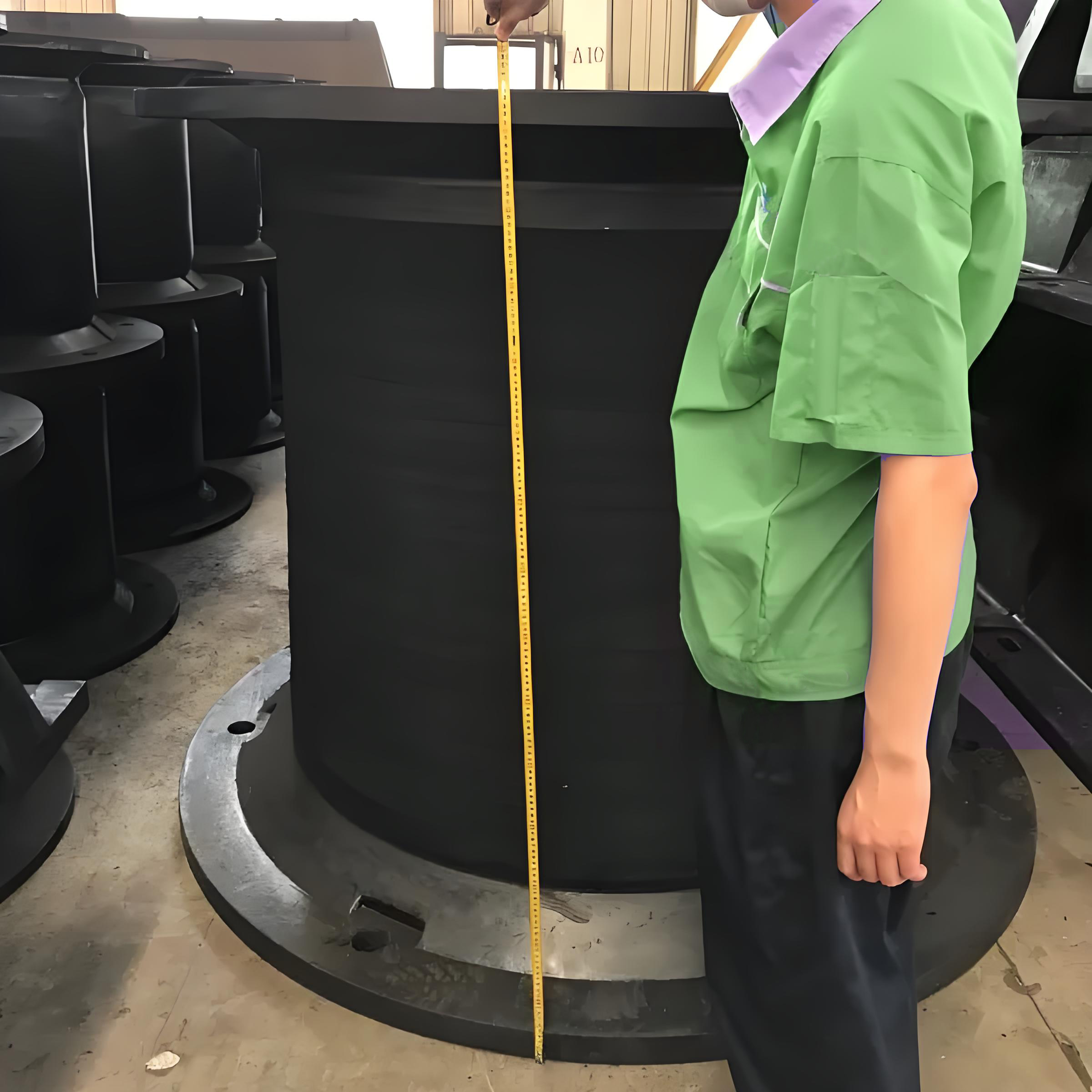

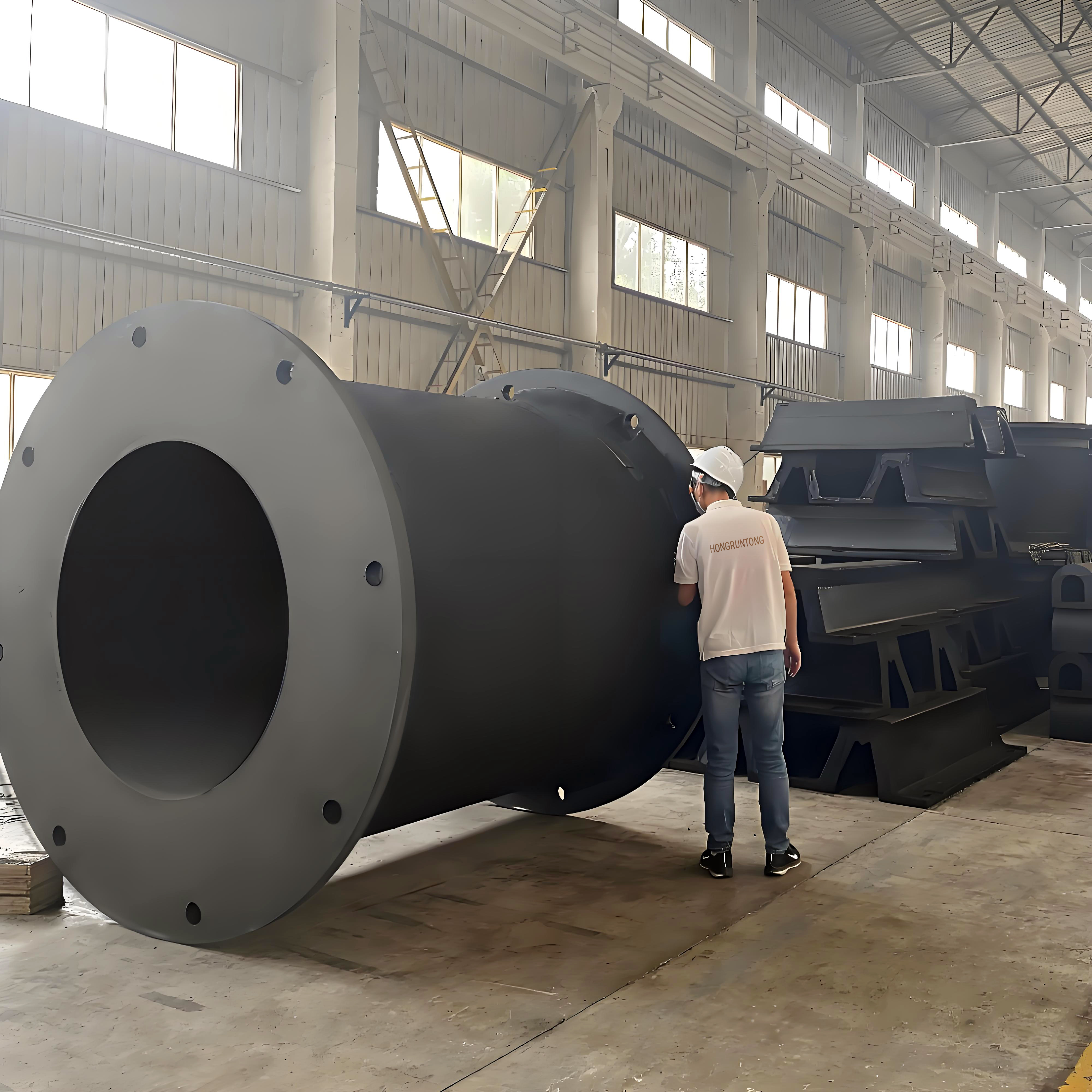

Details Photos
