Arch Rubber Fenders
As a professional arch fender manufacturer, Hongruntong Marine supplies high-quality arch rubber fender, rubber arch fender, corner super arch rubber fender, with transparent arch fender price for global clients.
Arch Rubber Fenders from Hongruntong Marine are high-performance marine fender systems designed for efficient energy absorption and vessel protection during berthing. Our range includes rubber arch fenders and corner super arch rubber fenders, ensuring durable and reliable protection for docks, piers, and offshore platforms. These fenders are engineered to withstand harsh marine environments while providing long-lasting service life. Discover our comprehensive range of arch rubber fenders, engineered for exceptional performance in marine environments. Our product lineup includes the innovative corner super arch rubber fender and standard rubber arch fender models, all designed to provide optimal impact absorption and vessel protection. We pride ourselves on offering competitive arch fender price points without compromising quality, ensuring reliable and cost-effective solutions for all your marine protection needs.
Features & Benefits
-
Advanced Arch Design: Optimized curvature provides 40% higher energy absorption than traditional D-shaped fenders
-
Corner Protection Excellence: Special corner super arch rubber fender units offer superior impact resistance for vulnerable edge areas
-
Cost-Effective Performance: Delivers premium quality at competitive arch fender price points
-
Easy Installation: Lightweight yet durable construction allows for simple mounting and maintenance
-
Environmental Resistance: Superior UV, ozone, and saltwater protection ensures long service life
Applications
-

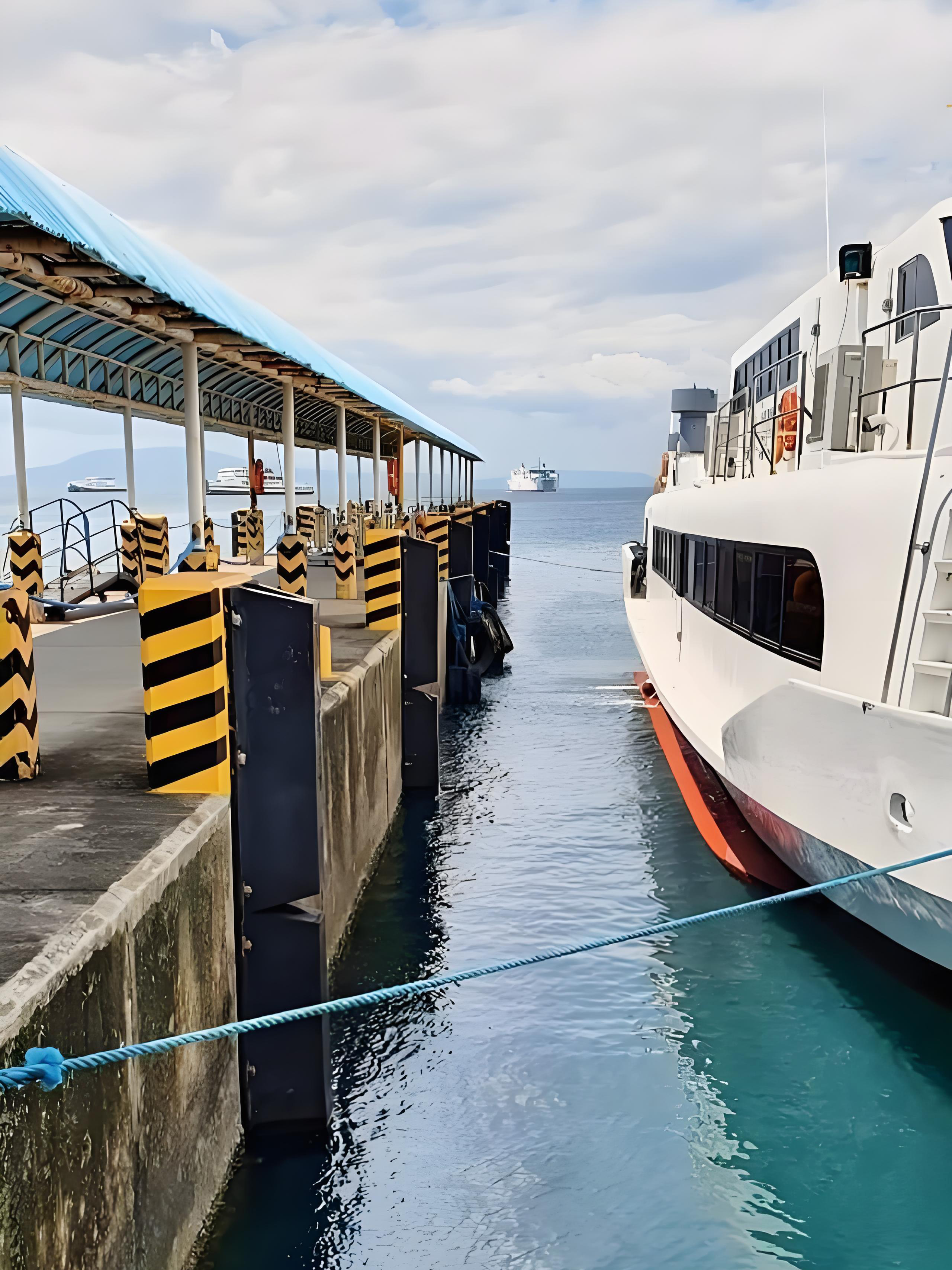

Commercial ports and harbors
-
Offshore oil & gas facilities
-
Naval and military docking stations
-
Container terminals and bulk cargo ports

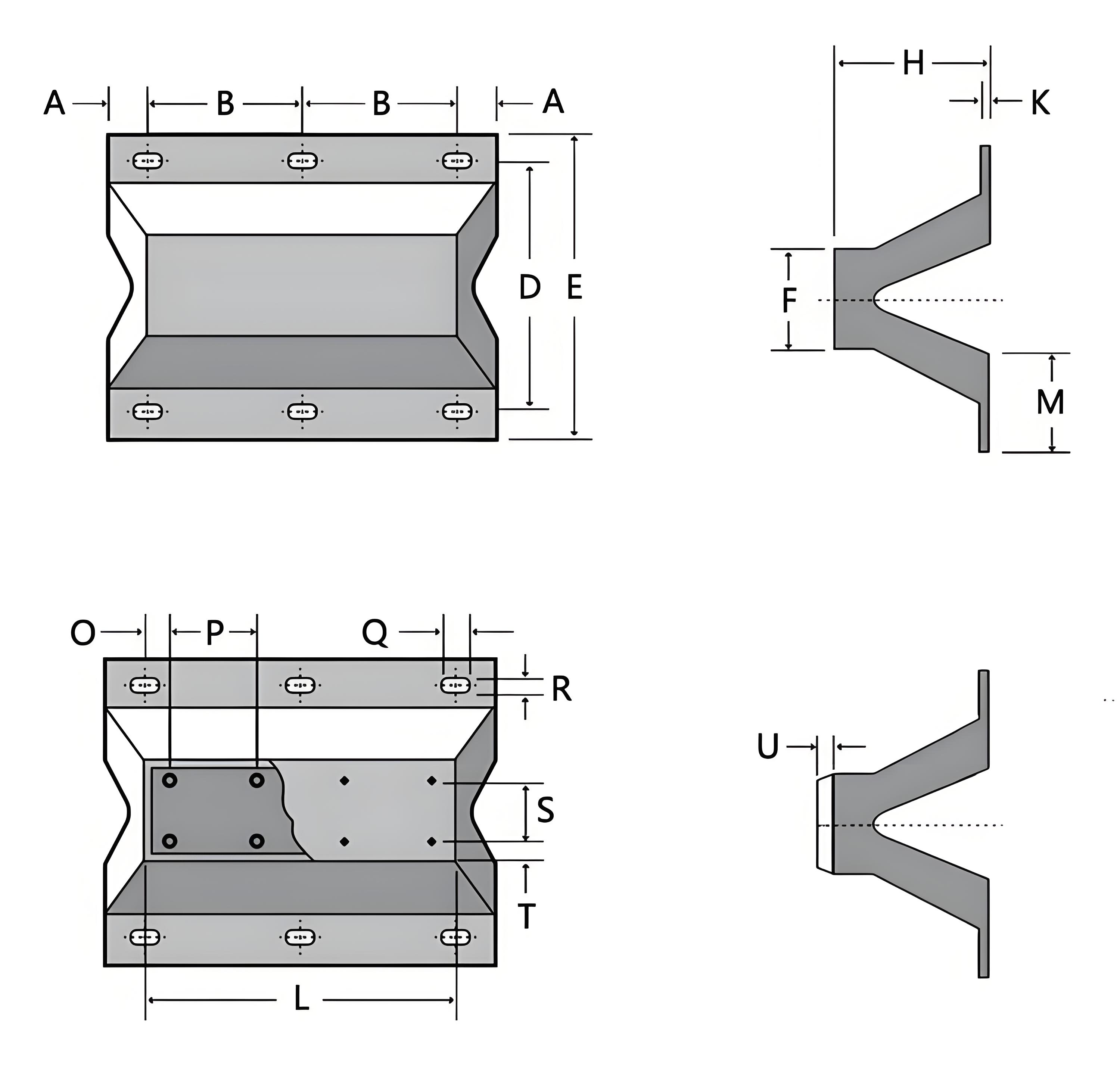

Dimensions
| Model | A [mm] |
D [mm] |
E [mm] |
F [mm] |
H [mm] |
K [mm] |
M [mm] |
R x Q [mm] |
Lmax [mm] |
| HMAF-150 | 50 | 240 | 326 | 98 | 150 | 16 – 20 | 108 | 20 × 40 | 3000 |
| HMAF-200 | 50 | 320 | 422 | 130 | 200 | 18 – 25 | 142 | 25 × 50 | 3000 |
| HMAF-250 | 62.5 | 400 | 500 | 163 | 250 | 20 – 30 | 164 | 28 × 56 | 3500 |
| HMAF-300 | 75 | 480 | 595 | 195 | 300 | 25 – 32 | 194 | 28 × 56 | 3500 |
| HMAF-400 | 100 | 640 | 808 | 260 | 400 | 25 – 32 | 266 | 35 × 70 | 3500 |
| HMAF-500 | 125 | 800 | 981 | 325 | 500 | 25 – 32 | 318 | 42 × 84 | 3500 |
| HMAF-600 | 150 | 960 | 1160 | 390 | 600 | 28 – 40 | 373 | 48 × 96 | 3000 |
| HMAF-800 | 200 | 1300 | 1550 | 520 | 800 | 41 – 50 | 499 | 54 × 108 | 3000 |
| HMAF-1000 | 250 | 1550 | 1850 | 650 | 1000 | 50 – 62 | 580 | 54 × 108 | 3000 |
| Model | T [mm] |
S [mm] |
UHMW-PE Face Pads | Steel Frame | |||
| O [mm] |
P [mm] |
U [mm] |
O [mm] |
P [mm] |
|||
| HMAFU-150 | 49 | 0 | 60 – 70 | 330 – 410 | 30 | 70 – 90 | 250 – 300 |
| HMAFU-200 | 65 | 0 | 60 – 70 | 330 – 410 | 30 | 70 – 90 | 250 – 300 |
| HMAFU-250 | 45 | 73 | 70 – 85 | 330 – 410 | 30 | 70 – 90 | 250 – 300 |
| HMAFU-300 | 50 | 95 | 70 – 85 | 330 – 410 | 40 | 70 – 90 | 250 – 300 |
| HMAFU-400 | 60 | 140 | 70 – 85 | 330 – 410 | 40 | 70 – 90 | 250 – 300 |
| HMAFU-500 | 65 | 195 | 70 – 85 | 330 – 410 | 50 | 70 – 90 | 250 – 300 |
| HMAFU-600 | 65 | 260 | 70 – 85 | 330 – 410 | 50 | 70 – 90 | 250 – 300 |
| HMAFU-800 | 70 | 380 | 70 – 85 | 330 – 410 | 60 | 70 – 90 | 250 – 300 |
| HMAFU-1000 | 80 | 490 | 70 – 85 | 330 – 410 | 60 | 70 – 90 | 250 – 300 |

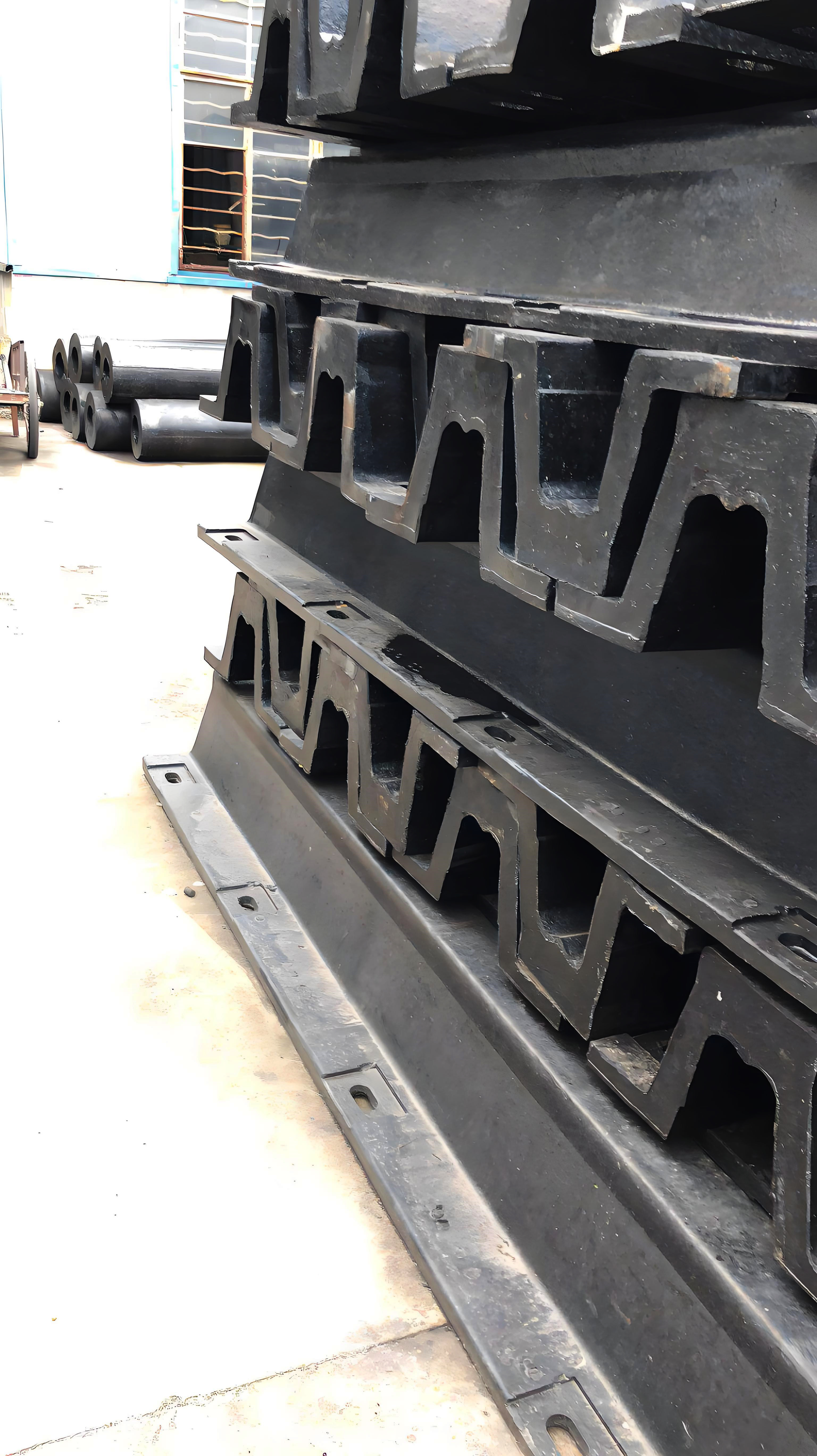

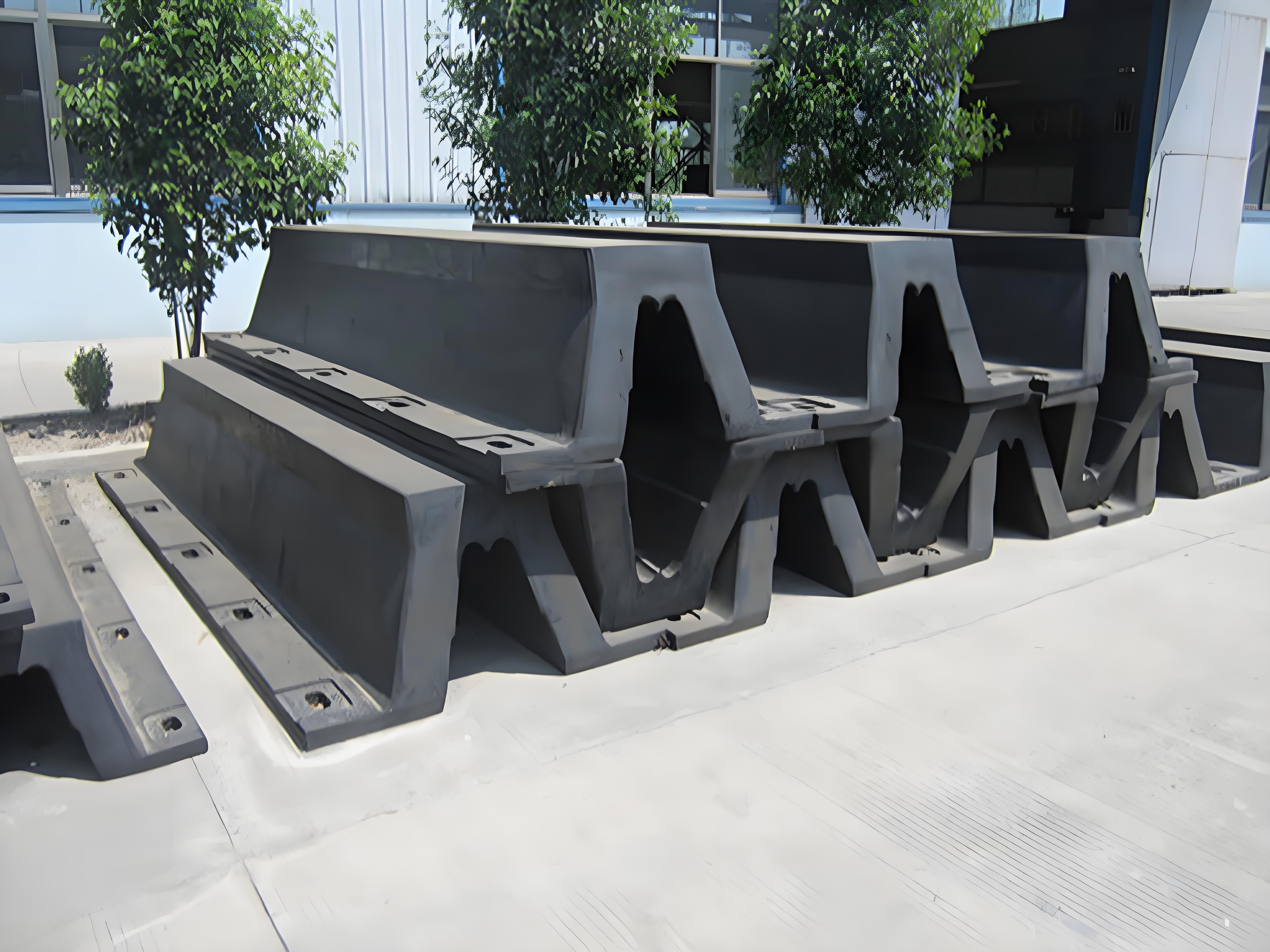

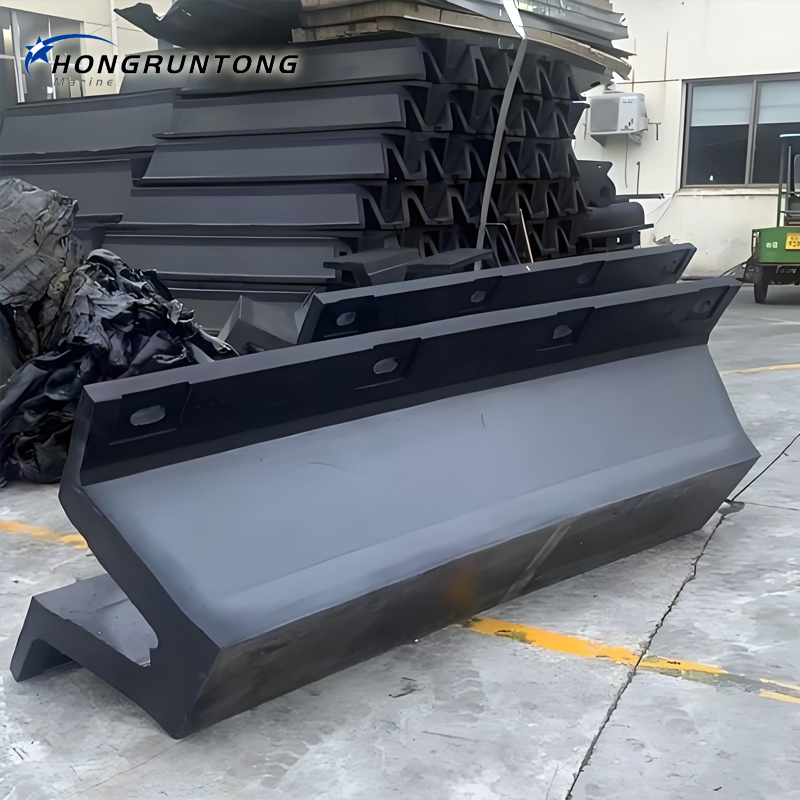

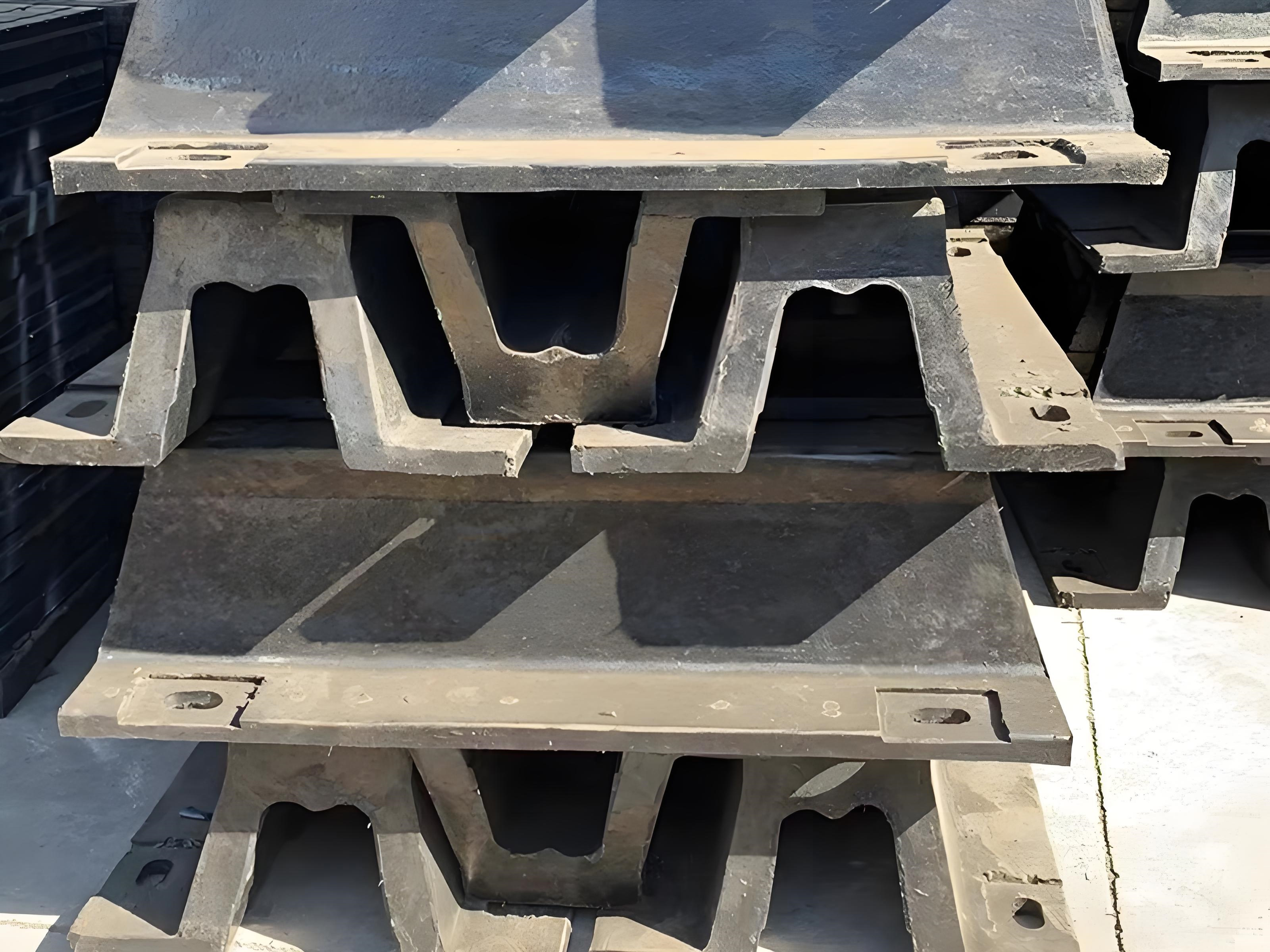

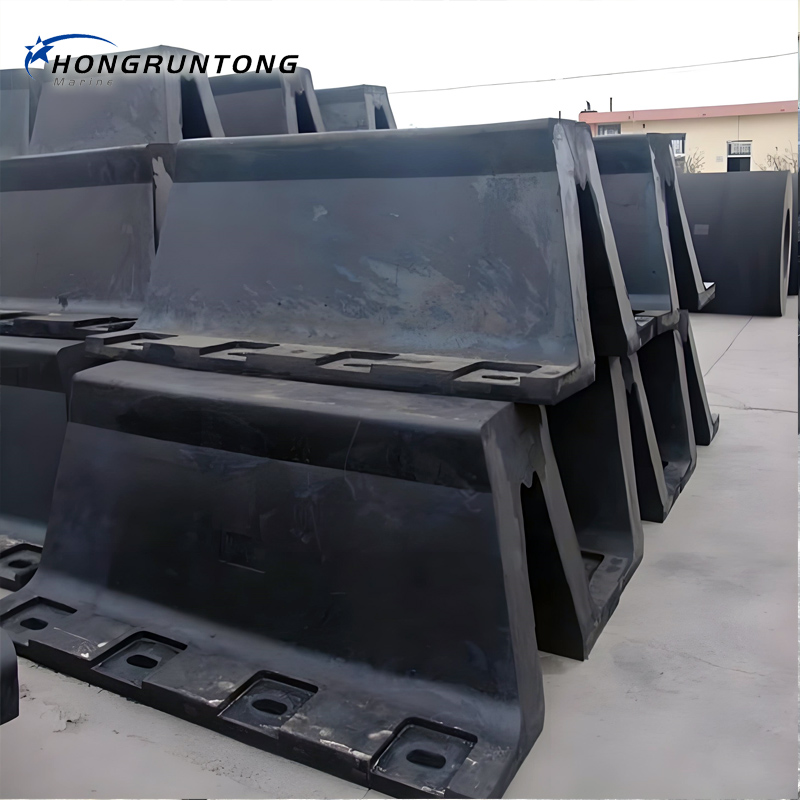

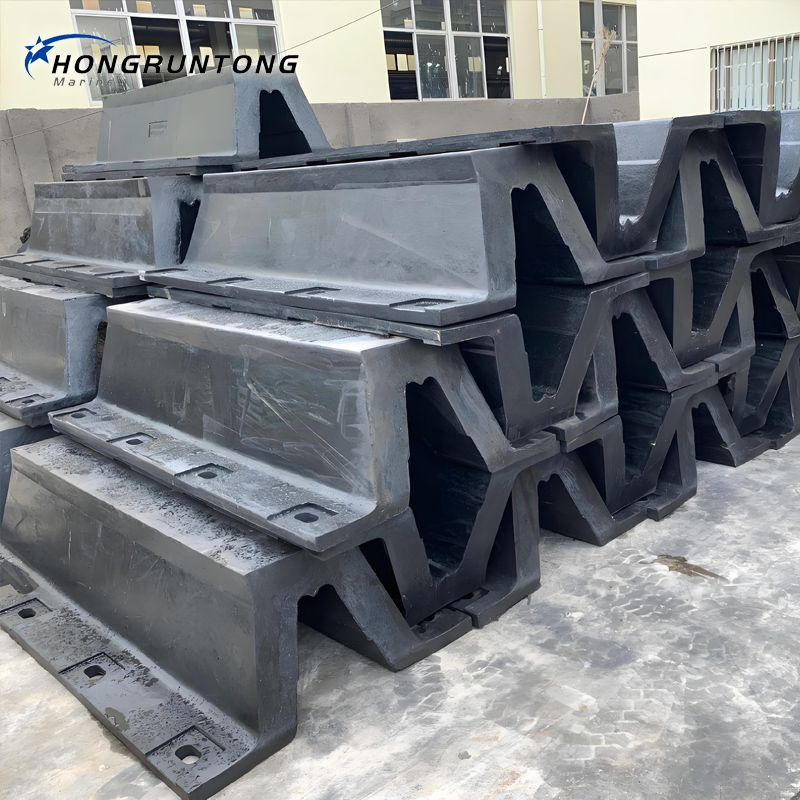

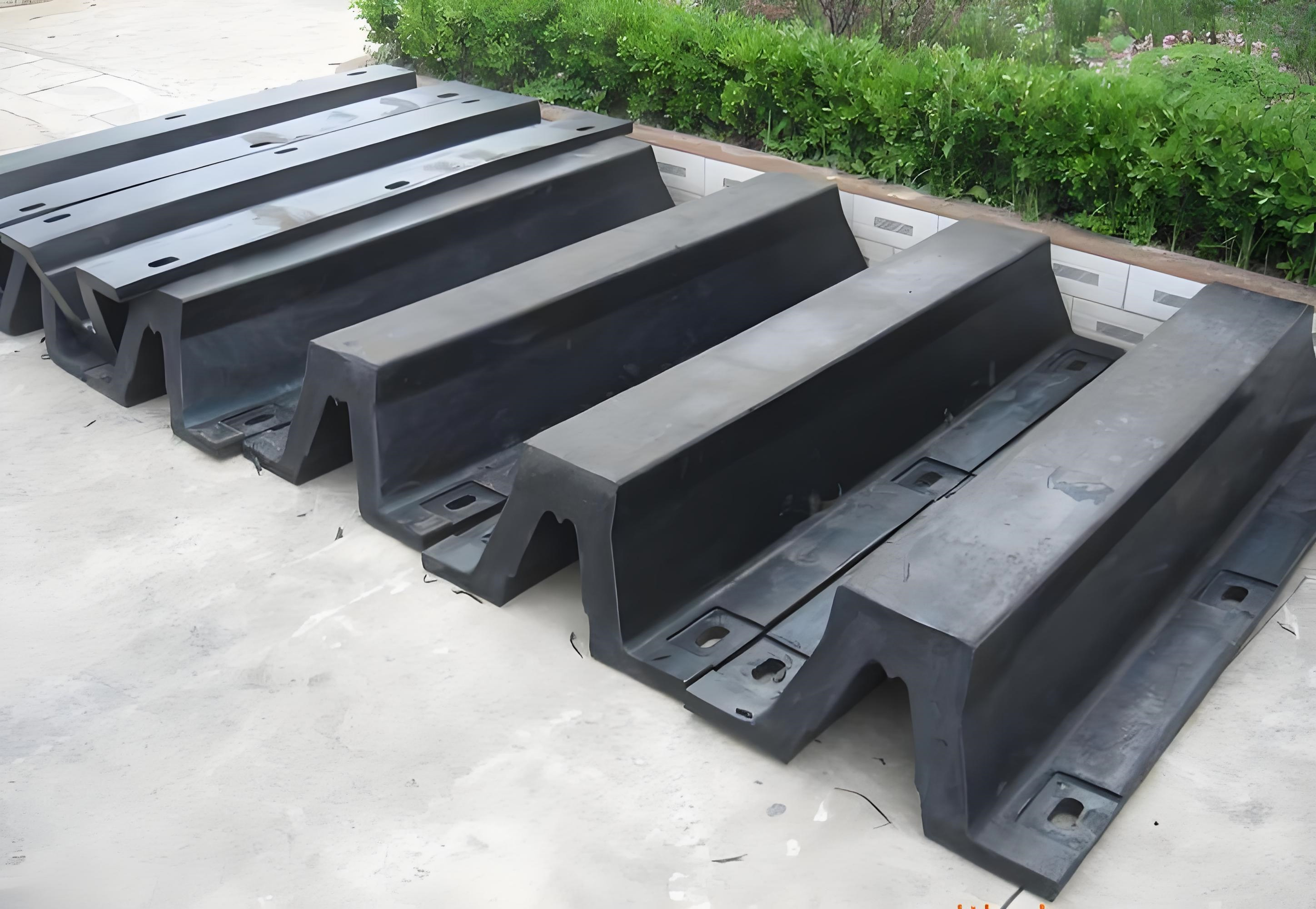

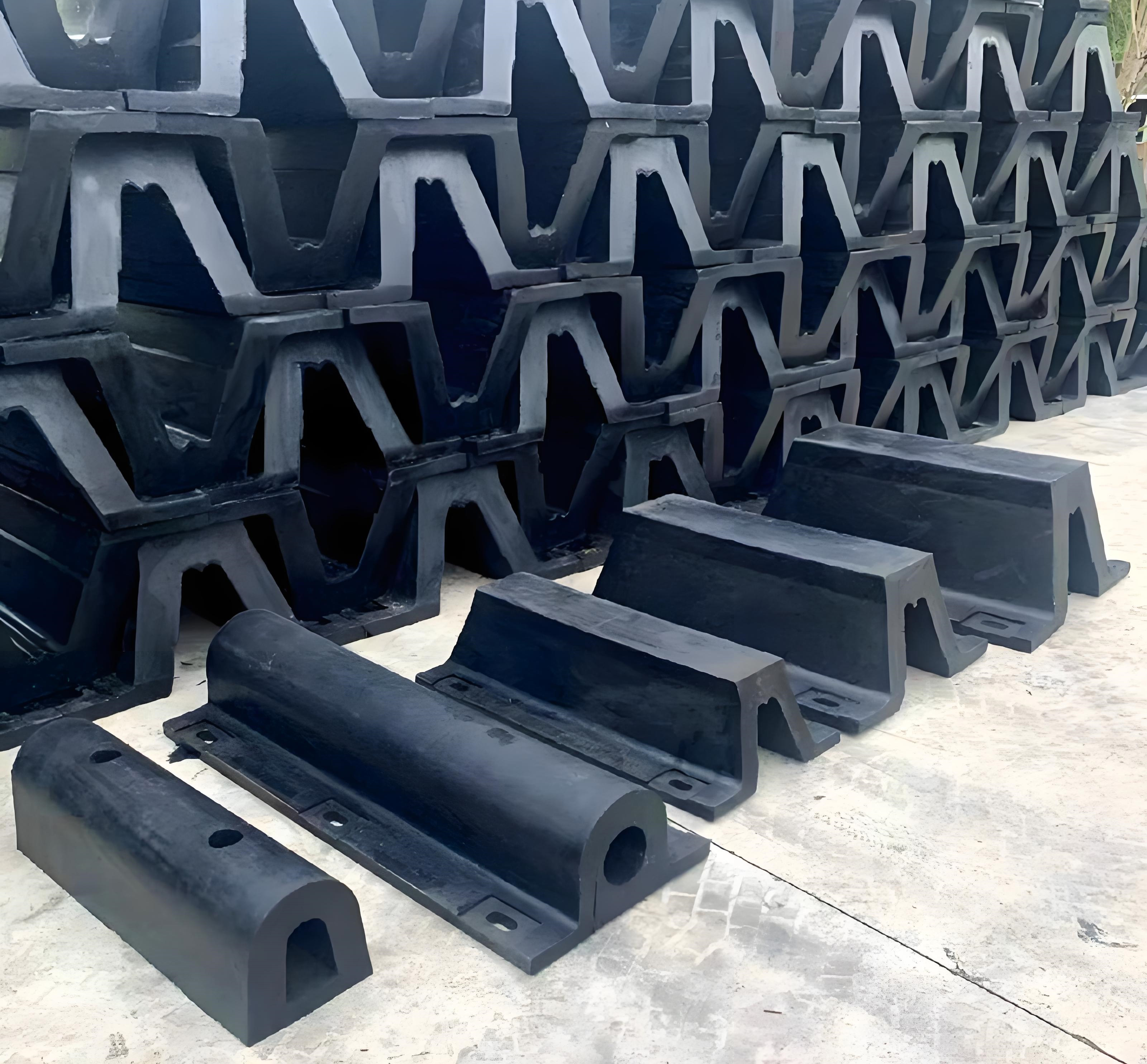

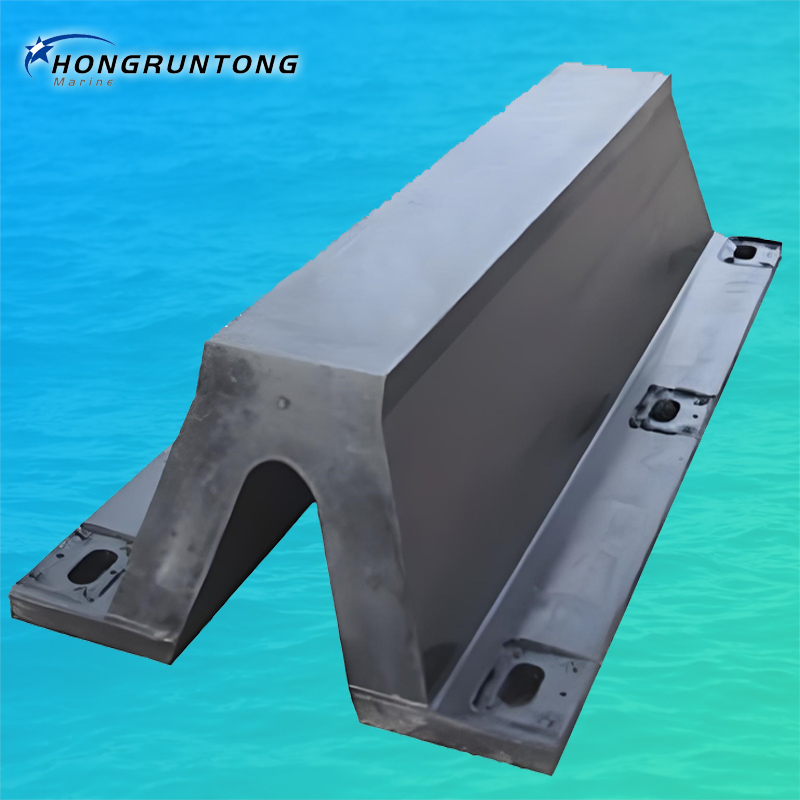

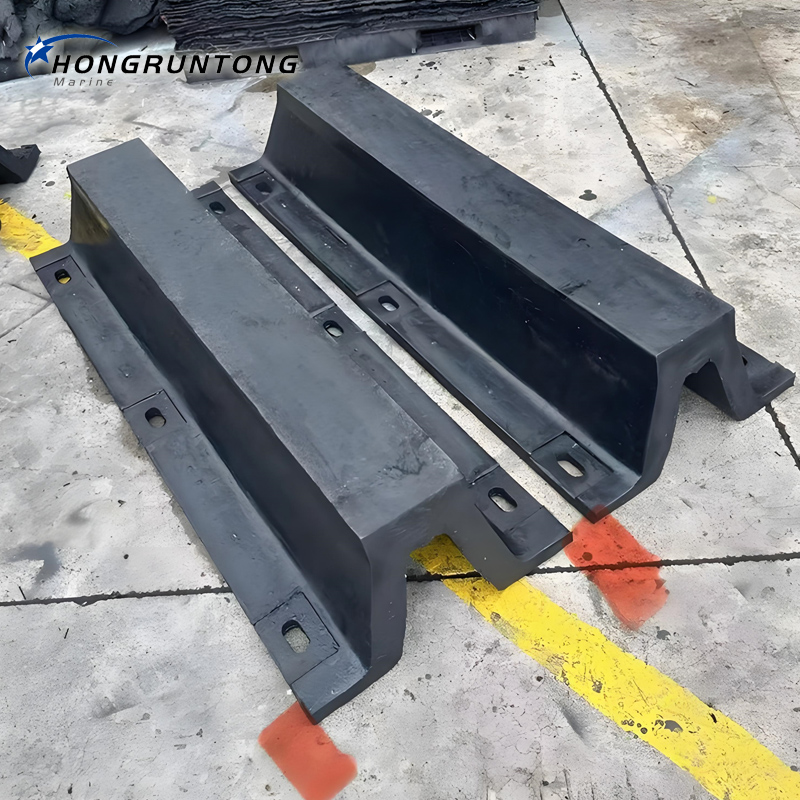

Detailed Photos
Why Choose Hongruntong Marine?
-
Innovative Design Solutions – Our arch rubber fenders are engineered with the latest marine fender technologies to ensure optimal energy absorption and minimal reaction force.
-
Project-Specific Customization – We work closely with clients to provide tailored fender systems for unique port, dock, or offshore requirements.
-
Proven Track Record – Trusted by international ports, terminals, and shipyards, Hongruntong Marine delivers products that consistently perform under harsh marine conditions.
-
Sustainability Commitment – Our fenders are made with environmentally friendly materials and manufacturing processes to minimize ecological impact.
Quality & Service
-
Comprehensive Testing – Each fender undergoes rigorous quality inspections, including compression, fatigue, and saltwater resistance testing, ensuring reliability in all conditions.
-
Installation Support – Professional guidance for proper mounting, alignment, and integration with quay structures.
-
After-Sales Monitoring – Follow-up service to track performance and provide timely maintenance advice.
-
Rapid Response – Dedicated technical team available to resolve client inquiries and emergency requirements promptly.
FAQ
Q1: What is the main advantage of Arch Rubber Fenders?
A: They provide high energy absorption and low reaction force, protecting vessels and dock structures effectively.
Q2: Can you supply corner super arch fenders?
A: Yes, Hongruntong Marine provides both standard arch and corner super arch fender types.
Q3: Are custom sizes available?
A: Yes, fenders can be customized based on height, width, and energy absorption requirements.
Q4: How is the price determined?
A: Prices depend on fender size, type, and quantity. Competitive arch fender price options are available for various projects.
