Marine Arch V Rubber Fenders
V Fenders from Hongruntong Marine are engineered v shape rubber fenders designed to provide superior energy absorption and low reaction force during berthing. Our product range includes marine arch type V rubber fenders and bumper V fenders, offering durable and reliable protection for docks, piers, and offshore platforms. These fenders ensure vessel safety and long-lasting performance in challenging marine environments.
Key Features & Benefits
-
High Energy Absorption – Effectively cushions berthing impacts to prevent damage to vessels and quay structures.
-
Low Reaction Force – Reduces stress on ship hulls and dock walls for safe docking.
-
Durable Construction – Made from premium marine-grade rubber resistant to UV, ozone, and seawater.
-
Versatile Design – Suitable for corner berths and straight quay walls with marine arch type V configurations.
-
Cost-Effective – Competitive harga rubber fender type V for various marine projects.
Applications
-
Commercial ports and harbors
-
Offshore oil & gas facilities
-
Naval and military docking stations
-
Container terminals and bulk cargo berths

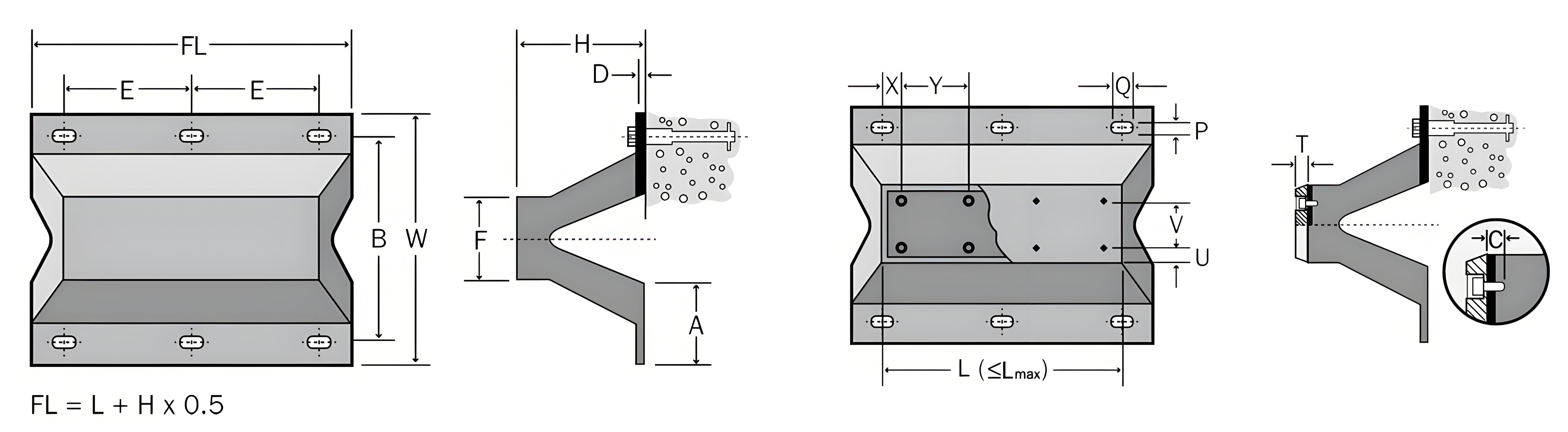

Dimensions
|
FENDER BODY DIMENSIONS |
|||||||
|
H |
A |
B |
W |
F |
D |
P |
Q |
|
HM-V 150 |
98 |
240 |
300 |
112 |
24 |
24 |
48 |
|
HM-V 200 |
130 |
320 |
400 |
150 |
24 |
28 |
56 |
|
HM-V 250 |
162.5 |
410 |
500 |
187.5 |
25 |
28 |
56 |
|
HM-V 300 |
195 |
480 |
600 |
225 |
30 |
34 |
68 |
|
HM-V 400 |
260 |
670 |
800 |
300 |
35 |
40 |
80 |
|
HM-V 500 |
325 |
840 |
1000 |
375 |
40 |
46 |
92 |
|
HM-V 600 |
390 |
1010 |
1200 |
450 |
45 |
52 |
104 |
|
HM-V 800 |
520 |
1340 |
1600 |
600 |
50 |
60 |
120 |
|
HM-V 1000 |
650 |
1680 |
2000 |
750 |
60 |
60 |
120 |
|
FOOT BOLTING DIMENSIONS |
|||||||||||
|
Model |
Anchors / |
L = 1000 |
L = 1500 |
L = 2000 |
L = 2500 |
L = 3000 |
|||||
|
E |
Qty |
E |
Qty |
E |
Qty |
E |
Qty |
E |
Qty |
||
|
HM-V 150 |
M20 |
855 |
4 |
675 |
6 |
620 |
8 |
750 |
8 |
715 |
10 |
|
HM-V 200 |
M24 |
860 |
4 |
680 |
6 |
620 |
8 |
760 |
8 |
715 |
10 |
|
HM-V 250 |
M24 |
865 |
4 |
680 |
6 |
620 |
8 |
780 |
8 |
715 |
10 |
|
HM-V 300 |
M30 |
870 |
4 |
685 |
6 |
625 |
8 |
790 |
8 |
715 |
10 |
|
HM-V 400 |
M36 |
900 |
4 |
700 |
6 |
635 |
8 |
800 |
8 |
725 |
10 |
|
HM-V 500 |
M42 |
930 |
4 |
715 |
6 |
645 |
8 |
810 |
8 |
730 |
10 |
|
HM-V 600 |
M48 |
930 |
4 |
725 |
6 |
650 |
8 |
820 |
8 |
740 |
10 |
|
HM-V 800 |
M56 |
930 |
4 |
725 |
6 |
650 |
8 |
820 |
8 |
760 |
10 |
|
HM-V 1000 |
M56 |
930 |
4 |
725 |
6 |
650 |
8 |
865 |
8 |
775 |
10 |
|
HEAD BOLTING DIMENSIONS |
|||||||||||
|
Model |
U |
V |
C |
UHMW-PE Face Pads |
Steel Frame |
||||||
|
X |
Y |
T |
Bolt Size |
X |
Y |
||||||
|
HM-V 150 |
52.5 |
0 |
20–30 |
60–70 |
330–410 |
30 |
M12 |
70–90 |
250–300 |
||
|
HM-V 200 |
30 |
80 |
30–45 |
60–70 |
330–410 |
30 |
M16 |
70–90 |
250–300 |
||
|
HM-V 250 |
30 |
115 |
30–45 |
70–85 |
330–415 |
30 |
M16 |
70–90 |
250–300 |
||
|
HM-V 300 |
30 |
150 |
30–45 |
70–85 |
330–415 |
40 |
M16 |
70–90 |
250–300 |
||
|
HM-V 400 |
40 |
200 |
30–50 |
70–85 |
330–415 |
40 |
M20 |
70–90 |
250–300 |
||
|
HM-V 500 |
40 |
270 |
30–50 |
70–85 |
330–415 |
50 |
M20 |
70–90 |
250–300 |
||
|
HM-V 600 |
40 |
340 |
35–60 |
70–85 |
330–415 |
50 |
M24 |
70–90 |
250–300 |
||
|
HM-V 800 |
40 |
480 |
50–70 |
70–85 |
330–415 |
60 |
M30 |
70–90 |
250–300 |
||
|
HM-V 1000 |
50 |
600 |
50–70 |
70–85 |
330–415 |
60 |
M30 |
70–90 |
250–300 |
||

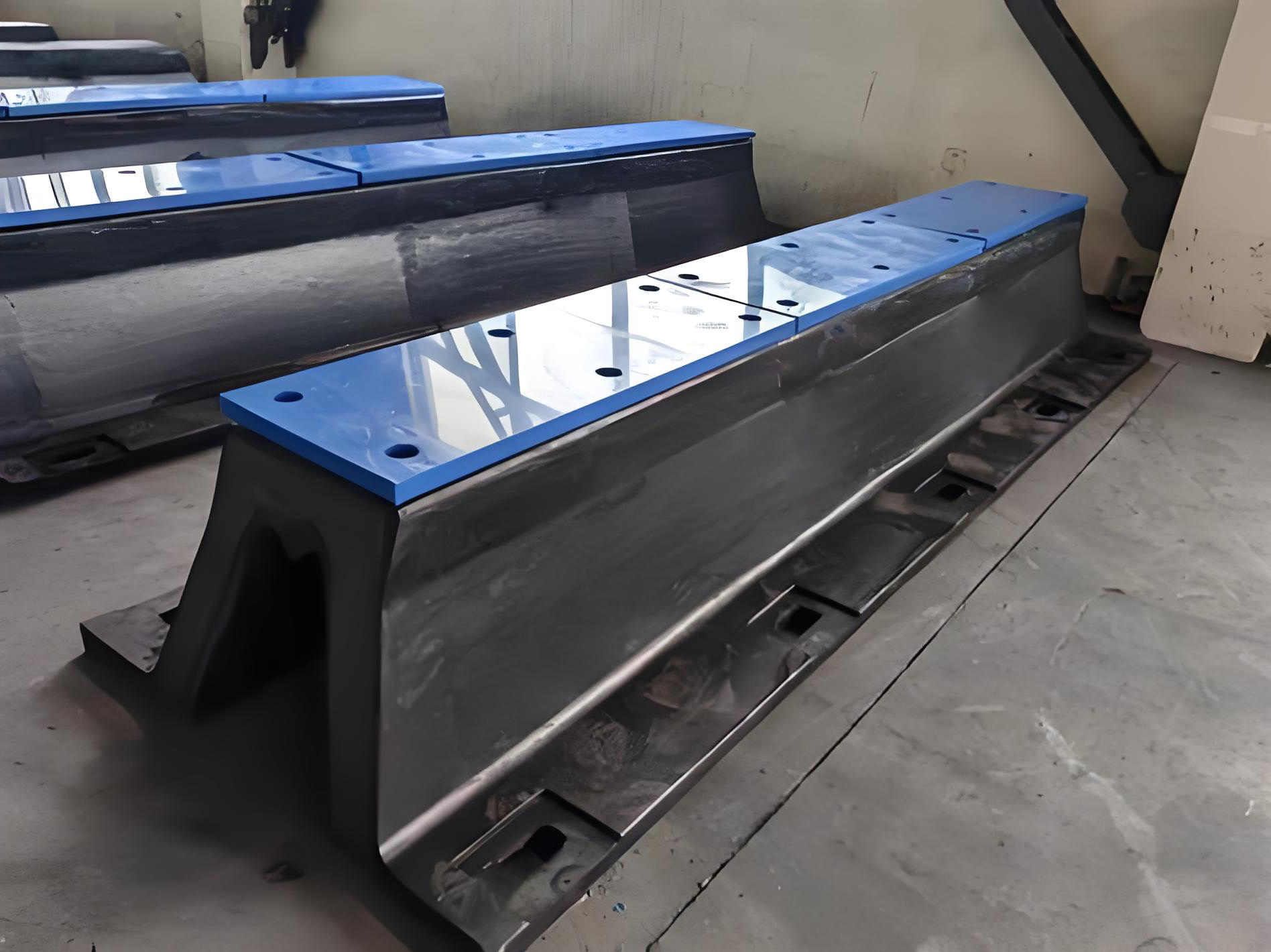

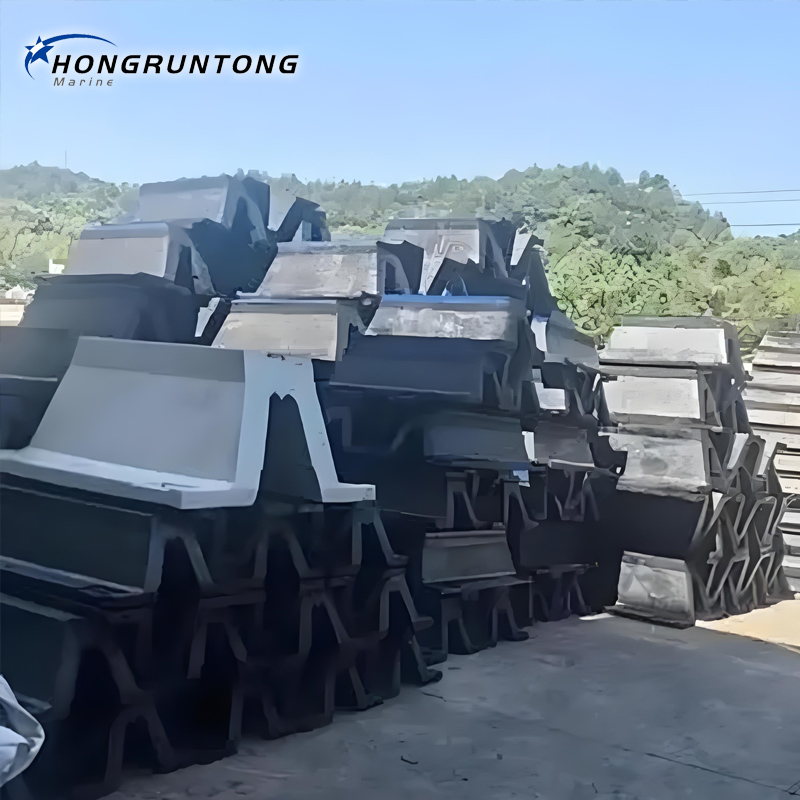

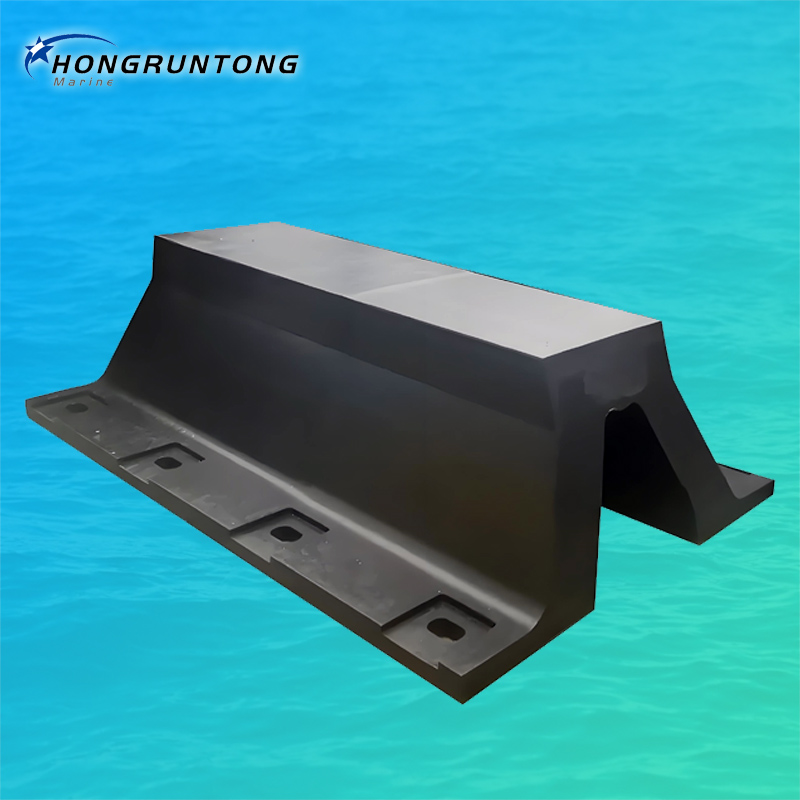

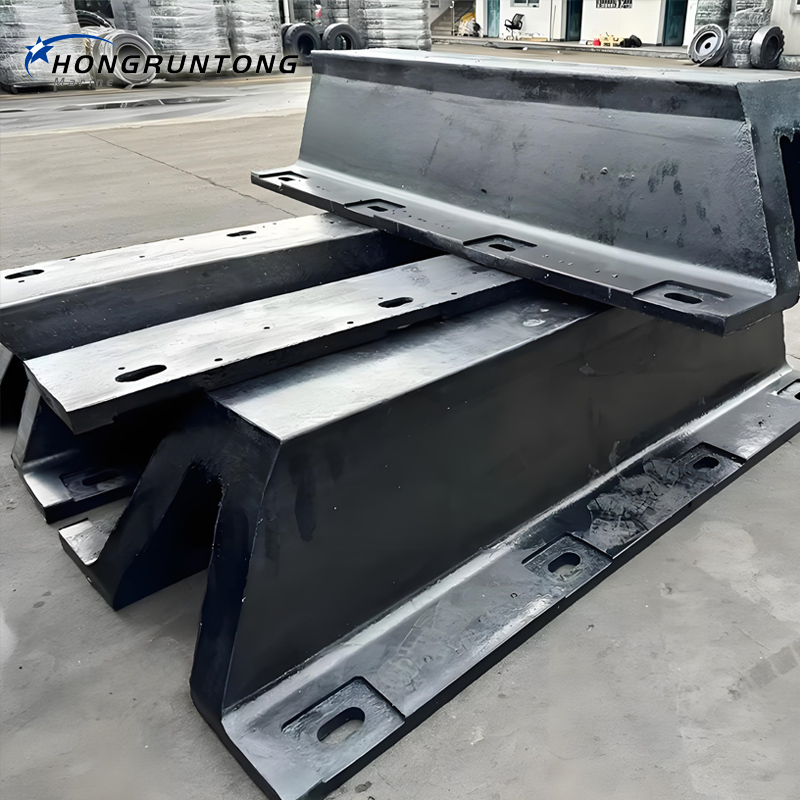

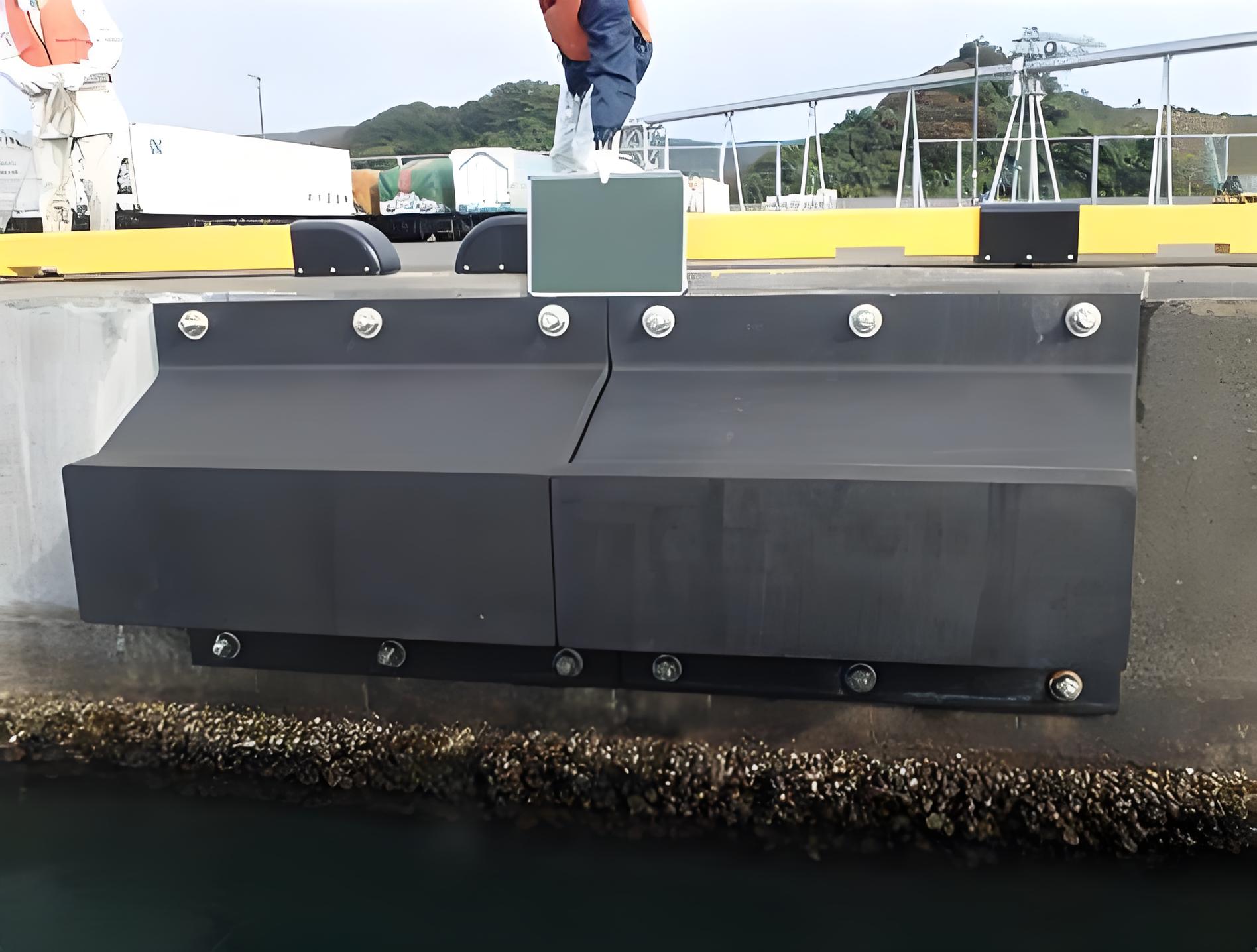

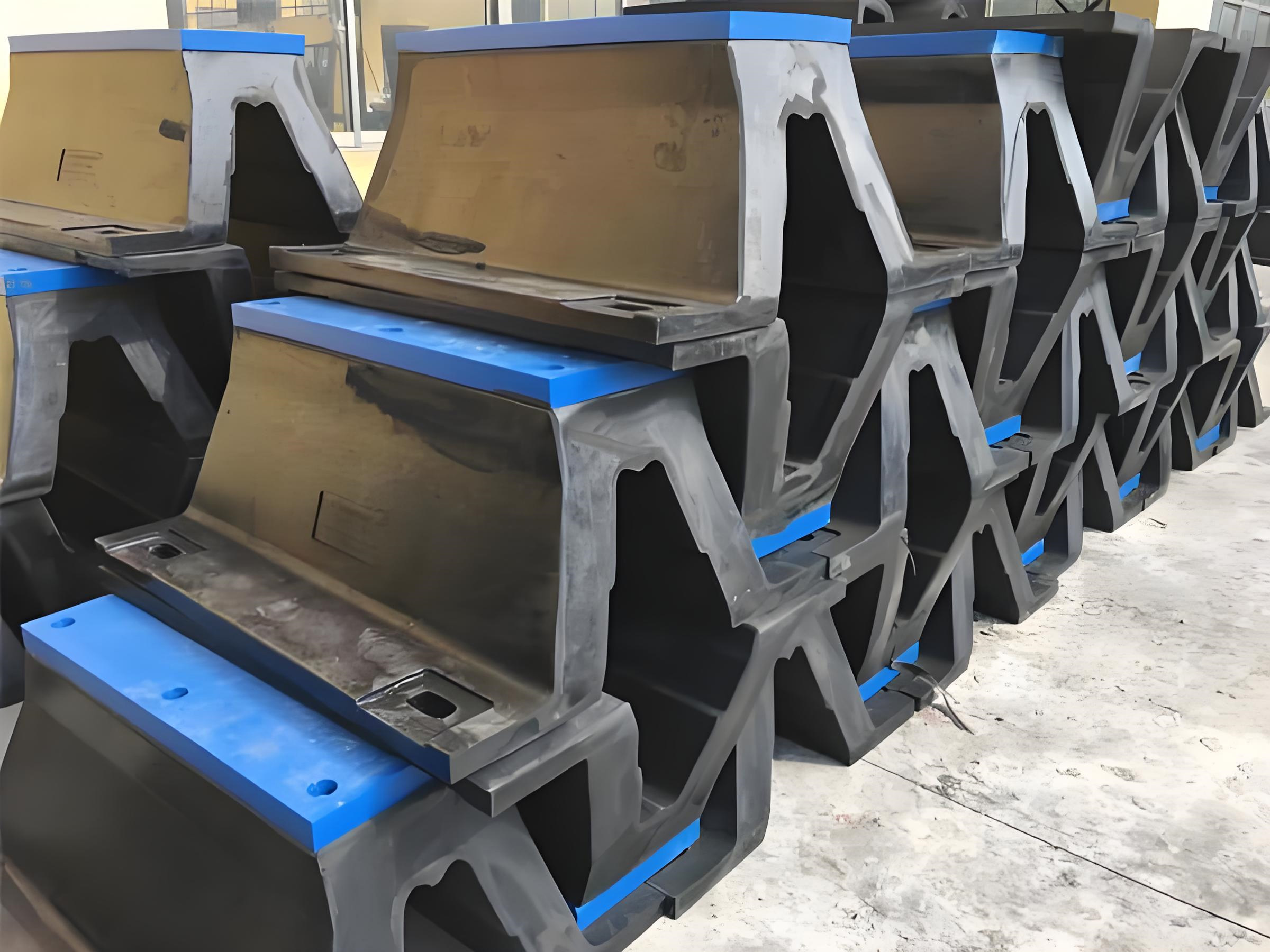

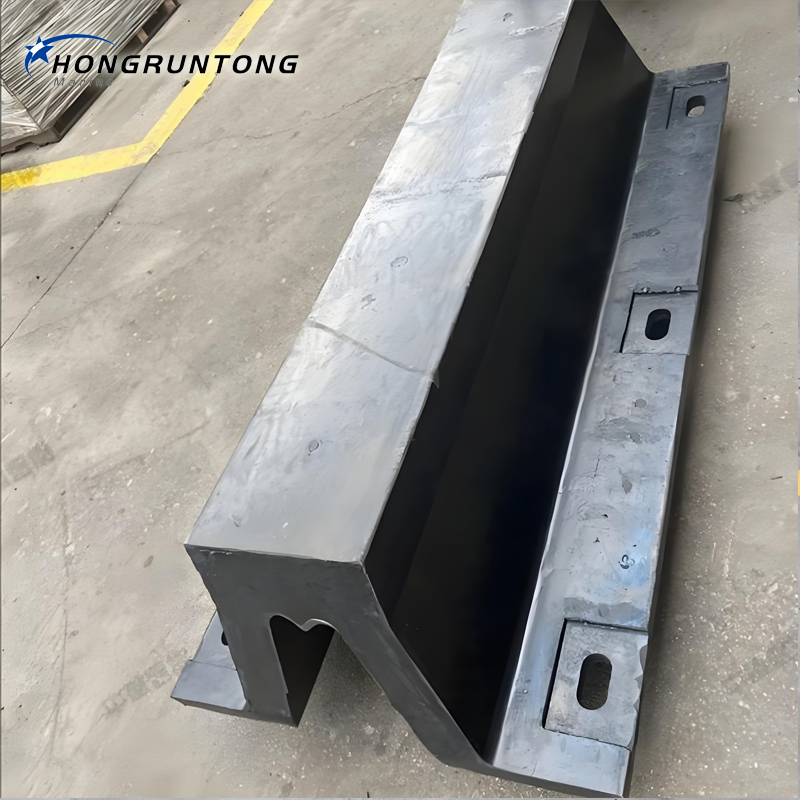

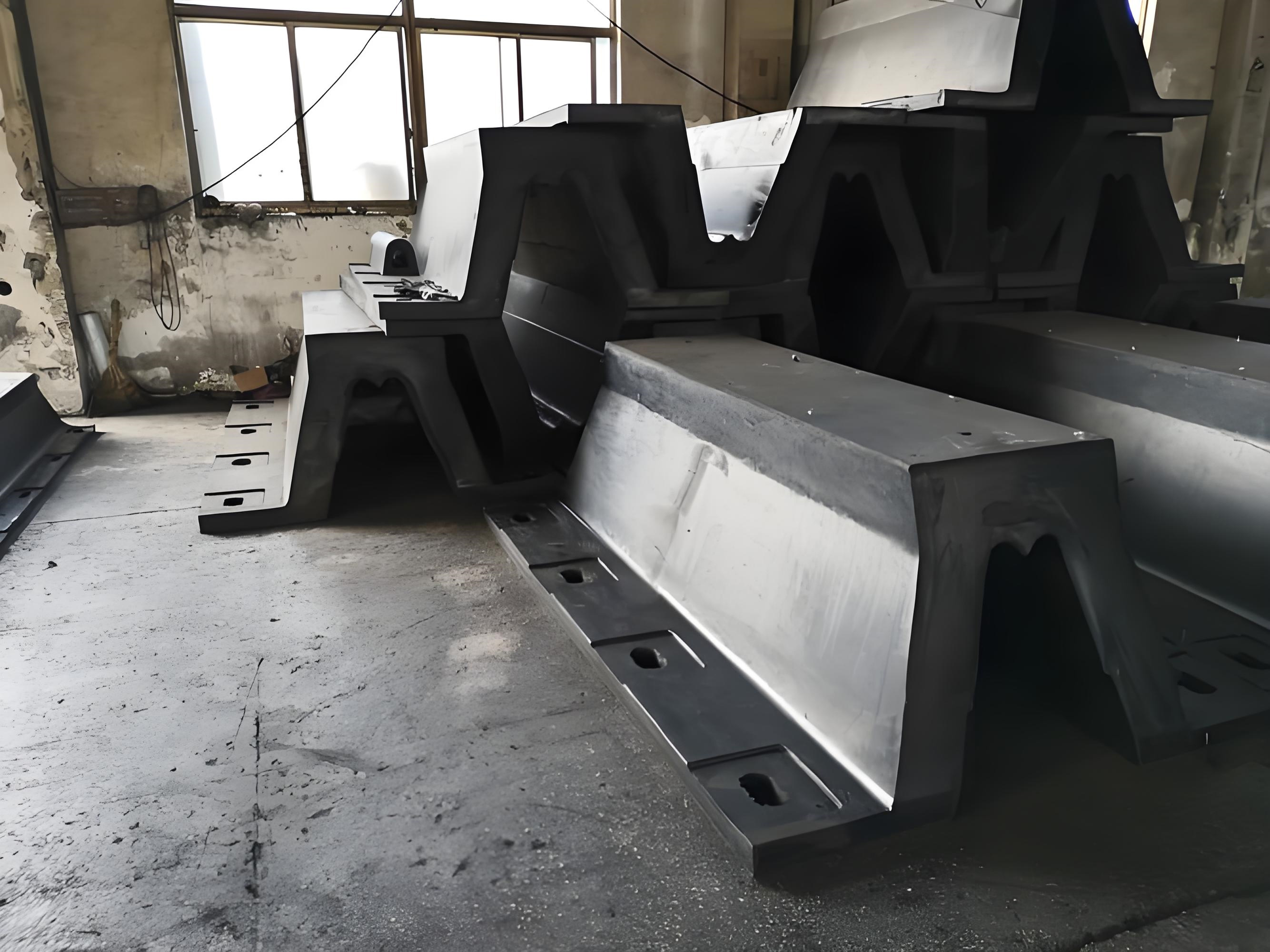

Detailed Photos
Why Choose Hongruntong Marine?
-
Innovative Fender Designs – Our V fenders and marine arch V fenders use the latest design technologies for optimal shock absorption.
-
Tailored Solutions – Customizable dimensions and configurations to fit unique port, dock, or offshore requirements.
-
Proven Track Record – Trusted by international ports, terminals, and shipyards for high-performance berthing protection.
-
Sustainable Manufacturing – Environmentally friendly materials and processes minimize ecological impact.
Quality & Service
-
Rigorous Testing – Each fender undergoes compression, fatigue, and saltwater resistance testing.
-
Installation Support – Professional guidance for proper mounting and integration with quay structures.
-
After-Sales Service – Follow-up monitoring and maintenance advice to ensure optimal performance.
-
Rapid Response – Dedicated technical team available for emergency support and project inquiries.
FAQ
Q1: What is the main advantage of V Fenders?
A: They provide high energy absorption with low reaction force, protecting both vessels and dock structures effectively.
Q2: Can corner super arch type V fenders be supplied?
A: Yes, Hongruntong Marine offers both standard V fenders and corner marine arch type V fenders.
Q3: Are custom sizes available?
A: Yes, fenders can be customized according to height, width, and energy absorption requirements.
Q4: How is the price determined?
A: Pricing depends on fender type, size, and quantity, ensuring competitive harga rubber fender type V options.
