Leg Fender



Hongruntong Marine presents its professional leg fender solutions, specifically engineered for protecting marine structures and vessel legs. Our marine leg rubber fender series combines advanced design with durable materials to deliver exceptional impact resistance and longevity. These robust leg fenders are manufactured using high-grade rubber compounds, ensuring reliable performance in the most challenging marine environments. The leg rubber fender systems provide optimal protection for various marine applications, offering superior energy absorption and easy maintenance.







Key Features



  • Enhanced Durability: Special rubber formulation provides excellent resistance to abrasion, impact, and marine corrosion

  • Easy Installation: Modular design allows for quick deployment and replacement

  • Cost-Effective: Long service life reduces maintenance costs and downtime

  • Versatile Application: Suitable for various marine structures and vessel types

  • Reliable Performance: Consistent energy absorption ensures optimal protection





Applications



  • Offshore platform legs

  • Ship and vessel legs

  • Dock and pier structures

  • Bridge pillars and supports

  • Marine terminal facilities

  • Floating structure protection

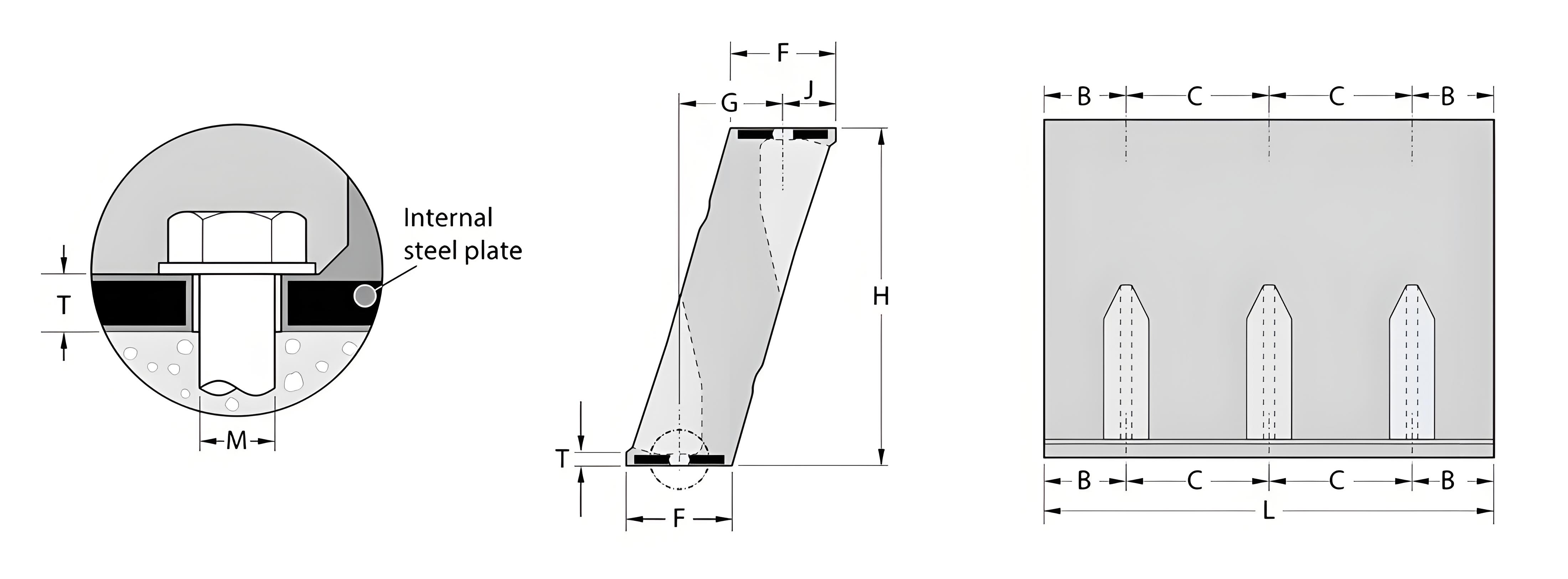

Dimensions







Model L B C F G J T    Anchors /
Head Bolts		 HOLES
HM-LF300 600 150 300 94 93 47 17-26 M20 2 + 2
900 3 + 3
1200 4 + 4
1500 5 + 5
HM-LF400 750 125 500 125 124 63 17-26 M24 2 + 2
1000 250 2 + 2
1500 3 + 3
2000 4 + 4
2500 5 + 5
3000 6 + 6
HM-LF500 750 125 500 158 142 87 17-26 M30 2 + 2
1000 250 2 + 2
1500 3 + 3
2000 4 + 4
2500 5 + 5
3000 6 + 6
HM-LF550 750 125 500 172 170 87 18-27 M30 2 + 2
1000 250 2 + 2
1500 3 + 3
HM-LF600 750 125 500 188 199 87 18-28 M30 2 + 2
1000 250 2 + 2
1500 3 + 3
HM-LF750 750 125 500 235 230 118 22-32 M36 2 + 2
1000 250 2 + 2
1500 3 + 3
HM-LF800 800 150 500 250 240 129 22-32 M36 2 + 2
1000 250 2 + 2
1500 3 + 3
2000 4 + 4
HM-LF1000 800 150 500 322 310 162 28-40 M42 2 + 2
850 175 2 + 2
900 200 2 + 2
950 225 2 + 2
1000 250 2 + 2
1050 275 2 + 2
1100 300 2 + 2
1150 325 2 + 2
1200 350 2 + 2
1500 250 3 + 3
2000 4 + 4
HM-LF1250 800 150 500 401 388 202 35-47 M48 2 + 2
850 175 2 + 2
900 200 2 + 2
950 225 2 + 2
1000 250 2 + 2
1050 275 2 + 2
1100 300 2 + 2
1150 325 2 + 2
1200 350 2 + 2
1250 375 2 + 2
1500 250 3 + 3
2000 4 + 4
HM-LF1450 900 200 500 454 445 228 35-50 M48 2 + 2
1000 250 2 + 2
1100 300 2 + 2
1200 350 2 + 2
1500 250 3 + 3
2000 4 + 4
HM-LF1600 1000 250 500 507 480 261 45-50 M56 2 + 2
1100 300 2 + 2
1200 350 2 + 2
1500 250 3 + 3
2000 4 + 4

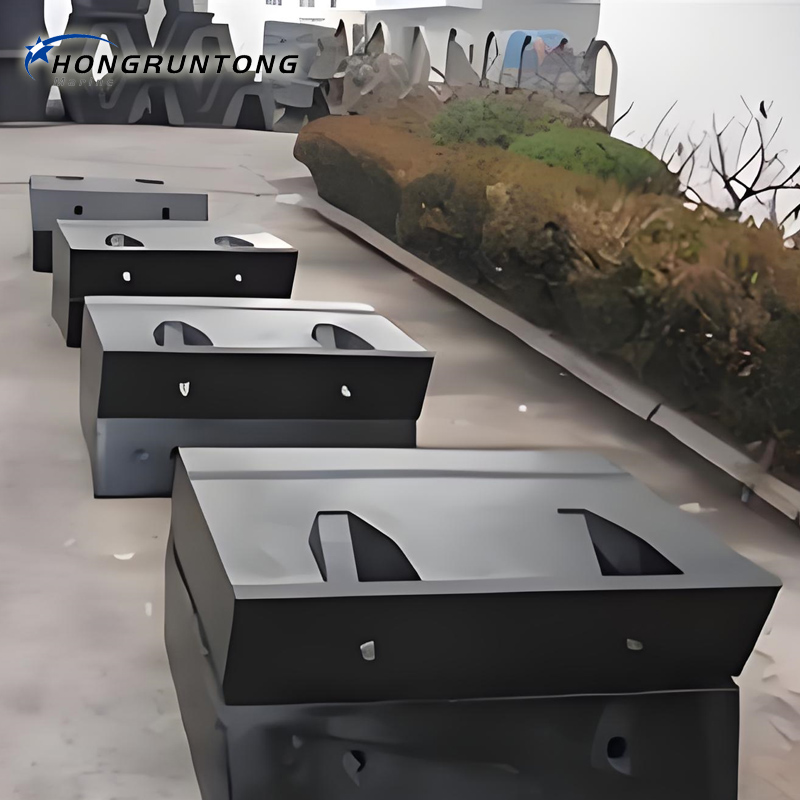

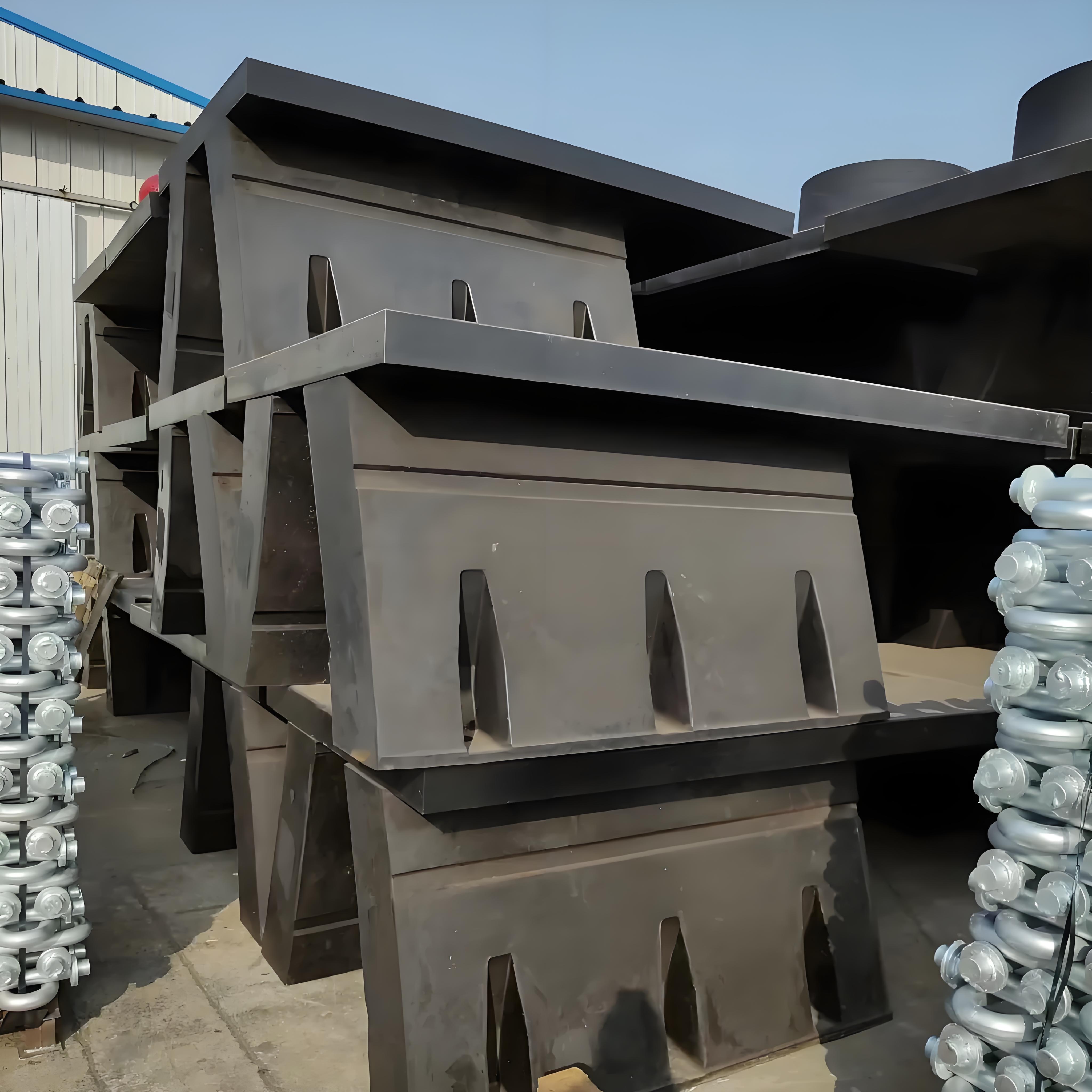

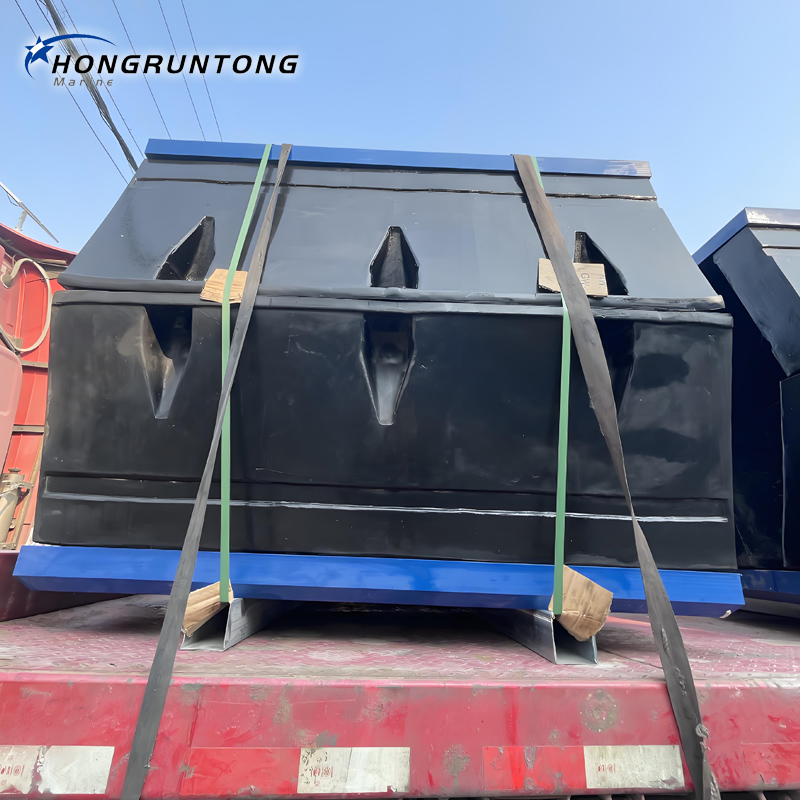

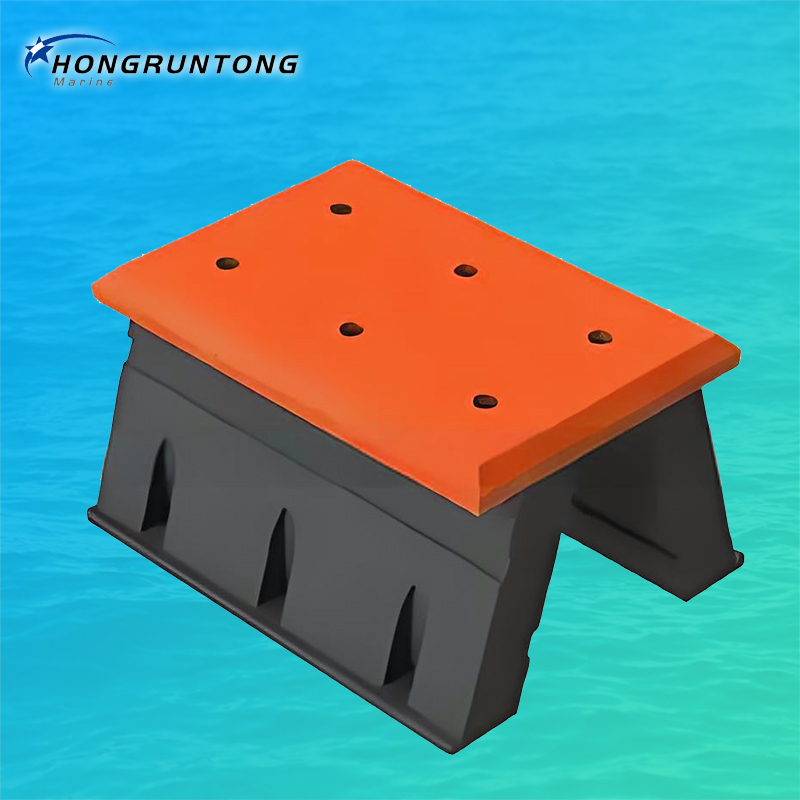

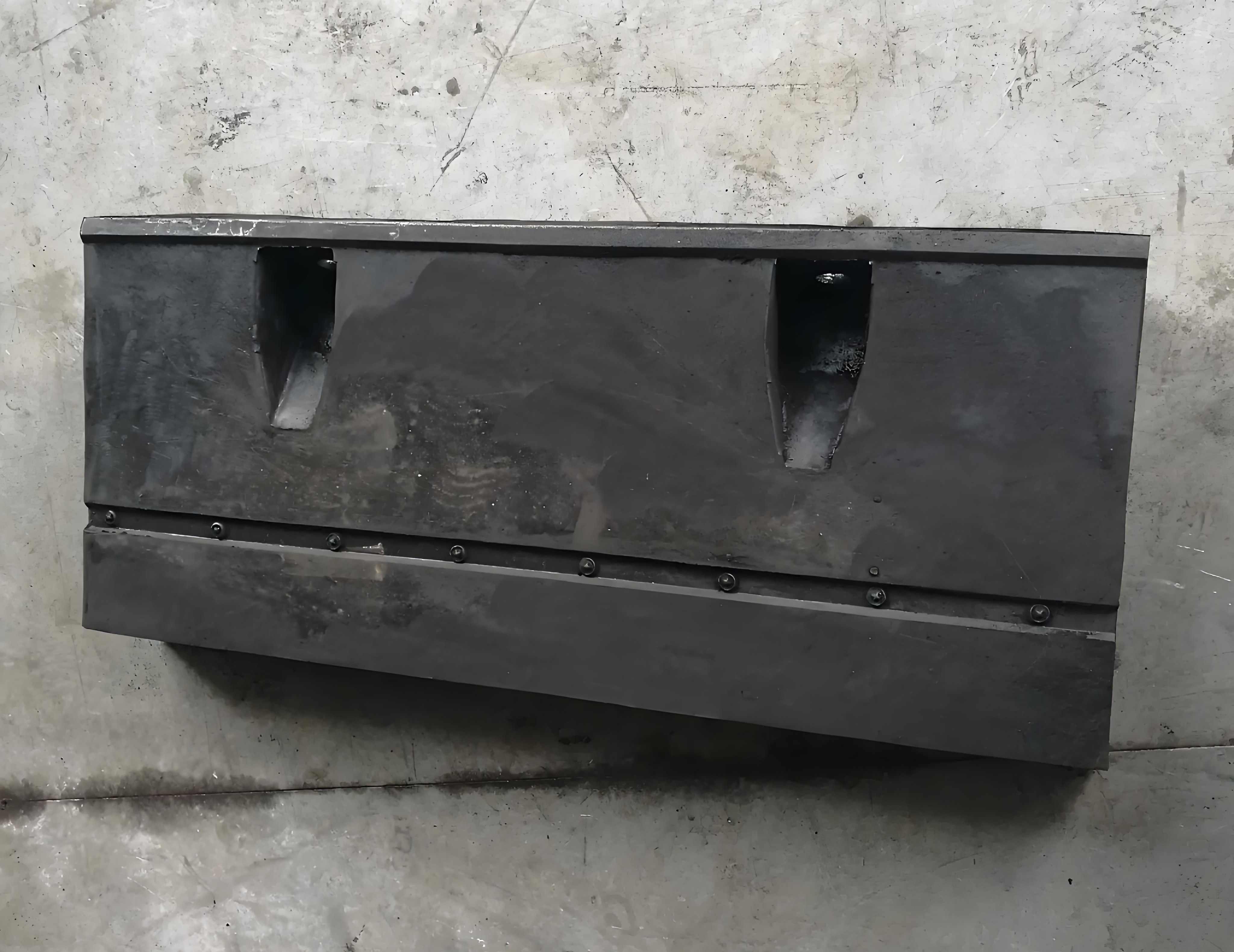

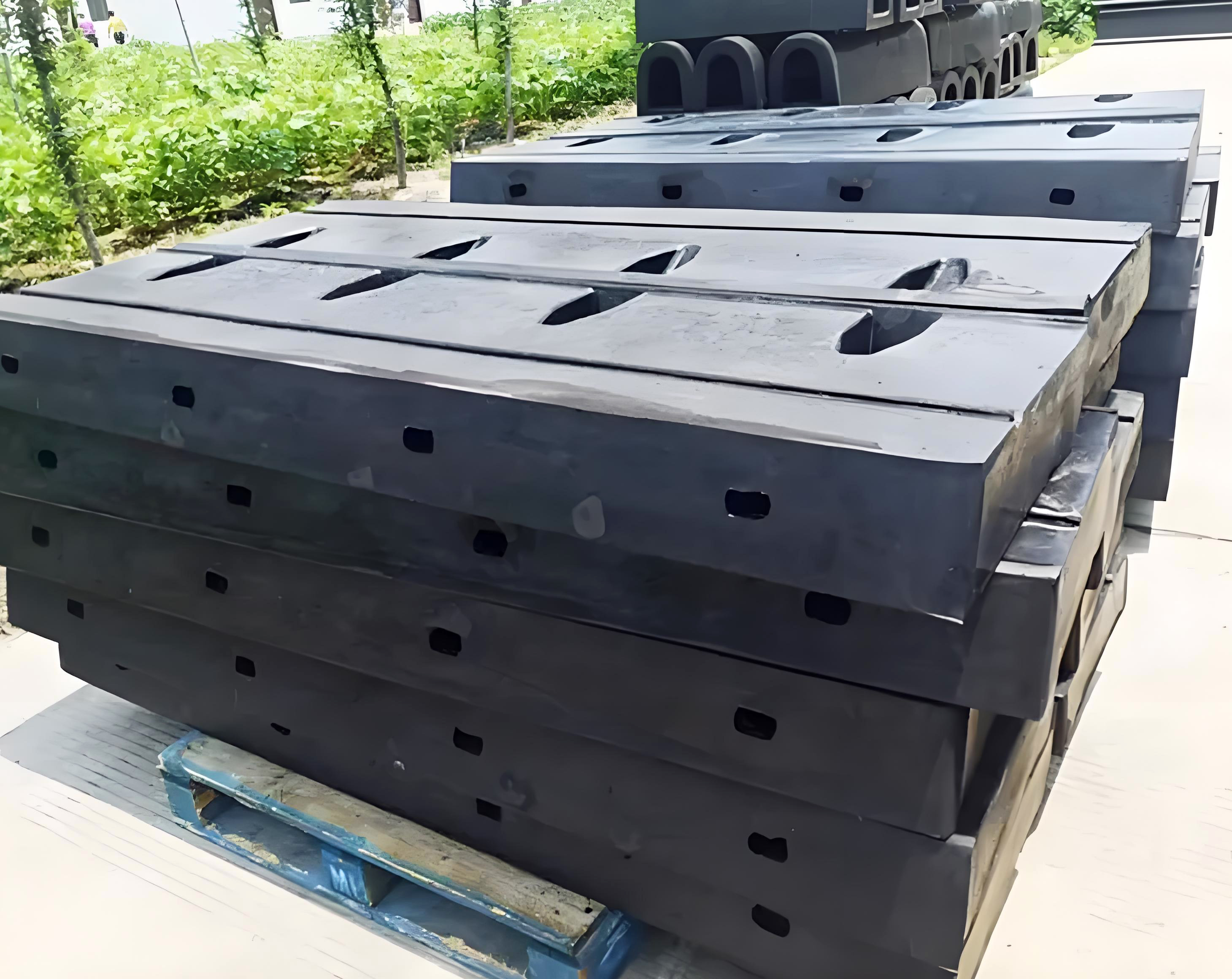

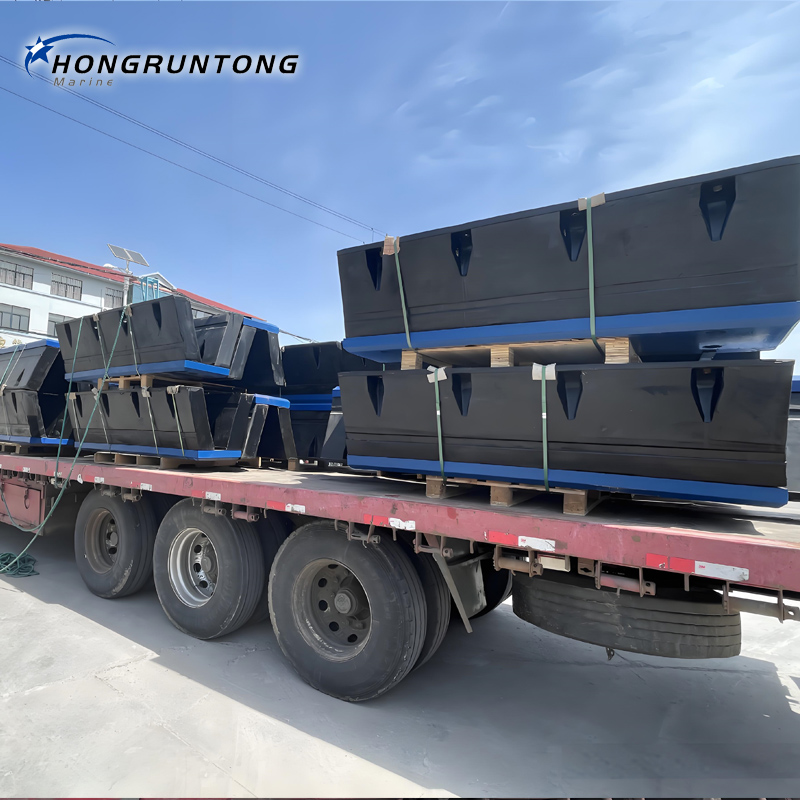

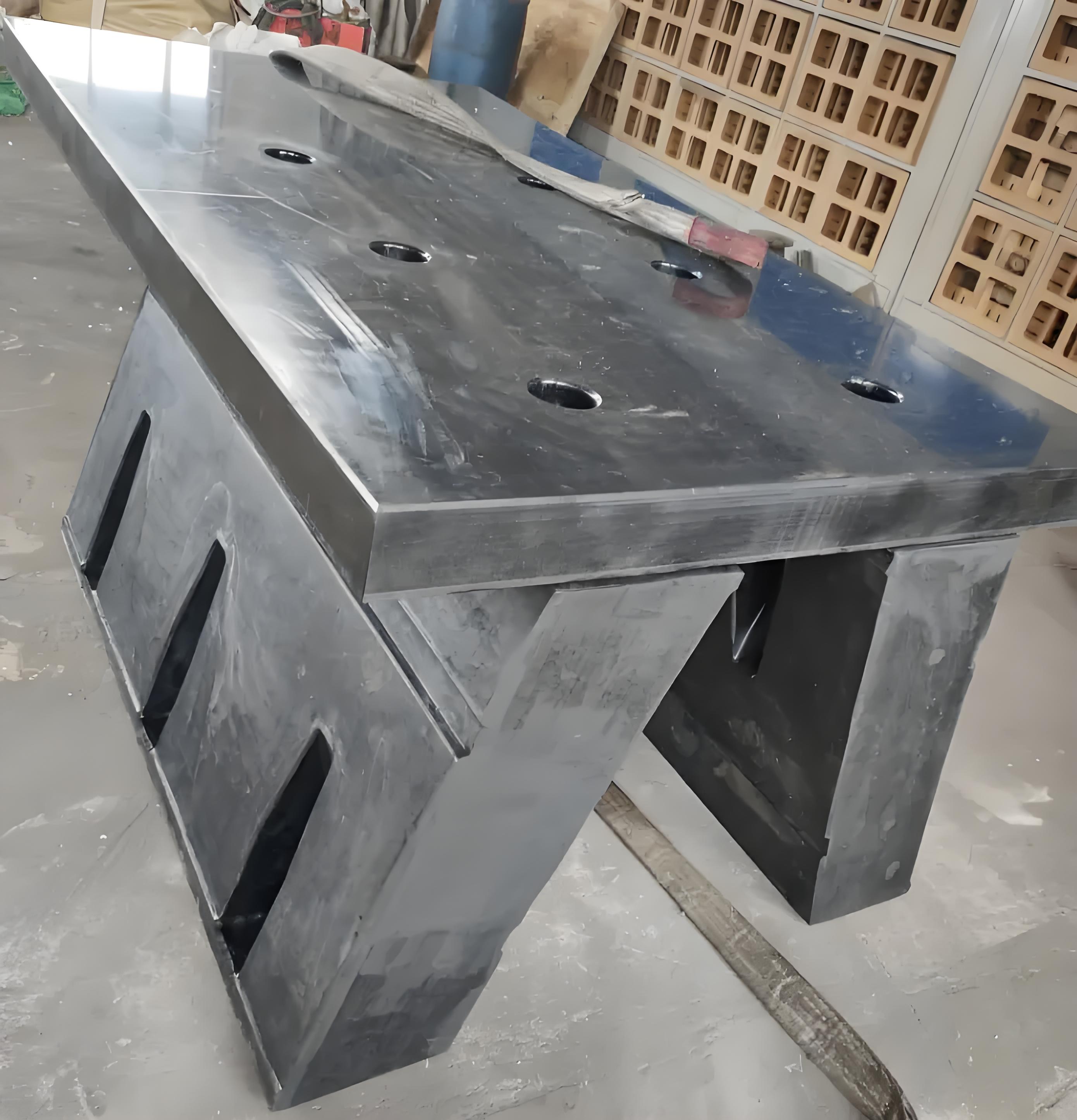

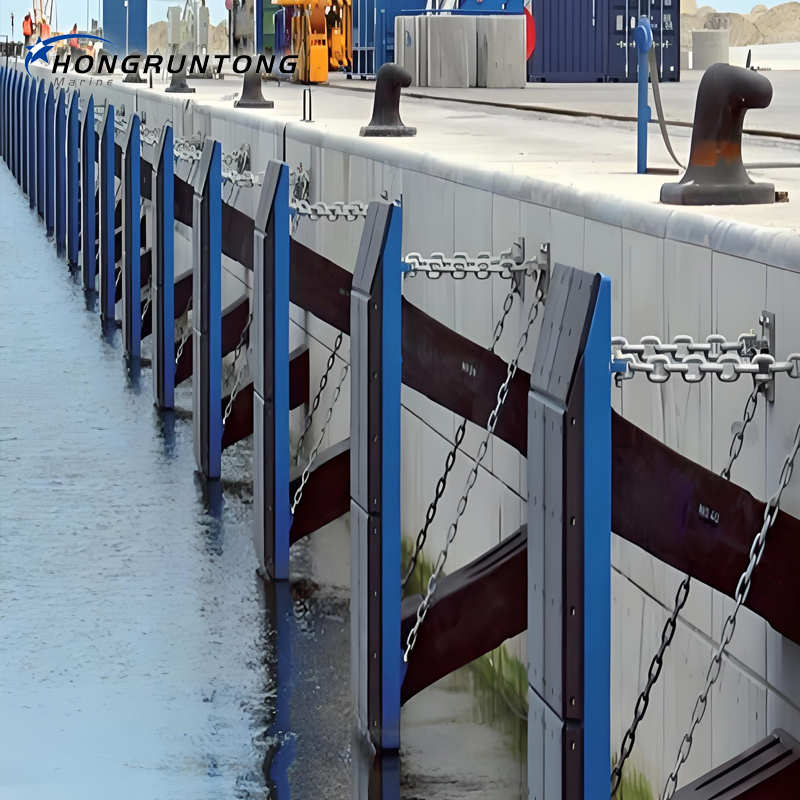

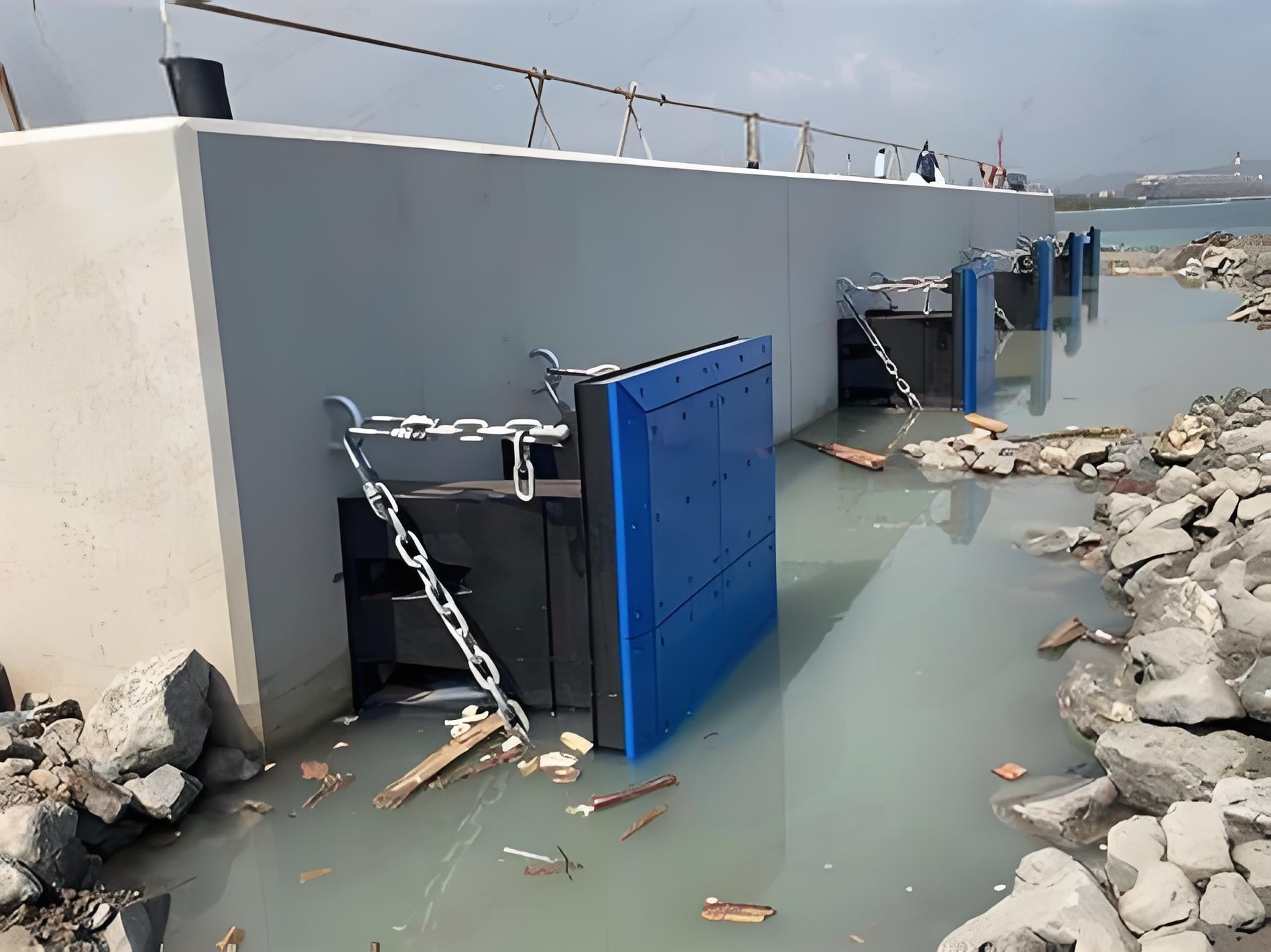

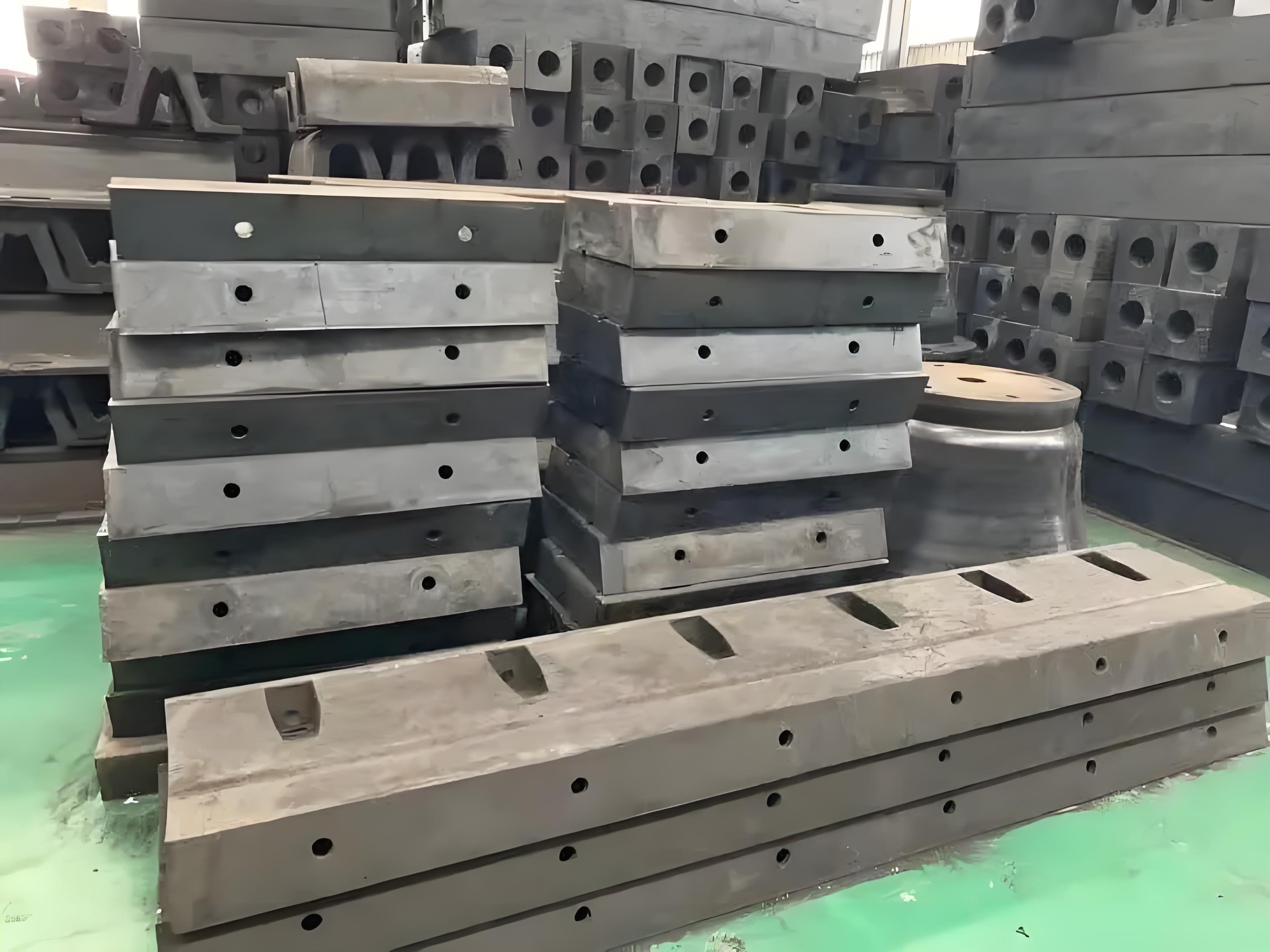

Detailed Images







Why Choose Hongruntong Marine?



  • Industry expertise: proven track record manufacturing marine fenders for commercial and offshore applications.

  • Customization: we tailor diameter, length, hardness and mounting to your vessel or structure.

  • Quality control: incoming material inspection, in-process monitoring and final QA ensures consistent product performance.

  • After-sales support: technical documentation, installation guidance and spare/repair services.

  • Competitive lead times: scalable manufacturing to meet both one-off and project volume needs.





Quality & Service



Quality Assurance:

  • ISO 9001 certified manufacturing

  • Rigorous quality control testing

  • Material certification

  • Performance validation



Service Support:

  • Technical consultation

  • Installation guidance

  • After-sales support

  • Warranty coverage
