Roller Fenders
Hongruntong Marine Rotating Roller Fenders are advanced marine-grade rubber buffers engineered for 360° rotational impact absorption, specifically designed to meet PIANC 2002 (International Navigation Association) standards for port and harbor structures. Combining a unique cylindrical roller design with high-elasticity rubber compounds, these fenders minimize vessel friction during berthing while providing maximum energy dissipation for docks, quay walls, and offshore terminals.
Key Features & Benefits
1. PIANC 2002-Compliant Design
-
Rigorously tested to comply with PIANC Working Group 33 guidelines for fender system performance.
-
Energy absorption capacity: 60-75 kJ/m (adjustable based on vessel size and impact velocity).
2. 360° Rotation Mechanism
-
Patented low-friction stainless steel axle core enables smooth rotation, reducing lateral forces by 45% compared to fixed fenders.
-
Self-aligning design prevents uneven wear, extending service life to 25+ years in saltwater environments.
3. Marine-Optimized Materials
-
Triple-layer rubber construction:
-
Outer layer: Abrasion-resistant Natural Rubber with UV stabilizers.
-
Middle layer: High-damping NBR for shock absorption.
-
Inner layer: Reinforced SBR (Styrene Butadiene Rubber) bonded to steel plating.
-
4. Modular & Scalable
-
Available in Ø300mm to Ø2500mm diameters with customizable lengths.
-
Interlocking units allow seamless installation on curved quays or straight wharves.
5. Eco-Safe & Low Maintenance
-
Zero hydrocarbon leaching (tested per MARPOL Annex IV).
-
Integrated drainage channels prevent marine growth accumulation.
Applications
-
Container Terminals: Protection for Panamax and Post-Panamax vessels (50,000-200,000 DWT).
-
Ferry & Cruise Ports: Low-noise operation for passenger vessel berthing.
-
LNG Terminals: Spark-resistant design for hazardous environments.
-
Tidal Zones: Corrosion-proof construction for fluctuating salinity levels.
-
Ice-Prone Harbors: Operates at -40°C to +70°C without brittleness.
Competitive Advantages
✅ PIANC 2002 Dual Compliance
✅ 40% Faster Installation with pre-drilled mounting brackets and QR code-guided assembly.
✅ Smart Monitoring Ready: Optional IoT sensors for real-time impact force tracking.
✅ Global Project Portfolio: Deployed in 50+ ports across Europe, Asia, and the Americas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Compliance | PIANC 2002, ISO 17357, OCIMF MEG4 |
| Energy Absorption | Up to 75 kJ/m (at 55% compression) |
| Reaction Force | ≤ 0.25 MN at 50% deflection |
| Temperature Range | -40°C to +70°C (EN 1337-3 certified) |
| Warranty | 10 years against material defects |
Why Choose Hongruntong Marine?
As a Top 10 Global Marine Supplier (Marine Equipment News 2023), we provide:
-
Free Berthing Force Analysis: AI-powered simulation for optimal fender configuration.
-
On-Site Training: Certified engineers for installation supervision.
-
Circular Economy Program: 95% material recycling for end-of-life fenders.

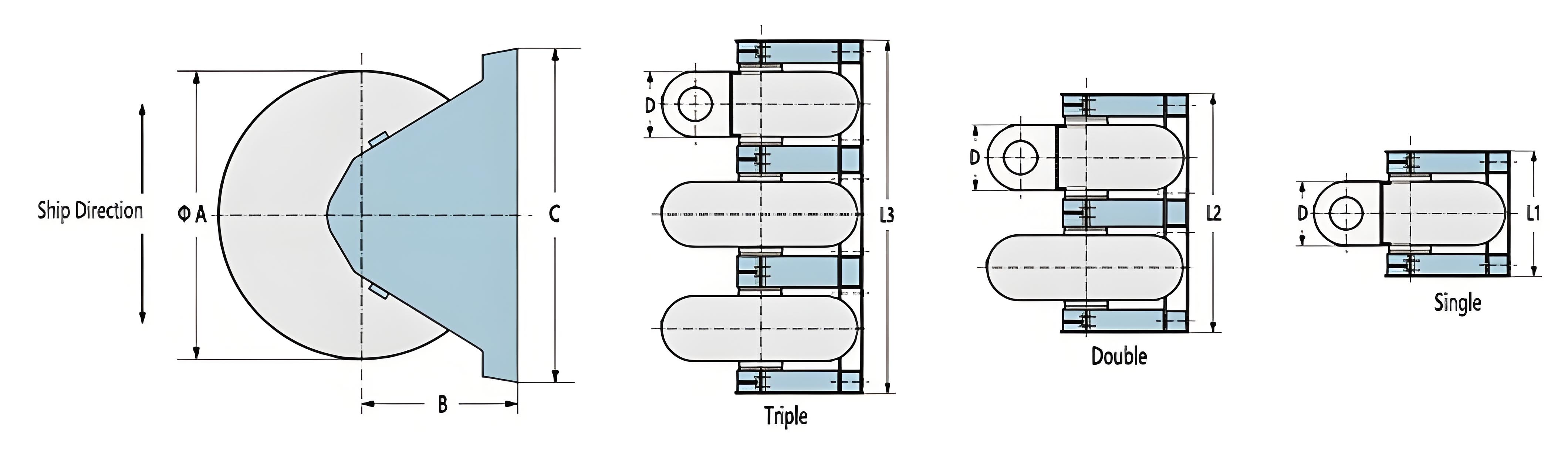

Dimensions
| Model | A [mm] |
B [mm] |
C [mm] |
D [mm] |
L1 [mm] |
L2 [mm] |
L3 [mm] |
| HM 600 x 200 | 600 | 320 | 695 | 200 | 420 | 770 | 1120 |
| HM 750 x 250 | 750 | 400 | 870 | 250 | 510 | 935 | 1360 |
| HM 900 x 300 | 900 | 495 | 1040 | 300 | 610 | 1120 | 1630 |
| HM 1200 x 400 | 1200 | 640 | 1380 | 400 | 820 | 1500 | 2180 |
| HM 1500 x 500 | 1500 | 800 | 1740 | 500 | 1010 | 1850 | 2690 |
| HM 1800 x 600 | 1800 | 960 | 2080 | 600 | 1210 | 2215 | 3220 |
| HM 2100 x 700 | 2100 | 1155 | 2440 | 700 | 1410 | 5690 | 3770 |
| HM 2400 x 800 | 2400 | 1280 | 2770 | 800 | 1610 | 2950 | 4290 |

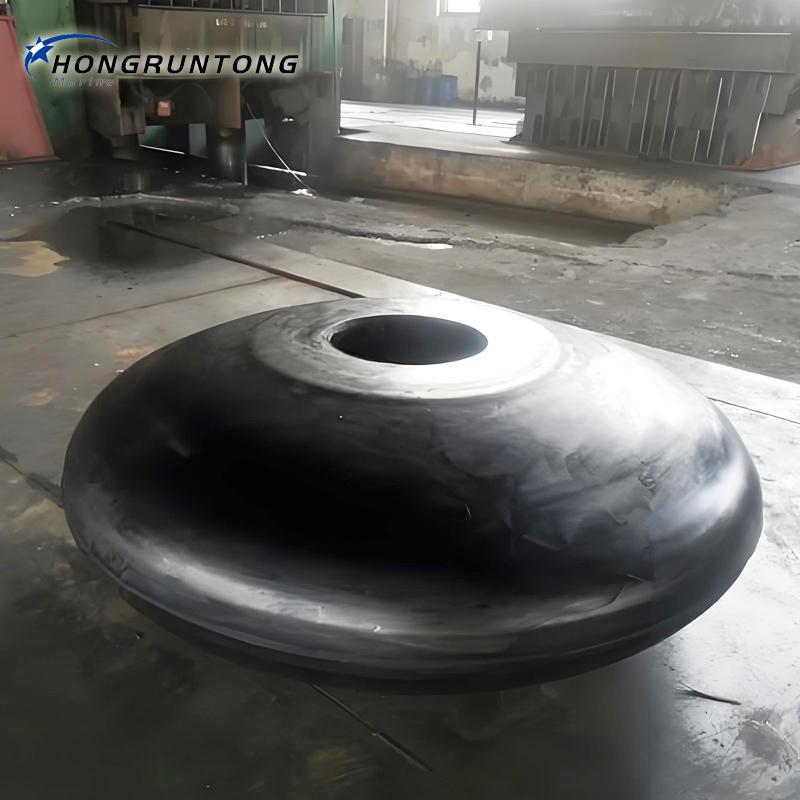

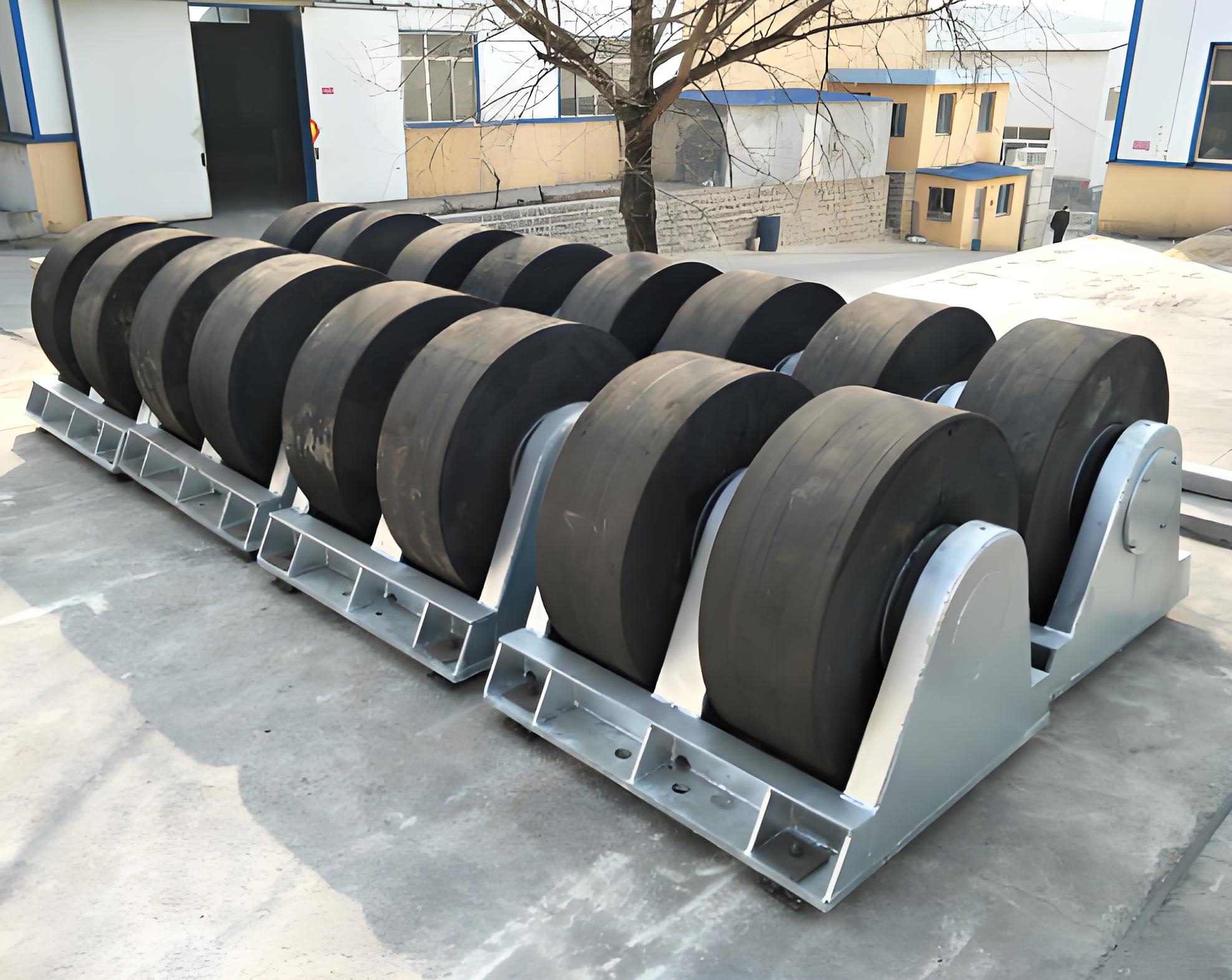

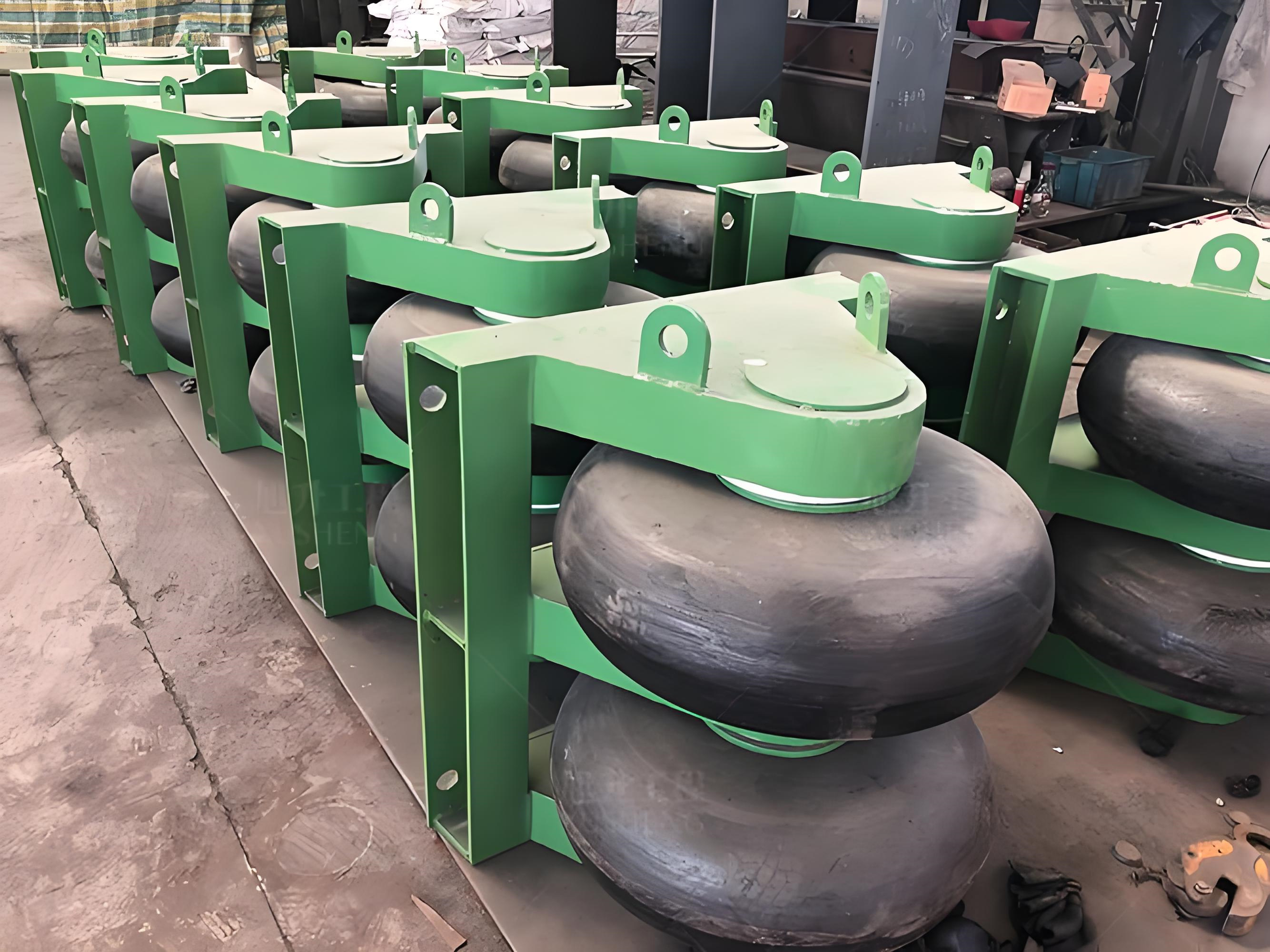

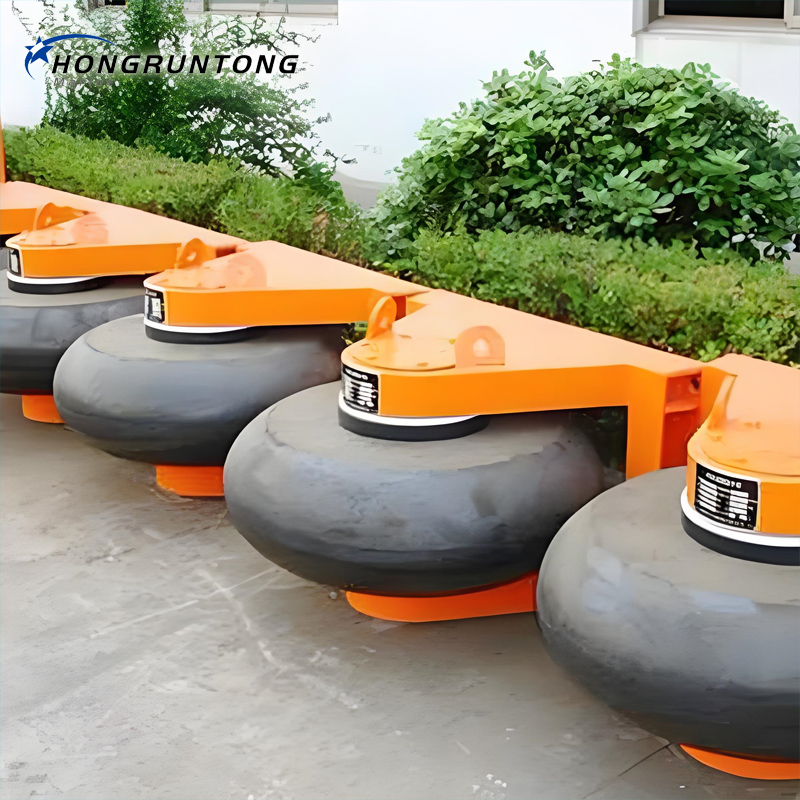

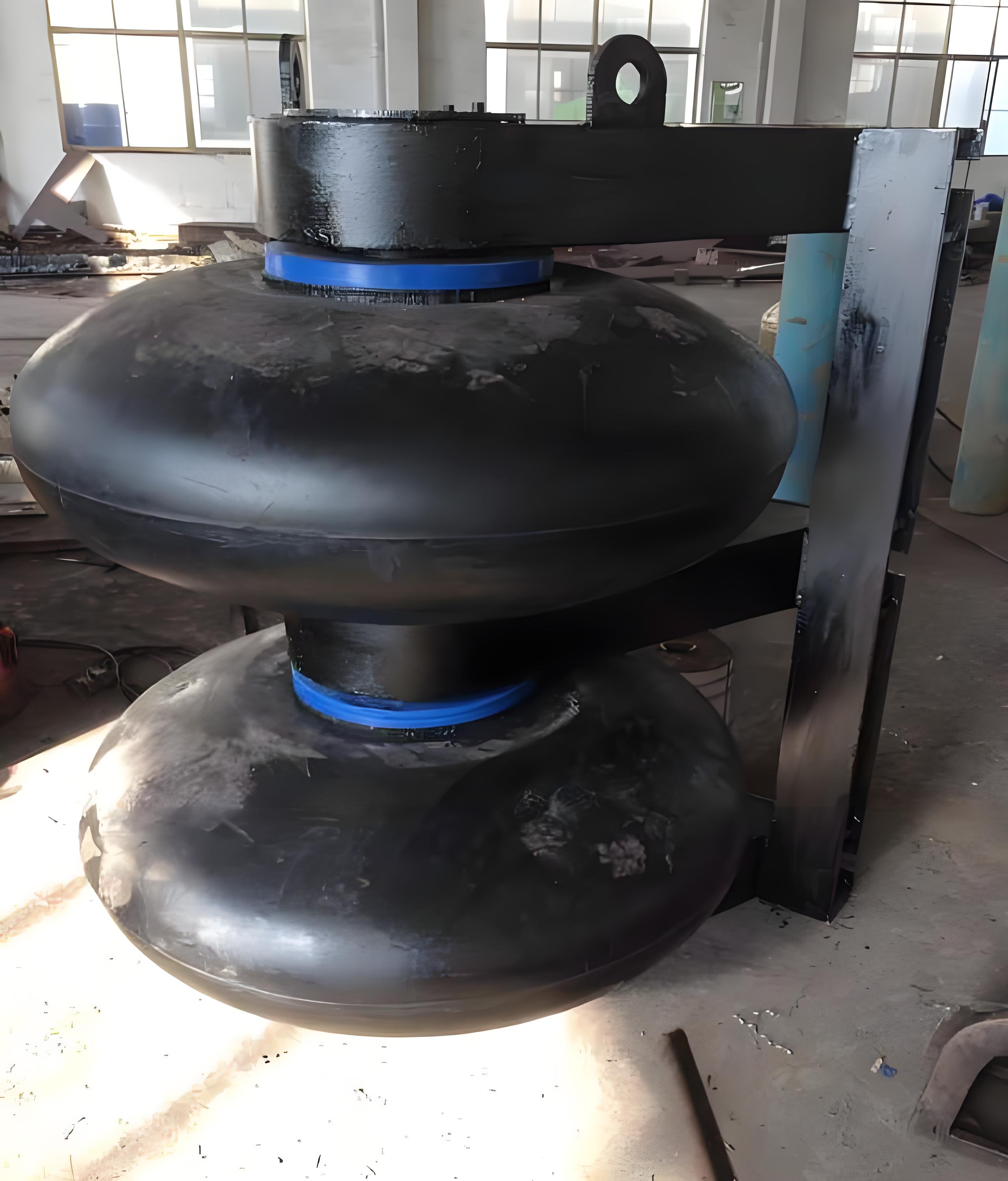

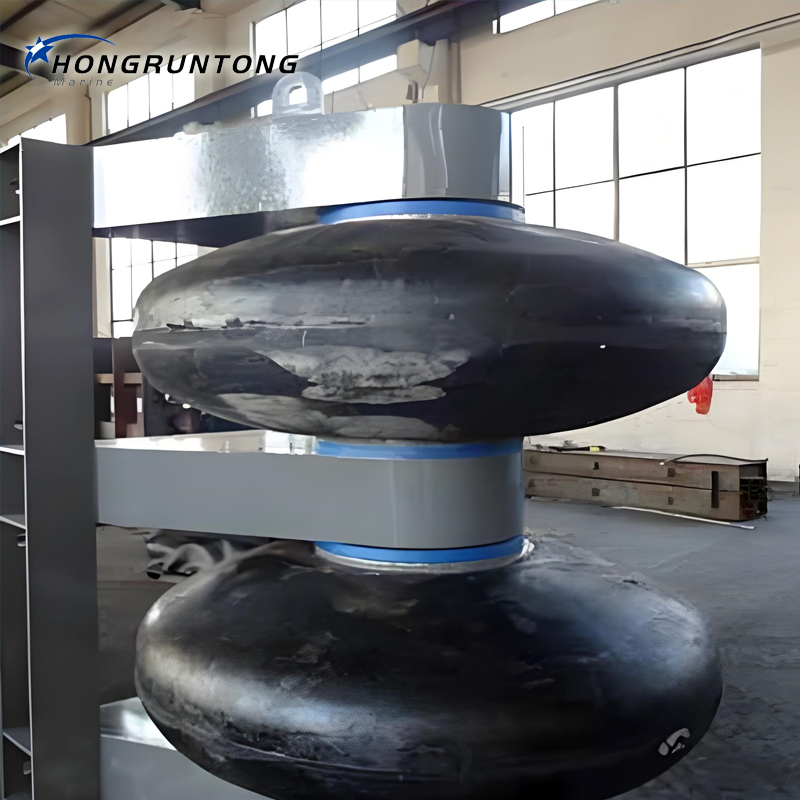

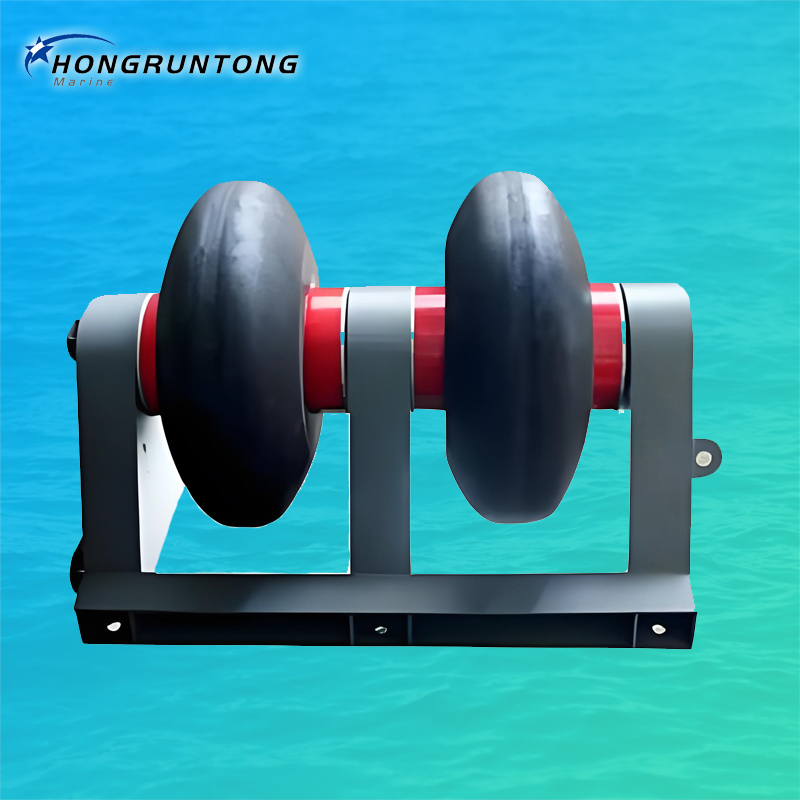

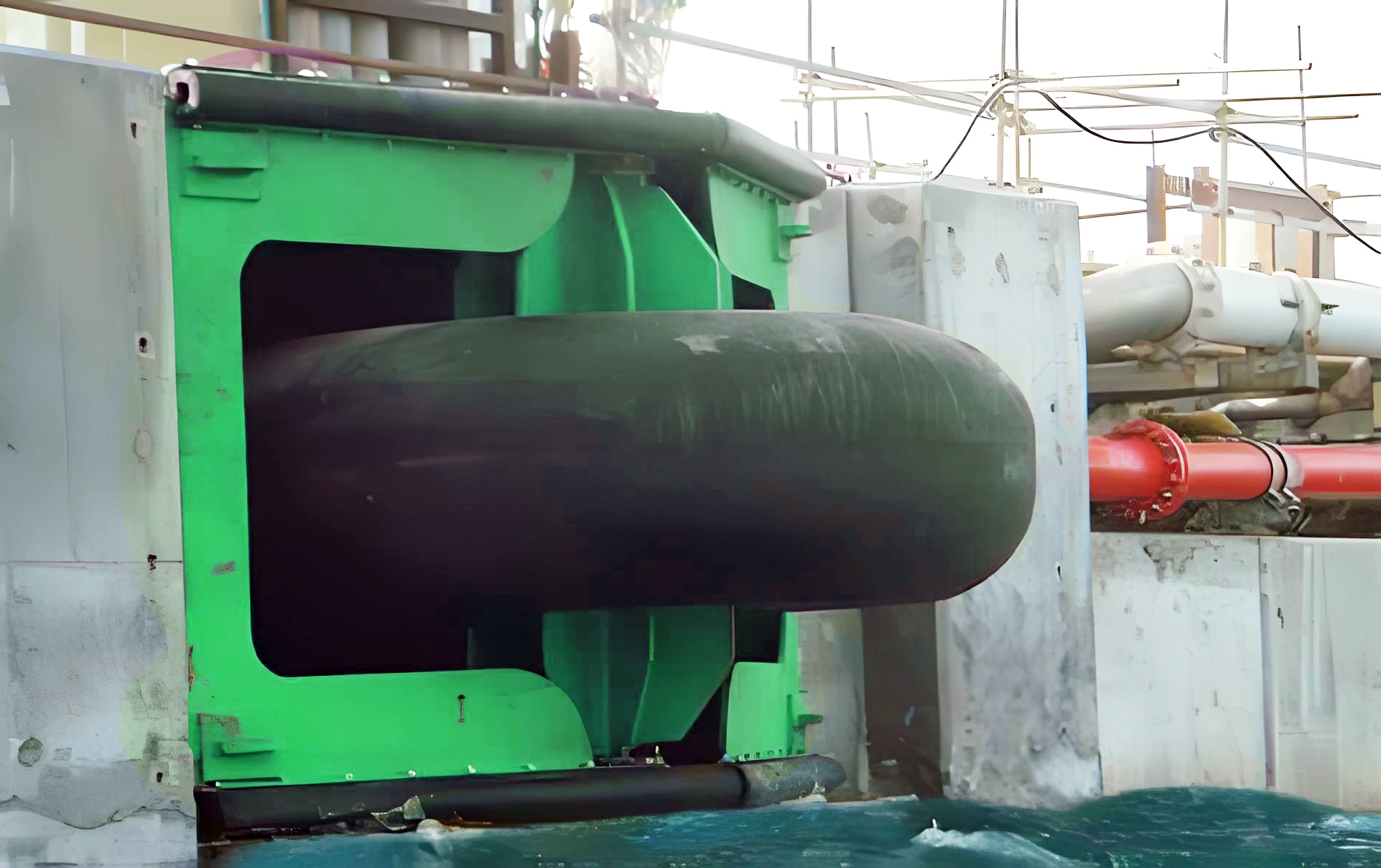

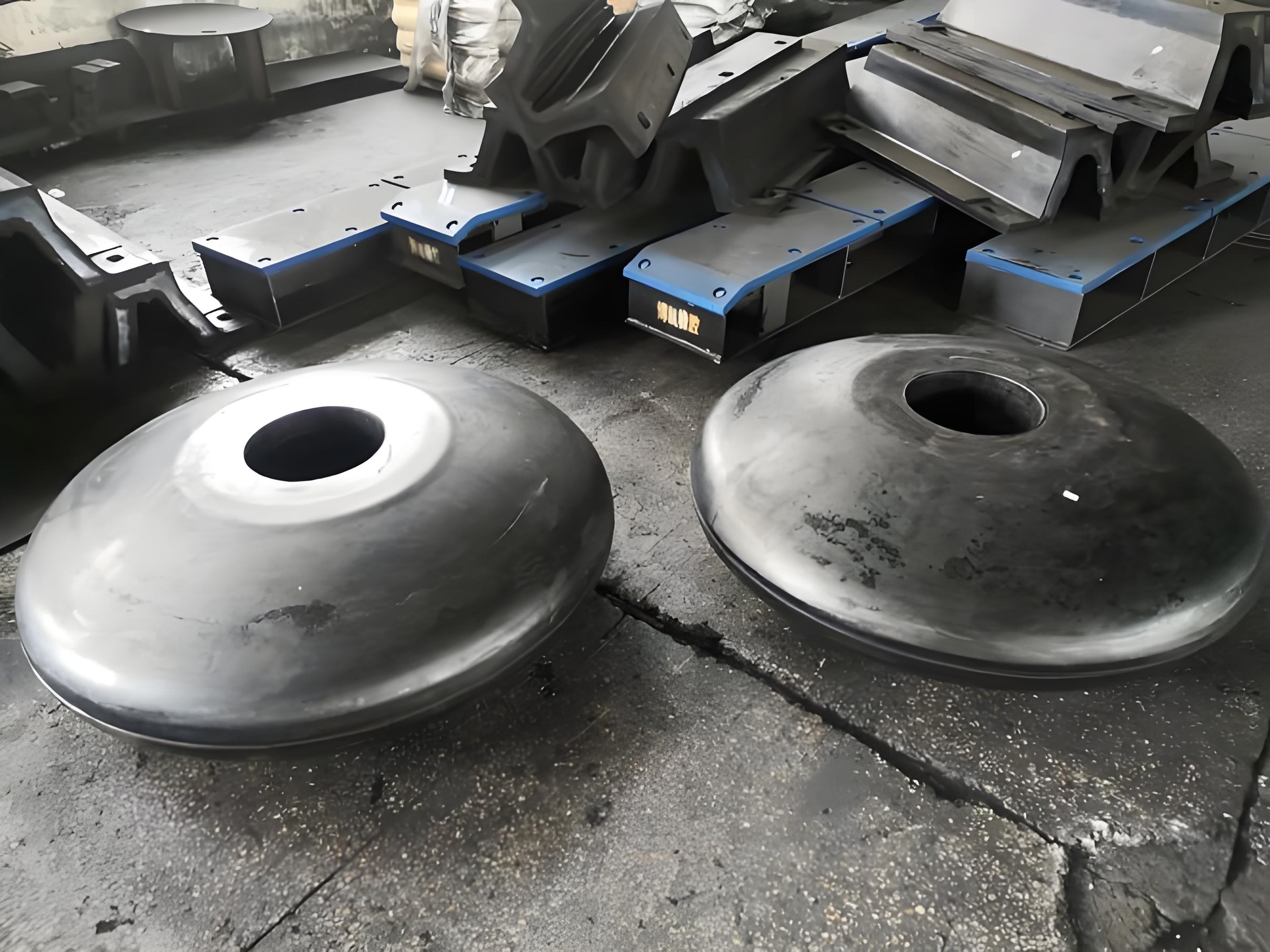

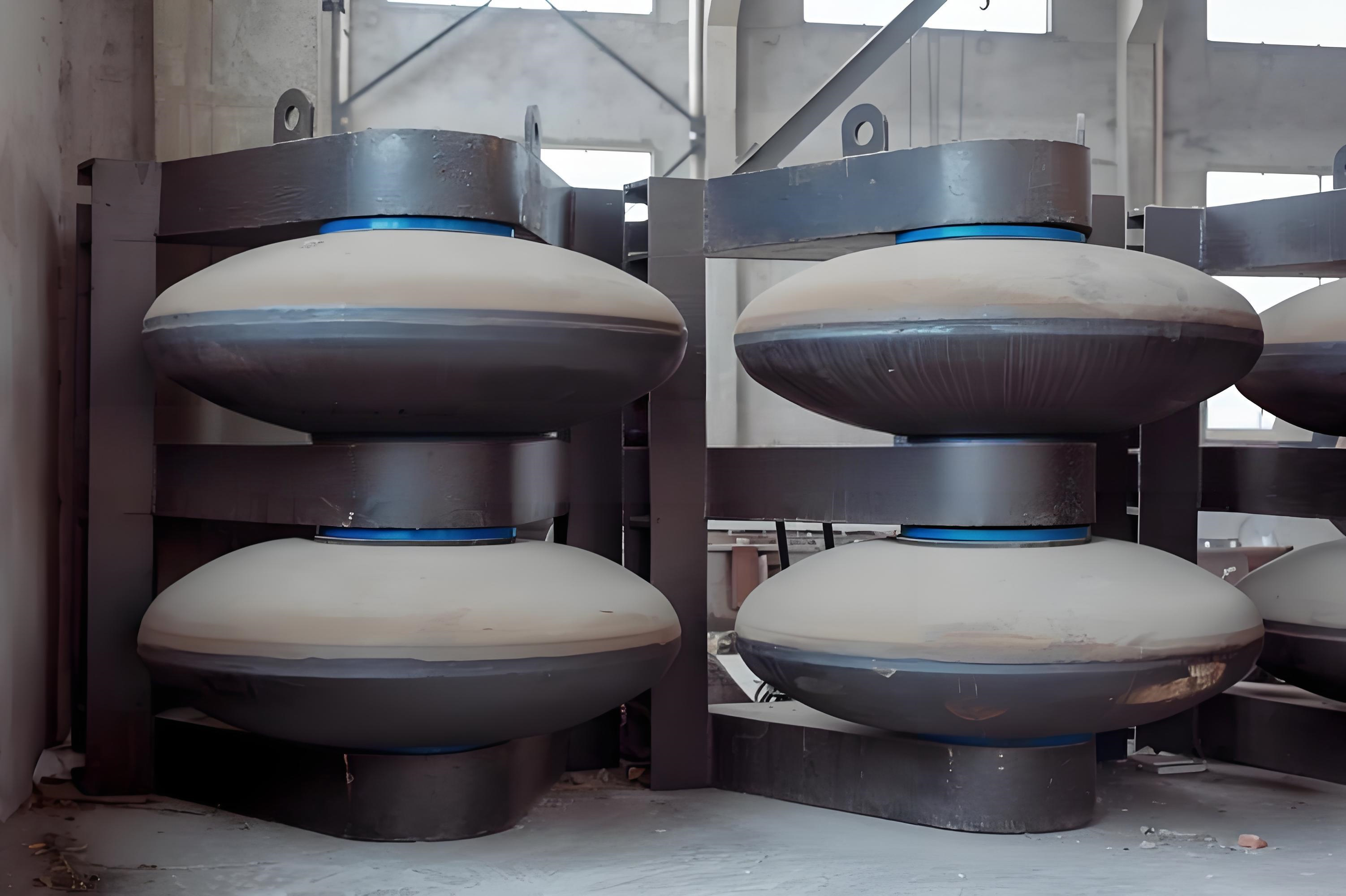

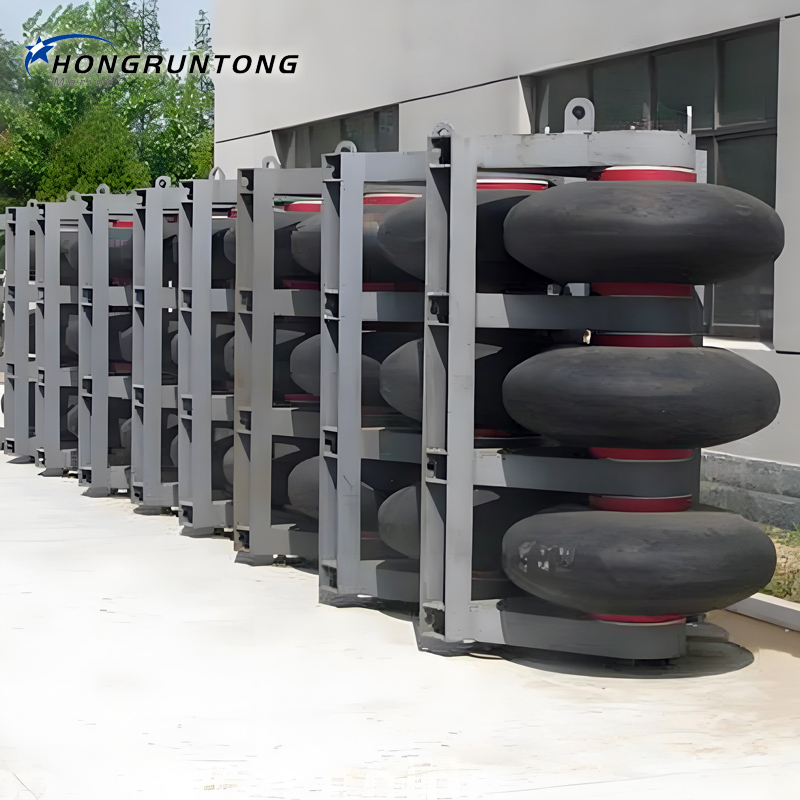

Details Photos
