Composite Hose
Hongruntong Marine’s Composite Hose is engineered for the reliable transfer of oil, fuels, and a wide range of chemicals. Constructed with multiple layers of thermoplastic films, inner/outer wire helixes, and high-tensile fabric reinforcement, the hose offers outstanding chemical resistance, durability, and flexibility. It is lightweight, vapor-tight, and designed for both stationary and mobile use.
Key Features & Benefits
-
Suitable for a wide range of oil, fuel, and chemical media
-
Corrosion-resistant and vapor-tight construction
-
Lightweight and highly flexible for easy handling
-
Anti-static wire design for safe operations
-
Compliant with international standards such as EN13765 and EN13766
Technical Data
| Parameter | Specification |
|---|---|
| Hose Diameter | 1" to 10" (25mm to 250mm) |
| Working Pressure | Up to 10 bar (150 psi) |
| Burst Pressure | Minimum 3x working pressure |
| Temperature Range | -30°C to +100°C (up to +150°C for some media) |
| Inner/Outer Helix Material | Galvanized Steel / Stainless Steel / Polypropylene |
| Lining Material | Polypropylene / PTFE / Polyamide (based on media) |
| Electrical Continuity | Available (OHM < 10 Ω/m) |
| Standards | EN13765, EN13766, BS5842, IMO, ISGOTT |
| Certifications | ISO9001, CE, ABS, BV (upon request) |
| Hose Length | Standard 20m / 30m, customizable up to 100m |
Applications
-
Tank truck and rail car loading/unloading
-
Ship-to-shore / ship-to-ship transfer
-
Storage tank connection in refineries and terminals
-
Offshore platform and FPSO operations
-
Chemical plant process piping
Why Choose Hongruntong Marine?
-
35+ years of hose manufacturing experience
-
Fully customizable solutions for oil and chemical media
-
Fast delivery and competitive pricing
-
Proven use in international projects
-
24/7 technical support and after-sales service

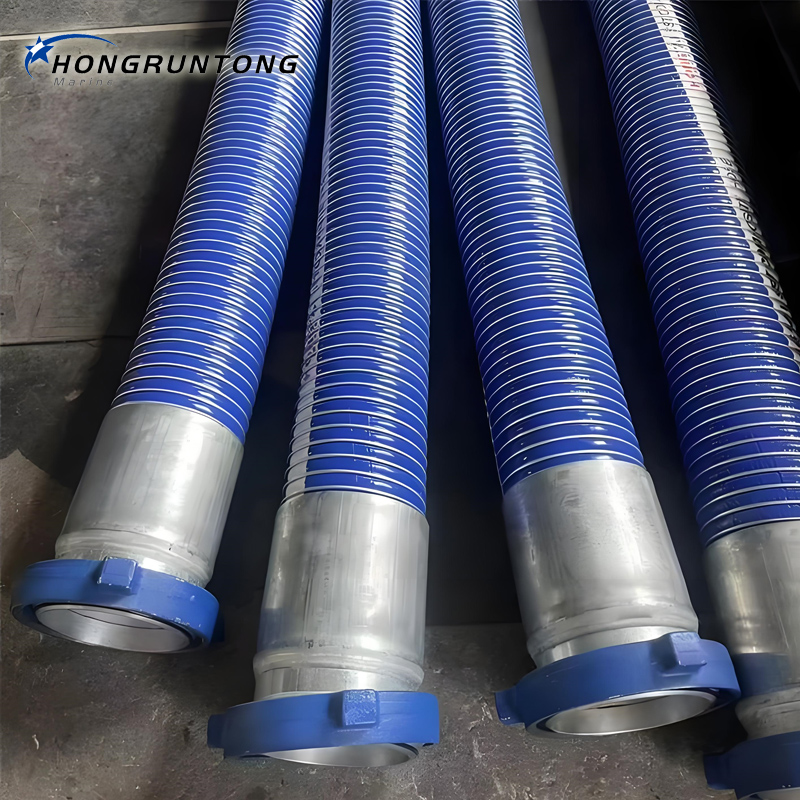

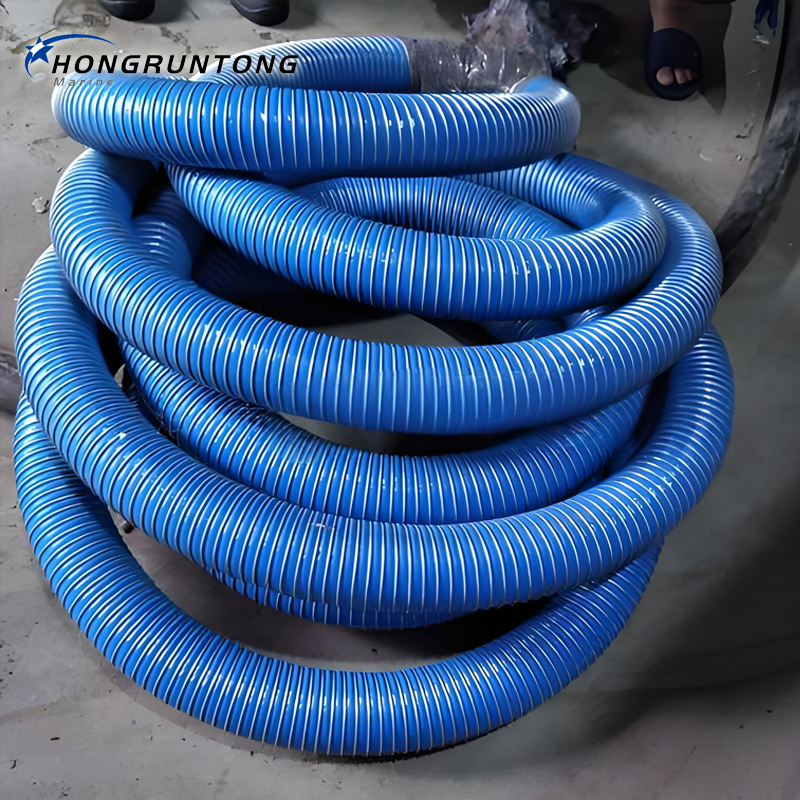

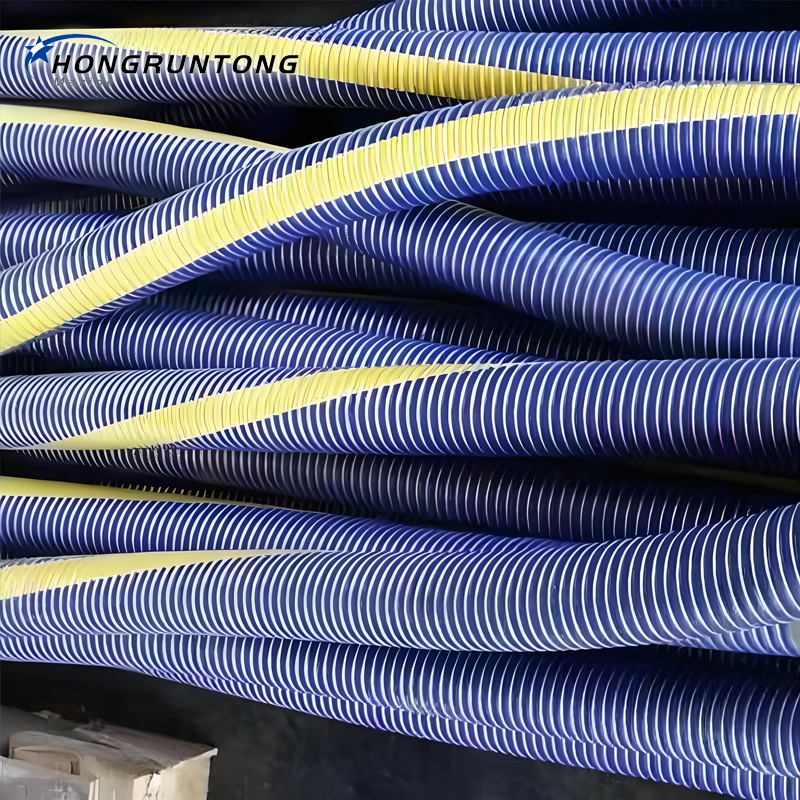

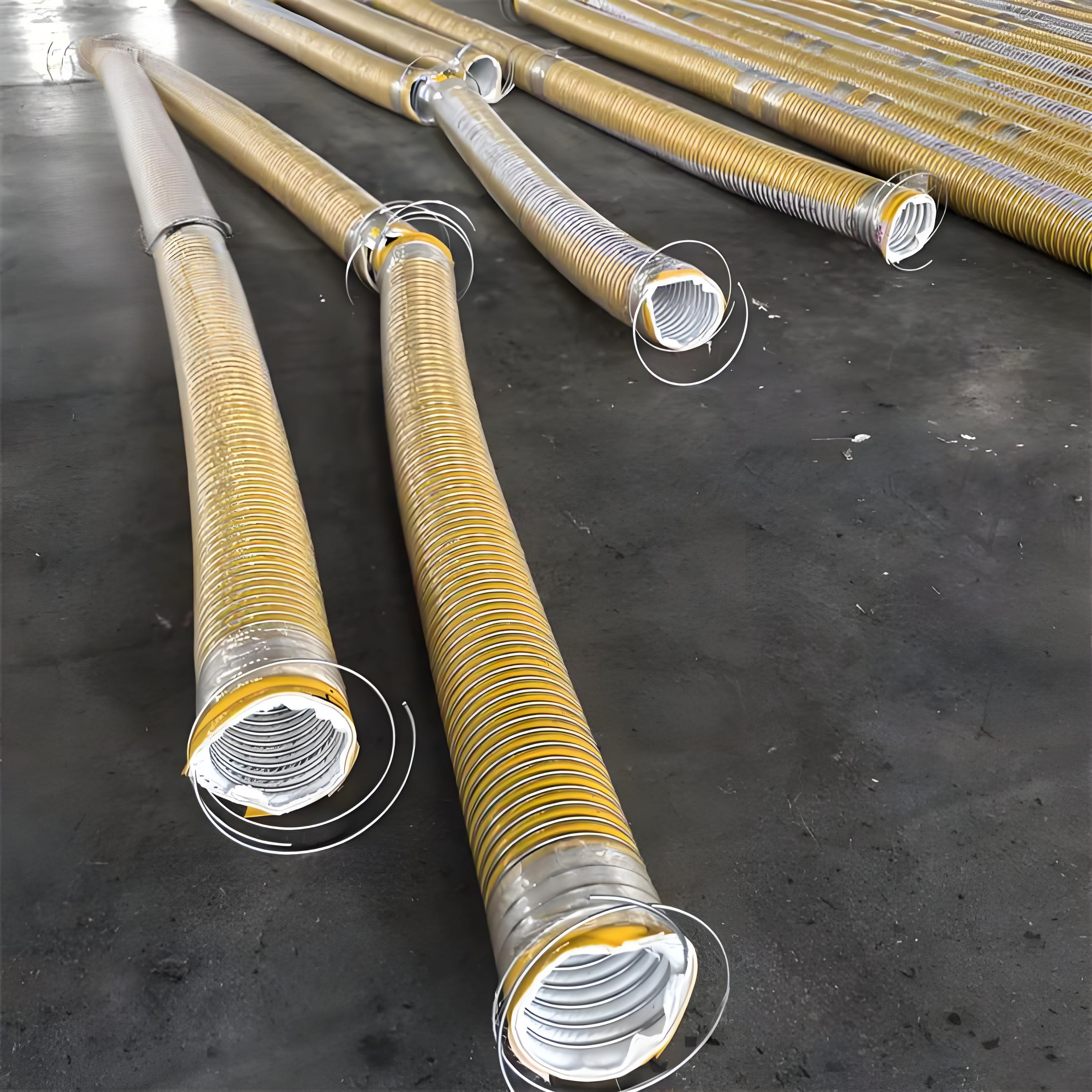

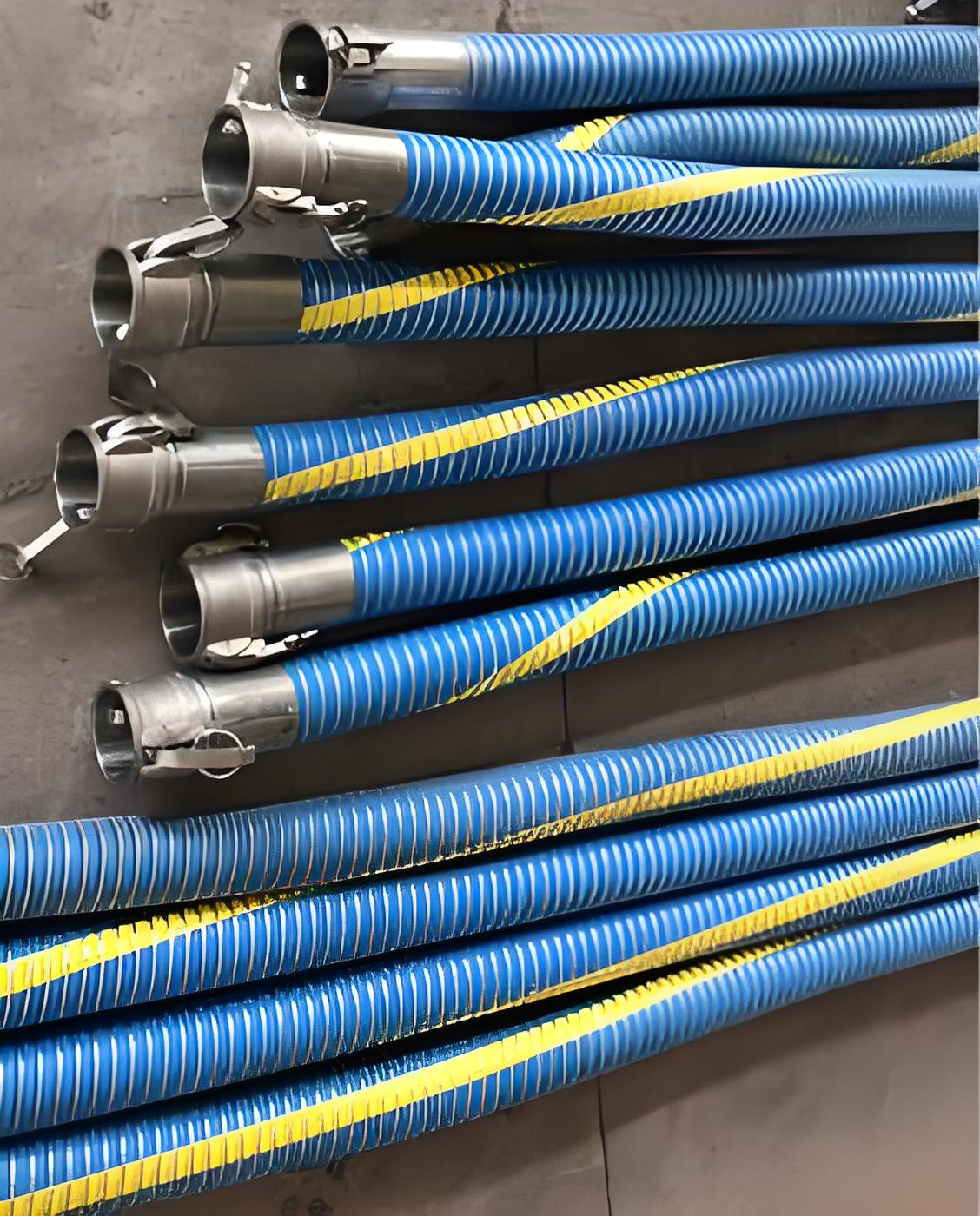

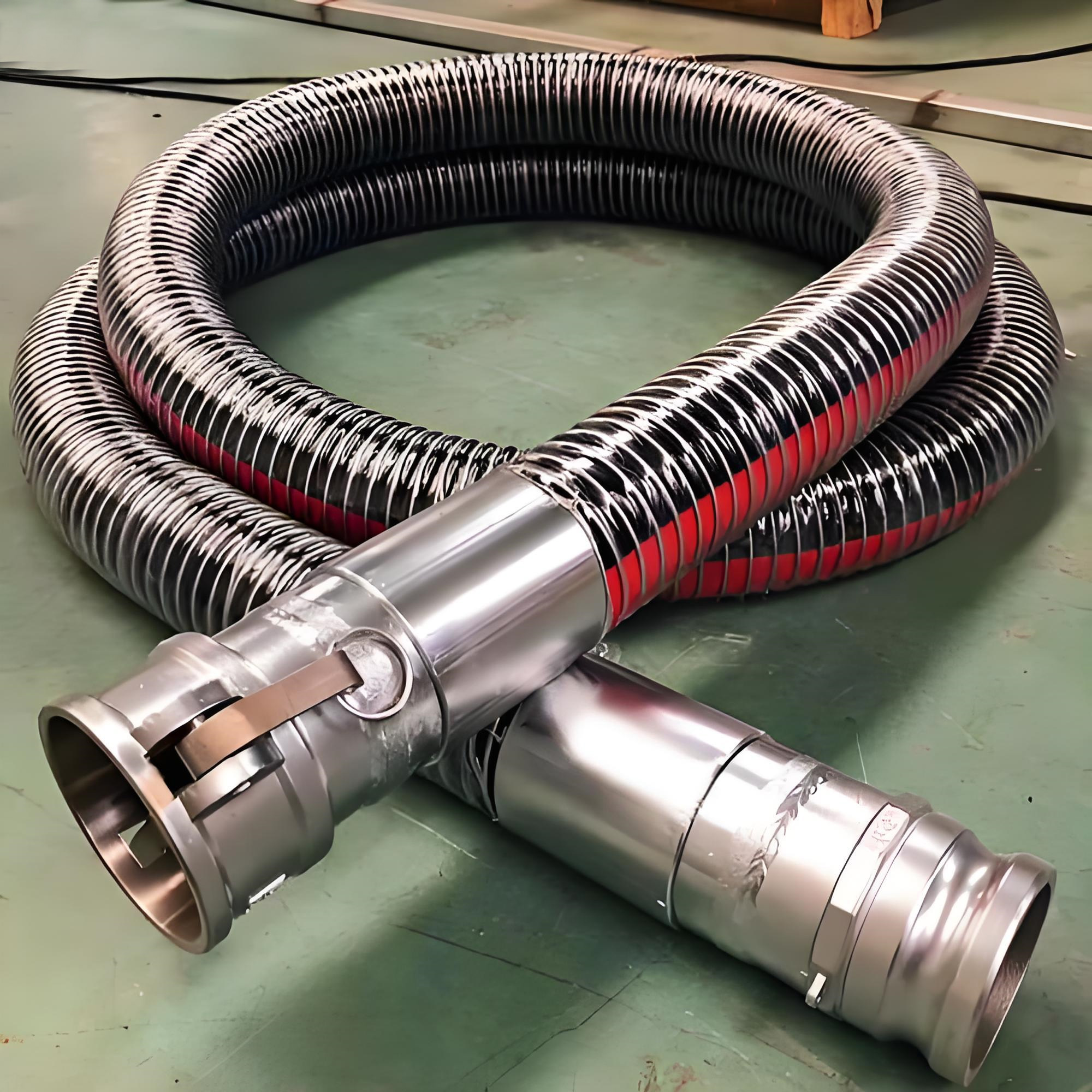

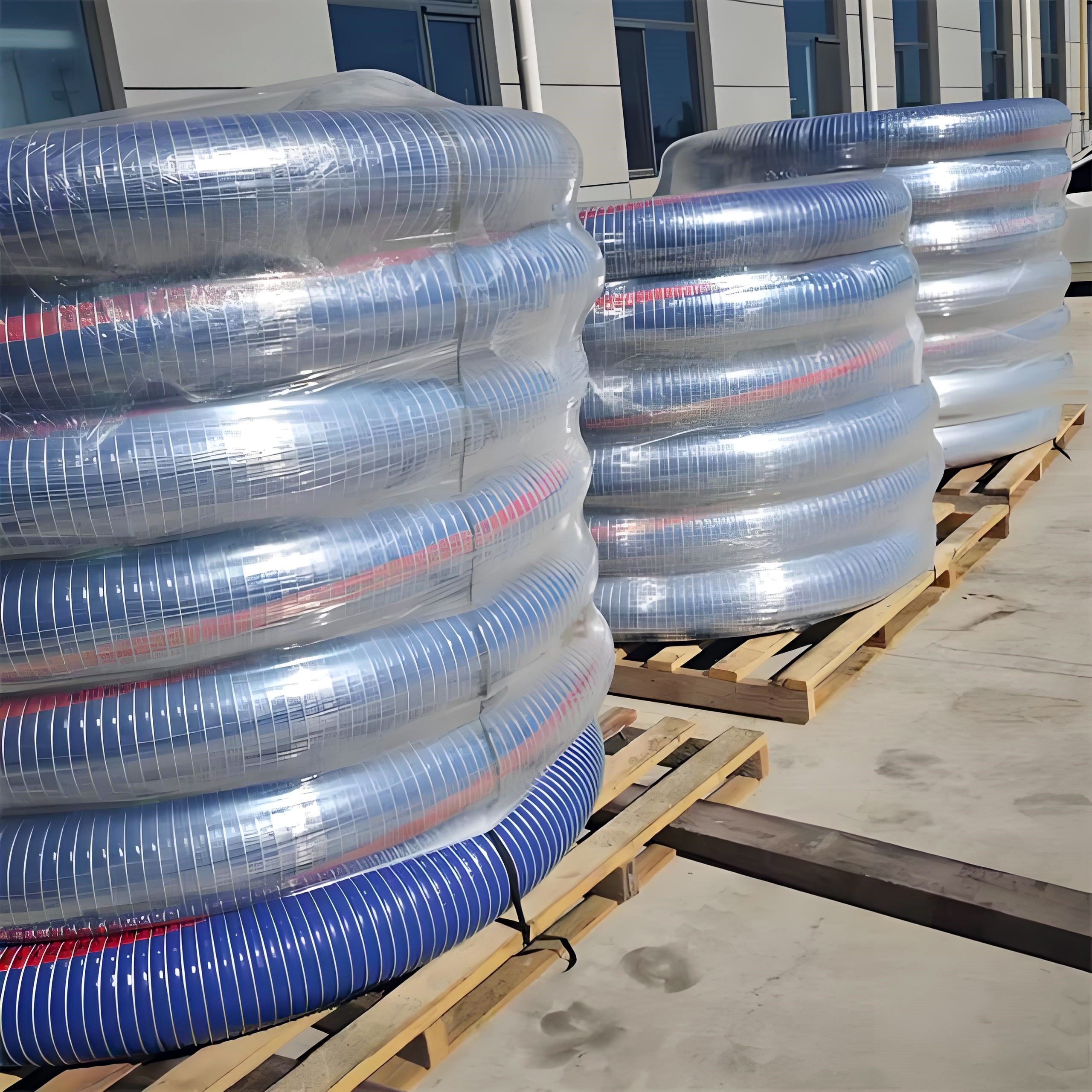

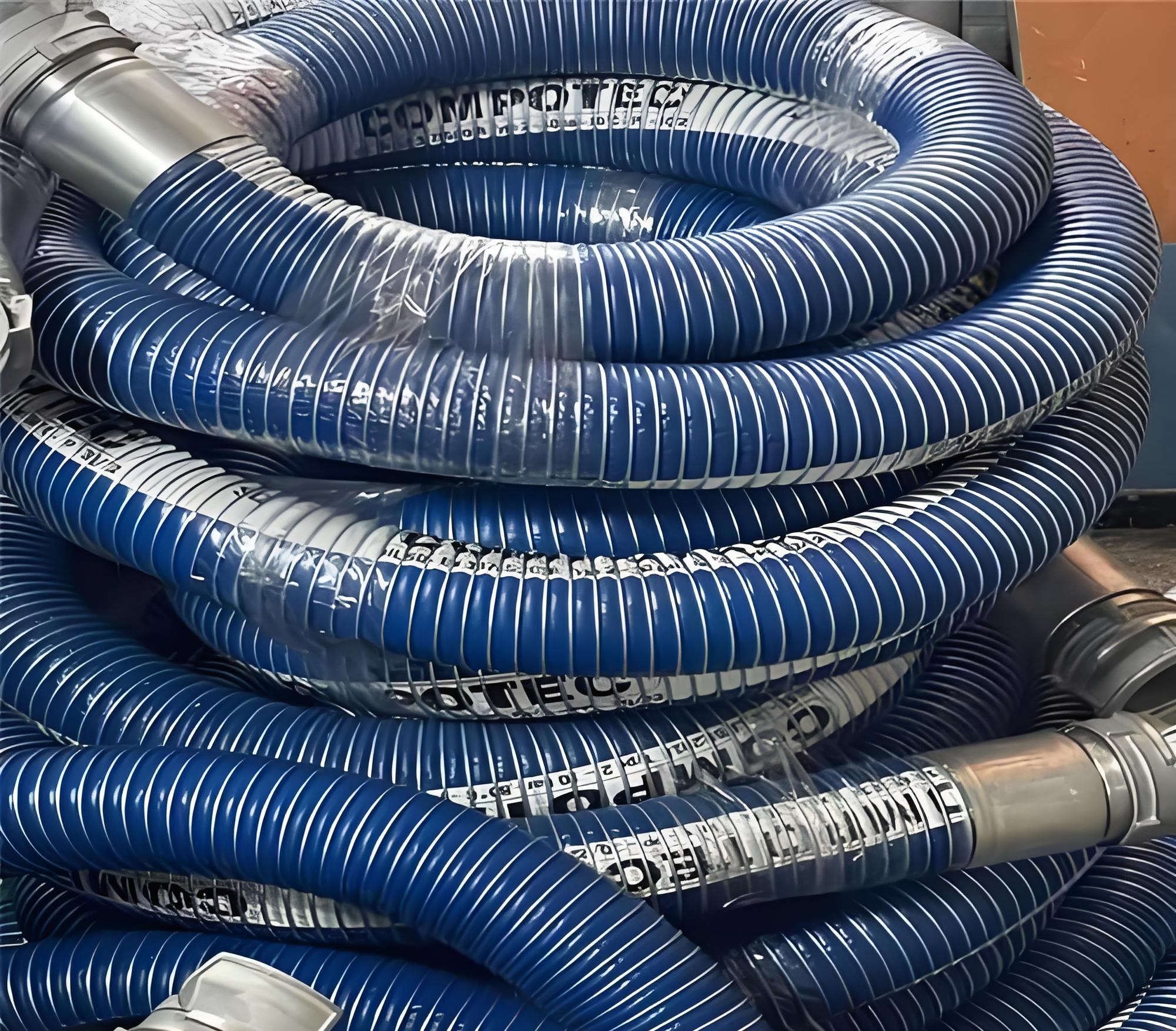

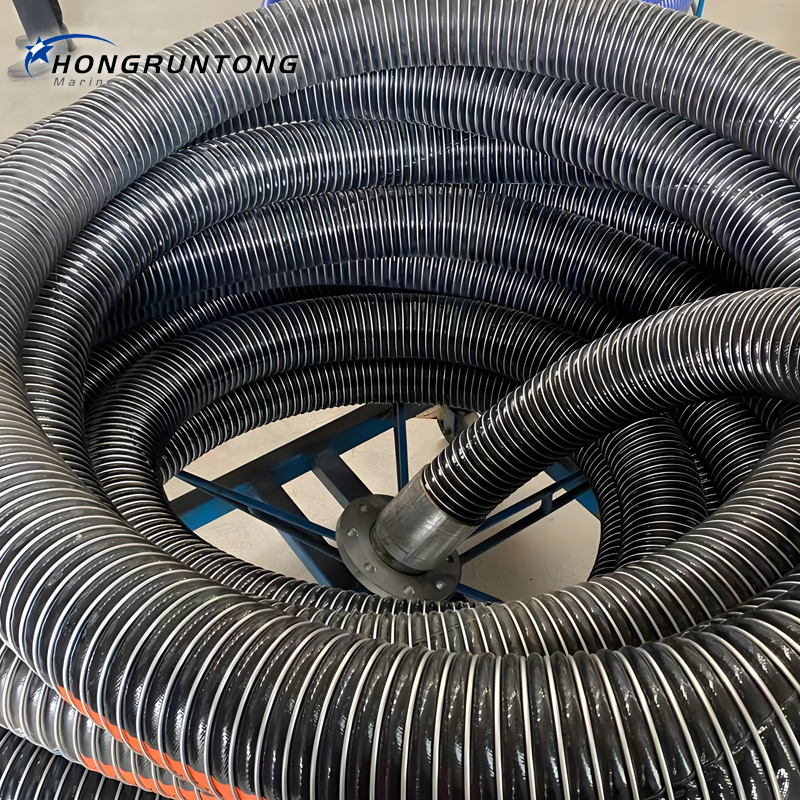

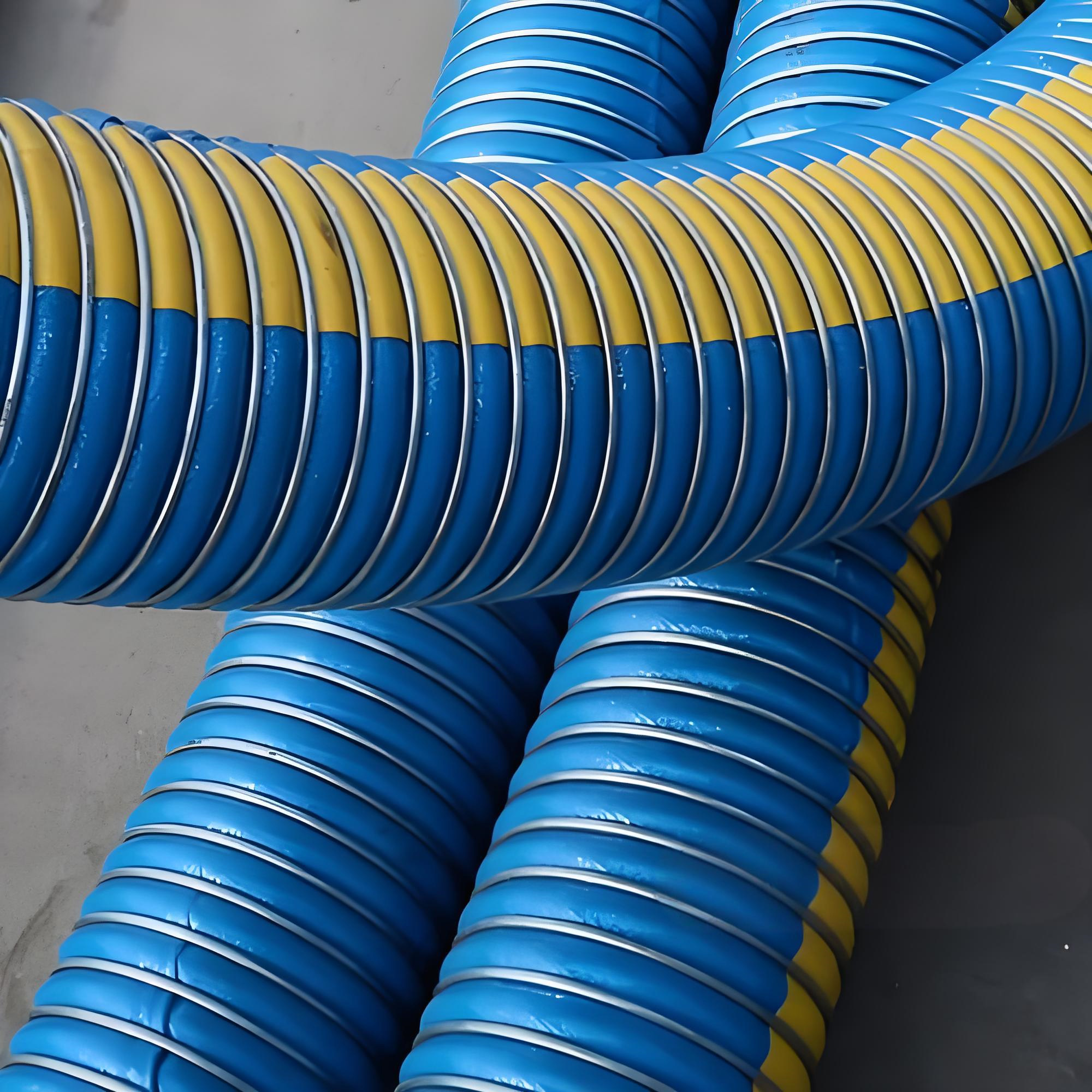

Detailed Photos
