Composite Hoses
Hongruntong Marine’s PTFE-lined composite hoses are engineered for safe, reliable transfer of aggressive chemicals, refined fuels and cryogenic liquids in marine and industrial environments. Combining a chemically inert PTFE inner liner with high-strength reinforcement layers and abrasion-resistant outer covers, our composite hoses deliver exceptional chemical compatibility, flexibility and long service life. Suitable for ship-to-shore transfer, bunkering, offshore platforms and on-board systems, these assemblies are manufactured under strict quality controls to meet customer-specified standards.
Features & Benefits
| Features | Benefits |
|---|---|
| Seamless PTFE Lining | Provides excellent chemical resistance to a vast range of aggressive chemicals, solvents, and oils, ensuring product purity and preventing contamination. |
| Lightweight & Flexible Composite Structure | Easier to handle and install compared to metal hoses, reducing labor costs and fatigue. Excellent for applications requiring frequent movement or complex routing. |
| High Strength Synthetic Fiber Braid | Offers high pressure resistance and maximum tensile strength, preventing hose kinking and bursting under pressure, thus enhancing safety. |
| Conductive Wire Option | Built-in static electricity dissipation for safe transfer of flammable liquids, significantly reducing the risk of fire or explosion. |
| Temperature & Weather Resistance | Maintains flexibility and performance in a wide temperature range and under various weather conditions, ideal for global operations. |
Typical Applications
-
Ship-to-shore chemical and fuel transfer (bunkering)
-
Offshore platform transfer lines and hose reels
-
Tank truck loading/unloading and terminal operations
-
Process plants handling aggressive chemicals or high-purity fluids
-
Cryogenic or high-temperature fluid transfer (specialized constructions)
Technical Parameters
| Inner liner | PTFE (virgin or modified), thickness per spec |
| Reinforcement | Stainless steel helix (optional), textile/aramid plies, steel wire or hybrid layers |
| Outer cover | Polypropylene fabrics and films with an abrasion resistant PVC coated fabric |
| Available Diameters | DN19 (3/4") — DN300 (12") (custom sizes available) |
| Working Pressure (Typical) | 10 bar (145 psi) — 16 bar (232 psi) depending on construction |
| Burst Pressure | ≥ 4 × working pressure (depends on design) |
| Temperature Range | −60°C to +200°C (application dependent; cryogenic and high-temp variants available) |
| Vacuum Capability | Full vacuum to −0.95 bar (depending on helix and support design) |
| Length | Standard or custom lengths up to customer requirement |
| End Fittings | Flanges (ANSI/EN/JIS), Victaulic, Camlock, quick-connects, bespoke connectors |
| Testing | Hydrostatic test, bubble/leak test, visual & dimensional inspection, material traceability |

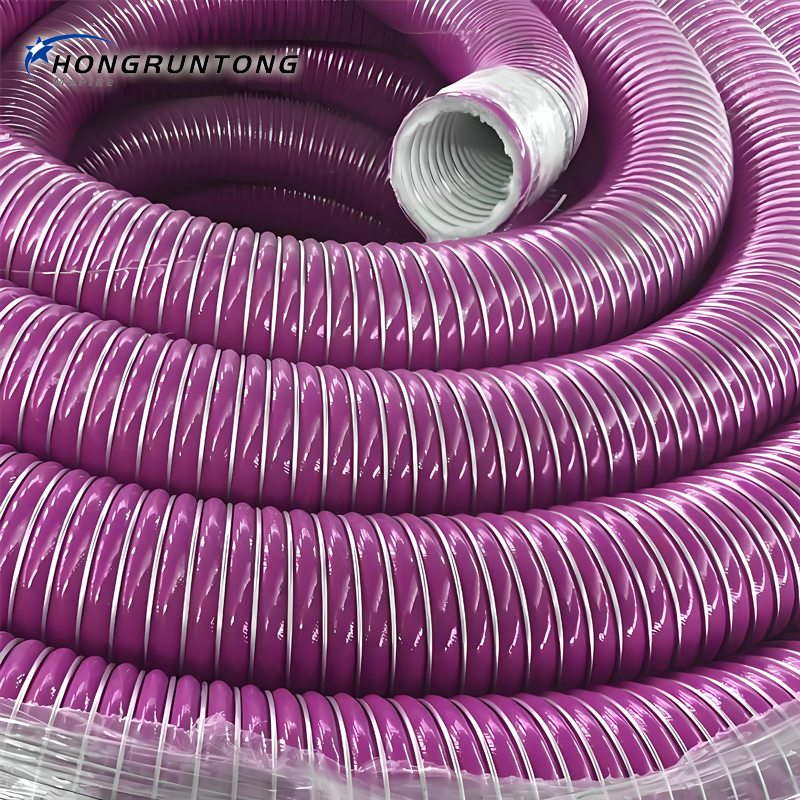

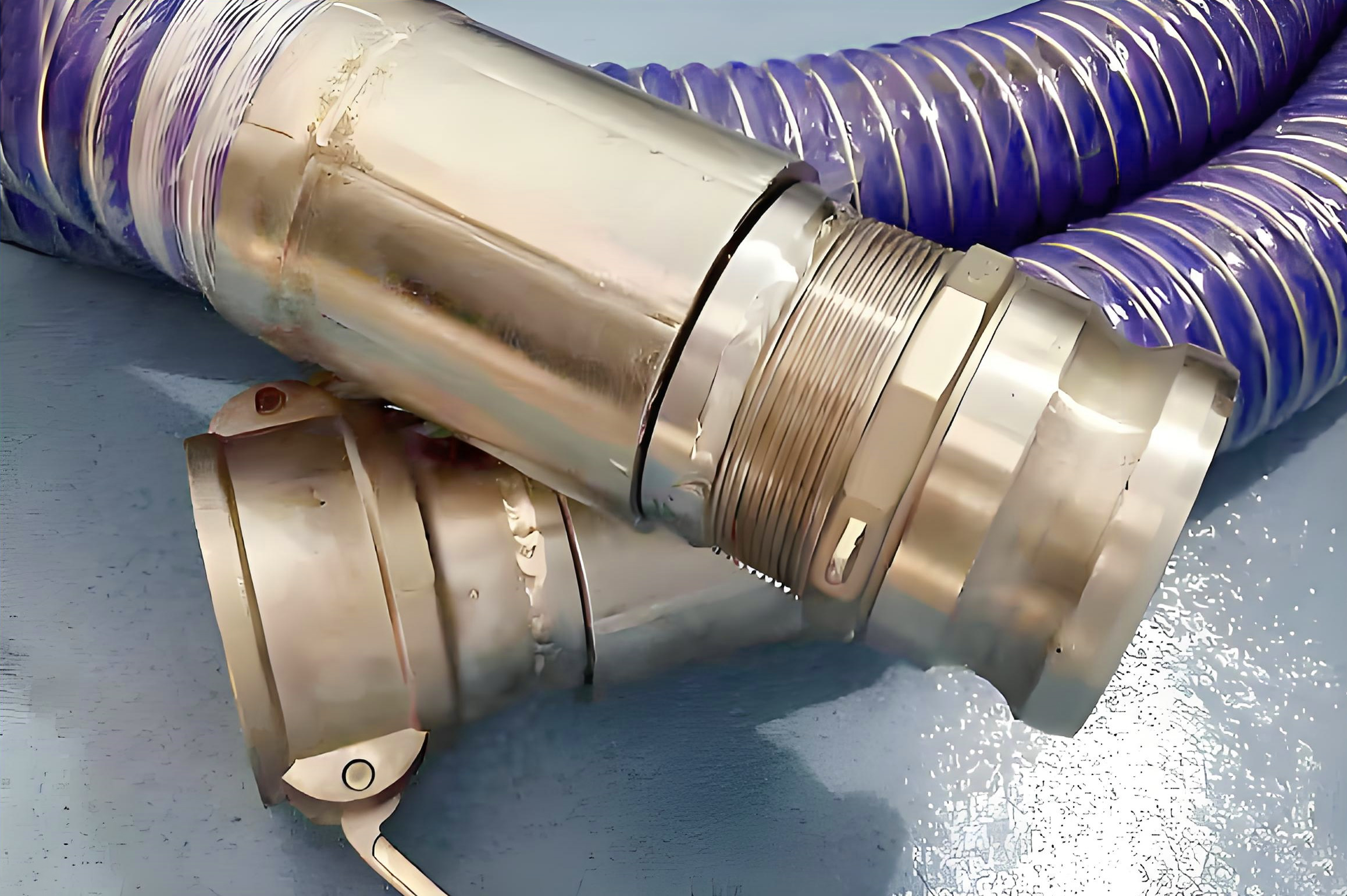

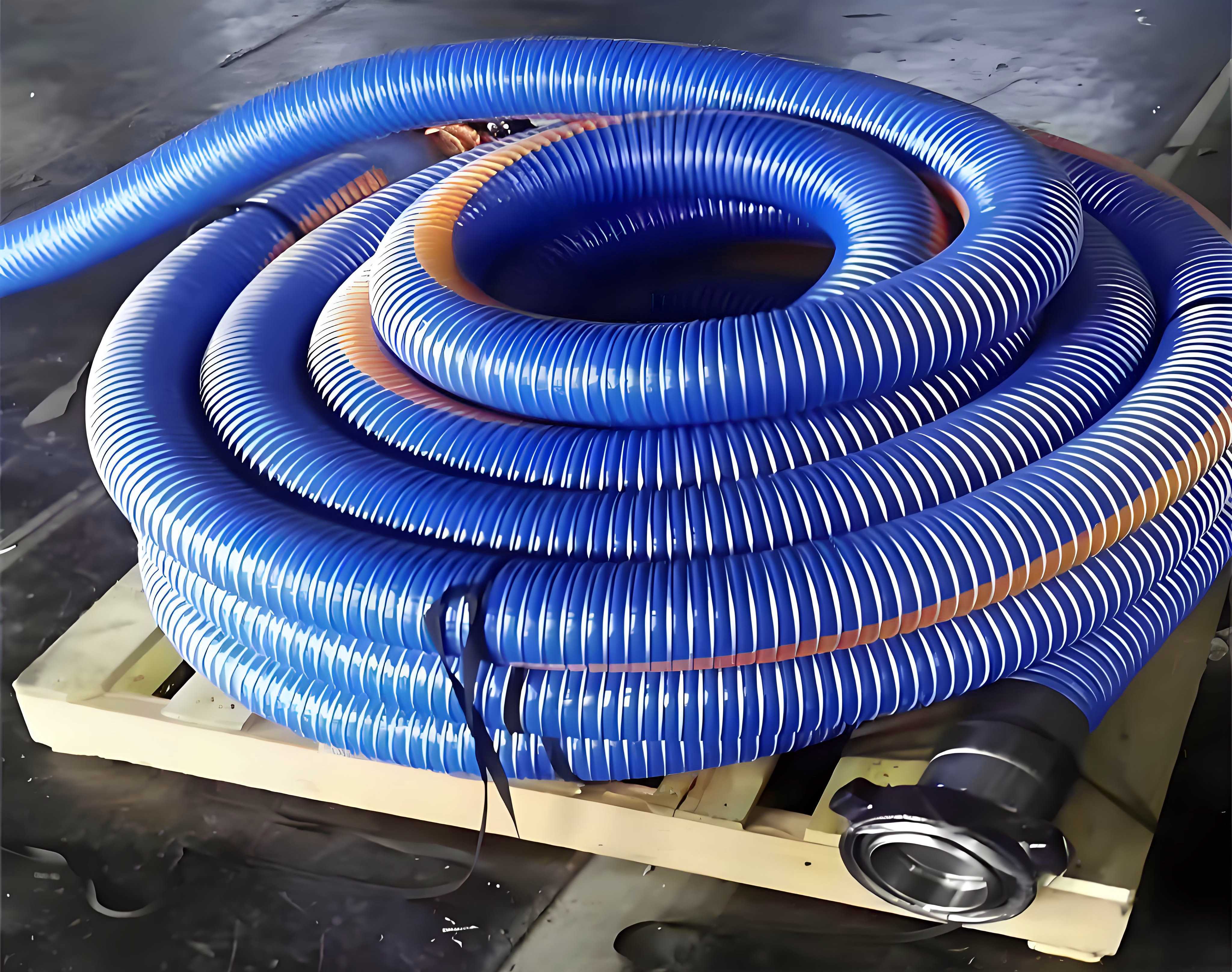

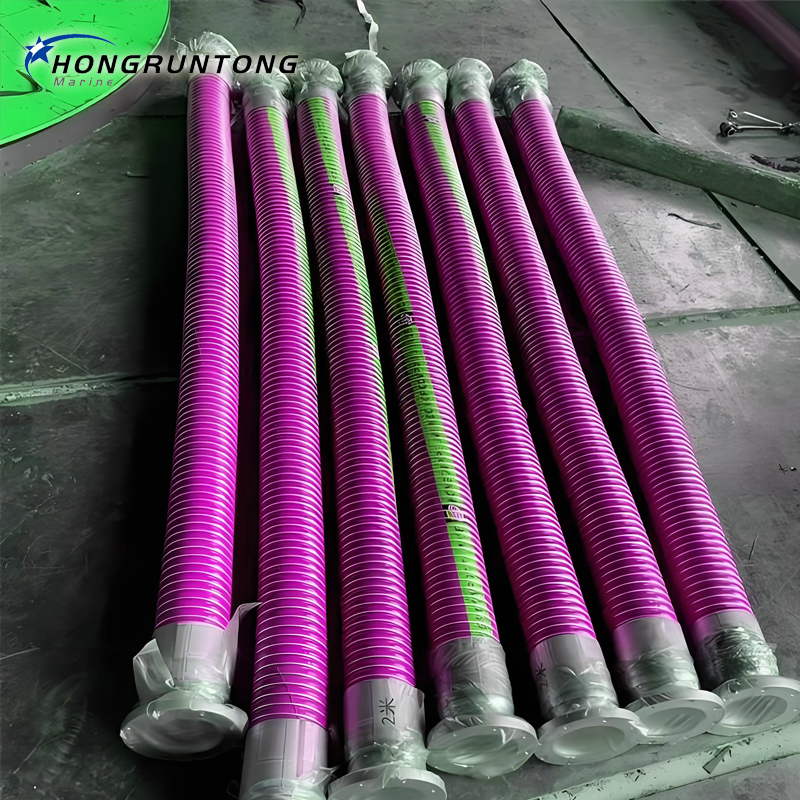

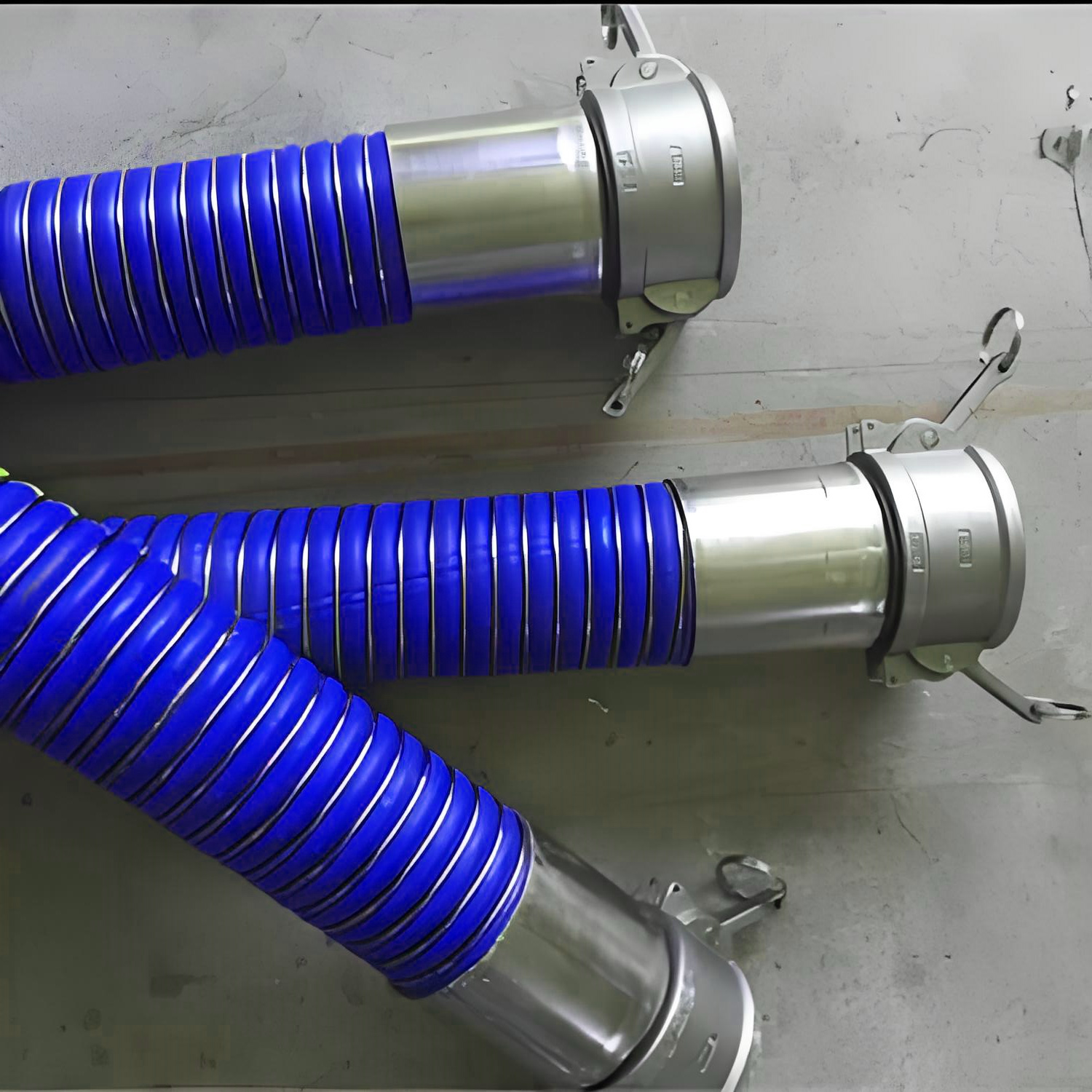

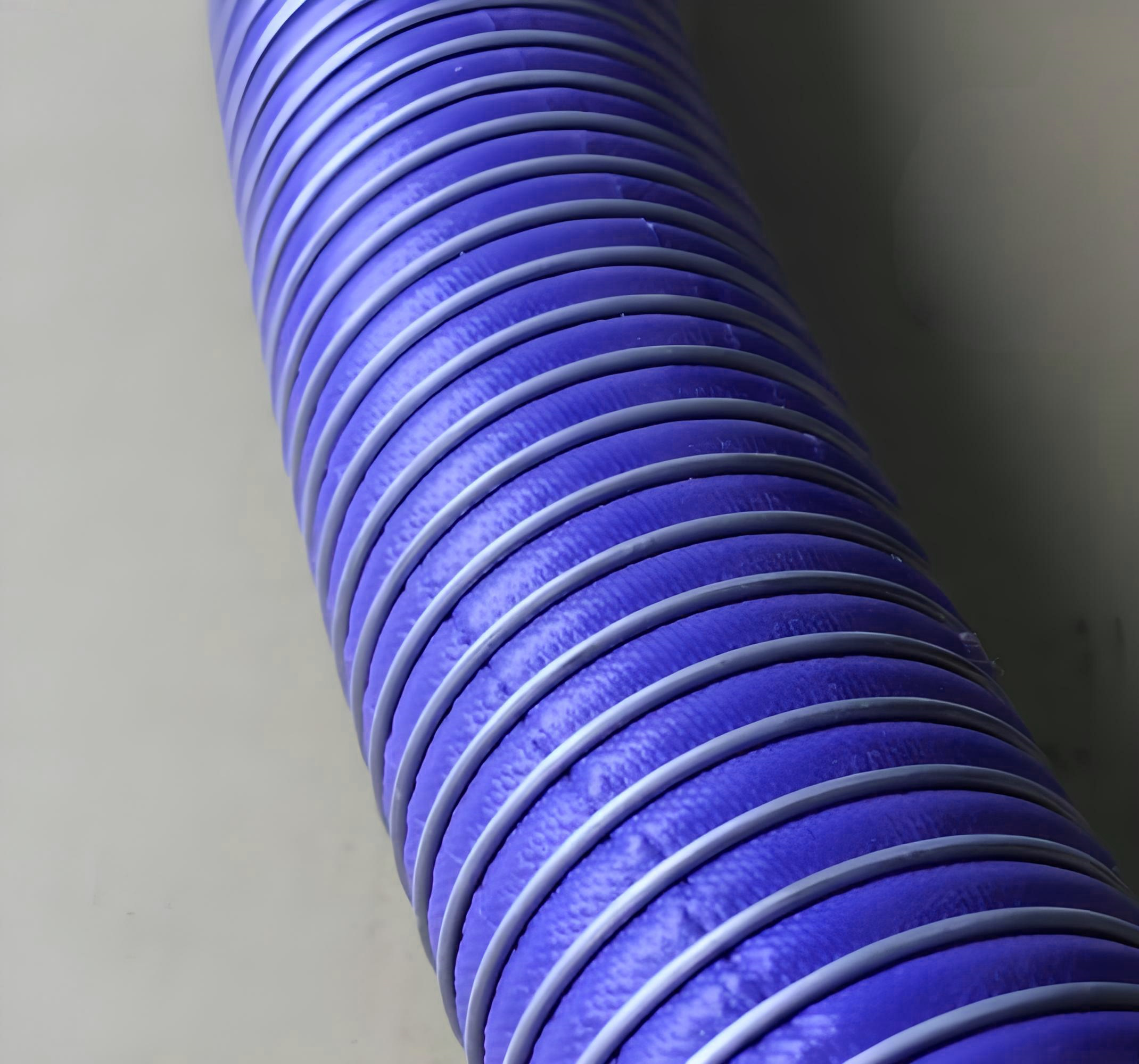

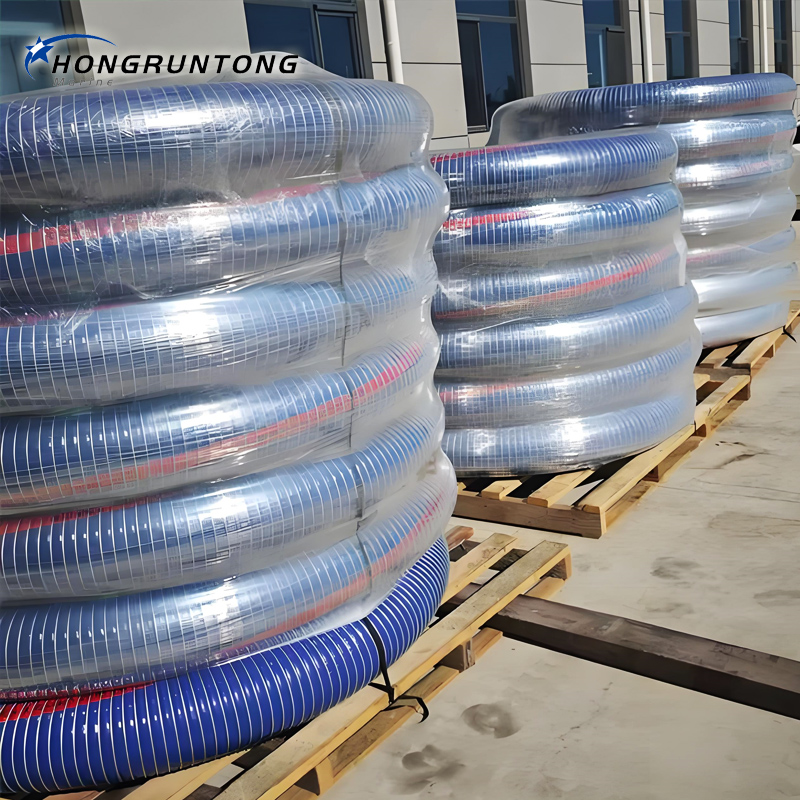

Detailed Photos
Why Choose Hongruntong Marine?
-
Superior Product Quality: Our composite hose manufacturing process employs state-of-the-art technology and rigorous quality control at every stage. We use only premium composite hose materials to ensure durability and performance.
-
Local Expertise & Global Standards: As a trusted composite hose Malaysia supplier, we understand the specific challenges of the regional maritime and industrial sectors. We combine this local knowledge with internationally recognized quality standards.
-
Technical Support & Service: Our team of experts provides unparalleled pre-sales consultation and after-sales support. We help you select the right hose for your specific application to maximize efficiency and safety.
-
Customized Solutions: We offer hoses in various lengths, end fittings (flanges, camlocks, threads), and configurations to meet your exact requirements.
-
Reliable Supply Chain: We maintain a substantial inventory to ensure quick turnaround times and minimize downtime for your operations.
Quality, Standards & Compliance
Hongruntong Marine operates under a documented quality system and can manufacture hose assemblies to customer-specified standards and industry guidance. Typical quality controls include incoming material inspection, in-process checks, final testing (hydrostatic and leak testing) and full documentation (material certificates, test reports and serial traceability). We can also accommodate third-party inspection or certification if required by the project.
Service & Support
-
Technical consultation: Fluid compatibility analysis and selection of the optimal composite hose material and construction.
-
Custom fabrication: Cut, assemble and fit with specified end fittings; pre-commissioning support.
-
Testing & documentation: Supplied with test certificates, inspection reports and maintenance instructions.
-
Spare parts & replacement: Stocking programs for critical projects and rapid replacement options.
-
Training: On-site or remote guidance for safe handling, installation and inspection.
FAQ
Q1: What does "composite hose" mean?
A: A composite hose is a flexible pipe constructed from multiple layers of different materials (e.g., PTFE, fabric, wire, polymer). Each layer is designed to provide a specific property like chemical resistance, strength, or flexibility, resulting in a lightweight, safe, and highly durable solution superior to traditional rubber or metal hoses for many applications.
Q2: Why is PTFE lining so important?
A: PTFE (Teflon®) is one of the most chemically inert materials known. A seamless PTFE liner creates an impermeable barrier that prevents even the most aggressive chemicals from degrading the hose structure, ensuring safe transfer and protecting the product from contamination.
Q3: Are your hoses suitable for ship-to-ship (STS) transfer?
A: Absolutely. Our PTFE composite hoses are ideally suited for STS operations due to their flexibility, lightweight nature (easier to handle on deck), excellent chemical resistance for various cargoes, and availability with conductive elements for safe static dissipation, fully complying with OCIMF guidelines.
Q4: How do I determine the right hose size and type for my application?
A: Please contact our technical sales team at [Your Email/Phone]. We will need to know the specific chemical(s) being transferred, concentration, temperature, working pressure, and the type of end connections required to recommend the perfect hose for you.
Q5: Do you offer custom lengths and fittings?
A: Yes, we specialize in providing customized solutions. We can fabricate hoses to your exact length and fit them with a wide range of international standard flanges, camlocks, and other end connections.
