Floating Barriers
The Floating Barriers from Hongruntong Marine are engineered, modular systems for debris interception, turbidity control, perimeter security, and spill containment. Designed for rapid deployment and long-term reliability, our barriers combine high-buoyancy modules, rugged connectors and tailored mooring solutions to deliver predictable performance across rivers, harbors, coastal zones and industrial waterways. OceanGuard Solutions delivers advanced floating barriers with real-time monitoring for marine protection, oil spill response, and port security. Modular designs with IoT technology.
Key Features & Benefits
-
Modular Scalability — Pre-engineered float sections interlock to form short runs or long continuous booms, enabling rapid on-site assembly and straightforward expansion.
-
High Buoyancy & Low Draft Options — Selectable module sizes provide the necessary buoyant reserve while minimizing submerged profile for reduced drag.
-
Corrosion-Resistant Components — Stainless steel fittings, UV-stabilized polymers and closed-cell cores extend service life in salt and fresh water.
-
Hydrodynamic Design — Smooth external profiles reduce wake and lessen biofouling, lowering maintenance frequency and operational cost.
-
Integrated Containment Capability — Compatible with skimmers, absorbent booms and collection pontoons for effective pollution response.
-
Security & Safety — Can be configured as floating fences or exclusion lines to control vessel access and protect sensitive assets.
-
Site-Specific Mooring — Elastic, dynamic or fixed moorings engineered to local currents, tidal ranges and seabed conditions.
Applications
-
Port Security Networks: Intelligent perimeter protection for harbors and terminals
-
Environmental Monitoring: Real-time data collection for protected marine areas
-
Oil Spill Response: Immediate detection and containment of pollution incidents
-
Research Operations: Scientific data gathering in marine environments
-
Coastal Infrastructure: Smart protection for bridges, pipelines, and cables

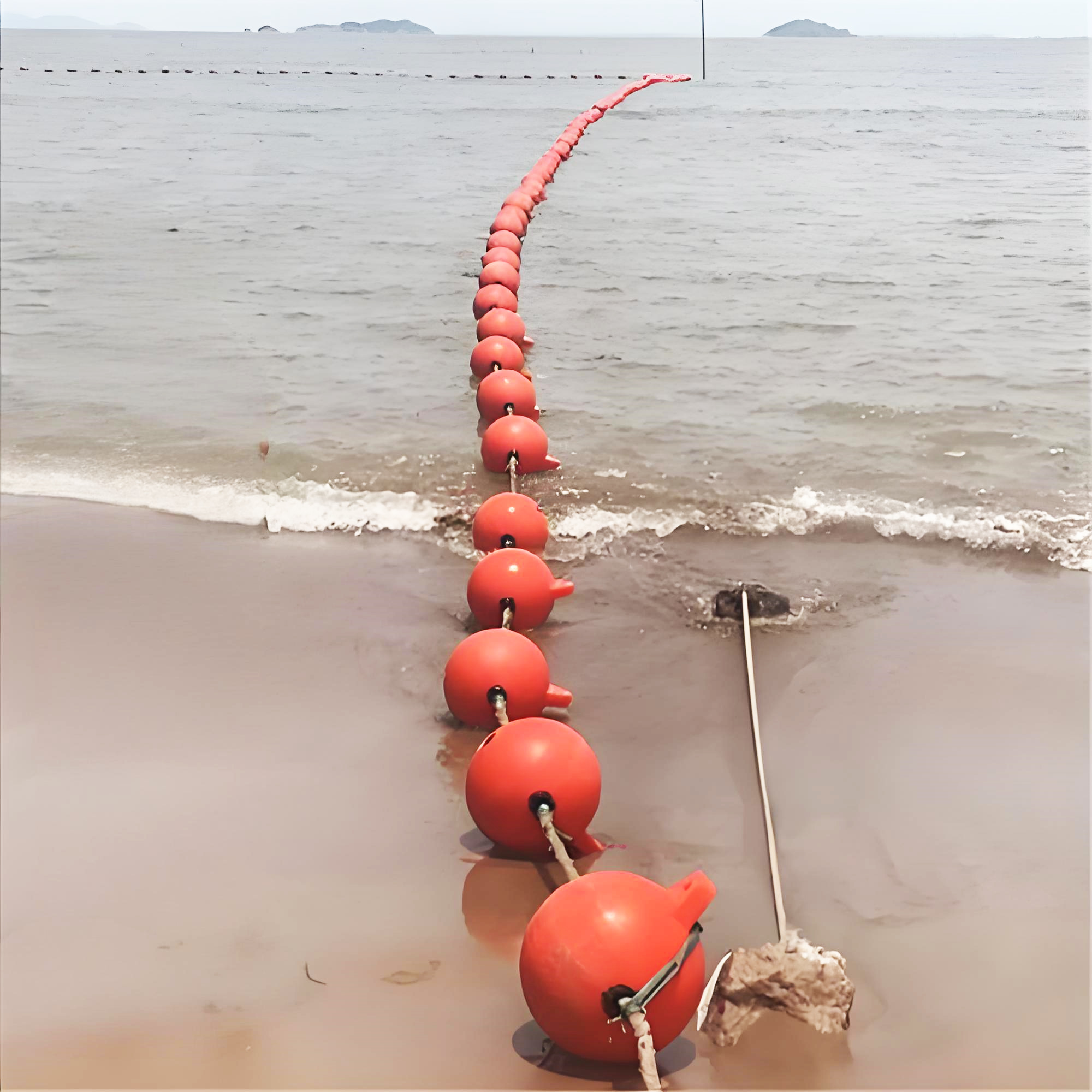

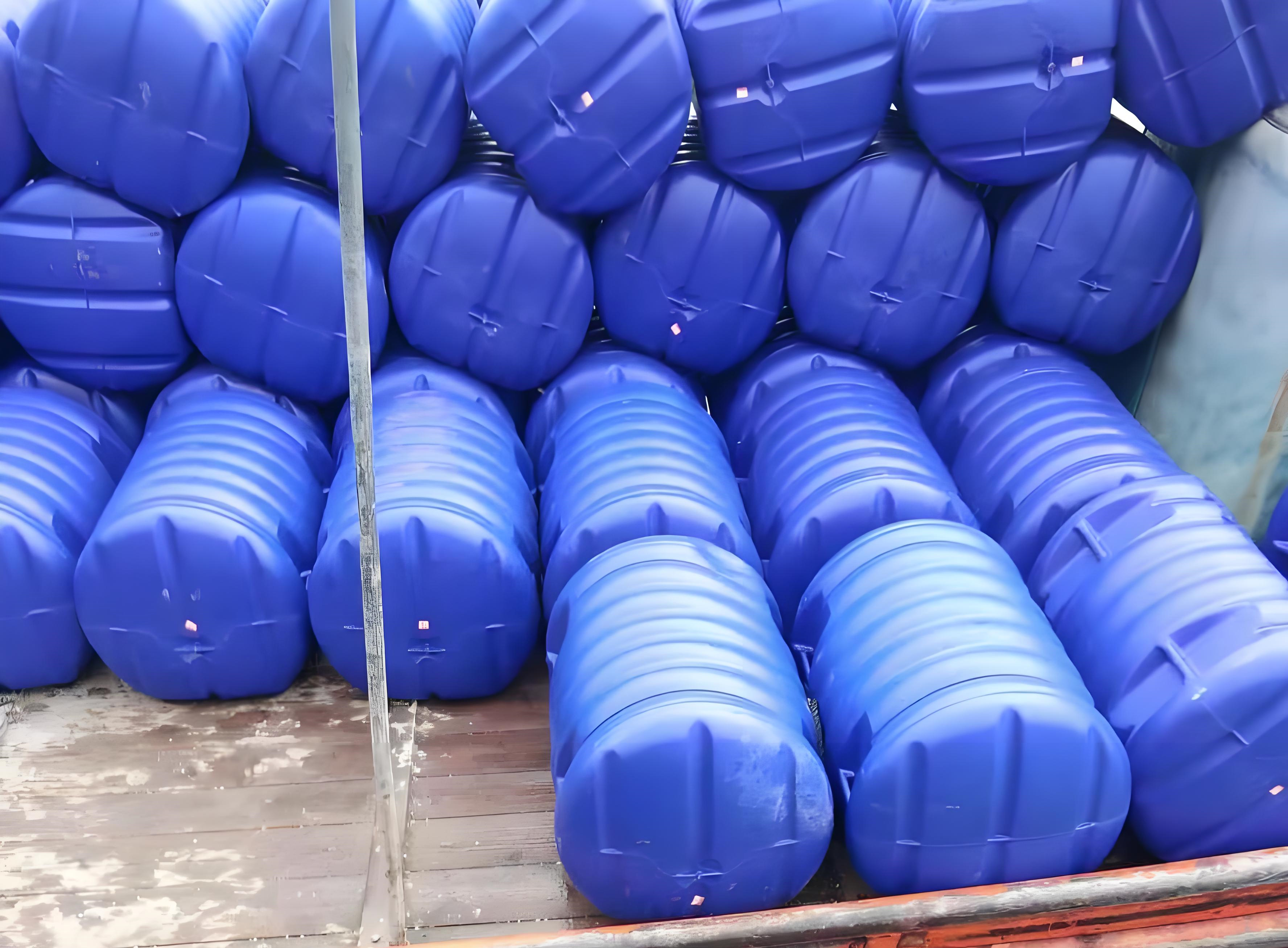

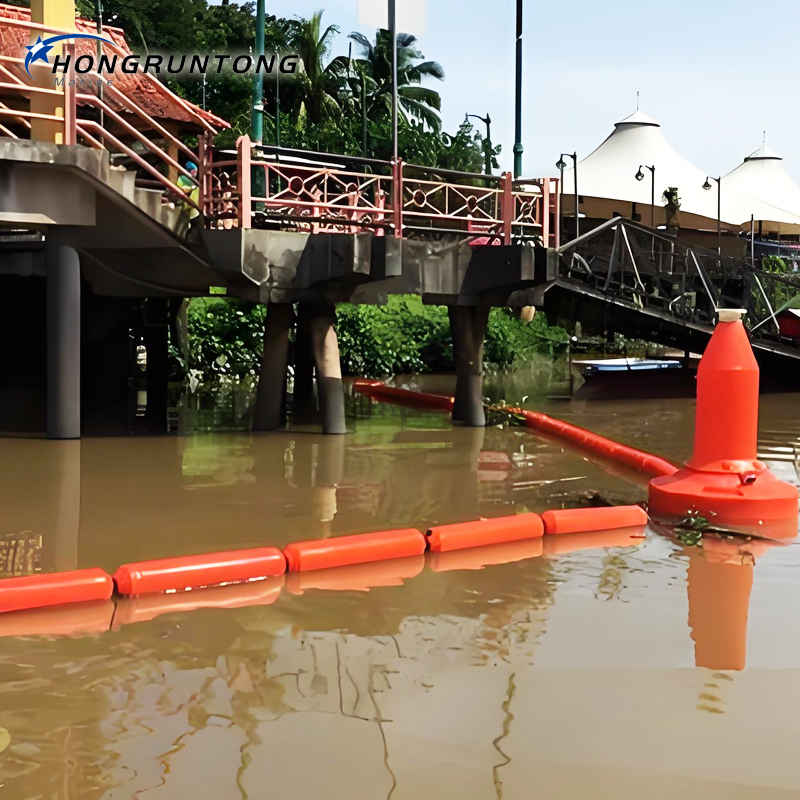

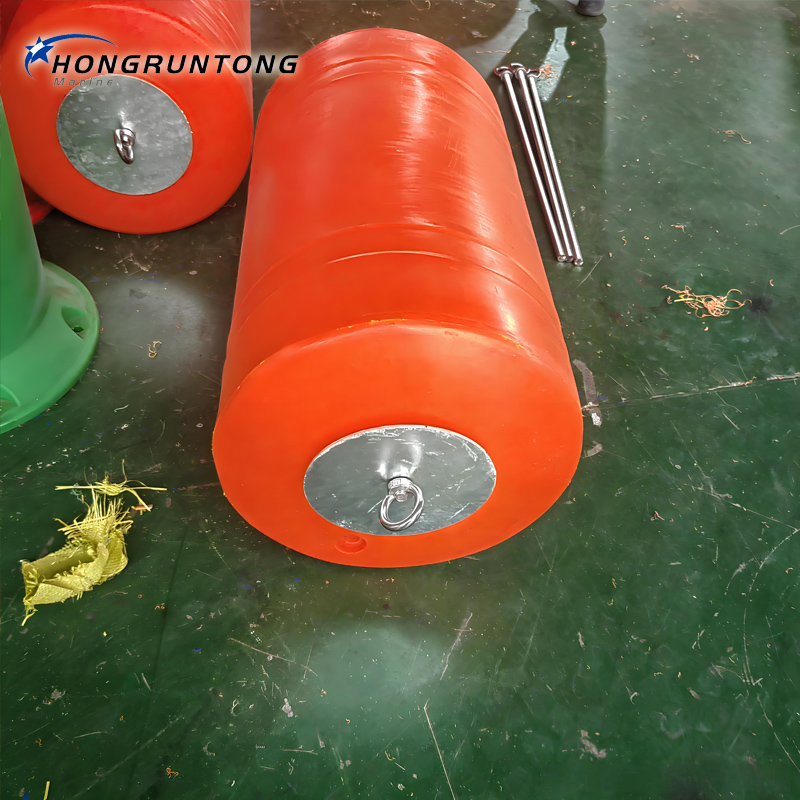

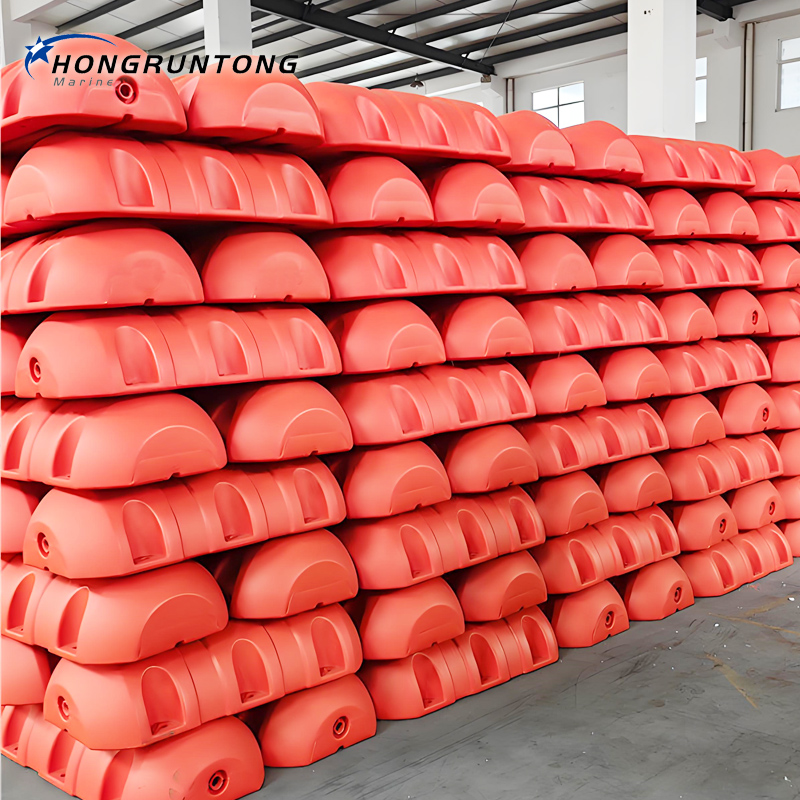

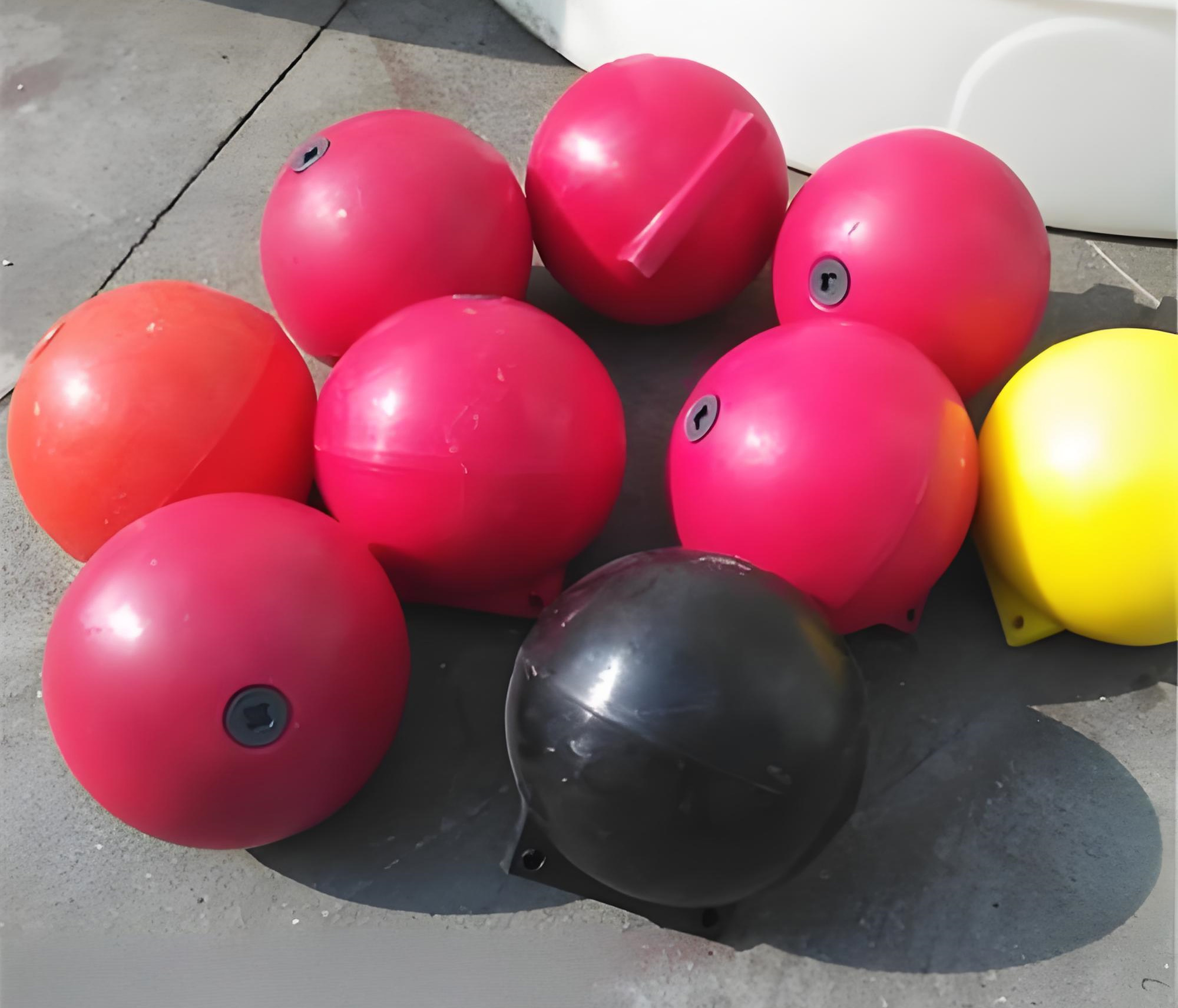

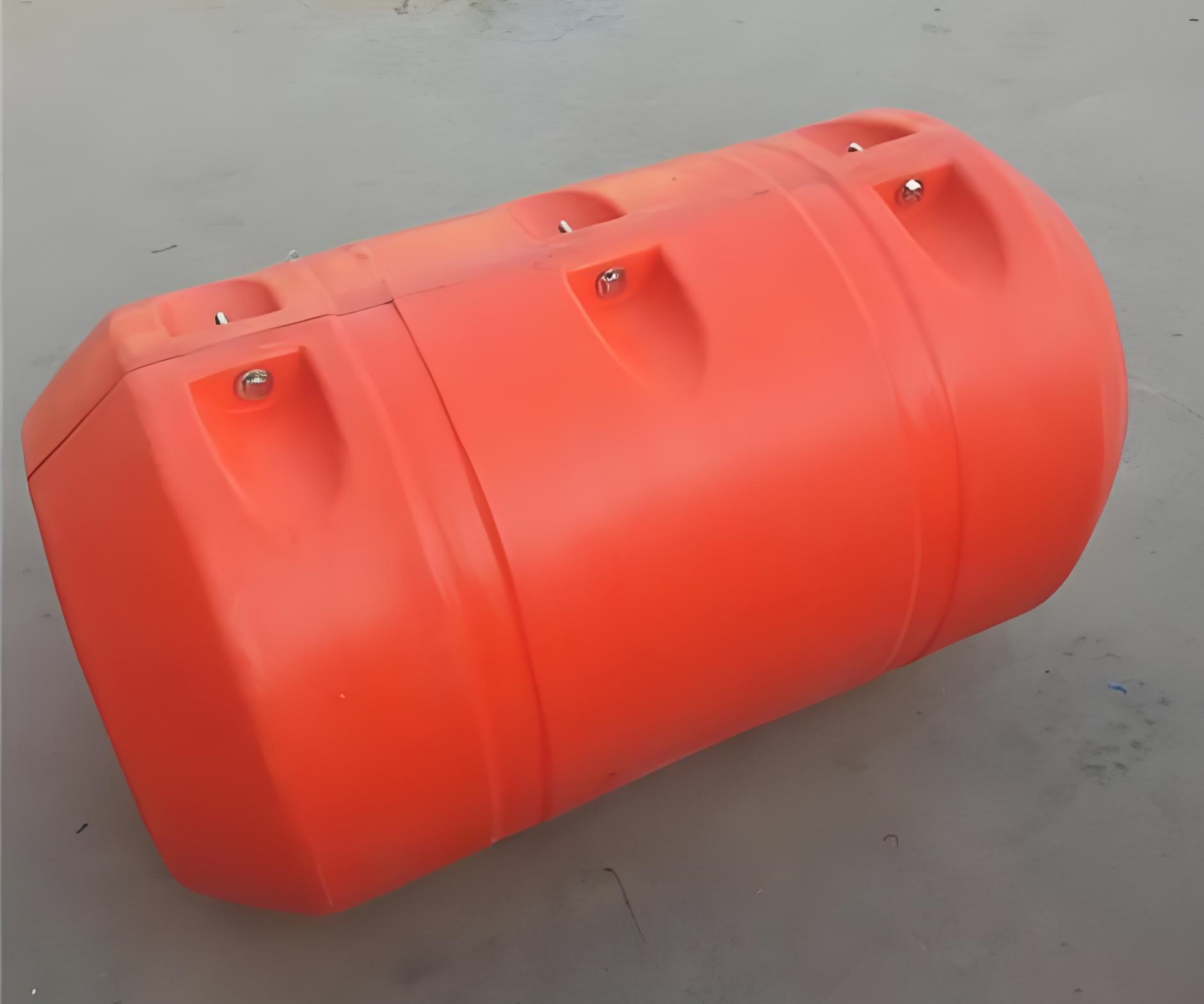

Detailed Photos
Why Hongruntong Marine?
-
Manufacturer Expertise: We design and build barrier systems in-house — ensuring consistent quality, faster lead times and competitive pricing.
-
Engineering First: Site assessments, hydrodynamic analysis and bespoke mooring plans are part of our solution set.
-
Proven Supply Chain: Global logistics and export experience reduce project complexity for international clients.
-
After-sales Commitment: Spare parts, maintenance plans and optional installation supervision ensure operational continuity.
-
Sustainability Focus: We prioritize recyclable materials and designs that reduce ecological impact while meeting regulatory needs.
Technical Specifications
| Item | Typical Range / Example |
|---|---|
| Unit Length | 0.8 m – 3.0 m |
| Unit Diameter / Height | 300 mm – 1000 mm |
| Draft (submerged) | 100 mm – 700 mm |
| Buoyancy per Unit | 120 kg – 1,500 kg |
| Materials | UV-stabilized polyethylene shell, closed-cell foam core |
| Connector Options | Stainless steel swivel, polymer quick-link, heavy pin |
| Connector Working Load | 10 kN – 300 kN |
| Mooring Types | Elastic mooring, anchors + chain/rope, dynamic moorings |
| Visibility Options | High-visibility colors, reflective tape, light mounts |
| Operating Temp. | −20°C to +60°C |
| Expected Service Life | 8–20 years (site dependent) |
| Certification | Material & test certificates available on request |
Note: final specification requires site data (water depth, wave height, current speed, vessel traffic).
Installation & Maintenance
-
Deployment: Small teams with workboats can assemble short lines quickly; engineered long spans may require crane or barge support.
-
Mooring: We provide mooring designs matched to seabed and hydrodynamics; dynamic mooring recommended for tidal rivers.
-
Maintenance: Visual inspections, connector checks and periodic cleaning for biofouling; replacement of wear parts as scheduled. Hongruntong Marine supplies spare kits and maintenance manuals.
Quality Assurance & Service
-
System Integration: Custom API development for existing management systems
-
Remote Monitoring: 24/7 system health and performance oversight
-
Training Programs: Certified installation and operation training
-
Software Updates: Regular feature enhancements and security patches
-
Emergency Response: Rapid technical support for critical situations
FAQ
Q: How do I pick the right floating barrier for my project?
A: Provide project location, perimeter length, water depth, typical wave height and current speed plus the primary objective (debris, turbidity, security, spill response). We will propose an engineered solution.
Q: Can floating barriers be used at river mouths and harbor entrances?
A: Yes — but these locations need site-specific engineering for sediment movement, tidal exchange and vessel interactions. We design reinforced modules and mooring systems for such sites.
Q: What accessories are available?
A: Skimmer integration points, absorbent boom adapters, lighting and reflective systems, sensor/camera mounts, gates and access platforms.
Q: Do you ship internationally and support installation?
A: Yes. Hongruntong Marine handles global logistics and provides installation guidance; on-site supervision is available for complex projects.
