Ribbed Pneumatic Fenders
Hongruntong Marine specializes in manufacturing high-performance Ribbed Pneumatic Fenders designed for extreme marine operations. Our ribbed-type pneumatic marine fenders feature an innovative surface design that significantly enhances grip stability and prevents slipping during vessel-to-dock or ship-to-ship operations. Engineered with reinforced synthetic rubber and advanced textile cord layers, these fenders deliver exceptional energy absorption, outstanding abrasion resistance, and extended service life even in the most challenging marine environments.
As an ISO 17357-1 certified manufacturer, Hongruntong Marine guarantees that every ribbed pneumatic rubber fender meets international quality standards and performance requirements. Our products are specifically designed to handle harsh conditions including saltwater corrosion, UV exposure, and high-impact berthing scenarios.
Key Features & Benefits
-
Ribbed Outer Structure — Provides additional protection against friction, abrasion, and surface damage.
-
High Energy Absorption — Large deflection capacity to safely dissipate berthing impact forces.
-
Low Reaction Force — Protects vessels and docking structures from excessive stress.
-
Durable Materials — Reinforced synthetic tire-cord layers and heavy-duty rubber compounds for extended service life.
-
Wide Size Range — Available in multiple diameters and lengths for small craft to large vessels.
-
Ease of Handling & Installation — Lifting rings and chains allow flexible deployment and fast installation.
Applications
-
Commercial and naval ship-to-ship (STS) transfer operations
-
Quay, pier, and jetty berthing systems
-
Offshore platforms, floating docks, and FPSO berths
-
LNG terminals and high-energy docking facilities
-
Temporary and emergency mooring operations
Dimensions
Fender Size D × L [mm] |
Initial Internal Pressure 0.5 kg/ c㎡ | Initial Internal Pressure 0.8 kg/ c㎡ | ||||
| Guaranteed energy absorption (GEA) [kNm] |
Reaction force at GEA deflection [kN] |
Hull pressure at GEA deflection [kN/㎡] |
Guaranteed energy absorption (GEA) [kNm] |
Reaction force at GEA deflection [kN] |
Hull pressure at GEA deflection [kN/㎡] |
|
| 500 x 1,000 | 6 | 64 | 132 | 8 | 85 | 174 |
| 600 x 1,000 | 8 | 74 | 126 | 11 | 98 | 166 |
| 700 x 1,500 | 17 | 137 | 135 | 24 | 180 | 177 |
| 1,000 x 1,500 | 32 | 182 | 122 | 45 | 239 | 160 |
| 1,000 x 2,000 | 45 | 257 | 132 | 63 | 338 | 174 |
| 1,200 x 2,000 | 63 | 297 | 126 | 88 | 390 | 166 |
| 1,350 x 2,500 | 102 | 427 | 130 | 142 | 561 | 170 |
| 1,500 x 3,000 | 153 | 579 | 132 | 214 | 761 | 174 |
| 1,700 x 3,000 | 191 | 639 | 128 | 267 | 840 | 168 |
| 2,000 x 3,500 | 308 | 875 | 128 | 430 | 1150 | 168 |
| 2,500 x 4,000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
| 2,500 x 5,500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
| 3,000 x 5,000 | 965 | 1815 | 148 | 1341 | 2359 | 198 |
| 3,000 x 6000 | 1184 | 2243 | 152 | 1646 | 2916 | 203 |
| 3,300 x 4,500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
| 3,300 x 6,500 | 1814 | 3015 | 146 | 2532 | 3961 | 191 |
| Note: Other size can be produced follow client's requirements. | ||||||

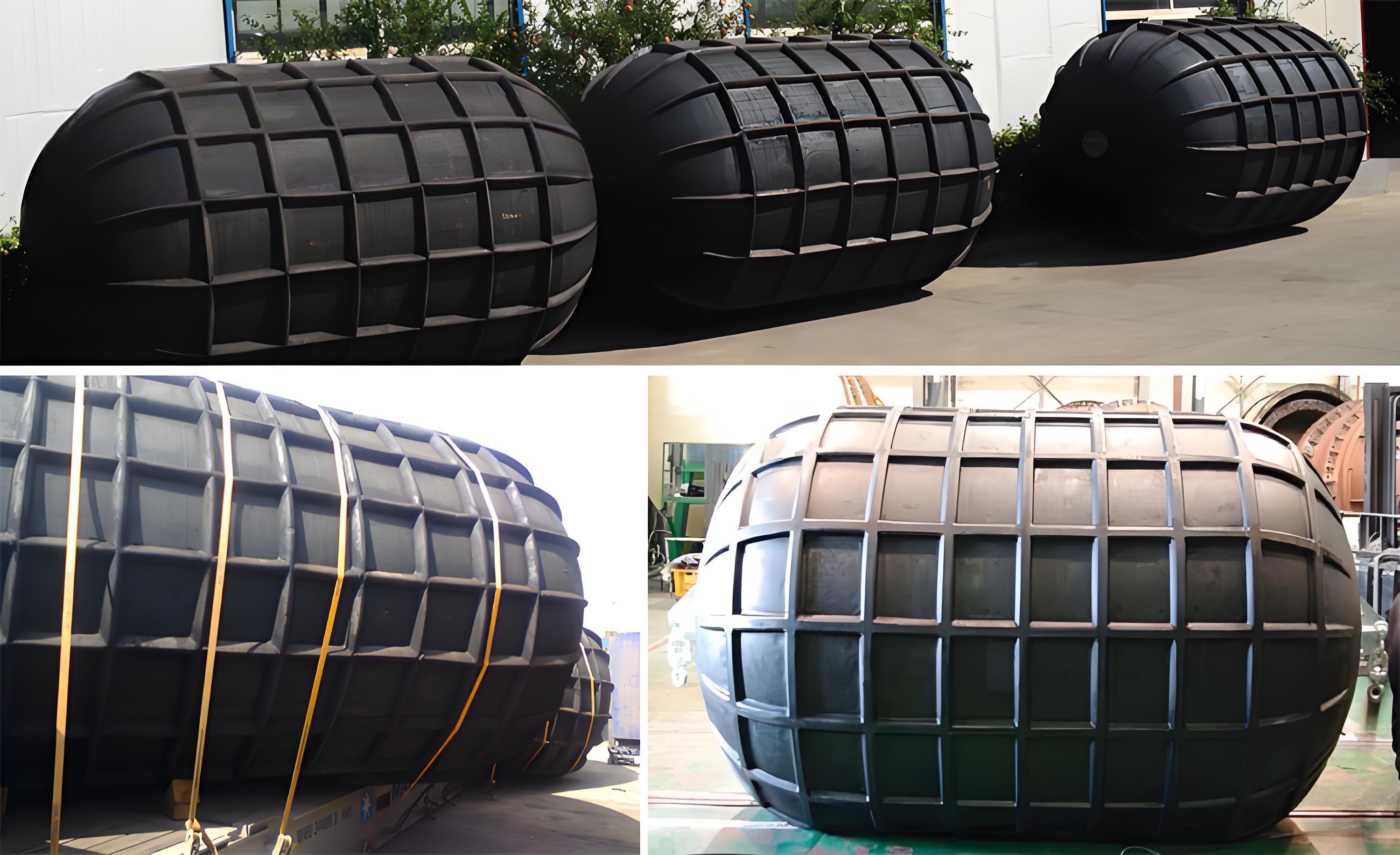

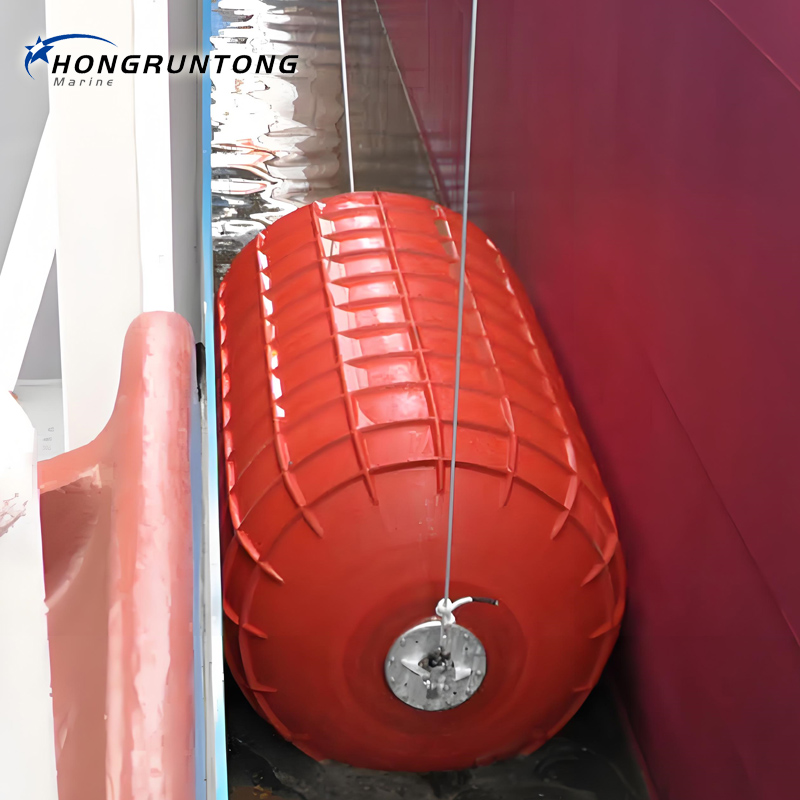

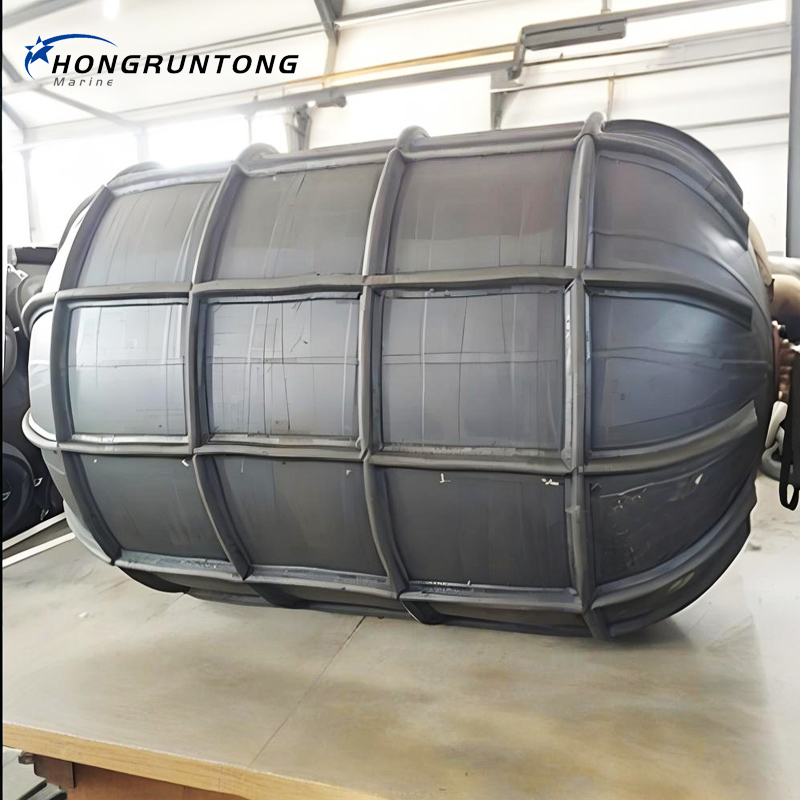

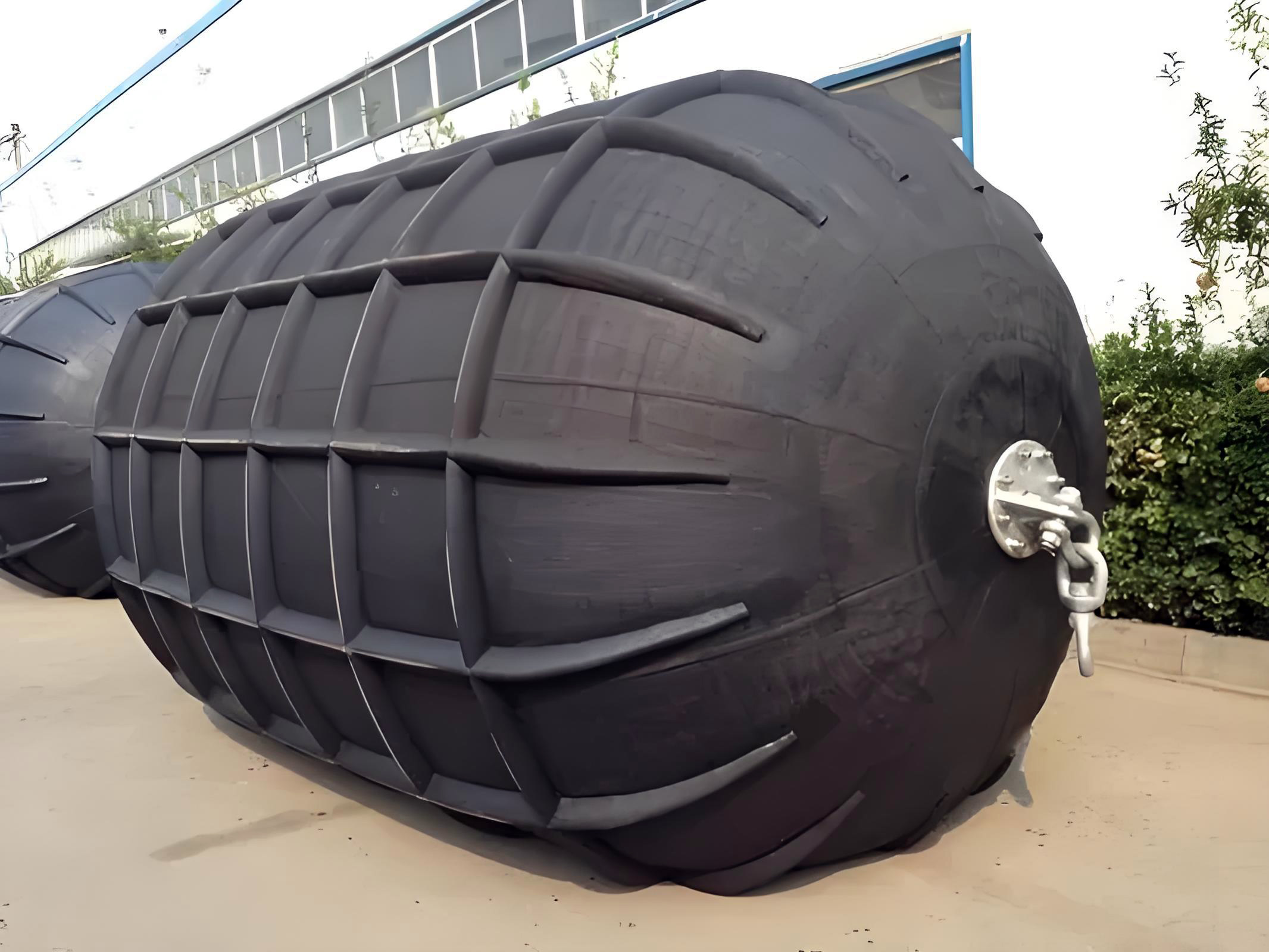

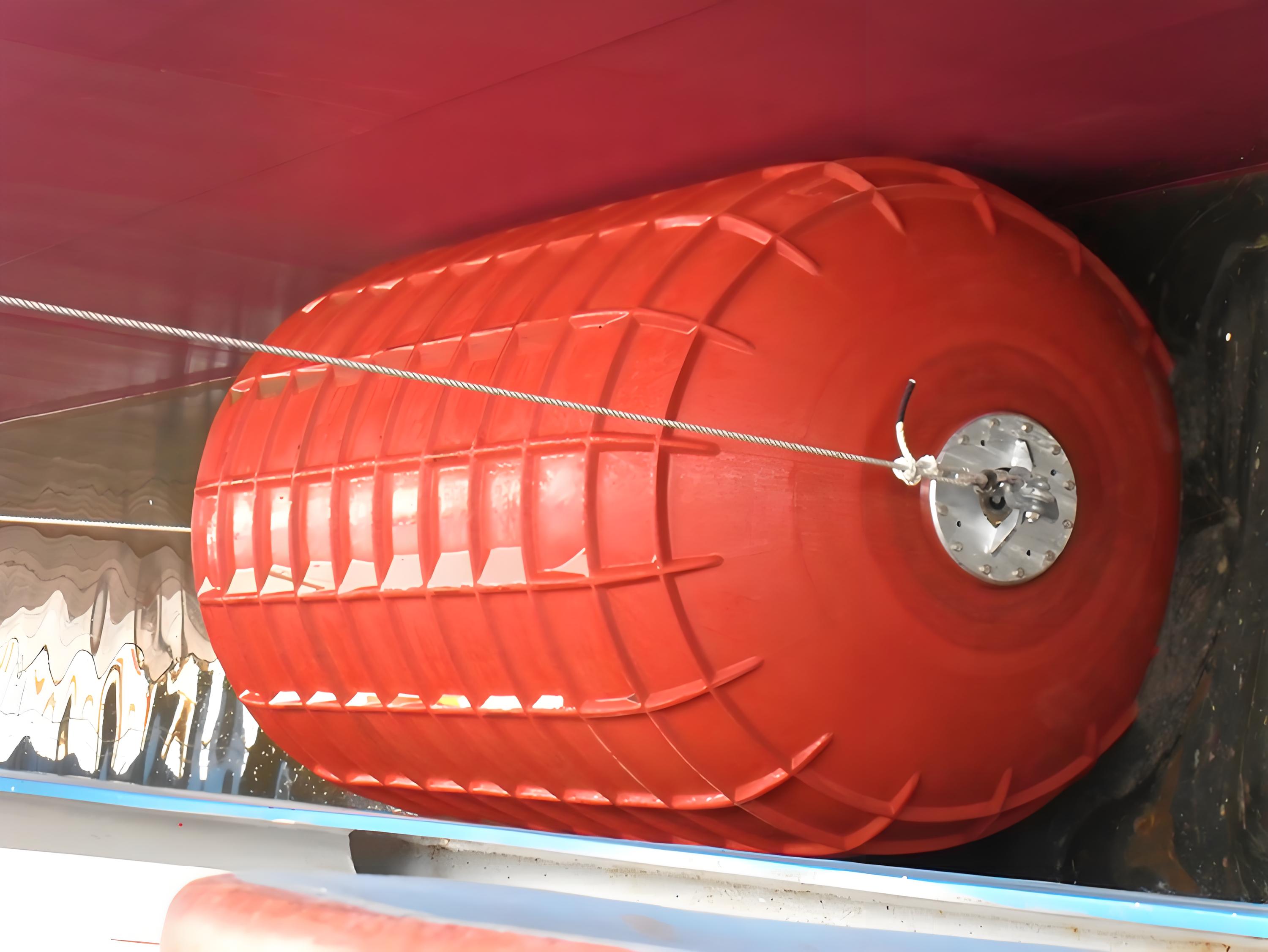

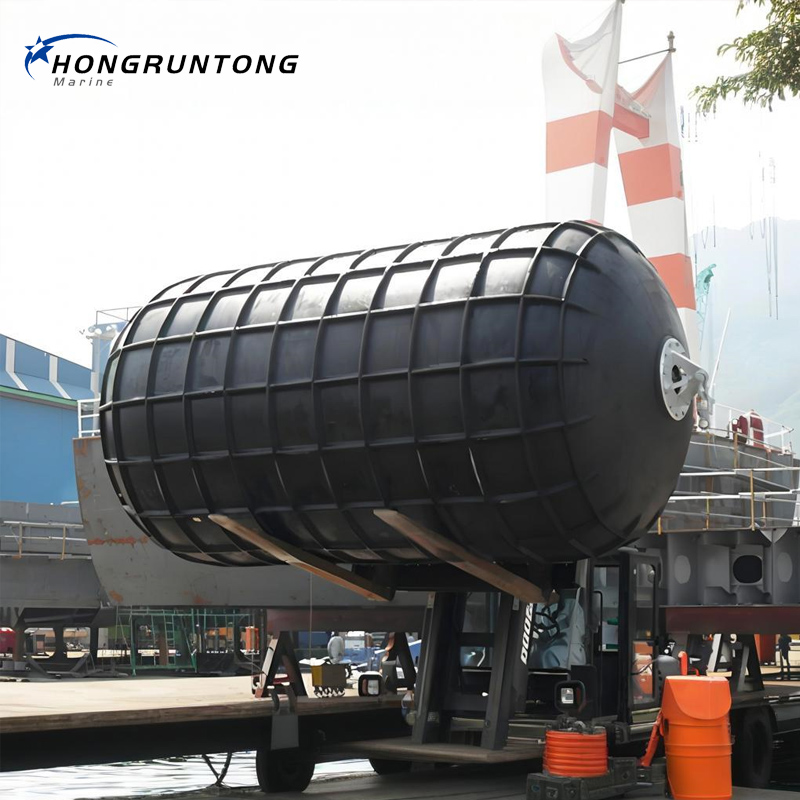

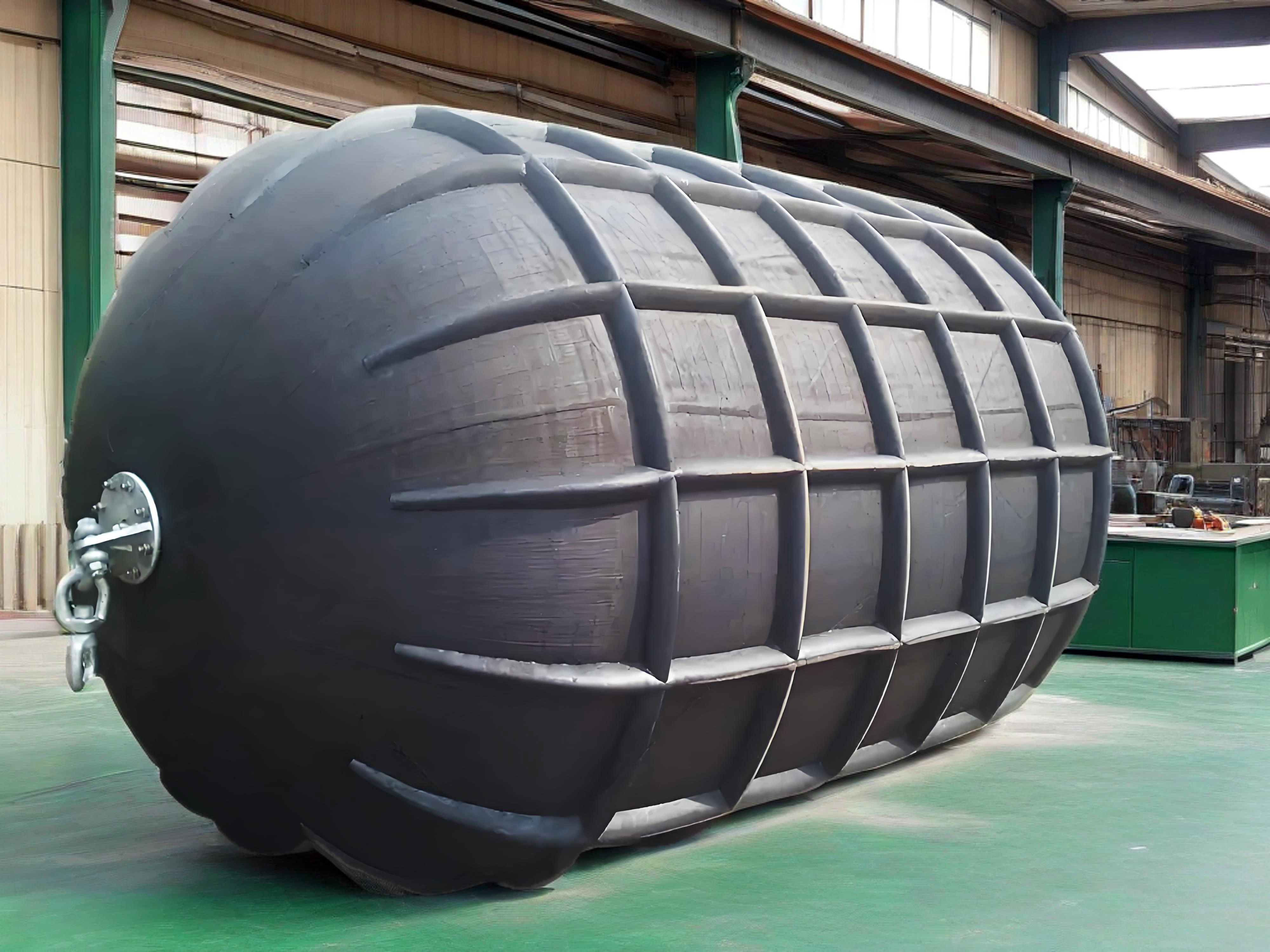

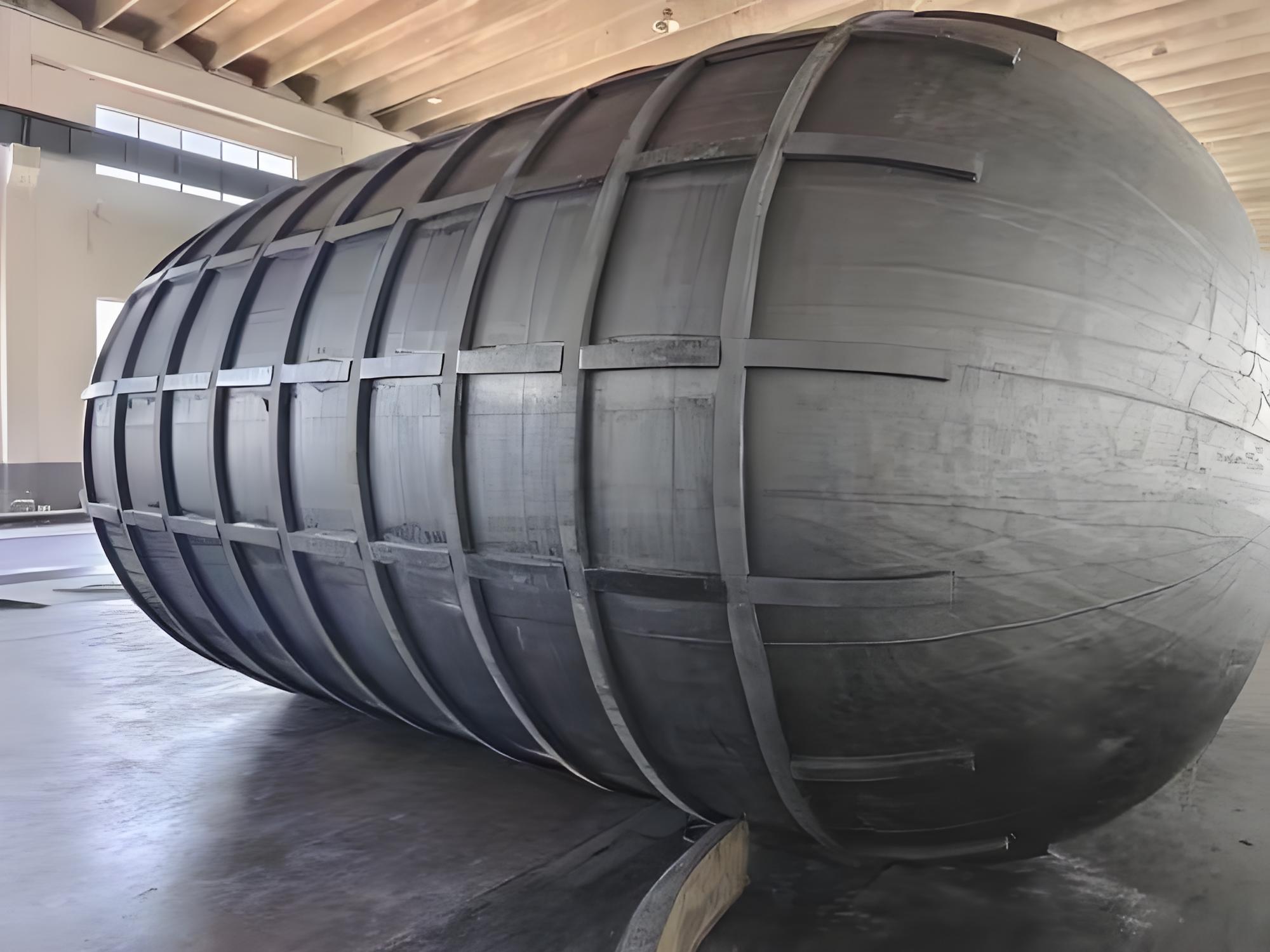

Detailed Images
Why Choose Hongruntong Marine?
-
Engineering Expertise — EA (energy absorption) and reaction force calculations provided for proper fender sizing.
-
Customization — Tailored dimensions, reinforcement layers, and fittings to meet specific project requirements.
-
Quality Assurance — Manufactured under ISO 17357 standards with strict material and production control.
-
Global Delivery — Efficient logistics and packaging for worldwide shipment.
-
After-Sales Support — Technical guidance, maintenance instructions, and spare part supply.
Quality & Service
Quality Assurance
Hongruntong Marine's ribbed pneumatic fenders undergo rigorous quality control:
-
Material Testing: Raw material certification and batch testing
-
Production Monitoring: Real-time monitoring during manufacturing process
-
Performance Testing: Full-scale pressure and energy absorption testing
-
Final Inspection: 100% visual and dimensional inspection before shipment
Service Support
-
Technical Consultation: Engineering support for proper fender selection
-
Installation Guidance: Comprehensive installation manuals and on-site support
-
Maintenance Services: Periodic inspection and maintenance recommendations
-
Emergency Response: Quick replacement and repair services
FAQ
Q1: What is the main advantage of ribbed pneumatic fenders?
A1: The ribbed design provides extra abrasion resistance and surface protection, improving fender longevity and performance under heavy-duty berthing conditions.
Q2: Can these fenders be customized?
A2: Yes, Hongruntong Marine offers custom sizes, diameters, lengths, and fittings to match your vessel and docking requirements.
Q3: What is the expected service life?
A3: With proper handling and maintenance, ribbed pneumatic fenders can last for many years in harsh marine environments.
Q4: Are they suitable for high-energy berths?
A4: Yes, the combination of ribbed outer layers and reinforced pneumatic core provides excellent energy absorption for high-energy berthing scenarios.
Q5: Do you provide complete fender systems with accessories?
A5: Yes, we supply lifting rings, chains, protective nets, and installation hardware as part of a full fendering solution.
