Navy Fender
Lightweight Grey Fender
The Navy Grey Fender is an abrasion-resistant rubber fender filled with high pressure air. It can easily be deflated which allows simple and cost effective relocation and re-commissioning in other locations.
Navy grey fender is the use of a specially formulated rubber with added color compounds. Creamy white color as an alternative can be requested instead of grey. It causes no mark on ship hulls.
The fenders are available in diameters ranging from 300 mm to 4,500 mm and lengths ranging from 500 mm to 9,000 mm, as well as special sizes.
Navy Fenders Lightweight Grey Fenders, us navy fenders, navy blue boat fenders, navy boat fenders, navy blue fenders

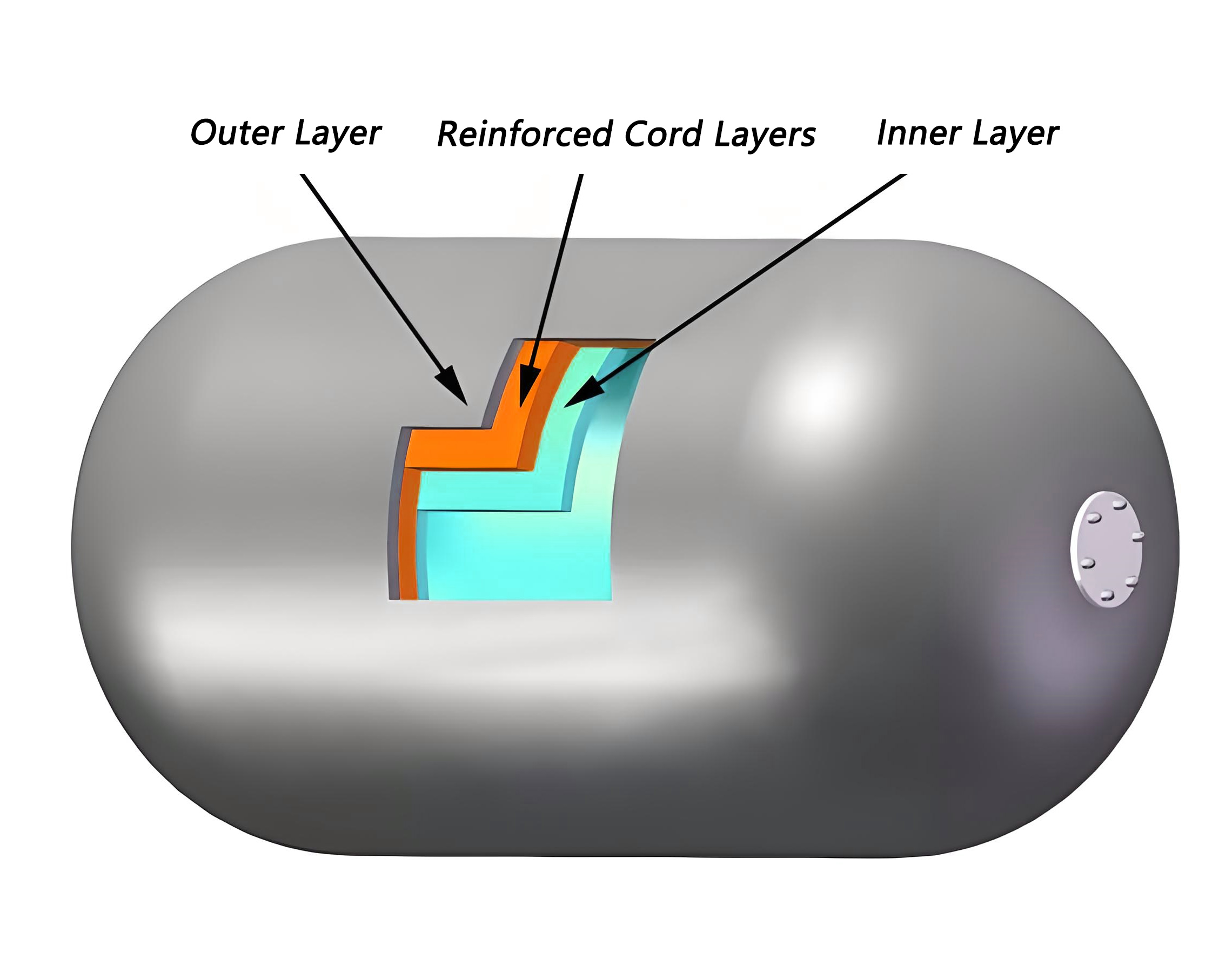

Structure
Dimensions
| Diameter x Length ( mm ) |
Initial Internal Pressure (kPa) |
Energy absorption (kNm) |
Reaction force (kN) |
Hull pressure at 60% def. (kPa) |
Testing pressure (kPa) |
| 500 x 1000 | 50 | 6 | 64 | 132 | 200 |
| 600 x 1000 | 50 | 8 | 74 | 126 | 200 |
| 700 x 1500 | 50 | 17 | 137 | 135 | 200 |
| 1000 x 1500 | 50 | 32 | 182 | 122 | 200 |
| 1000 x 2000 | 50 | 45 | 257 | 132 | 200 |
| 1200 x 2000 | 50 | 63 | 297 | 126 | 200 |
| 1350 x 2500 | 50 | 102 | 427 | 130 | 200 |
| 1500 x 3000 | 50 | 153 | 579 | 132 | 200 |
| 1700 x 3000 | 50 | 191 | 639 | 128 | 200 |
| 2000 x 3500 | 50 | 308 | 875 | 128 | 200 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 | 250 |
| 2500 x 5500 | 50 | 943 | 2019 | 148 | 250 |
| 3000 x 5000 | 50 | 1050 | 2030 | 135 | 250 |
| 3000 x 6000 | 50 | 1315 | 2490 | 135 | 250 |
| 3300 x 4500 | 50 | 1526 | 2785 | 130 | 250 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 | 250 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 | 250 |
| Diameter x Length ( mm ) |
Initial Internal Pressure (kPa) |
Energy absorption (kNm) |
Reaction force (kN) |
Hull pressure at 60% def. (kPa) |
Testing pressure (kPa) |
| 500 x 1000 | 80 | 8 | 85 | 174 | 200 |
| 600 x 1000 | 80 | 11 | 98 | 166 | 200 |
| 700 x 1500 | 80 | 24 | 180 | 177 | 200 |
| 1000 x 1500 | 80 | 45 | 239 | 160 | 200 |
| 1000 x 2000 | 80 | 63 | 338 | 174 | 200 |
| 1200 x 2000 | 80 | 88 | 390 | 166 | 200 |
| 1350 x 2500 | 80 | 142 | 561 | 170 | 200 |
| 1500 x 3000 | 80 | 214 | 761 | 174 | 200 |
| 1700 x 3000 | 80 | 267 | 840 | 168 | 200 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 | 200 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 | 250 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 | 250 |
| 3000 x 5000 | 80 | 1341 | 2359 | 198 | 250 |
| 3000 x 6000 | 80 | 1646 | 2916 | 203 | 250 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 | 250 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 | 250 |
| 4500 x 9000 | 80 | 6663 | 7551 | 192 | 250 |
Navy Fenders Lightweight Grey Fenders, us navy fenders, navy blue boat fenders, navy boat fenders, navy blue fender

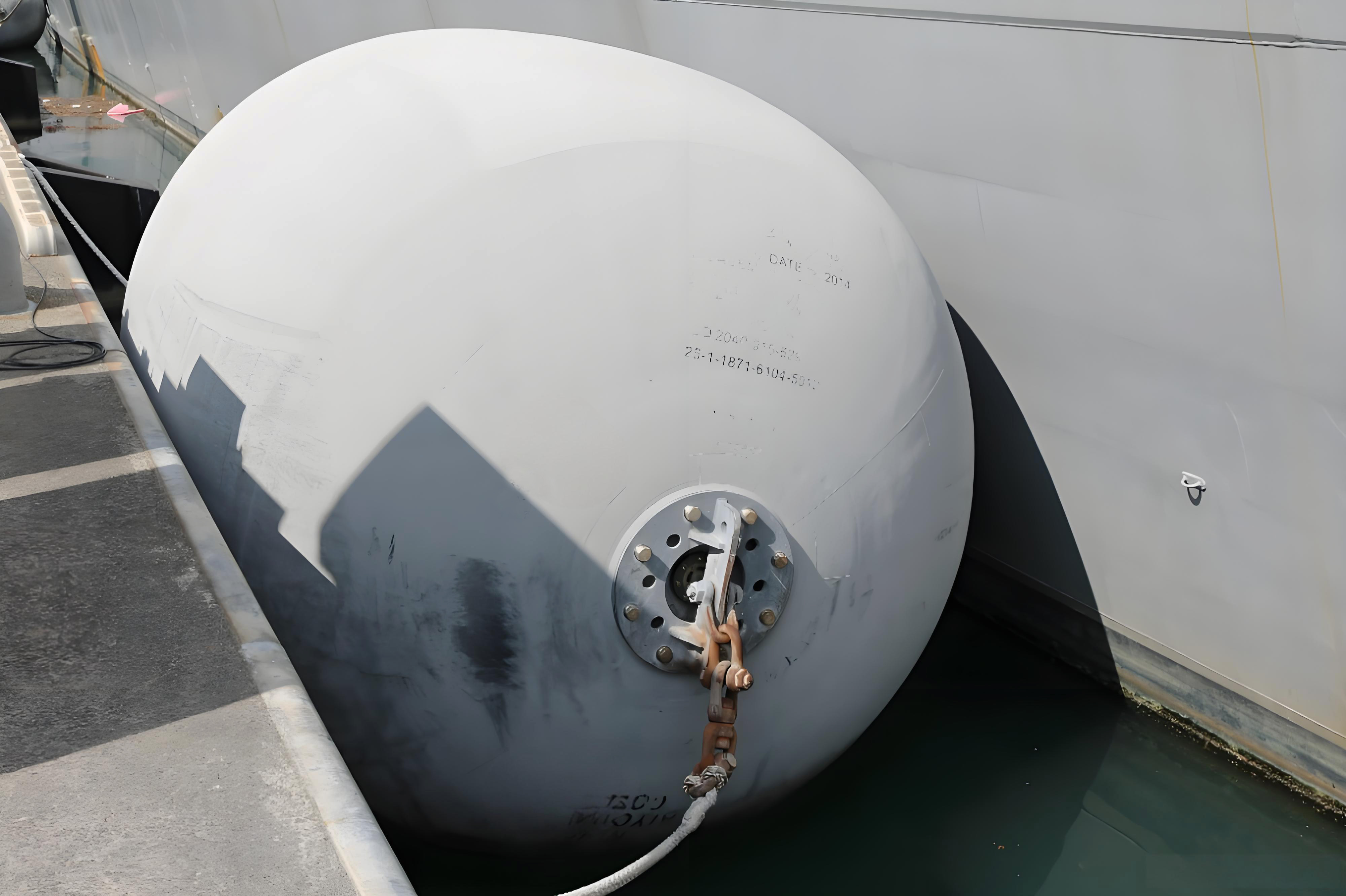

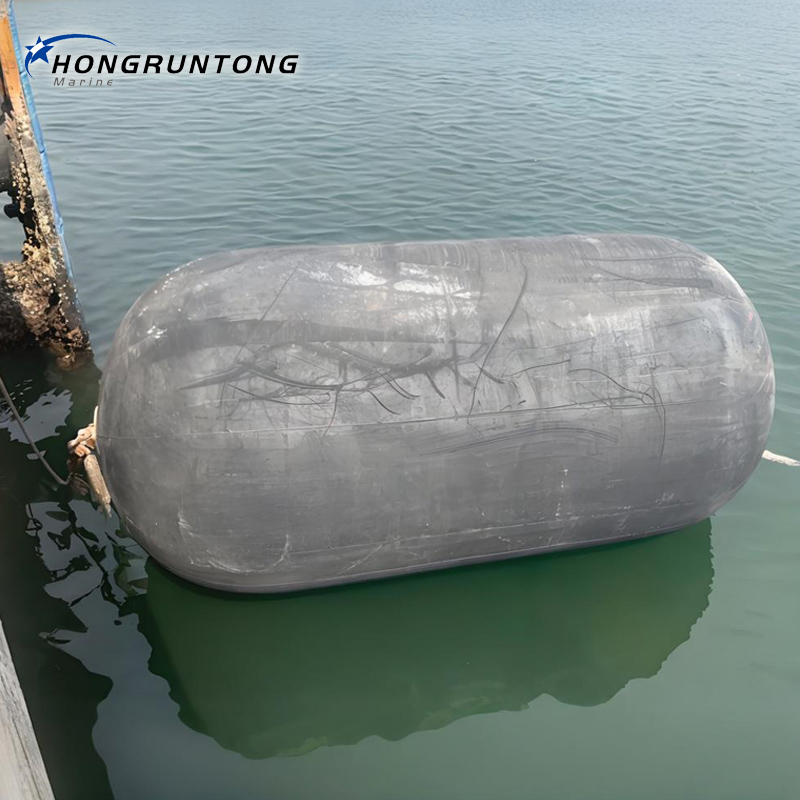

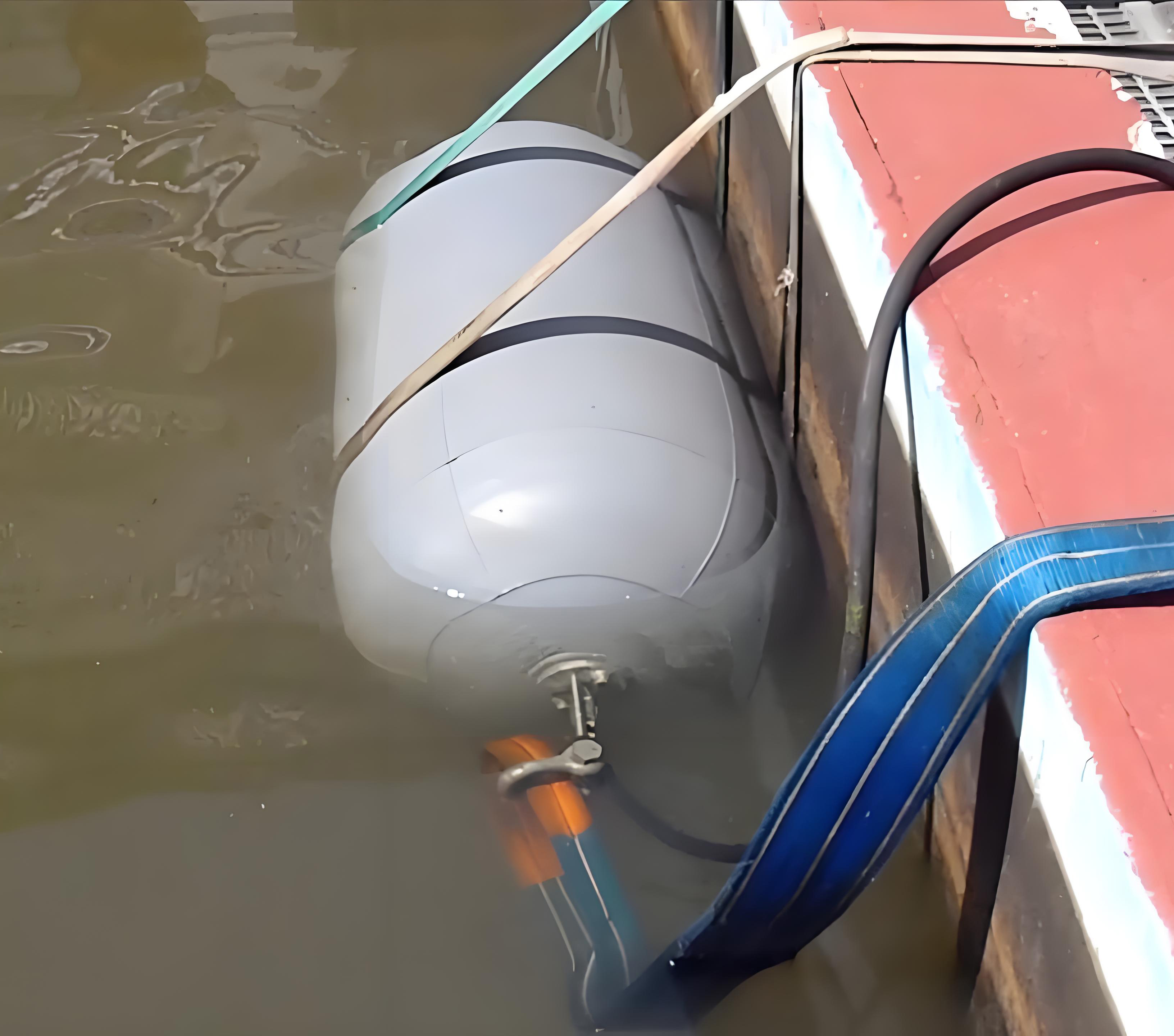

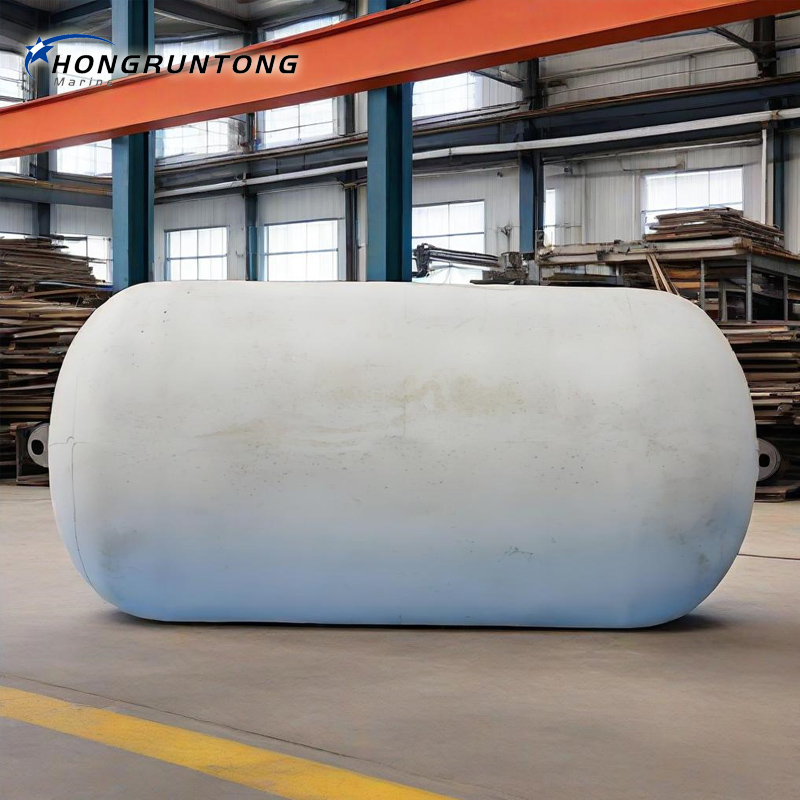

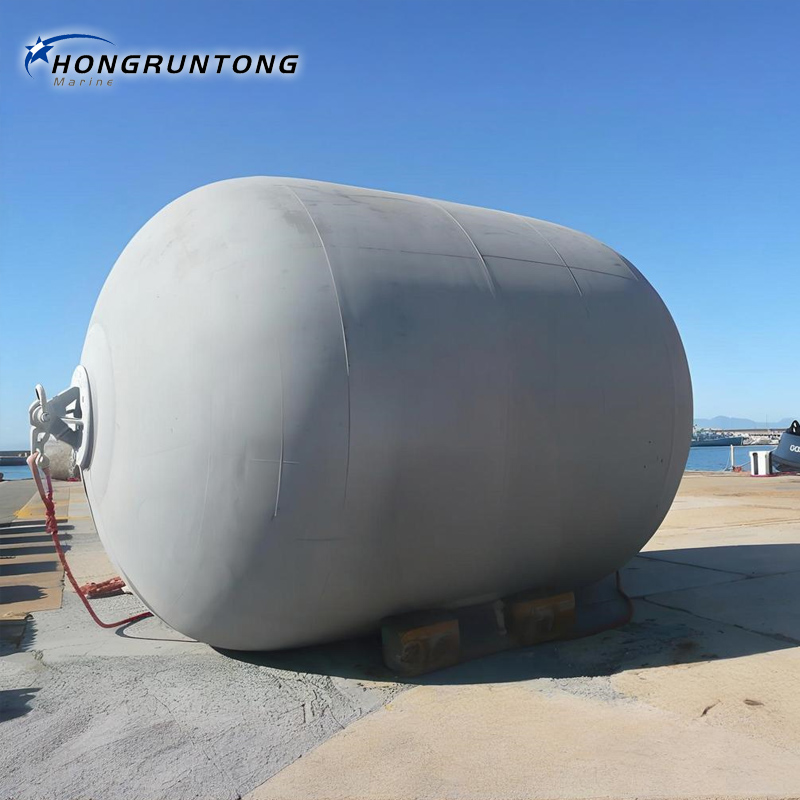

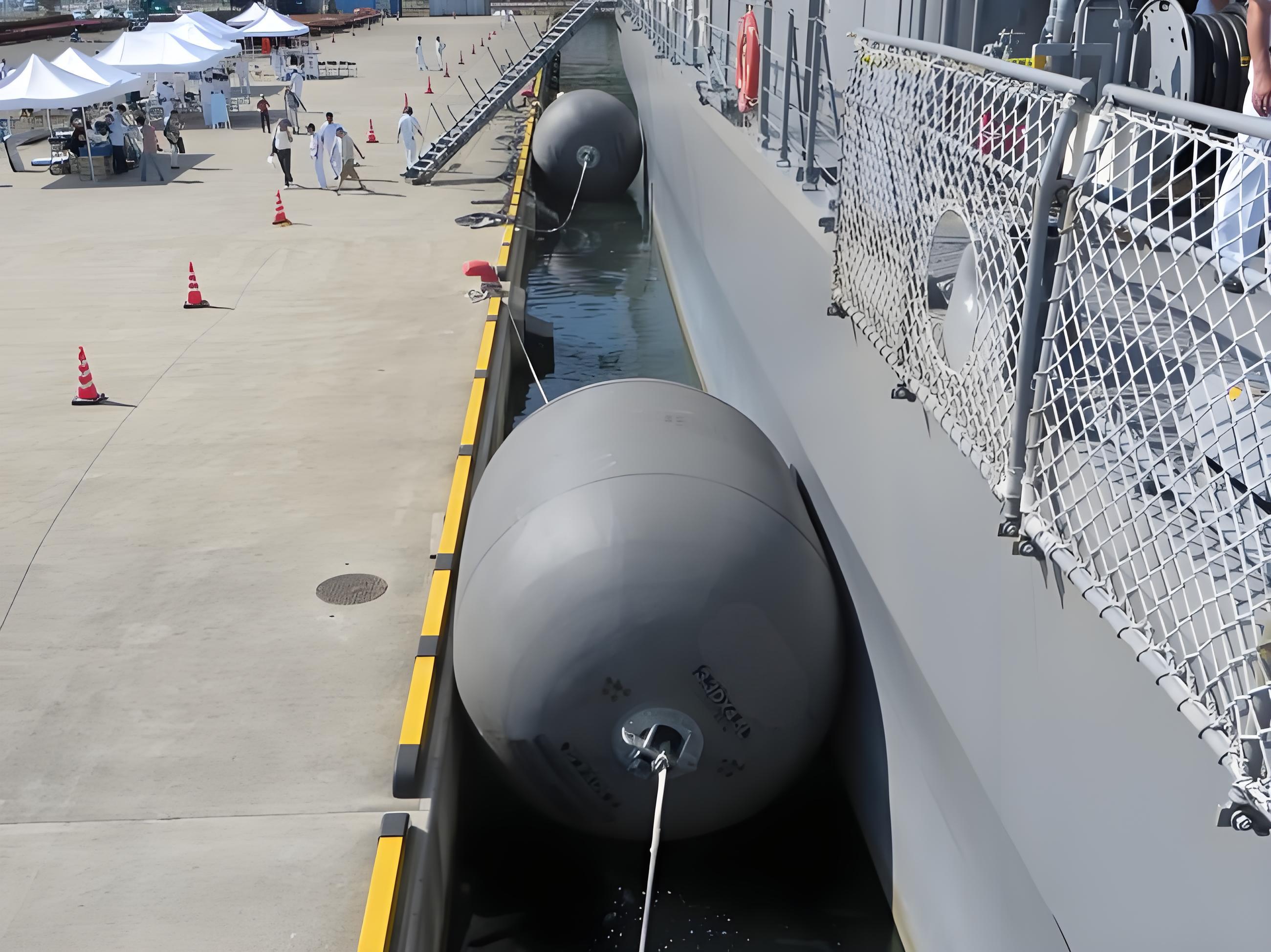

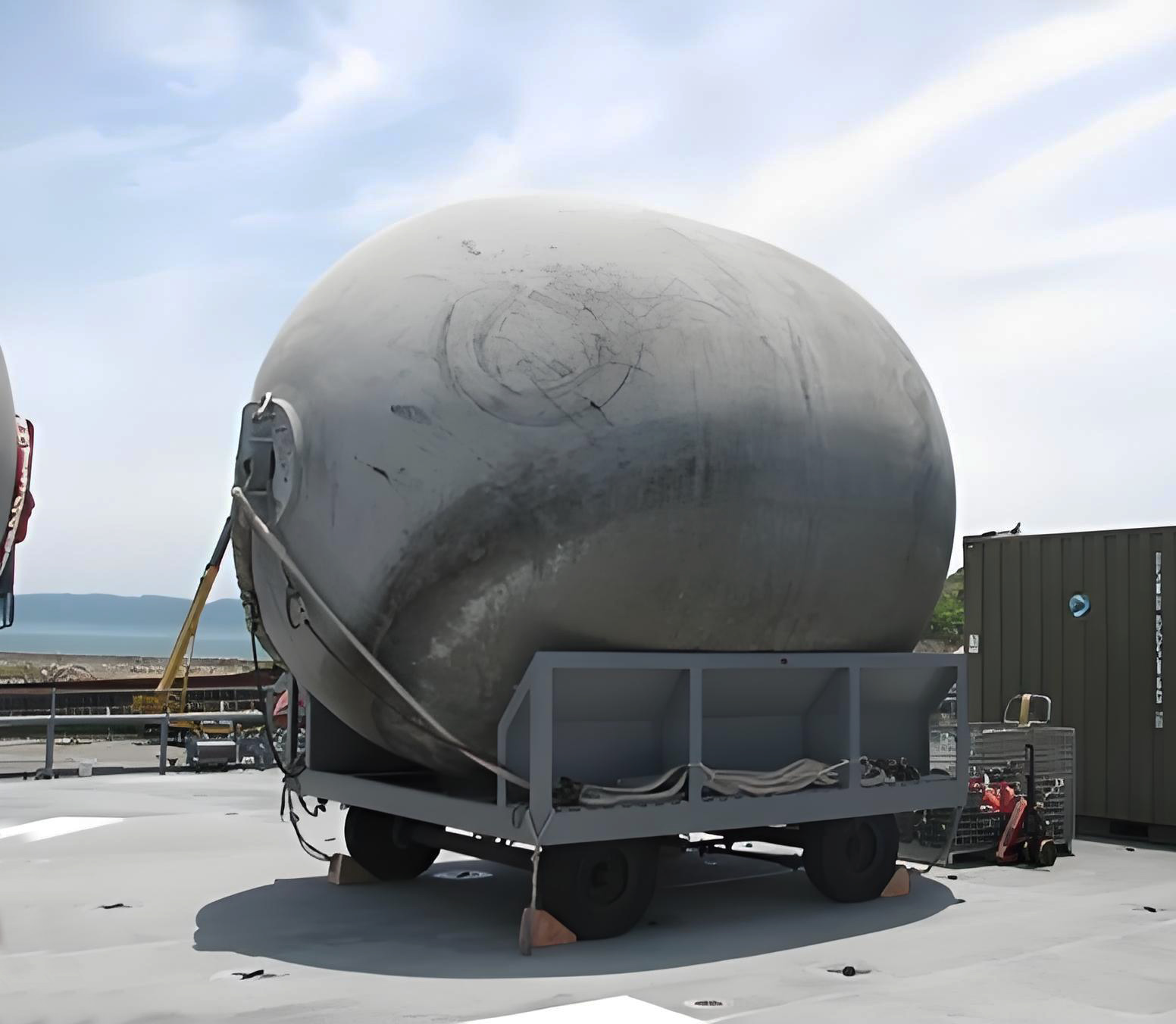

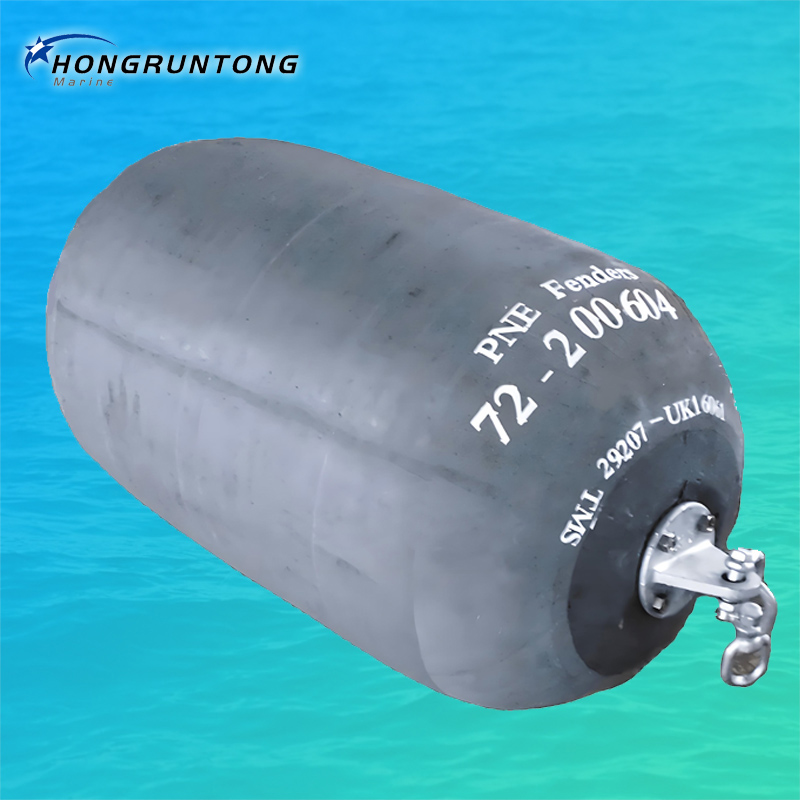

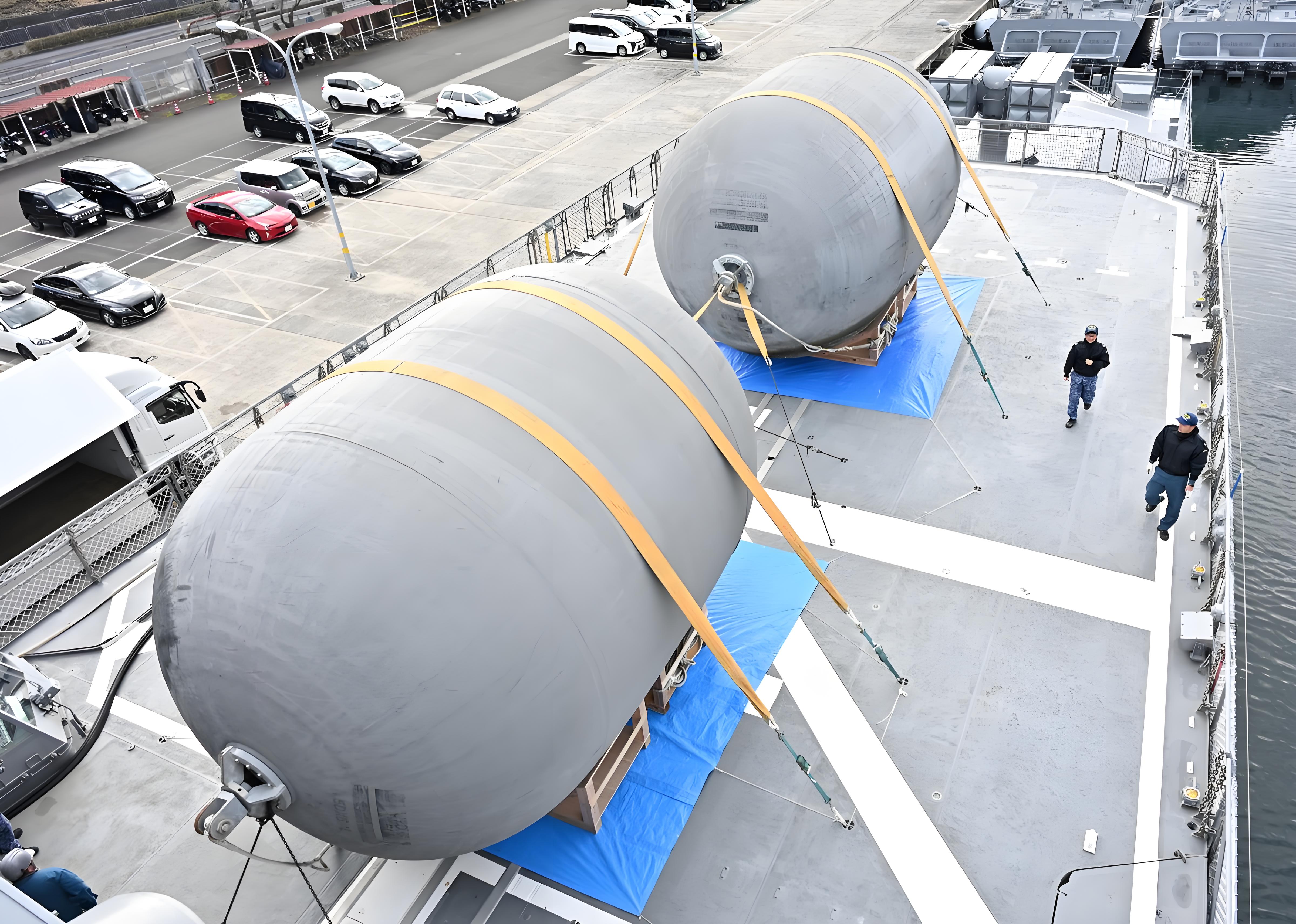

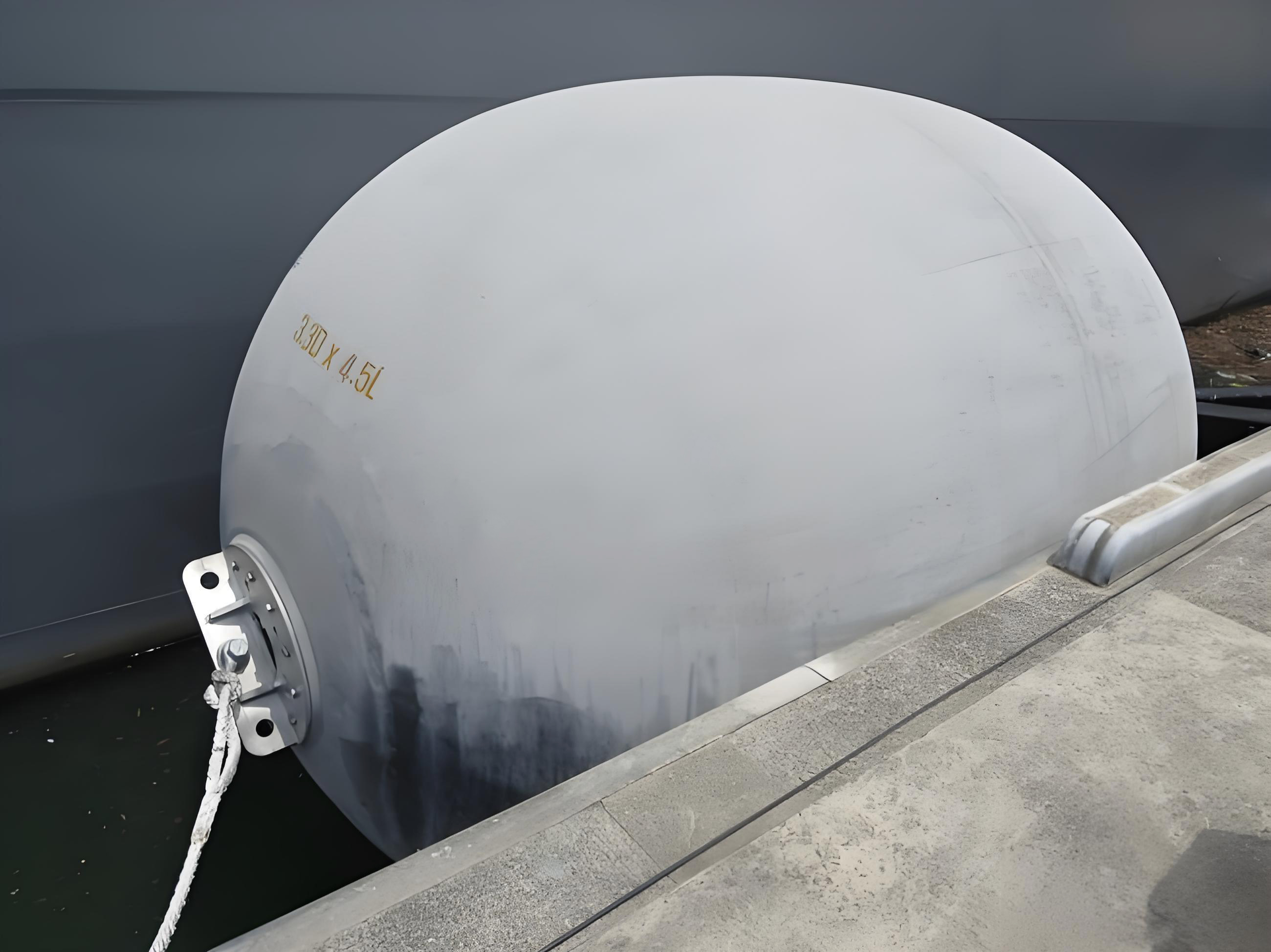

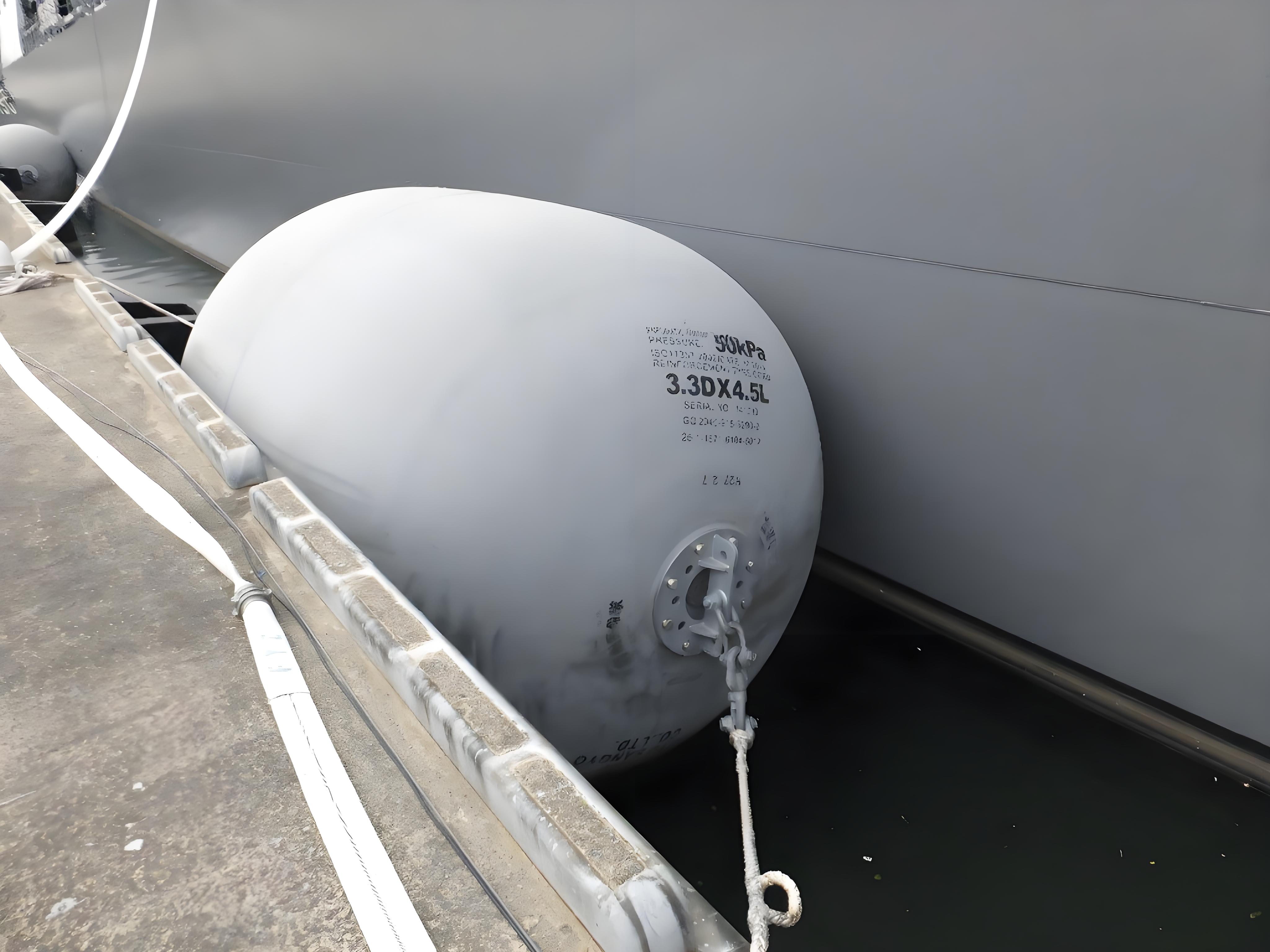

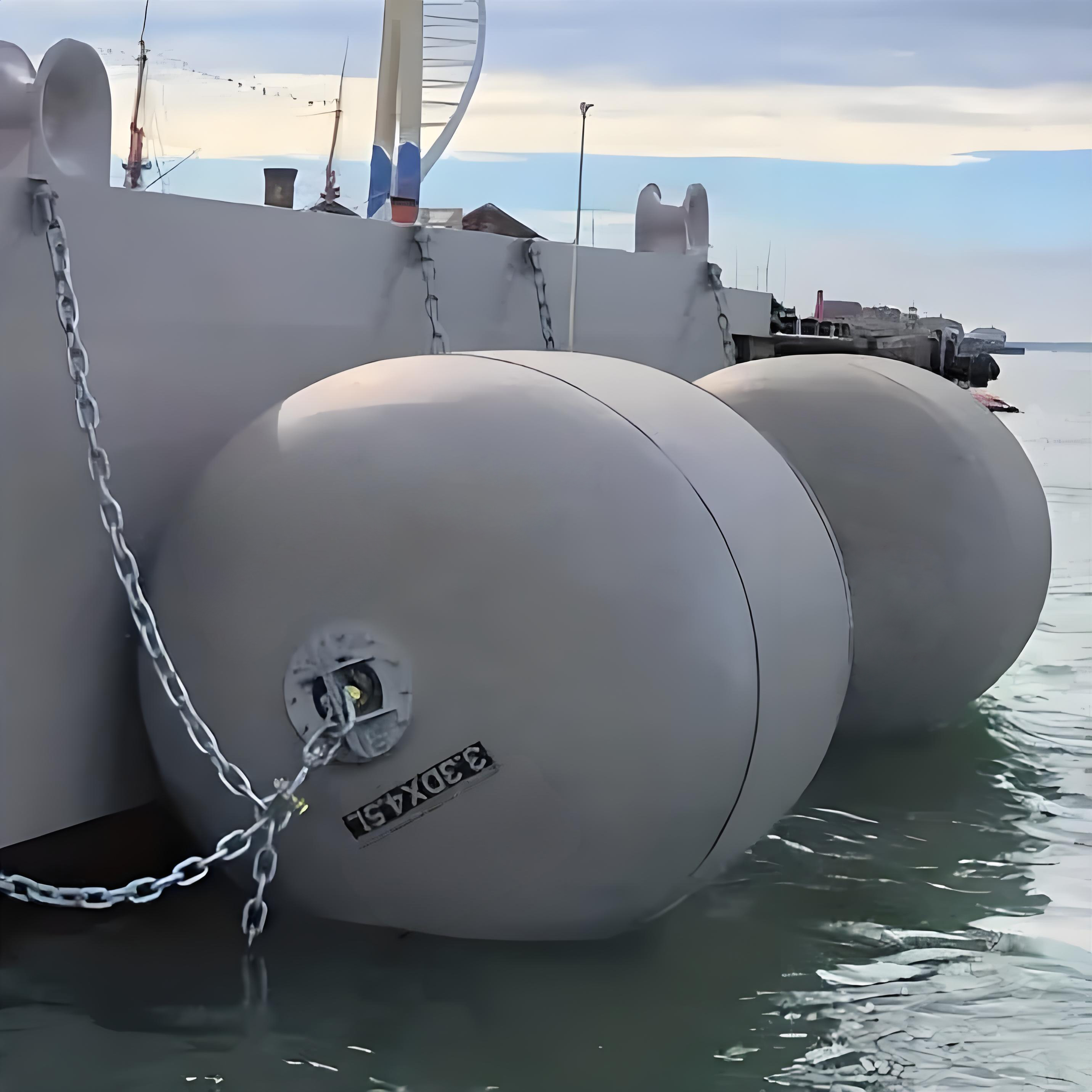

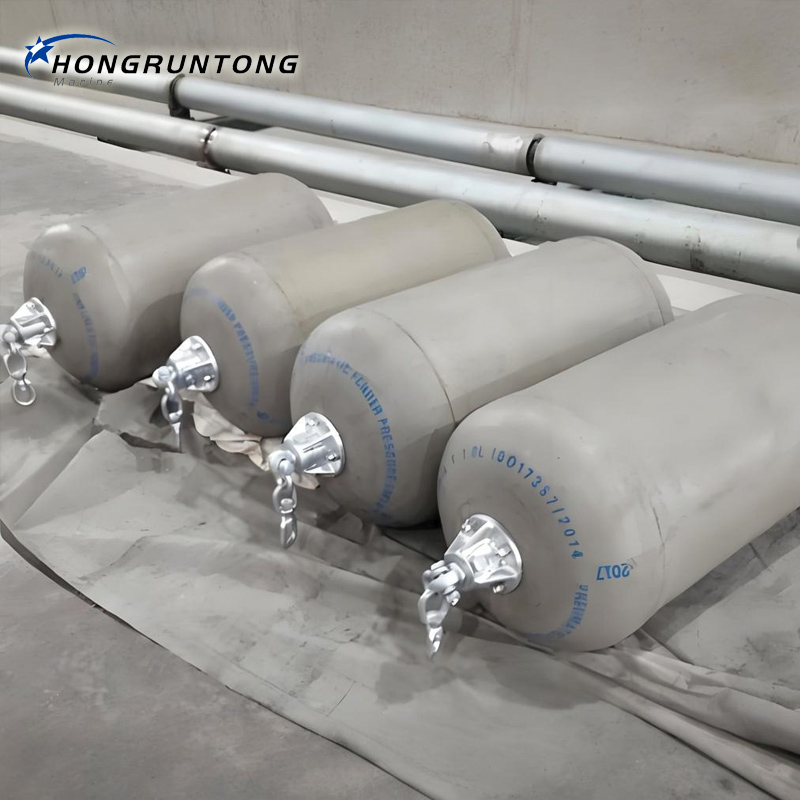

Detailed Photos
