Dredge Discharge Hose
Dredge discharge hose is a type of hose specifically designed for use in dredging operations. It is typically made of high-quality rubber materials to withstand the harsh conditions encountered during dredging activities.
Dredge discharge hoses are used to transport various materials such as sediment, slurry, sand, and gravel from one location to another during dredging activities. The rubber construction of the hose allows it to handle the suction and discharge of these materials without getting damaged.
Dredge discharge hoses often feature reinforcement layers such as high-strength synthetic cords or steel wire spirals to enhance their strength and prevent them from collapsing under high pressure. They may also have built-in flanges or couplings for easy connection to dredging equipment.
When selecting a dredge discharge hose, it's essential to consider factors such as its size, pressure rating, temperature range, and compatibility with the specific materials being transported. Regular inspections and maintenance are crucial to ensure the hose remains in good condition and can perform optimally during dredging operations.
Characteristics
► Flexibility and easy to install
► Wear-resistant and bending resistant
► Various flange
► Working temperature: -50℃ to +80℃
Applications
● Dredging Operation
● Land Reclamation
● Mining
● Construction Projects
● Environmental Remediation
● Maintenance and Restoration
Structure
 |
Pipe: NR, NBR Reinforcement: Polyester fabric or steel wire Cover: NR, CR Working Pressure: 10-21 Bar Temperature: -40℃ to +80℃ Safety Factor: 4:1 |
Specifications
| Model | ID [mm] |
Working Pressure [bar] |
Burst Pressure [bar] |
Wall Thickness [mm] |
| HM-DRH300 | 300 | 4-12 | 36 | 34-37 |
| HM-DRH450 | 450 | 4-12 | 36 | 35-37 |
| HM-DRH560 | 560 | 4-12 | 36 | 40-45 |
| HM-DRH600 | 600 | 4-12 | 36 | 40-45 |
| HM-DRH700 | 700 | 8-15 | 45 | 40-45 |
| HM-DRH800 | 800 | 12-25 | 55 | 50-52 |
| HM-DRH900 | 900 | 15-25 | 75 | 55-58 |
| HM-DRH1000 | 1000 | 20-25 | 75 | 75-78 |
| HM-DRH1100 | 1100 | 25-35 | 80 | 90-93 |
| * Other sizes can be customized according to requirements. | ||||

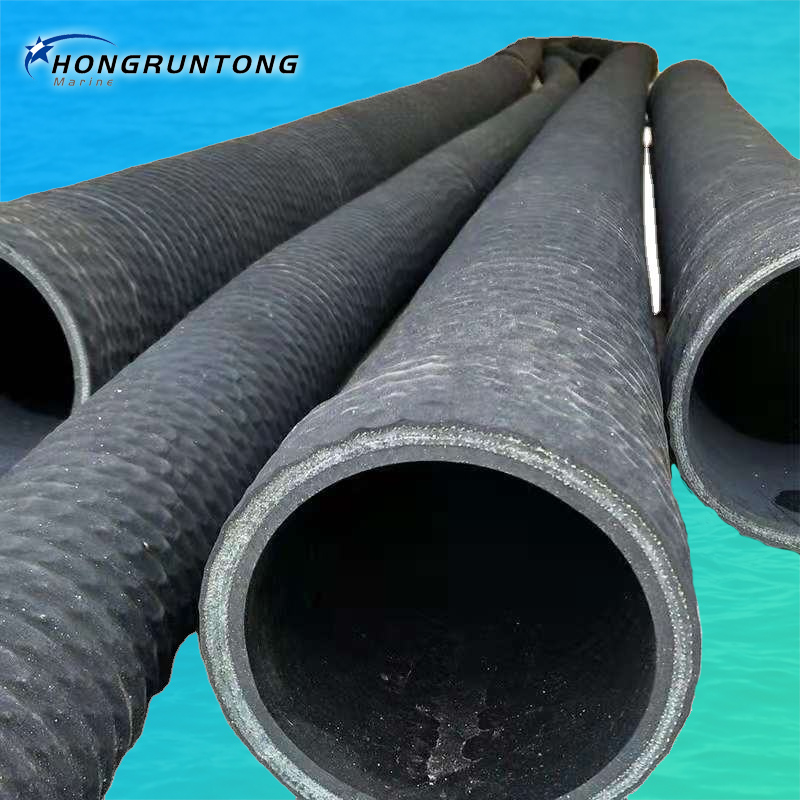

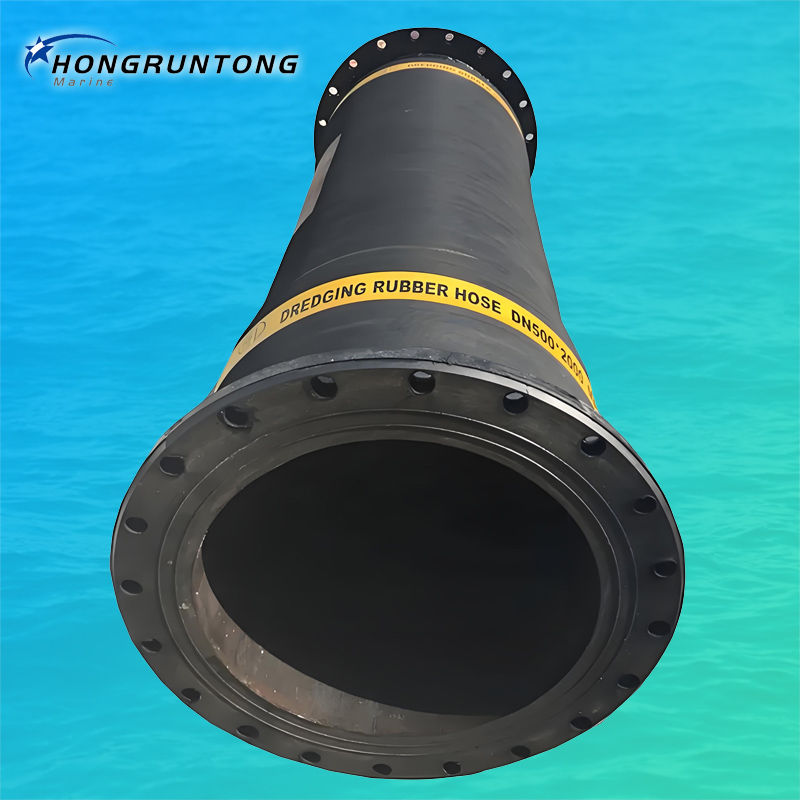

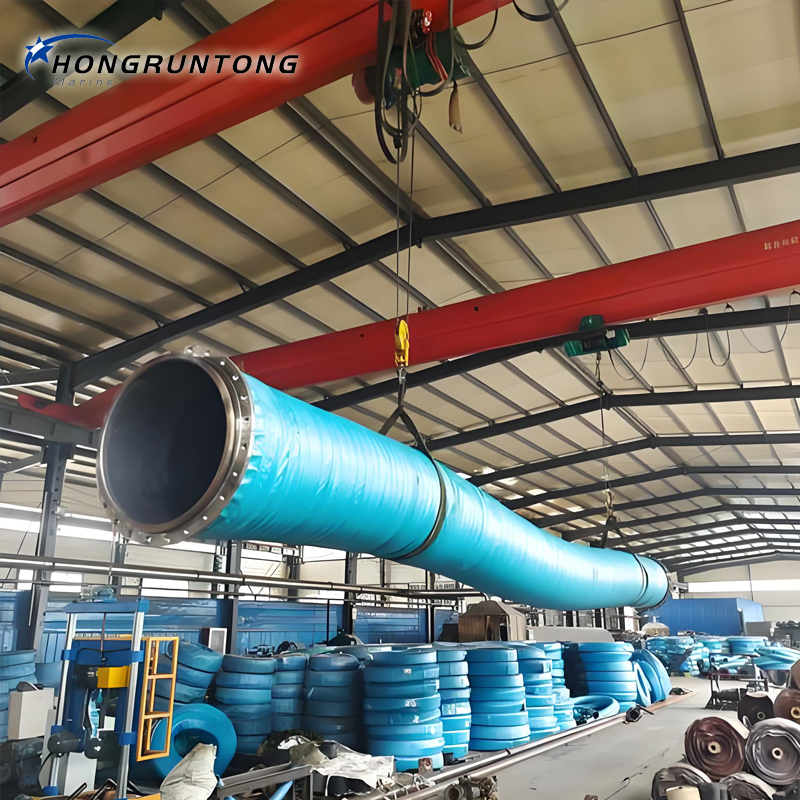

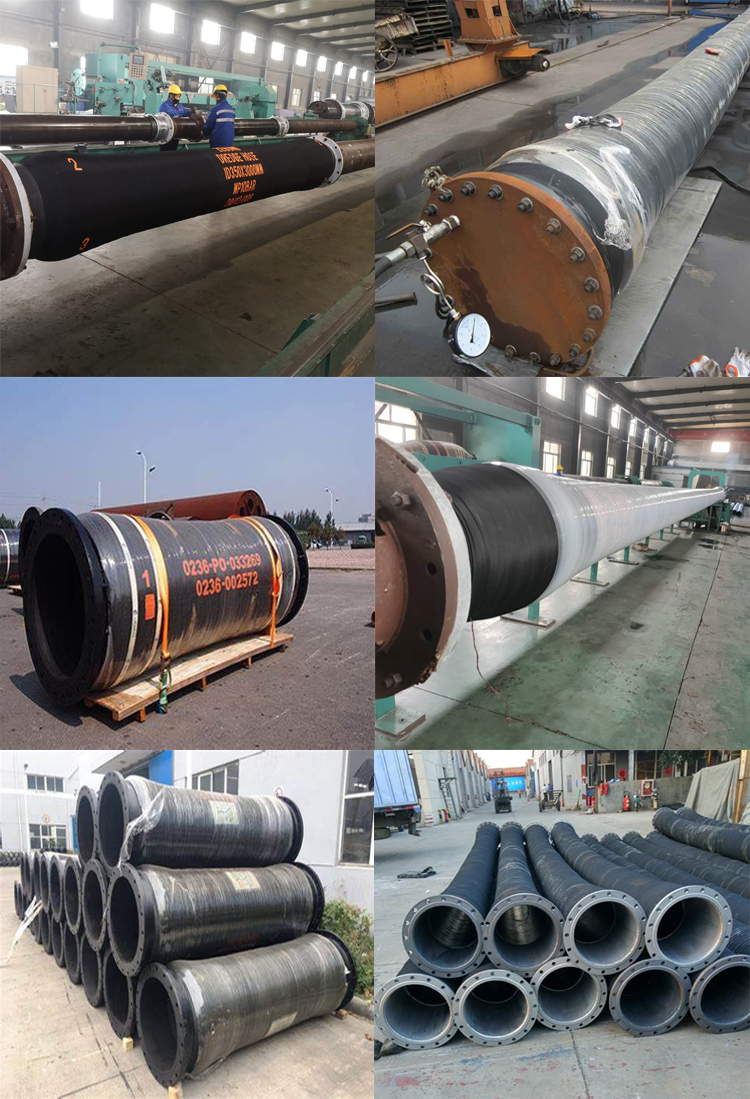

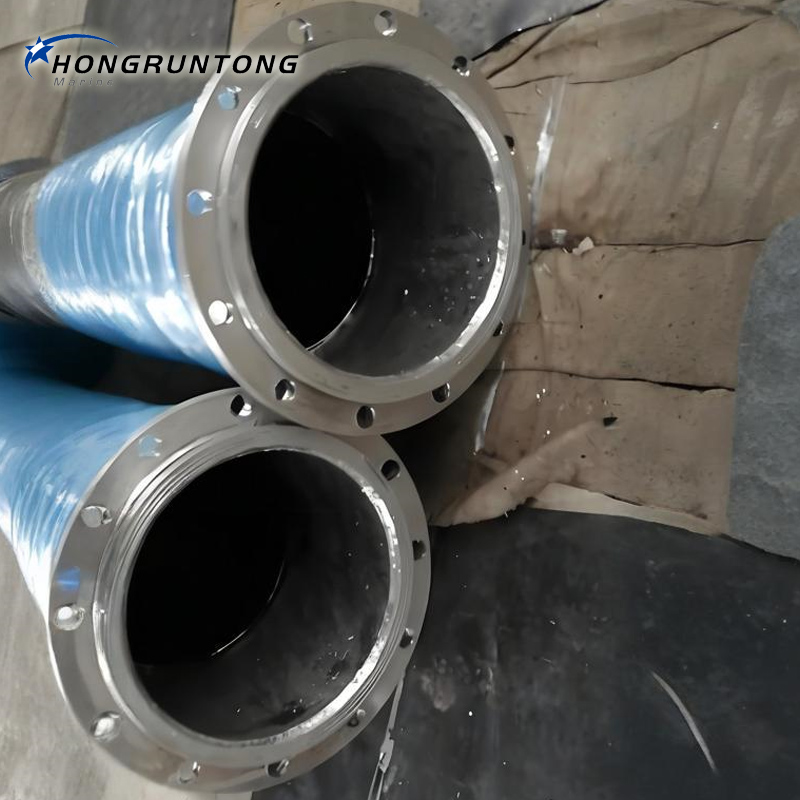

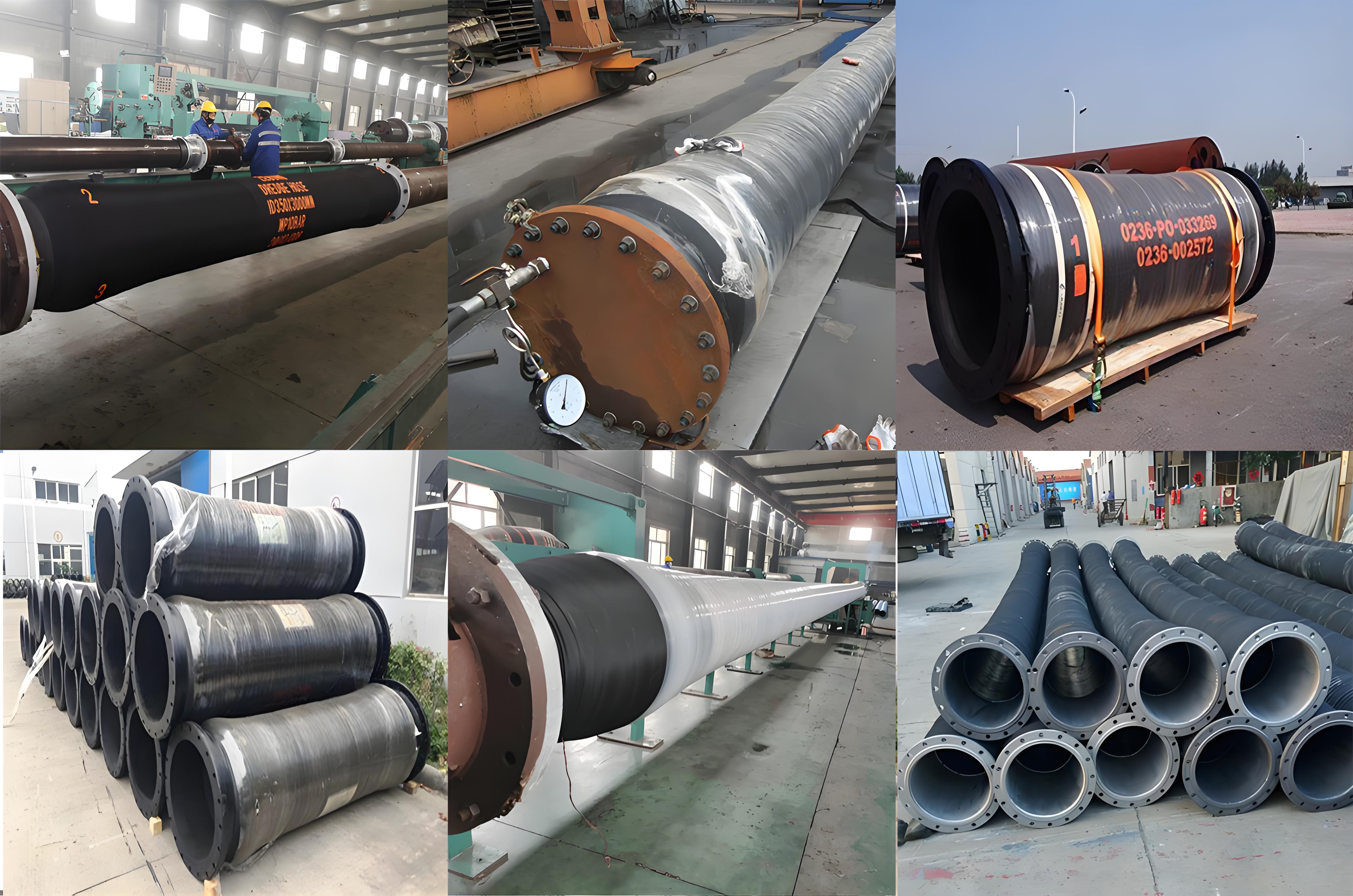

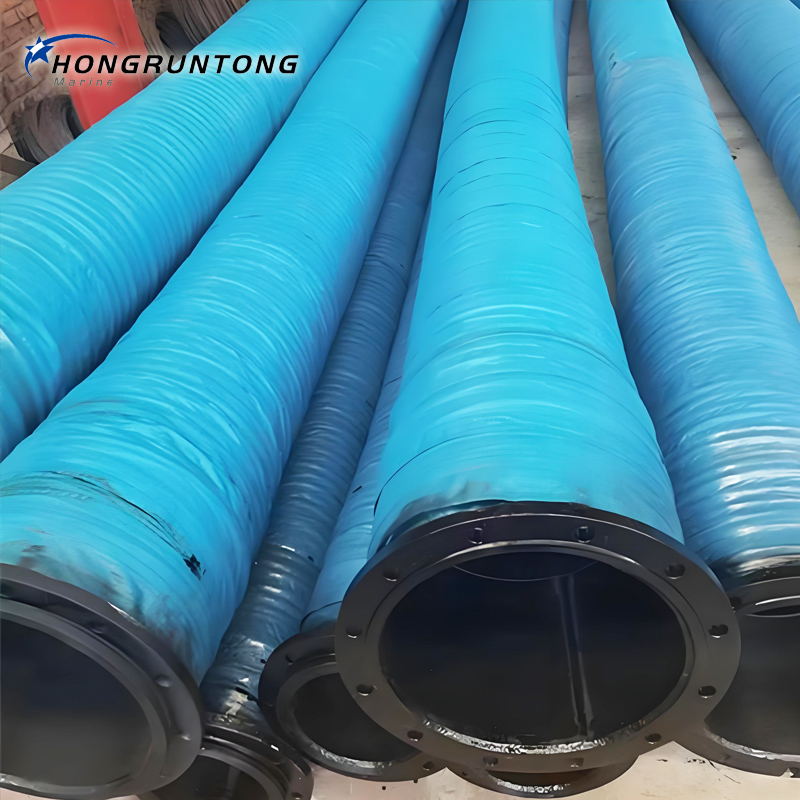

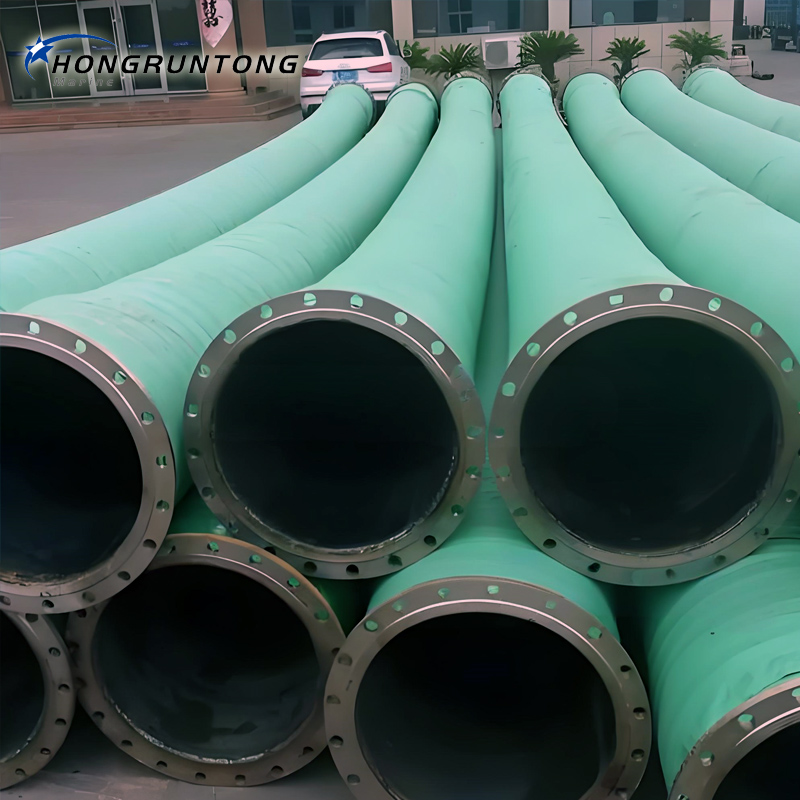

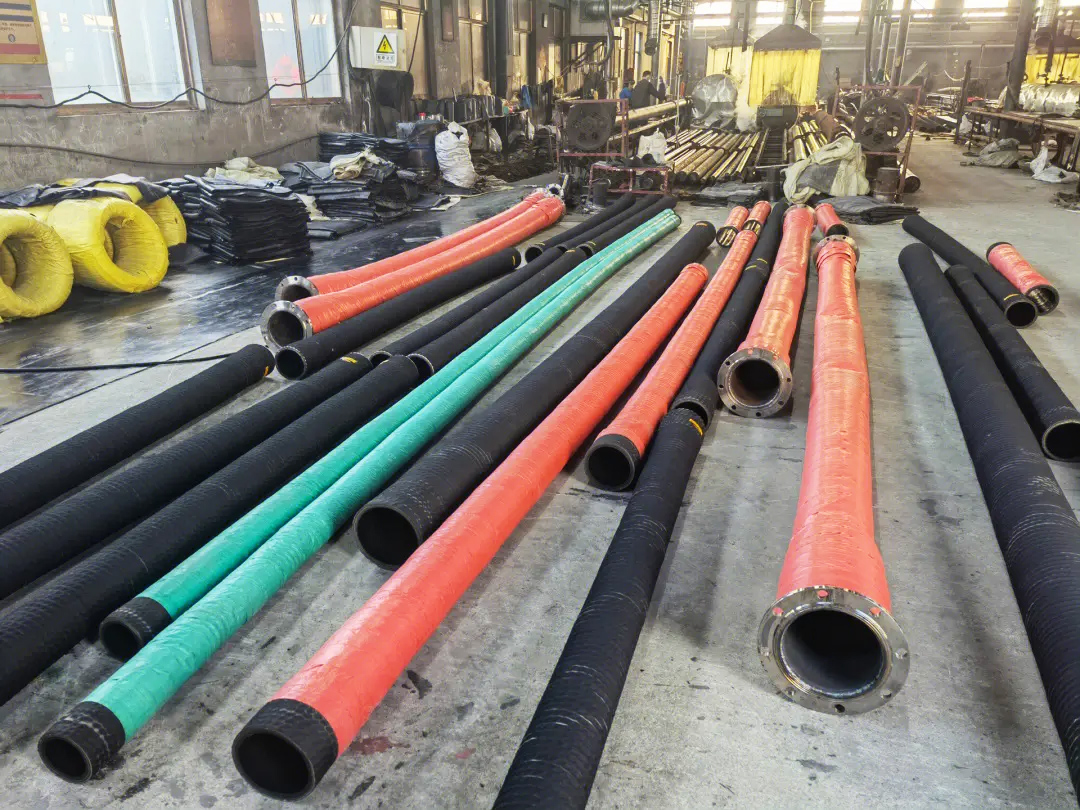

Detailed Photos
