Pneumatic Fender
Yokohama Pneumatic Fender
Manufactured as per ISO 17357 with 0.5 kg/cm² and 0.8 kg/cm² internal pressure, these Fenders are extensively used for ship to ship transfers at mid sea, as well as vessel to berth at dock/jetty.

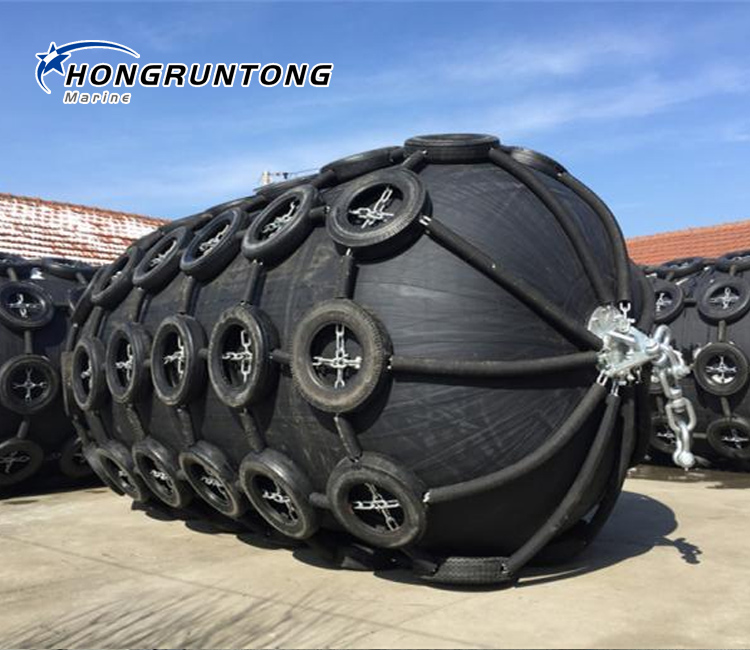

"Chain-Tyre-Net" CTN Type Pneumatic Fenders is also known as the Yokohama type Fender/Floating Fender/Dock Fender. These kinds of Yokohama Fenders became the world's leading anti-collision device.
The chains are galvanized for greater corrosion resistance and covered by rubber sleeves to prevent abrasive damage to the outer rubber. The horizontal chains are fastened at each end to a ring shackle.
Characteristics
► Strictly produced in accordance with ISO 17357-1:2014
► Reinforced with multi-layer dipped nylon cord fabric
► Ultra-high standard performance
► Very low reaction and hull pressure
► Maintains large clearances between hull and structure
► Affordable price
Applications
● Oil and gas tankers
● Fast ferries and aluminium vessels
● Temporary and permanent installations
● Ship-to-Ship operations
Dimensions
| Diameter x Length [mm] |
50kPa Performance Data |
80kPa Performance Data |
||||
| Hull Pressure at GEA / kN / m2 |
Reaction Force / kN |
Energy Absorption / kNm |
Hull Pressure at GEA / kN / m2 |
Reaction Force / kN |
Energy Absorption / kNm |
|
| 1000 x 1500 | 122 | 182 | 32 | 160 | 239 | 45 |
| 1000 x 2000 | 132 | 257 | 45 | 174 | 338 | 63 |
| 1200 x 2000 | 126 | 297 | 63 | 166 | 390 | 88 |
| 1350 x 2500 | 130 | 427 | 102 | 170 | 561 | 142 |
| 1500 x 3000 | 153 | 579 | 153 | 174 | 761 | 214 |
| 1700 x 3000 | 128 | 639 | 191 | 168 | 840 | 267 |
| 2000 x 3500 | 128 | 875 | 308 | 168 | 1150 | 430 |
| 2500 x 4000 | 137 | 1381 | 663 | 180 | 1815 | 925 |
| 2500 x 5500 | 148 | 2019 | 943 | 195 | 2653 | 1317 |
| 3300 x 4500 | 130 | 1884 | 1175 | 171 | 2476 | 1640 |
| 3300 x 6500 | 146 | 3015 | 1814 | 191 | 3961 | 2532 |
| 3300 x 10600 | 158 | 5257 | 3067 | 208 | 6907 | 4281 |
| 4500 x 9000 | 146 | 5747 | 4752 | 192 | 7551 | 6633 |
| * Other size can be produced follow client's requirements. | ||||||
