Chain Tyre Net Yokohama Pneumatic Fender
Hongruntong Marine’s Chain Tyre Net Yokohama Pneumatic Fender is a robust and proven solution for ship-to-ship (STS), ship-to-quay (STQ), and offshore terminal operations. Designed in accordance with ISO 17357-1:2014 standards, these pneumatic fenders are constructed with a durable reinforced rubber outer layer, an internal compressed air chamber for energy absorption, and a protective chain tyre net (CTN) that shields the fender from abrasion, impact, and external damage.
This type of fender is widely used for large tankers, LNG carriers, container ships, offshore platforms, and naval vessels due to its excellent performance in energy absorption and its ability to operate safely under various tidal and berthing conditions.
Key Features and Benefits
-
Chain Tyre Net Protection: Heavy-duty aircraft tyres and galvanized chains safeguard the fender body, extending its life span.
-
High Energy Absorption, Low Reaction Force: Minimizes hull pressure and prevents damage to vessels and structures.
-
Flexible Installation: Can be deployed vertically or horizontally, suitable for all types of berthing situations.
-
Weather and Sea Condition Resistant: Performs reliably even in extreme marine environments.
-
Re-Inflatable Design: Easy maintenance with accessible inflation valves and pressure gauges.
-
Customizable Size and Pressure Levels: Available in diameters from 500mm to over 3300mm, lengths up to 6600mm.
Applications
-

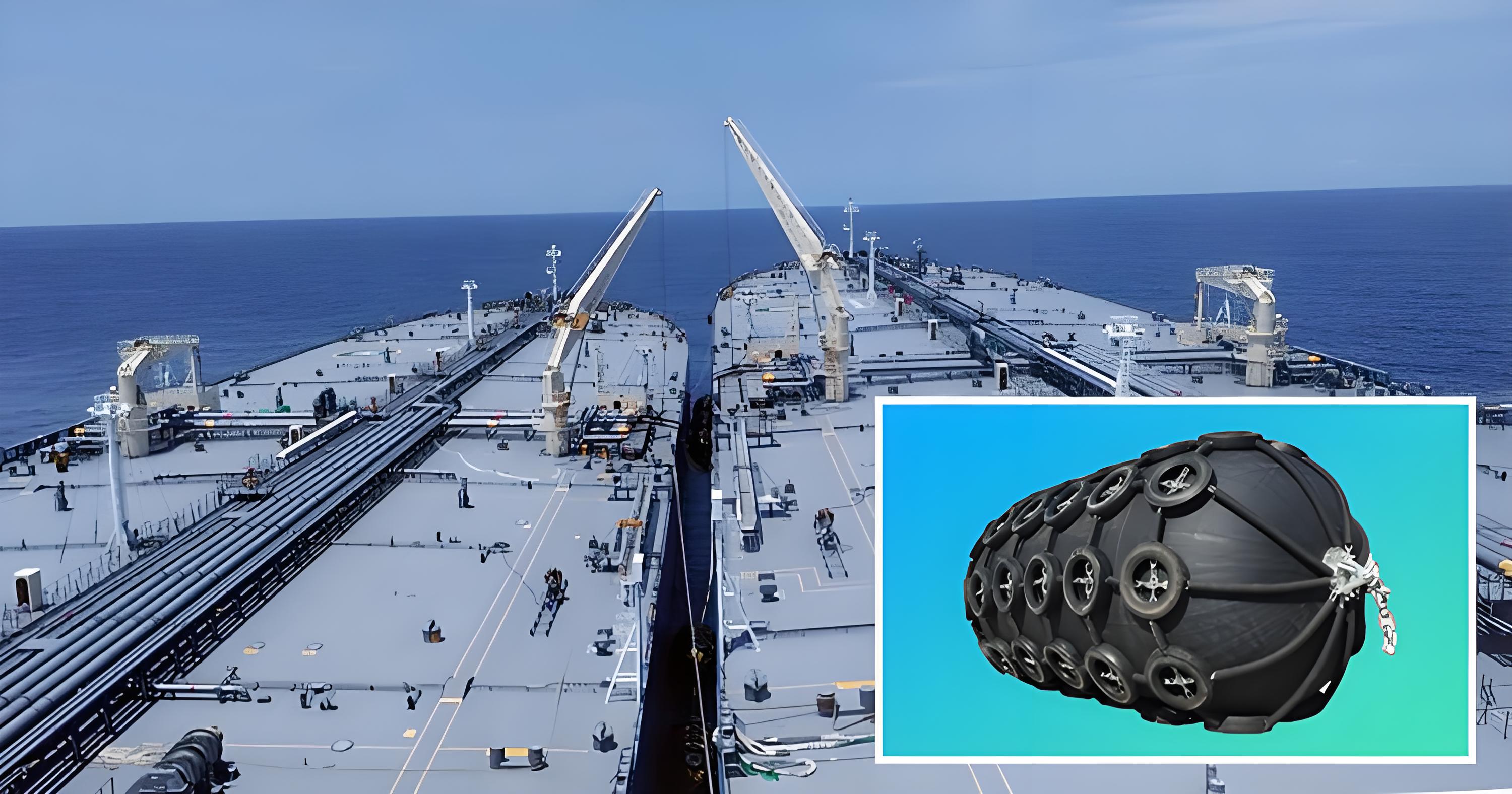

Ship-to-ship (STS) oil, gas, and cargo transfers
-
Ship-to-quay (STQ) operations in commercial ports and naval bases
-
Offshore terminals and floating platforms
-
LNG carriers, VLCCs, FSRUs, and container vessels

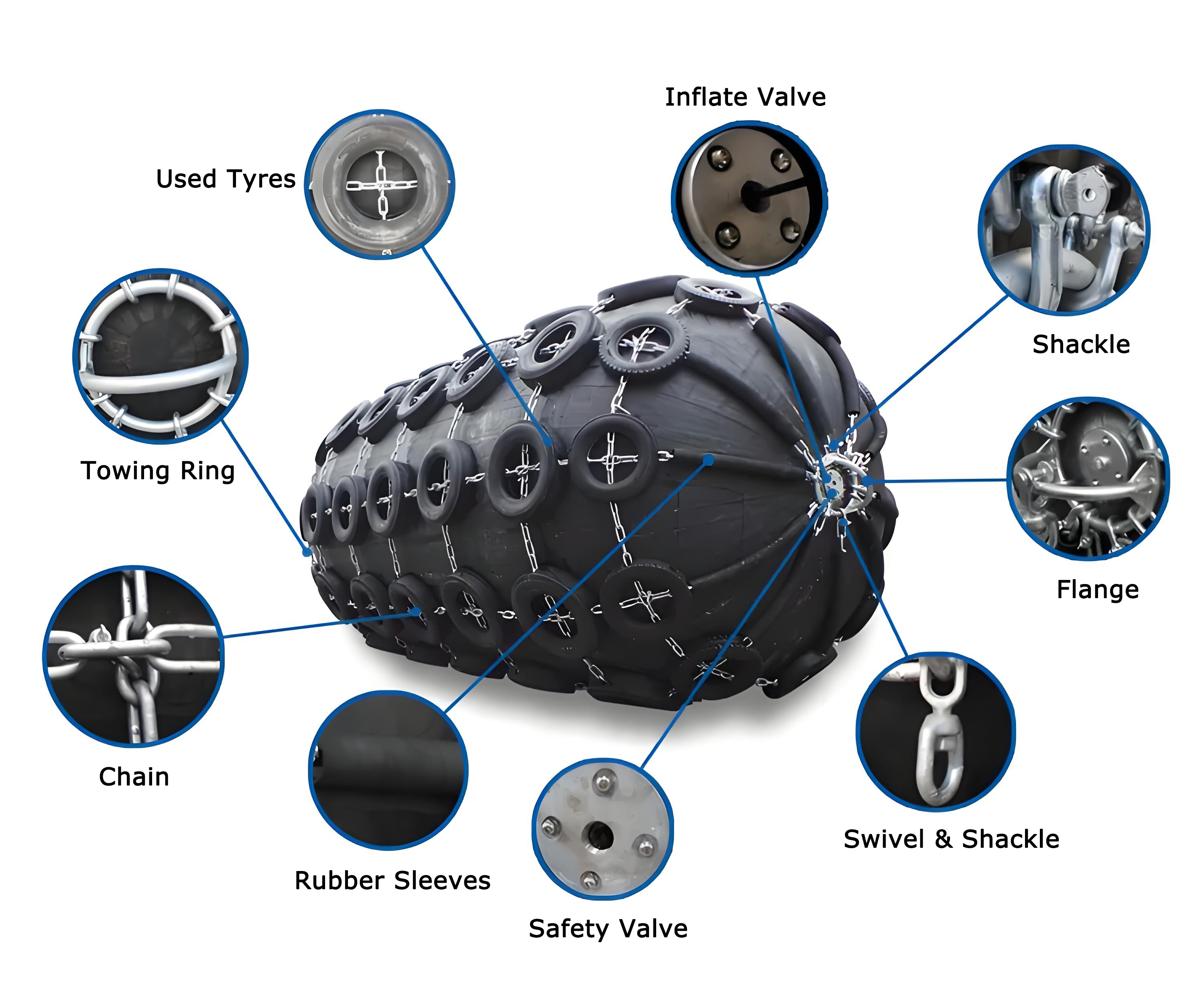

Structure
How to Choose Pneumatic Fender?
| Shipping Tonnage |
Fenders Size (D × L) |
Remarks |
| 50 ~ 100 | 0.5 × 1.0 | Fisher |
| 100 ~ 200 | 0.7 × 1.5 ~ 1.0 × 1.5 | Fisher |
| 200 ~ 300 | 1.0 × 1.8 ~ 1.0 × 2.0 | Fisher,Tugboat |
| 300 ~ 500 | 1.2 × 2.0 ~ 1.5 × 2.5 | Fisher,Tugboat |
| 500 ~ 1,000 | 1.5 × 2.5 ~ 1.5 × 3.0 | Tugboat,Transport vessel |
| 1,000 ~ 3,000 | 2.0 × 3.0 ~ 2.0 × 3.5 | Ocean dragnet vessel,Transport vessel |
| 3,000 ~ 10,000 | 2.0 × 3.5 ~ 2.5 × 5.0 | Transport vessel |
| A Vessel (DWT) |
B Vessel (DWT) |
Assumed string meeting velocity (m/s) |
Effective movement energy(KJ) |
Fender Size (D×L) |
| 300,000 | 200,000 | 0.15 | 1230 | 3.3×6.5 |
| 150,000 | 0.15 | 1030 | 3.3×6.5 | |
| 100,000 | 0.15 | 781 | 3.3×6.5 | |
| 200,000 | 150,000 | 0.15 | 882 | 3.3×6.5 |
| 100,000 | 0.15 | 693 | 3.0×6.0 | |
| 85,000 | 0.15 | 618 | 3.0×5.0 | |
| 100,000 | 85,000 | 0.17 | 617 | 3.0×5.0 |
| 50,000 | 0.18 | 511 | 3.0×5.0 | |
| 40,000 | 0.2 | 544 | 3.0×5.0 | |
| 50,000 | 40,000 | 0.2 | 425 | 2.5×5.5 |
| 30,000 | 0.22 | 437 | 2.5×5.5 | |
| 20,000 | 0.25 | 443 | 2.5×5.5 | |
| 20,000 | 15,000 | 0.27 | 318 | 2.5×4.0 |
| 10,000 | 0.3 | 309 | 2.0×3.5 | |
| 5,000 | 0.35 | 253 | 2.0×3.5 | |
| 10,000 | 5,000 | 0.35 | 212 | 2.0×3.5 |
| 3,000 | 0.4 | 196 | 2.0×3.5 | |
| 1,000 | 0.5 | 127 | 2.0×3.0 |
Fender Size D × L [mm] |
Initial Internal Pressure 0.5 kg/ c㎡ | Initial Internal Pressure 0.8 kg/ c㎡ | ||||
| Guaranteed energy absorption (GEA) [kNm] |
Reaction force at GEA deflection [kN] |
Hull pressure at GEA deflection [kN/㎡] |
Guaranteed energy absorption (GEA) [kNm] |
Reaction force at GEA deflection [kN] |
Hull pressure at GEA deflection [kN/㎡] |
|
| 500 x 1,000 | 6 | 64 | 132 | 8 | 85 | 174 |
| 600 x 1,000 | 8 | 74 | 126 | 11 | 98 | 166 |
| 700 x 1,500 | 17 | 137 | 135 | 24 | 180 | 177 |
| 1,000 x 1,500 | 32 | 182 | 122 | 45 | 239 | 160 |
| 1,000 x 2,000 | 45 | 257 | 132 | 63 | 338 | 174 |
| 1,200 x 2,000 | 63 | 297 | 126 | 88 | 390 | 166 |
| 1,350 x 2,500 | 102 | 427 | 130 | 142 | 561 | 170 |
| 1,500 x 3,000 | 153 | 579 | 132 | 214 | 761 | 174 |
| 1,700 x 3,000 | 191 | 639 | 128 | 267 | 840 | 168 |
| 2,000 x 3,500 | 308 | 875 | 128 | 430 | 1150 | 168 |
| 2,500 x 4,000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
| 2,500 x 5,500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
| 3,000 x 5,000 | 965 | 1815 | 148 | 1341 | 2359 | 198 |
| 3,000 x 6000 | 1184 | 2243 | 152 | 1646 | 2916 | 203 |
| 3,300 x 4,500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
| 3,300 x 6,500 | 1814 | 3015 | 146 | 2532 | 3961 | 191 |
| Note: Other size can be produced follow client's requirements. | ||||||

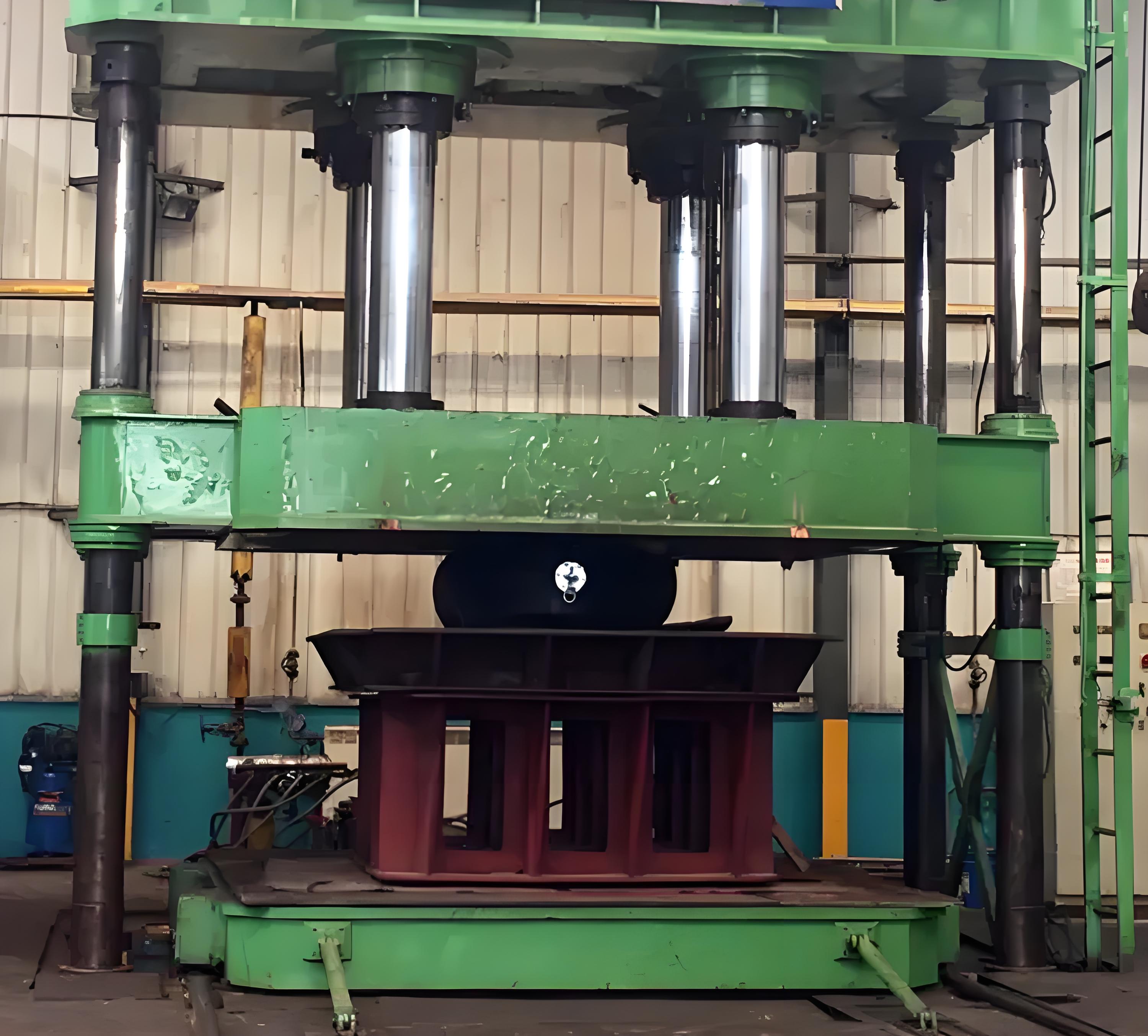

Why Choose Hongruntong Marine?
-
Over 35 years of experience in marine fender manufacturing
-
Strict quality control and compliance with international standards (ISO, BV, CCS, LR)
-
Global export experience with clients in over 80 countries
-
Technical support and after-sales service available worldwide
-
Competitive factory pricing with fast production and delivery times

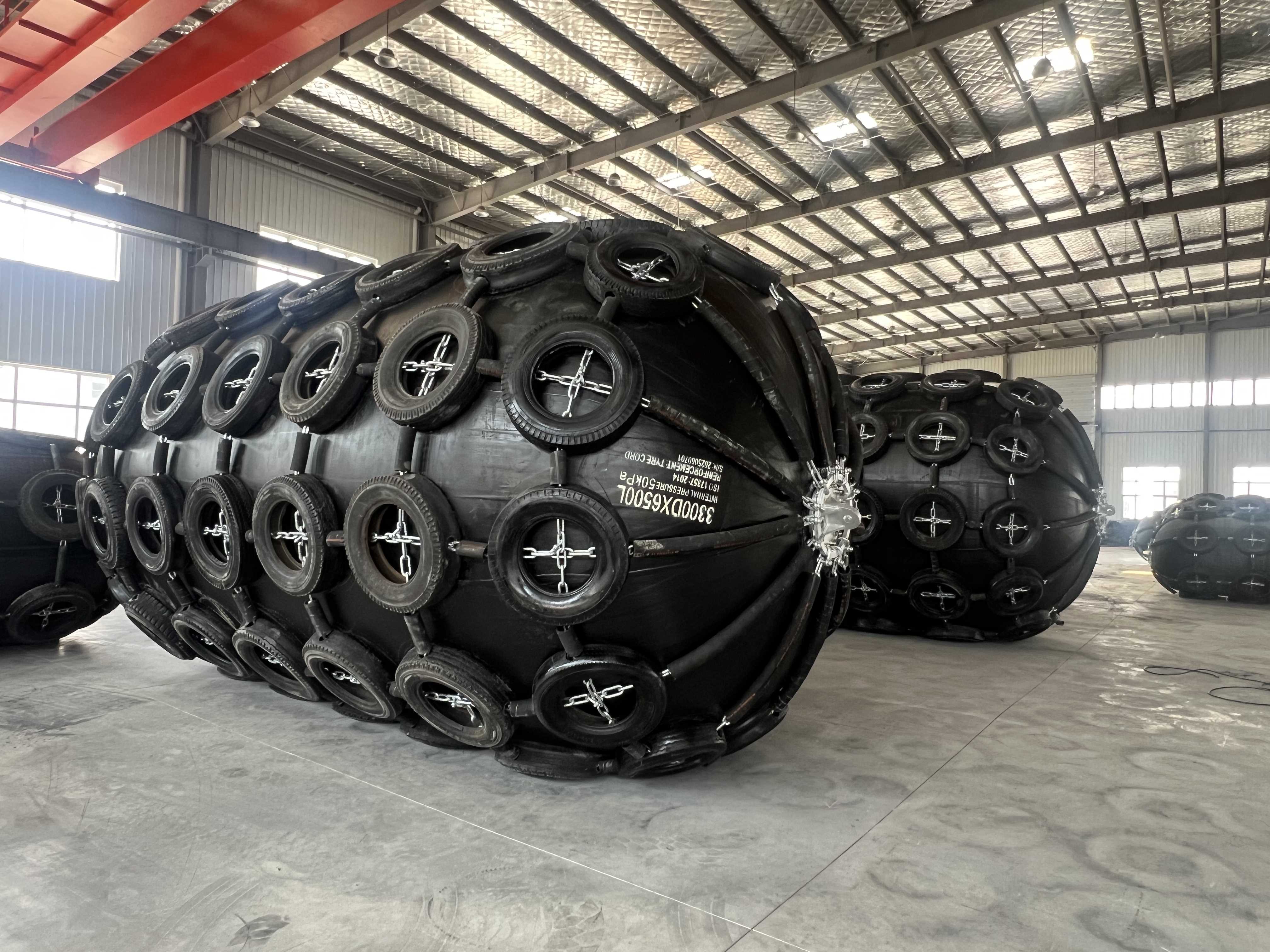

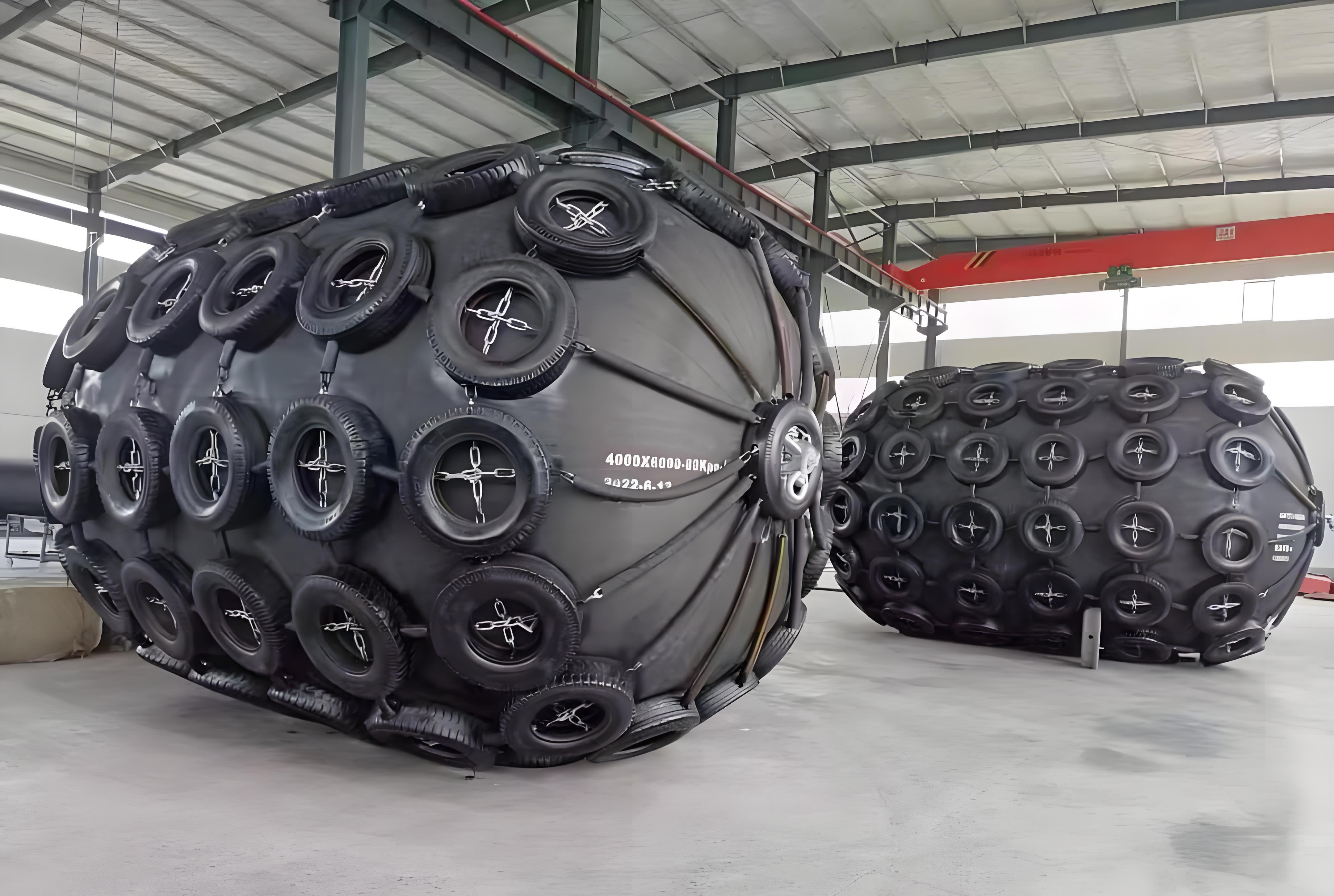

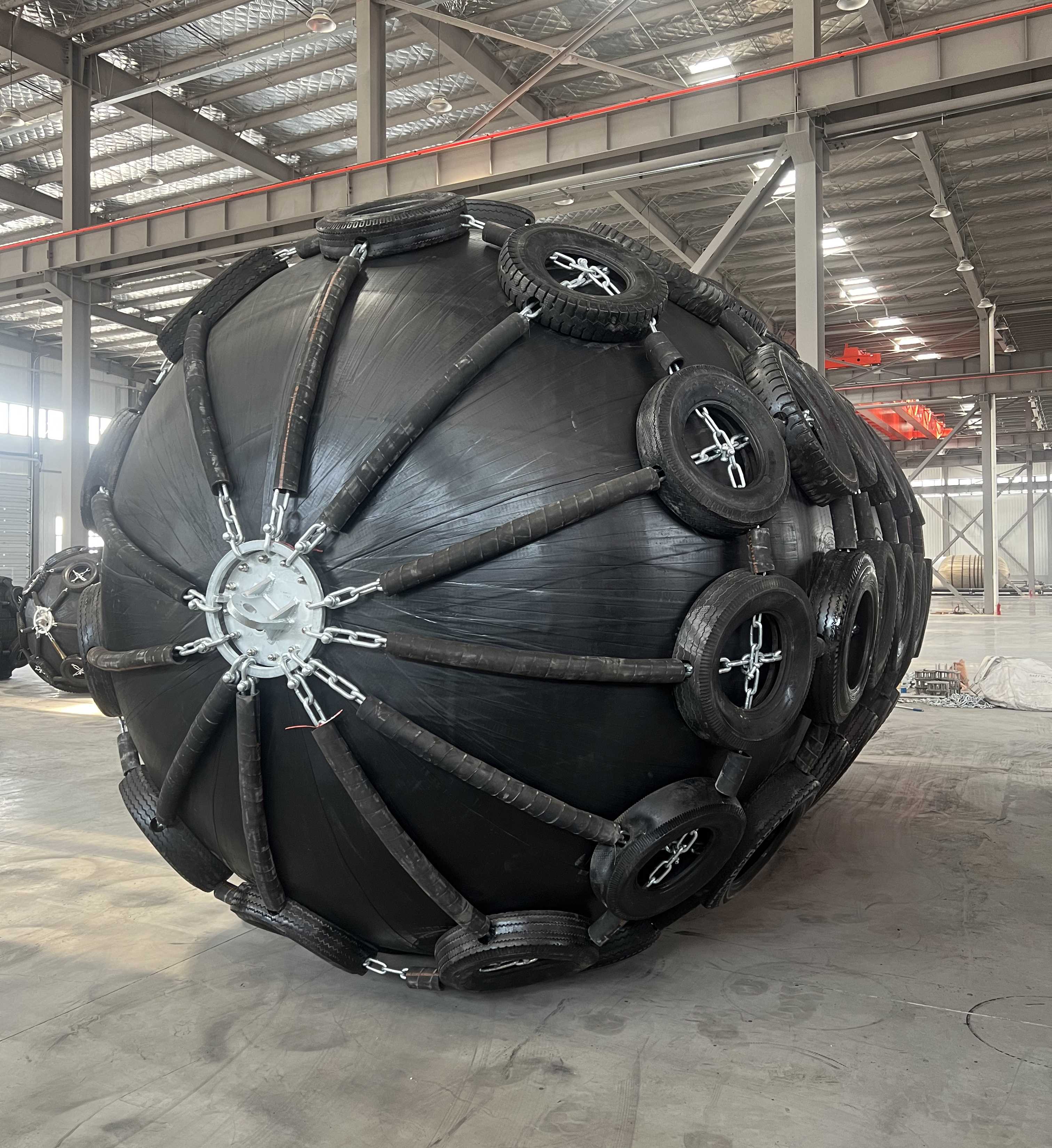

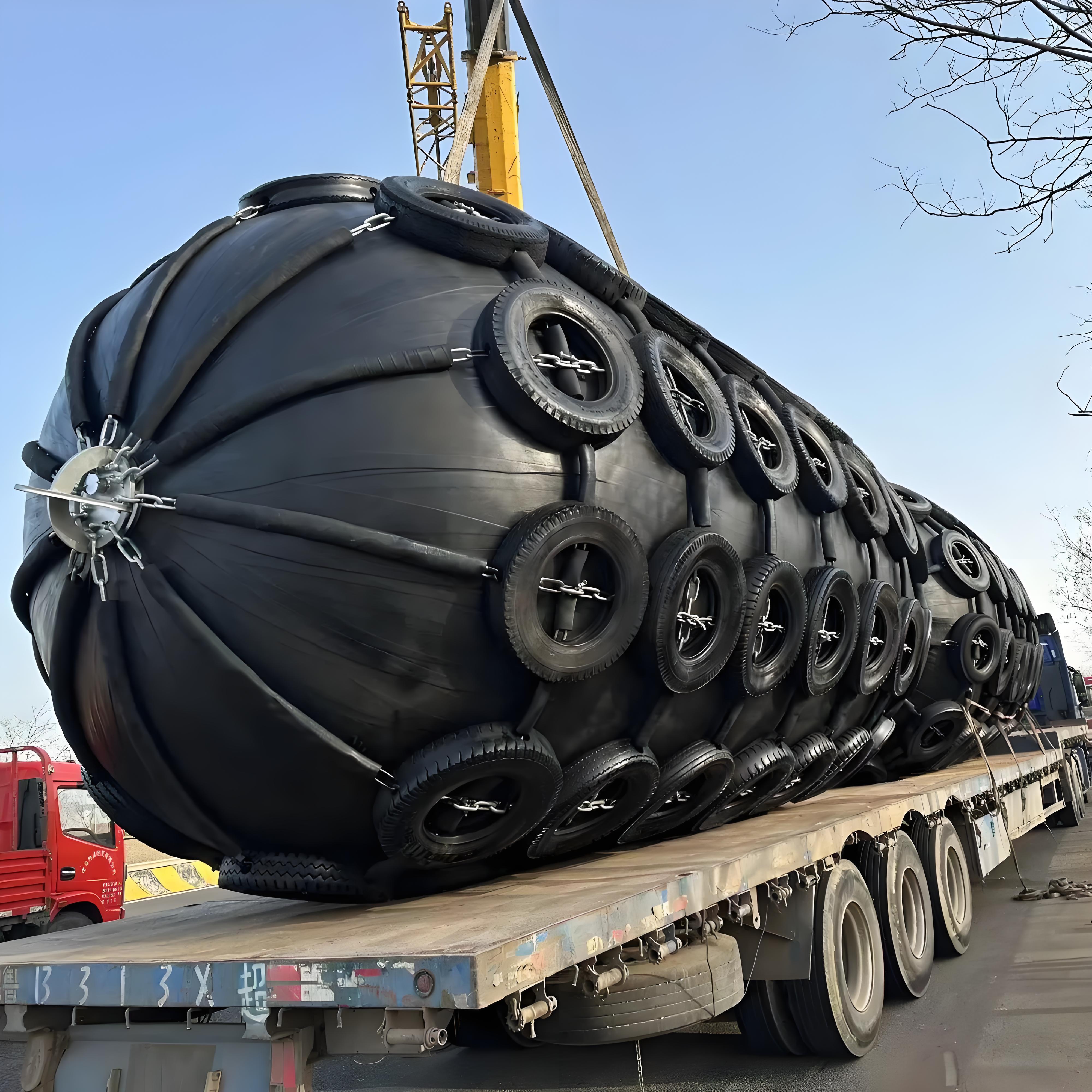

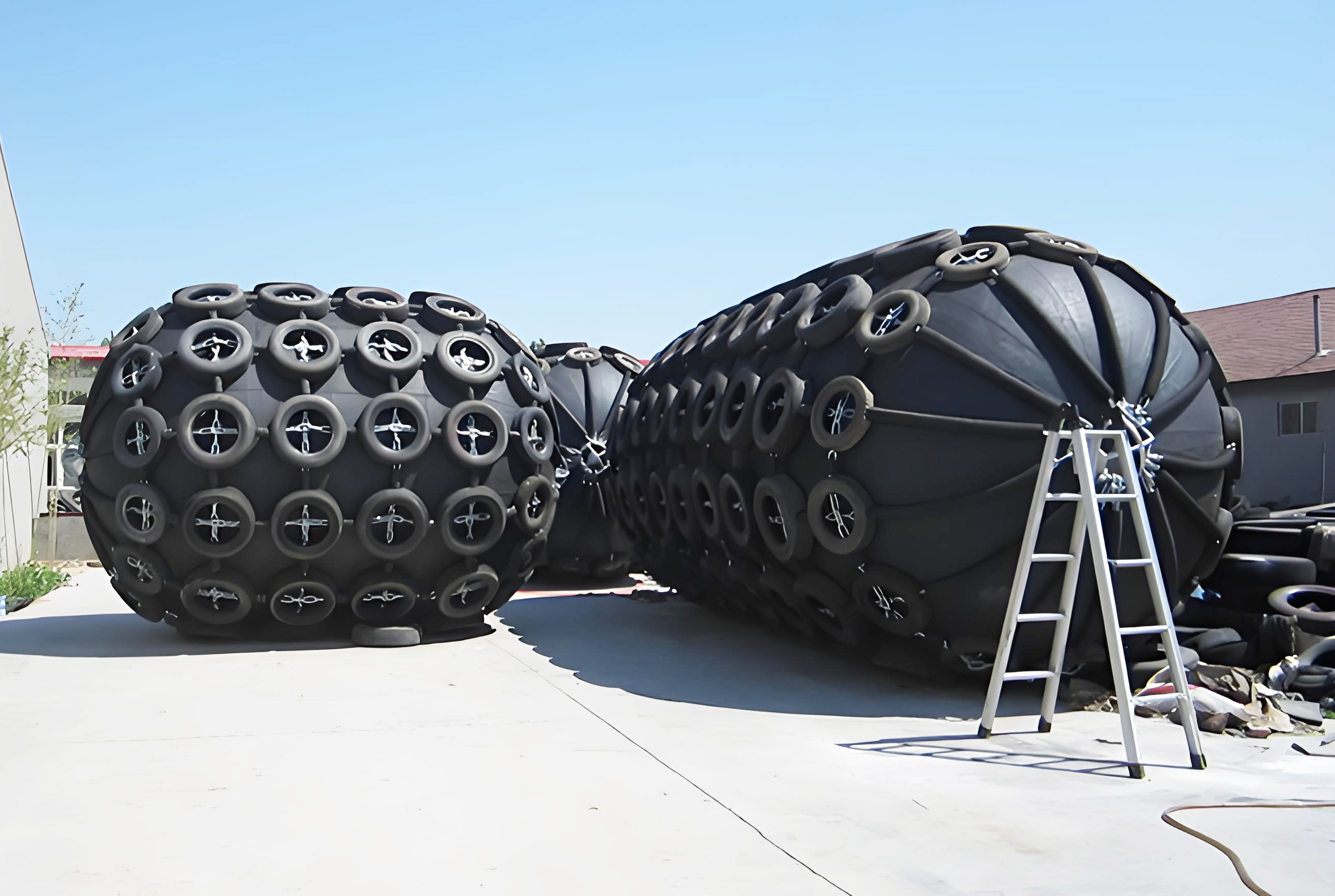

Detailed Photos
