Hydro-Pneumatic Fender
Submarine Fender

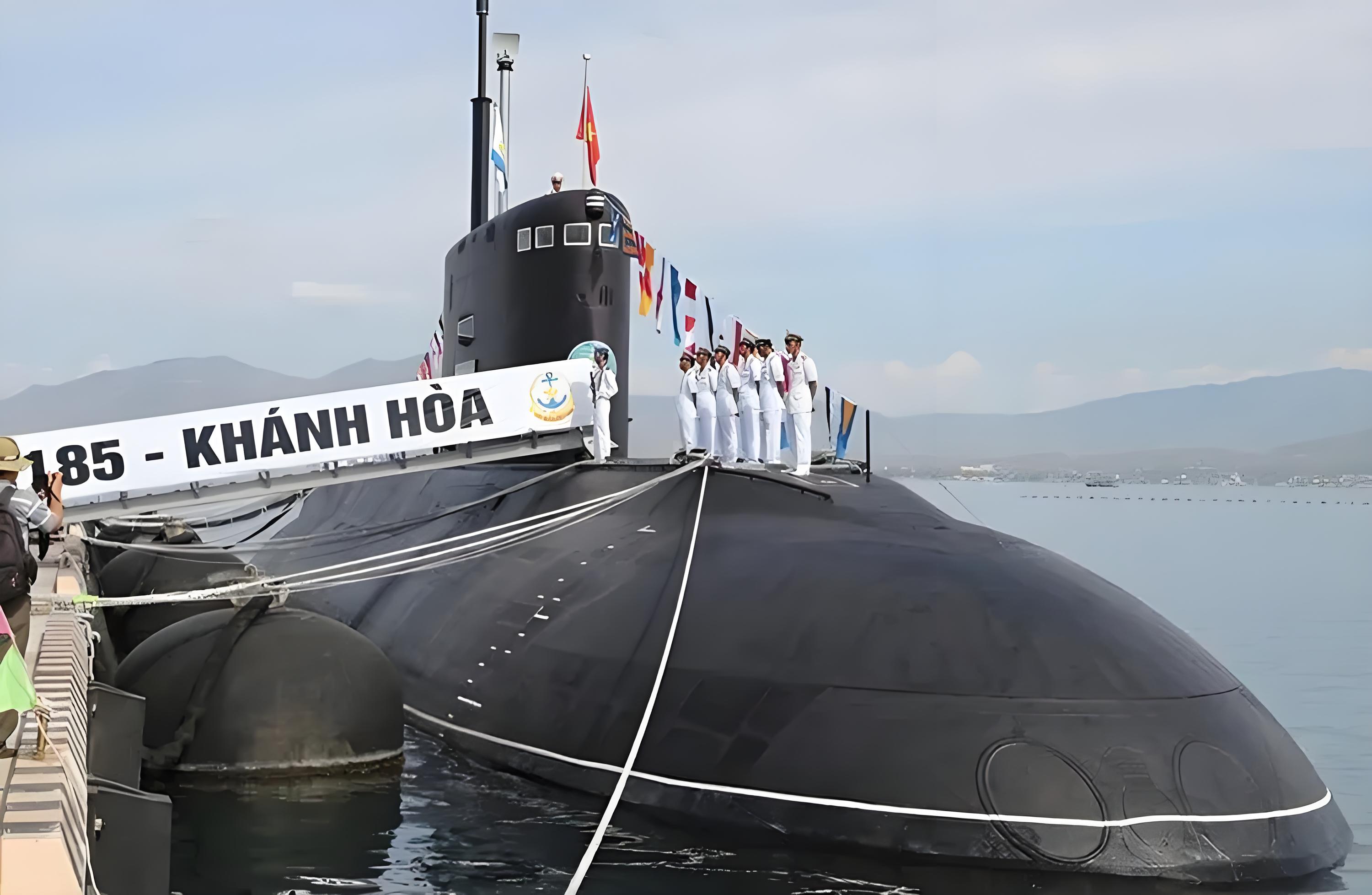

These fenders are best employed for berthing Submarines because they provide a better contact area vertically.

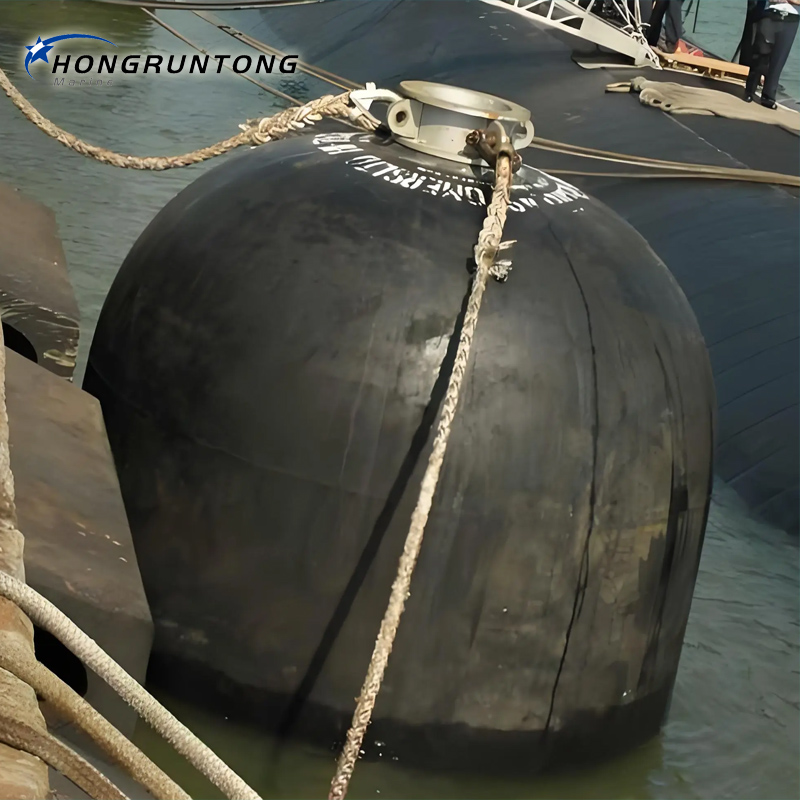

Hydro-Pneumatic Fender is best employed for berthing submarines. One of the most important criteria for using Hydro-Pneumatic fender is High Energy absorption Capacity and low reaction force, which is vital factor for submarine applications.
The Hydro-pneumatic fender provides a better contact area vertically, which cannot be achieved through any other fender system and hence makes it, the most ideal for submarine use.
Hydro-Pneumatic fenders are a type of marine fender that uses both hydraulic and pneumatic principles to absorb the impact of a vessel against a berth or other structure. They typically consist of an air-filled chamber surrounded by a tough outer layer made of rubber, elastomers, or other materials.
Hydro-Pneumatic fenders are often used for large vessel applications, such as oil tankers, container ships, and cruise liners. They offer a number of advantages over other types of fenders, including high energy absorption capacity, low reaction force, and excellent durability and resilience.
hydro pneumatic fenders, submarine fenders, submarine features, submarine palokka, yokohama submarine fender
Fender Characteristics
► Fully compliant with US navy specifications
► High-quality, durable rubber materials
► Specific cylindrical design and shape
► Various sizes can be customized according to submarines
► Good condition and functioning, low maintenance cost
► High performance, without causing any damage to the submarine
► Sufficient stability during the berthing process
Fender Structure
Dimensions
| Fender Size [mm] |
Water [%] |
Diameter [%] |
Initial Pressure 50kPa (0.5 kg/cm²) |
||
| Diameter | Length | Energy [kNm] |
Reaction [kN] |
||
| 1700 | 7200 | 65 | 45 | 134 | 622 |
| 0 | 60 | 583 | 1569 | ||
| 2000 | 6000 | 65 | 45 | 155 | 599 |
| 0 | 60 | 647 | 1766 | ||
| 2500 | 5500 | 65 | 45 | 223 | 687 |
| 0 | 60 | 928 | 2037 | ||
| 3300 | 6500 | 60 | 45 | 616 | 1247 |
| 0 | 60 | 1913 | 3169 | ||
| 3300 | 10600 | 55 | 45 | 589 | 1275 |
| 0 | 60 | 3120 | 5170 | ||
|
Standard tolerance of ± 8% hydro pneumatic fenders, submarine fenders, submarine features, submarine palokka, yokohama submarine fender |
|||||

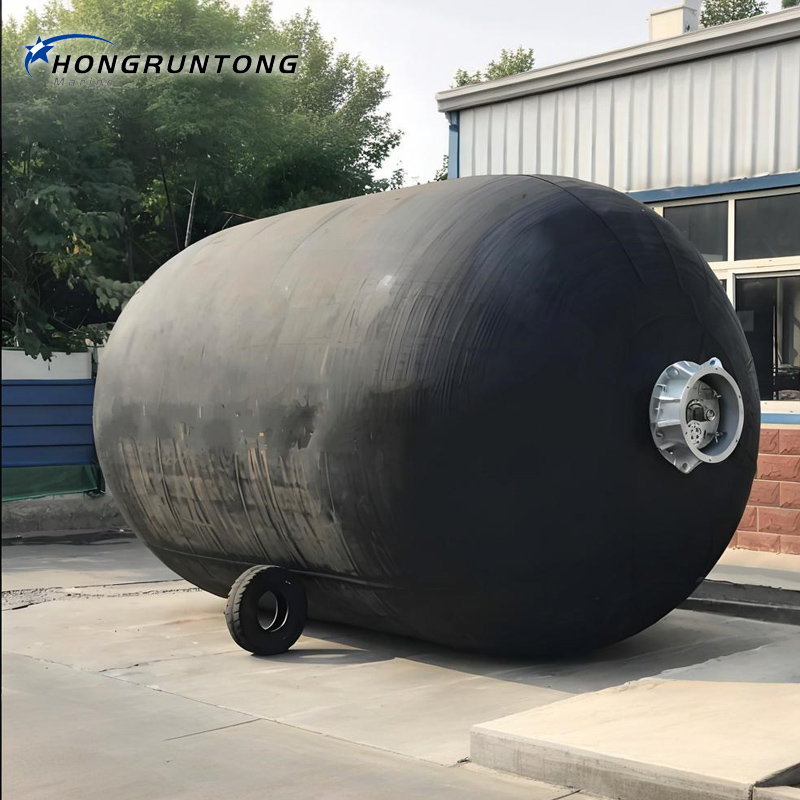

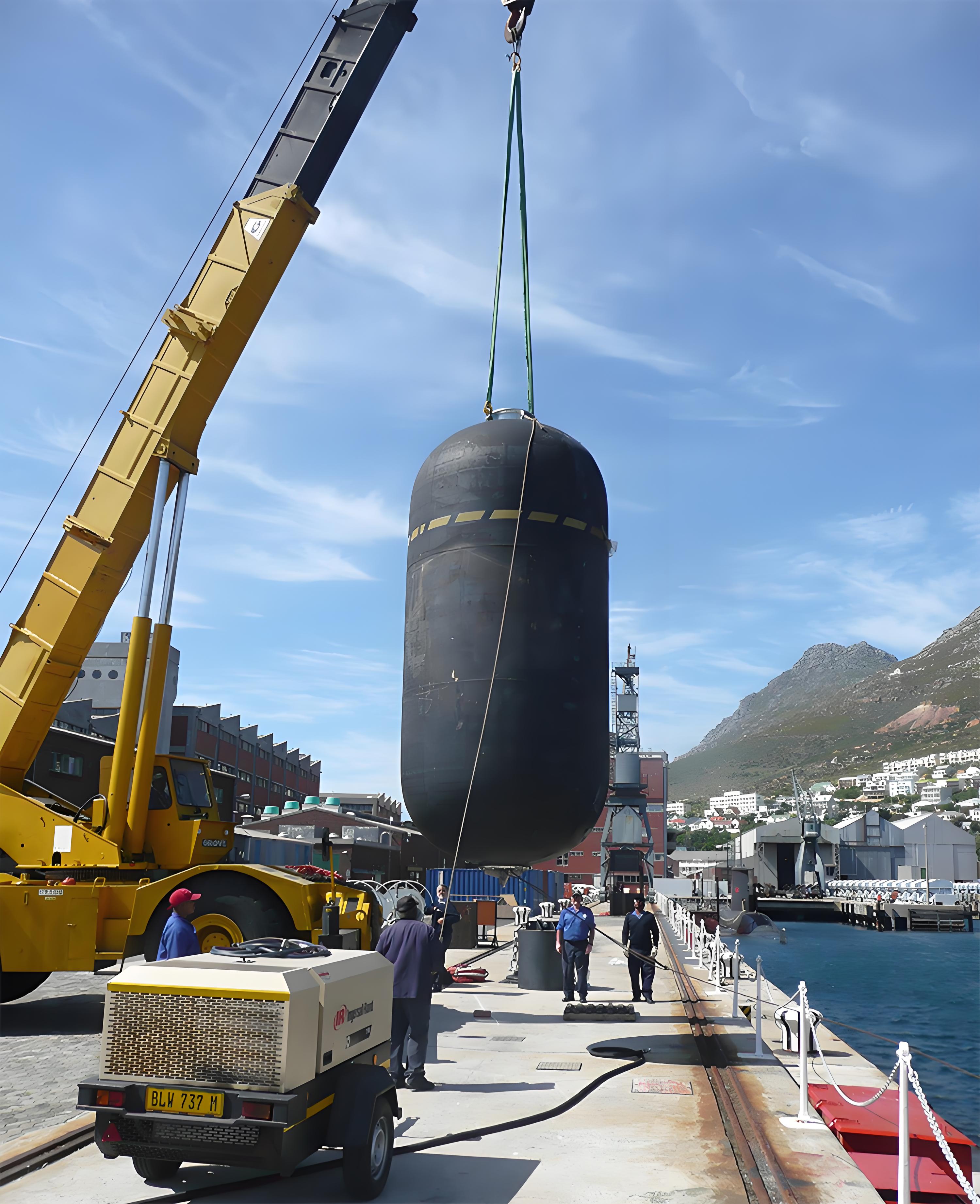

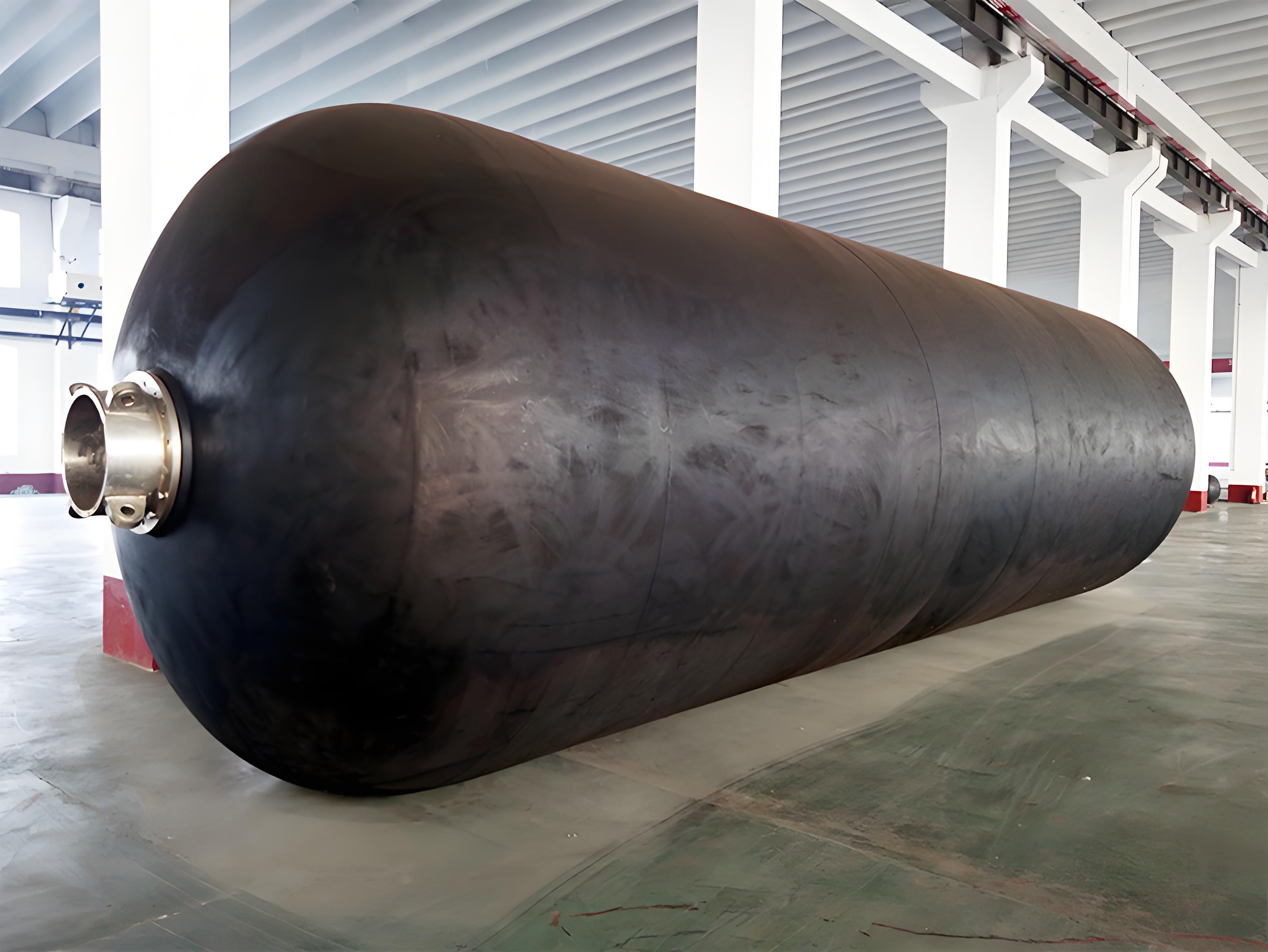

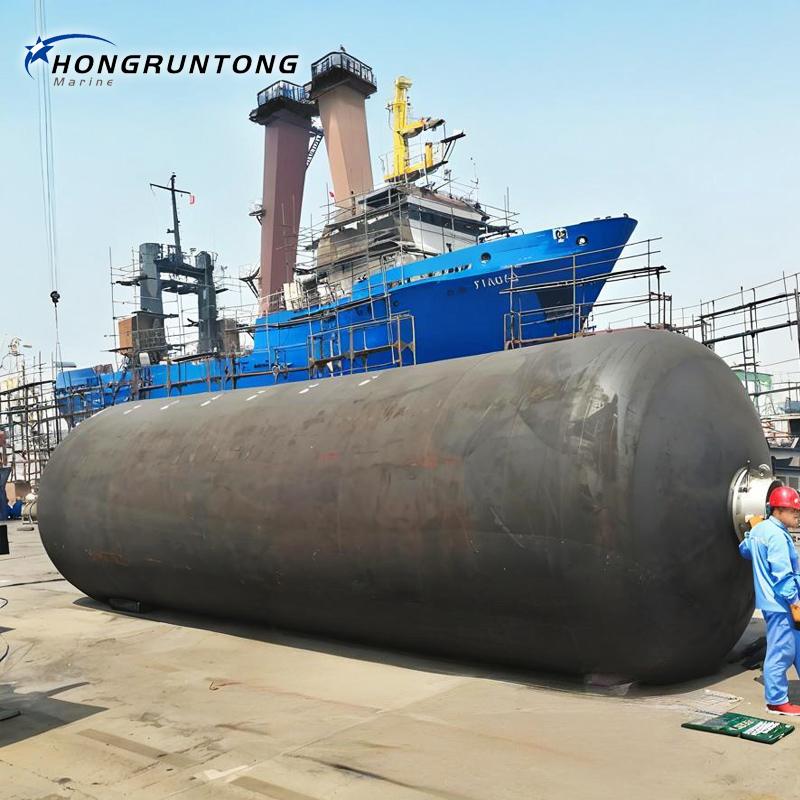

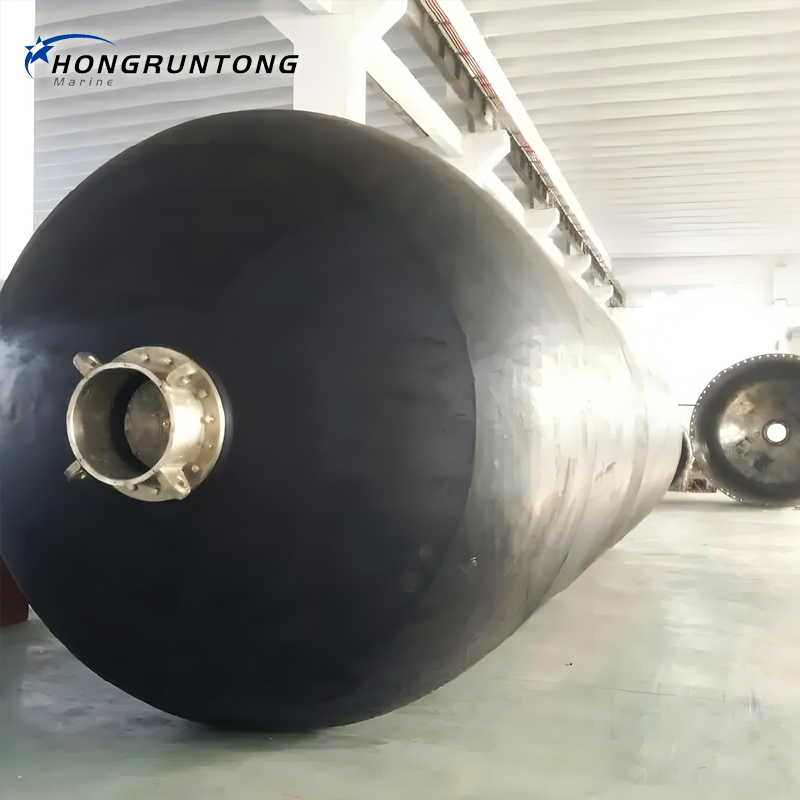

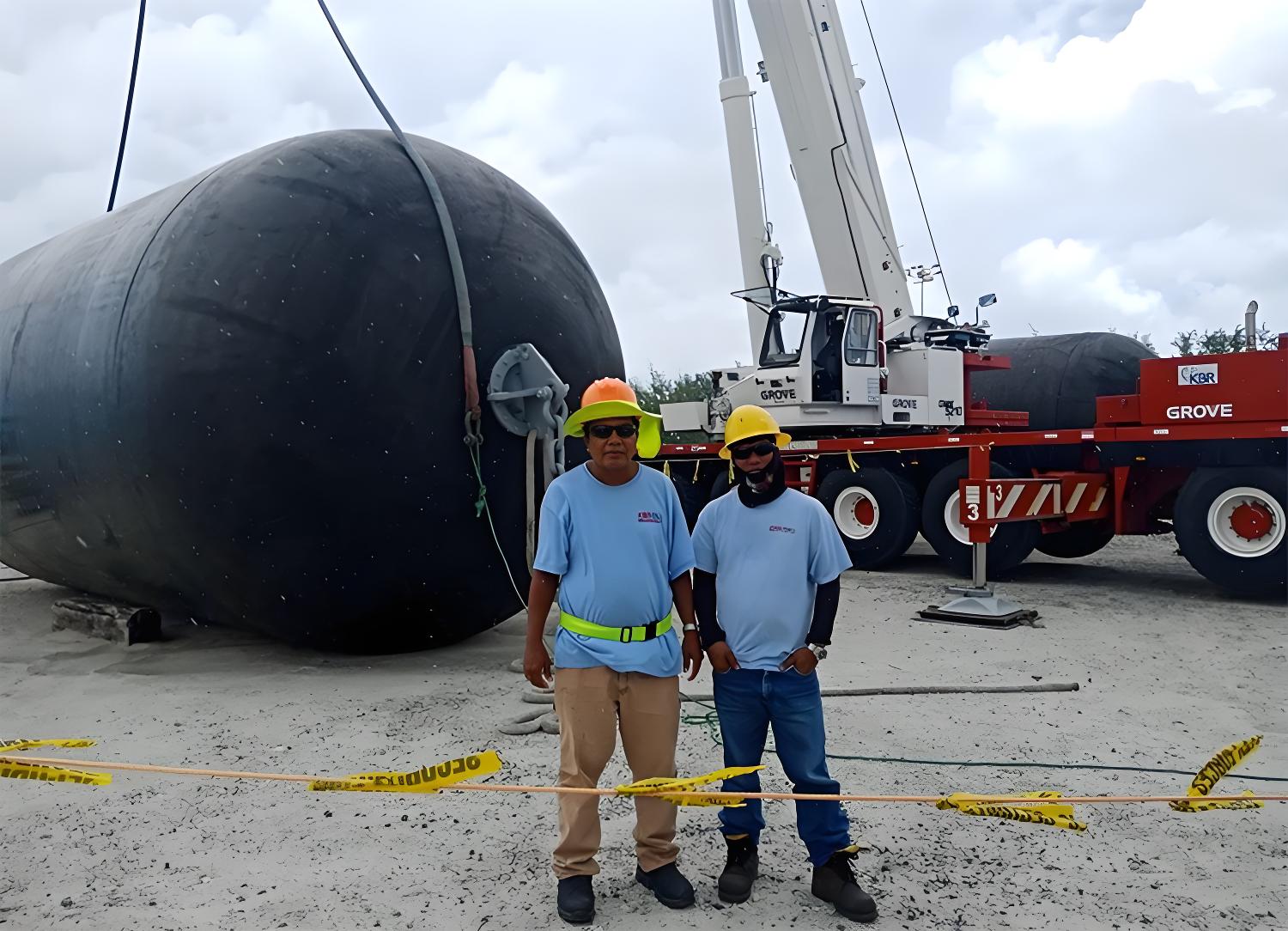

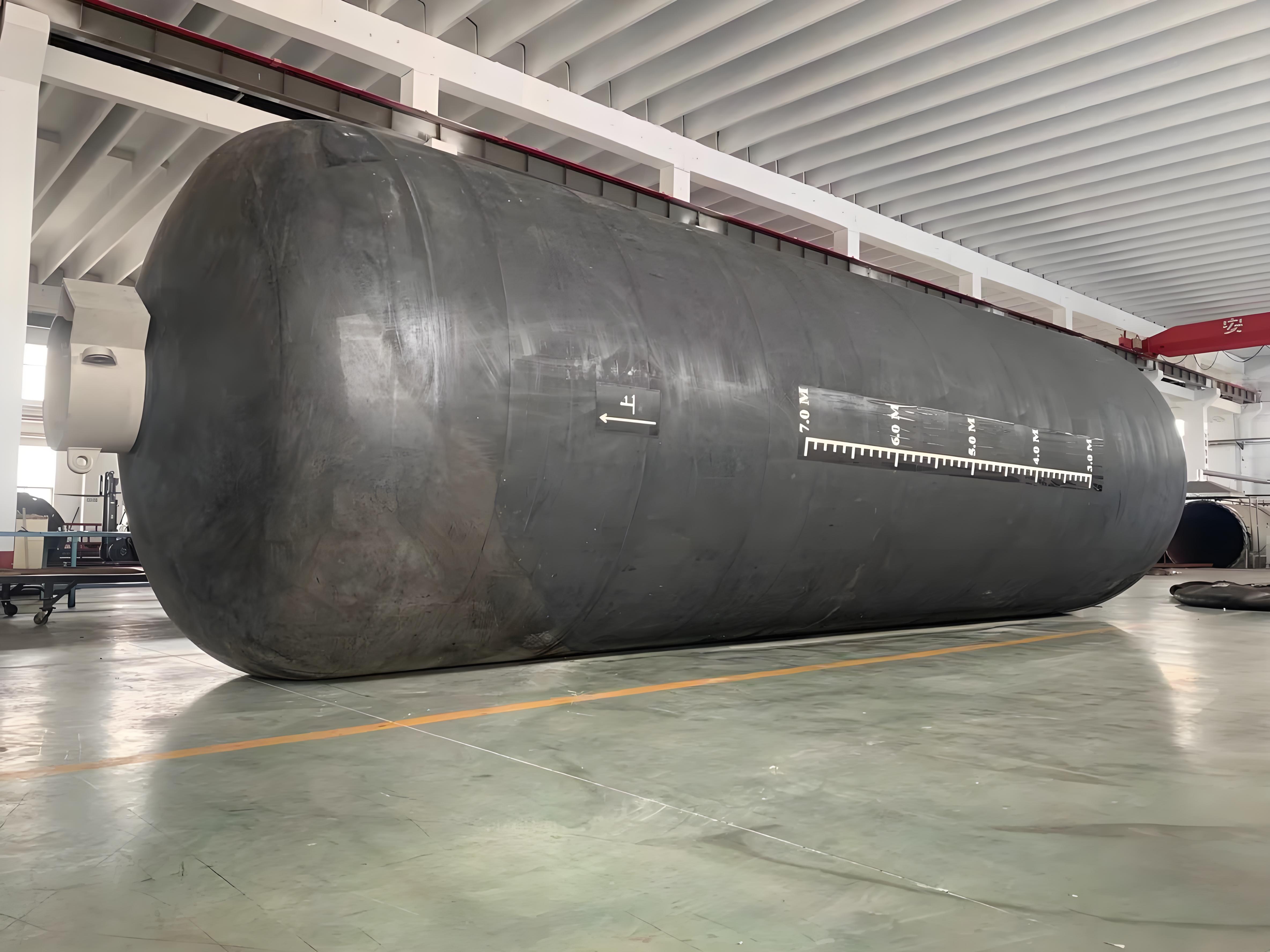

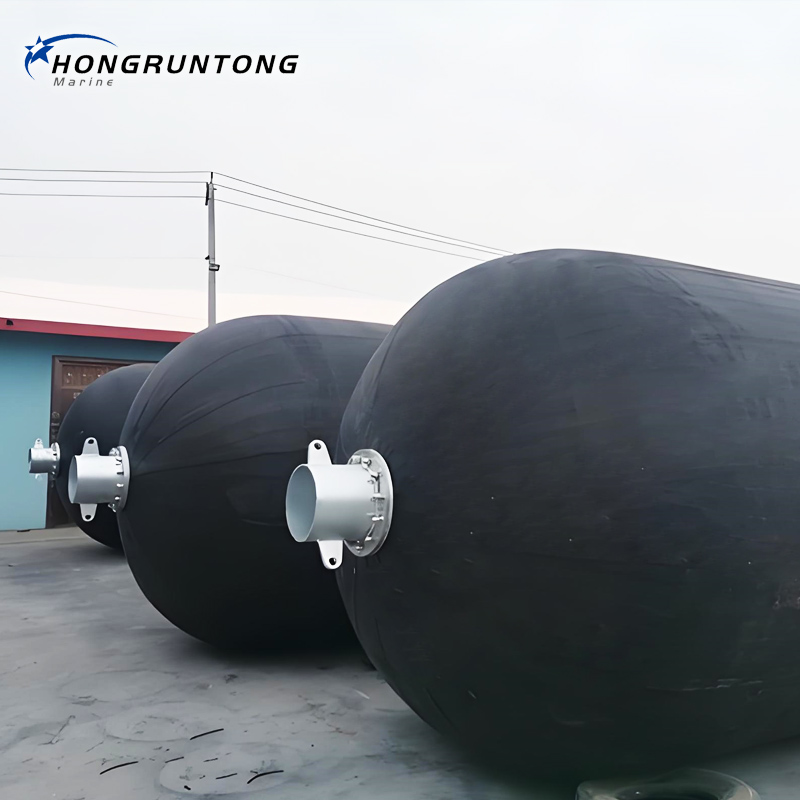

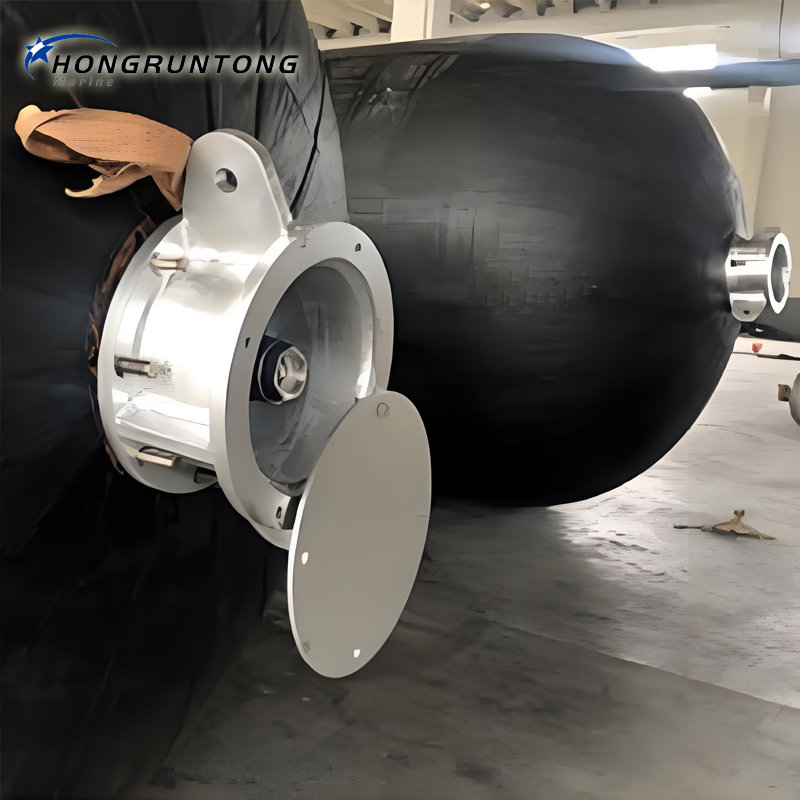

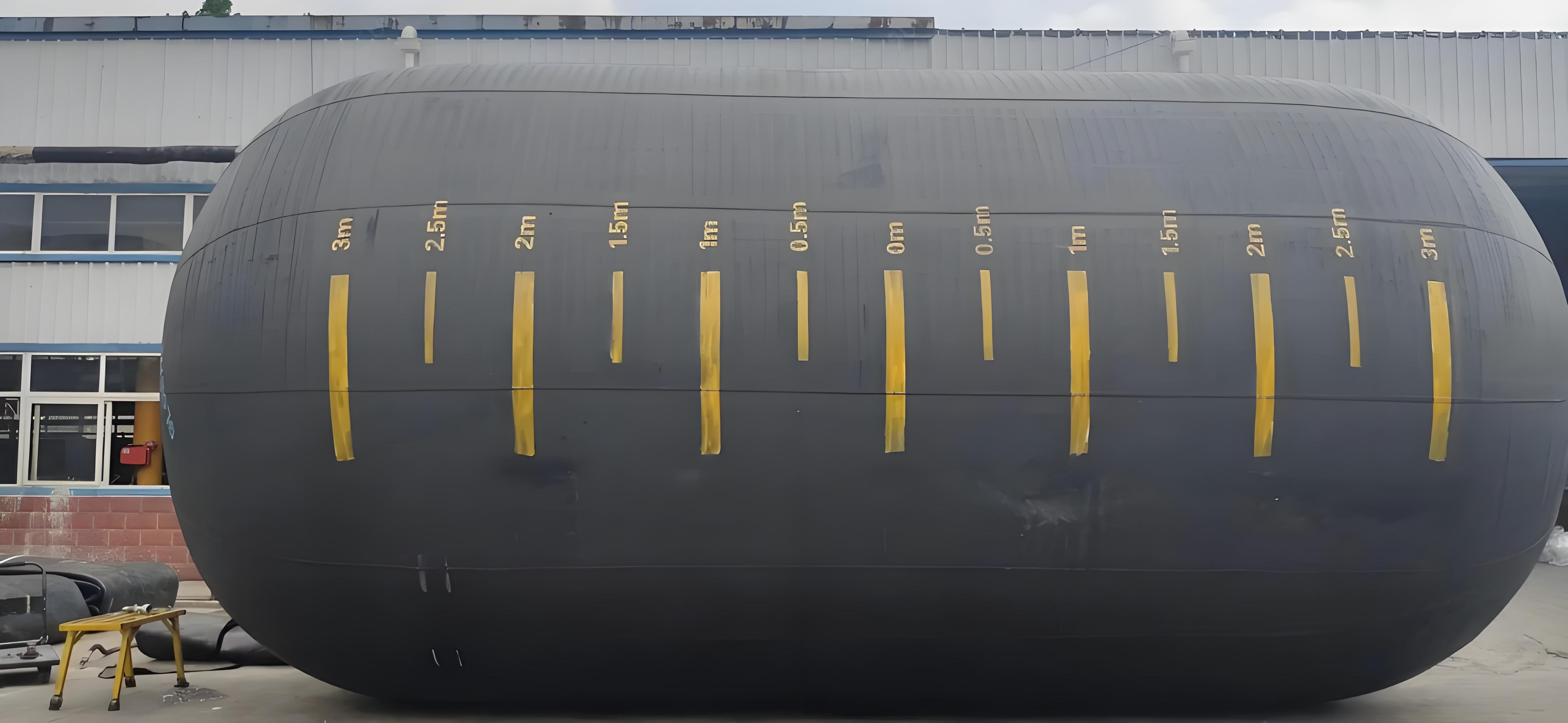

Detailed Images
