Tugboat Cylindrical Fenders
Tugboat cylindrical fenders are used to protect the hull of a tugboat from damage during the process of pushing or pulling a larger vessel. The fenders absorb the impact of the larger vessel, preventing damage to both the tugboat and the vessel being assisted.
Tugboat Cylindrical Fenders are a type of fender commonly used to protect tugboats and other vessels from damage when maneuvering or docking. They are called cylindrical fenders because they are shaped like a cylinder, with a hollow center and a large diameter relative to their length.

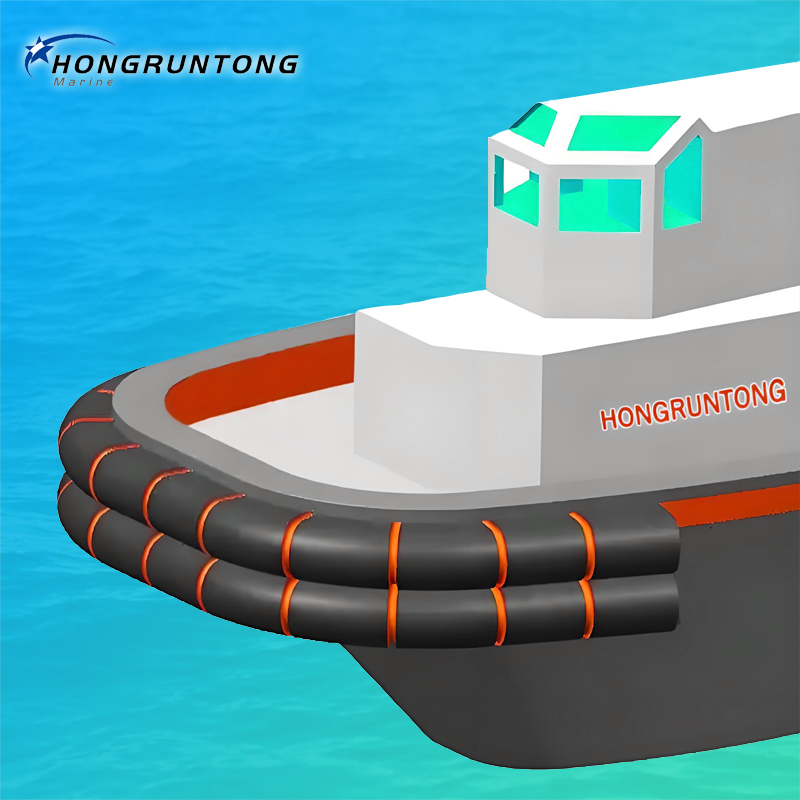

Tugboat Cylindrical Fenders come in many different sizes and materials, including rubber, foam, and plastic. They are typically mounted horizontally along the sides of a tugboat or other vessel, and are designed to absorb the impact of any collisions or contact with other boats or structures.
The effectiveness of a cylindrical fender depends on a variety of factors, including its size, material, and the force of the impact it needs to absorb. Tugboat operators typically choose fenders that are tailored to the specific needs of their vessel and the types of conditions they work in.
tugboat cylindrical fenders, tugboat fenders, tugboat bumpers, types of tug boat fenders, Tug Boat Fenders
Characteristics
Tugboat cylindrical fenders are designed to withstand heavy-duty impacts and provide a high level of protection to the hull of ships and boats. The following are some of the characteristics of tugboat cylindrical fenders:
1. Material
They are made of high-quality, abrasion-resistant rubber or foam materials.
2. Shape
They have a cylindrical shape, and they can be customized with different lengths and diameters.
3. Durability
They are highly durable and can withstand extreme weather conditions and constant exposure to seawater and UV rays.
4. Energy absorption
They have excellent energy absorption capacity, which enables them to absorb the impact of a colliding vessel and prevent damage to the hull.
5. Installation
They can be easily installed on the hull of tugboats and other vessels with the help of mounting brackets and bolts.
6. Maintenance
They require minimal maintenance and can be easily repaired or replaced if damaged.
7. Versatility
They can be used for various applications, including mooring, docking, and ship-to-ship transfer operations.
Overall, tugboat cylindrical fenders are an essential component of tugboat equipment and provide a high level of protection to the hull of ships and boats.
Applilcations

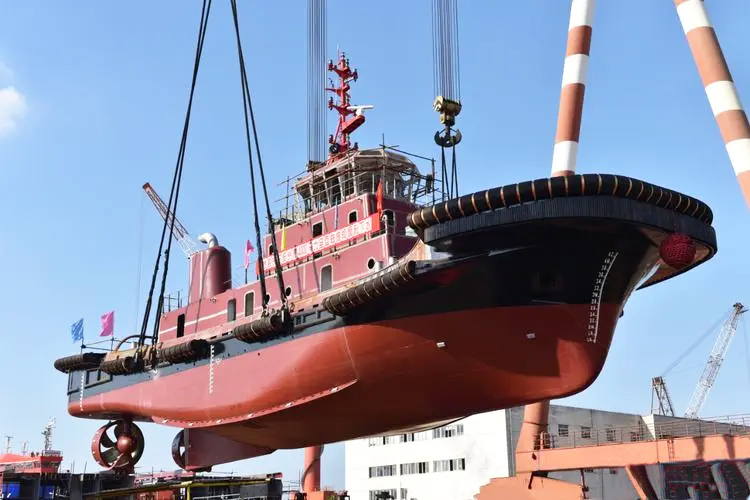

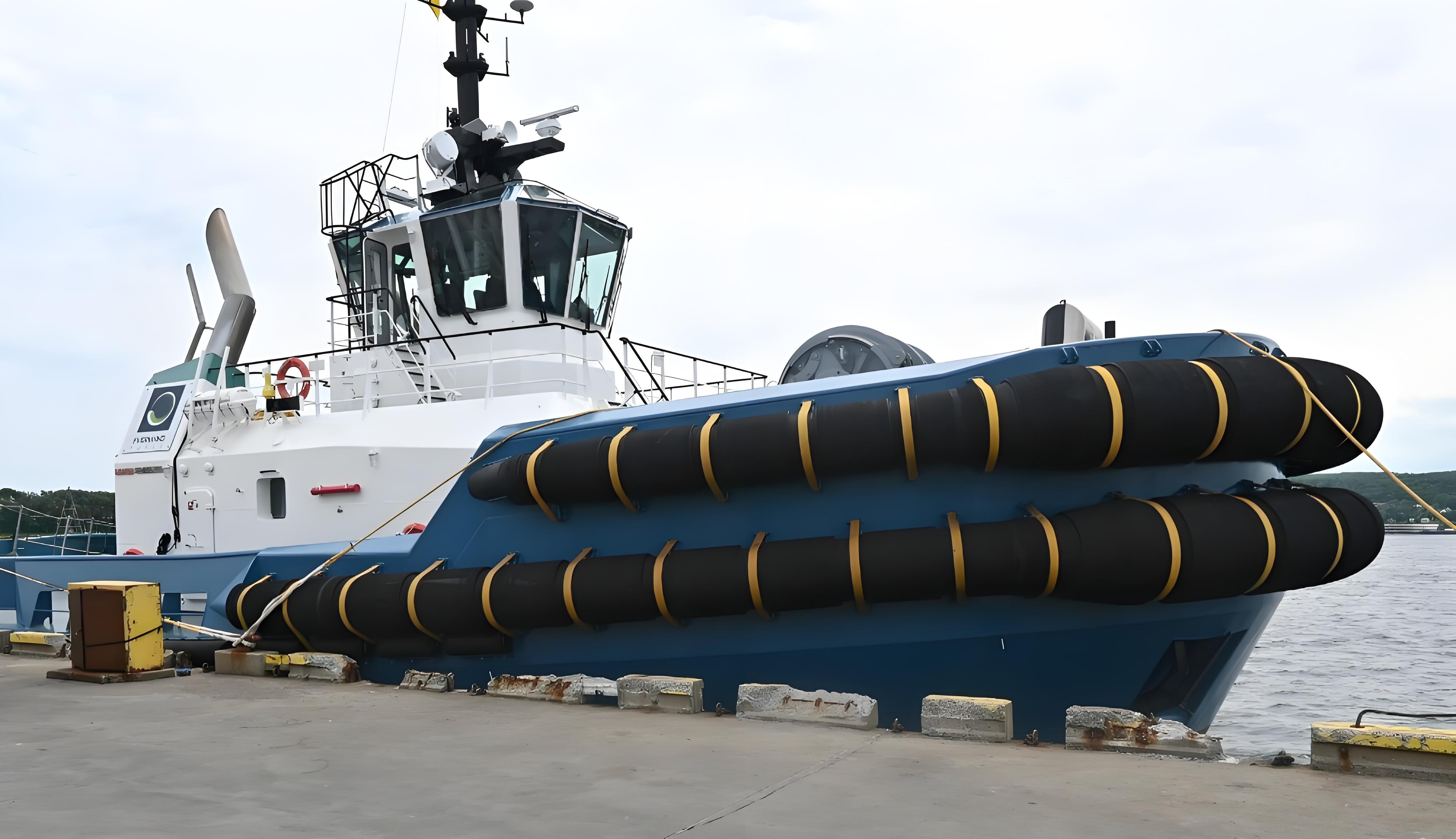

● Various tugboats
● Pontoon protection
● Special corner protection
● Ocean-going tug
● Bridge pile protection
tugboat cylindrical fenders, tugboat fenders, tugboat bumpers, types of tug boat fenders, Tug Boat Fenders

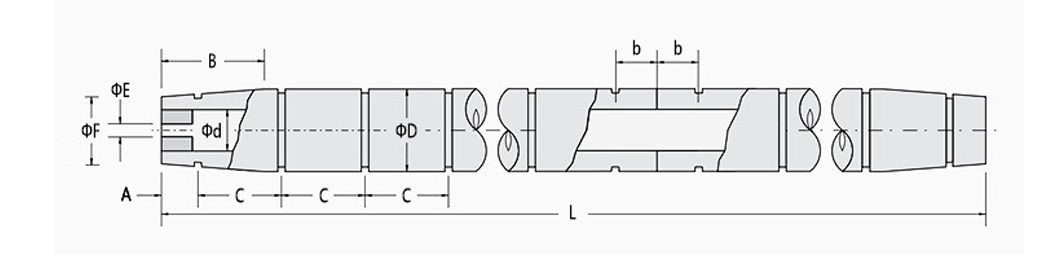

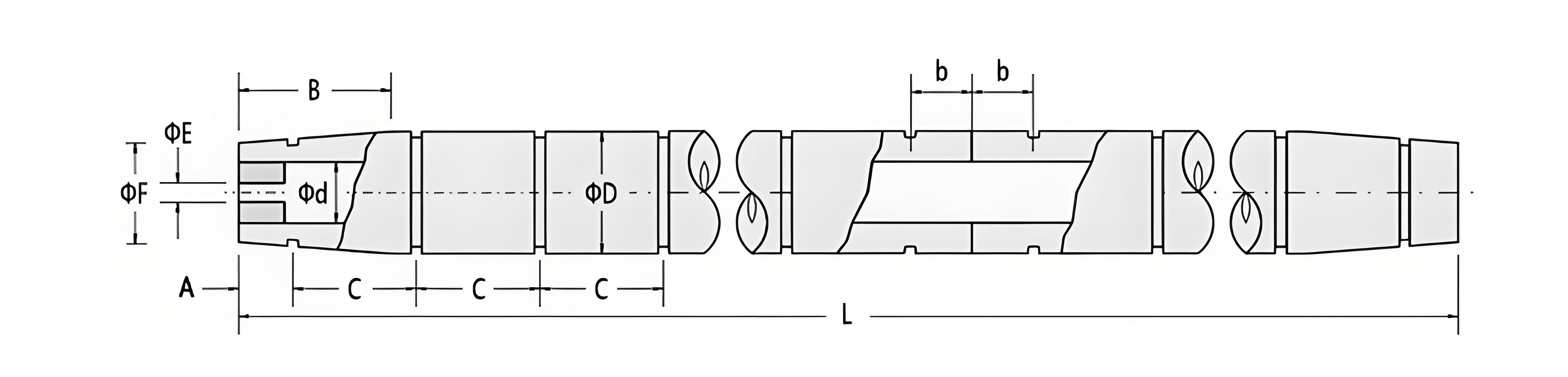

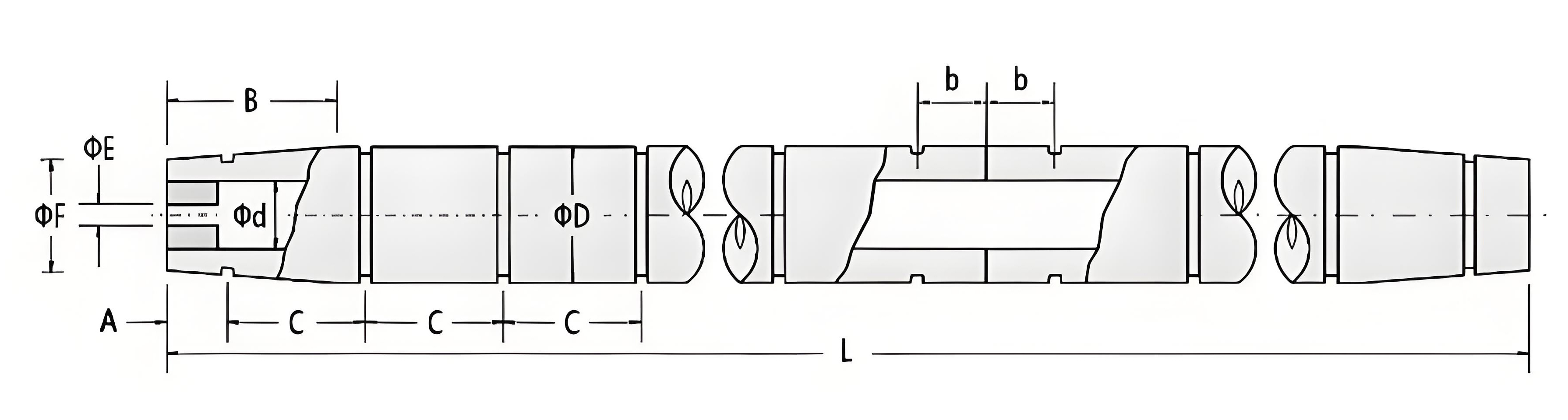

Drawings
Dimensions
| b [mm] |
Ød [mm] |
A [mm] |
B [mm] |
Cmax [mm] |
ØD [mm] |
ØE [mm] |
ØF [mm] |
| 125 | 125 | 200 | 500 | 570 | 250 | 75 | 190 |
| 150 | 150 | 225 | 700 | 600 | 300 | 75 | 225 |
| 190 | 190 | 280 | 800 | 650 | 380 | 100 | 280 |
| 200 | 200 | 300 | 800 | 670 | 400 | 100 | 300 |
| 225 | 225 | 300 | 850 | 700 | 450 | 100 | 350 |
| 250 | 250 | 300 | 900 | 730 | 500 | 100 | 375 |
| 300 | 300 | 350 | 900 | 800 | 600 | 125 | 450 |
| 400 | 400 | 350 | 1000 | 930 | 800 | 125 | 600 |
| 450 | 450 | 350 | 1100 | 1000 | 900 | 150 | 675 |
| 500 | 500 | 350 | 1200 | 1060 | 1000 | 150 | 750 |
tugboat cylindrical fenders, tugboat fenders, tugboat bumpers, types of tug boat fenders, Tug Boat Fenders

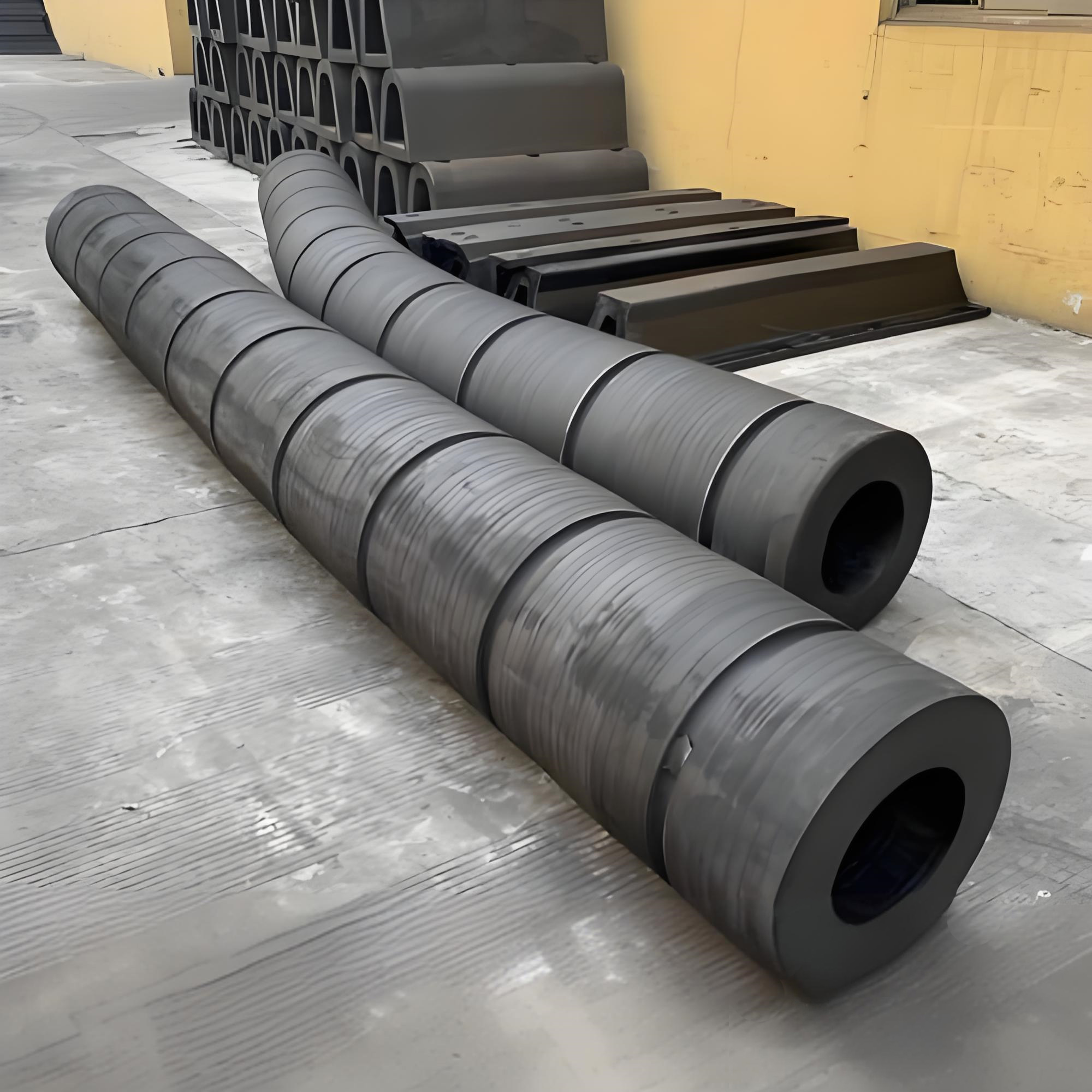

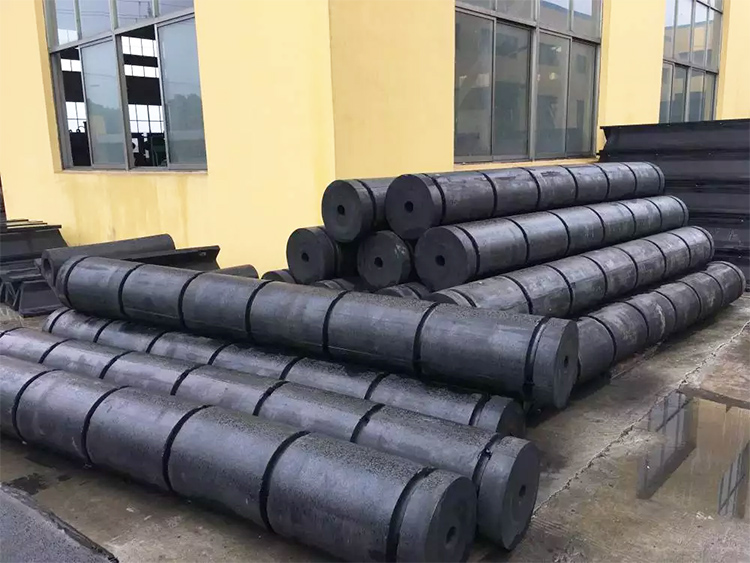

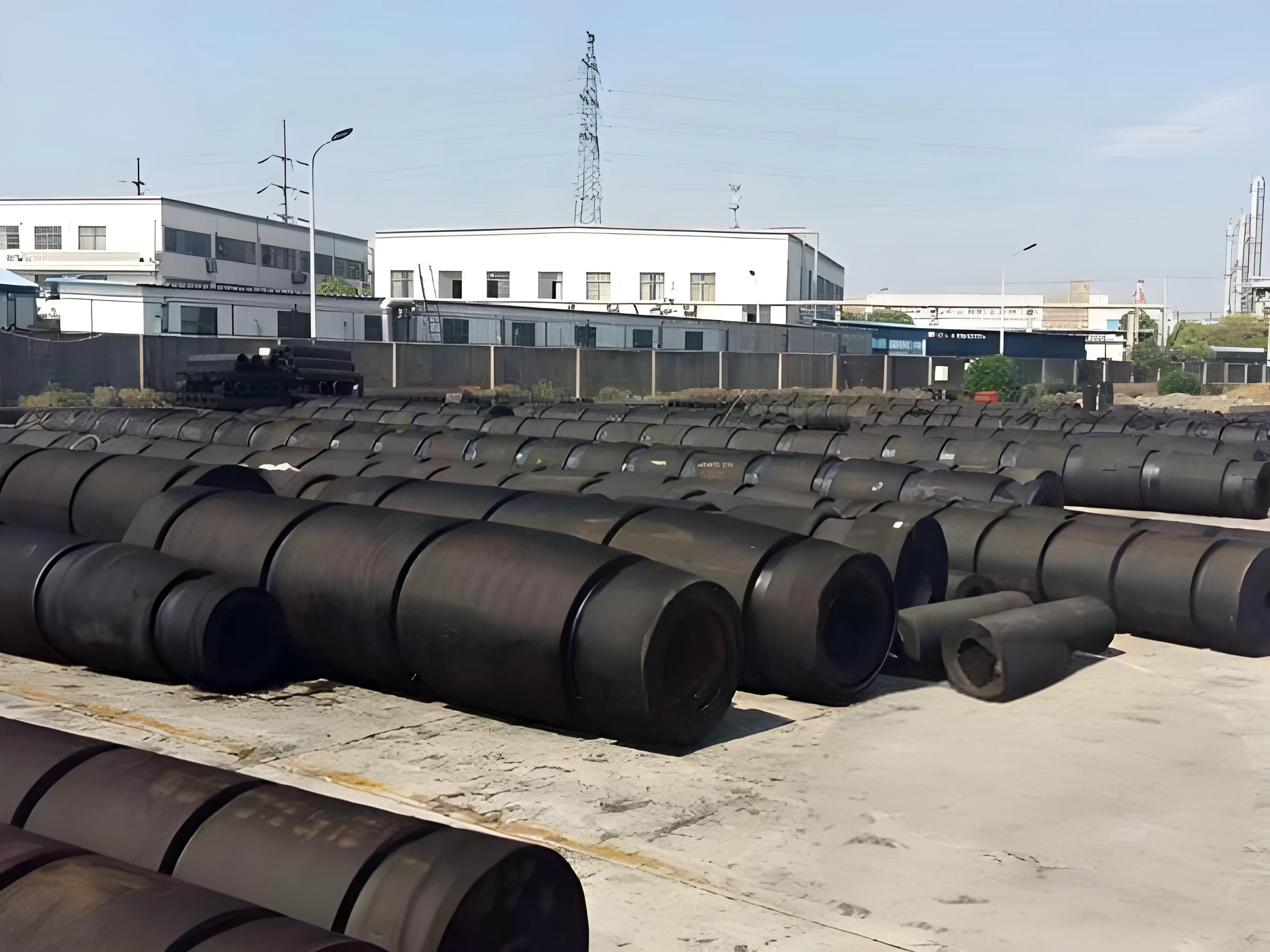

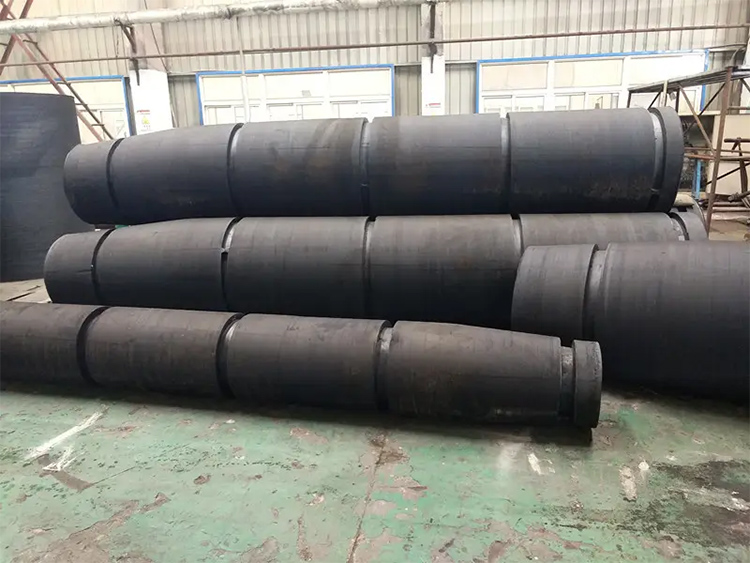

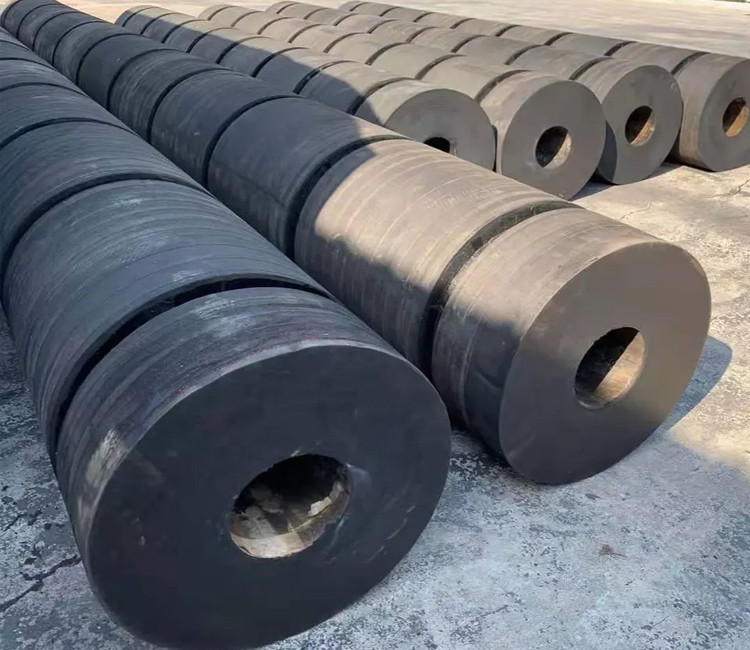

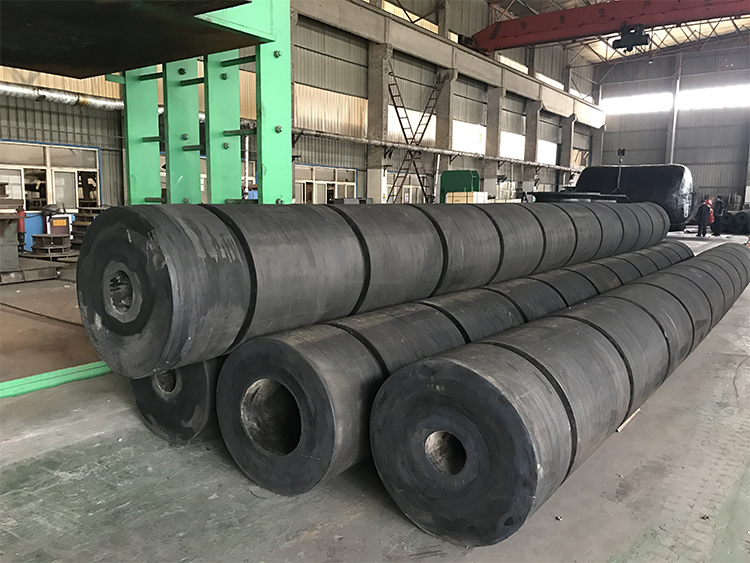

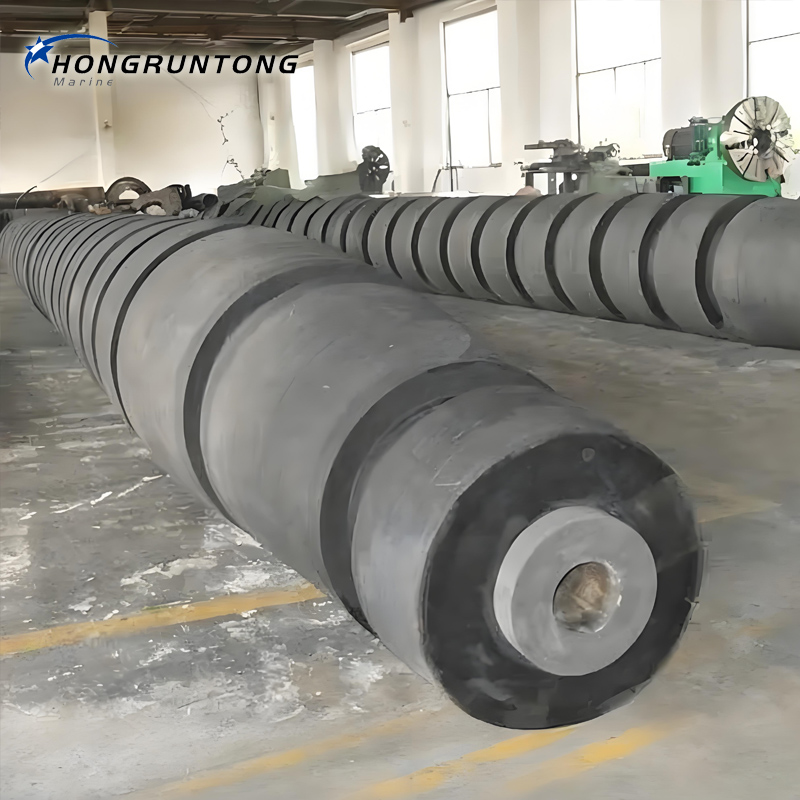

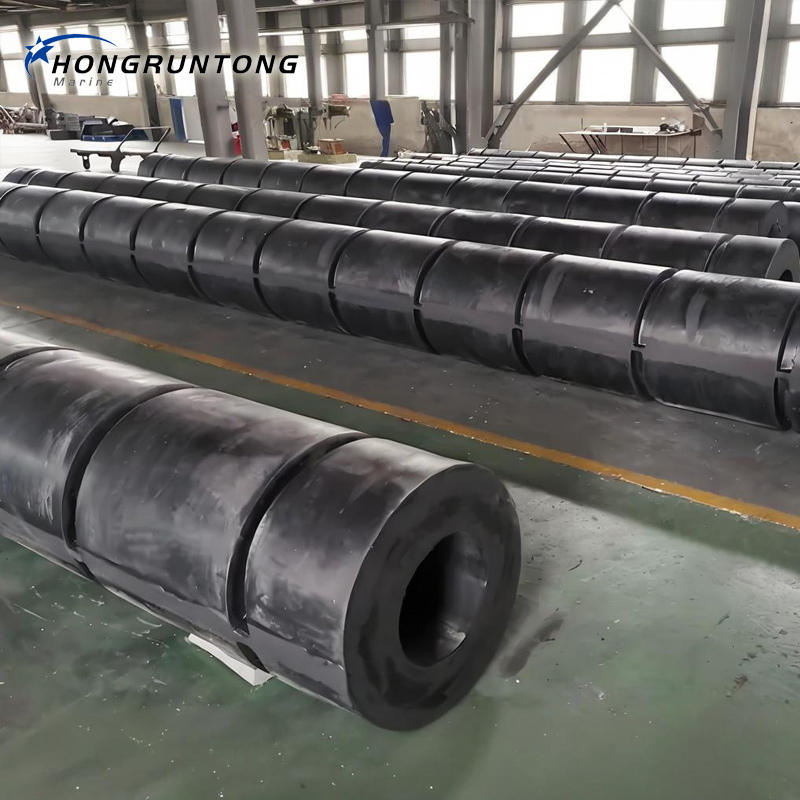

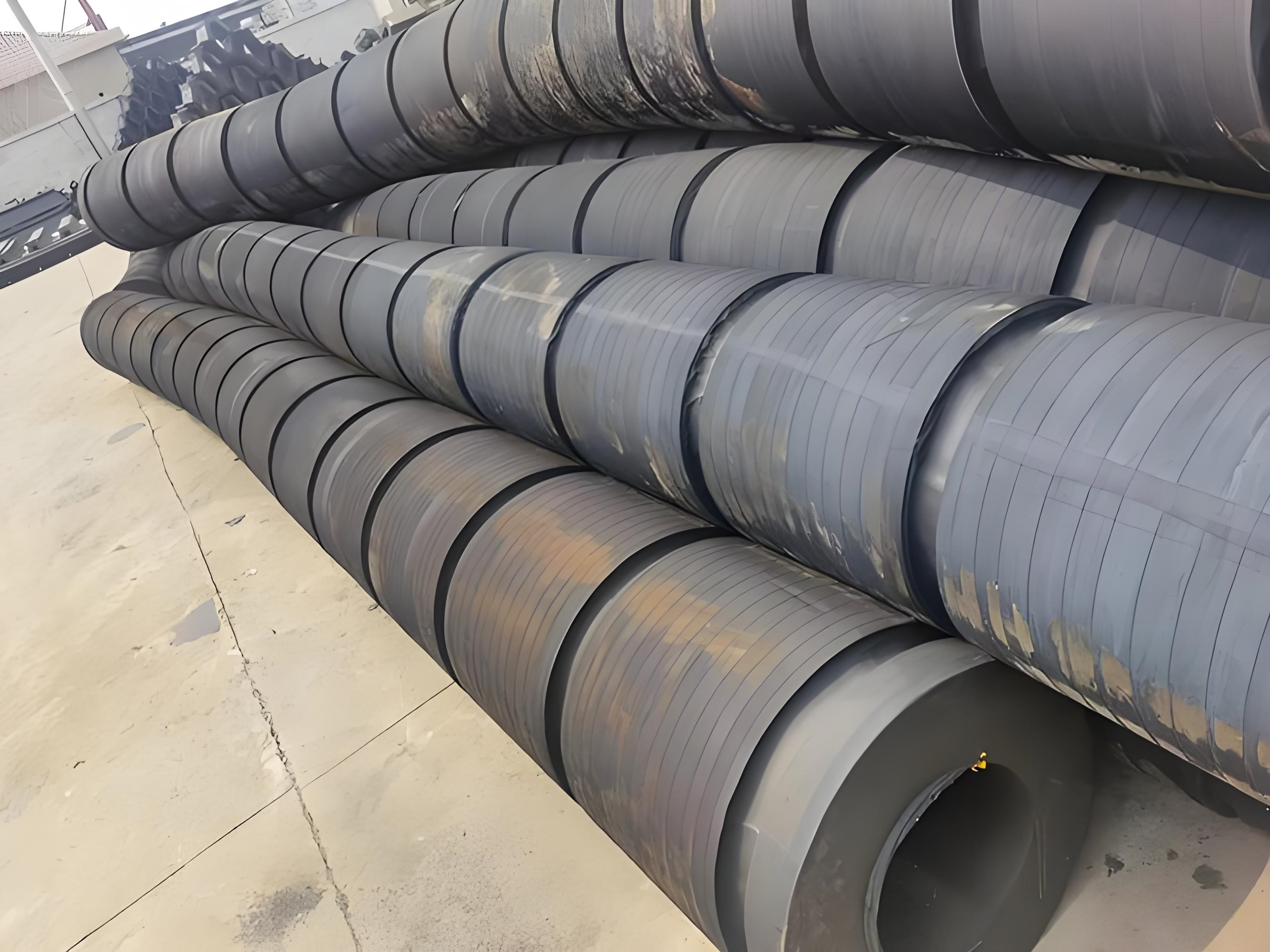

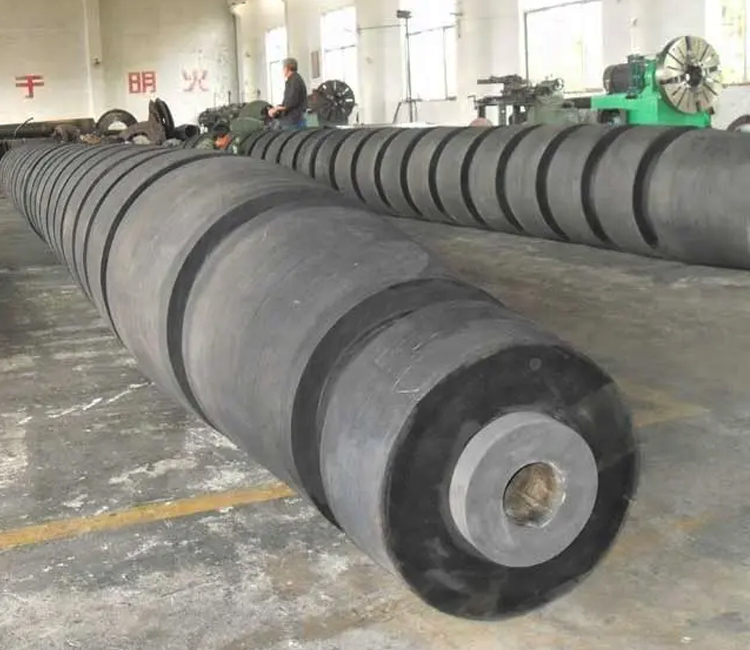

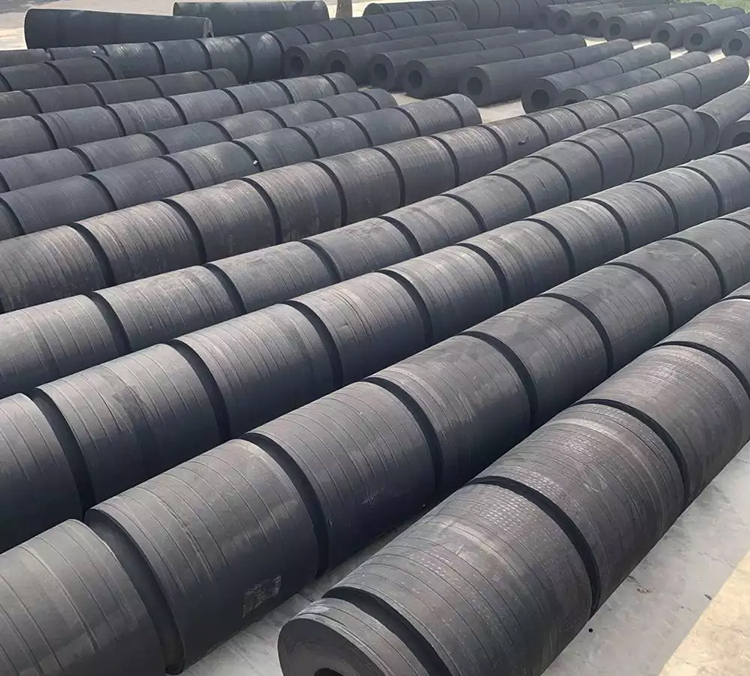

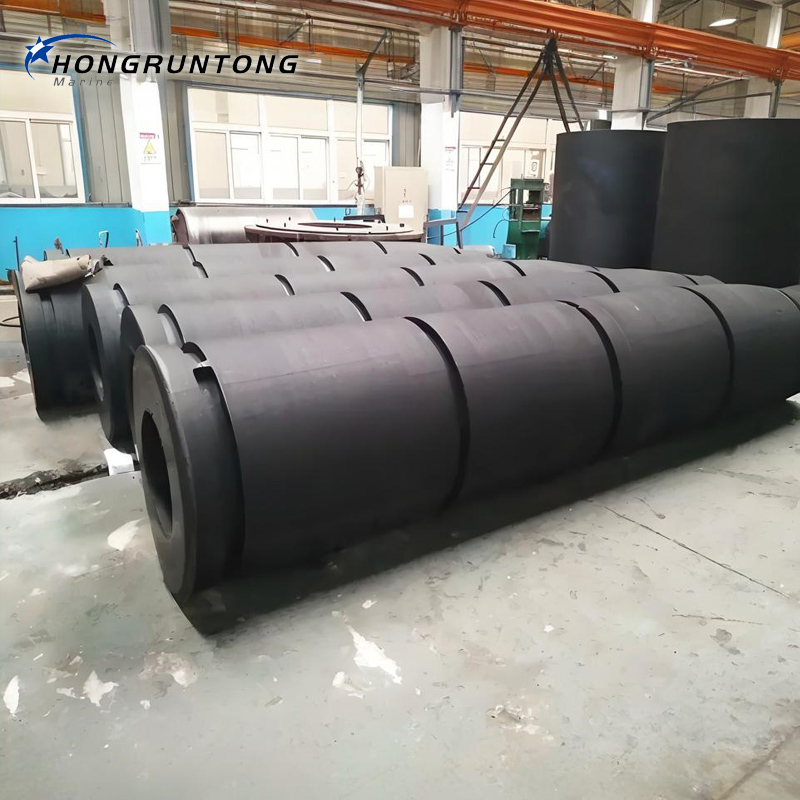

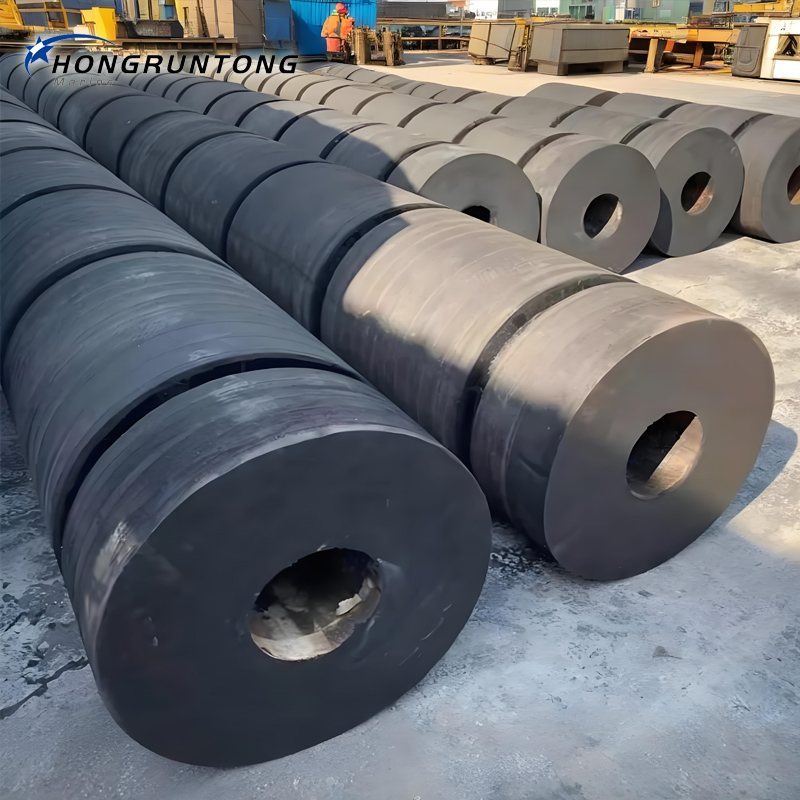

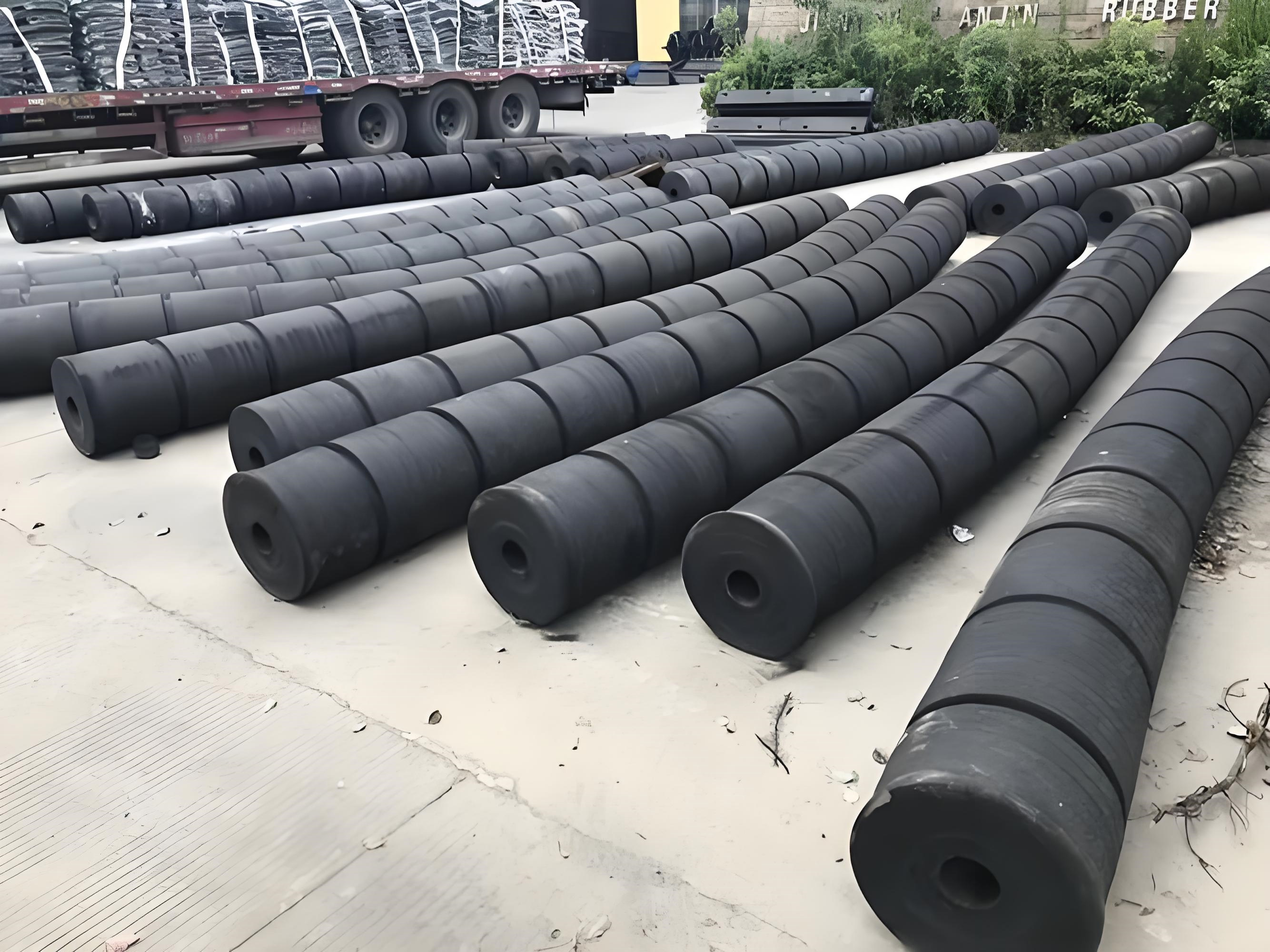

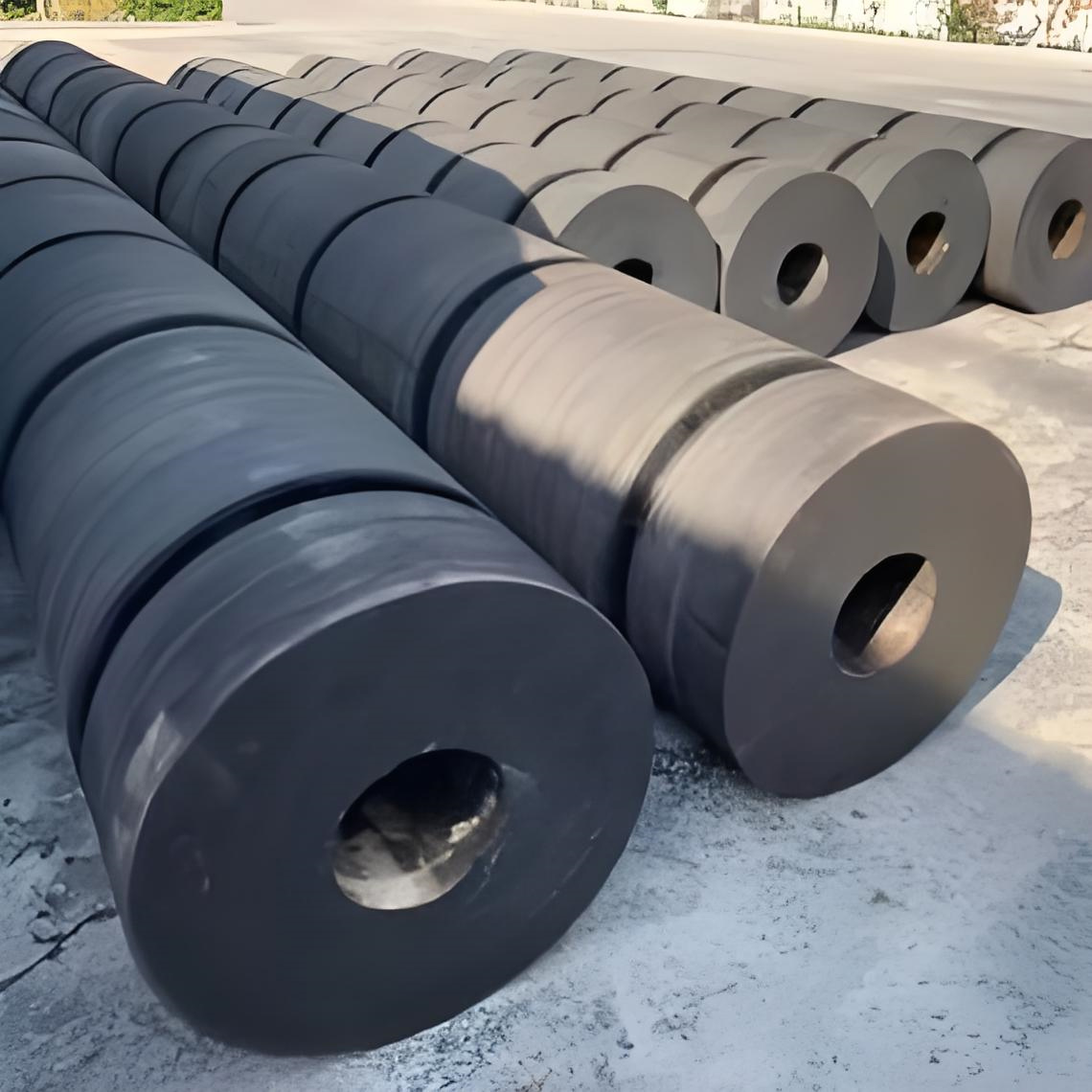

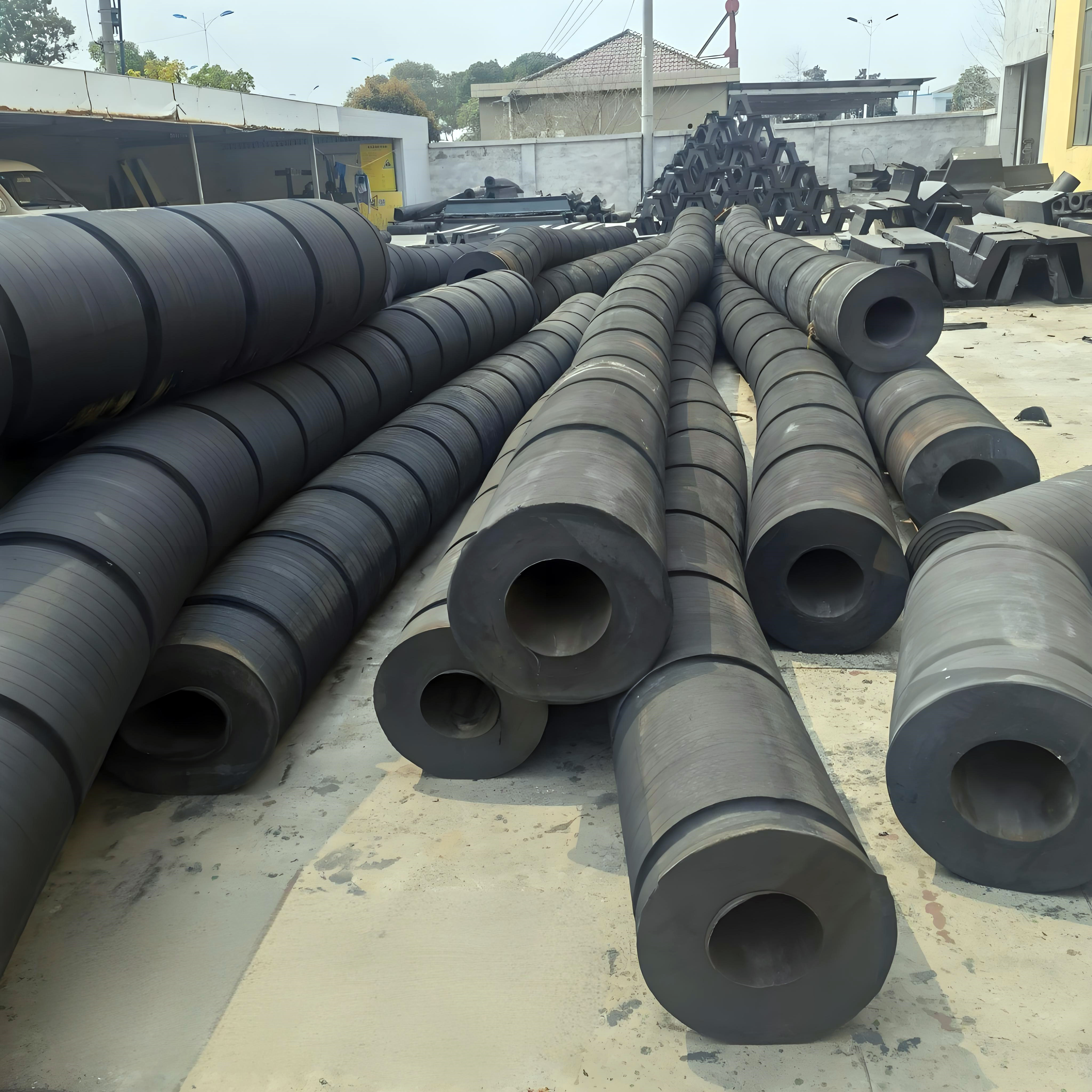

Detailed Photos
