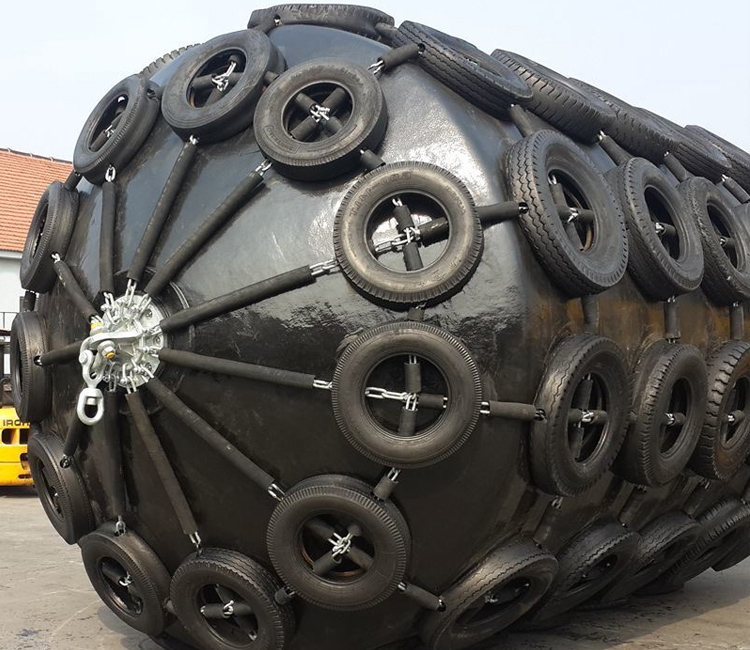

Marine Cushion Fender

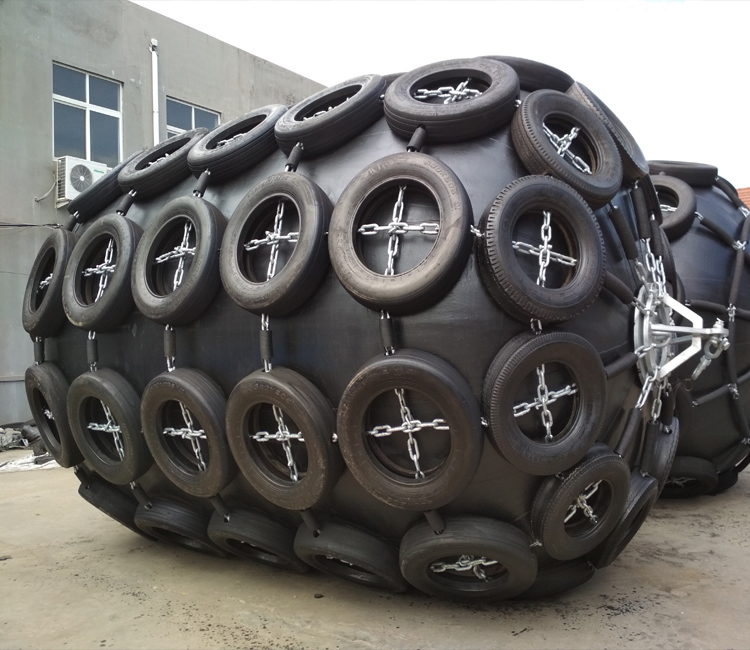

Marine Cushion Fender is a type of foam fender that incorporates a protective net made of tire chain around it. The tire chain net is usually mounted on the outside of the foam fender and provides an additional layer of protection against impacts.
Marine Cushion Fender has a similar design as the Marine Guard Fender, but is available in even larger sizes and only equipped with a heavy-duty tire chain net. Marine Cushion Fender is a type of foam fender system that is designed to protect boats and ships from damage during berthing or mooring. The foam fender is made of high-density closed-cell foam, which provides excellent shock absorption and energy dissipation. The tire chain net is placed over the foam fender to protect it from abrasion and puncture damage.
The netting of the tire chain is usually made of used tires and HDG chains and is designed to absorb the brunt of the impact from a vessel or other object. The foam fender, on the other hand, provides a cushioning effect that further reduces the impact on the vessel during a collision.

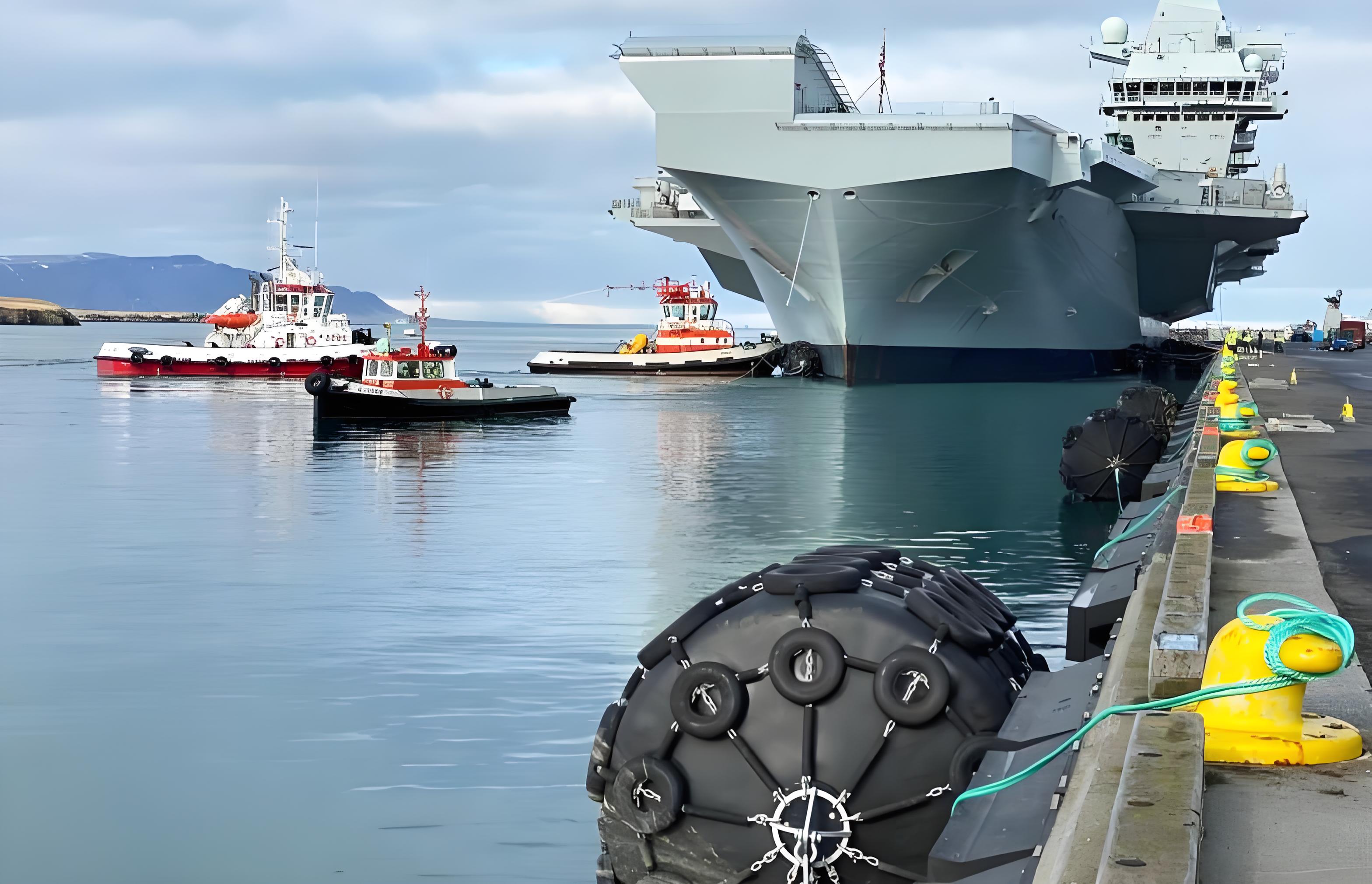

These types of Marine Cushion Fenders are commonly used in heavy-duty applications, such as in the oil and gas industry, where large vessels need to be protected from impacts during docking procedures. They are also used in other harsh marine environments, where the risk of collisions is high.
The foam used in Marine Cushion Fender is typically a high-density closed-cell foam, which provides excellent impact resistance and is resistant to water absorption. The tire chain net is typically held in place by heavy-duty ropes or steel cables that are attached to the foam fender.
foam boat bumpers, floating foam fender, foam boat dock fender, eva foam filled fender, navy guard foam filled fender
Characteristics
► Ultra-tough, extremely robust, unsinkable design
► Wide range of standard and custom sizes
► Proportional increase of energy and reaction
► No performance loss and unsinkable even if damaged
► Maintains safe stand-off distances
► Low maintenance
Applications
● LNG and oil terminals
● Offshore boat landings
● Military applications
● Ship-to-ship operations
● Shipyards

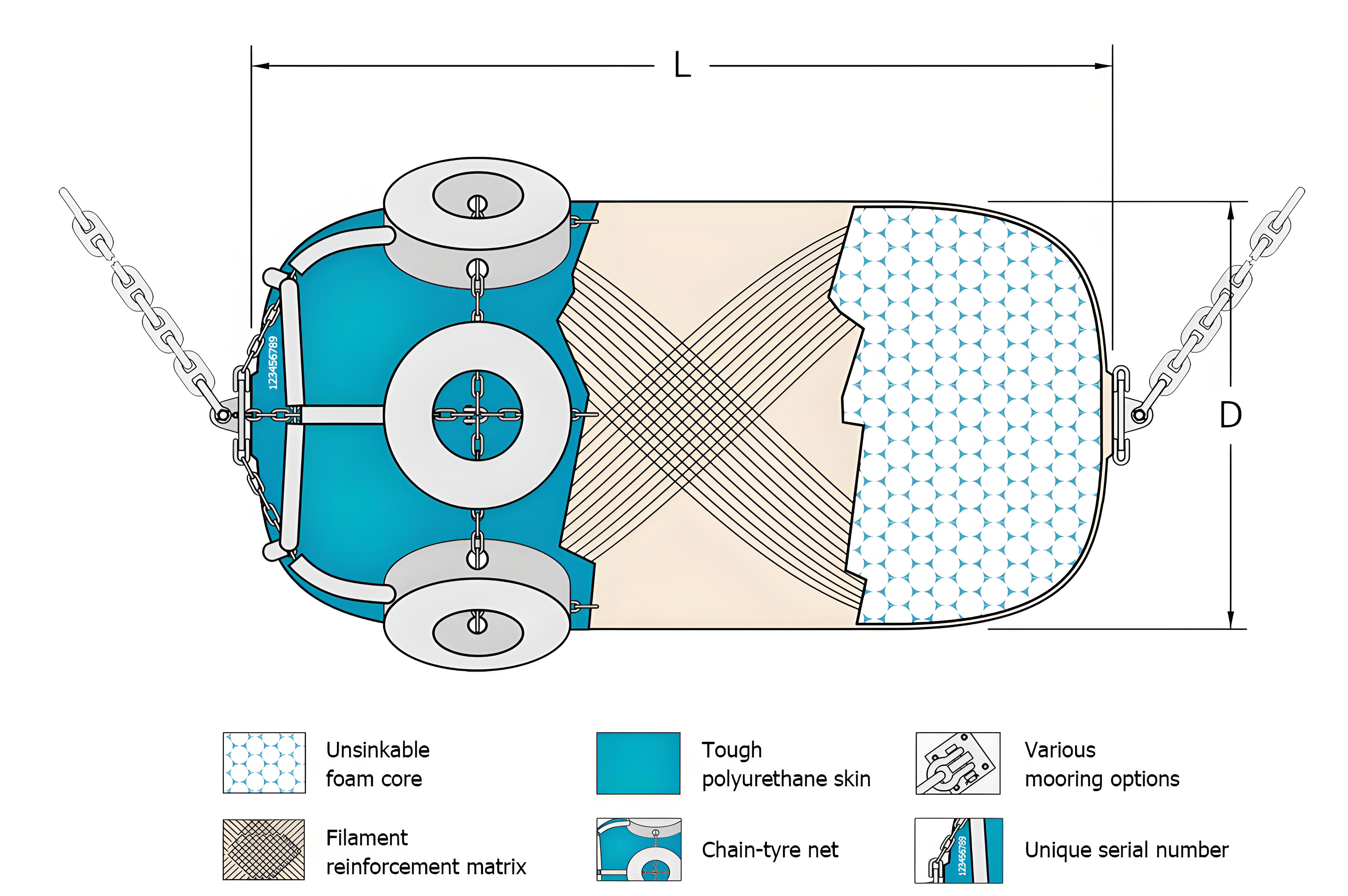

Structure
foam boat bumpers, floating foam fender, foam boat dock fender, eva foam filled fender, navy guard foam filled fender
Dimensions
| Fender Size D x L |
Low Capacity | Standard Capacity | High Capacity | ||||||
| Energy | Reaction | Pressure | Energy | Reaction | Pressure | Energy | Reaction | Pressure | |
| [mm] | [kNm] | [kN] | [kN/m2] | [kNm] | [kN] | [kN/m2] | [kNm] | [kN] | [kN/m2] |
| 1,000 x 2,000 | 39 | 177 | 104 | 69 | 294 | 172 | 98 | 422 | 224 |
| 1,200 x 2,000 | 49 | 206 | 104 | 88 | 334 | 172 | 128 | 481 | 224 |
| 1,350 x 2,500 | 88 | 284 | 104 | 137 | 481 | 172 | 206 | 677 | 224 |
| 1,500 x 3,000 | 128 | 392 | 104 | 216 | 647 | 172 | 304 | 912 | 224 |
| 1,700 x 3,000 | 157 | 432 | 104 | 265 | 716 | 172 | 383 | 1010 | 224 |
| 2,000 x 3,500 | 255 | 589 | 104 | 432 | 991 | 172 | 628 | 1393 | 224 |
| 2,000 x 4,000 | 304 | 687 | 104 | 500 | 1148 | 172 | 726 | 1619 | 224 |
| 2,200 x 4,500 | 402 | 853 | 104 | 677 | 1432 | 172 | 981 | 2011 | 224 |
| 2,500 x 4,000 | 441 | 814 | 104 | 736 | 1354 | 172 | 1069 | 1913 | 224 |
| 2,500 x 5,500 | 647 | 1197 | 104 | 1079 | 1991 | 172 | 1560 | 2796 | 224 |
| 3,000 x 6,000 | 991 | 1521 | 104 | 1648 | 2541 | 172 | 2384 | 3581 | 224 |
| 3,300 x 4,500 | 824 | 1148 | 104 | 1373 | 1913 | 172 | 1982 | 2698 | 224 |
| 3,300 x 6,500 | 1285 | 1805 | 104 | 2148 | 3002 | 172 | 3110 | 4228 | 224 |
| 4,200 x 8,400 | 2708 | 2972 | 104 | 4513 | 4934 | 172 | 6533 | 6955 | 224 |

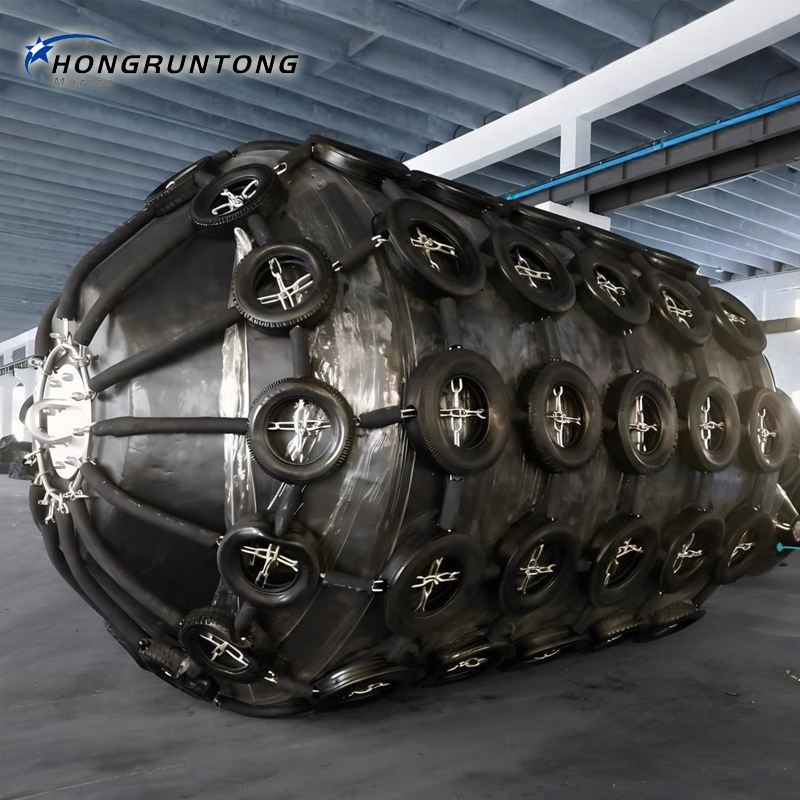

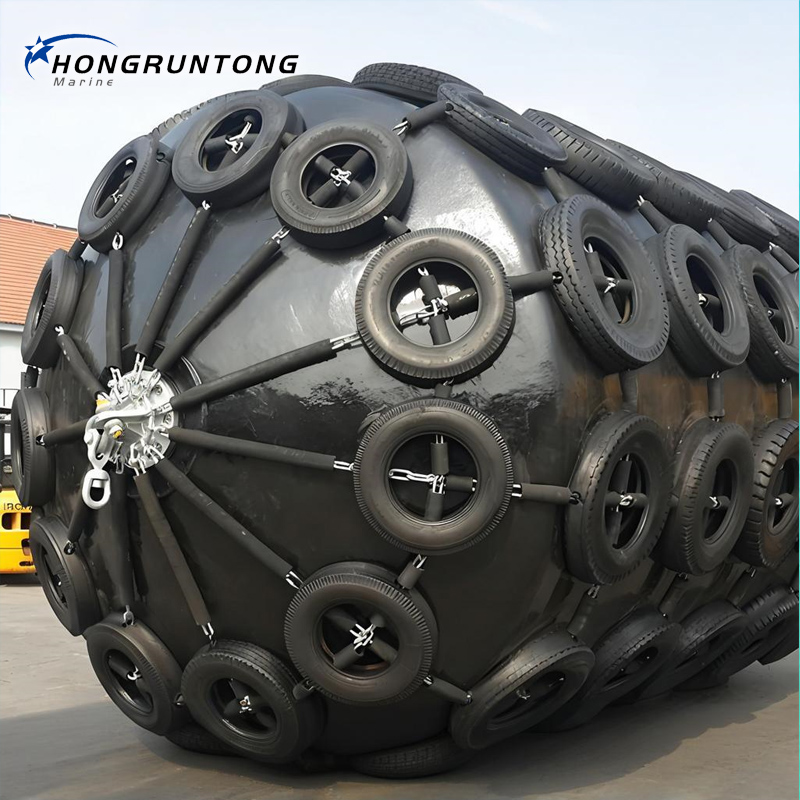

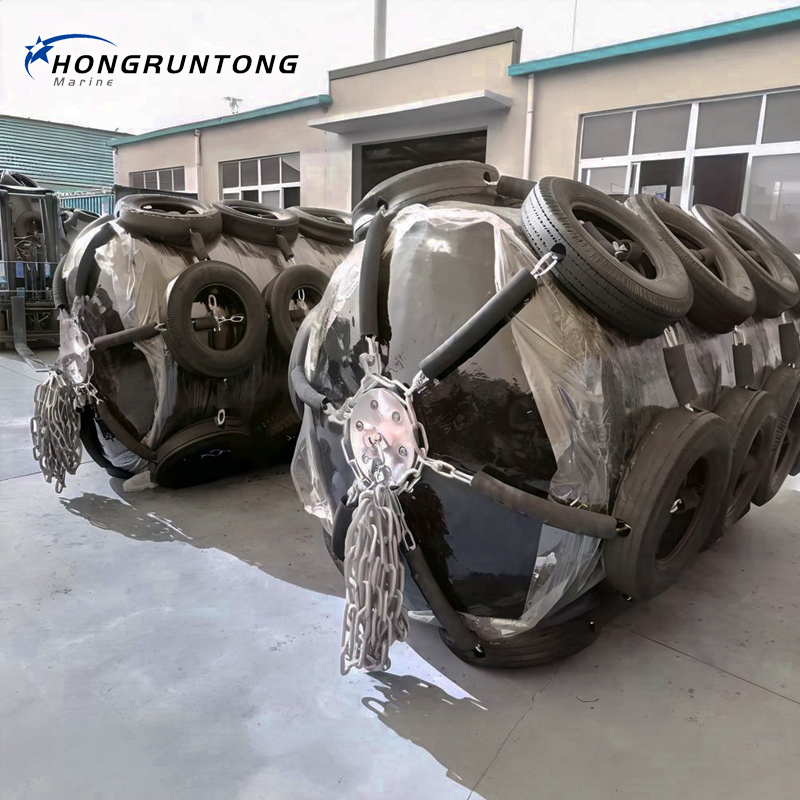

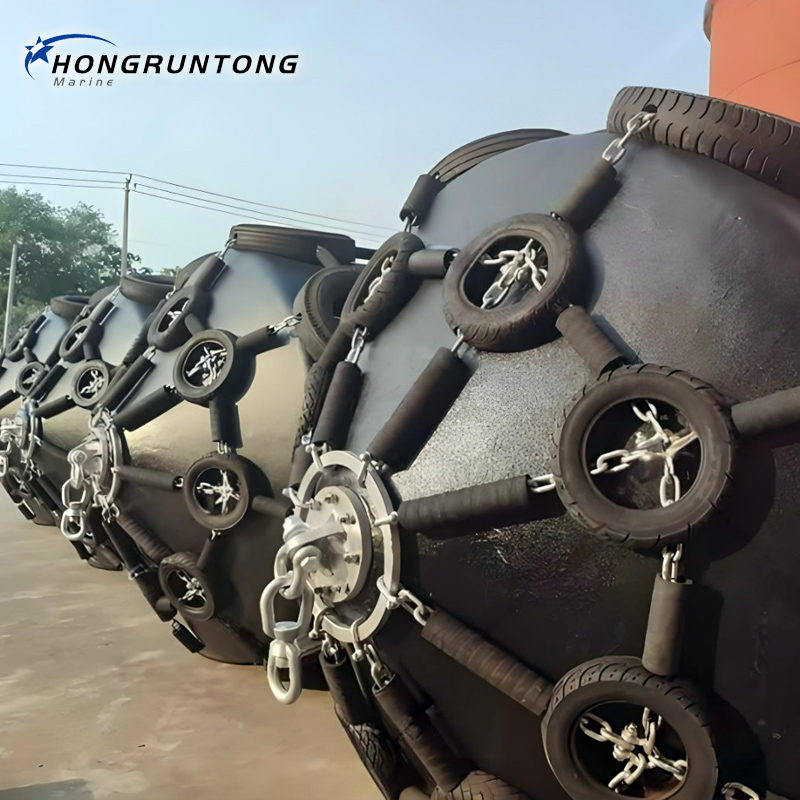

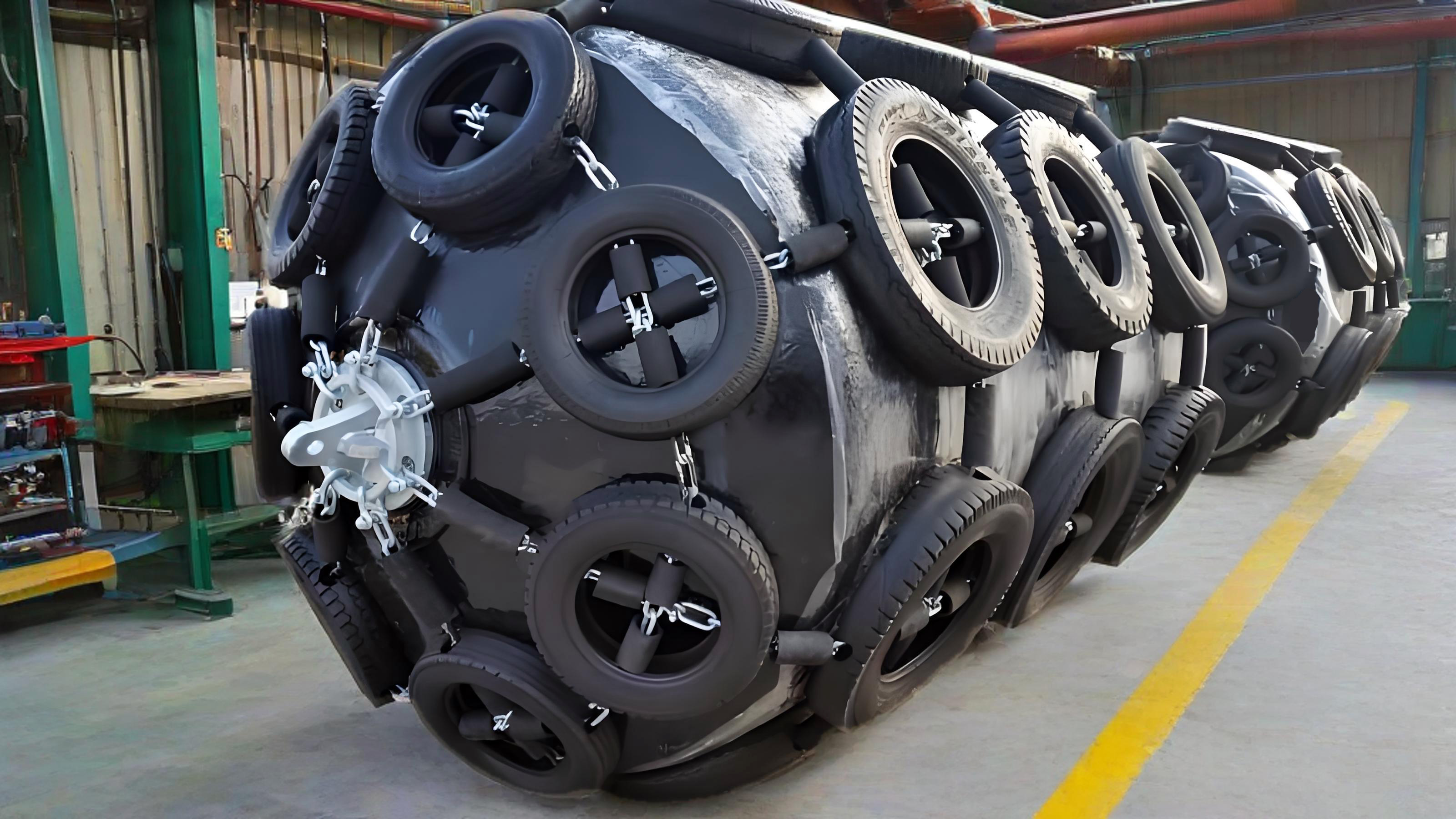

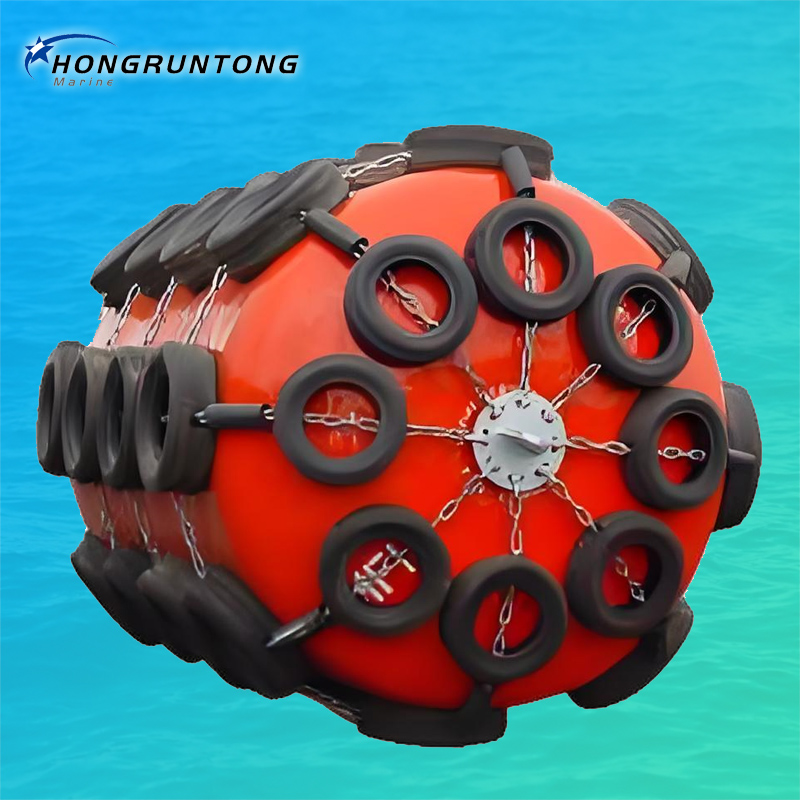

Detailed Photos
