LNG Hose
Exclusive construction allows for excellent flexibility. Rugged cover is resistant to oil, cuts, scuffs and ozone attack.
Hongruntong LNG hose adopts multi-layer structure of different polymers and 316L stainless steel spiral structure. Using the latest manufacturing technology, it is a high-quality safety solution that supports low-temperature products under extreme temperatures up to -196ºC and working pressures up to 10.5 Bar.
In typical applications, such as LNG discharge loading trucks, trucks and even offshore applications, including ship-to-ship refueling operations.
Structure
◆ Inner Wire Spiral: Stainless Steel 316L (S)
◆ Outer Wire Spiral: Stainless Steel 316L (S)
◆ Inner Lining: Polyamide / Polyester
◆ Cover: PVC Coated Polyester Cloth
Characteristics
► Norms: EN 13766:2010
► Temperature range: -196 ℃ to +45 ℃
► Safety factor: 8:1
►Vacuum: 0,9 bar
► Length coils: 30 m, other under request.
Dimensions
|
Model
|
Dimensions
|
Working Pressure
|
Safety Factor
|
Bending Radius
|
Weight
|
Length
|
||
| Composite |
[mm]
|
[inch]
|
[bar]
|
[psi]
|
[kg]
|
[m]
|
||
|
HM-CH20
|
20
|
3/4"
|
16
|
230
|
8 : 1
|
80
|
0.8
|
40
|
|
HM-CH25
|
25
|
1"
|
16
|
230
|
8 : 1
|
100
|
1
|
40
|
|
HM-CH32
|
32
|
11/4"
|
16
|
230
|
8 : 1 |
125
|
1.3
|
40
|
|
HM-CH40
|
40
|
11/2"
|
16
|
230
|
8 : 1 |
140
|
1.5
|
40
|
|
HM-CH50
|
50
|
2"
|
16
|
230
|
8 : 1 |
180
|
2.5
|
40
|
|
HM-CH65
|
65
|
21/2"
|
16
|
230
|
8 : 1 |
200
|
3.3
|
40
|
|
HM-CH80
|
80
|
3"
|
16
|
230
|
8 : 1 |
260
|
4
|
40
|
|
HM-CH100
|
100
|
4"
|
16
|
230
|
8 : 1 |
380
|
6.8
|
40
|
|
HM-CH125
|
125
|
5"
|
16
|
230
|
8 : 1 |
440
|
9.2
|
40
|
|
HM-CH150
|
150
|
6"
|
16
|
230
|
8 : 1 |
500
|
13.2
|
40
|
|
HM-CH200
|
200
|
8"
|
16
|
230
|
8 : 1 |
750
|
18
|
40
|
|
HM-CH250
|
250
|
10"
|
16
|
230
|
8 : 1 |
900
|
26
|
25
|
| *Note: Various sizes can be customized according to the requirements. | ||||||||

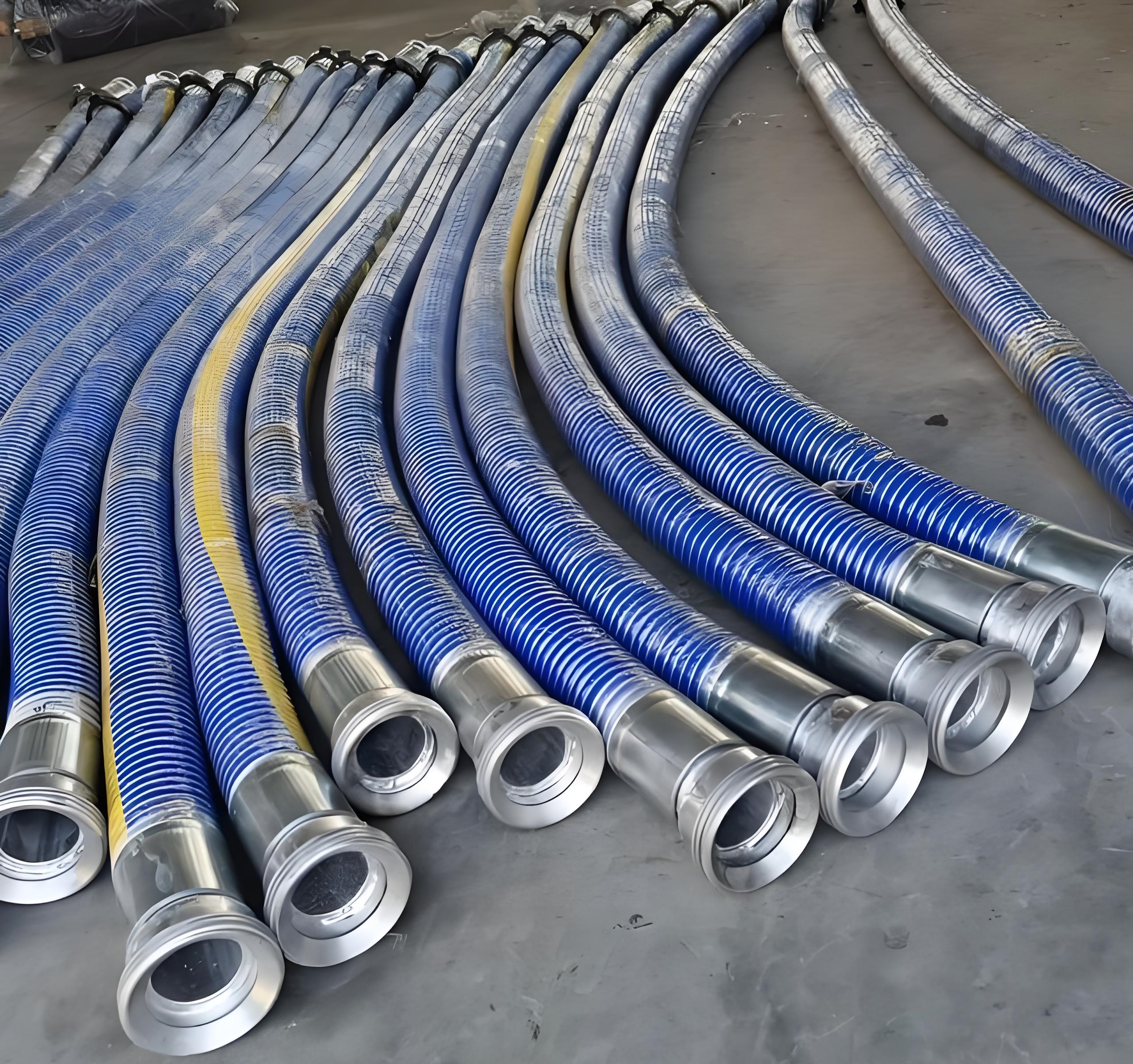

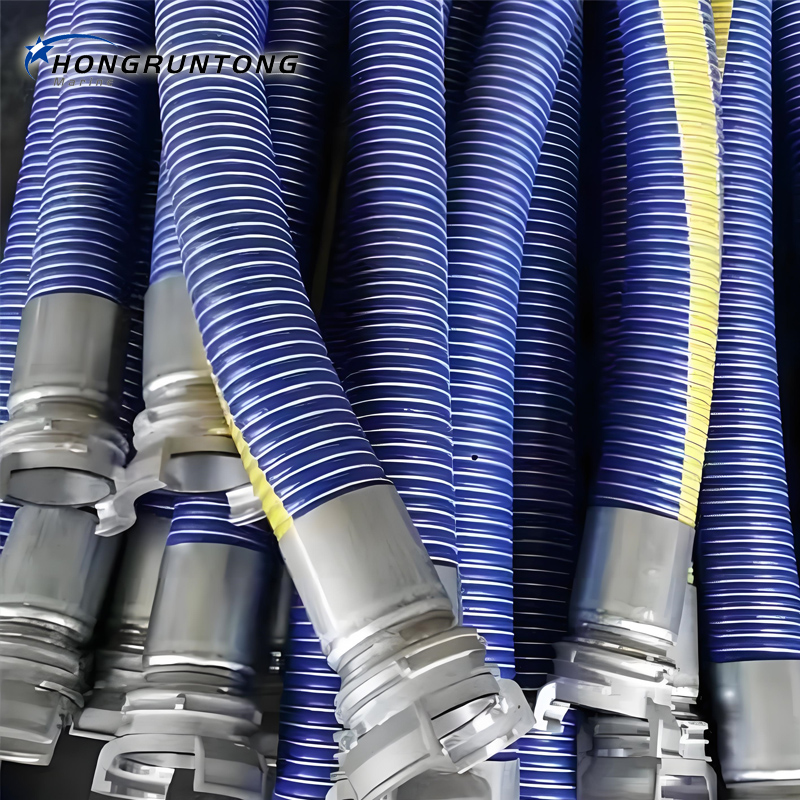

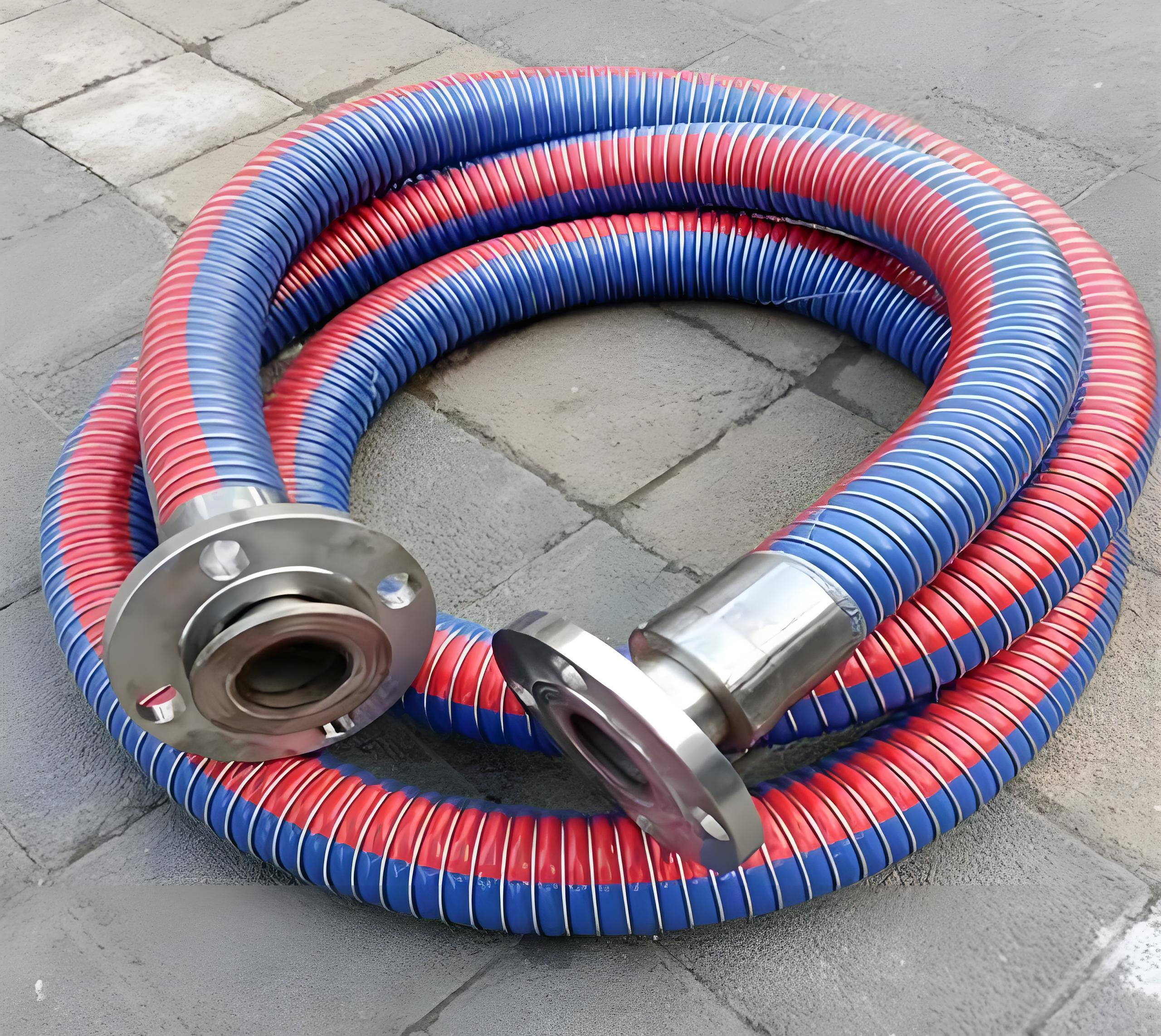

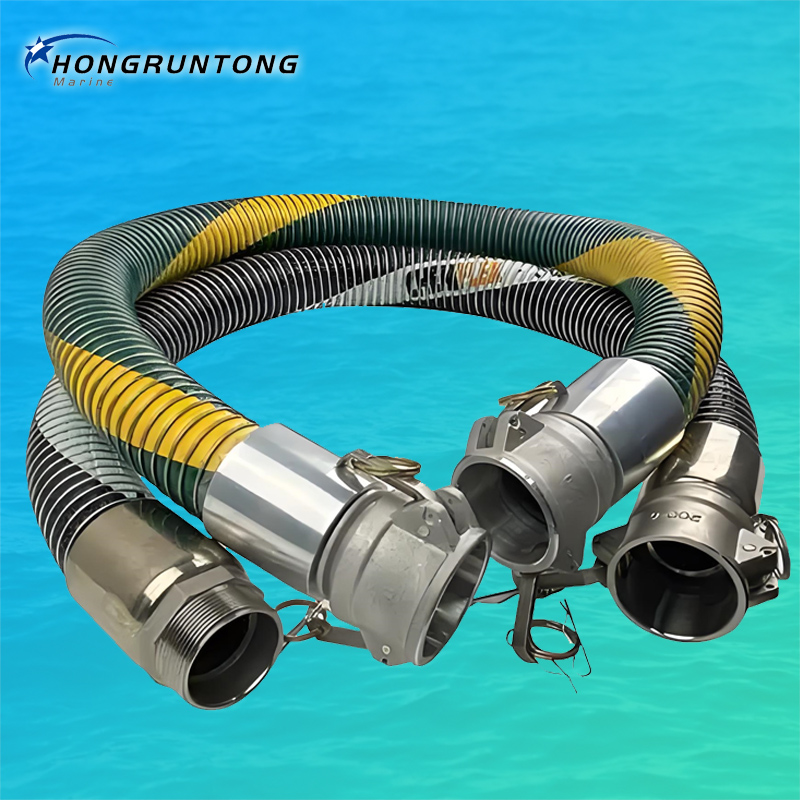

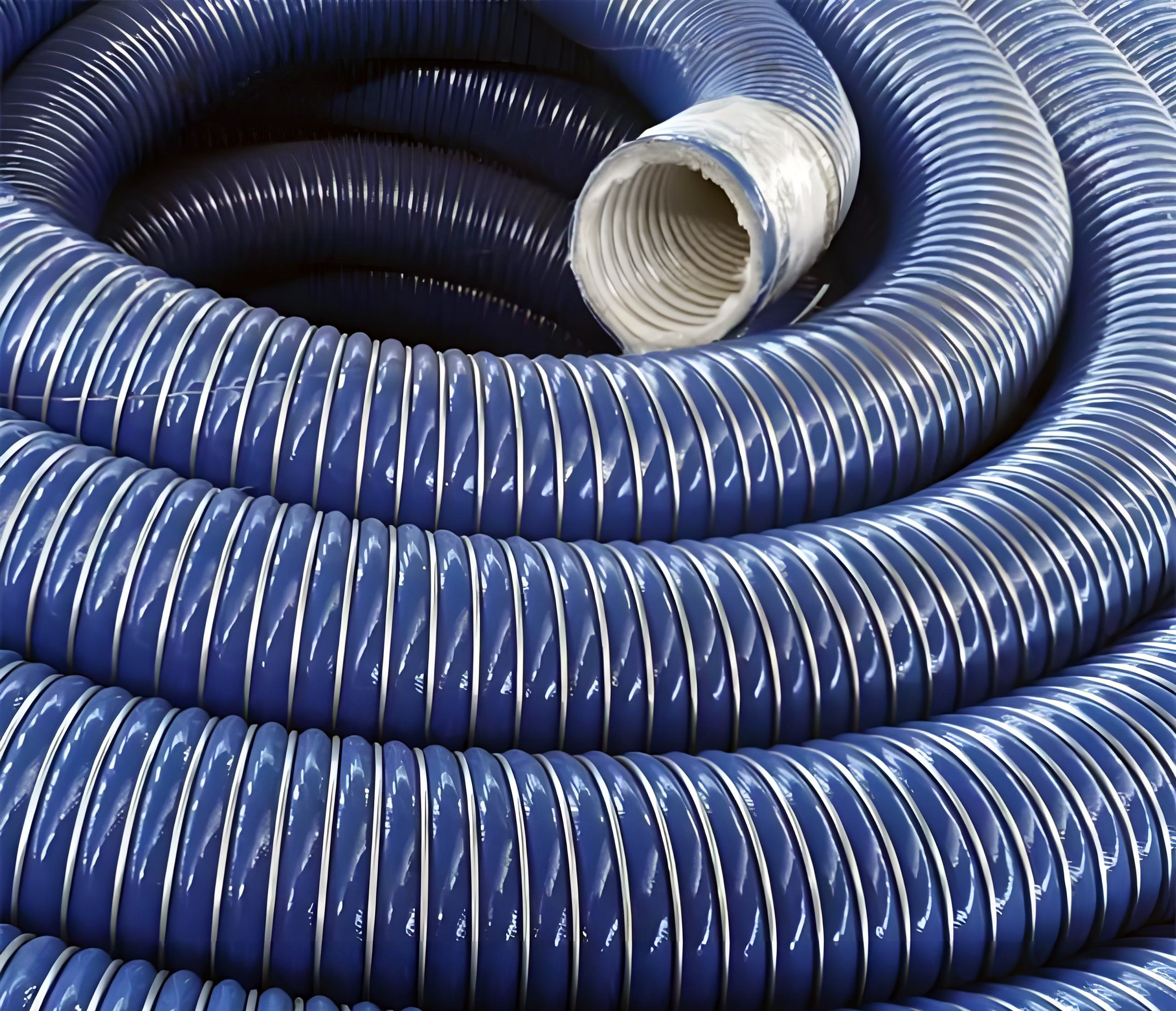

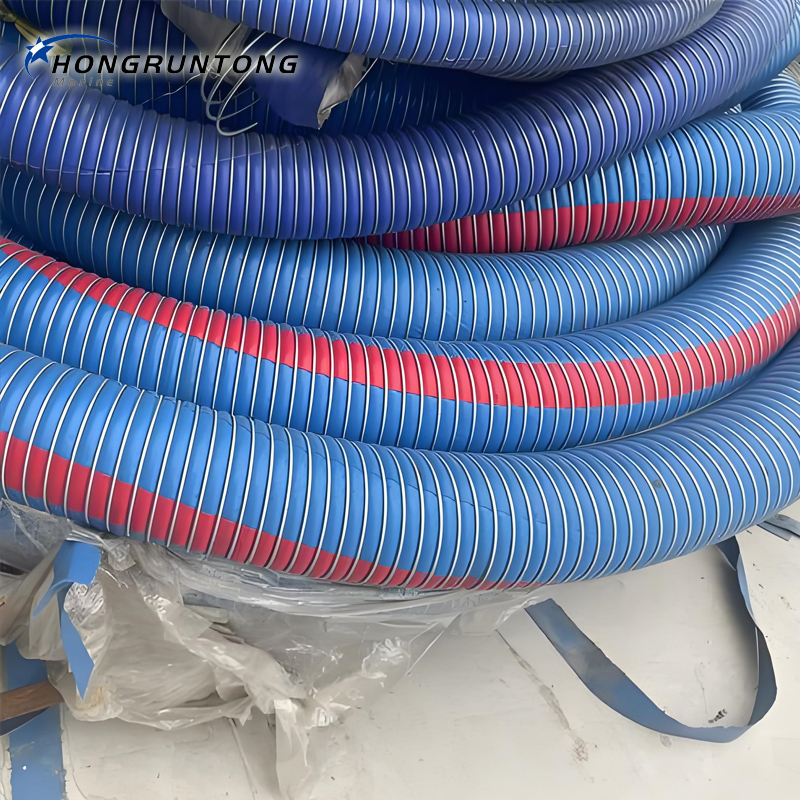

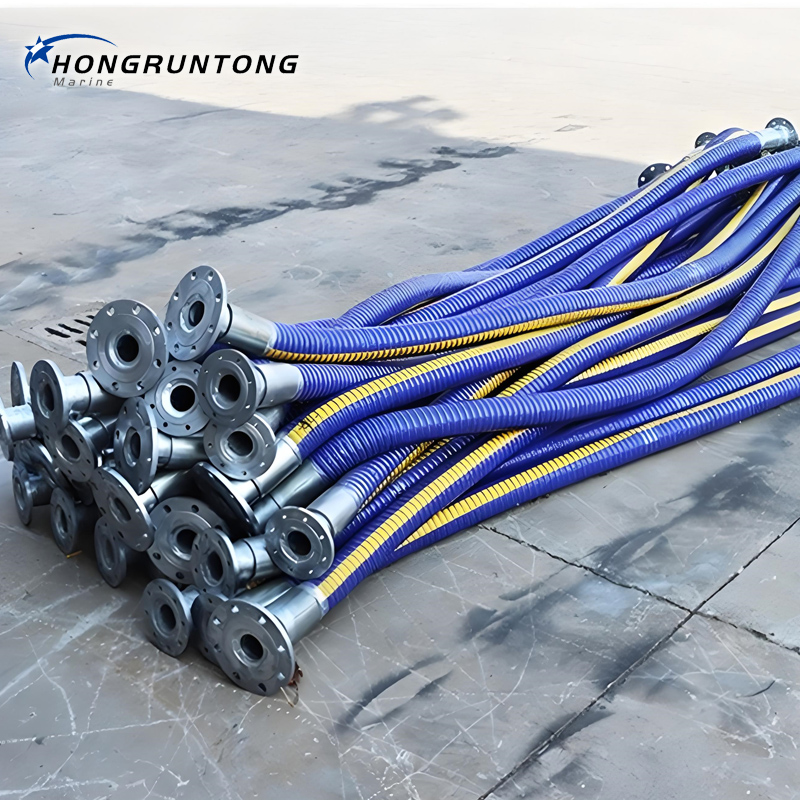

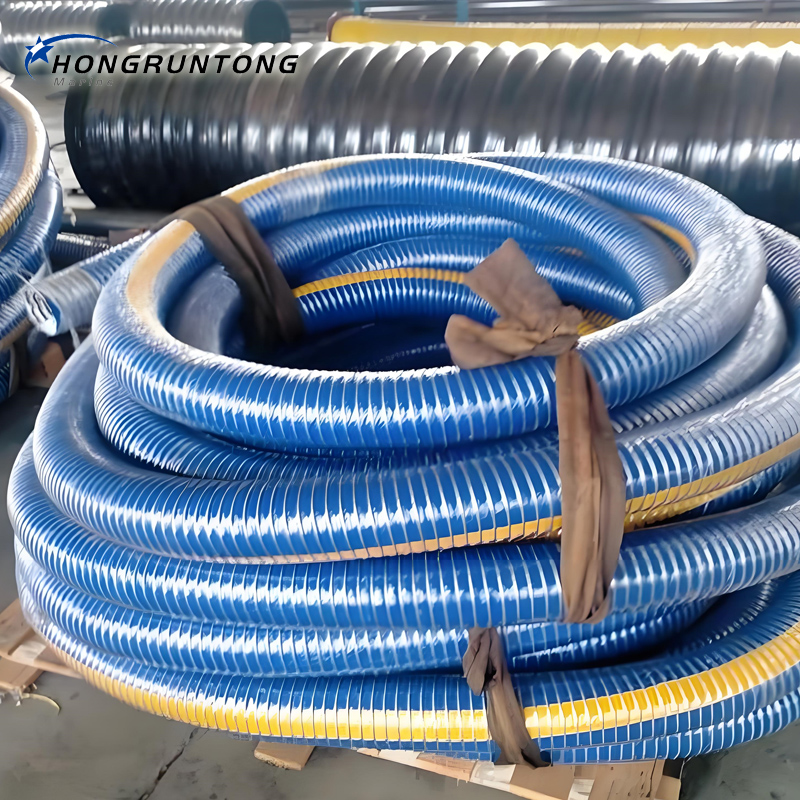

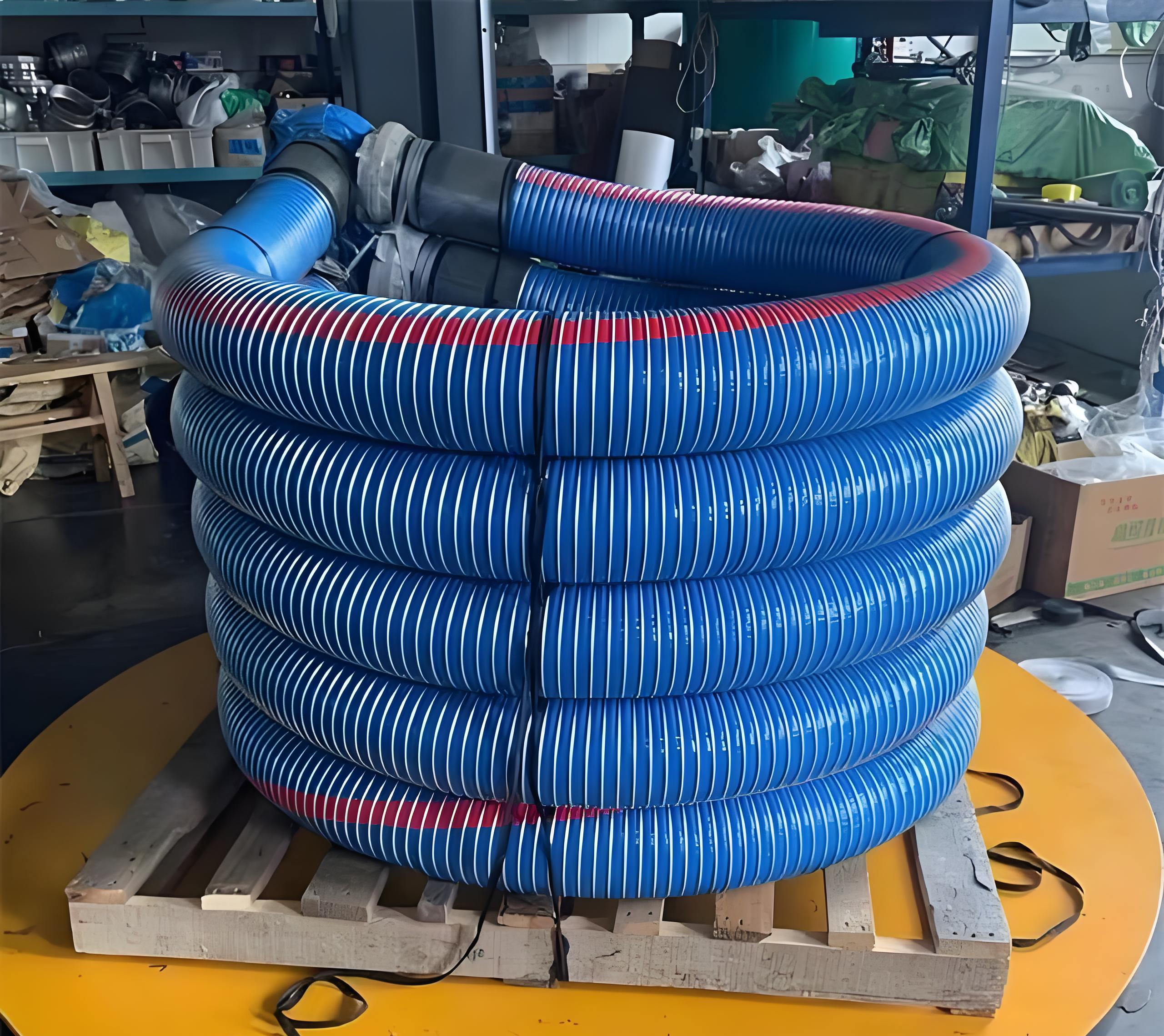

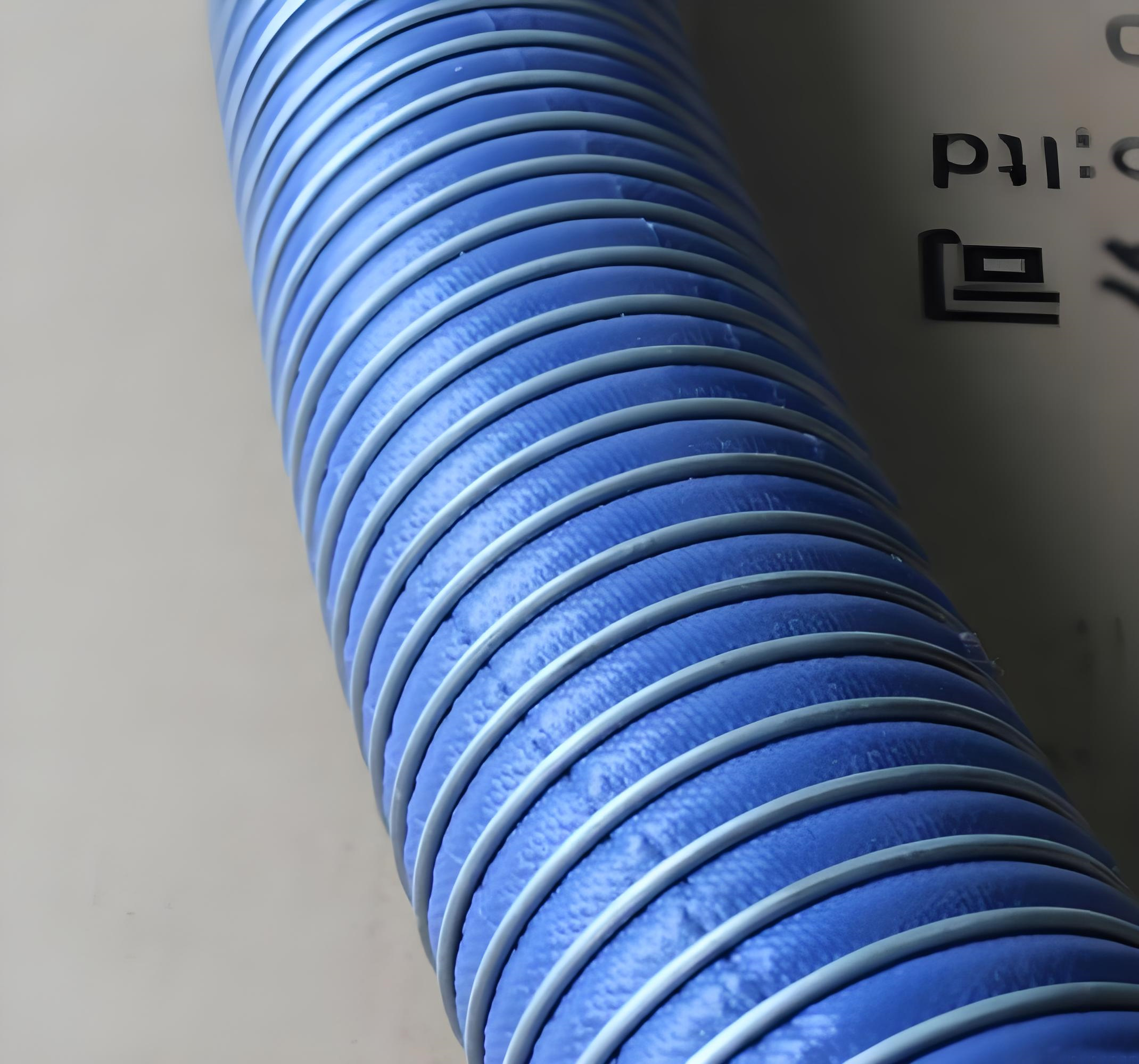

Detailed Photos
