Premium Fuel Oil Transfer Hose
Hongruntong Marine, a trusted manufacturer with 35 years of industrial expertise, presents its high-performance Fuel Oil Hose engineered for safe and efficient transportation of diesel, kerosene, lubricants, and heavy fuel oils. Certified to EN 853 Type SN and SAE 100 R9 standards, this hose delivers unmatched reliability in demanding marine, industrial, and energy applications.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Steel Wire Reinforcement | Withstands working pressures up to 300 bar (4350 psi), preventing bursts and ensuring operational safety. |
| Oil-Resistant EPDM/CSM Cover | Resists degradation from hydrocarbons, UV, ozone, and abrasion – extending service life by 40%+ vs. standard hoses. |
| Wide Temperature Range | Flexible in -40°C to +121°C (-40°F to +250°F), suitable for arctic to tropical environments. |
| Low Permeability Design | Minimizes oil vapor emissions, enhancing environmental compliance and worksite safety. |
| Anti-Static Construction | Prevents static buildup, critical for flammable fuel transfer operations. |
Core Applications
Ideal for:

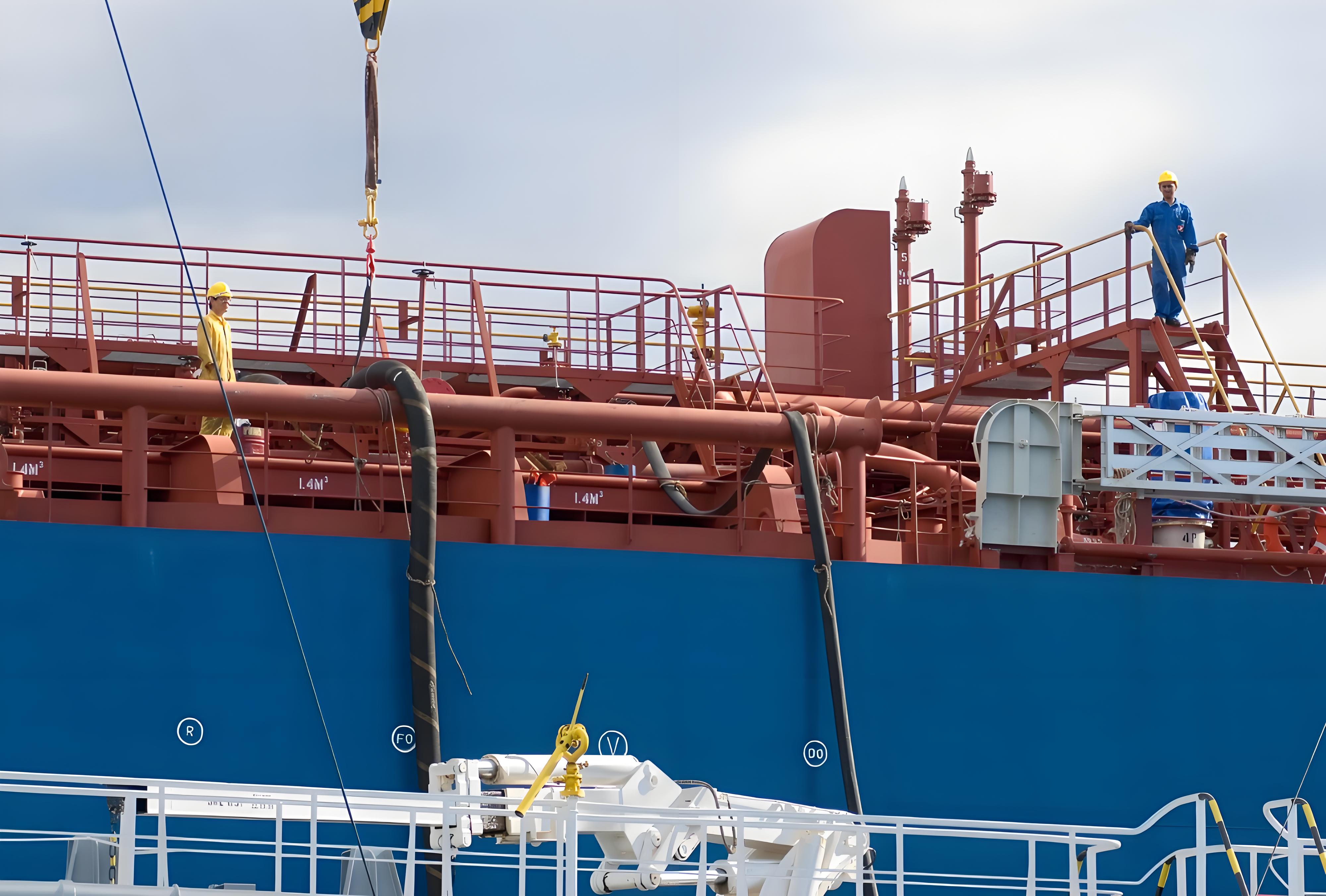

✅ Marine Industry: Ship-to-shore fueling, engine room transfer, bunkering operations.
✅ Industrial Plants: Boiler fuel supply, generator refueling, plant machinery.
✅ Oil & Gas: Refinery pipeline connections, tank truck loading/unloading.
✅ Mining/Construction: Diesel supply for heavy equipment and generators.
Why Choose Hongruntong Marine?
-
35+ Years of OEM Expertise: Precision-engineered hoses validated by decades of field performance.
-
Global Certifications: Compliant with EN 853, SAE J517, ISO 1436, and TR CU 032/2013 (EAC).
-
Rigorous QC: Every batch undergoes pressure, adhesion, and permeability testing.
-
Custom Solutions: Available in 1/2" to 12" ID with custom lengths, flanges, and couplings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Inner Tube | Oil-resistant Synthetic Rubber (NBR) |
| Reinforcement | High-Tensile Spiral Steel Wire (2-4 Layers) |
| Cover | EPDM/CSM Blend (Black, UV/Ozone Resistant) |
| Working Pressure | 15-300 bar (217-4350 psi) |
| Vacuum Rating | Full vacuum at max. pressure |
| Bend Radius | 4x Hose ID (Dynamic) / 2x ID (Static) |
| Standards | EN 853 Type SN, SAE 100 R9, ISO 1436 |
Commitment to Excellence
As an ISO 9001-certified manufacturer, Hongruntong Marine guarantees:
🔹 24-Month Warranty against manufacturing defects.
🔹 Fast Global Shipping from our 50,000㎡ production facility.
🔹 Technical Support: Engineering teams assist with hose selection and installation.
Detail Photos
