Cylindrical Fenders

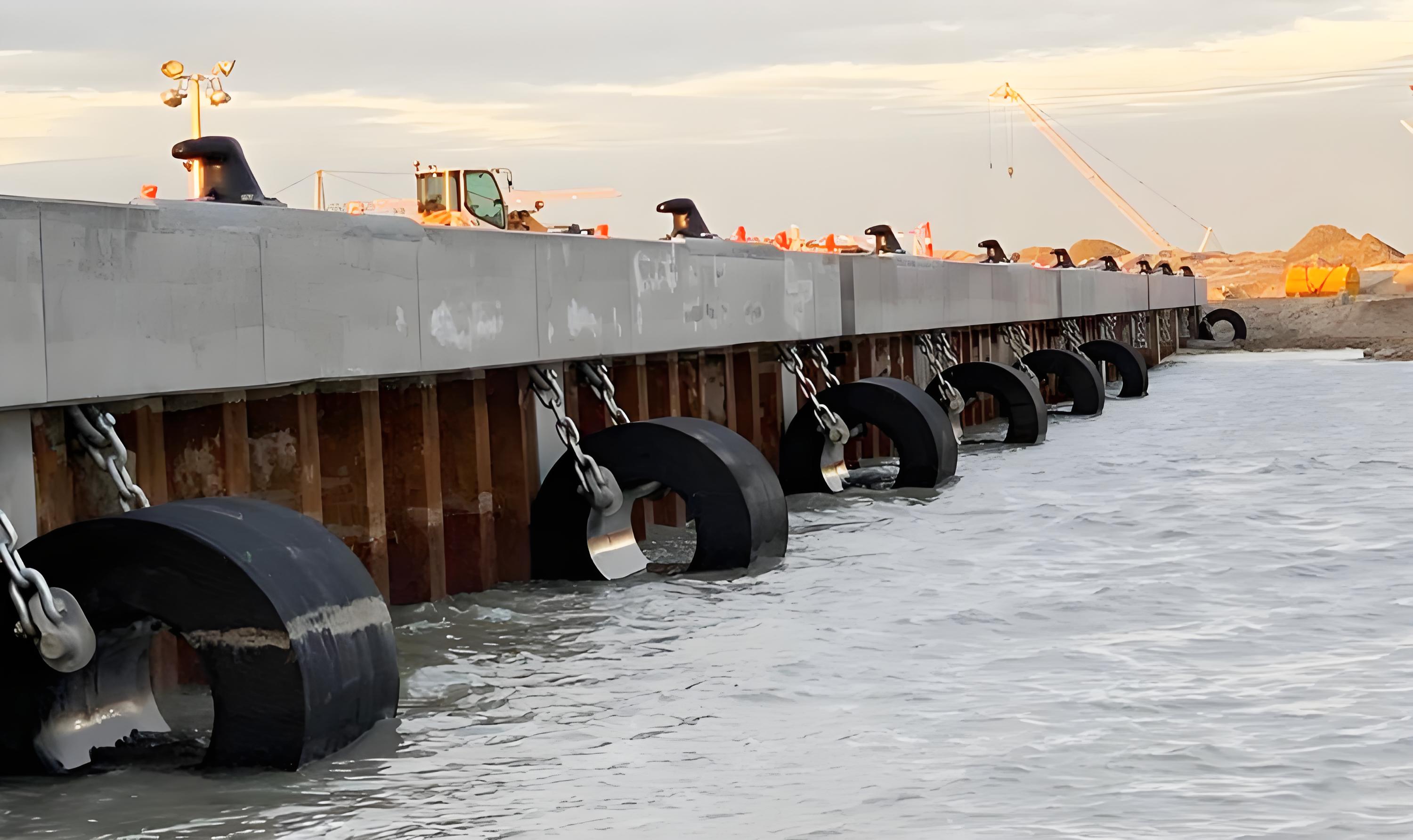

Cylindrical fenders are commonly used on docks, piers, and other marine structures to protect against damage from ships and other vessels. They are known for their durability and ability to withstand harsh marine environments.
Cylindrical fenders are a type of marine fender that are designed to protect boats and other vessels from damage caused by collisions with other boats, docks, or other structures. They are typically made from durable materials such as natural rubber and are cylindrical in shape, with a hollow center that allows them to compress and absorb the impact of a collision.
Cylindrical fender is designed to absorb the kinetic energy of a vessel during berthing or mooring operations by compressing and deforming under pressure. The cylindrical shape of the fender allows it to distribute the impact force evenly, reducing the risk of damage to the vessel or the structure it is moored to. Cylindrical fenders come in a variety of sizes and are often used in combination with other types of fenders to provide comprehensive protection for boats and other vessels.
Characteristics
1. With a cylindrical shape and available in various diameters and lengths to suit different vessel sizes and types.
2. Made of high-quality natural rubber that is resistant to abrasion, tearing, and corrosion.
3. Hollow center design, allows them to compress and absorb impact energy, reducing the risk of damage to the vessel or the port facilities.
4. Can be easily installed horizontally or vertically using chains, ropes, or bolts.
5. Minimal maintenance, and the rubber material used is resistant to weathering and UV radiation.
6. Suitable for use in all types of ports, including commercial ports, naval bases, and offshore oil and gas platforms.
cylindrical rubber fenders, cylindrical boat fenders, trelleborg fenders, shibata fender, cylindrical marine fenders

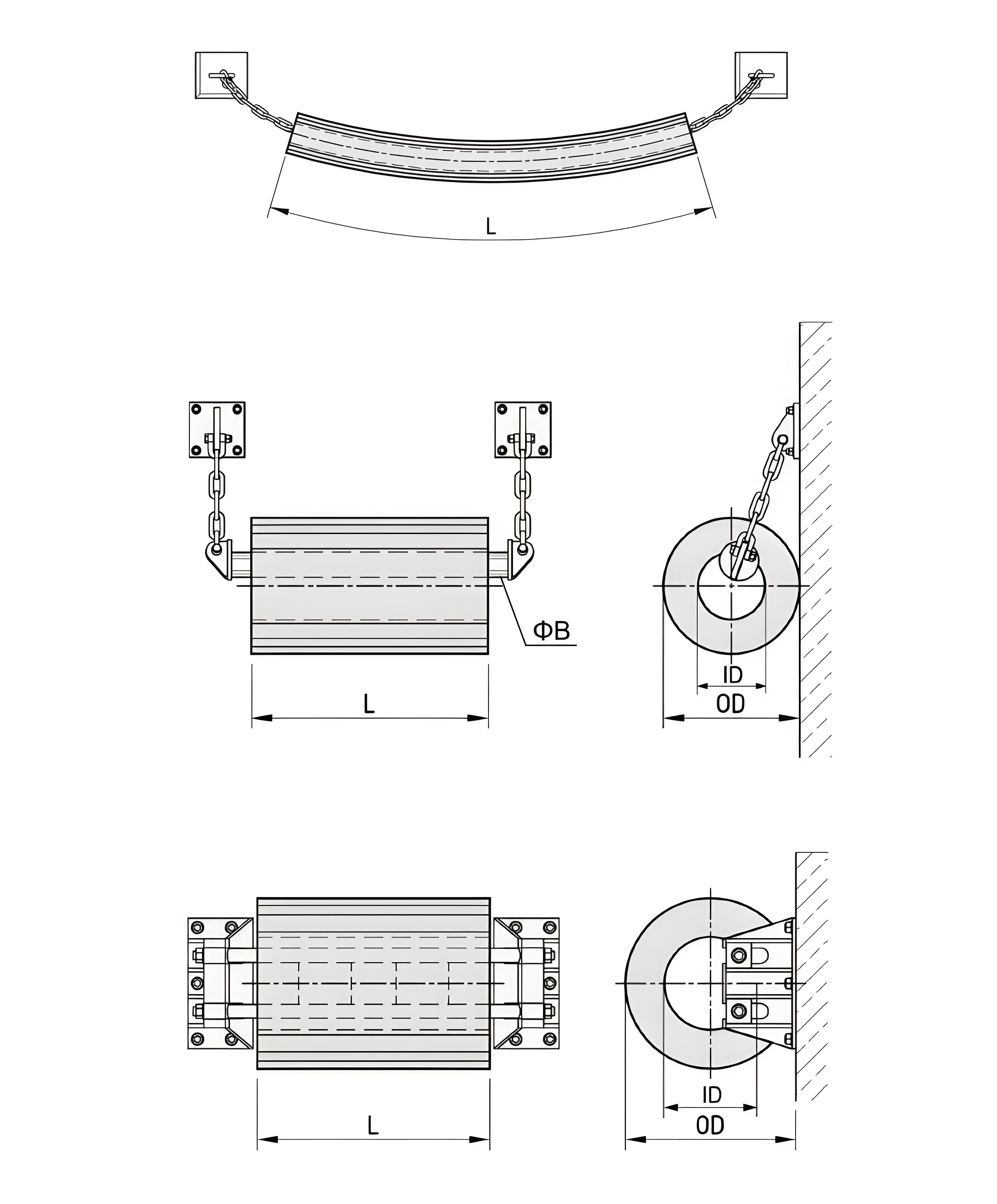

Drawings
Dimensions
| CYLINDRICAL RUBBER FENDERS | ||||
| FenderSize ODxID |
Energy | Reaction | P | Weight |
| [mm] | [KN-M] | [KN] | [KN/m²] | [kg/m] |
| HM100 x 50 | 0.8 | 43 | 547 | 7.2 |
| HM125 x 65 | 1.3 | 51 | 500 | 11 |
| HM150 x 75 | 1.8 | 65 | 552 | 16.3 |
| HM175 x 75 | 2.7 | 92 | 781 | 24.1 |
| HM200 x 100 | 3.3 | 86 | 547 | 29 |
| HM250x125 | 5.1 | 108 | 550 | 45.3 |
| HM300x150 | 7.4 | 129 | 547 | 65.2 |
| HM380x190 | 11.8 | 164 | 550 | 105 |
| HM400x200 | 13.1 | 172 | 547 | 116 |
| HM450x225 | 16.6 | 194 | 549 | 147 |
| HM500x250 | 28 | 275 | 700 | 181 |
| HM600x300 | 40 | 330 | 700 | 255 |
| HM800x400 | 72 | 440 | 700 | 453 |
| HM1000x500 | 112 | 550 | 700 | 707 |
| HM1200x600 | 162 | 660 | 700 | 1018 |
| HM1400x700 | 220 | 770 | 700 | 1386 |
| HM1400x800 | 208 | 649 | 516 | 1245 |
| HM1500x750 | 253 | 825 | 700 | 1591 |
| HM1600x800 | 288 | 880 | 700 | 1810 |
| HM1750x900 | 340 | 929 | 657 | 2124 |
| HM2000x1200 | 415 | 871 | 462 | 2414 |
| HM2400x1200 | 647 | 1321 | 701 | 4073 |
| HM2700x1300 | 818 | 1486 | 728 | 5154 |
cylindrical rubber fenders, cylindrical boat fenders, trelleborg fenders, shibata fender, cylindrical marine fenders

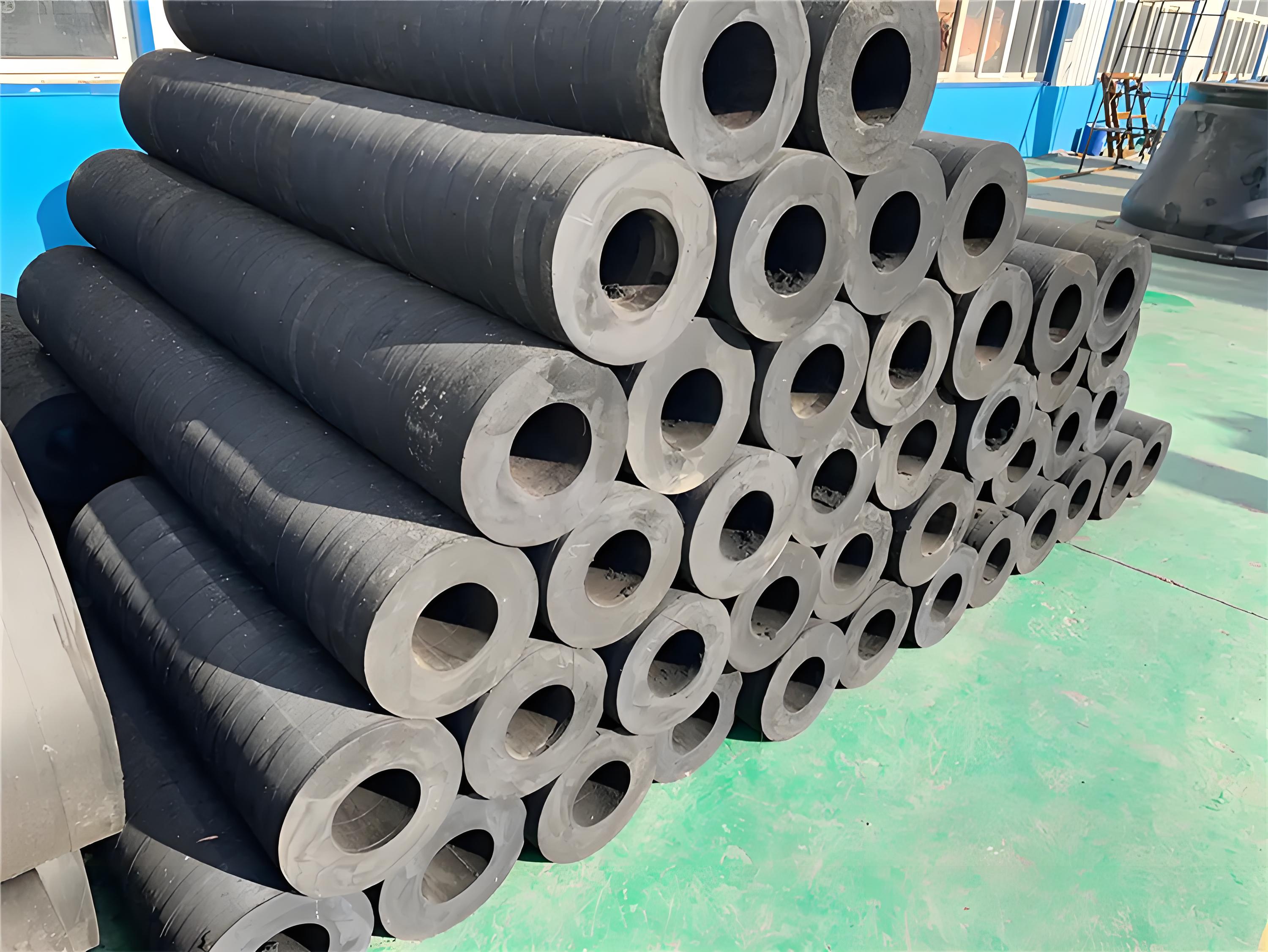

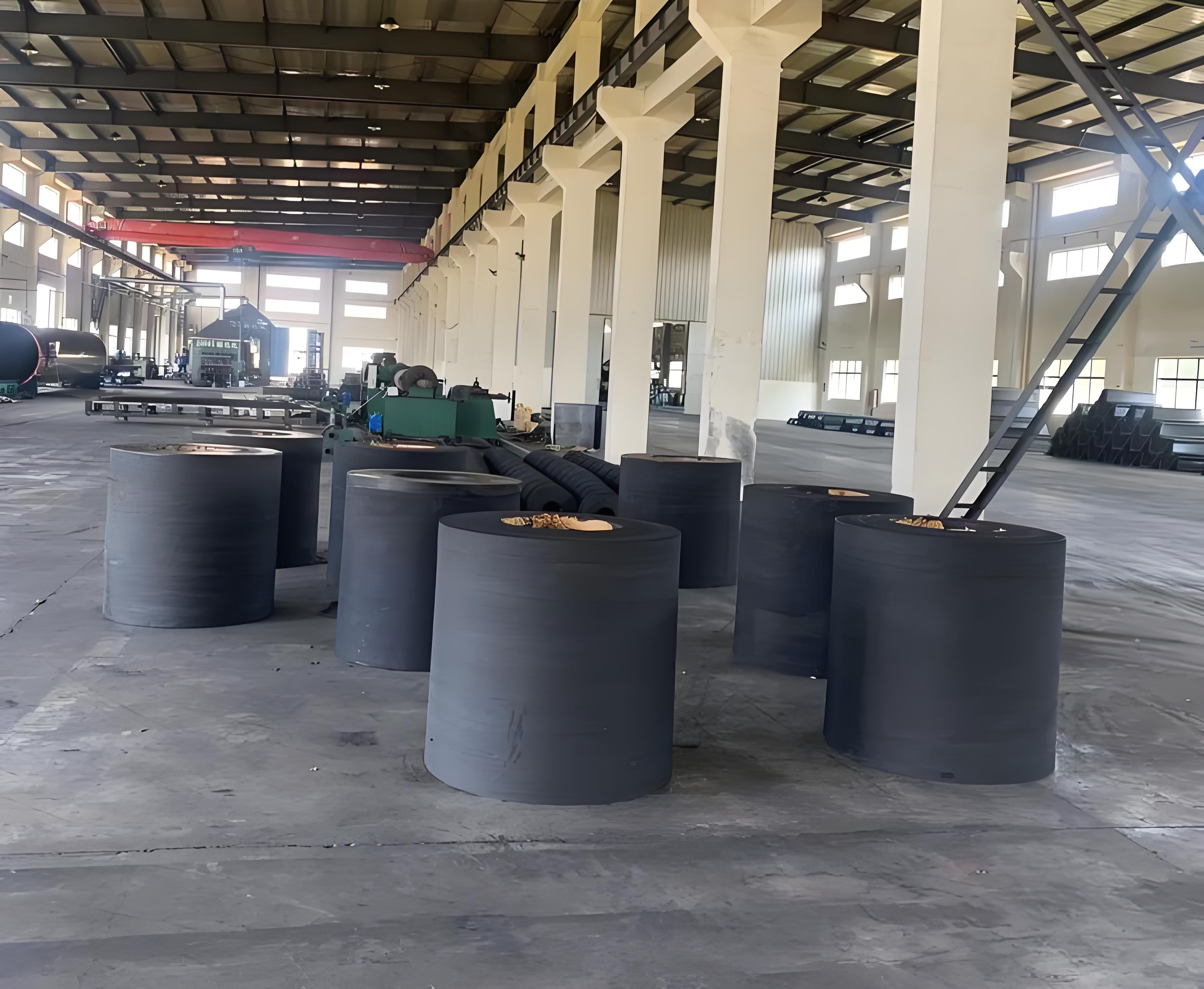

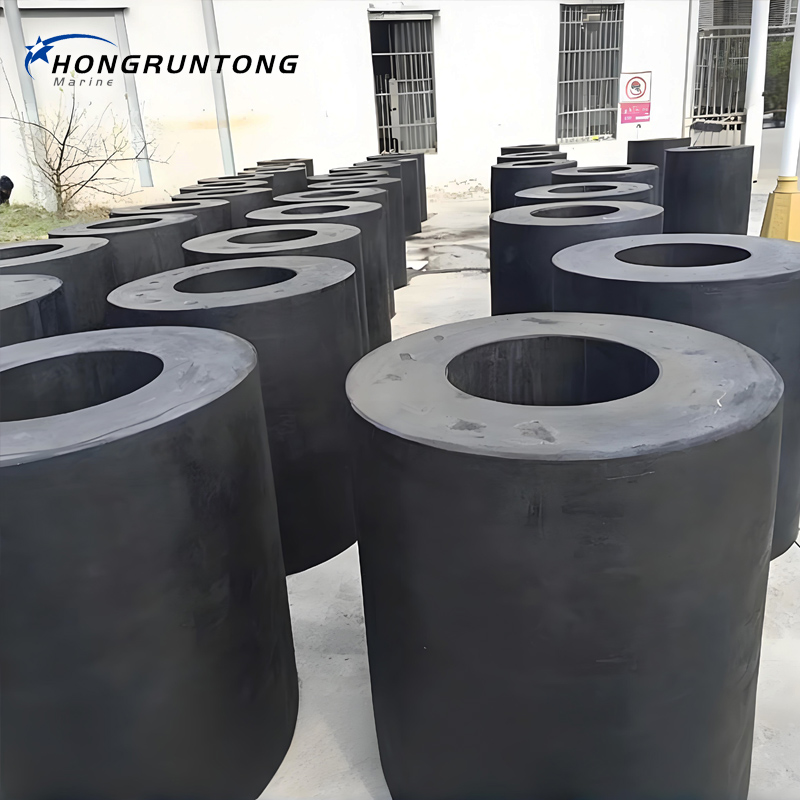

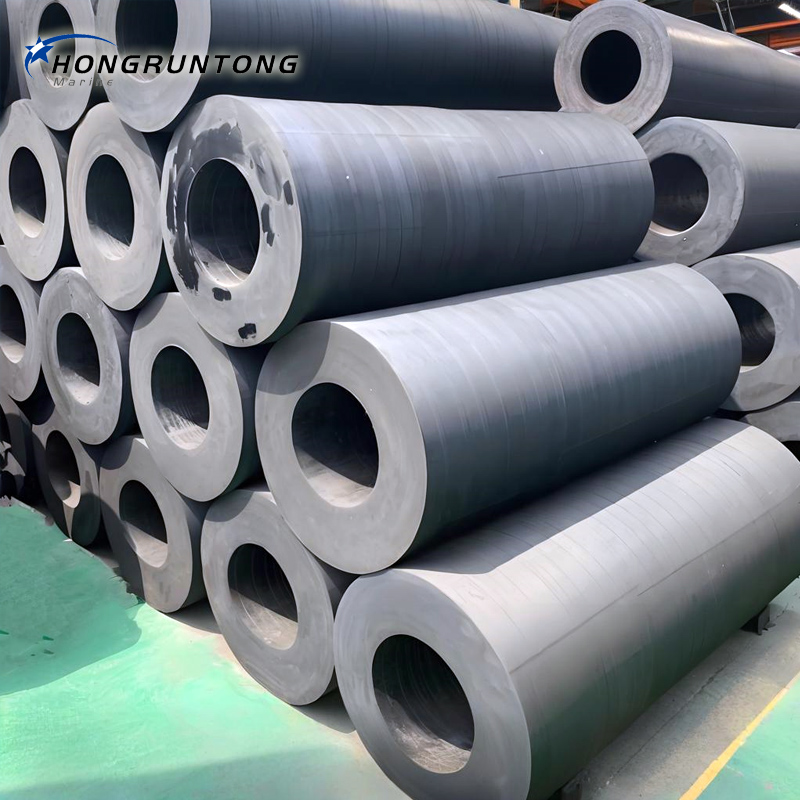

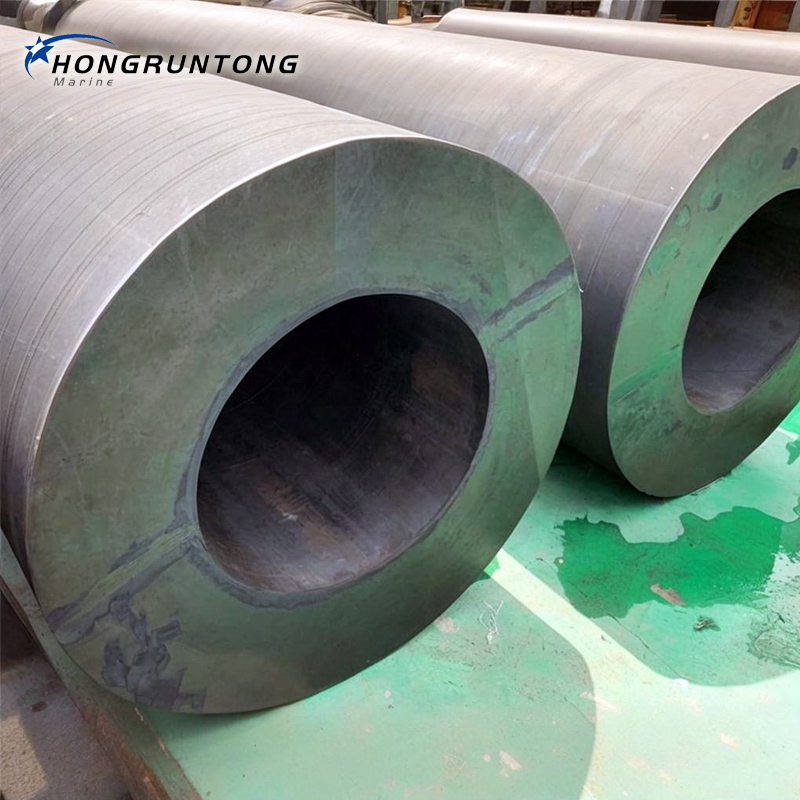

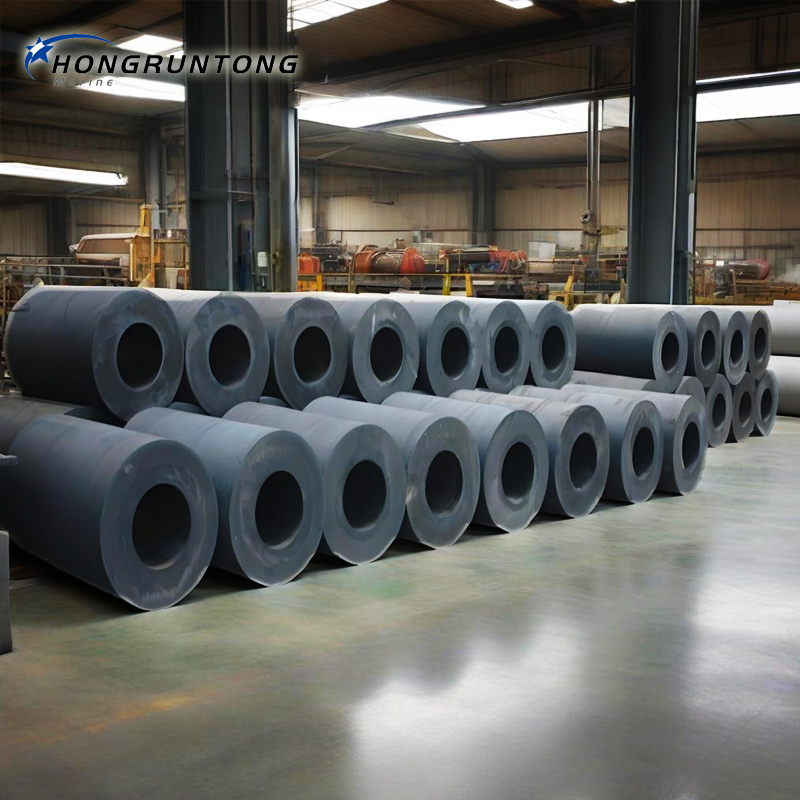

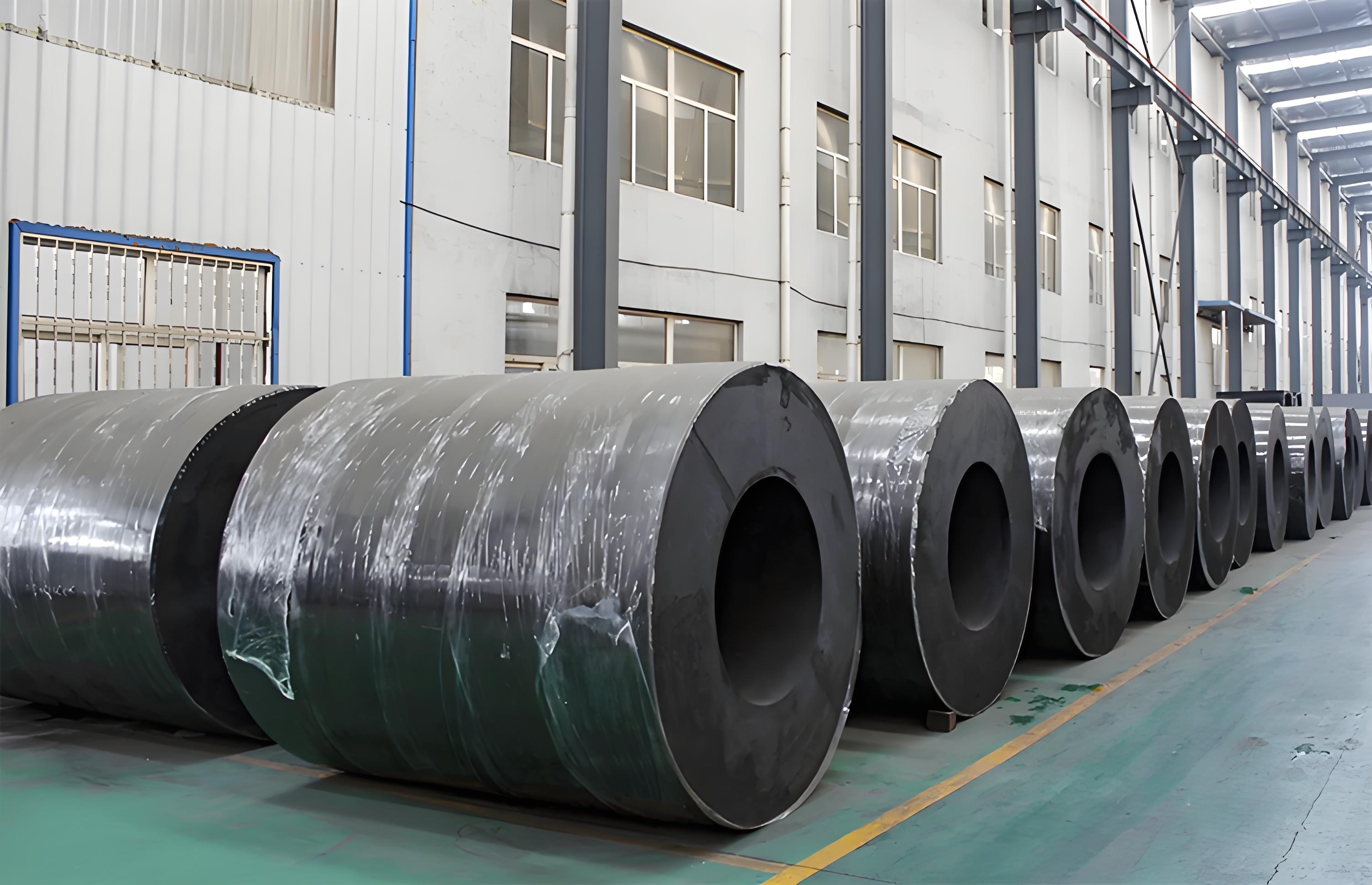

Detailed Photos
