Super Cone Fender
Super cone fenders are the latest generation of fenders, offering optimal performance and efficiency. The cone body shape of the fender provides excellent shear strength and stability even at large compression angles.
Super Cone Fenders are one of the most efficient and stable marine fender solutions available today, designed to handle the harsh demands of modern port operations. With a well-proven conical shape and a wide base, these fenders provide superior energy absorption, low reaction force, and high shear resistance—making them ideal for berthing large vessels under varying tidal and angular conditions.
Characteristics
1. High Energy Absorption
2. Low Reaction Force
3. Multi-Directional Performance
4. Easy Installation and Maintenance
5. Durable and Long-Lasting
6. Wide Range of Sizes
Applications
● General cargo berths
● Bulk terminals
● Oil and LNG facilities
● Container berths
● RoRo
● Cruise terminals
● Parallel motion systems
● Monopiles and dolphins

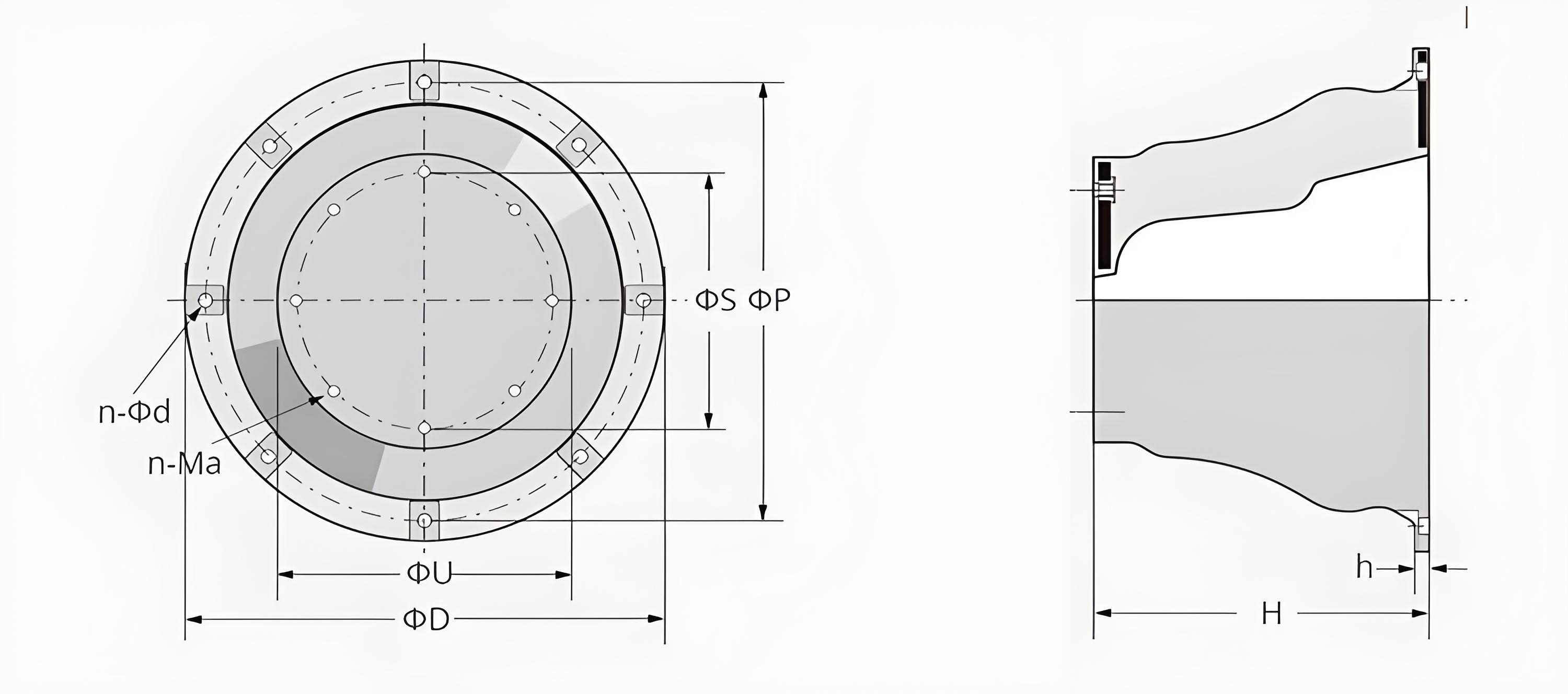

Specifications
Model |
H |
h |
F |
D |
Q |
W |
d-m |
d-n |
Cone |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
HM-300H |
300 |
13.5 |
255 |
450 |
195 |
405 |
M16 |
20 |
HM-350H |
350 |
25 |
300 |
570 |
235 |
510 |
M20 |
25 |
HM-400H |
400 |
18 |
340 |
600 |
260 |
540 |
M20 |
25 |
HM-500H |
500 |
25 |
425 |
750 |
325 |
675 |
M24 |
30 |
HM-600H |
600 |
27 |
510 |
900 |
390 |
810 |
M24 |
30 |
HM-700H |
700 |
32 |
585 |
1050 |
455 |
945 |
M30 |
38 |
HM-800H |
800 |
36 |
680 |
1200 |
520 |
1080 |
M36 |
44 |
HM-900H |
900 |
41 |
765 |
1350 |
585 |
1215 |
M36 |
44 |
HM-1000H |
1000 |
45 |
850 |
1500 |
650 |
1350 |
M42 |
56 |
HM-1050H |
1050 |
55 |
1030 |
1680 |
900 |
1530 |
M36 |
44 |
HM-1100H |
1100 |
50 |
935 |
1650 |
715 |
1485 |
M42 |
50 |
HM-1150H |
1150 |
52 |
998 |
1725 |
750 |
1550 |
M42 |
56 |
HM-1200H |
1200 |
54 |
1020 |
1800 |
780 |
1620 |
M42 |
50 |
HM-1300H |
1300 |
59 |
1105 |
1950 |
845 |
1755 |
M48 |
60 |
HM-1400H |
1400 |
66 |
1190 |
2100 |
930 |
1890 |
M48 |
60 |
HM-1600H |
1600 |
72 |
1360 |
2400 |
1060 |
2160 |
M48 |
70 |
HM-1800H |
1800 |
78 |
1530 |
2880 |
1190 |
2430 |
M56 |
76 |
HM-2000H |
2000 |
80 |
1900 |
3200 |
1540 |
2920 |
M56 |
76 |
*Note: Other sizes can be customized according to the requirements. |

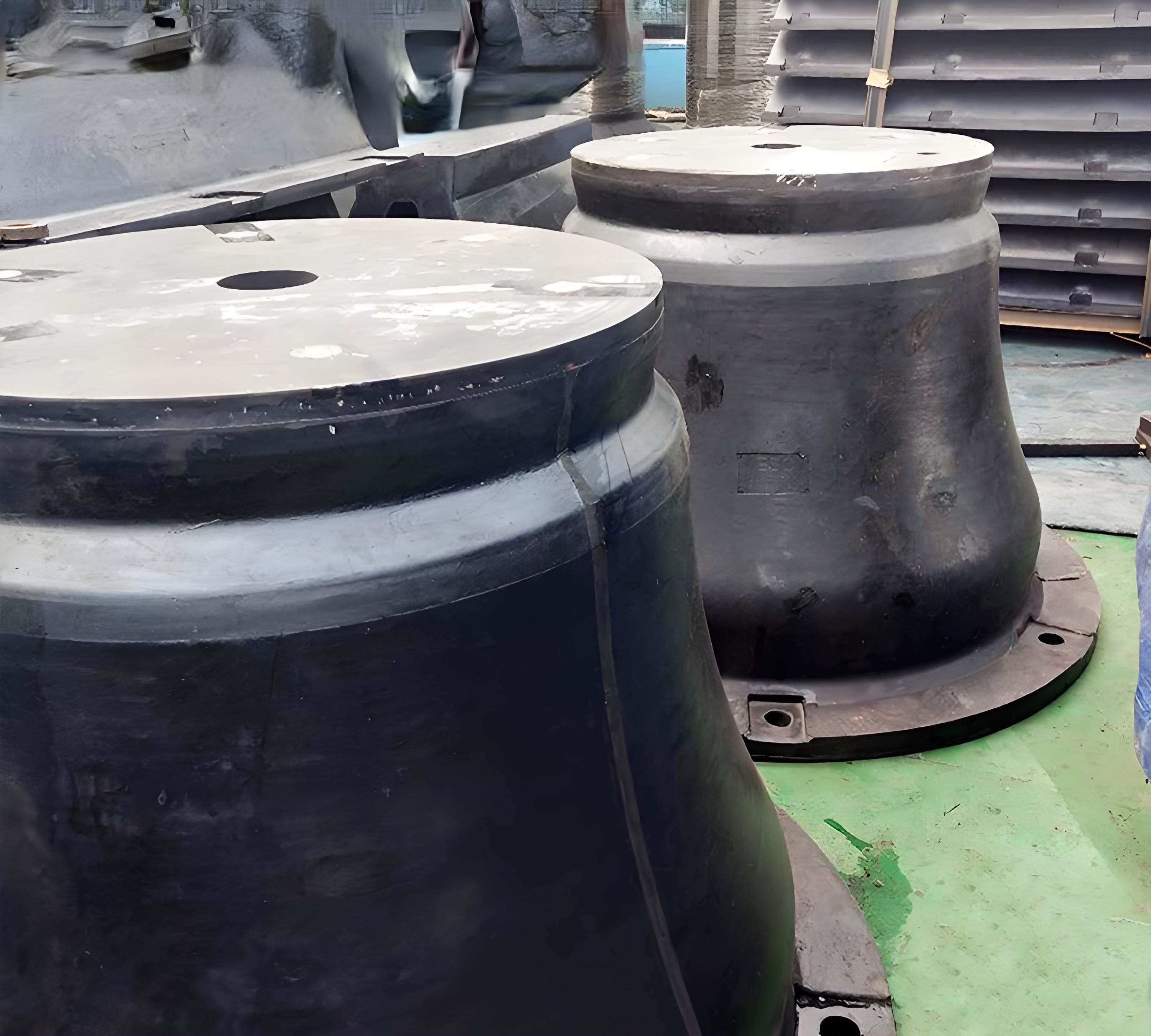

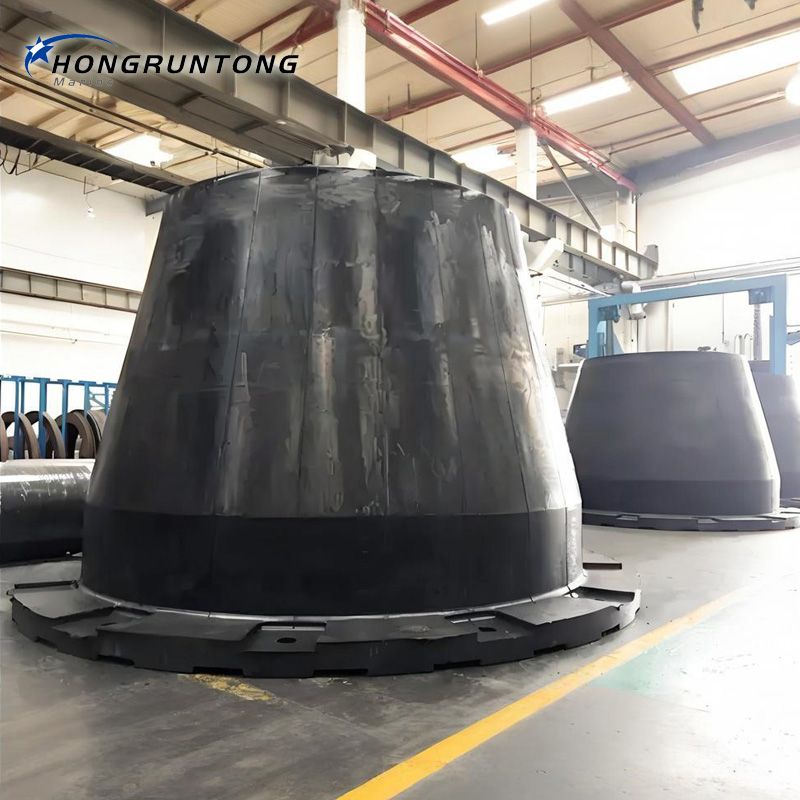

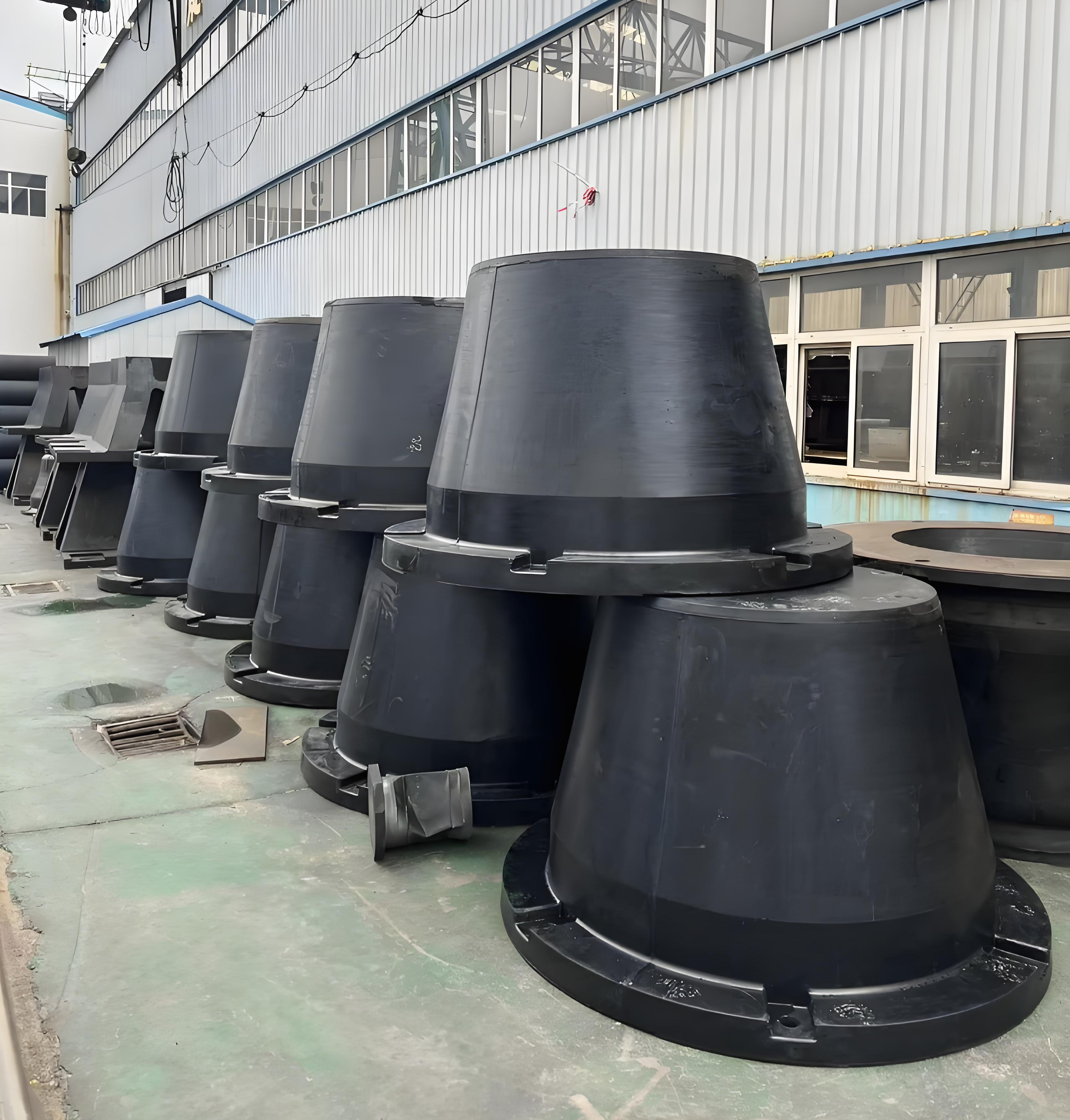

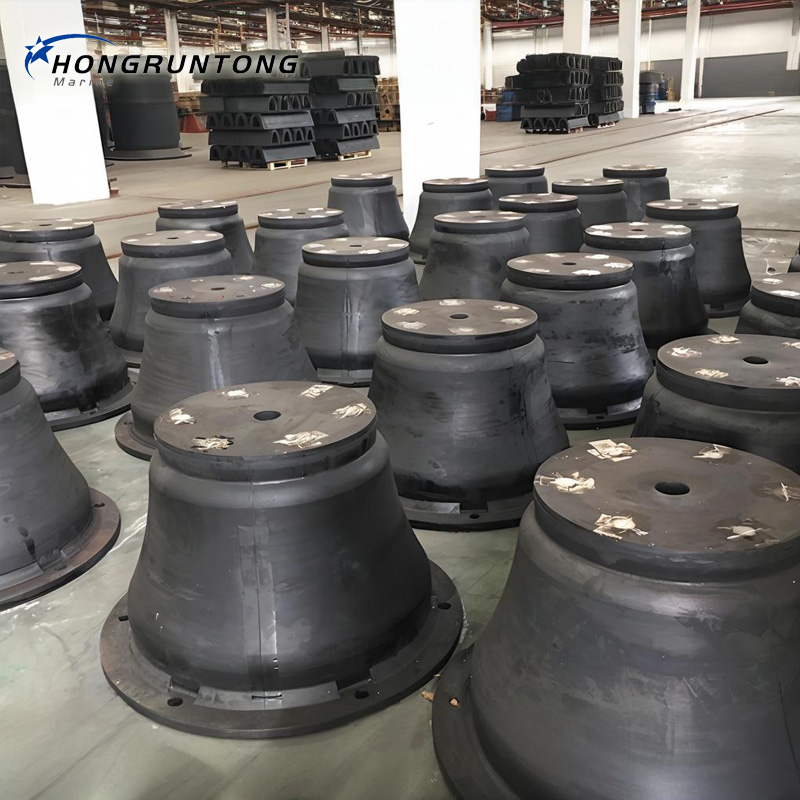

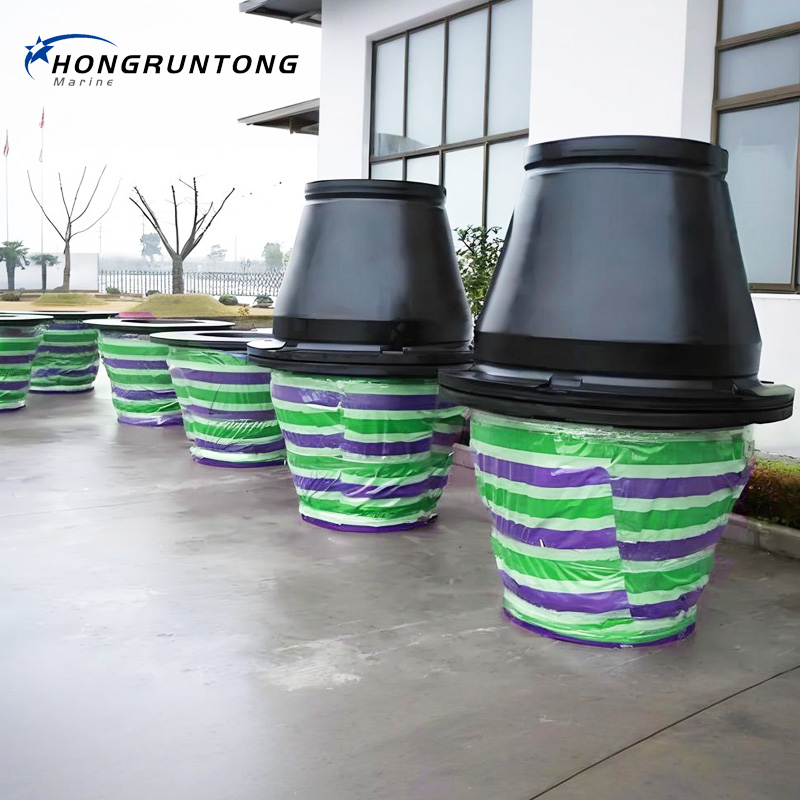

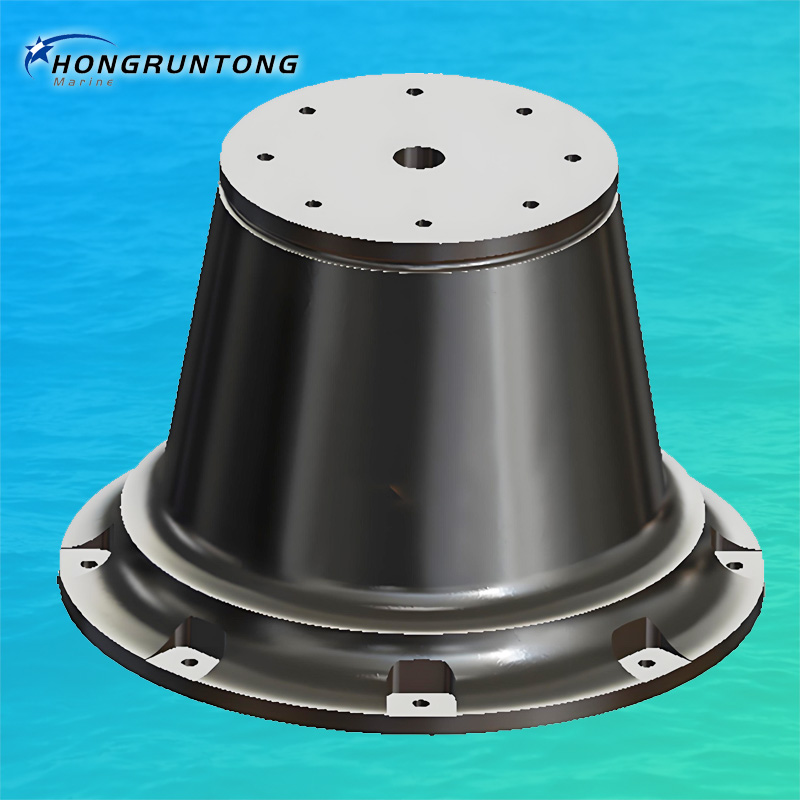

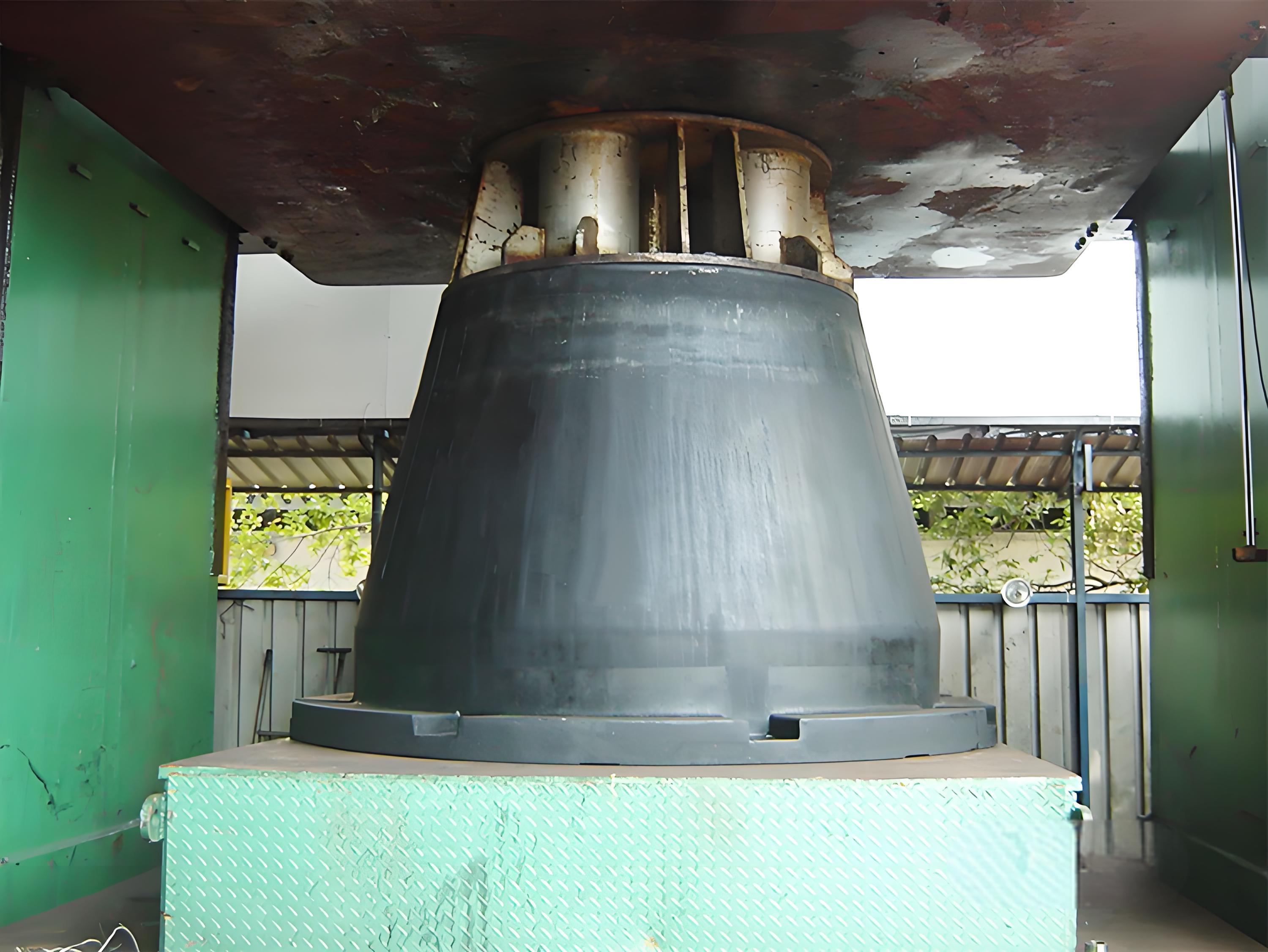

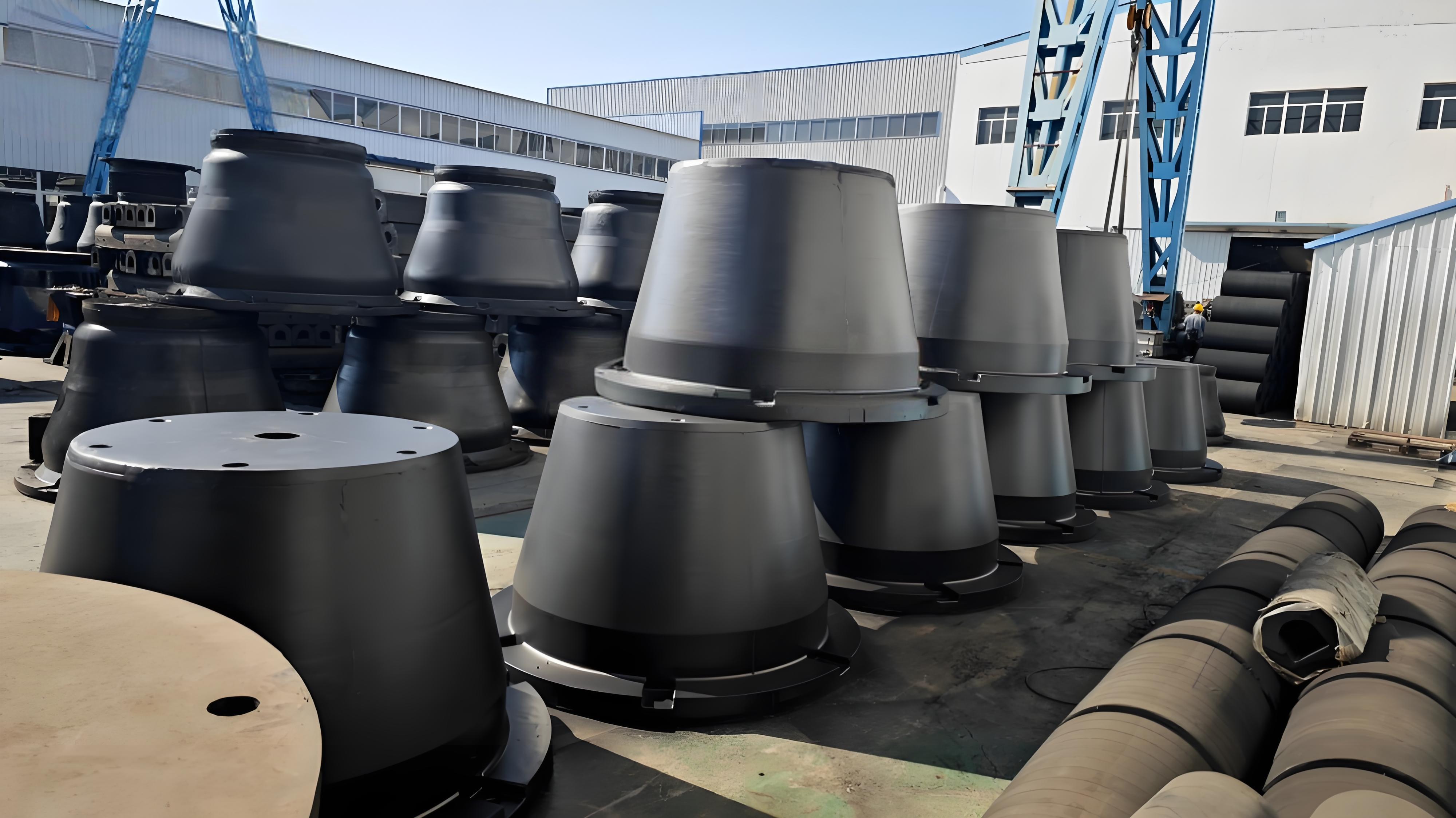

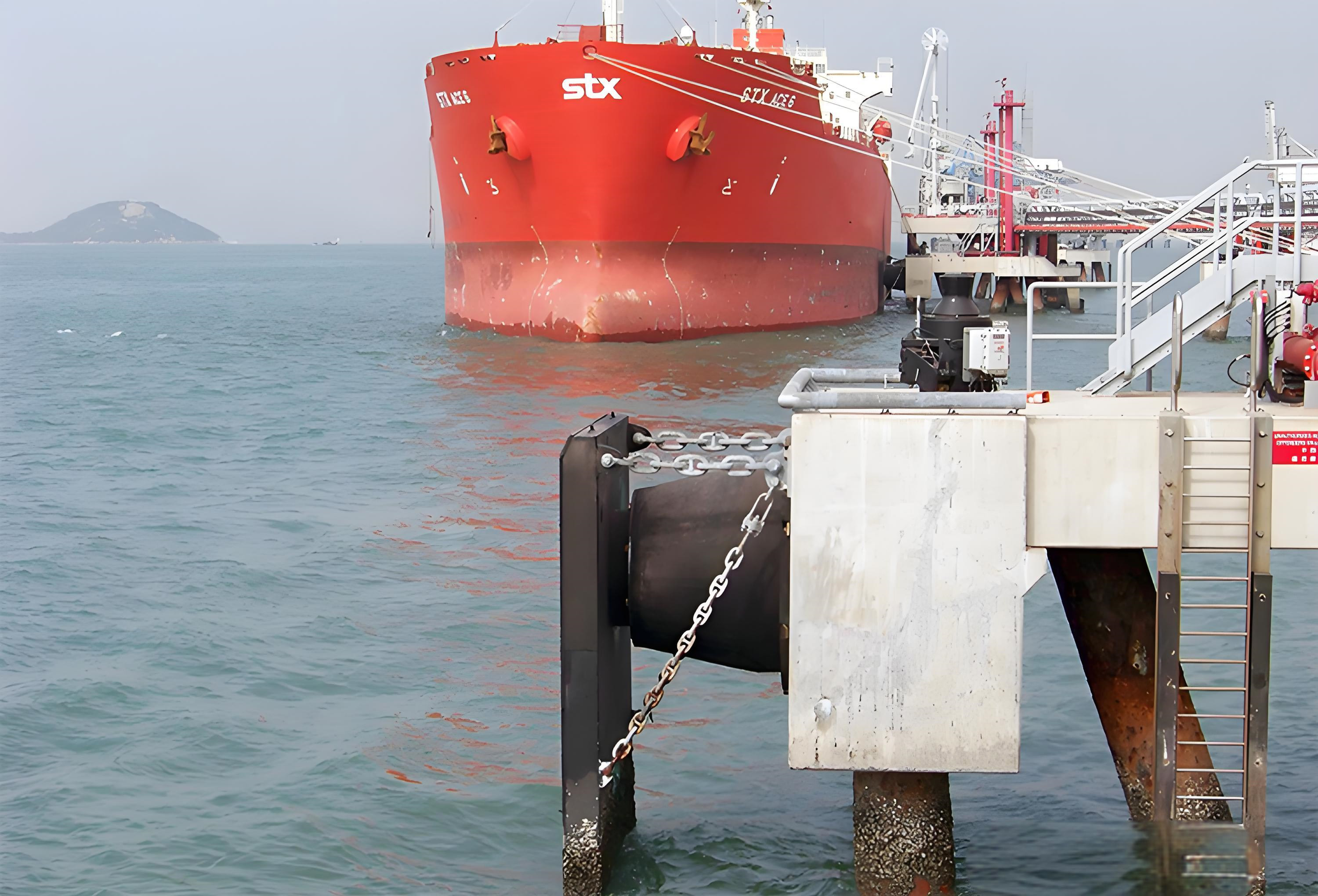

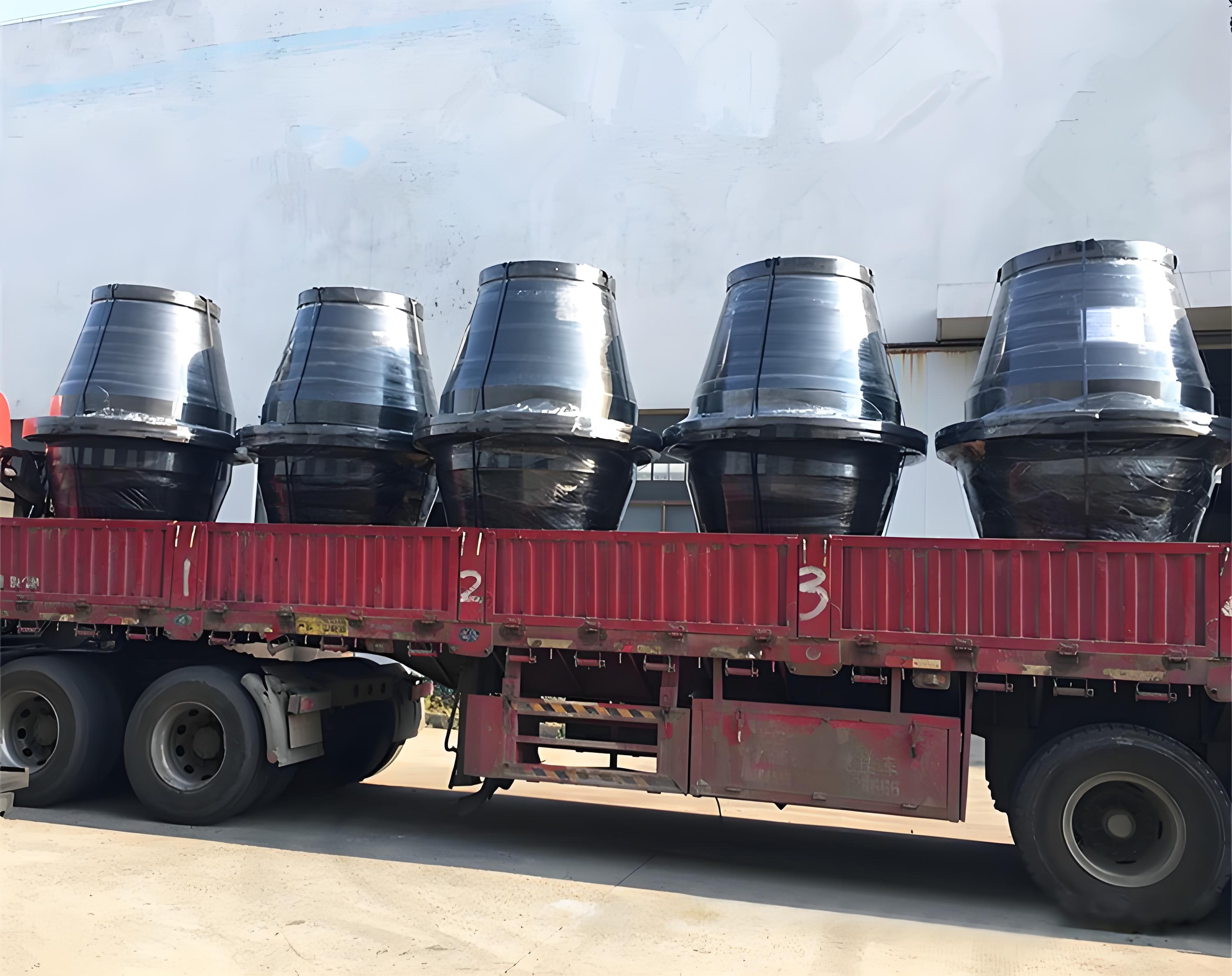

Detailed Images
