Marine Guard Fenders
Marine Guard Fenders are a type of marine fender that are made of closed-cell foam and are used to protect boats and ships from damage when they come into contact with docks, piers, or other vessels. They are lightweight, durable, and easy to install and maintain.
Marine Guard Fenders are typically used on boats and ships as a type of cushioning system to prevent damage when the vessel comes into contact with a dock or another vessel. These fenders are typically made from closed-cell foam that is wrapped in a durable outer layer, such as polyurethane or nylon.
There are several types of Marine Guard Fenders available, including cylindrical fenders, spherical fenders, and cylindrical fenders with a flat front face. The size and shape of the fender chosen will depend on the size and shape of the vessel it is being used on, as well as the specific docking situation.
Aside from their use in the marine industry, Marine Guard Fenders can also be used in other applications where cushioning and impact resistance are needed, such as in the automotive and construction industries.
foam filled marine fenders, foam filled boat fenders, foam dock fenders, foam filled dock fenders, foam boat fenders for sale
Characteristics
► Colorful
► Unsinkable construction & design
► High energy absorption
► Resist UV rays and ozone effect
► Non-marking skin
► Low maintenance
► Quite easy to install, dismantle and re-locate
foam filled marine fenders, foam filled boat fenders, foam dock fenders, foam filled dock fenders, foam boat fenders for sale

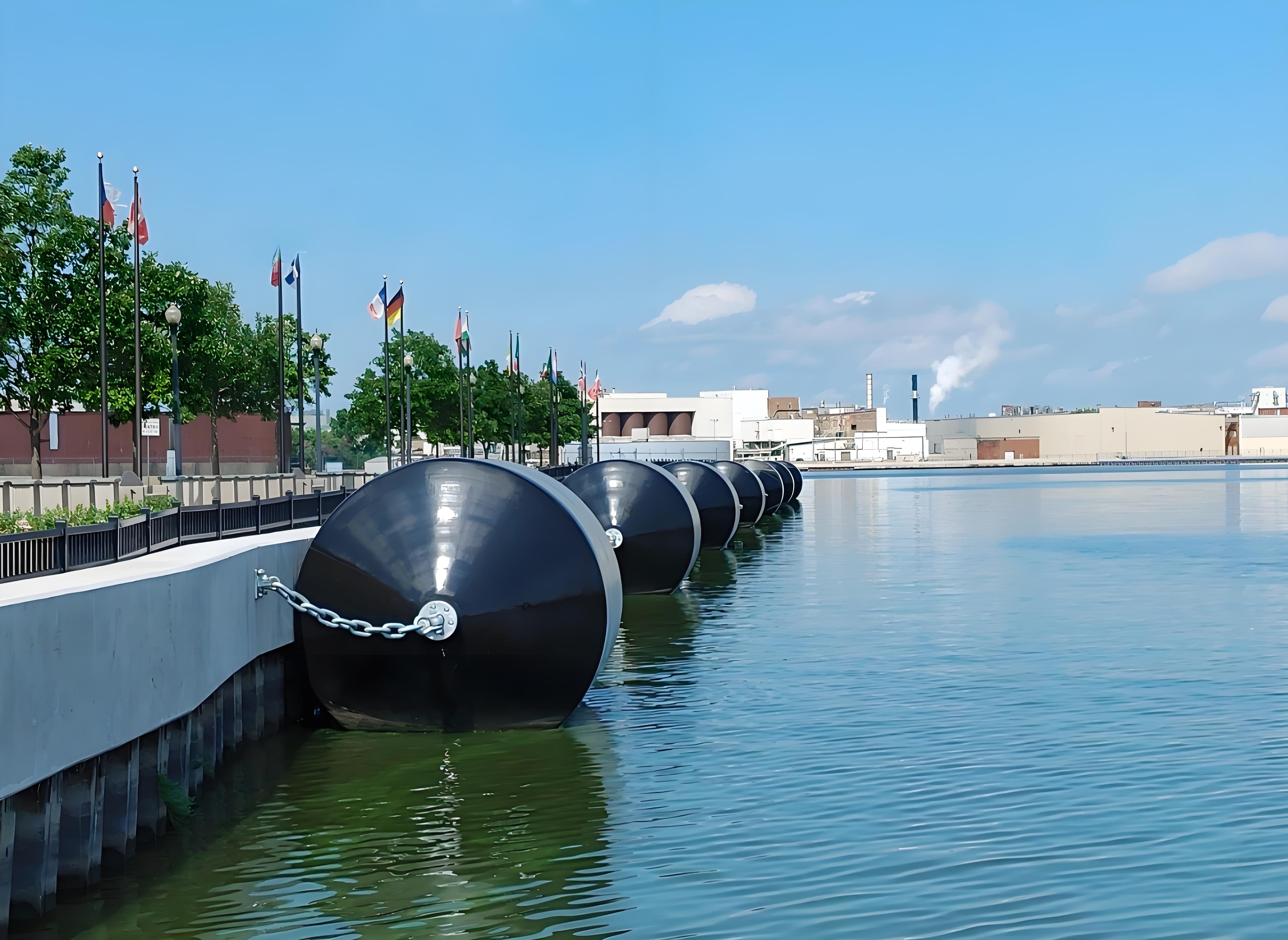

Applications
● Navy berths
● STS, STB operations
● Jetties
● Cruise ships & large yachts
● Ferries

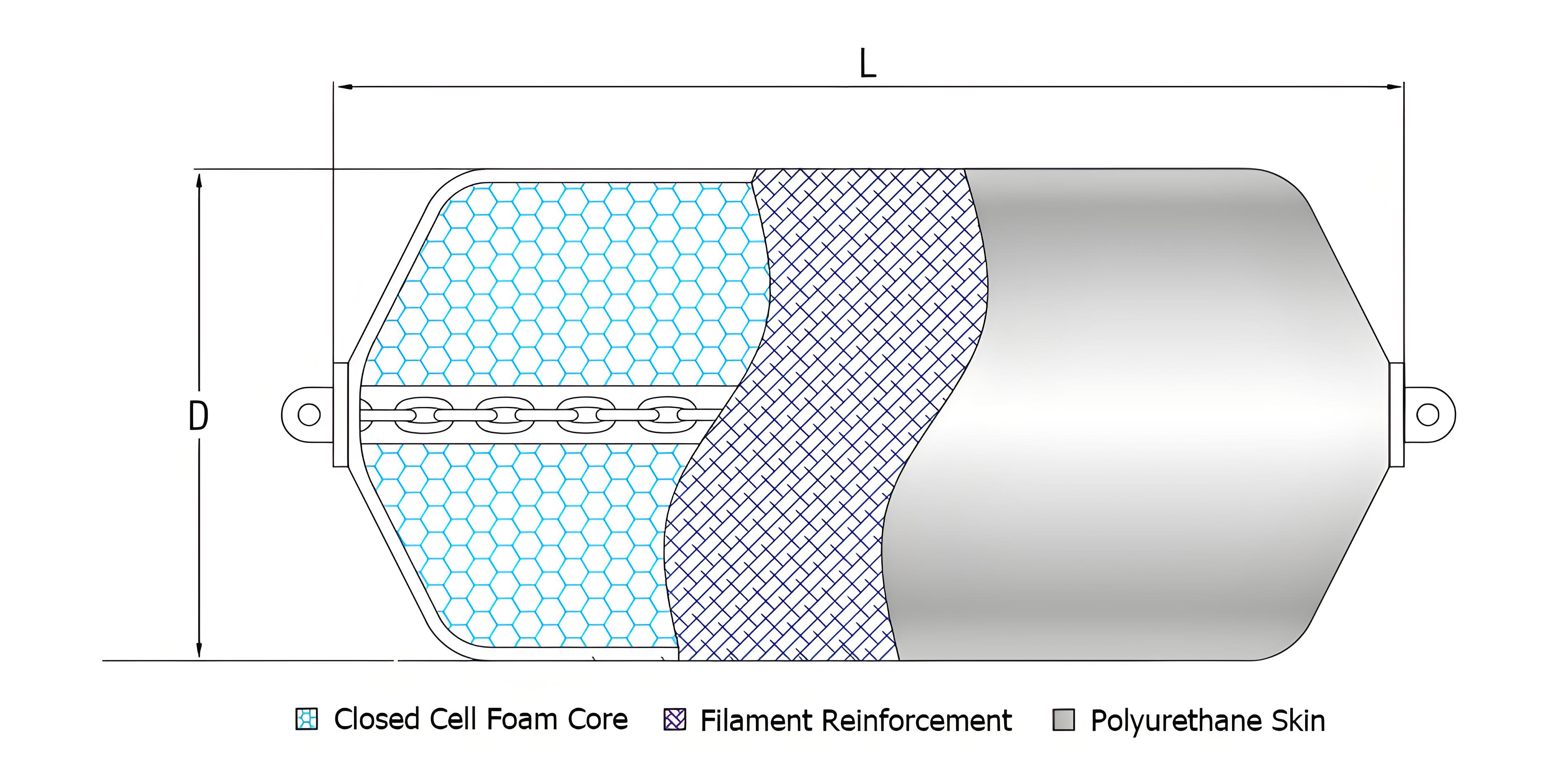

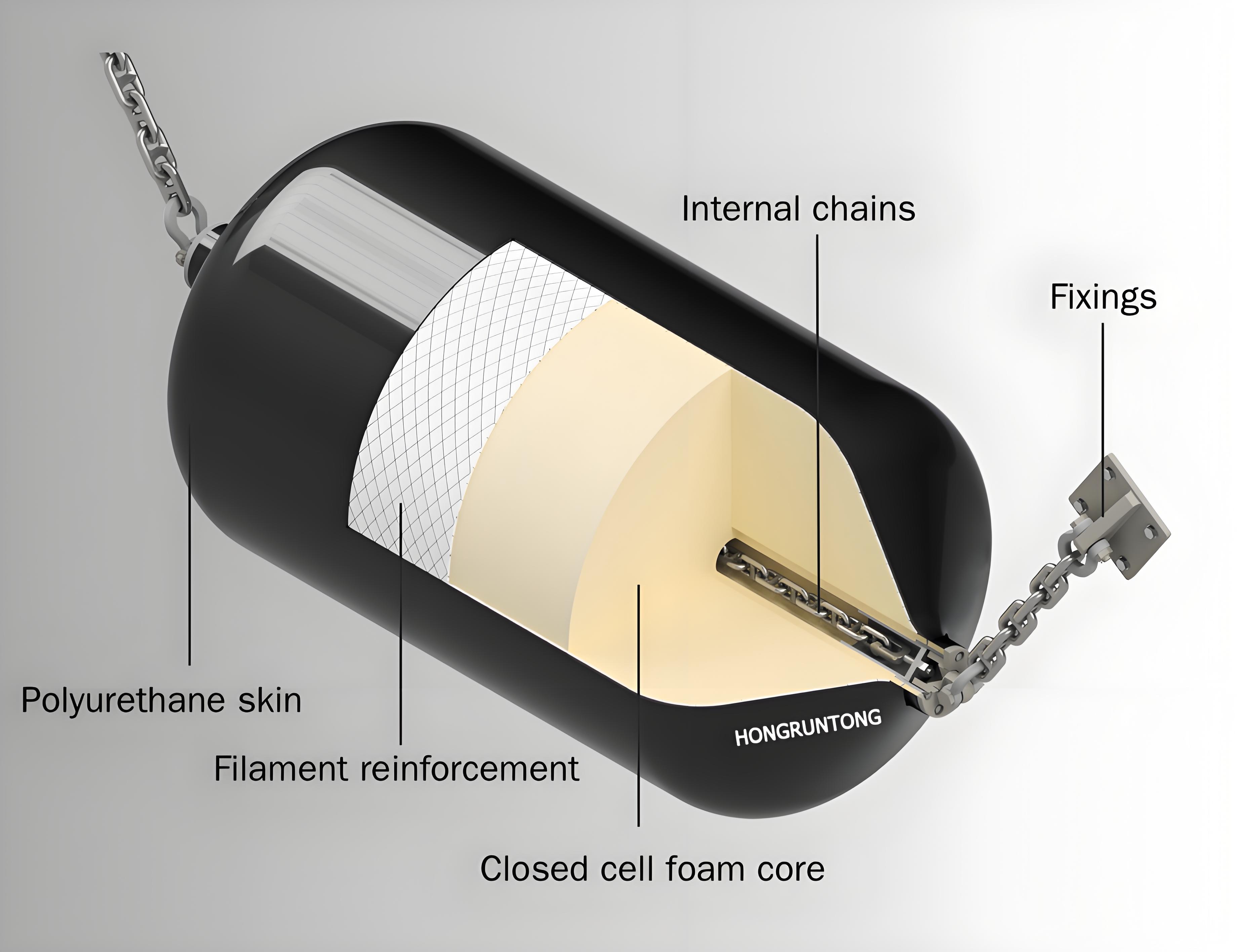

Structure
foam filled marine fenders, foam filled boat fenders, foam dock fenders, foam filled dock fenders, foam boat fenders for sale
Specifications
Dimensions DxL |
50% Deflection | 60% Deflection | ||
Energy | Reaction | Energy | Reaction | |
M | KNM | KN | KNM | KN |
0.45 x 0.70 | 12 | 32.7 | 17.1 | 46.5 |
1.0 x 1.5 | 33.2 | 120.6 | 47.5 | 172.6 |
1.0 x 2.0 | 47 | 177.5 | 67.6 | 253.9 |
1.2 x 2.0 | 65.5 | 198.2 | 91.2 | 279.4 |
1.35 x 2.5 | 106.8 | 292.2 | 152 | 417.7 |
1.5 x 3.0 | 165.7 | 409.9 | 237.3 | 586.4 |
1.7 x 3.0 | 197.1 | 432.4 | 281.4 | 617.8 |
2.0 x 3.5 | 316.7 | 590.3 | 453 | 844.3 |
2.5 x 4.0 | 559.9 | 837.4 | 800.2 | 1196.4 |
2.5 x 5.5 | 839.4 | 1251.3 | 1199.3 | 1787.7 |
3.3 x 4.5 | 1049.3 | 1183.6 | 1497.4 | 1689.6 |
3.3 x 6.5 | 1694.5 | 1911.3 | 2420.2 | 2730.1 |

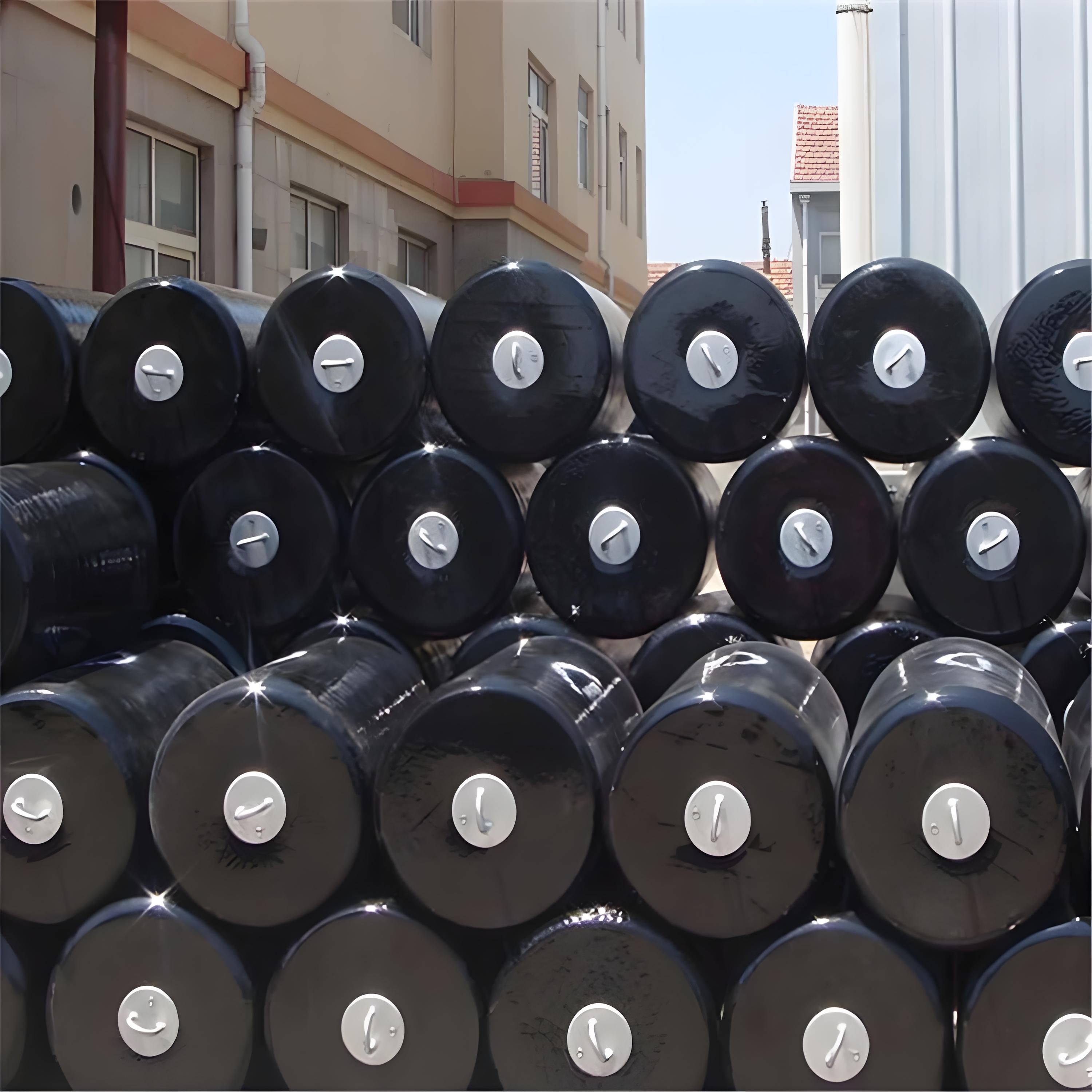

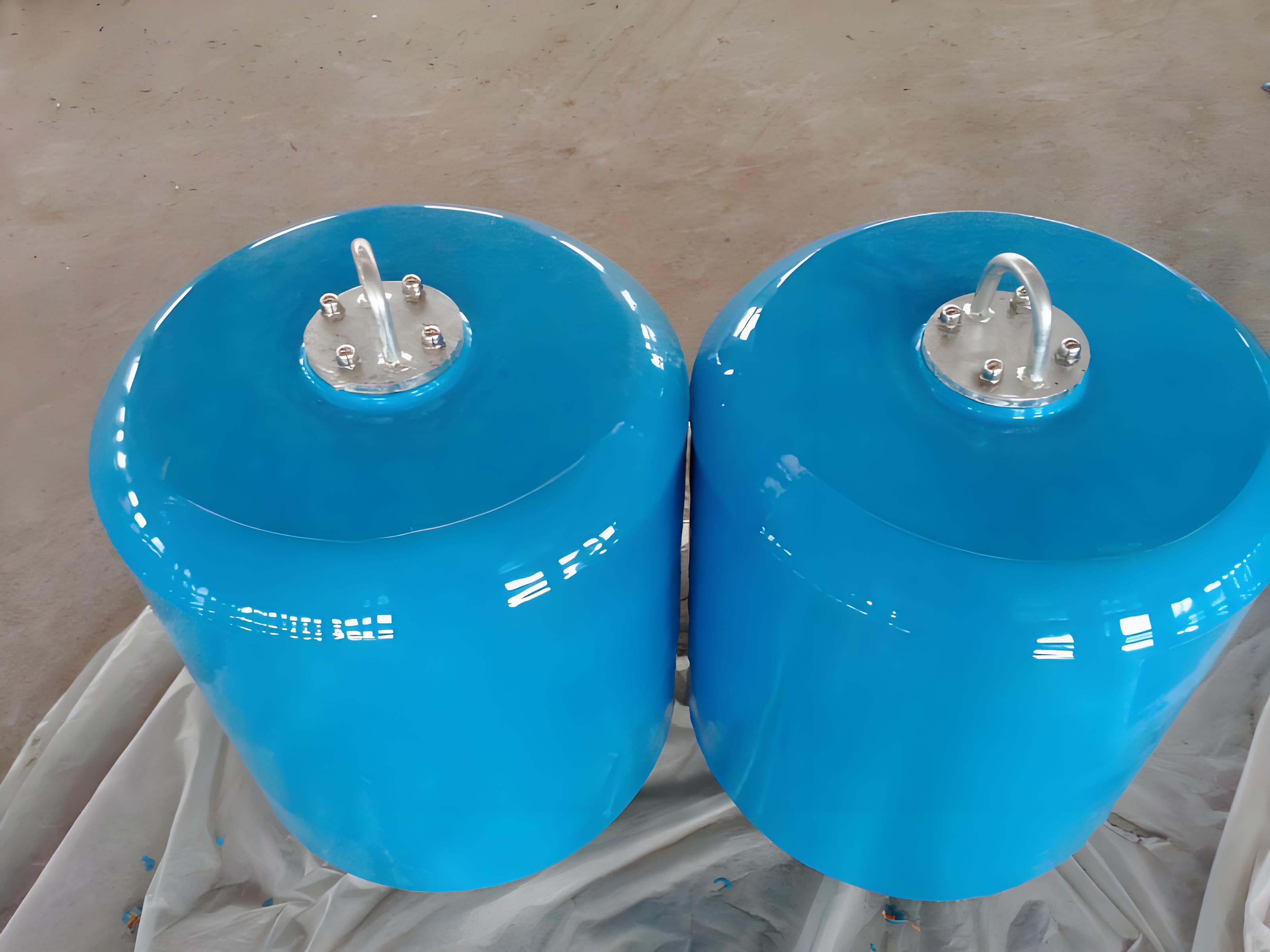

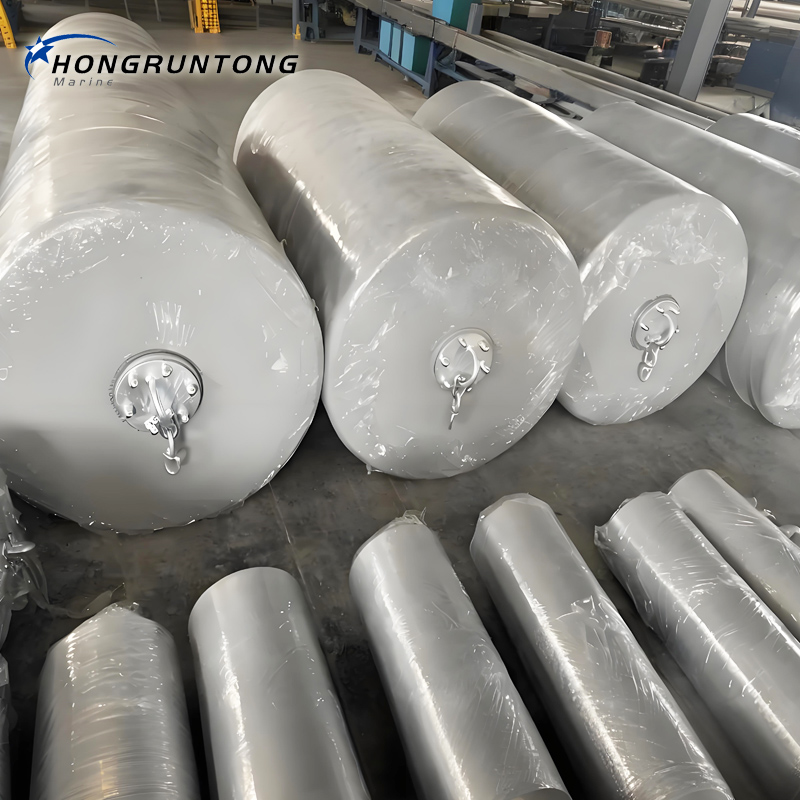

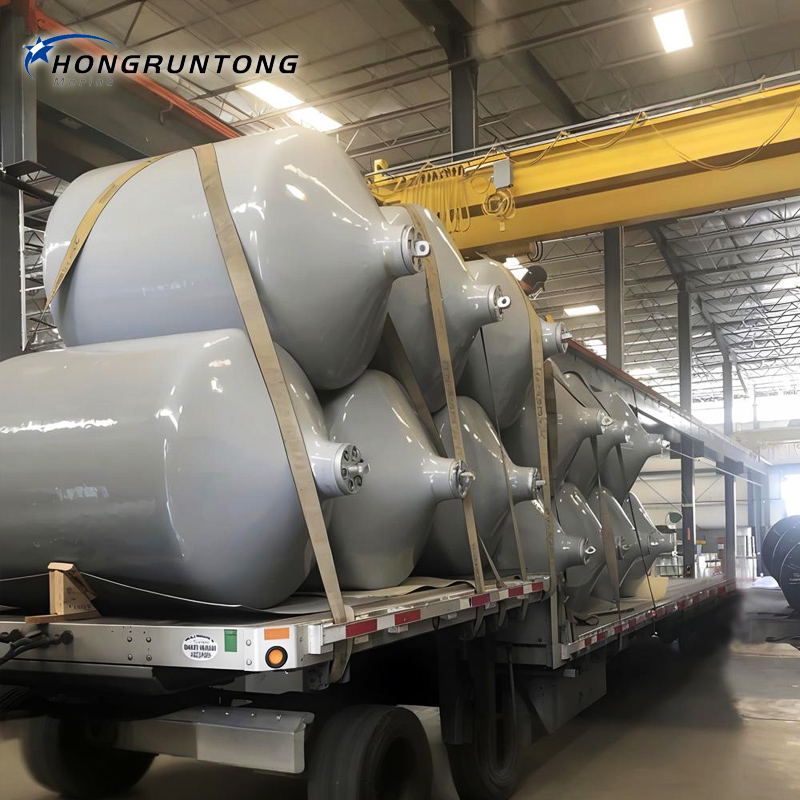

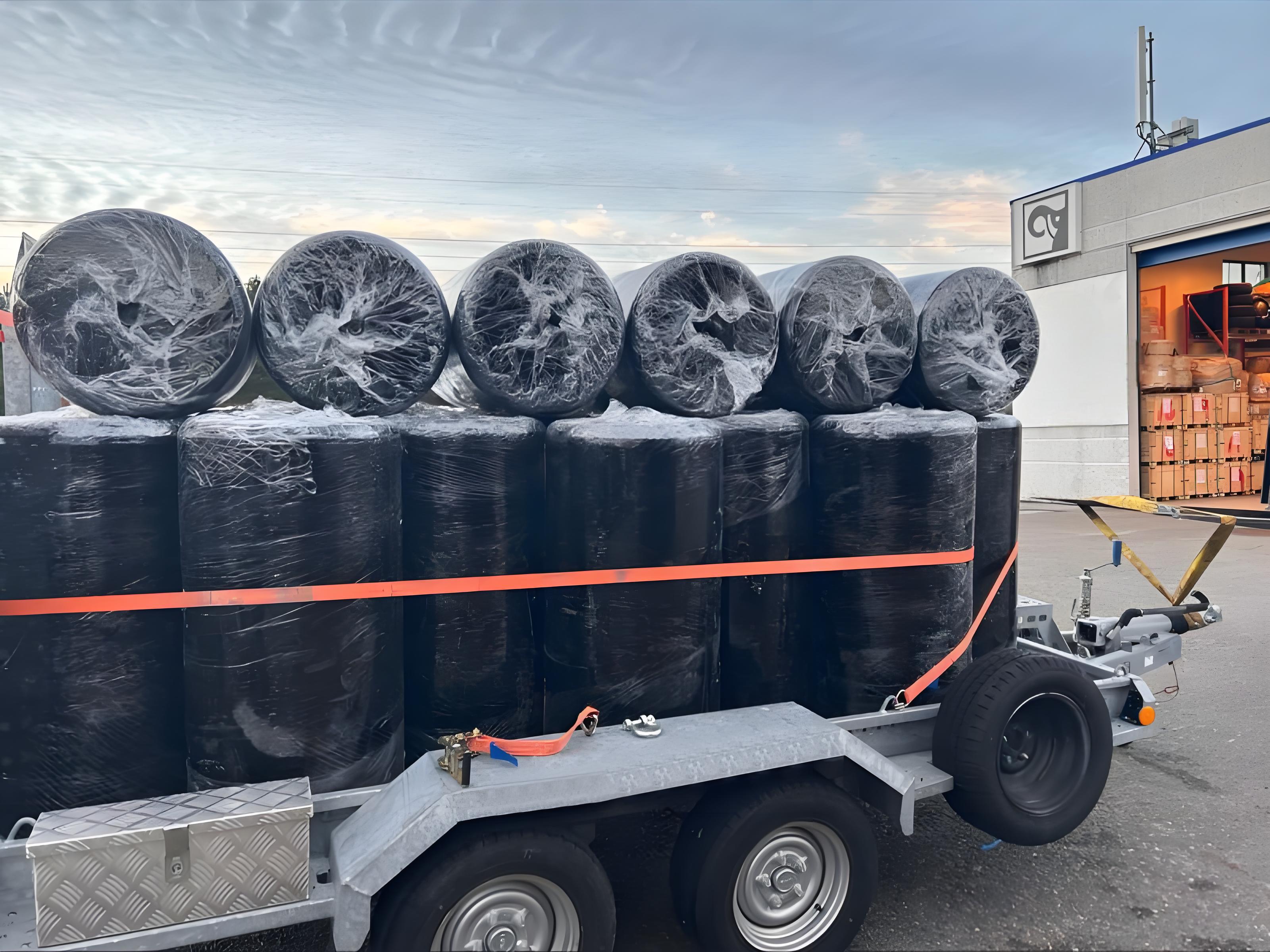

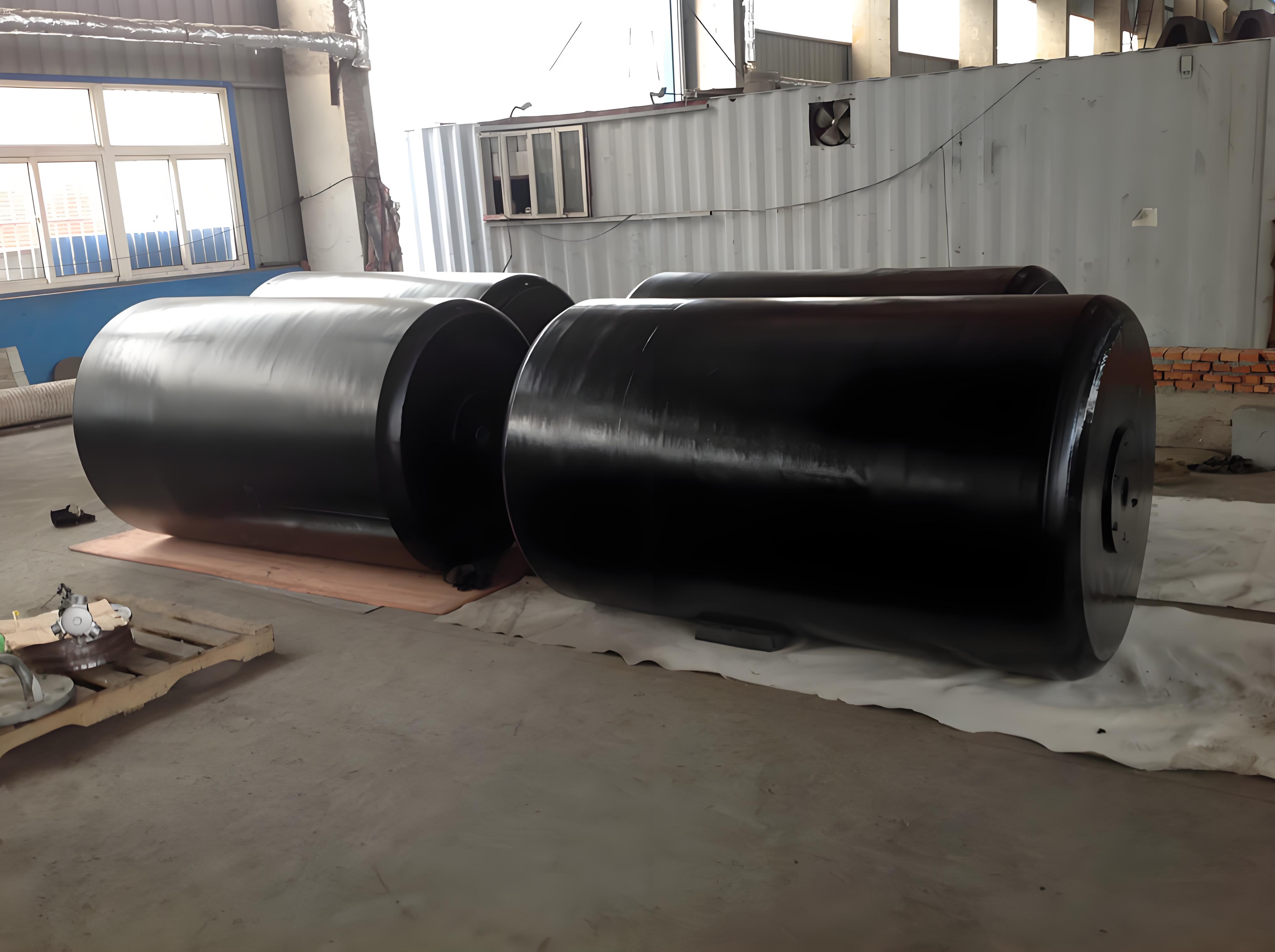

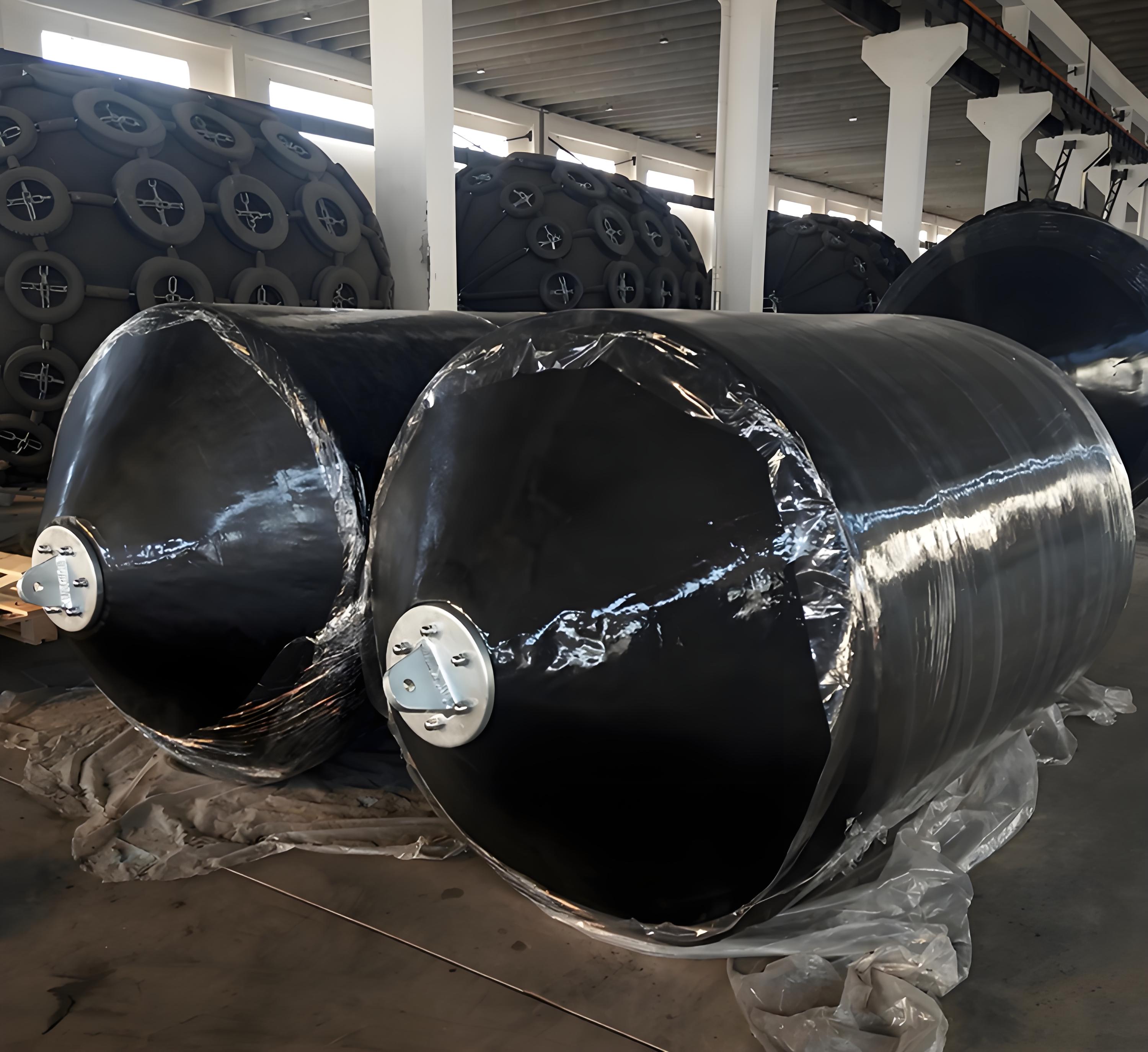

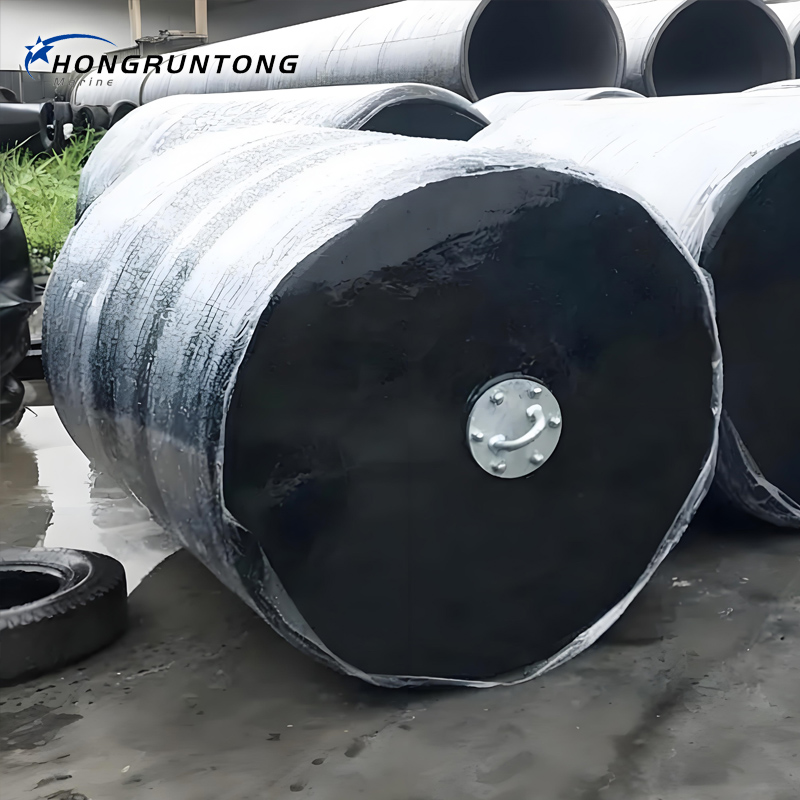

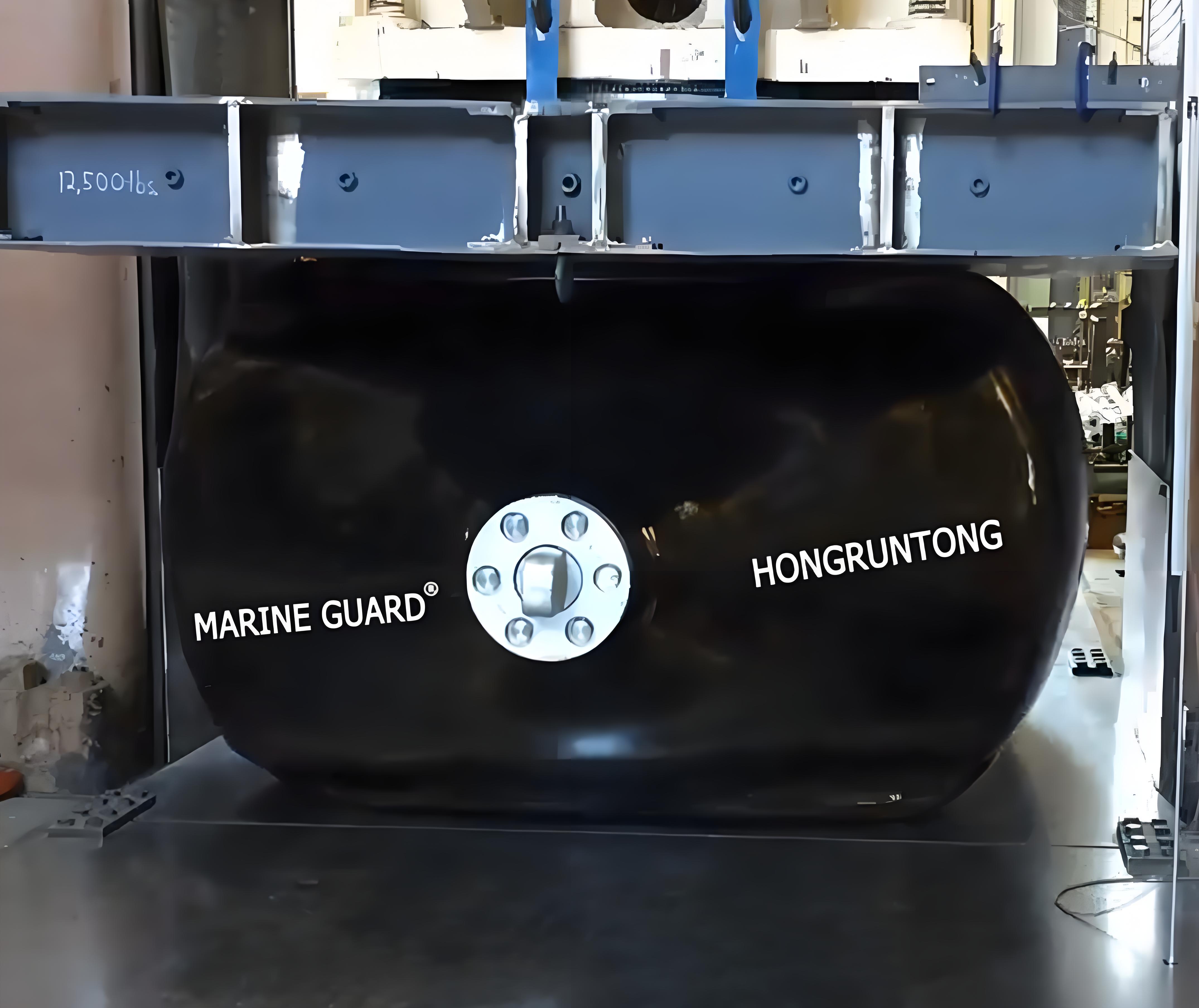

Detailed Photos
foam filled marine fenders, foam filled boat fenders, foam dock fenders, foam filled dock fenders, foam boat fenders for sale
Hongruntong Marine Co., Ltd, established in 1990 and located in Beijing, is a prominent manufacturer of rubber fenders and various other rubber products. We provide services to industries such as ship and port building, maritime infrastructure, hydro power, and construction.
