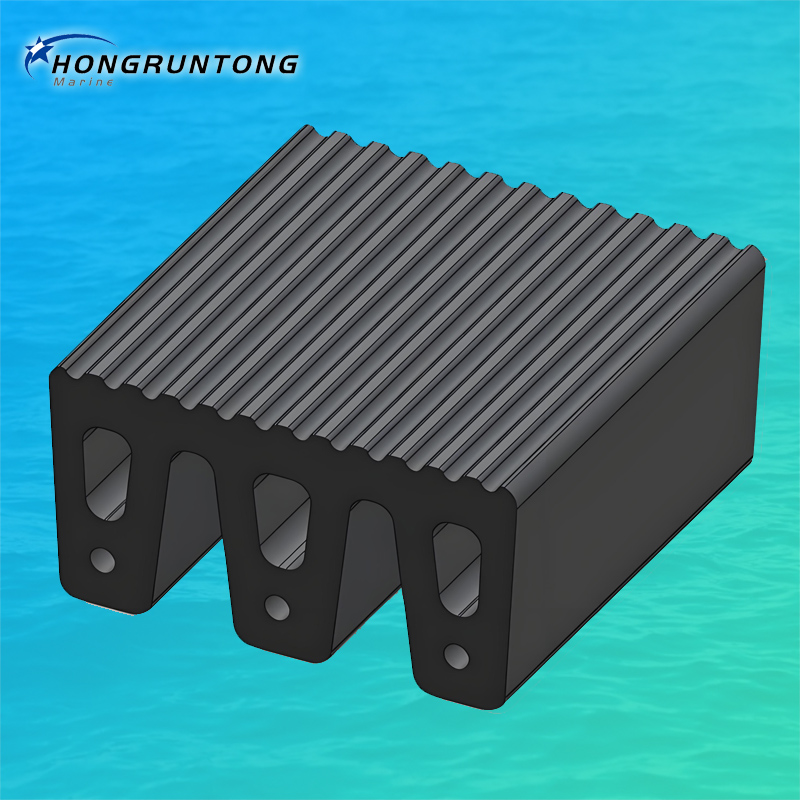

M Fenders
M fenders, also known as tugboat m type fenders, are a type of rubber fender commonly used on tugboats and other vessels that require heavy-duty protection from impacts and abrasions.
M fenders are a type of rubber fender used in marine applications to protect tugboats and other vessels from damage during berthing and mooring operations. They are typically M in shape with a wave or slightly curved face and are designed to absorb the energy of impact from a vessel and distribute it evenly across the fender surface. M fenders are typically made from durable natural rubber materials and are shaped like a letter M. They can be installed on the sides of the boat or on the bow and stern to provide maximum protection.
M fenders are specially designed rubber fenders used for the protection of tugboats during mooring, berthing and pushing operations. The "M" shaped fenders are a commonly used type of tugboat fender.
The "M" shape of the fender allows it to be installed on the bow or stern of the tugboat, offering protection against impacts from other vessels or solid structures such as piers or docks. The fenders can also absorb and distribute the energy of the impact, reducing the amount of force that is transmitted to the tugboat.
Tugboat M fenders are typically made of durable and high-quality natural rubber materials. They are also designed to be easily installed and removed, making them a popular choice for tugboat operators who require frequent fendering operations.
Characteristics
► Heavy-duty design
► High abrasion resistance
► Excellent gripping surface
► Wide variety of sizes & lengths available
► Flexible to follow contour of bow or stern
Applilcations
● Tugboats and workboats
● Special corner fenders
● Pontoon and Quay protection
● RoRo ramp ends
● Low clearance bridges
Specifications
Application: | Impact absorption & protection for marine applications |
Product: | M Type Fenders |
Hardness (Shore A): | 70° |
Material: | - |
Colour: | Black |
m type fenders, m rubber fenders, tugboat m type fender, tugboat m fenders, tugboat m type rubber fenders

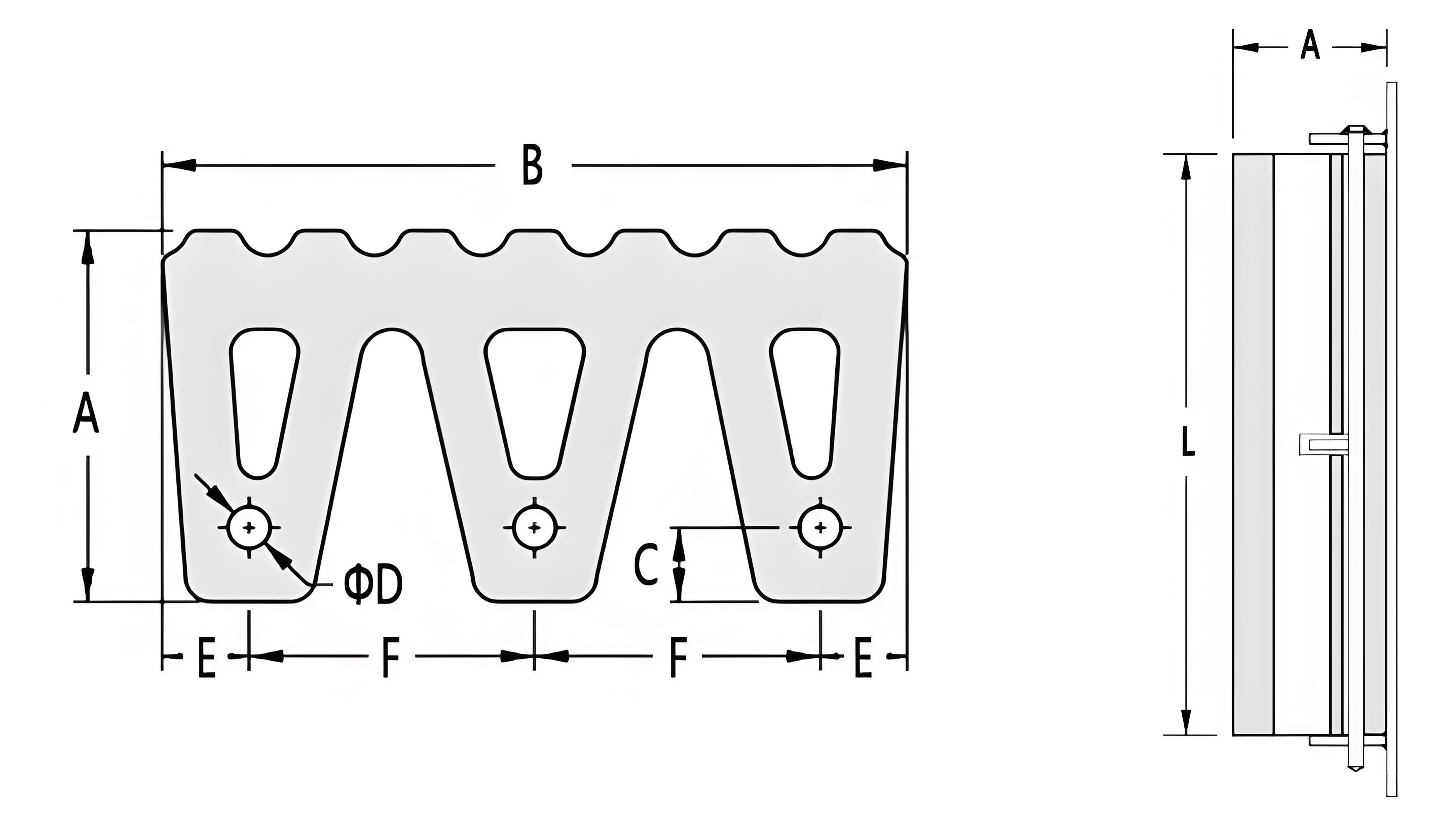

Drawings
Dimensions
Model | A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
F [mm] |
Lmax [mm] |
HM 400 | 200 | 400 | 40 | 23 | 50 | 150 | 3000 |
HM 500 | 250 | 500 | 50 | 27 | 60 | 190 | 2900 |
HM 600 | 300 | 600 | 60 | 33 | 70 | 230 | 3400 |
HM 800 | 400 | 800 | 80 | 44 | 95 | 305 | 2000 |
m type fenders, m rubber fenders, tugboat m type fender, tugboat m fenders, tugboat m type rubber fenders

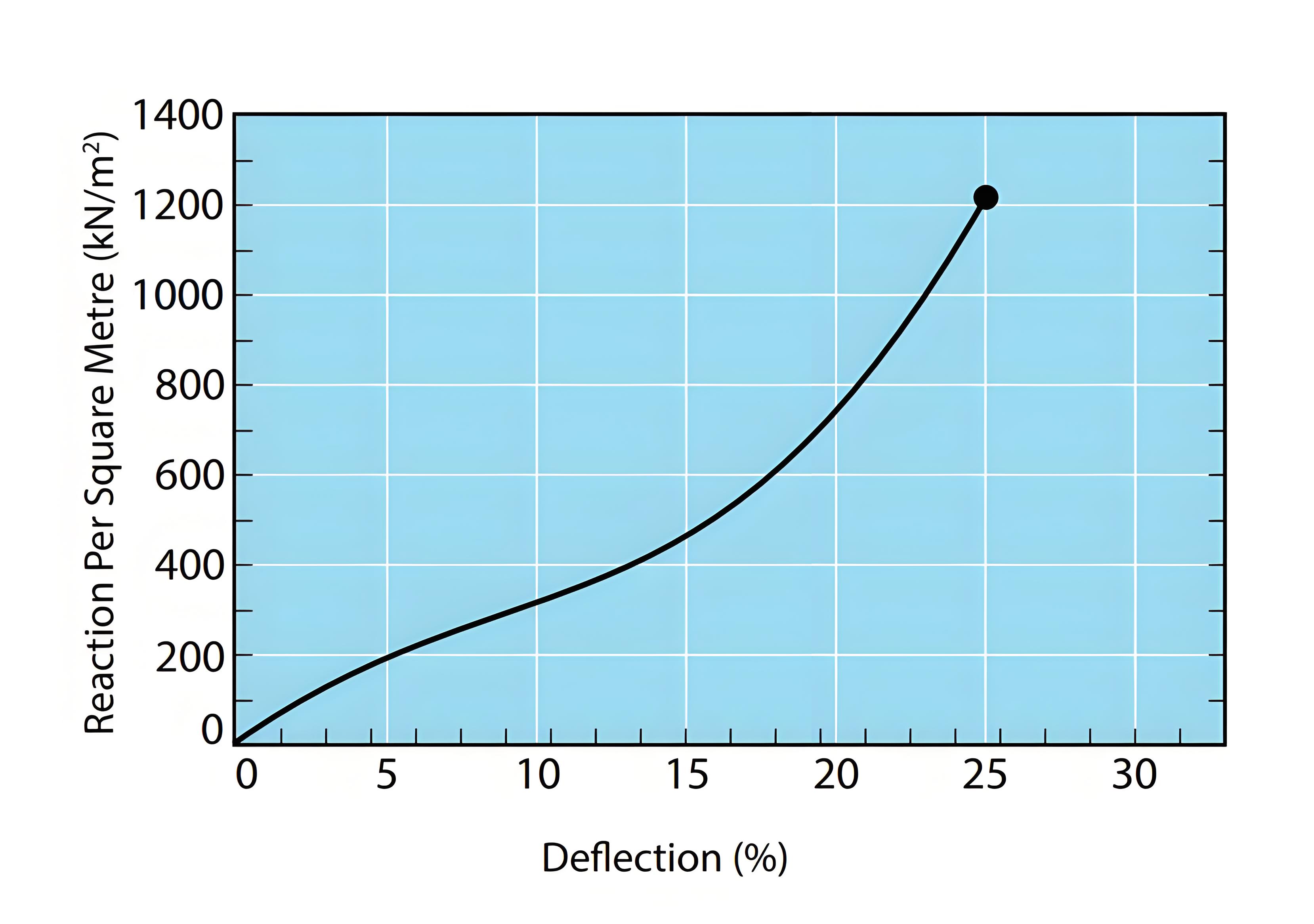

Generic Performance Curve

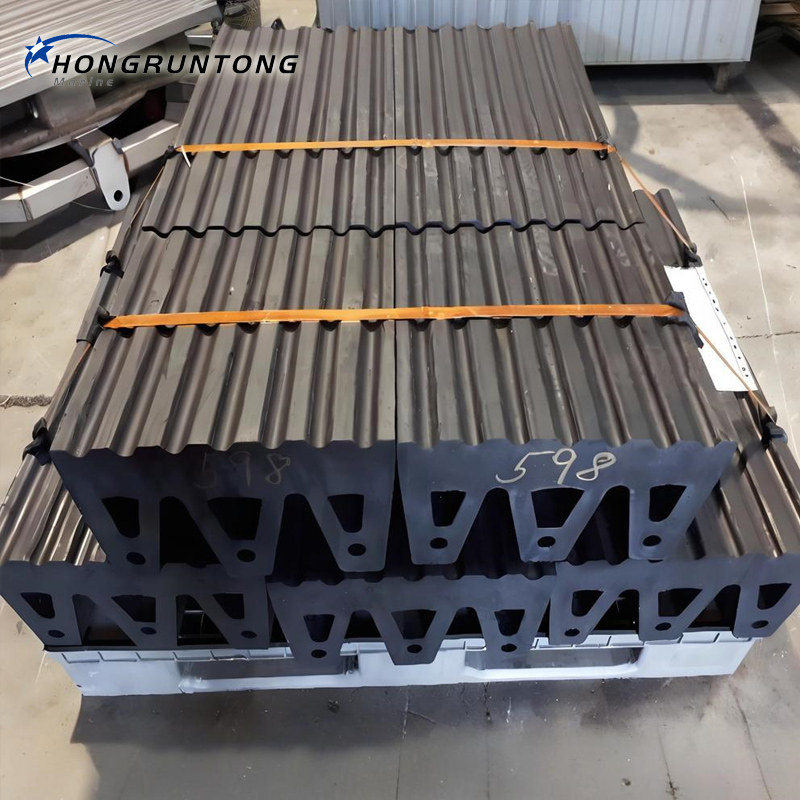

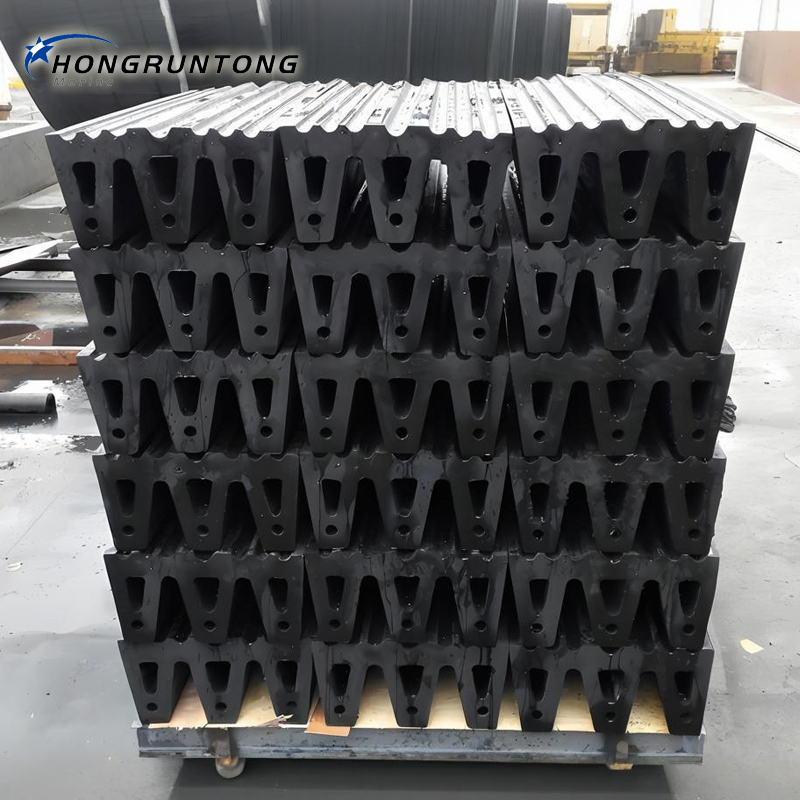

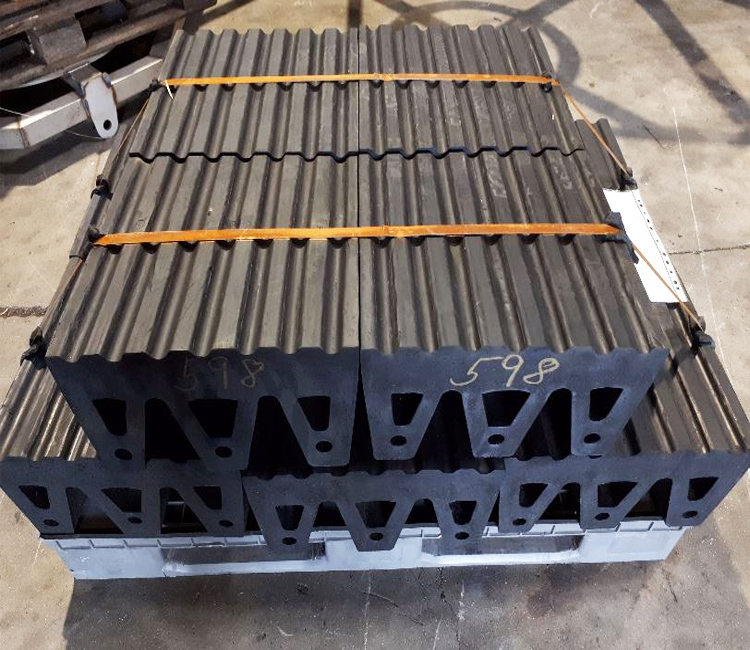

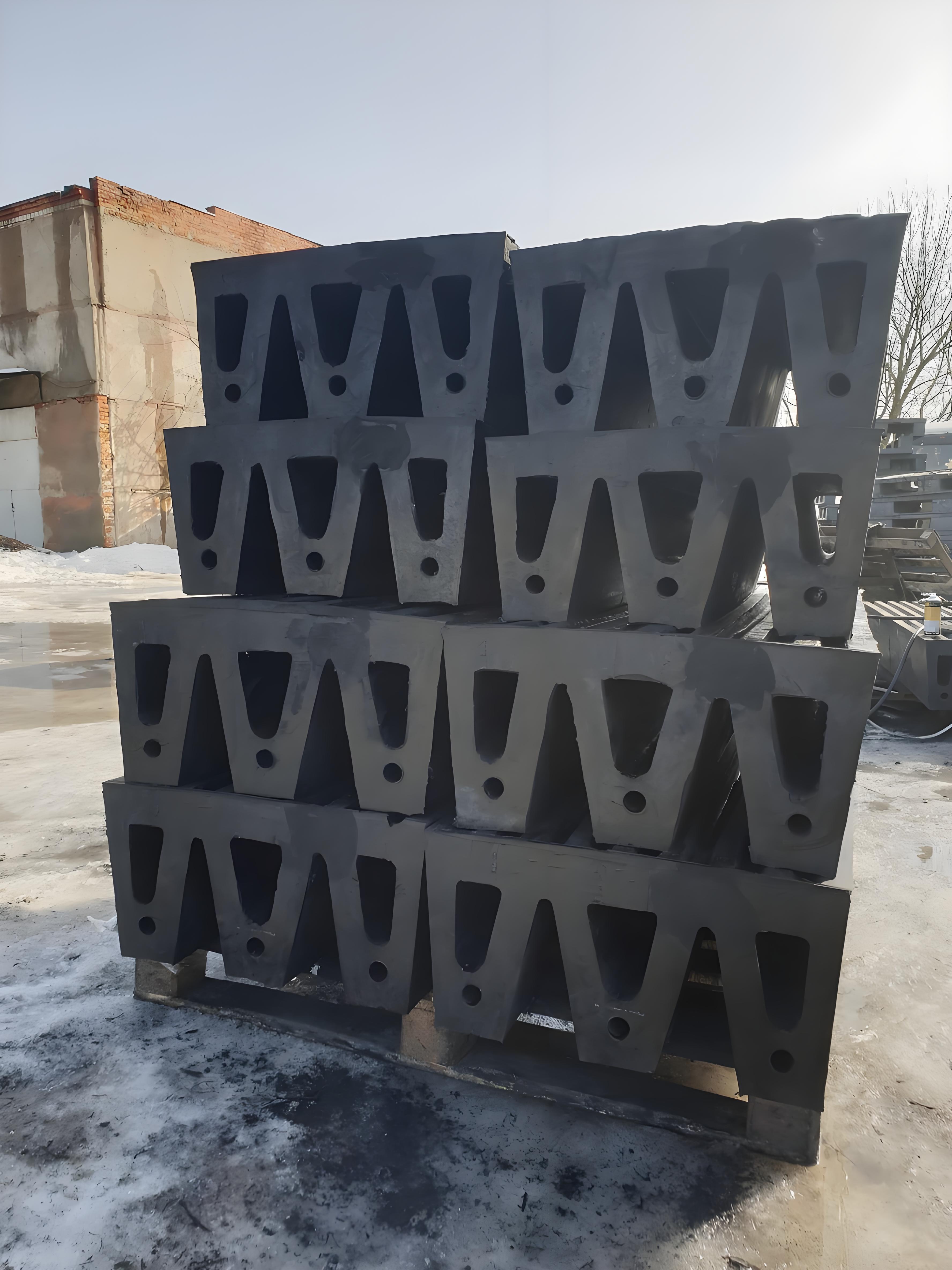

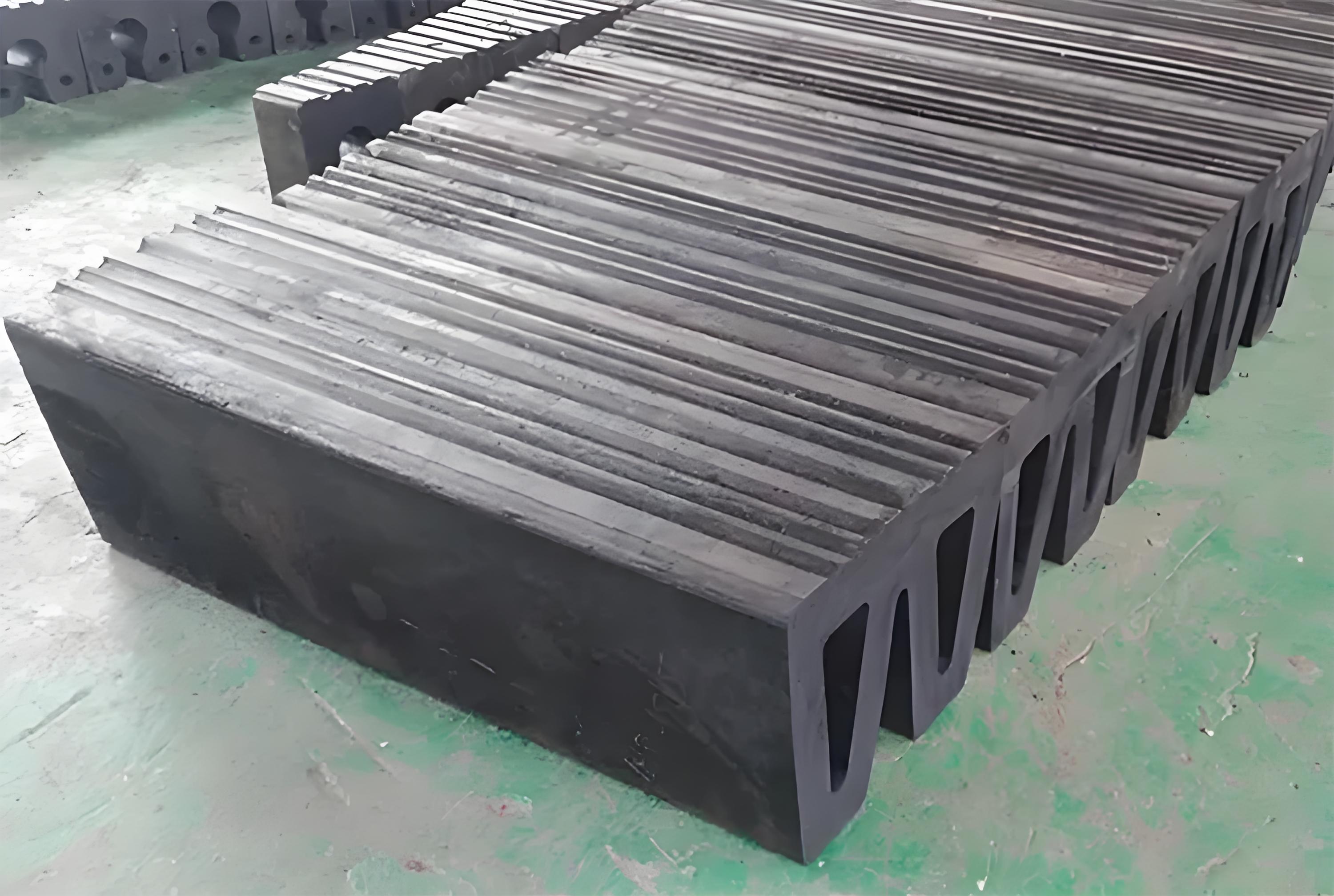

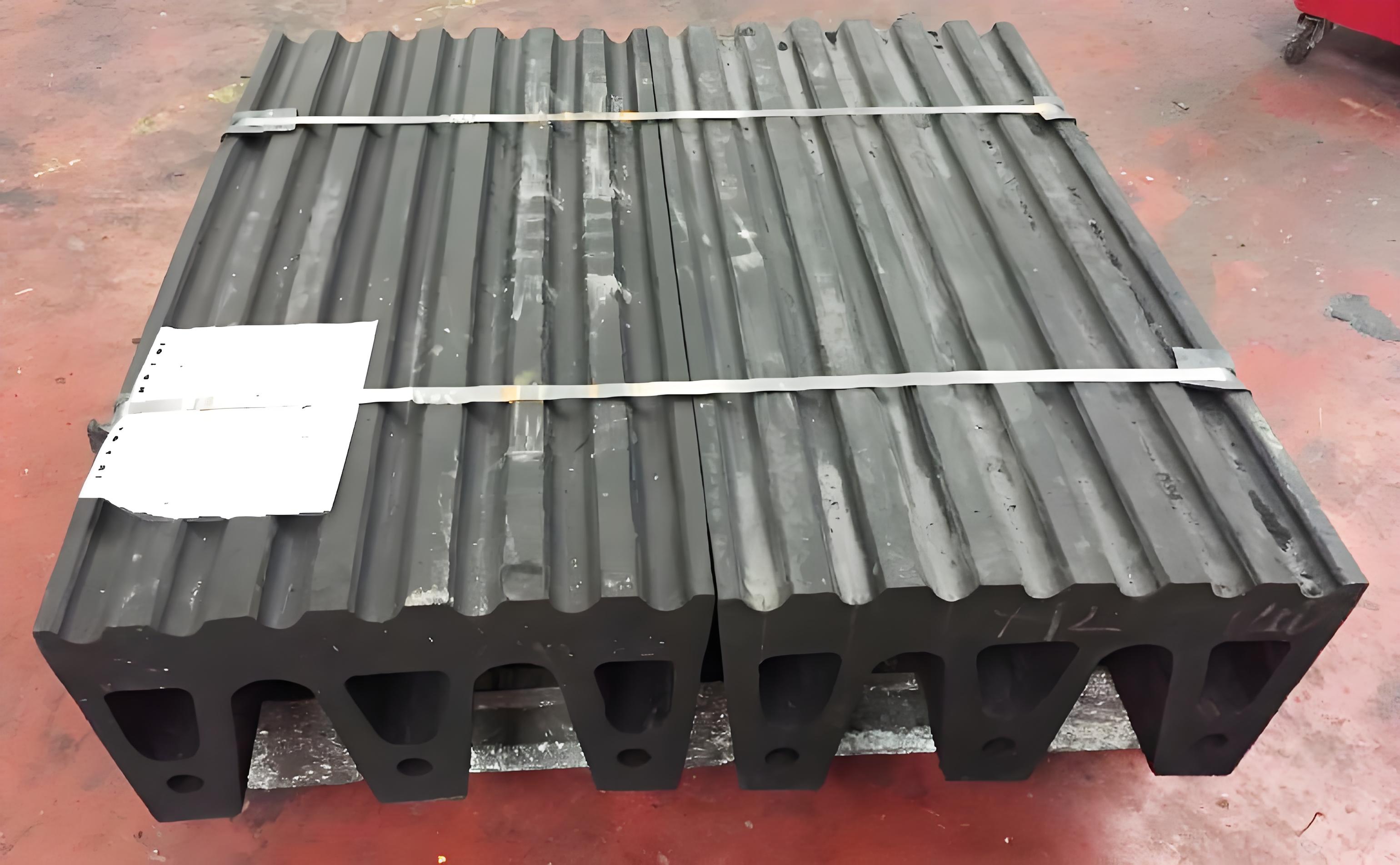

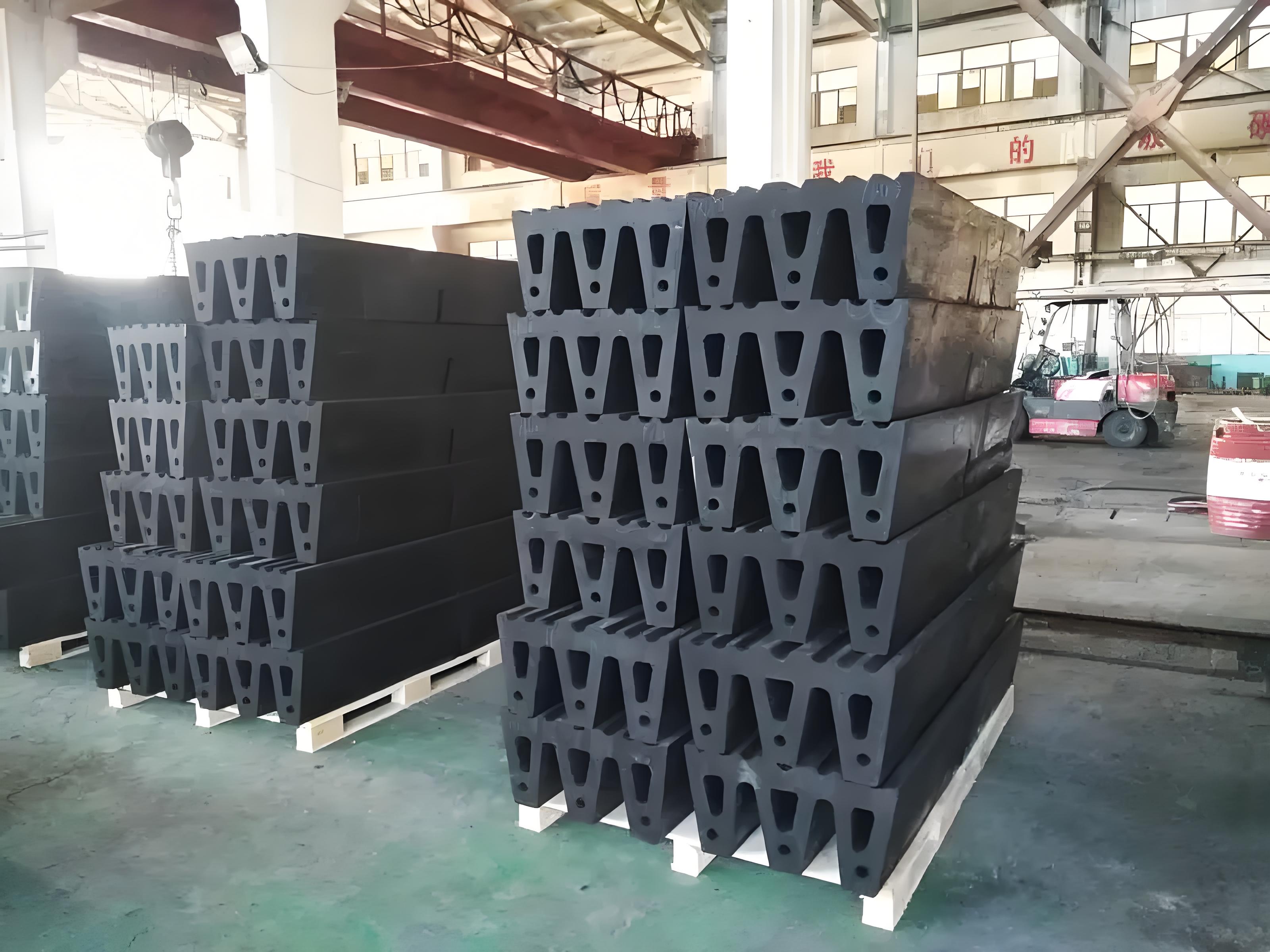

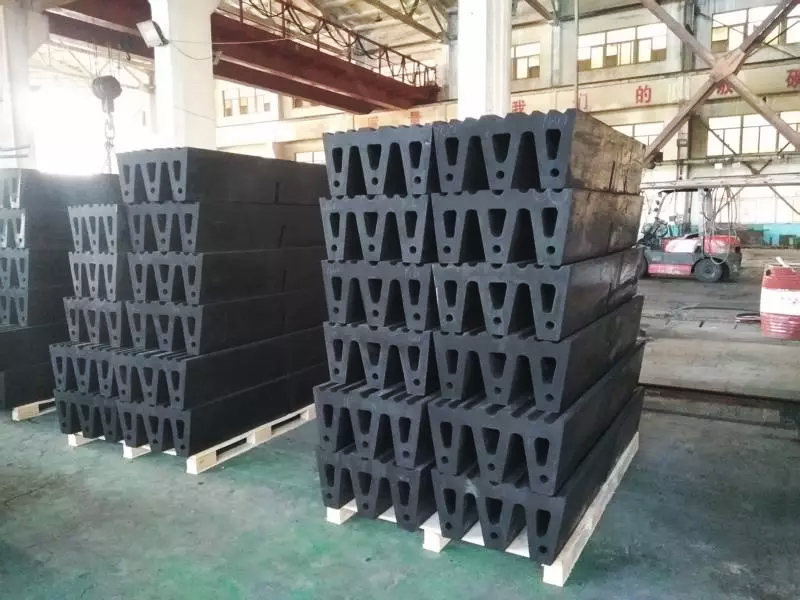

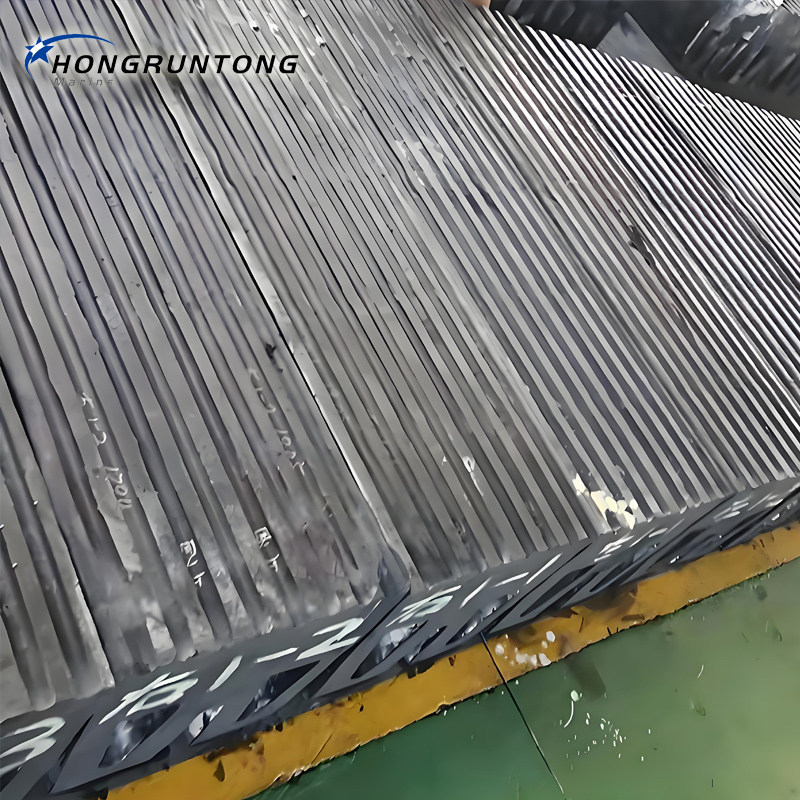

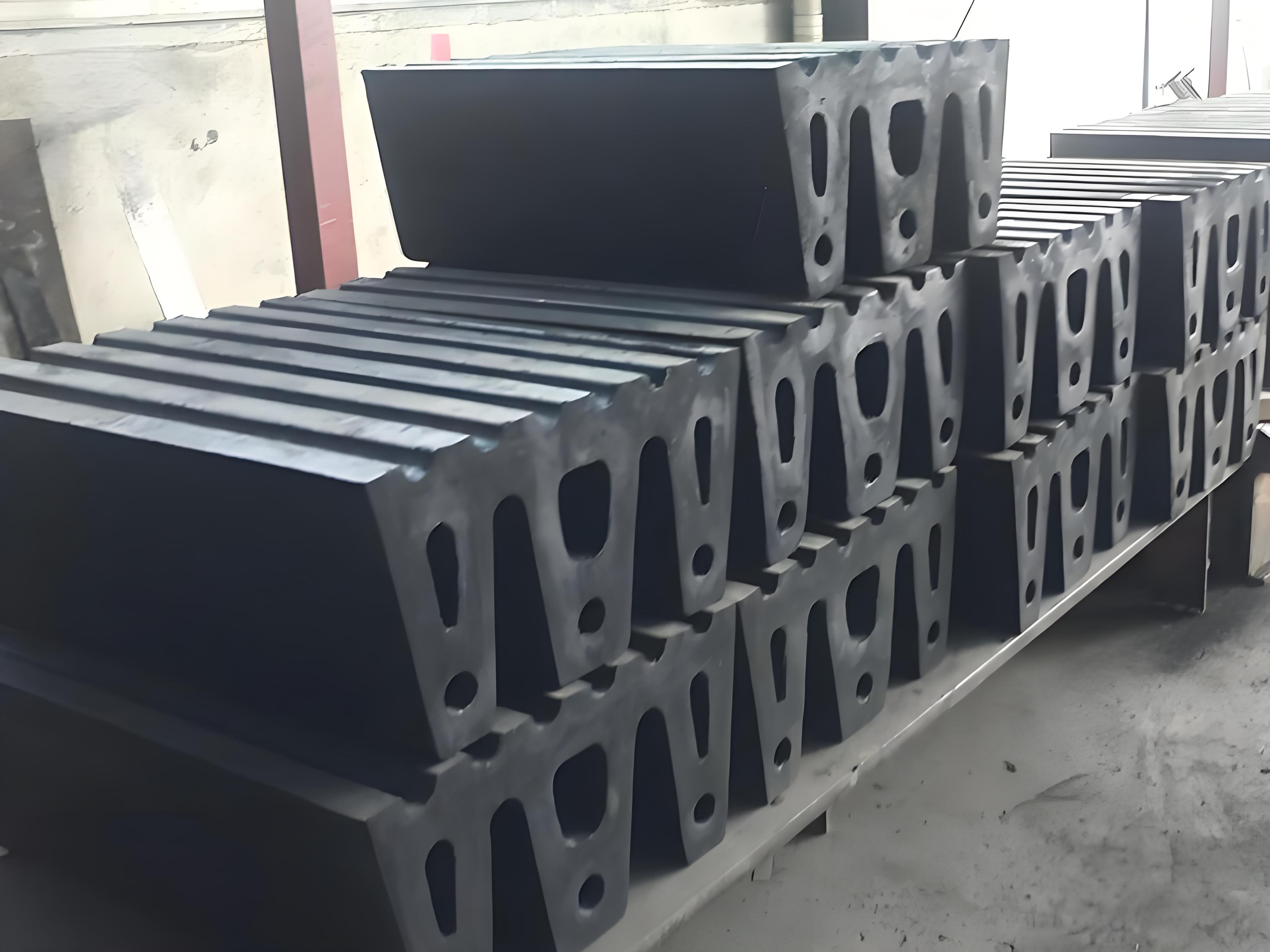

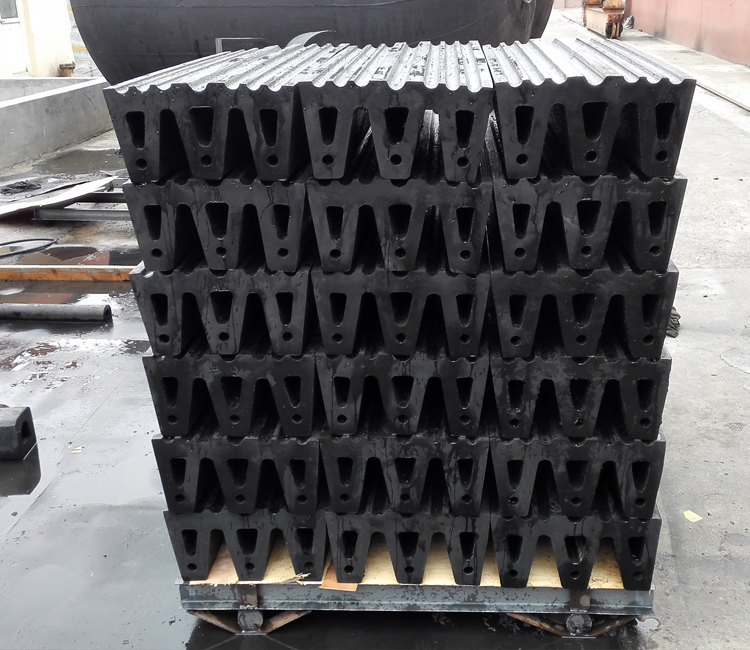

Details Photos
