Marathon Petroleum Hoses
The Hongruntong oil hoses exceed the basic requirements of all International rules because their construction is a direct derivate of designs, technology and quality control procedures used in the building of marine hoses for offshore application, with long operational life and total environmental safety in mind. So, Hongruntong oil hoses are custom built to individual order.
Moreover flanges can be offered to all international tables and be of the fixed or swivel type. End fittings can be built-in or clamped.
Other types of hose, such as long length for special applications, light weight construction for less arduous service conditions or high pressure hoses for the safe transmission of fluids through contaminated environments are all available on special request.
Characteristics
► Temperature: -40℃ to +120℃
► Safety factor: 5:1
► Resistant to: Chemicals, oil, ozone
► Quality in accordance with PIANC
► All sizes are full vacuum
Applications
• Water sludge discharge in agriculture
• Construction
• Industrial
• Marine
Dimensions
| Model | I.D. | O.D. | Length | W.P. | B.P. | ||||
| [inch] | [mm] | [mm] | [m] | [ft] | [bar] | [psi] | [bar] | [psi] | |
| HM-MH01 | 1" | 25 | 28 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH02 | 1-1/4" | 32 | 34 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH03 | 1-1/2" | 38 | 40 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH04 | 2" | 51 | 53 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH05 | 2-1/2" | 64 | 66 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH06 | 3" | 76 | 78 | 100 | 328 | 5 | 73 | 16 | 232 |
| HM-MH07 | 4" | 102 | 104 | 100 | 328 | 5 | 73 | 16 | 232 |
| HM-MH08 | 5" | 127 | 130 | 100 | 328 | 4 | 58 | 16 | 232 |
| HM-MH09 | 6" | 152 | 155 | 100 | 328 | 4 | 58 | 16 | 232 |
| HM-MH10 | 7" | 178 | 181 | 100 | 328 | 3 | 44 | 16 | 232 |
| HM-MH11 | 8" | 203 | 207 | 100 | 328 | 3 | 44 | 12 | 174 |
| HM-MH12 | 9" | 229 | 234 | 100 | 328 | 3 | 44 | 12 | 174 |
| HM-MH13 | 10" | 254 | 259 | 100 | 328 | 3 | 44 | 12 | 174 |
| HM-MH14 | 11" | 279 | 284 | 100 | 328 | 3 | 44 | 12 | 174 |
| HM-MH15 | 12" | 305 | 310 | 100 | 328 | 3 | 44 | 12 | 174 |

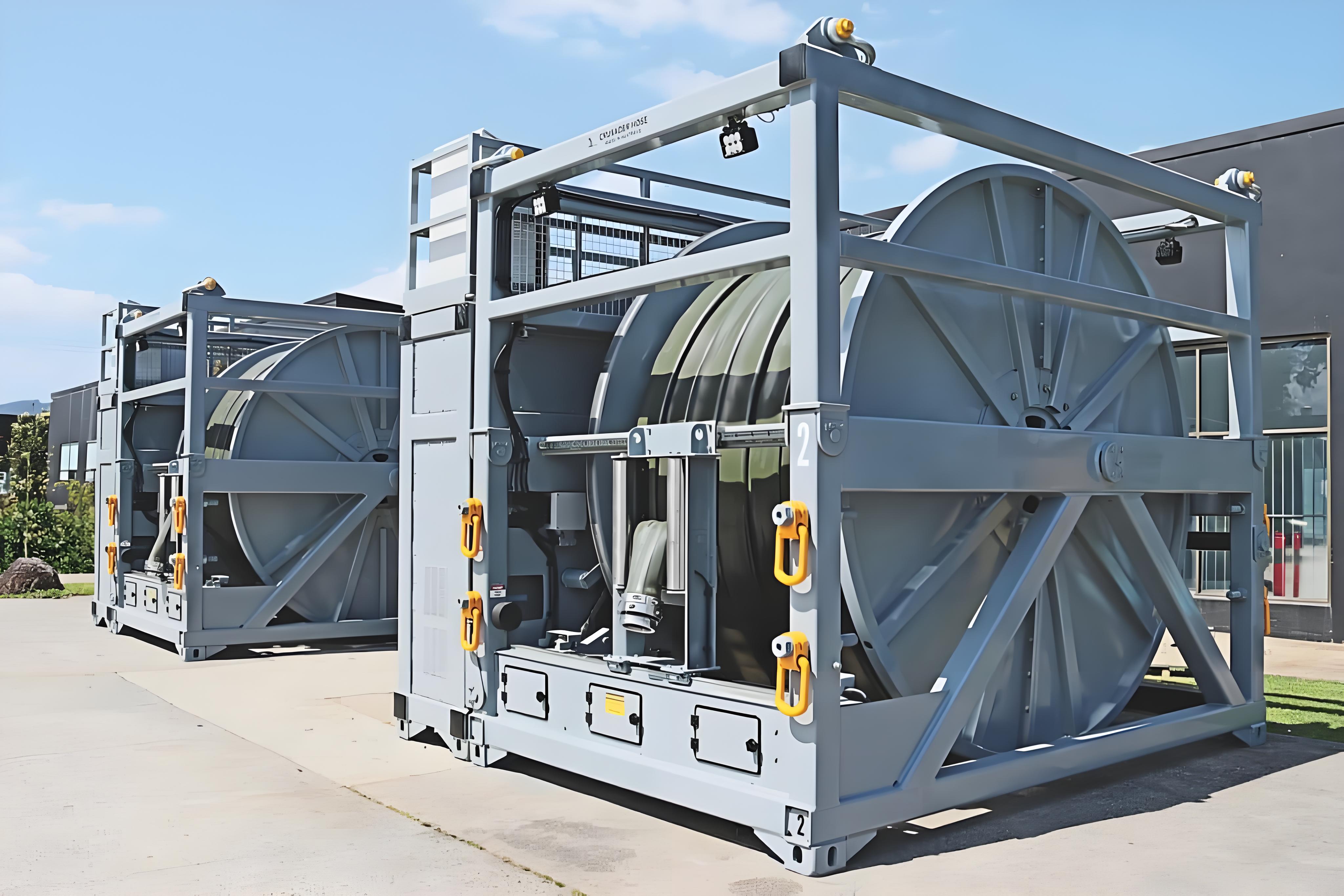

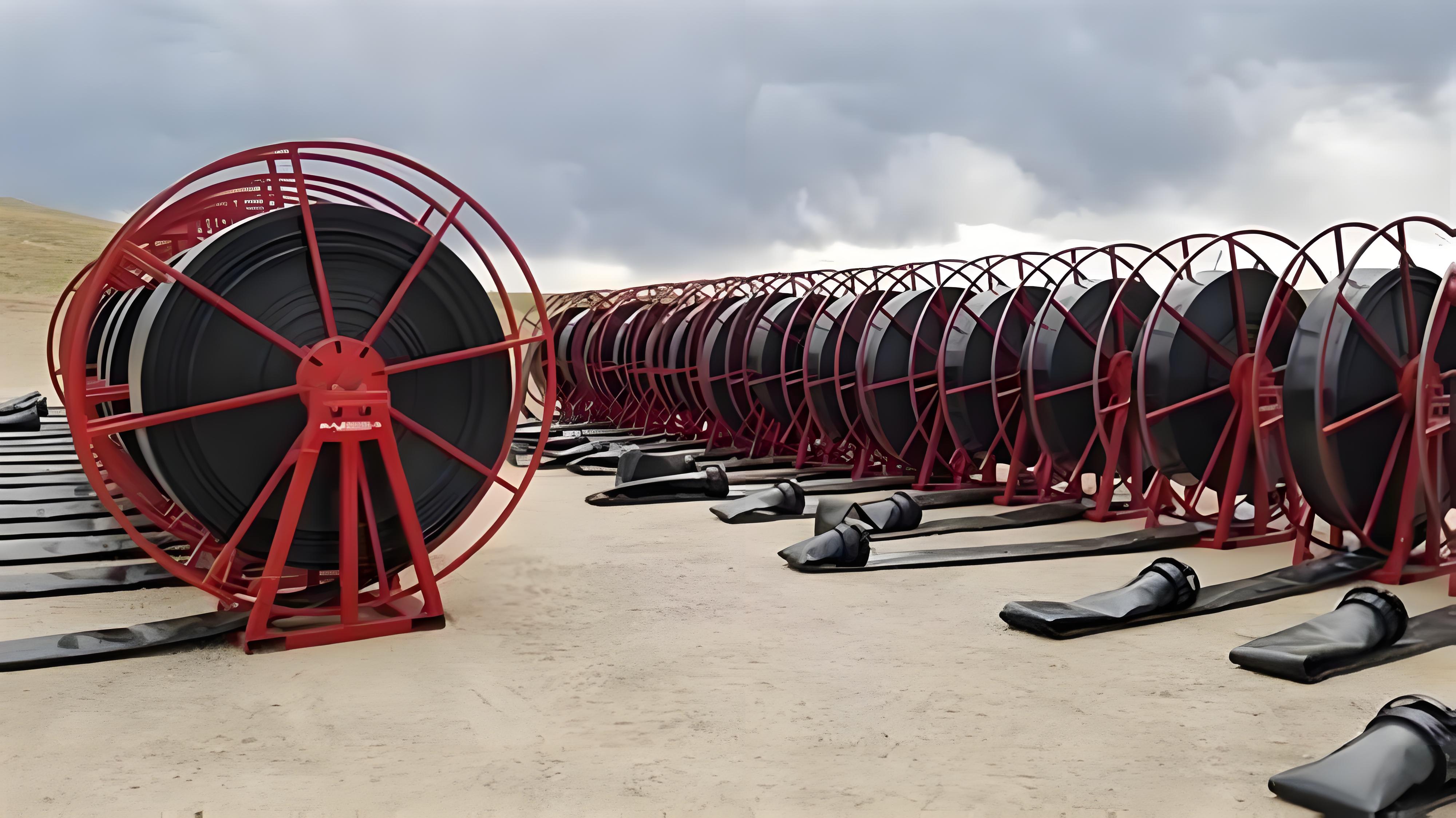

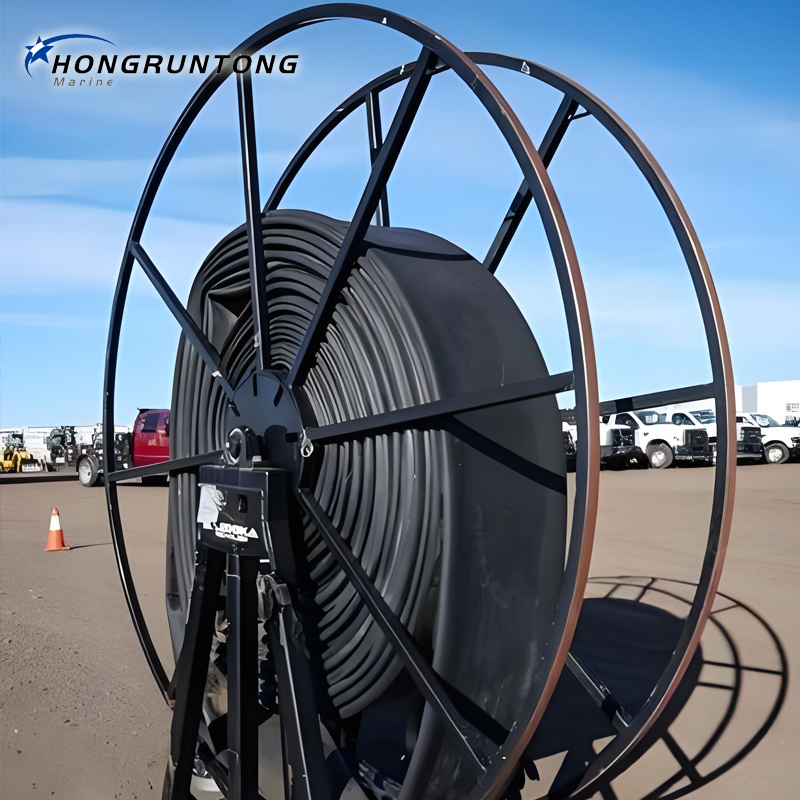

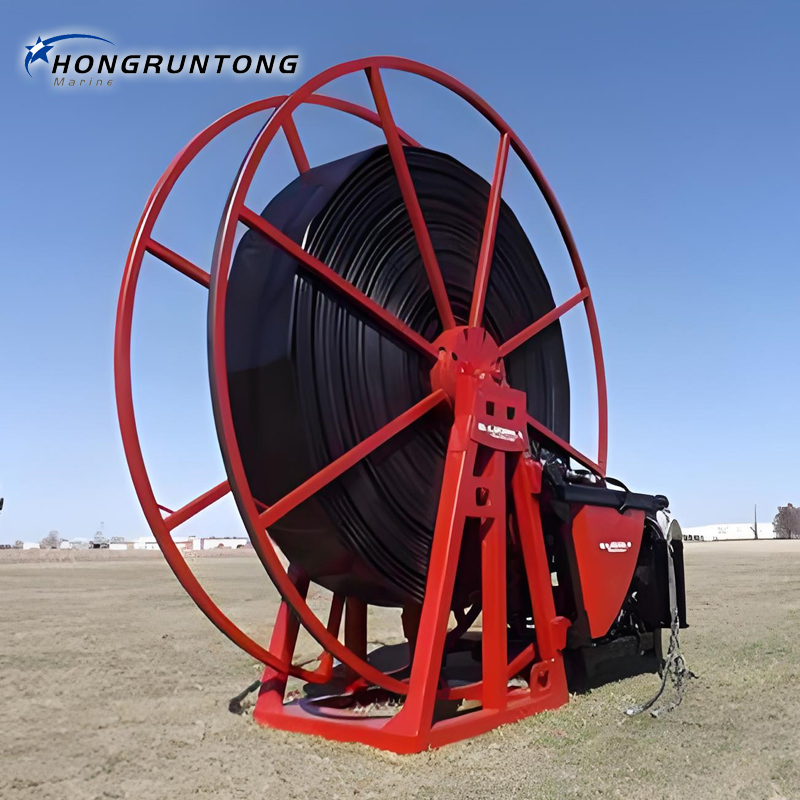

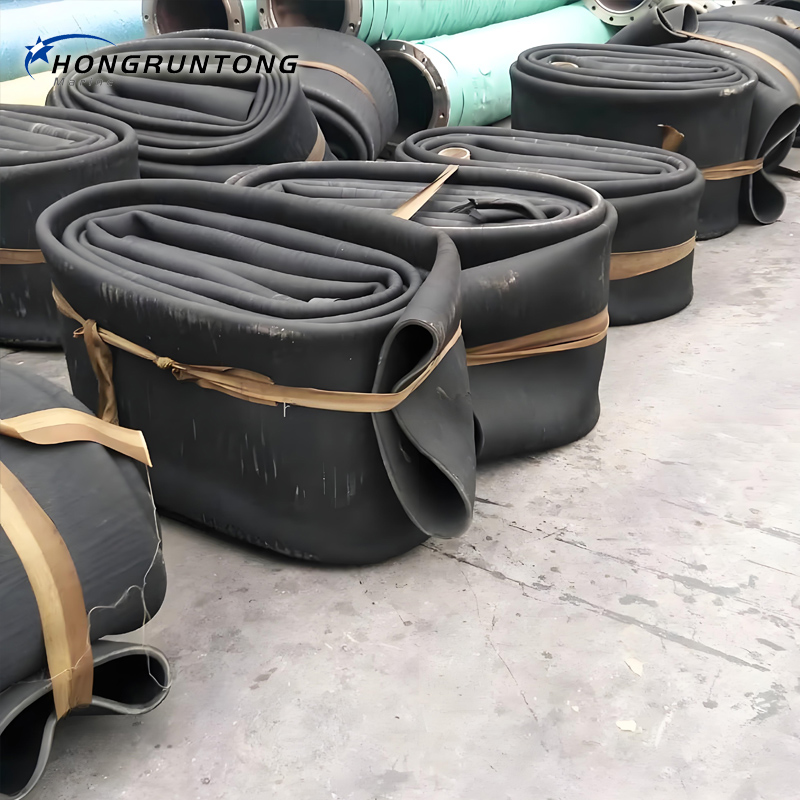

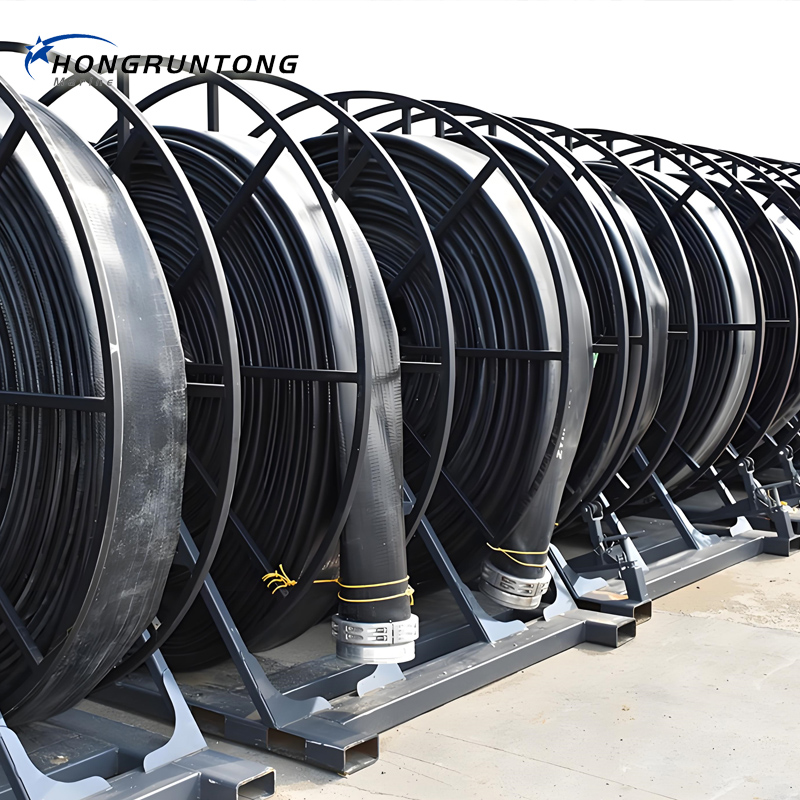

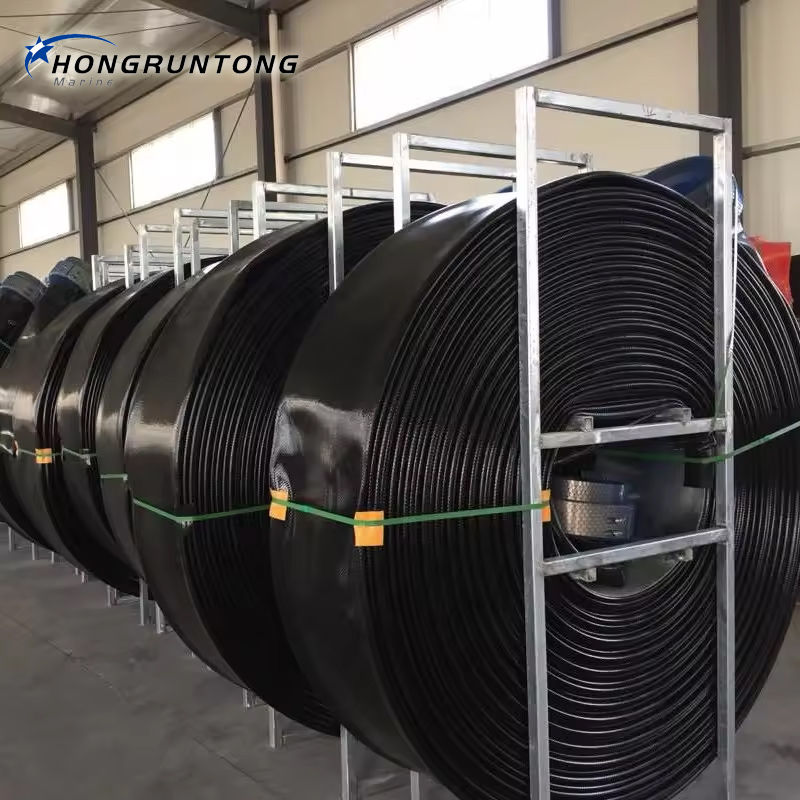

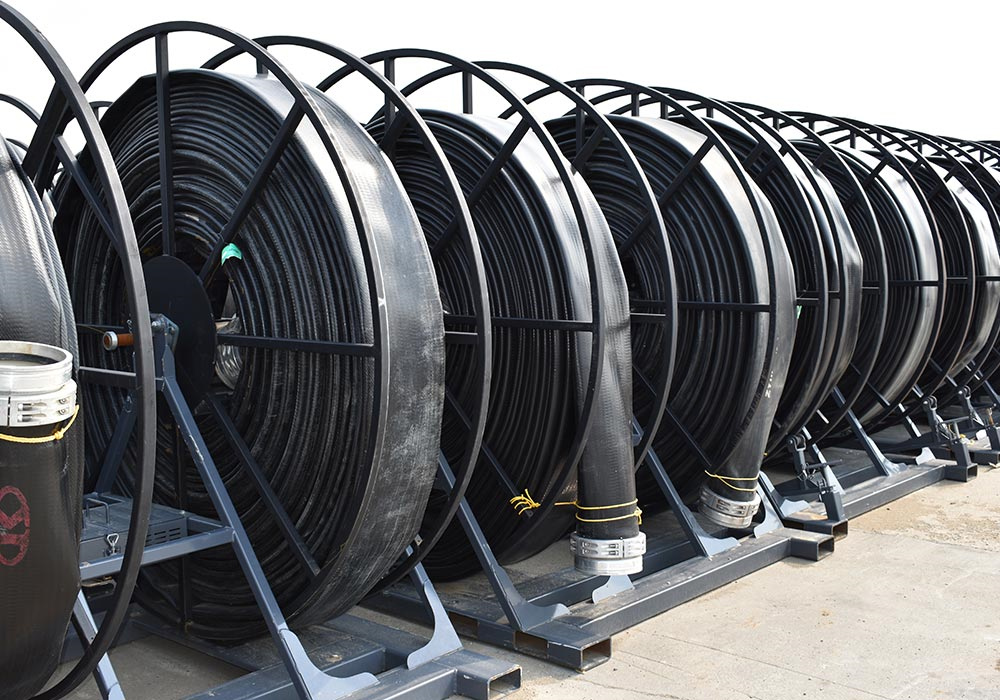

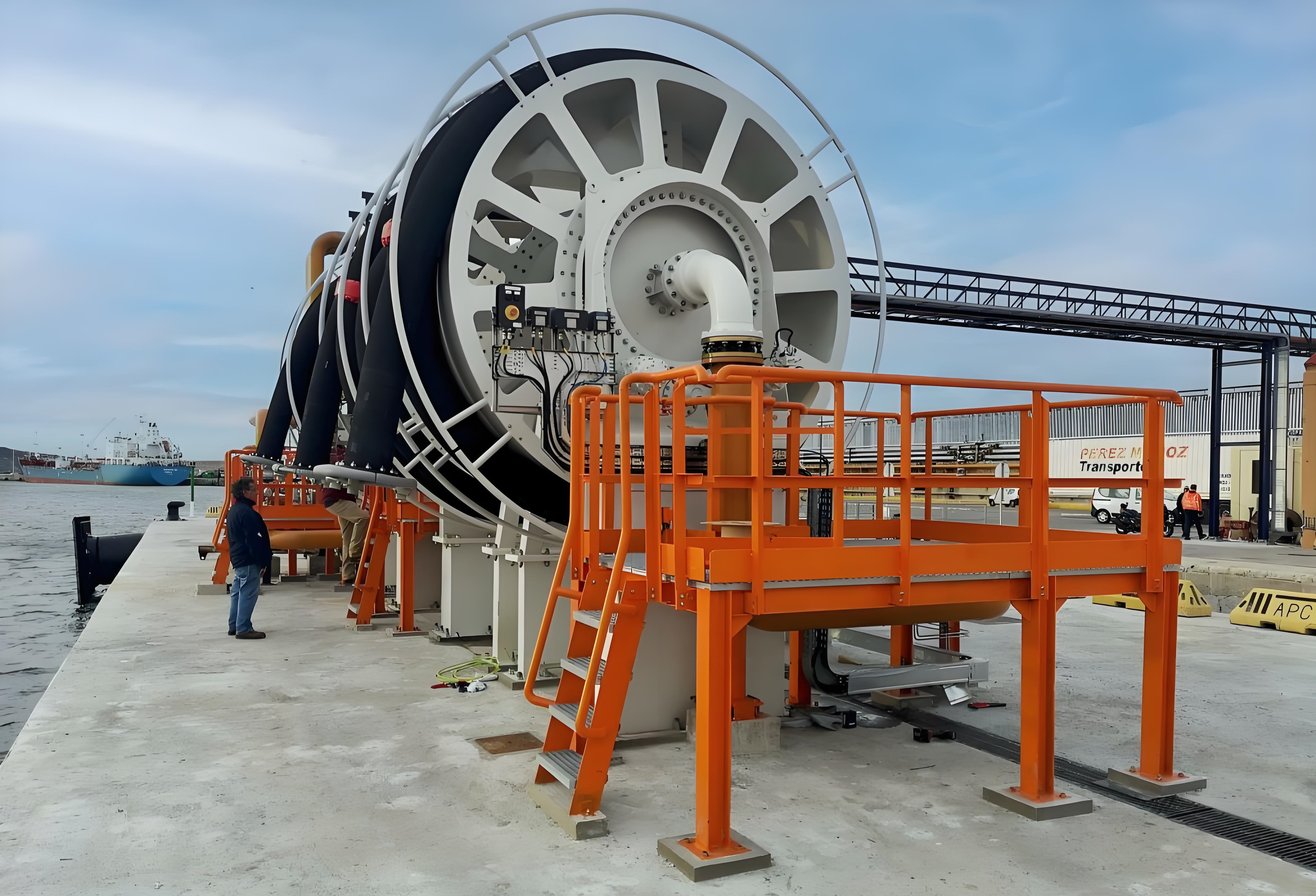

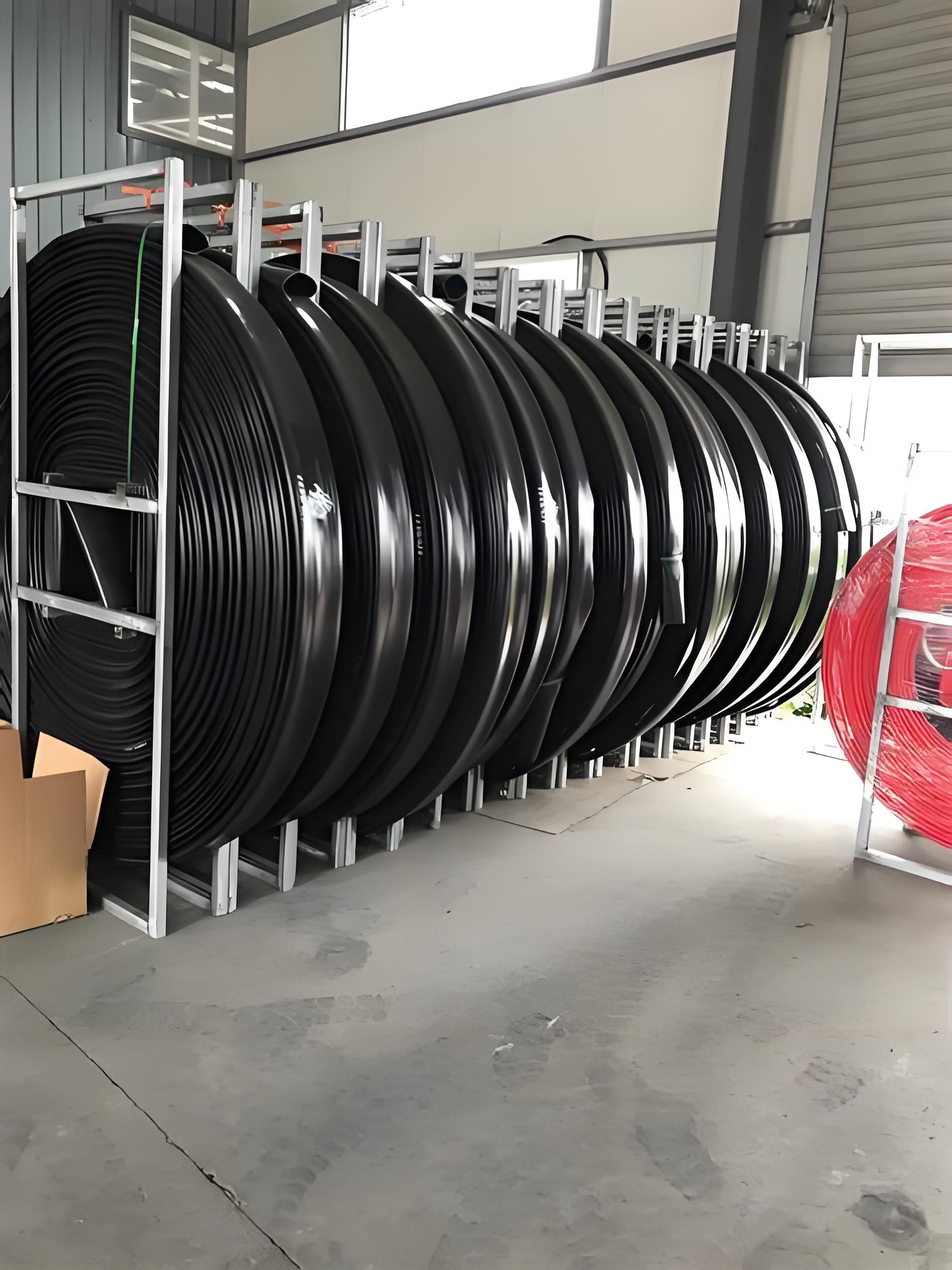

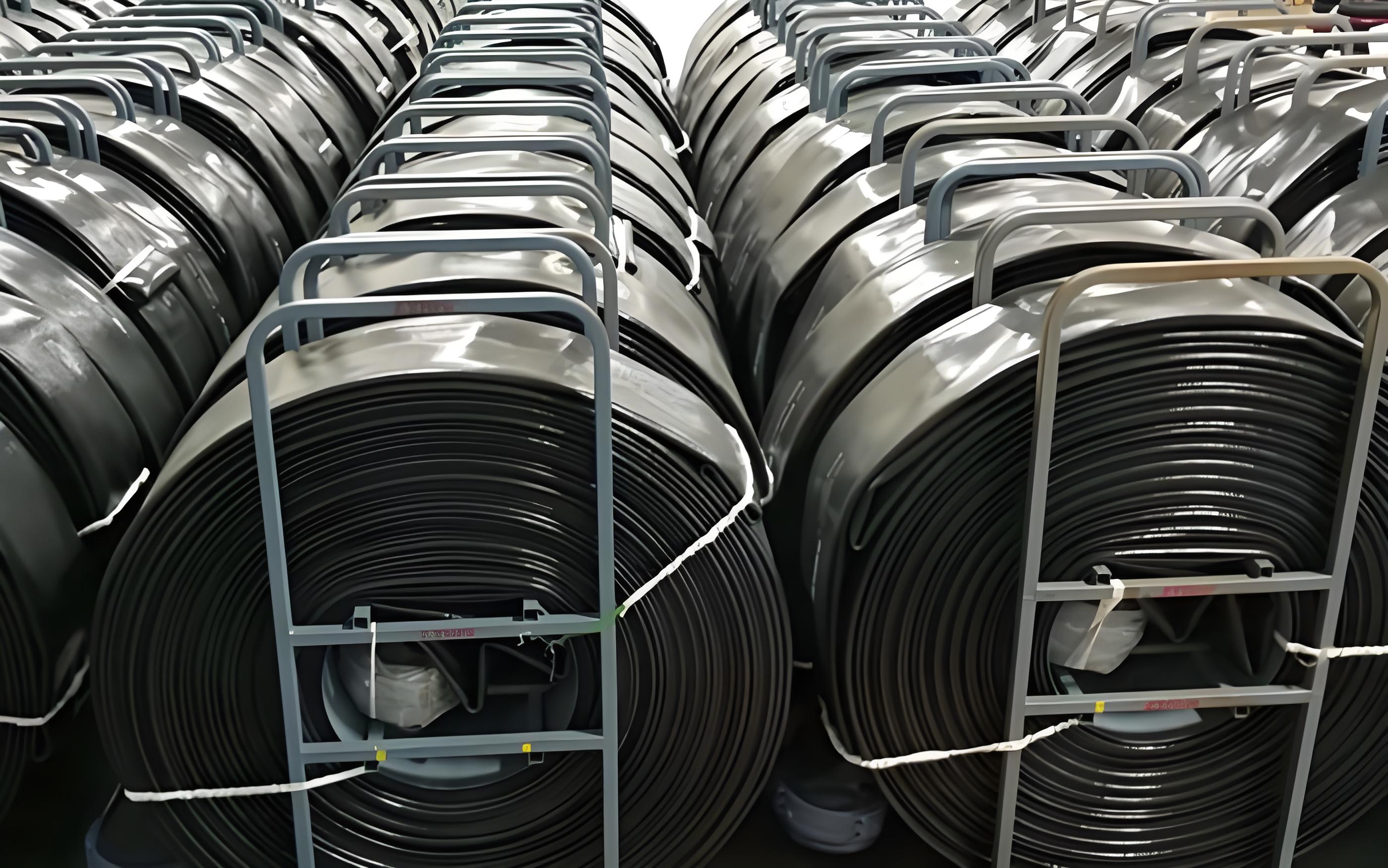

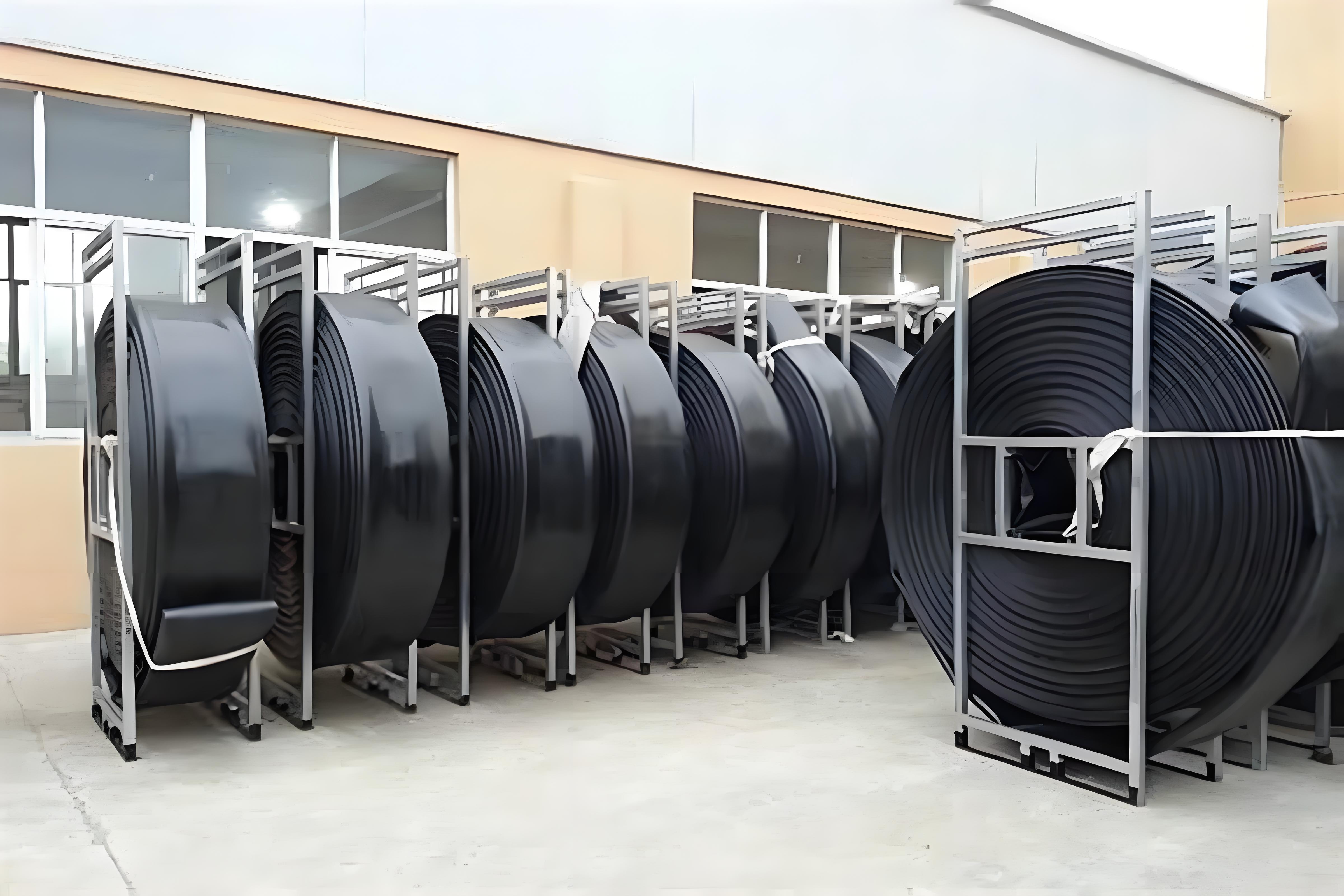

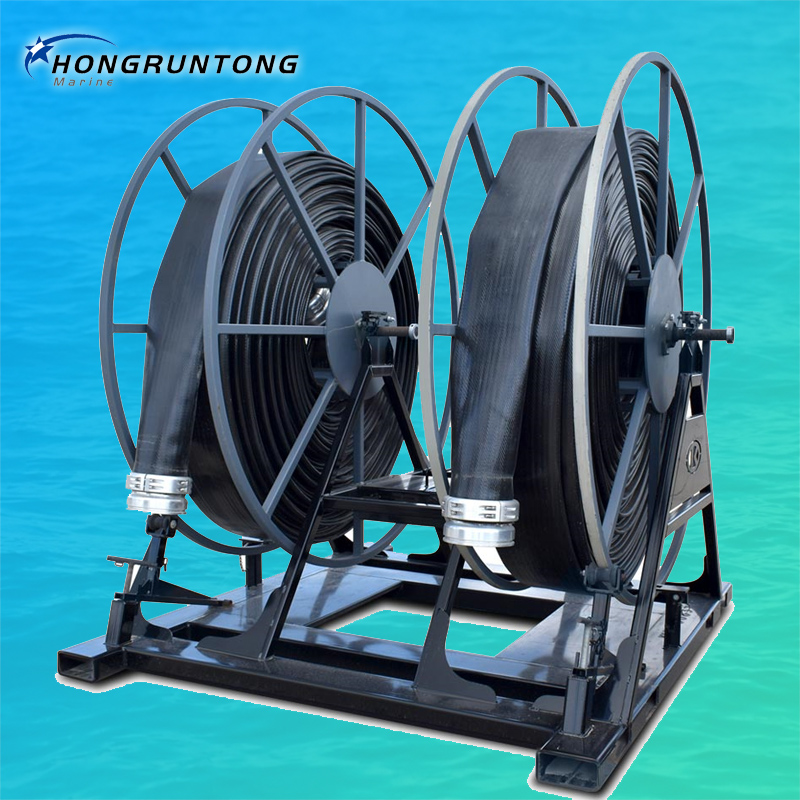

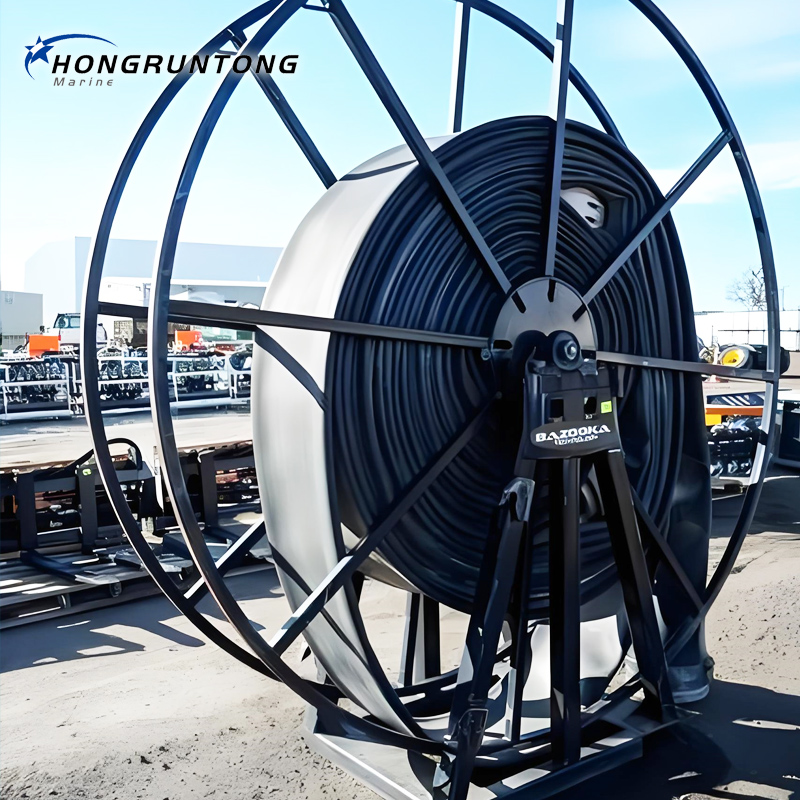

Detailed Photos
