Layflat Hose
Hongruntong’s layflat hose is durable and long lasting. Layflat is a high-pressure, high-strength hose designed for all your fluid pumping needs. It is highly resistant to common chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance is one of the highest available, making it ideal for mines and other challenging environments.
Characteristics
► Temperature: -40℃ to +120℃
► Safety factor: 5:1
► Resistant to: Chemicals, oil, ozone
► Quality in accordance with PIANC
► All sizes are full vacuum
Applications
• Water sludge discharge in agriculture
• Construction
• Industrial
• Marine
Dimensions
| Model | I.D. | O.D. | Length | W.P. | B.P. | ||||
| [inch] | [mm] | [mm] | [m] | [ft] | [bar] | [psi] | [bar] | [psi] | |
| HM-MH01 | 1" | 25 | 28 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH02 | 1-1/4" | 32 | 34 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH03 | 1-1/2" | 38 | 40 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH04 | 2" | 51 | 53 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH05 | 2-1/2" | 64 | 66 | 100 | 328 | 5 | 73 | 18 | 261 |
| HM-MH06 | 3" | 76 | 78 | 100 | 328 | 5 | 73 | 16 | 232 |
| HM-MH07 | 4" | 102 | 104 | 100 | 328 | 5 | 73 | 16 | 232 |
| HM-MH08 | 5" | 127 | 130 | 100 | 328 | 4 | 58 | 16 | 232 |
| HM-MH09 | 6" | 152 | 155 | 100 | 328 | 4 | 58 | 16 | 232 |
| HM-MH10 | 7" | 178 | 181 | 100 | 328 | 3 | 44 | 16 | 232 |
| HM-MH11 | 8" | 203 | 207 | 100 | 328 | 3 | 44 | 12 | 174 |
| HM-MH12 | 9" | 229 | 234 | 100 | 328 | 3 | 44 | 12 | 174 |
| HM-MH13 | 10" | 254 | 259 | 100 | 328 | 3 | 44 | 12 | 174 |
| HM-MH14 | 11" | 279 | 284 | 100 | 328 | 3 | 44 | 12 | 174 |
| HM-MH15 | 12" | 305 | 310 | 100 | 328 | 3 | 44 | 12 | 174 |

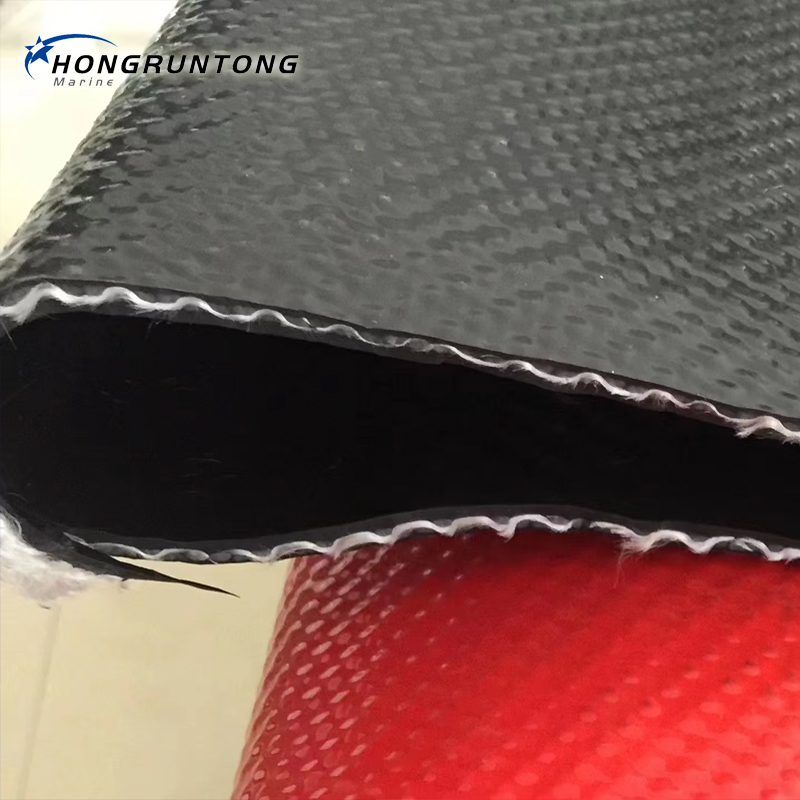

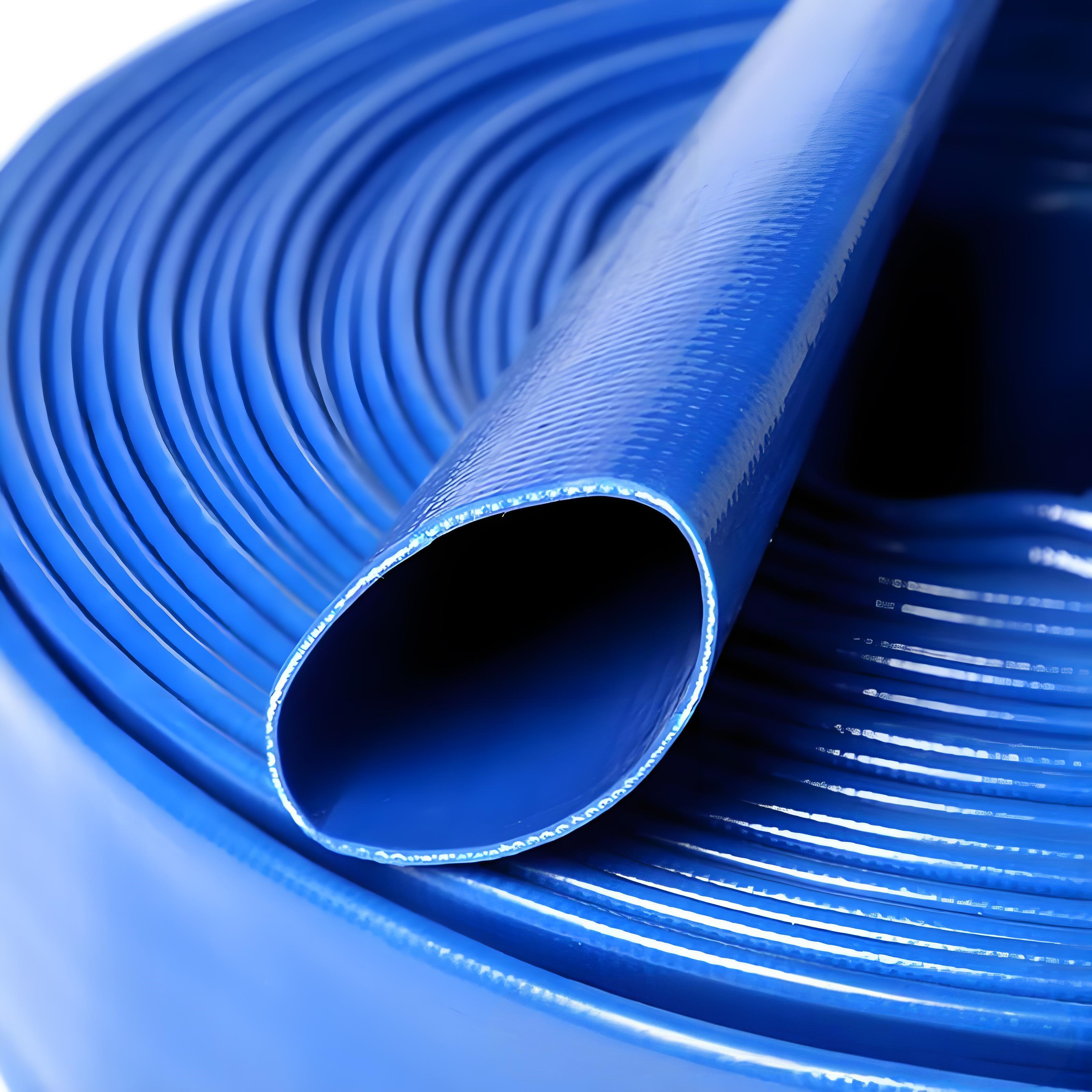

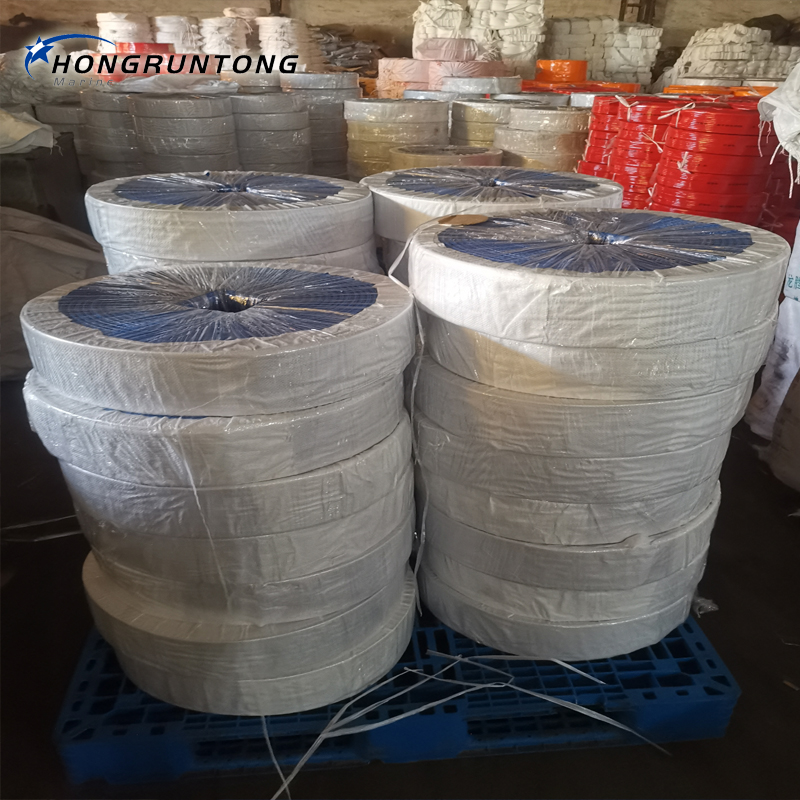

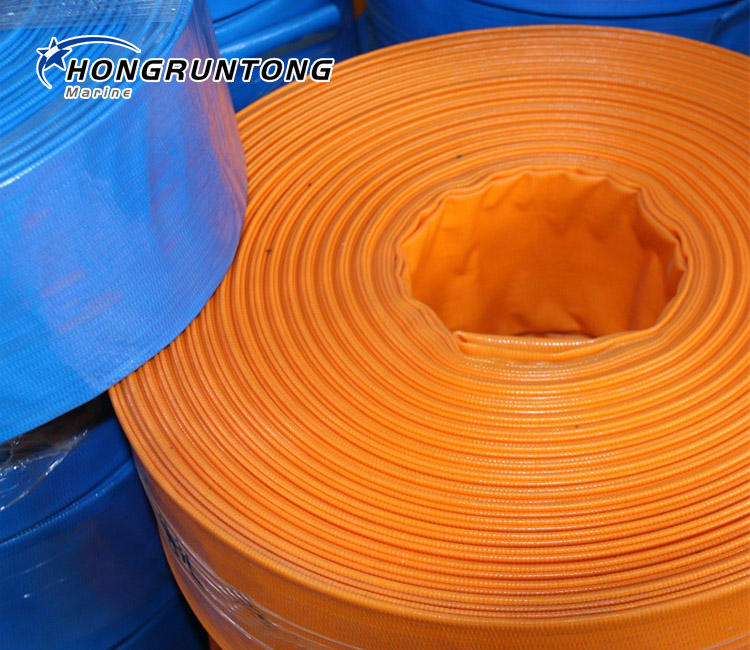

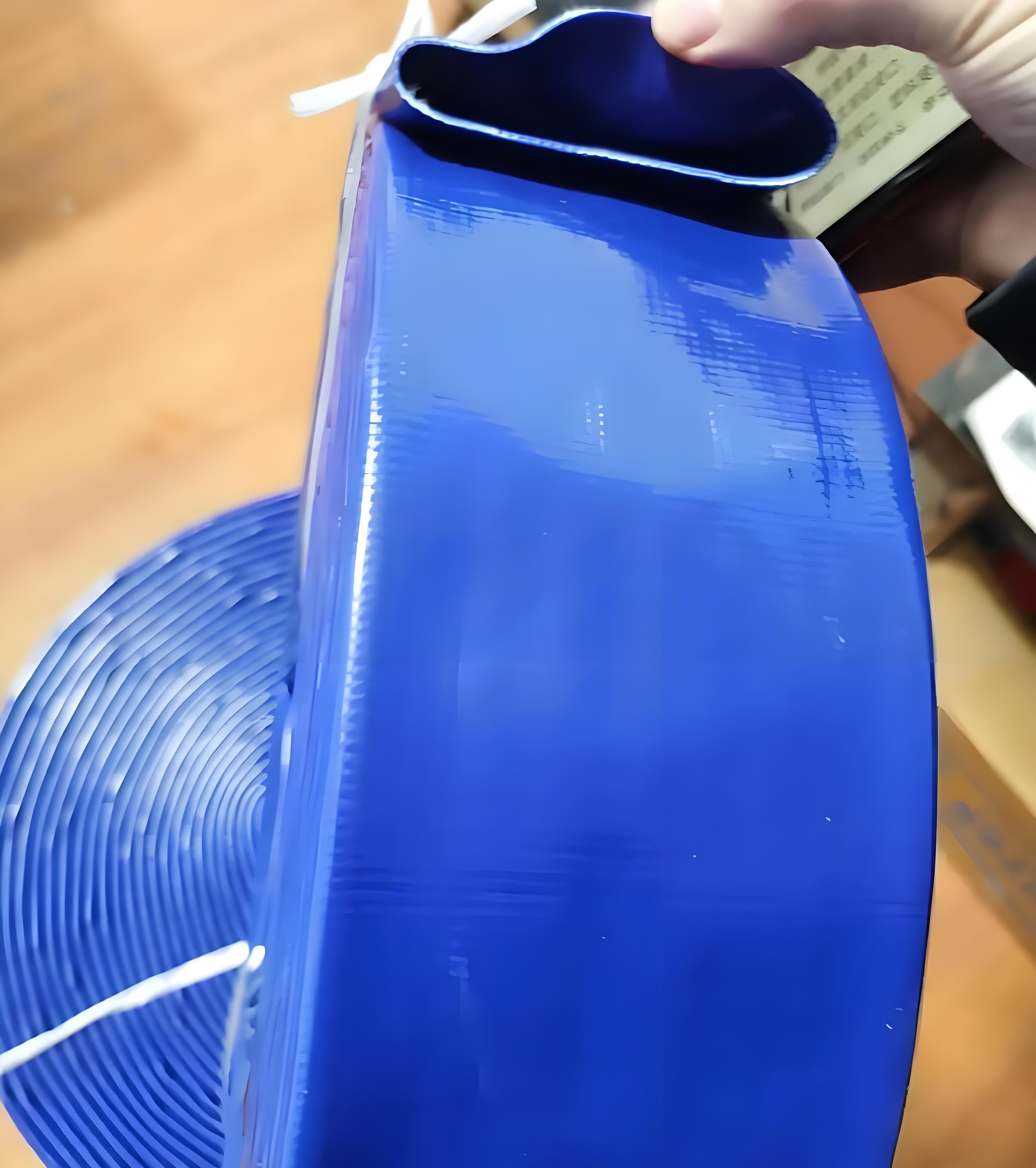

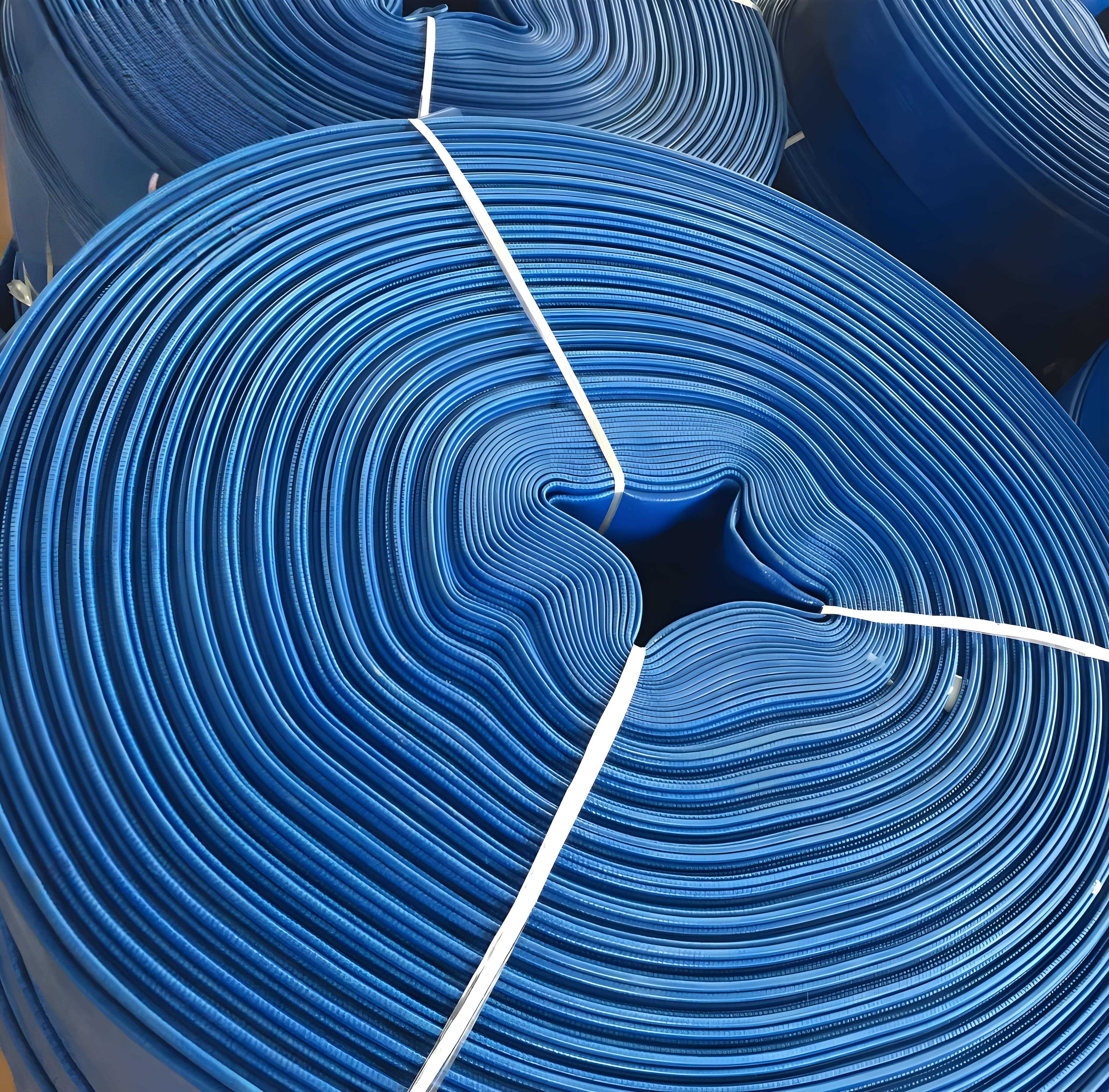

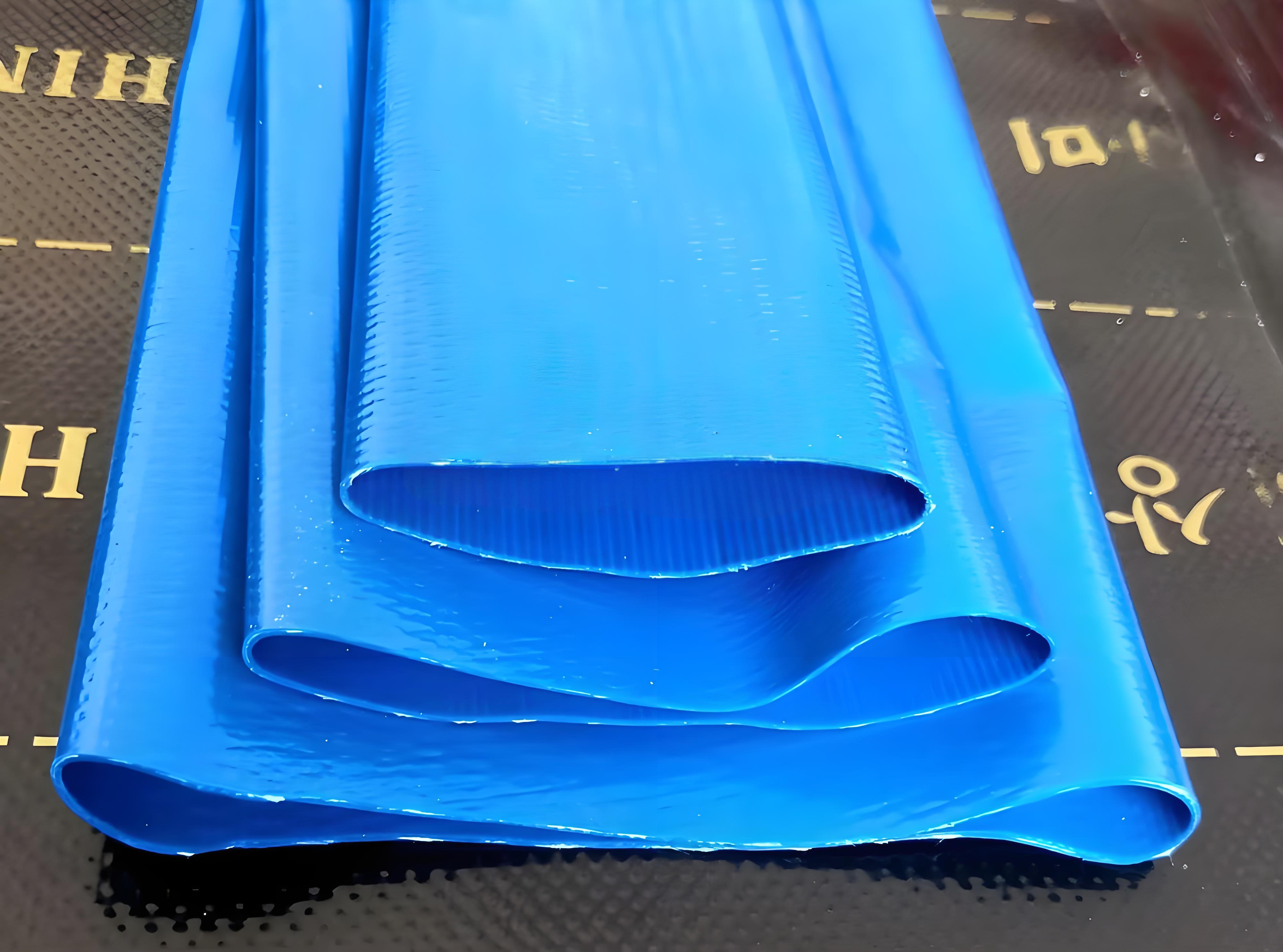

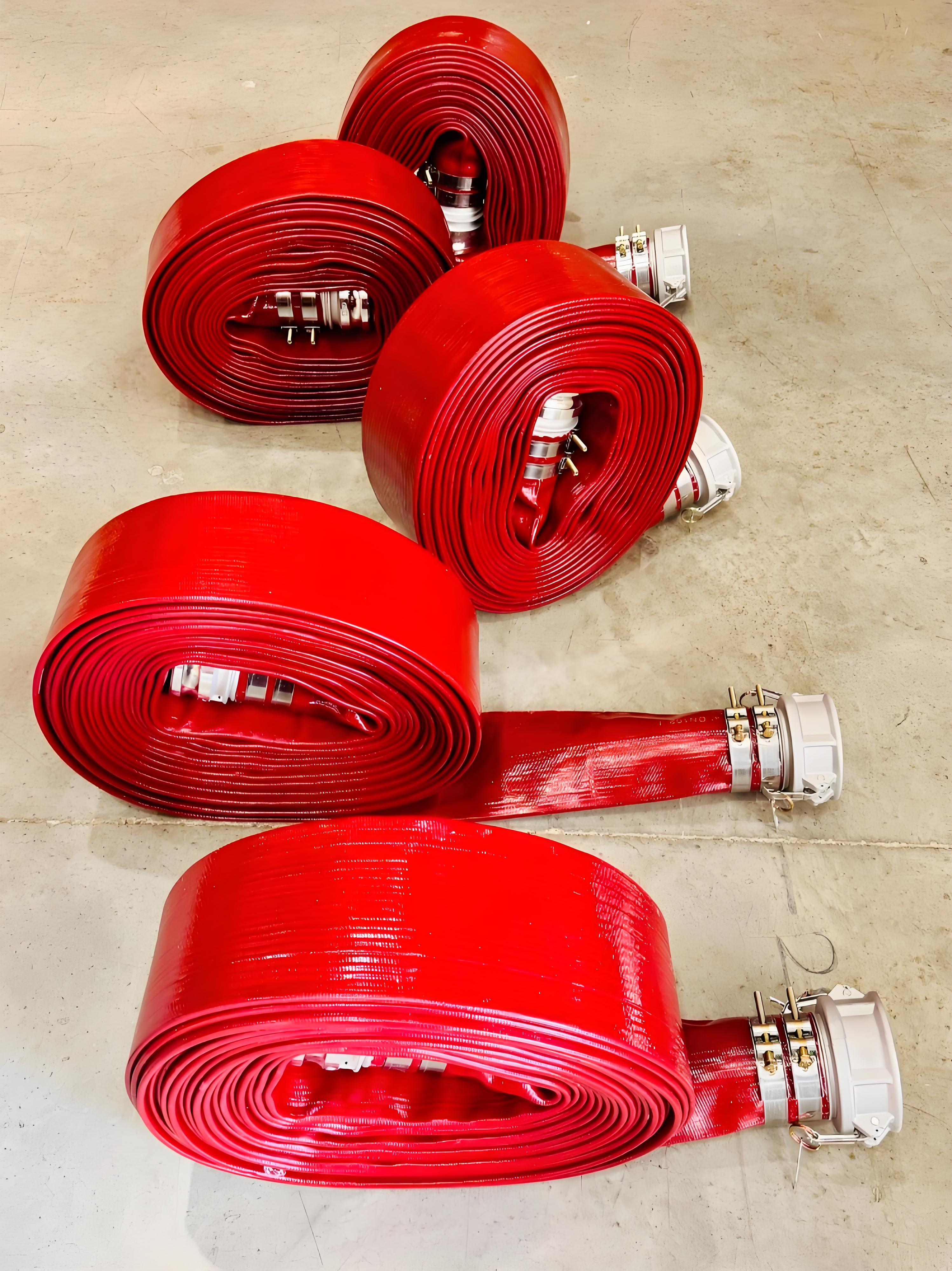

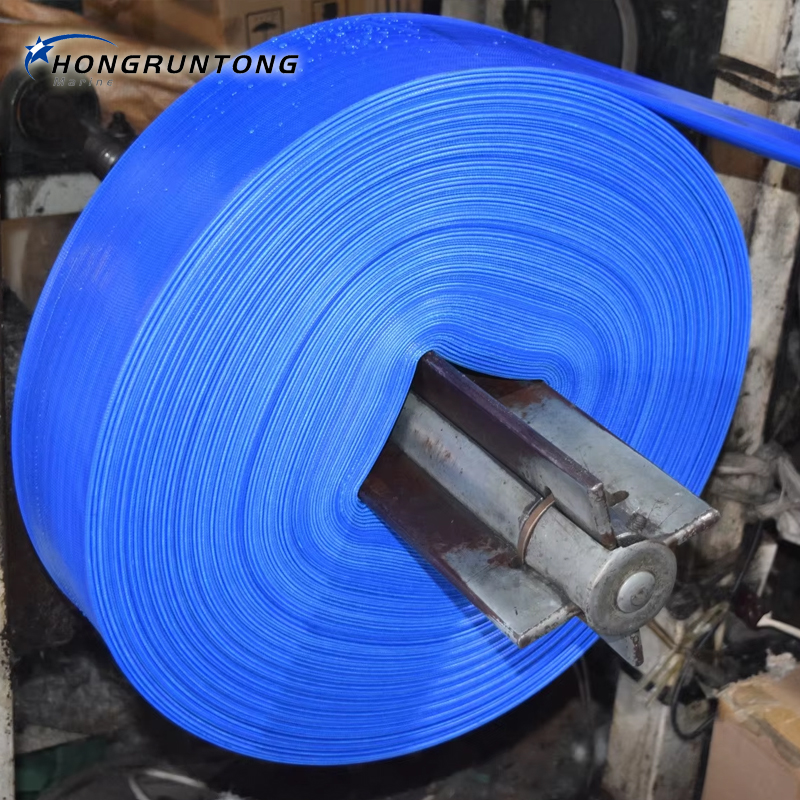

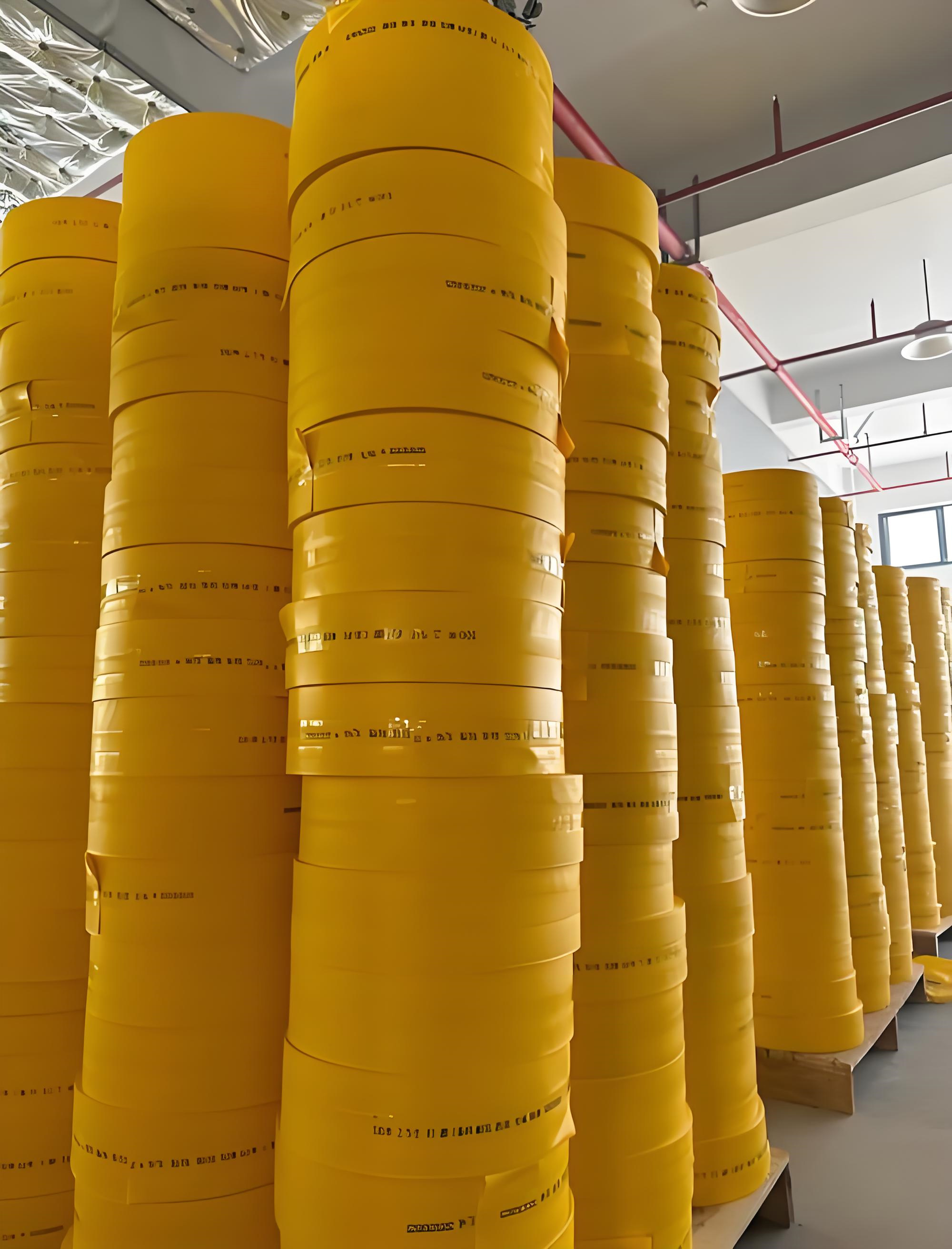

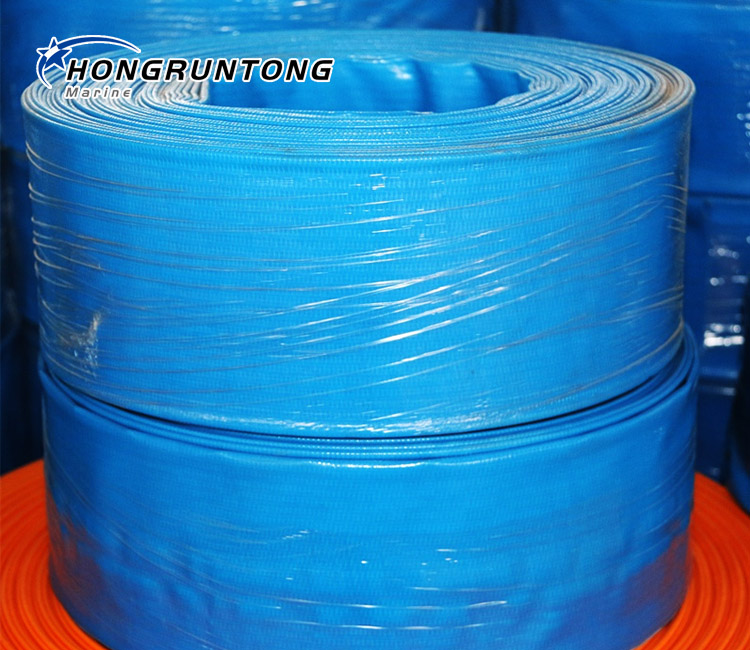

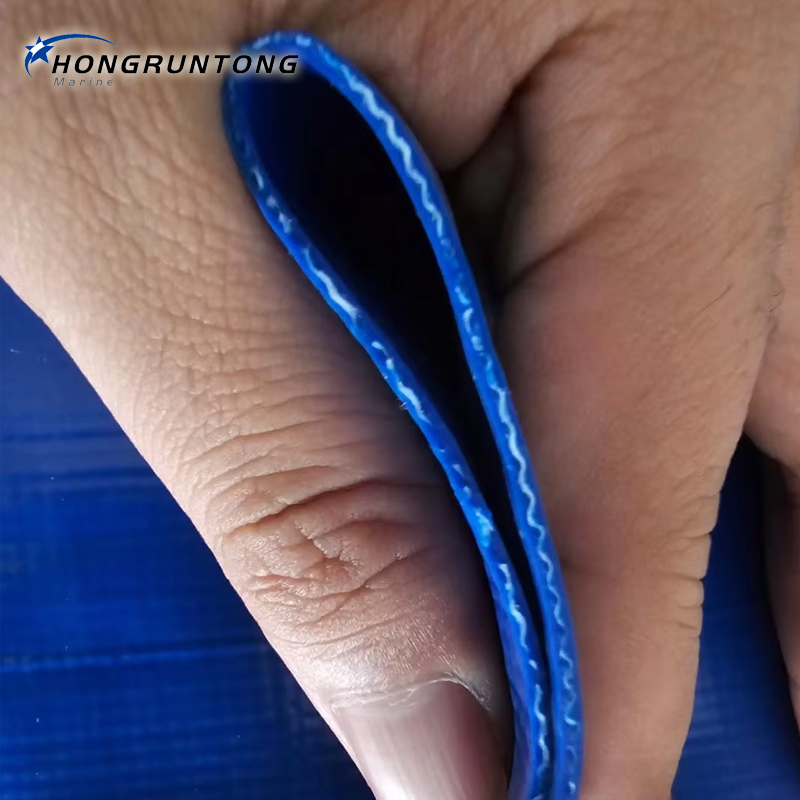

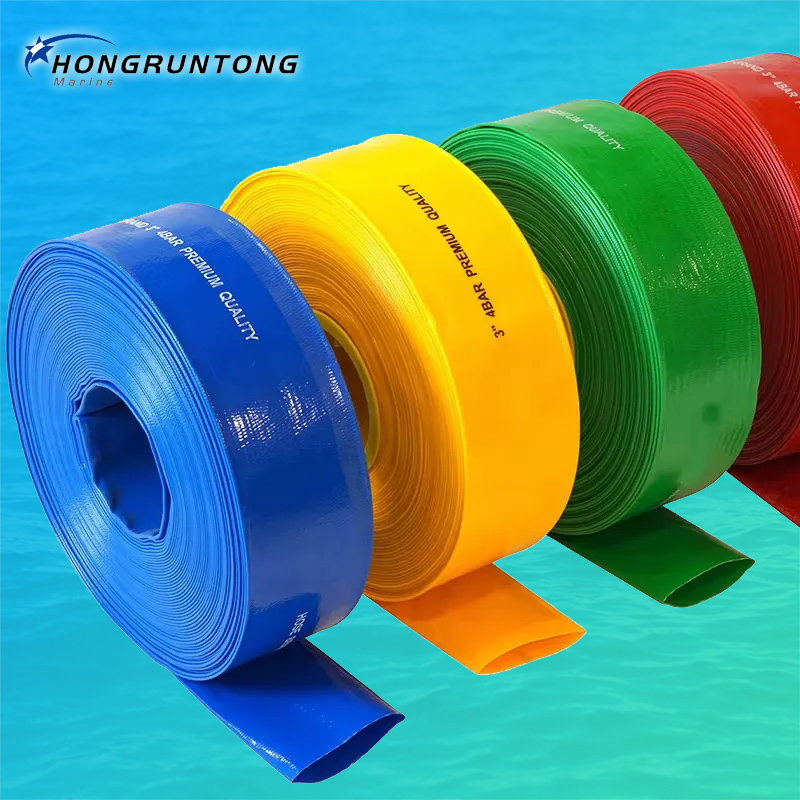

Detailed Photos
