Leg MV Fenders
Leg fenders, also known as MV type fenders, are another type of marine fender that is commonly used to protect the hulls of ships and other vessels. They are called "leg" fenders because they are shaped like two legs. Leg fenders are typically made from reinforced rubber or other high-strength materials that are designed to withstand the impact of rough seas or collisions with other vessels.
Leg MV Fenders, also known as dock post bumpers, are a type of fender used to protect a dock or pier from damage caused by boats or other watercraft. They are typically MV in shape and designed to fit over the legs or posts of a dock or pier. Leg fenders are made from durable natural rubber materials, and are designed to withstand the harsh marine environment.

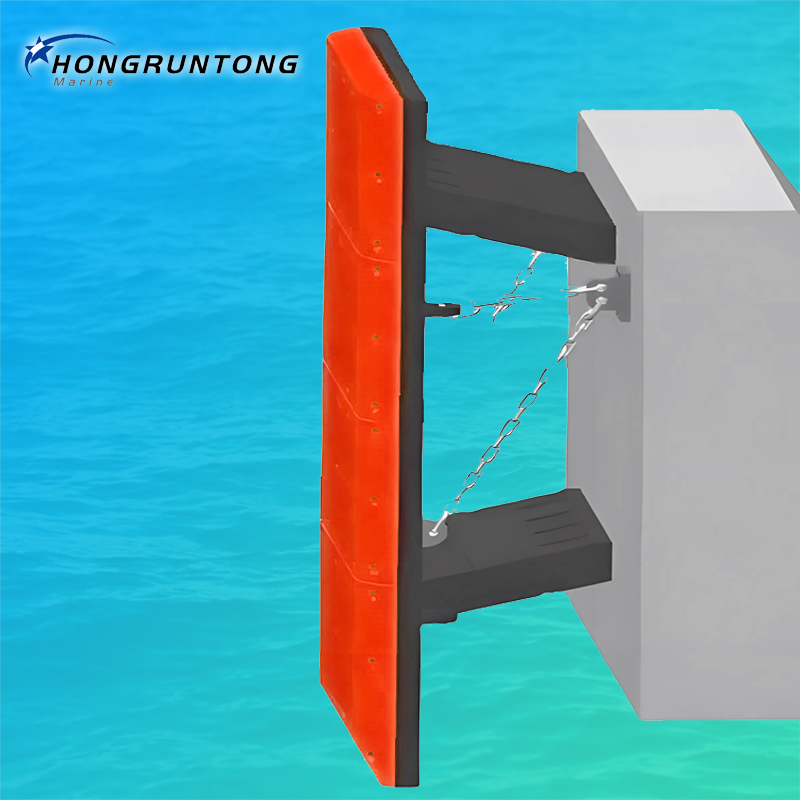

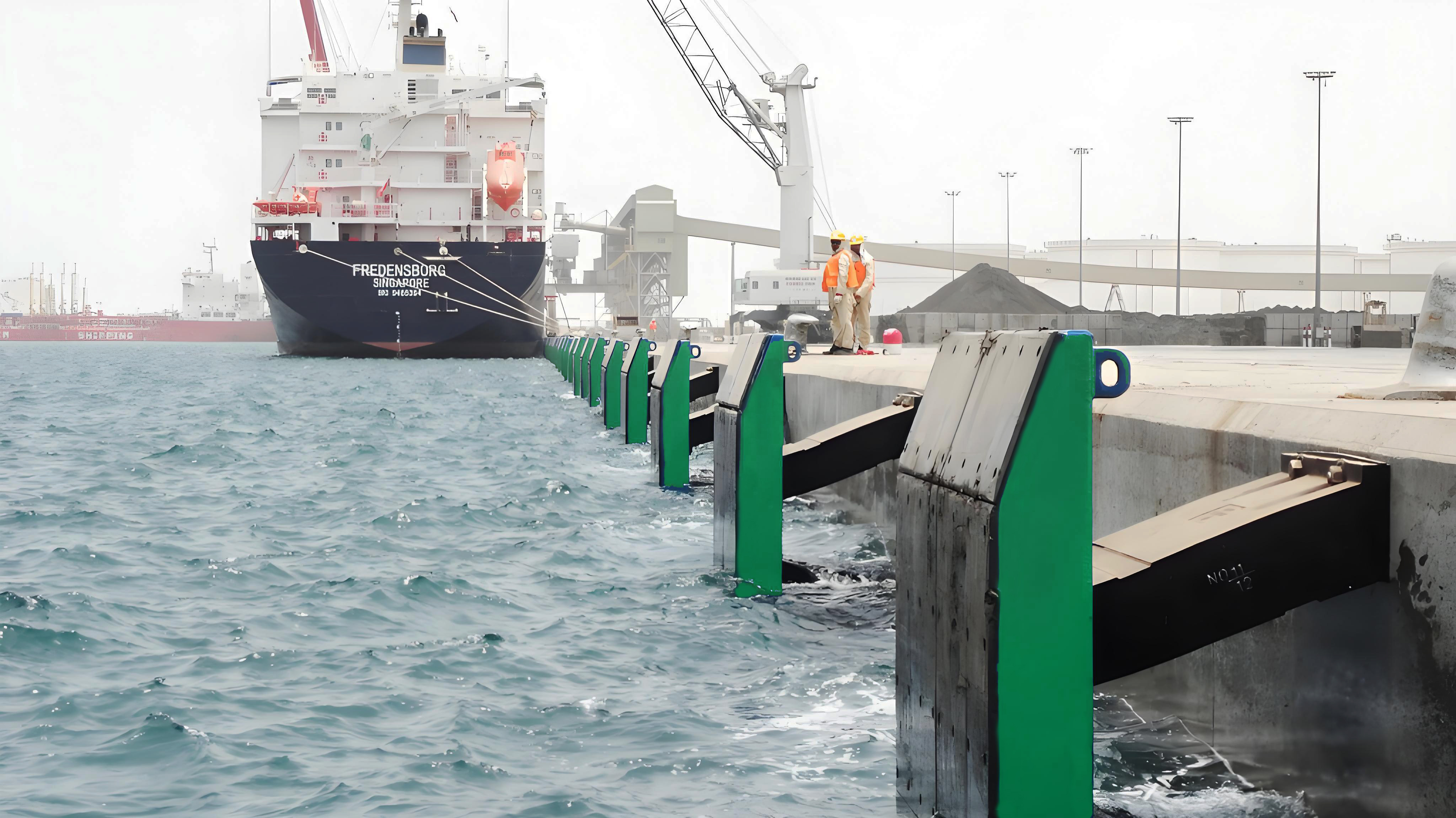

Leg MV Fenders are typically mounted vertically along the sides of the dock, and they can be used alone or in combination with other types of fenders, such as wing fenders, to provide additional protection. Leg fenders are highly effective at absorbing the impact of collisions and rough seas, and they are an important safety feature for ships of all sizes.
Leg MV Fenders are easy to install and can be secured to the dock or pier with straps or other fastening mechanisms. They provide a cushioning effect that helps to absorb the shock of boat impacts, reducing the risk of damage to the dock or pier. Leg fenders are available in a variety of sizes and styles to fit different types of docks and watercraft. They are an essential piece of equipment for anyone who owns a boat or manages a dock or pier.
rubber leg fender, leg fenders, mv rubber fenders, rubber element fenders, trelleborg mv fender
Characteristics
► Modular design system
► Various standard sizes
► High performance geometry
► Straightforward and easy installation
► Strong longitudinal shear force
► High energy absorption per unit weight
Applications
● Fender piles
● Pivot pillars
● General cargo quays
● Berthing dolphins
● Pontoon fendering
● Passenger ferry berths
● Offshore platforms
● Bulk carriers
● Post-Panamax containers

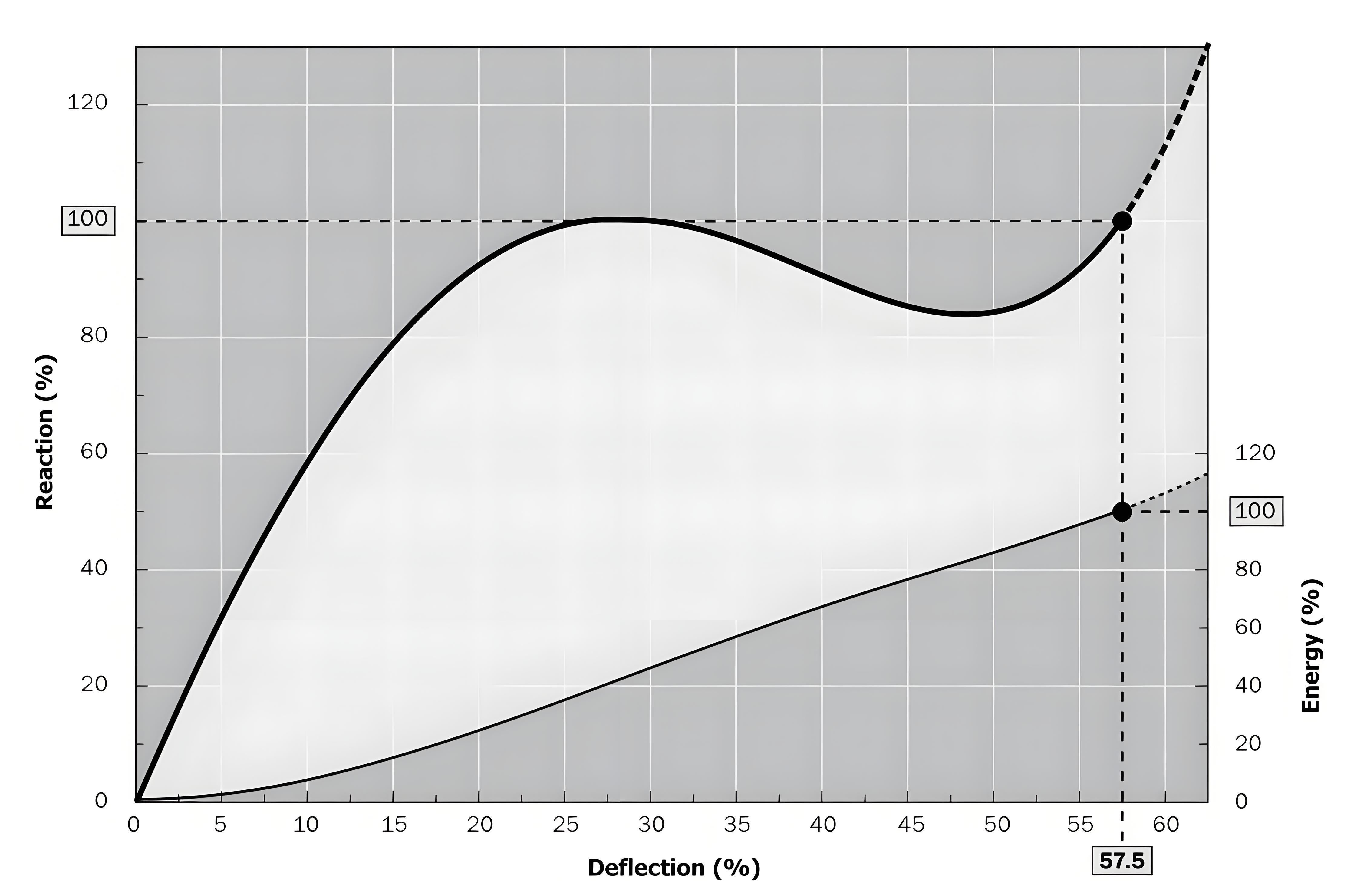

Generic Performance Curve
rubber leg fender, leg fenders, mv rubber fenders, rubber element fenders, trelleborg mv fender

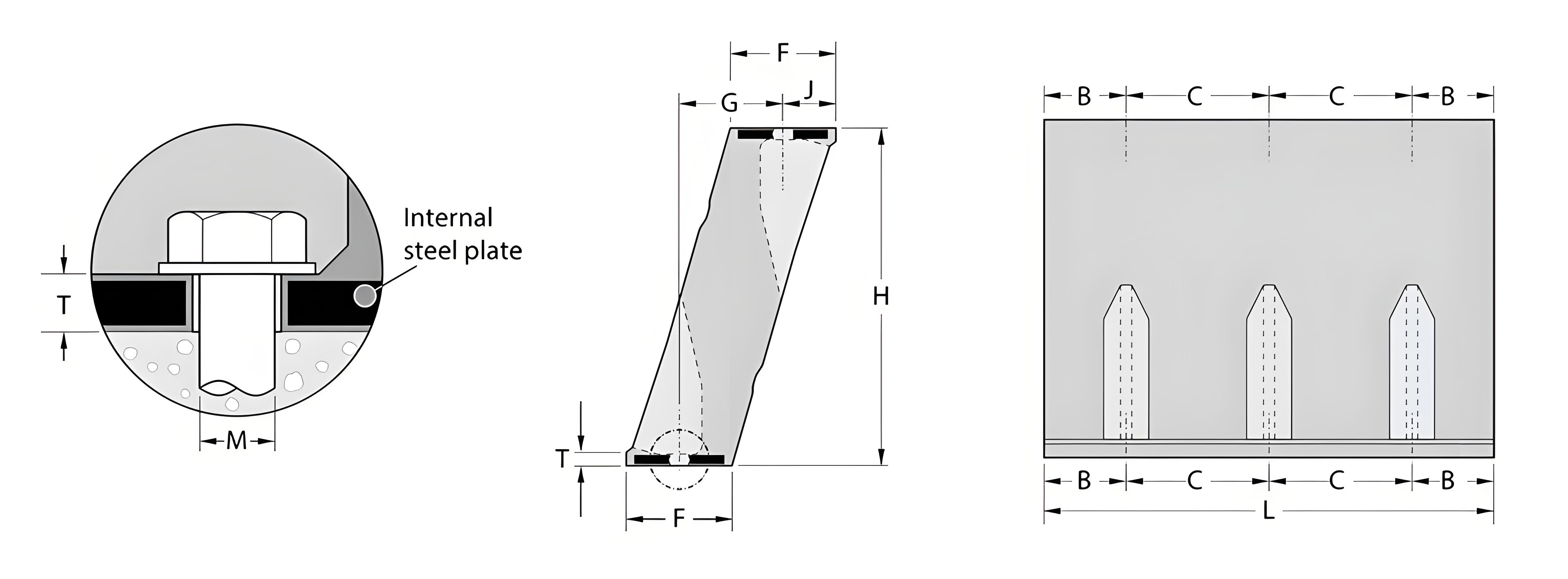

Specifications
Model | L | B | C | F | G | J | T | Anchors / Head Bolts |
HOLES |
HM-MV300 | 600 | 150 | 300 | 94 | 93 | 47 | 17-26 | M20 | 2 + 2 |
900 | 3 + 3 | ||||||||
1200 | 4 + 4 | ||||||||
1500 | 5 + 5 | ||||||||
HM-MV400 | 750 | 125 | 500 | 125 | 124 | 63 | 17-26 | M24 | 2 + 2 |
1000 | 250 | 2 + 2 | |||||||
1500 | 3 + 3 | ||||||||
2000 | 4 + 4 | ||||||||
2500 | 5 + 5 | ||||||||
3000 | 6 + 6 | ||||||||
HM-MV500 | 750 | 125 | 500 | 158 | 142 | 87 | 17-26 | M30 | 2 + 2 |
1000 | 250 | 2 + 2 | |||||||
1500 | 3 + 3 | ||||||||
2000 | 4 + 4 | ||||||||
2500 | 5 + 5 | ||||||||
3000 | 6 + 6 | ||||||||
HM-MV550 | 750 | 125 | 500 | 172 | 170 | 87 | 18-27 | M30 | 2 + 2 |
1000 | 250 | 2 + 2 | |||||||
1500 | 3 + 3 | ||||||||
HM-MV600 | 750 | 125 | 500 | 188 | 199 | 87 | 18-28 | M30 | 2 + 2 |
1000 | 250 | 2 + 2 | |||||||
1500 | 3 + 3 | ||||||||
HM-MV750 | 750 | 125 | 500 | 235 | 230 | 118 | 22-32 | M36 | 2 + 2 |
1000 | 250 | 2 + 2 | |||||||
1500 | 3 + 3 | ||||||||
HM-MV800 | 800 | 150 | 500 | 250 | 240 | 129 | 22-32 | M36 | 2 + 2 |
1000 | 250 | 2 + 2 | |||||||
1500 | 3 + 3 | ||||||||
2000 | 4 + 4 | ||||||||
HM-MV1000 | 800 | 150 | 500 | 322 | 310 | 162 | 28-40 | M42 | 2 + 2 |
850 | 175 | 2 + 2 | |||||||
900 | 200 | 2 + 2 | |||||||
950 | 225 | 2 + 2 | |||||||
1000 | 250 | 2 + 2 | |||||||
1050 | 275 | 2 + 2 | |||||||
1100 | 300 | 2 + 2 | |||||||
1150 | 325 | 2 + 2 | |||||||
1200 | 350 | 2 + 2 | |||||||
1500 | 250 | 3 + 3 | |||||||
2000 | 4 + 4 | ||||||||
HM-MV1250 | 800 | 150 | 500 | 401 | 388 | 202 | 35-47 | M48 | 2 + 2 |
850 | 175 | 2 + 2 | |||||||
900 | 200 | 2 + 2 | |||||||
950 | 225 | 2 + 2 | |||||||
1000 | 250 | 2 + 2 | |||||||
1050 | 275 | 2 + 2 | |||||||
1100 | 300 | 2 + 2 | |||||||
1150 | 325 | 2 + 2 | |||||||
1200 | 350 | 2 + 2 | |||||||
1250 | 375 | 2 + 2 | |||||||
1500 | 250 | 3 + 3 | |||||||
2000 | 4 + 4 | ||||||||
HM-MV1450 | 900 | 200 | 500 | 454 | 445 | 228 | 35-50 | M48 | 2 + 2 |
1000 | 250 | 2 + 2 | |||||||
1100 | 300 | 2 + 2 | |||||||
1200 | 350 | 2 + 2 | |||||||
1500 | 250 | 3 + 3 | |||||||
2000 | 4 + 4 | ||||||||
HM-MV1600 | 1000 | 250 | 500 | 507 | 480 | 261 | 45-50 | M56 | 2 + 2 |
1100 | 300 | 2 + 2 | |||||||
1200 | 350 | 2 + 2 | |||||||
1500 | 250 | 3 + 3 | |||||||
2000 | 4 + 4 |
rubber leg fender, leg fenders, mv rubber fenders, rubber element fenders, trelleborg mv fender

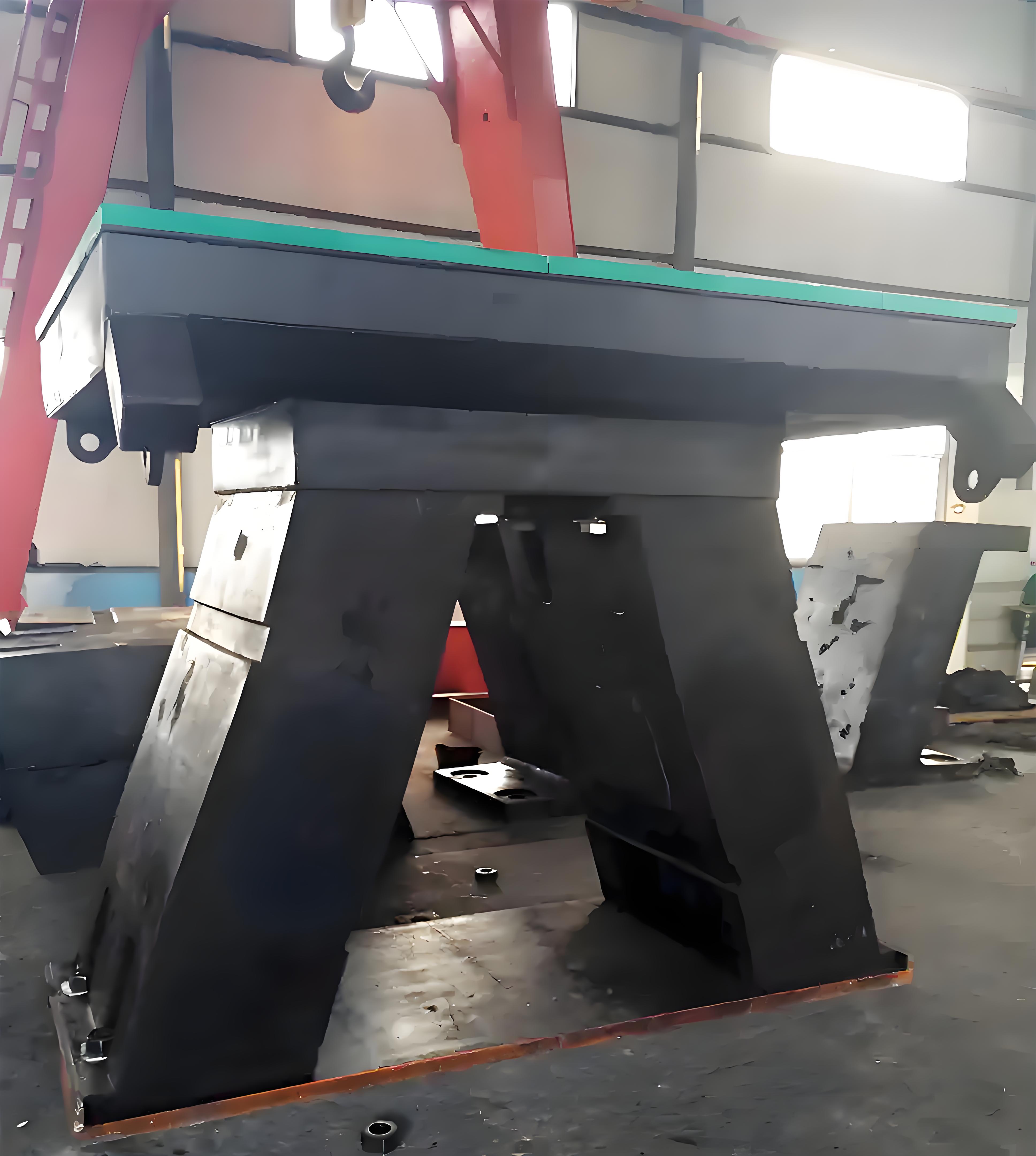

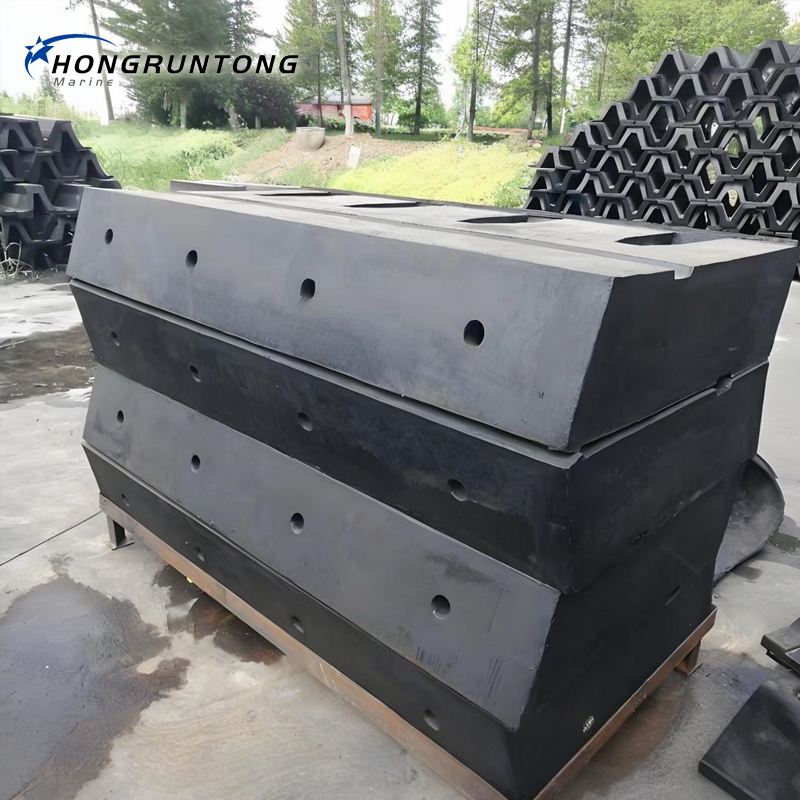

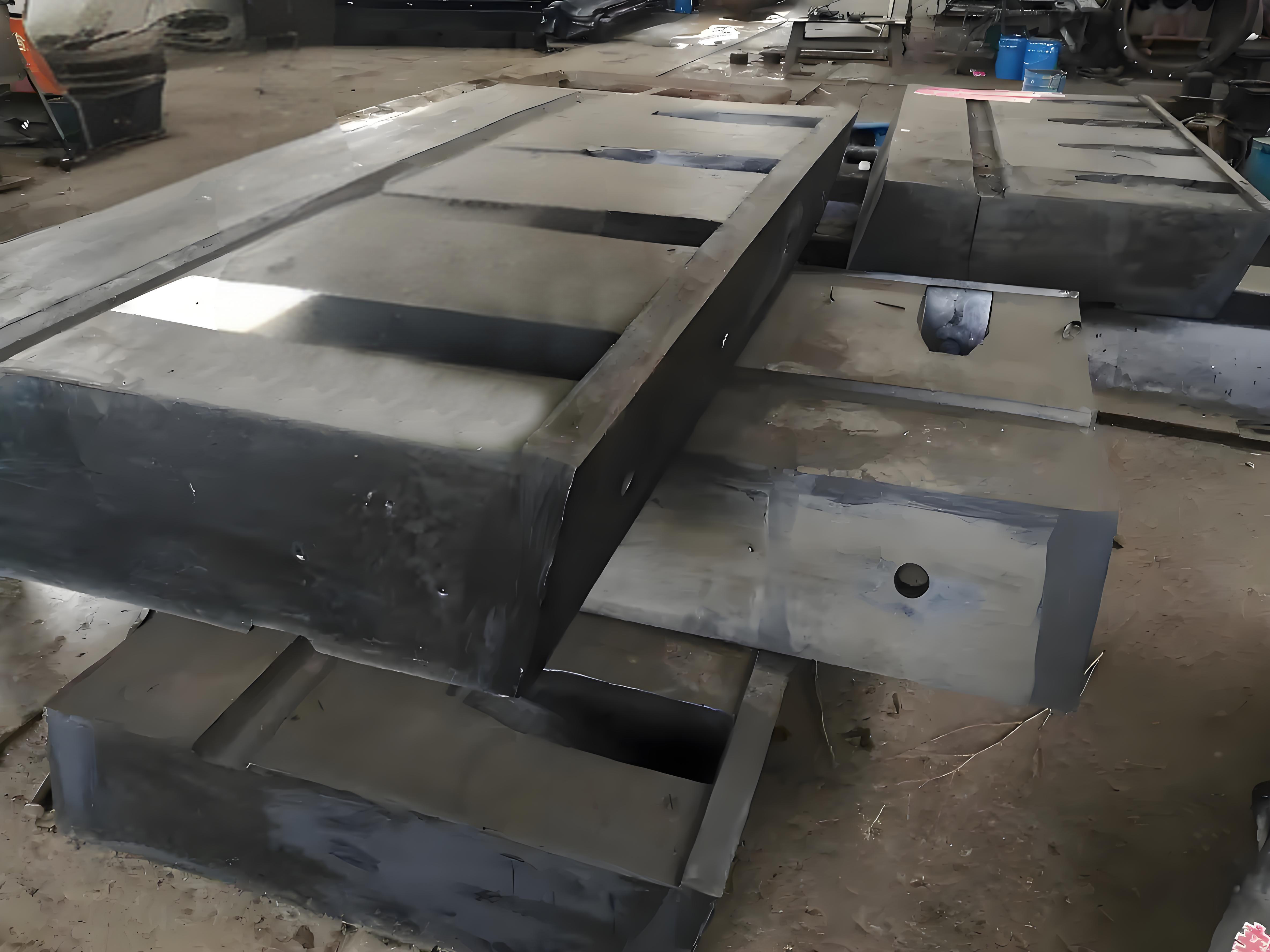

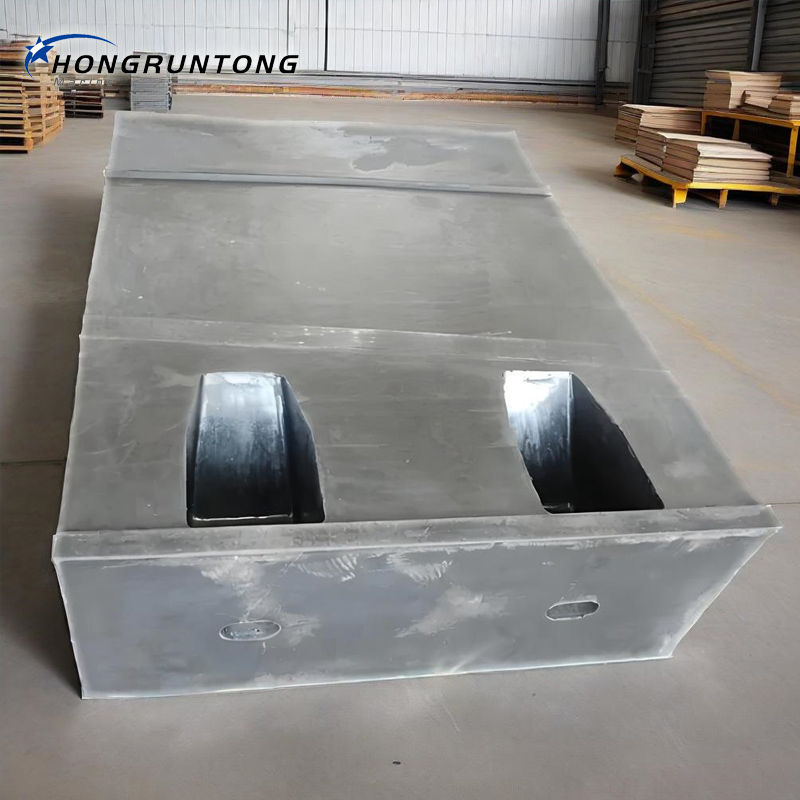

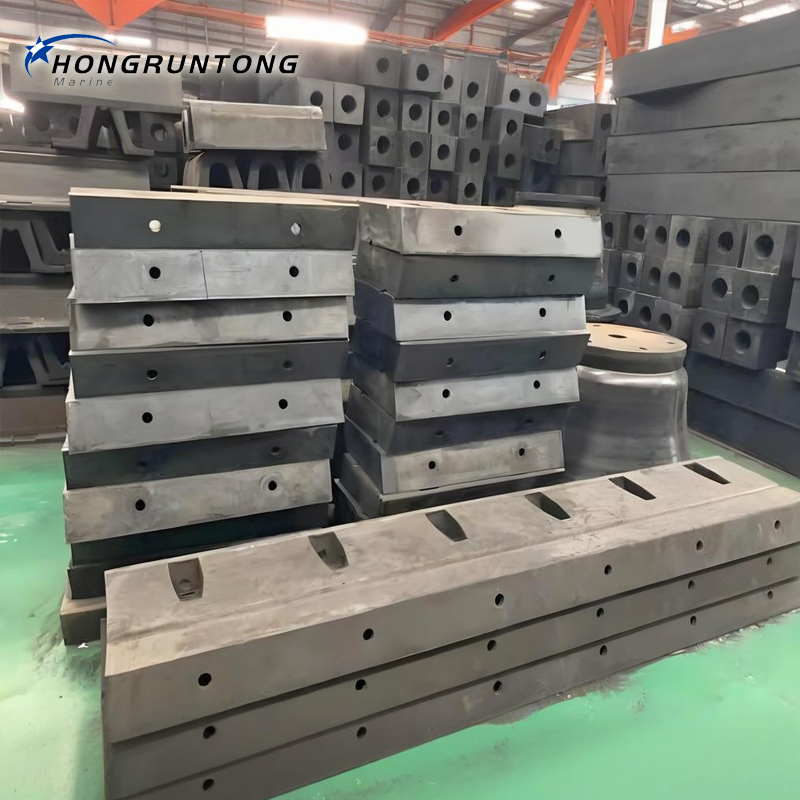

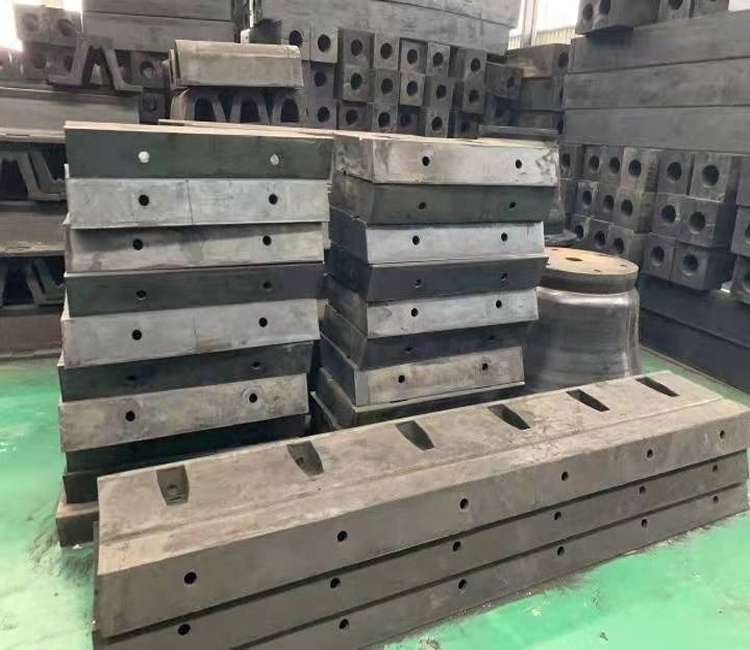

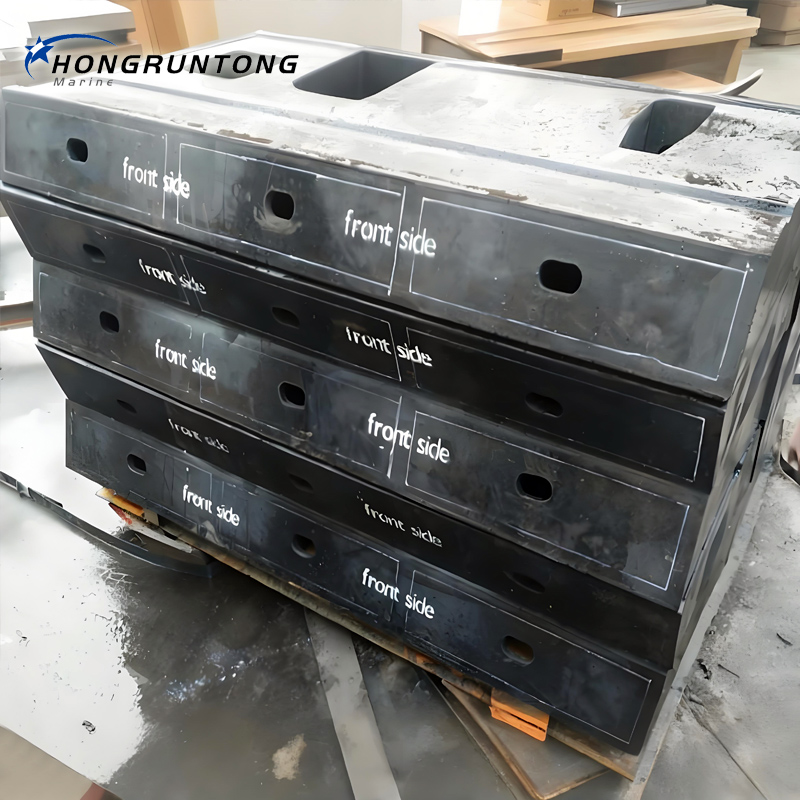

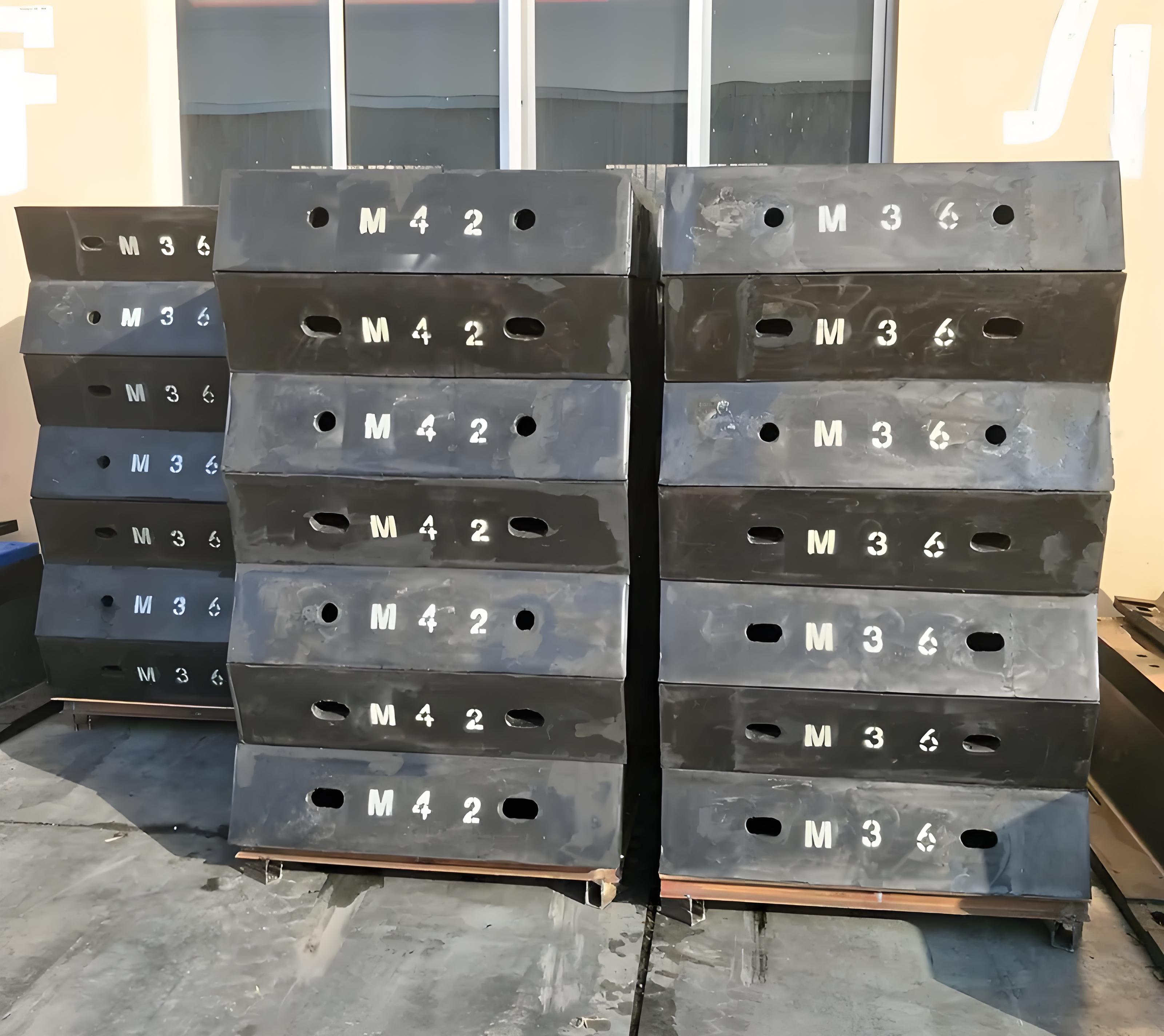

Detailed Photos
