Single Point Mooring Hawsers

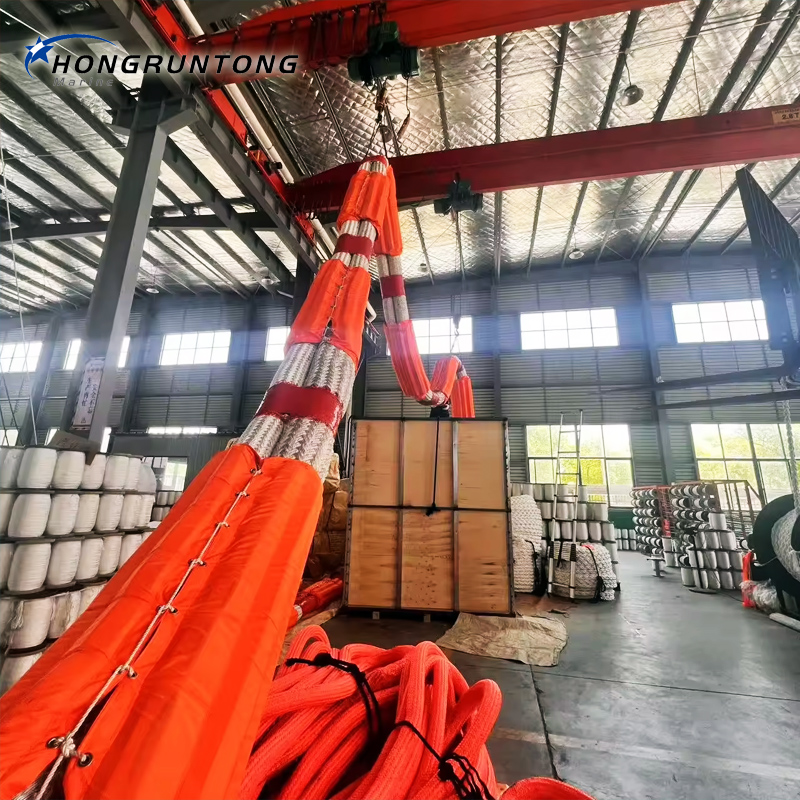

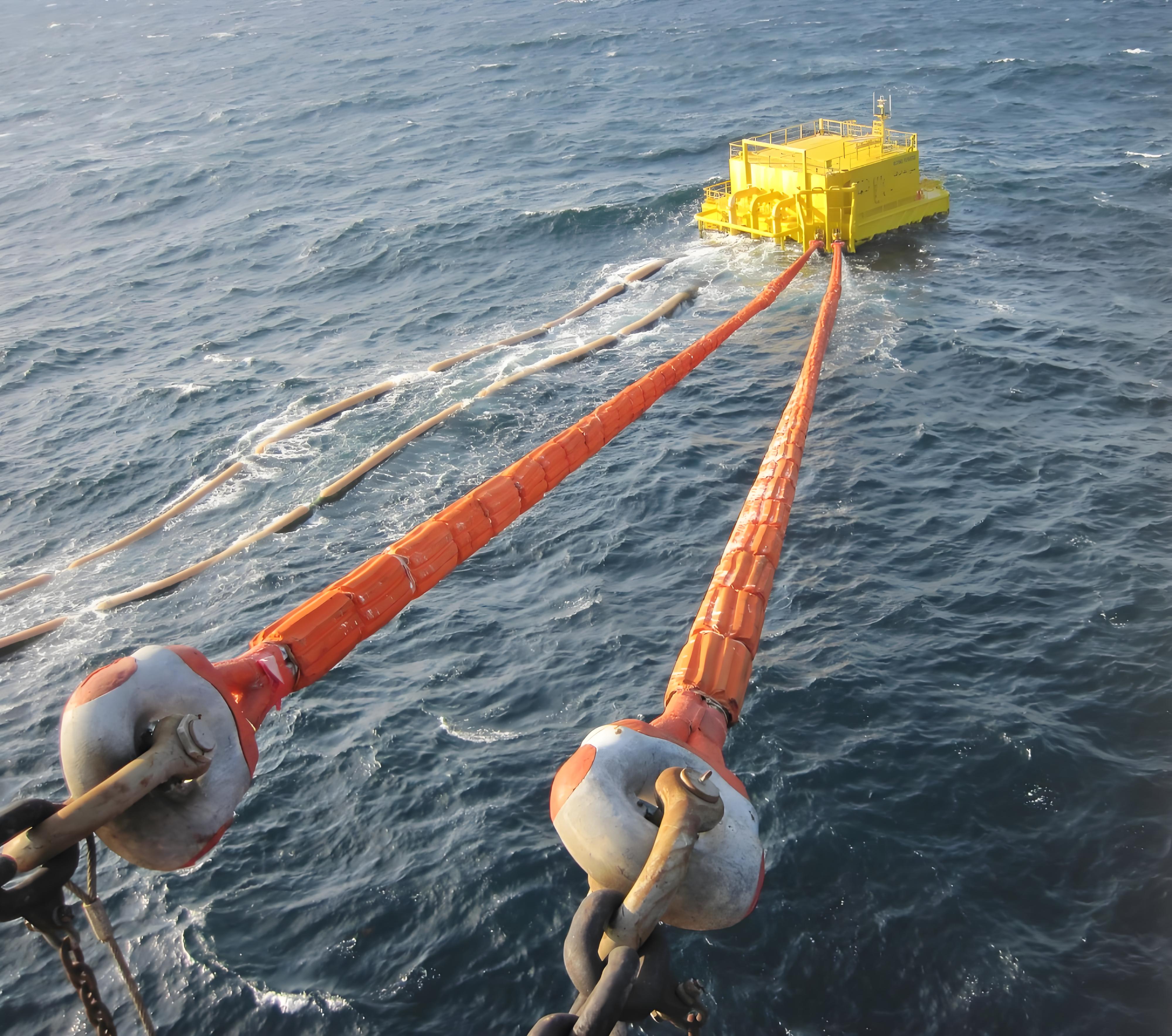

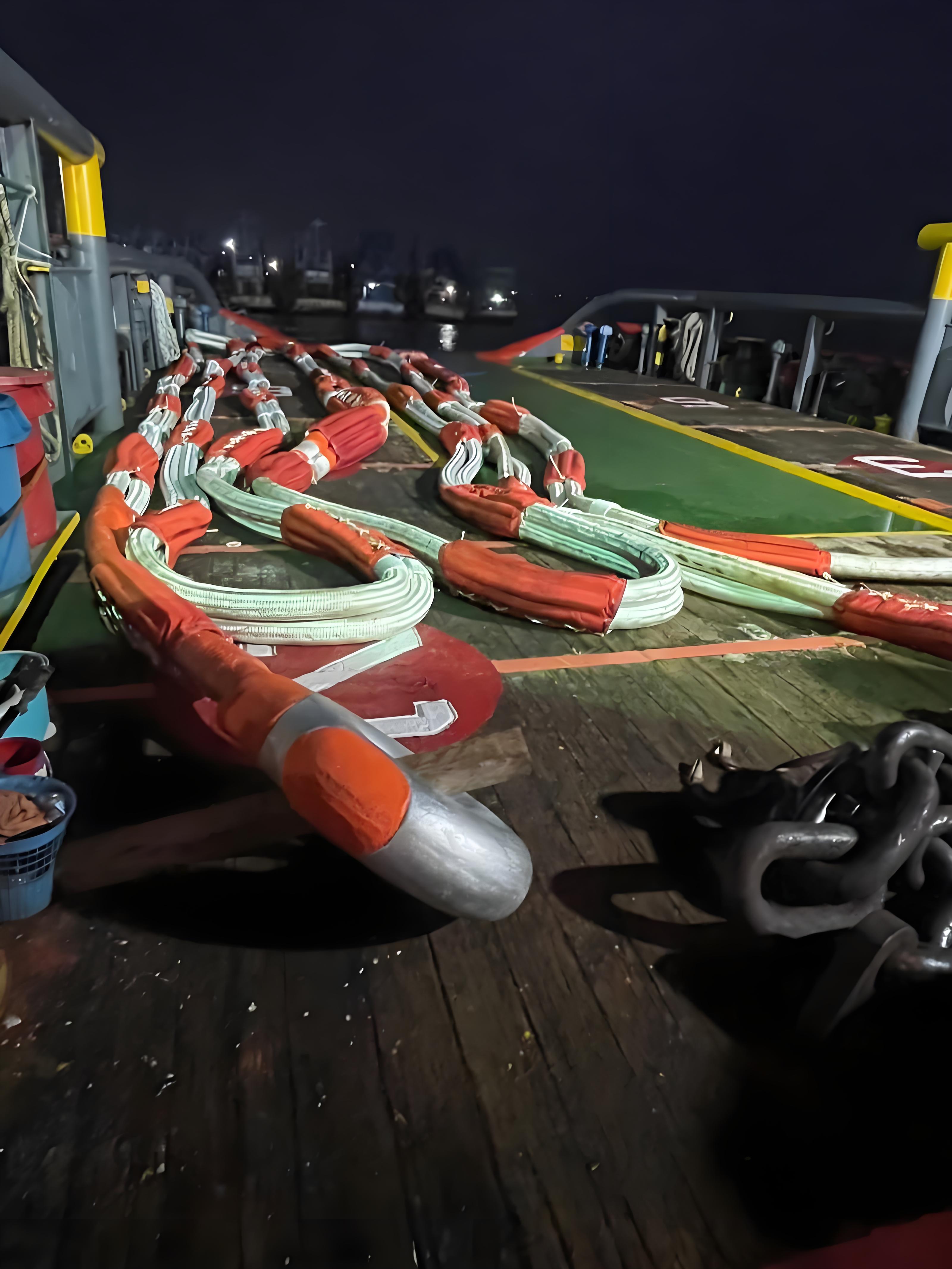

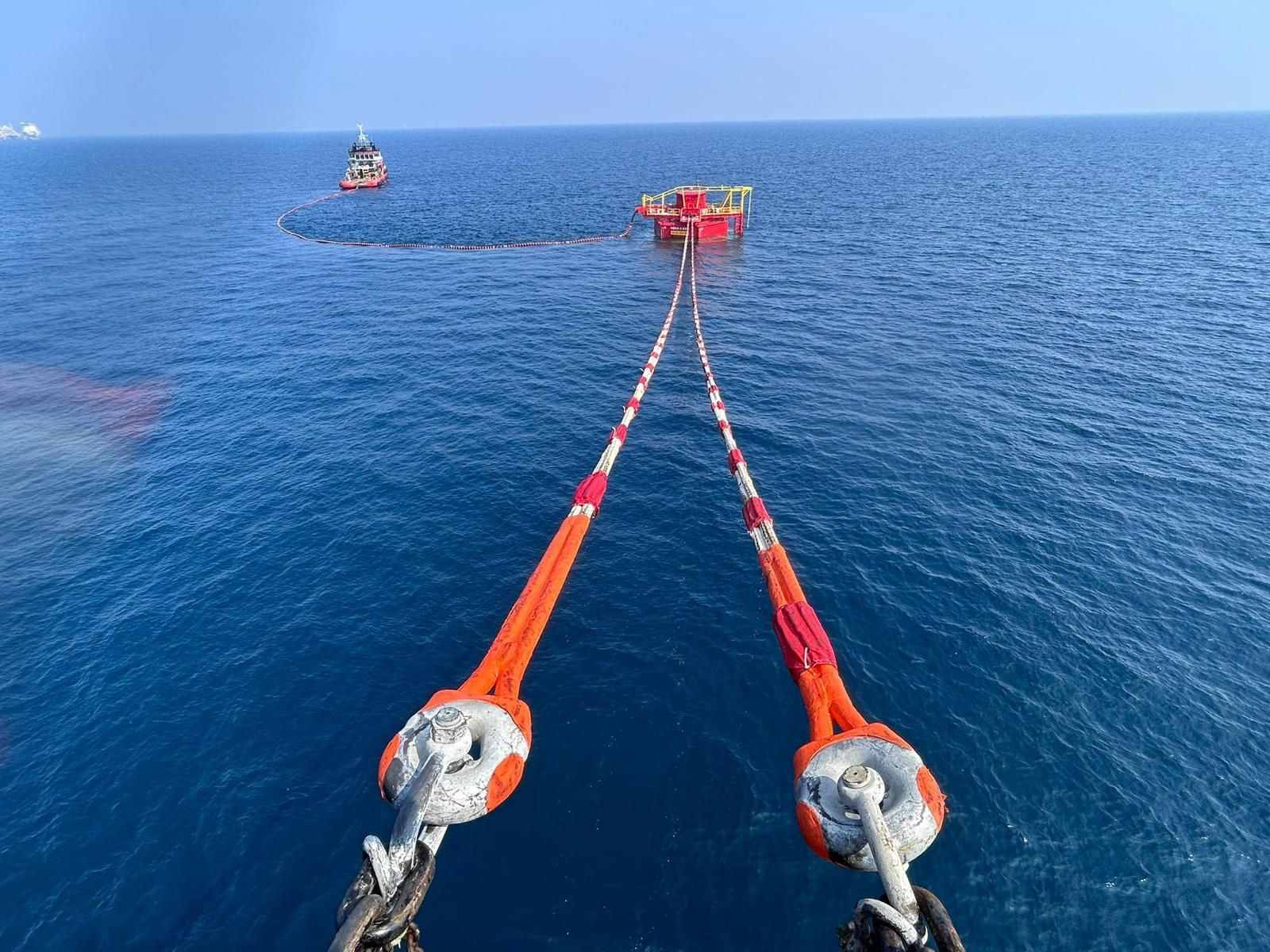

Single Point Mooring Hawsers are typically used in the Oil & Gas Industry whereby an Oil Tanker (or any ship) can be securely moored to an offshore Floating Production Storage Offloading Facility (FPSO), offshore Floating Storage and Offloading Unit (FSO), Tanker Buoy as depicted above.
Although typically used in the applications describe above, the materials and techniques used to make Single Point Mooring Hawser can be applied to manufacture Mooring Lines, Mooring Hawsers, Tow Lines, and Towing Hawsers.
Another application for Single Point Mooring Hawsers is for Ocean Floor Anchoring Systems. Deep Sea Mooring Hawsers are highly specialized, performance engineered, and manufactured.
Please consider the following General Information regarding SPM Hawser Design Specifications and Features:
Typical SPM Hawser Rope Fiber Materials include Nylon, Polyester, Polypropylene / Polyester fiber blend
Typical SPM Hawser Rope Construction include 8-Strand, 12-Strand, and Double Braids
Typical SPM Hawsers are generally in the range 45m—100m + custom in length
Maximum SPM Hawser Single Leg Rope Diameter = 7-0” or 22” circular
Typical SPM Hawsers are either Single Leg or Double Leg / Grommet style

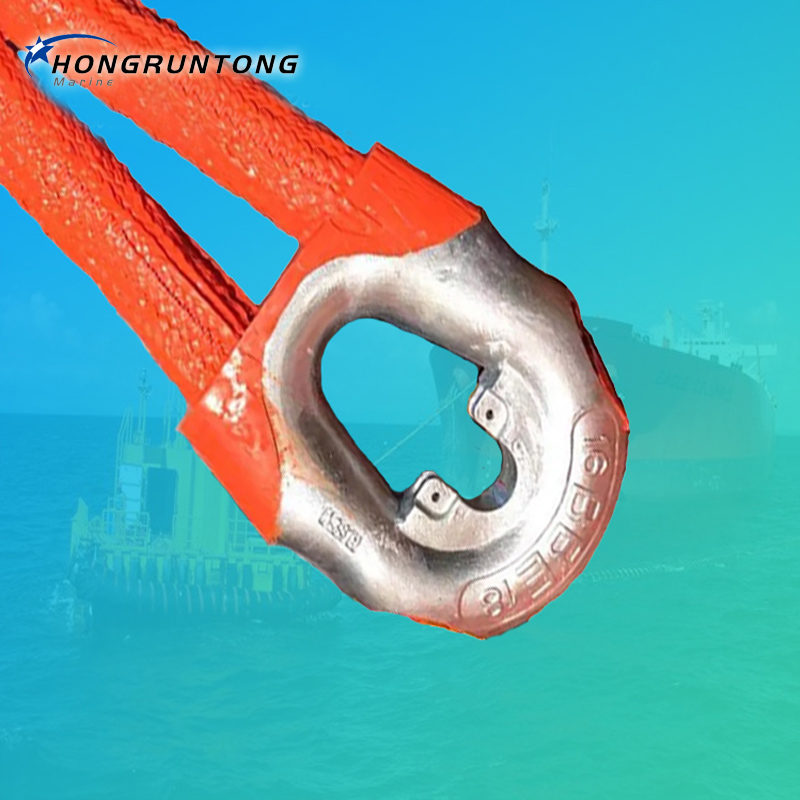

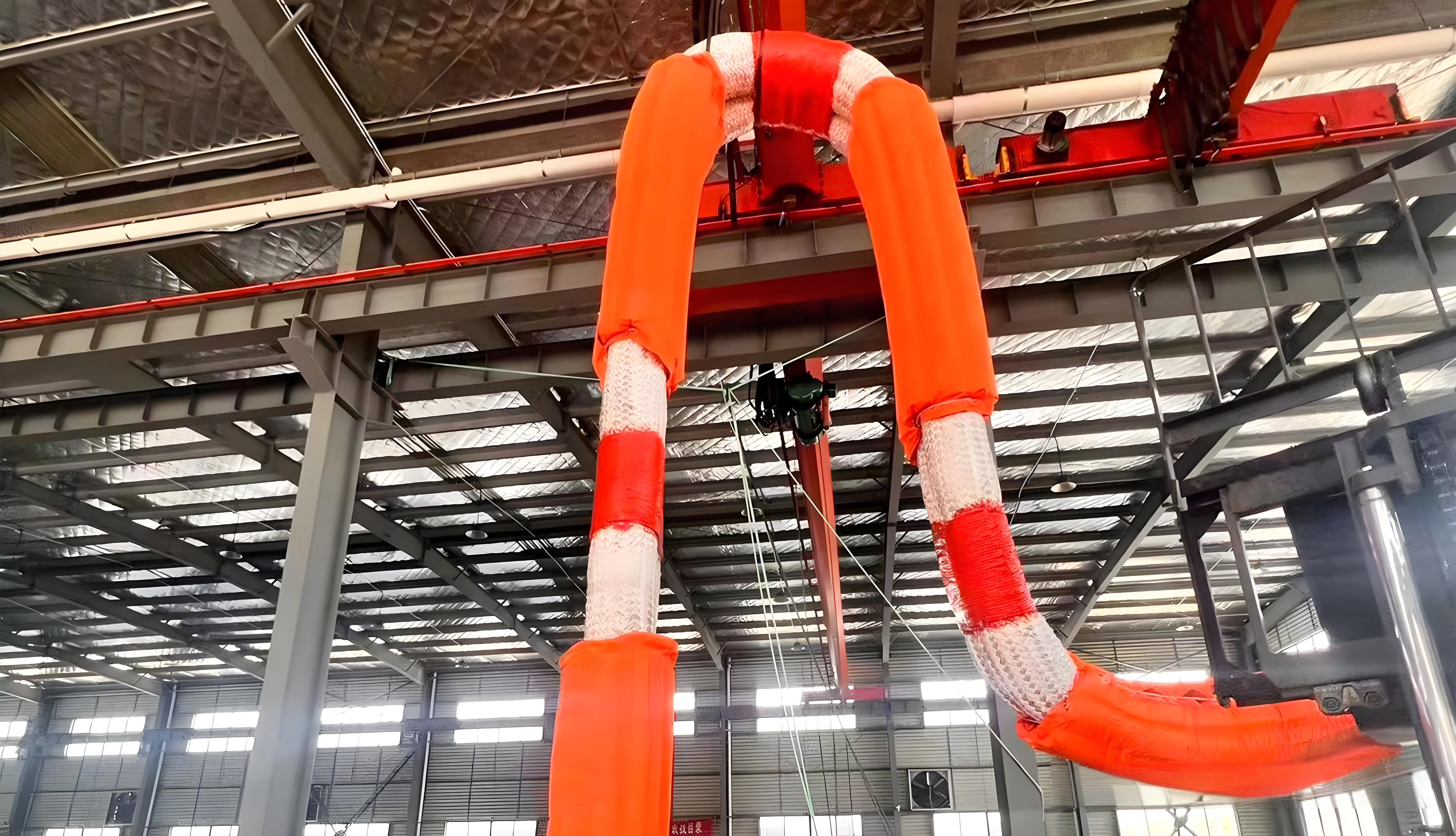

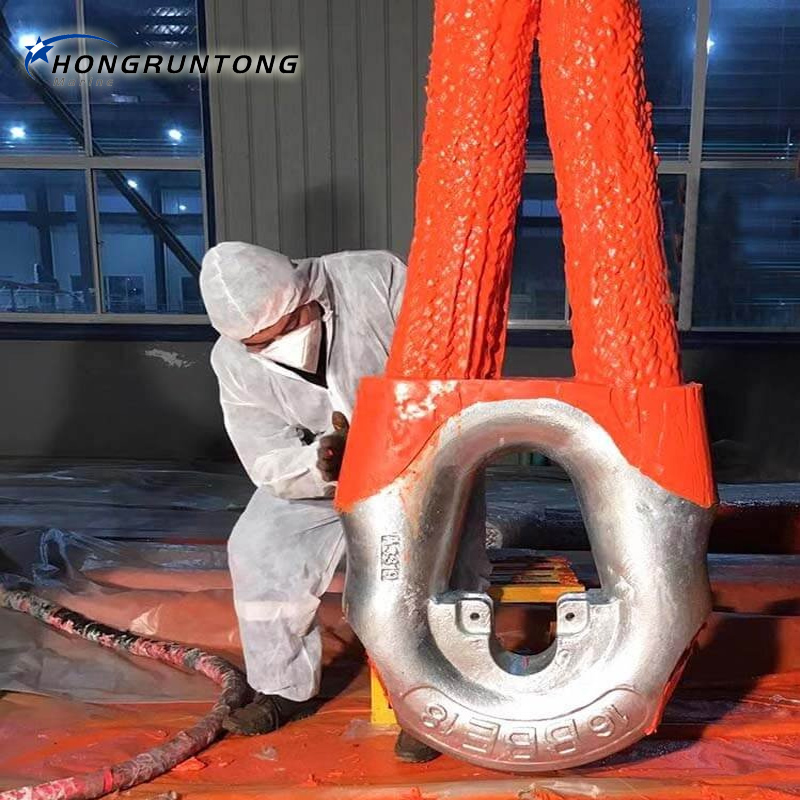

Typical SPM Hawsers can be supplied with Soft Covered Eyes and or Hard Thimble Eyes
Typical SPM Hawser Thimbles styles include Cast, Tubular, Bell Mouth, etc

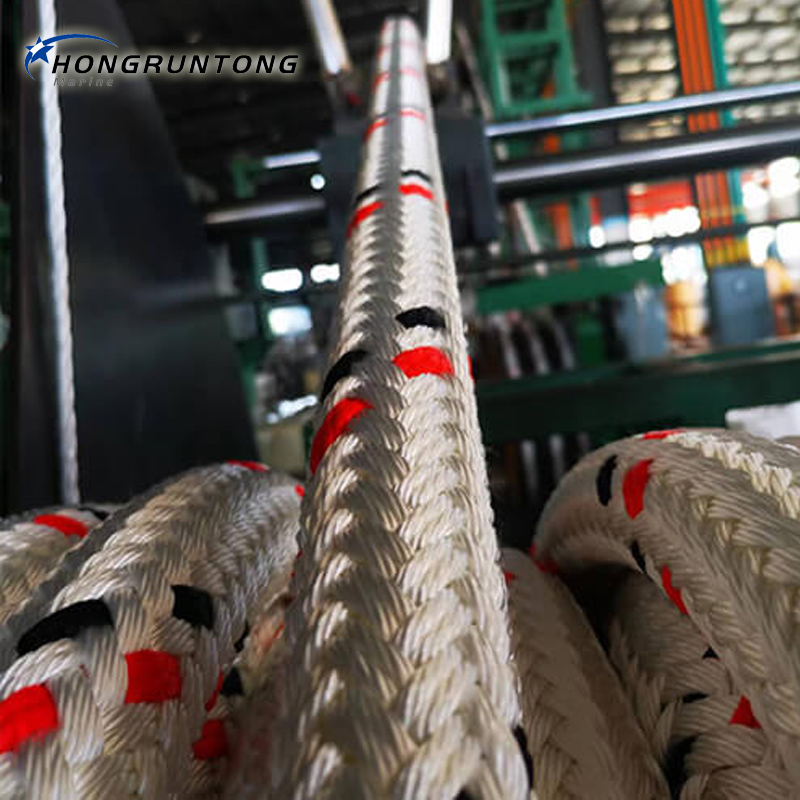

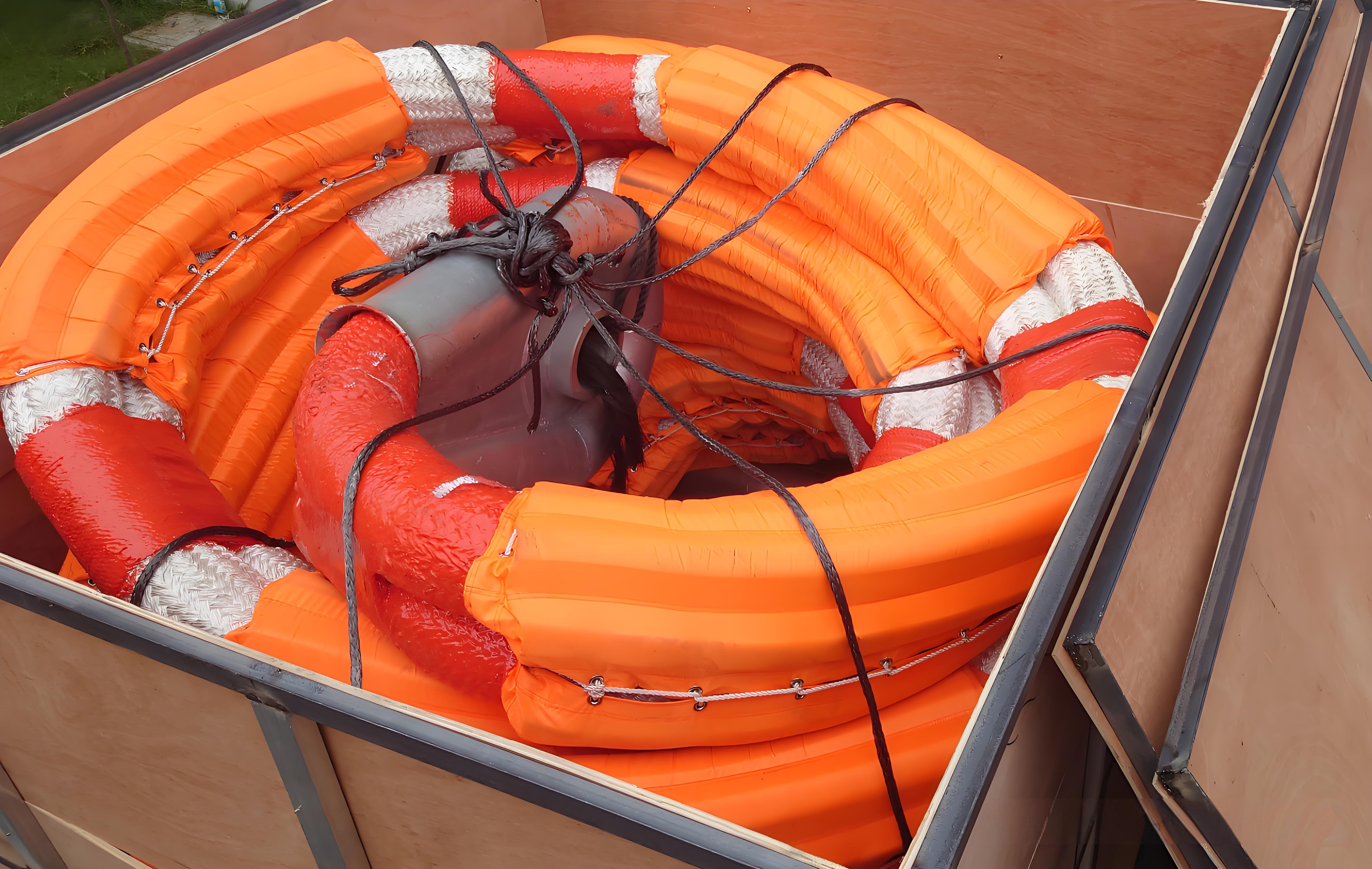

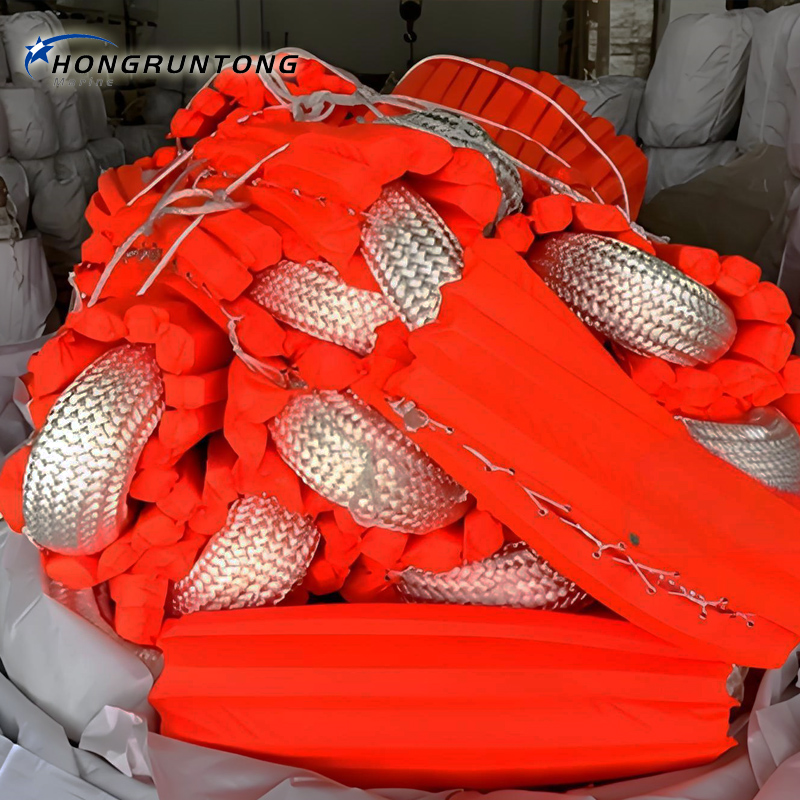

Typical SPM Hawsers can be provided with Lace-on-Floats and or Orange Polyurethane / Inherent Buoyancy
Lace-on-Floats and Orange Polyurethane provide the required buoyancy, abrasion resistance, and fiber protection
Typical SPM Hawser Available Quality Certificates include: Loyds, BV, ABS / DNV
SPM Hawsers are Manufactured and Tested in accordance with OCMIF 2000 Guidelines
Characteristics
► High energy absorption
► Excellent recovery from stretch, are suited to mooring
► Good resistance to solvents and chemicals
► UV stabilized
Specifications
Single Point Mooring Hawsers are manufactured in accordance with OCIMF 2000 regulations. Various sizes and materials can be customized according to requirements.
SPM-HM8
| Materials: | High tenacity HM-yarn and high tenacity polyester |
| Construction: | 8 strand plaited |
| Treatment: | Marine finish |
| Color of Rope: | White with blue and orange marker |
| Approx. Spec. Density: | 1.27 non-floating |
| Melting point: | 165°C / 260°C |
| Abrasion resistance: | Excellent |
| U.V. resistance: | Excellent |
| Temperature resistance: | 80°C max continuous |
| Chemical resistance: | Good, solvents and strong oxidisers may have a mild effect |
| Dry & wet conditions: | Wet strength ± 5% lower than dry strength |
| Weight: | ± 5% |
| Diameter: | ± 2% |
| Dia | Cir | Weight | MBL Single | MBL Grommet | ||
| mm | in | kg/100m | tf | kN | tf | kN |
| 80 | 10 | 412 | 151 | 1,483 | 257 | 2,521 |
| 88 | 11 | 500 | 181 | 1,772 | 307 | 3,013 |
| 96 | 12 | 590 | 213 | 2,085 | 361 | 3,544 |
| 104 | 13 | 680 | 247 | 2,421 | 420 | 4,116 |
| 112 | 14 | 800 | 283 | 2,781 | 482 | 4,728 |
| 120 | 15 | 918 | 322 | 3,164 | 548 | 5,378 |
| 128 | 16 | 1,055 | 364 | 3,569 | 618 | 6,067 |
| 136 | 17 | 1,185 | 407 | 3,997 | 693 | 6,795 |
| 144 | 18 | 1,330 | 453 | 4,448 | 771 | 7,561 |
SPM-HM12
| Materials: | Polyamide (nylon) |
| Construction: | 12 strand braided with a braided cover of polyamide |
| Treatment: | Marine finish |
| Color of Rope: | White with blue and orange marker |
| Approx. Spec. Density: | 1.27 non-floating |
| Melting point: | 215°C / 260°C |
| Abrasion resistance: | Excellent |
| U.V. resistance: | Excellent, due to jacket |
| Temperature resistance: | 80°C max continuous |
| Chemical resistance: | Reasonable; acids, oxidisers & solvents will affect nylon |
| Dry & wet conditions: | Wet strength ± 5% lower than dry strength |
| Weight: | ± 5% |
| Diameter: | ± 2% |
| Dia mm |
Cir in |
Weight kg/100m |
MBL Single | MBL Grommet | ||||||
| Dry | Wet | Dry | Wet | |||||||
| tf | kN | tf | kN | tf | kN | tf | kN | |||
| 80 | 10 | 397 | 176 | 1,724 | 165 | 1,624 | 299 | 2,932 | 281 | 2,760 |
| 88 | 11 | 481 | 214 | 2,100 | 202 | 1,977 | 364 | 3,571 | 343 | 3,362 |
| 96 | 12 | 572 | 256 | 2,515 | 241 | 2,367 | 436 | 4,275 | 410 | 4,025 |
| 104 | 13 | 671 | 302 | 2,967 | 285 | 2,794 | 514 | 5,045 | 484 | 4,749 |
| 112 | 14 | 779 | 353 | 3,459 | 332 | 3,257 | 599 | 5,880 | 564 | 5,536 |
| 120 | 15 | 893 | 407 | 3,990 | 383 | 3,756 | 691 | 6,783 | 651 | 6,386 |
| 128 | 16 | 1,020 | 465 | 4,560 | 438 | 4,293 | 790 | 7,751 | 744 | 7,298 |
| 136 | 17 | 1,150 | 527 | 5,169 | 496 | 4,866 | 896 | 8,787 | 843 | 8,273 |
| 144 | 18 | 1,280 | 593 | 5,818 | 558 | 5,477 | 1,008 | 9,890 | 949 | 9,311 |
