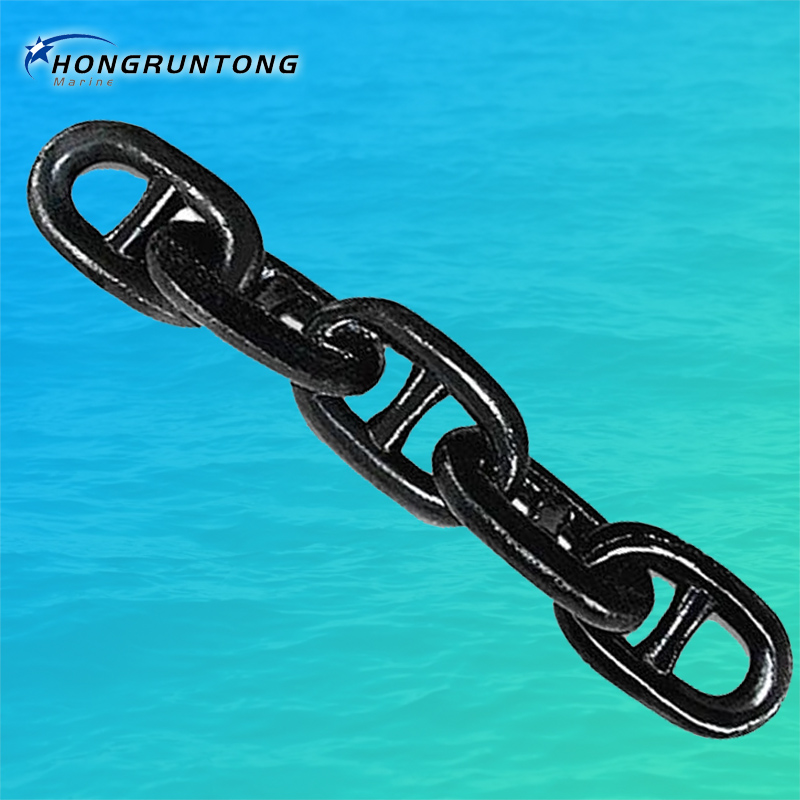

Chafe Chain

Hongruntong Marine manufactures OCIMF chafe chains, SPM chafe chains, chafe chain type B, and 76mm chafe chains for offshore mooring systems. Built for durability, safety, and compliance with OCIMF and SPM standards.

Hongruntong’s chafe chains are engineered to provide maximum abrasion protection and load-bearing strength for critical mooring systems. Designed specifically for harsh offshore environments, our chafe chains are forged from high-grade R3 and R4 mooring steel, ensuring long-lasting performance under extreme mechanical stress.

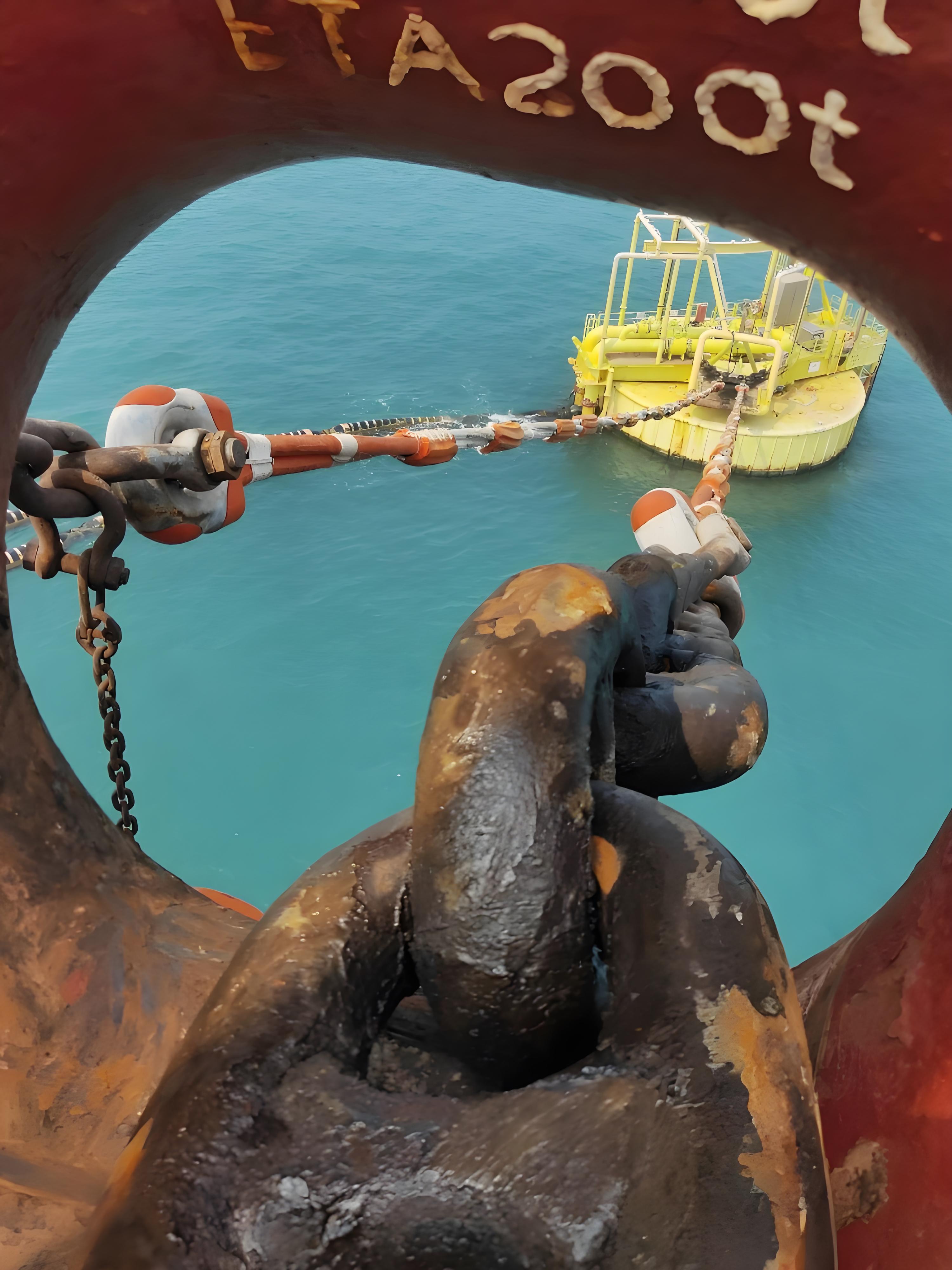

Hongruntong Marine provides high-performance OCIMF chafe chains, SPM chafe chains, and chafe chain type B products specifically engineered for offshore loading and Single Point Mooring (SPM) systems. Our chafe chain 76mm models are designed and tested according to OCIMF standards, ensuring optimal performance under extreme marine conditions. These chains serve as a critical connection between the tanker and buoy, protecting the mooring hawser from abrasion and excessive load.

Key Features

• R3 & R4 Grade Materials: Manufactured using certified R3 and R4 steel, compliant with IACS requirements and tested for high tensile strength and corrosion resistance.

• Enhanced Wear Resistance: Designed to withstand friction and impact from repeated contact with ship hulls, bollards, and fairleads.

• Custom Length & Size: Available in a wide range of link diameters and lengths, tailored to fit your hawser and mooring system configurations.

• Corrosion Protection: Optional hot-dip galvanizing or marine-grade coatings available for extended service life in seawater conditions.

• Compatibility: Works seamlessly with synthetic mooring hawsers, thimbles, and shackles for secure and flexible mooring setups.

Applications

• Single Point Mooring (SPM) and CALM buoy systems

• Offshore loading terminals and floating hose strings

• FPSO and FSO operations

• Tanker and buoy connection systems

• Oil and gas marine transfer applications

Technical Requirements

• Material Grade: R3 / R4 (heat-treated mooring chain steel)

• Link Diameter: 26mm – 122mm

• Minimum Breaking Load (MBL): Up to 1200 tons

• Finishes: Black bare, painted, or galvanized

• Standards: ISO 1704, OCIMF Guidelines, IACS UR W22 / W23

Specifications

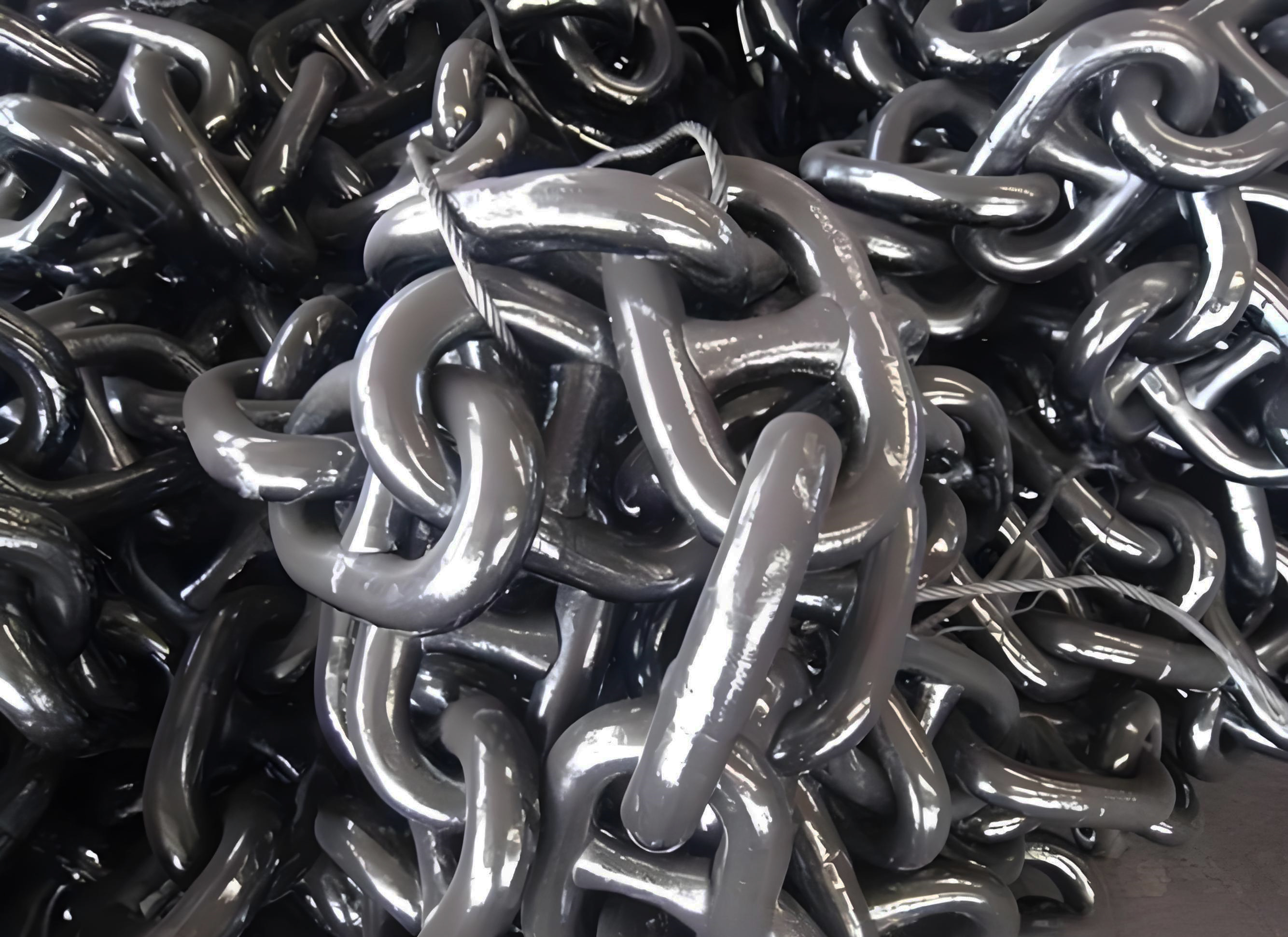

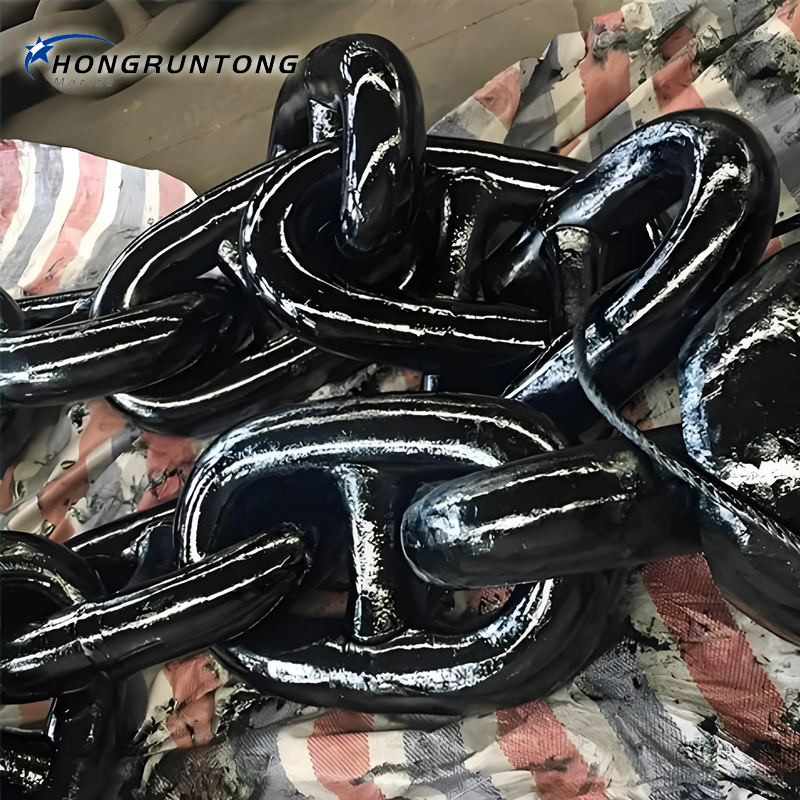

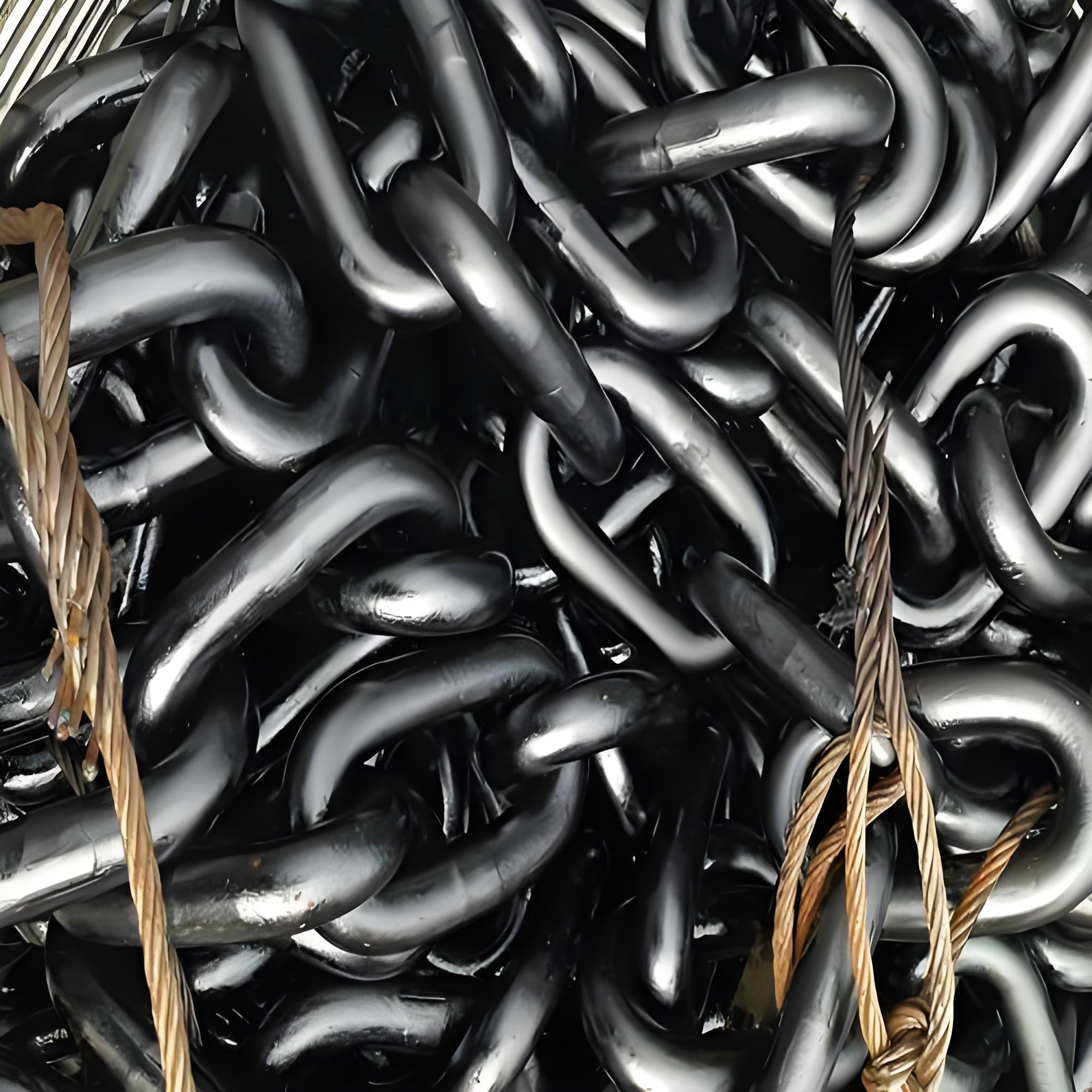

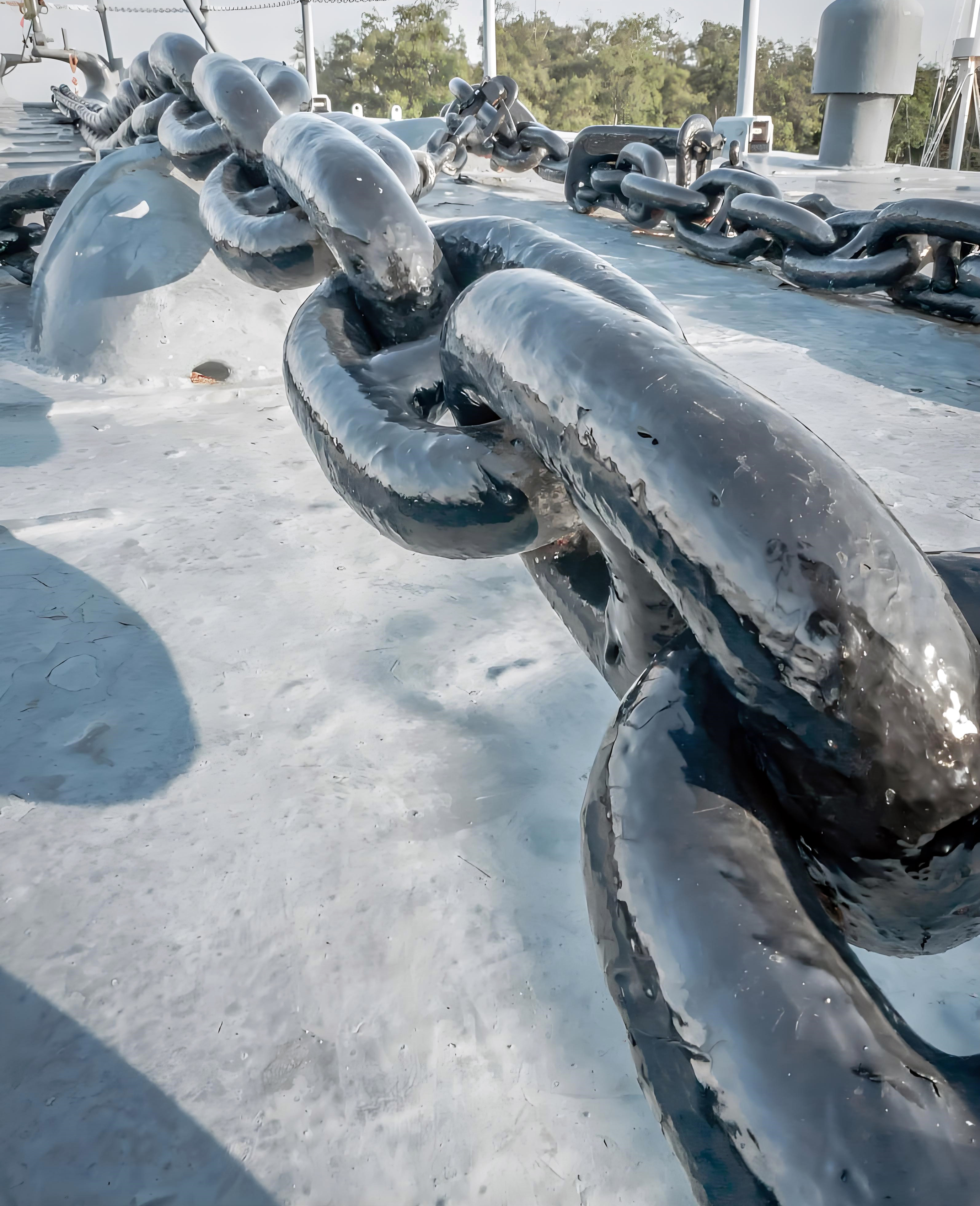

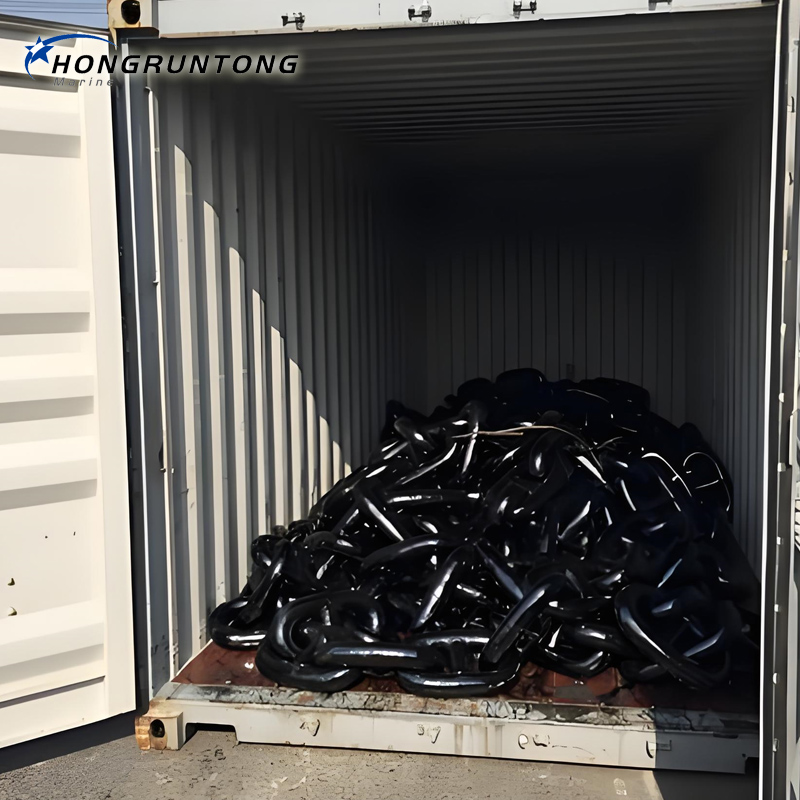

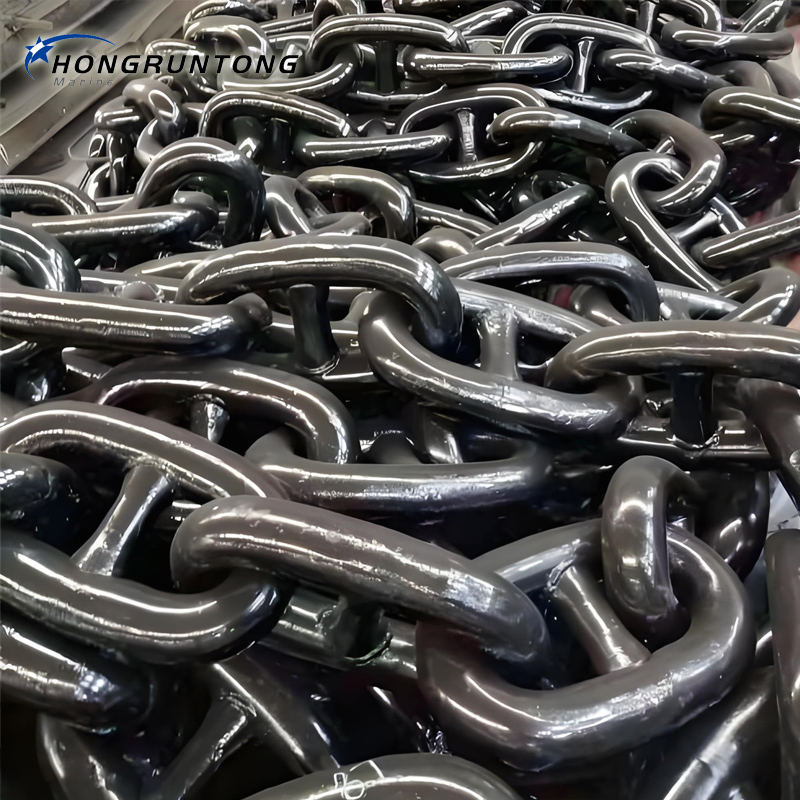

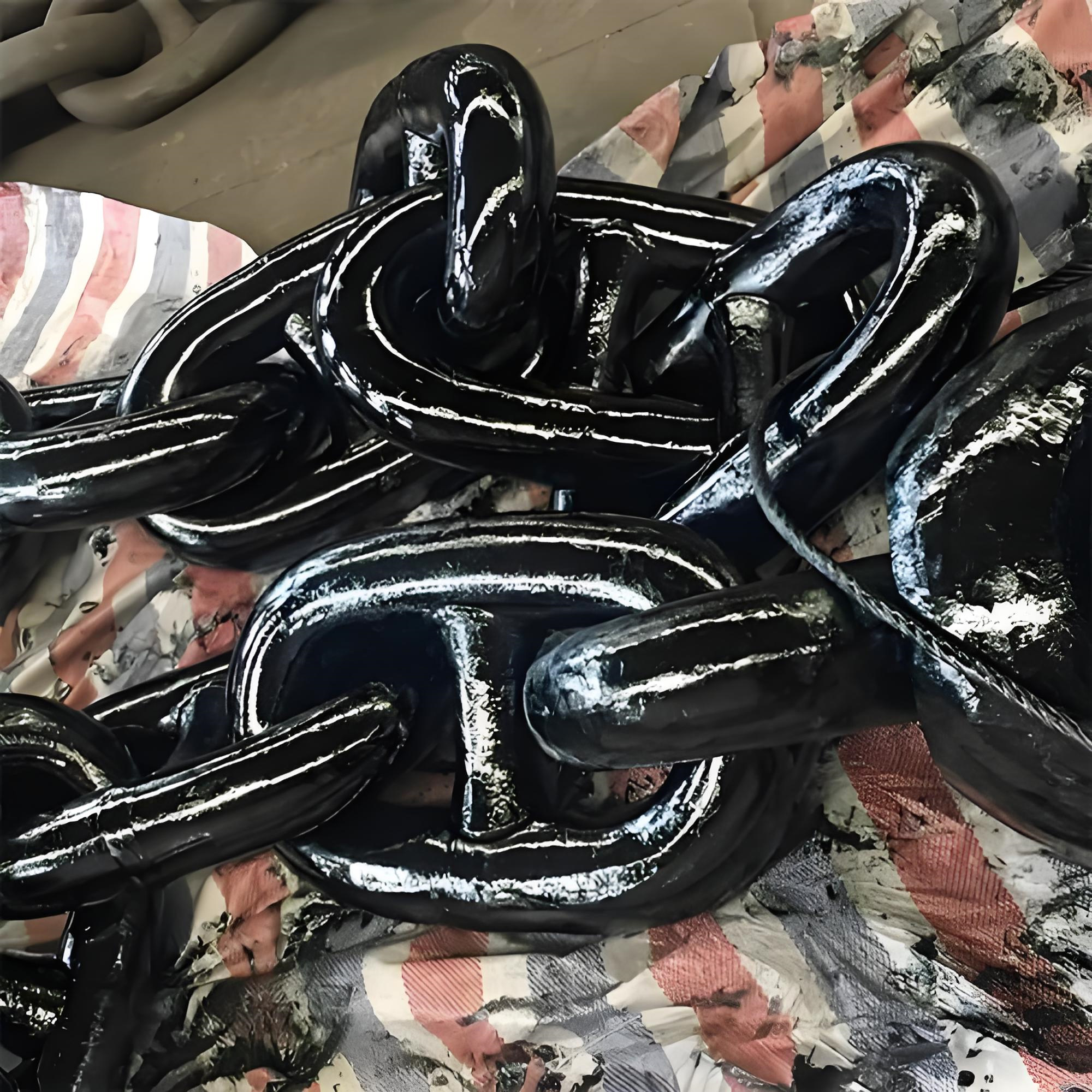

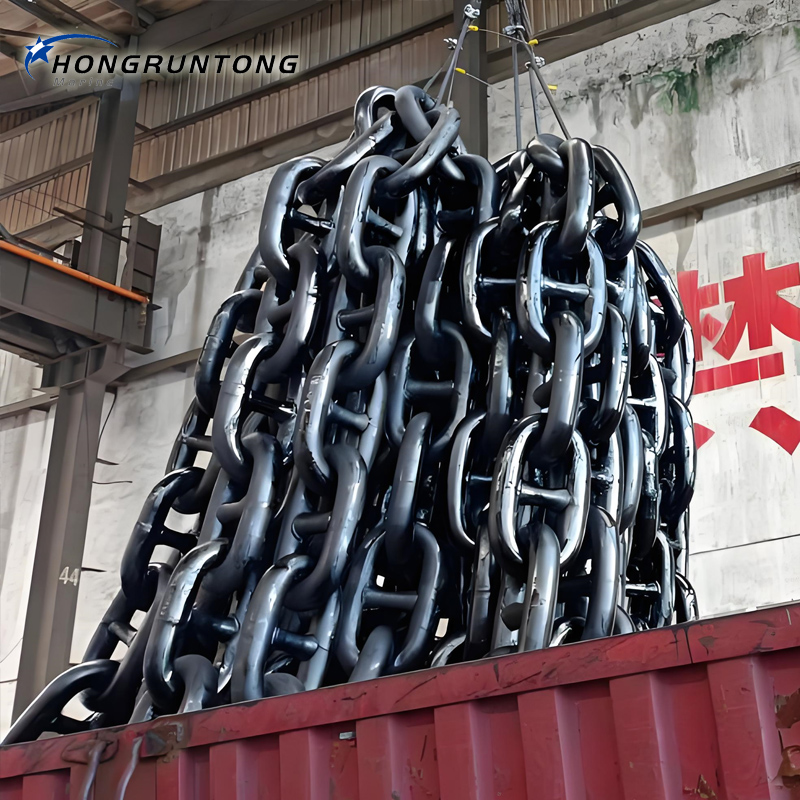

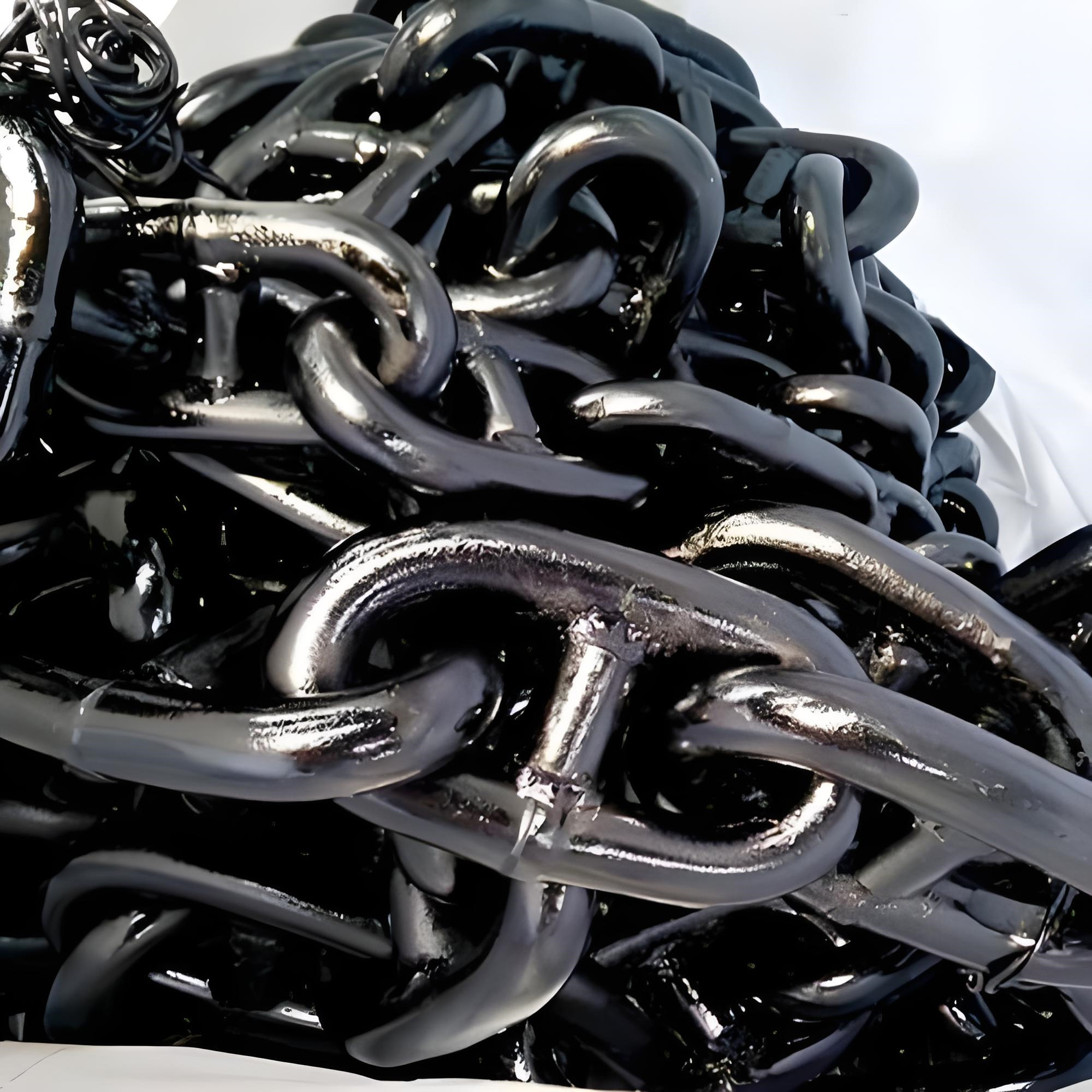

Detail Photos

Why Choose Hongruntong Marine?

• Marine Engineering Expertise: With specialized knowledge in mooring systems and chain technology, we understand the critical requirements of chafe protection in offshore applications

• Quality Certification: All chafe chain products undergo comprehensive testing for mechanical properties, dimensional accuracy, and material composition to ensure compliance with specified requirements

• Technical Compliance: Our OCIMF chafe chain and SPM chafe chain products are developed with direct reference to current industry standards and operator specifications

• Custom Manufacturing: We provide tailored chafe chain 76mm and chafe chain type B solutions with specific mechanical properties, heat treatment requirements, and certification needs to meet unique project specifications

FAQ

Q1: What is an OCIMF chafe chain used for?
A1: It serves as a critical link in SPM mooring systems, connecting the buoy and tanker while protecting mooring hawsers from abrasion and overload.

Q2: What sizes of chafe chains are available?
A2: We provide standard chafe chain 76mm and other diameters upon request, in both type A and type B configurations.

Q3: Are Hongruntong Marine chafe chains OCIMF certified?
A3: Yes, all our OCIMF chafe chains comply with OCIMF 2009 and relevant SPM design standards.

Q4: Can I customize the chain length or coating?
A4: Absolutely. We offer full customization for chain length, link size, and protective coatings such as galvanization or painting.

Q5: Where are these chafe chains typically used?
A5: They are mainly used in SPM and CALM buoy systems, offshore terminals, and FPSO/FSO connections to ensure safe and efficient mooring.
