Hyper Omega Fender
Omega fenders have a high energy absorption capacity, making them suitable for use in areas with high tidal ranges and where large vessels are present. They are also suitable for use in areas where waves may cause damage to the structure, such as offshore platforms or quay walls.
Hyper Omega Fenders are a type of marine fender that provides protection to ships and other floating structures during berthing, mooring, and while in transit. They have a conical shape that is designed to absorb high-impact loads from all directions.
Hyper Omega Fenders are typically made of high-quality rubber, which is durable and resistant to wear and tear. The conical shape of the fender allows it to compress and absorb energy upon impact, reducing the impact force on the ship or structure it is protecting.
Hyper Omega Fenders have a high energy absorption capacity, making them suitable for use in areas with high tidal ranges and where large vessels are present. They are also suitable for use in areas where waves may cause damage to the structure, such as offshore platforms or quay walls.
Hyper Omega Fenders are easy to install and require minimal maintenance. They are available in a range of sizes and can be customized to suit a variety of marine applications, making them a popular choice for ports, harbors, and other marine facilities.
Overall, Hyper Omega Fenders are a highly effective way to protect ships and other marine structures from damage caused by impact forces. They are durable, reliable, and provide excellent performance in even the harshest marine environments.
Hyper omega fender, Hyper Omega Type Fender, hyper fender, trelleborg cone fender catalogue
Characteristics
► High Energy Absorption Capacity
► Low Reaction Force
► Wide Deflection Angle
► Easy to Install
► Durable
► Customizable
Overall, hyper omega fenders are a versatile and effective way to protect marine structures from damage caused by impact forces. Their high energy absorption capacity, low reaction force, and wide deflection angle make them a popular choice for ports, harbors, and other marine facilities.

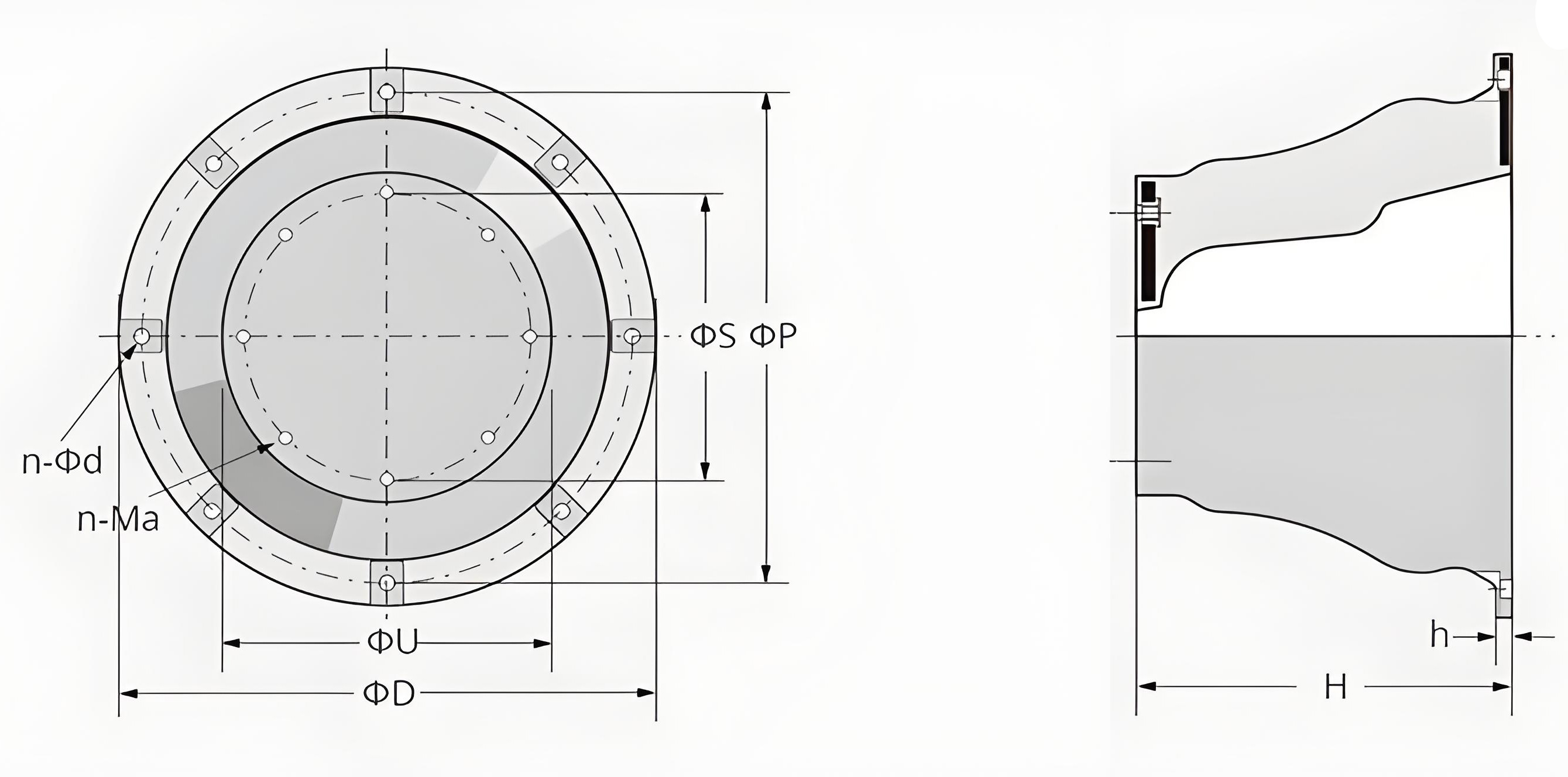

Drawings
Hyper omega fender, Hyper Omega Type Fender, hyper fender, trelleborg cone fender catalogue
Specifications
Model
|
H
|
h
|
F
|
D
|
Q
|
W
|
d-m
|
d-n
|
Omega |
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
HOM-300H
|
300
|
13.5
|
255
|
450
|
195
|
405
|
M16
|
20
|
HOM-350H
|
350
|
25
|
300
|
570
|
235
|
510
|
M20
|
25
|
HOM-400H
|
400
|
18
|
340
|
600
|
260
|
540
|
M20
|
25
|
HOM-500H
|
500
|
25
|
425
|
750
|
325
|
675
|
M24
|
30
|
HOM-600H
|
600
|
27
|
510
|
900
|
390
|
810
|
M24
|
30
|
HOM-700H
|
700
|
32
|
585
|
1050
|
455
|
945
|
M30
|
38
|
HOM-800H
|
800
|
36
|
680
|
1200
|
520
|
1080
|
M36
|
44
|
HOM-900H
|
900
|
41
|
765
|
1350
|
585
|
1215
|
M36
|
44
|
HOM-1000H
|
1000
|
45
|
850
|
1500
|
650
|
1350
|
M42
|
56
|
HOM-1050H
|
1050
|
55
|
1030
|
1680
|
900
|
1530
|
M36
|
44
|
HOM-1100H
|
1100
|
50
|
935
|
1650
|
715
|
1485
|
M42
|
50
|
HOM-1150H
|
1150
|
52
|
998
|
1725
|
750
|
1550
|
M42
|
56
|
HOM-1200H
|
1200
|
54
|
1020
|
1800
|
780
|
1620
|
M42
|
50
|
HOM-1300H
|
1300
|
59
|
1105
|
1950
|
845
|
1755
|
M48
|
60
|
HOM-1400H
|
1400
|
66
|
1190
|
2100
|
930
|
1890
|
M48
|
60
|
HOM-1600H
|
1600
|
72
|
1360
|
2400
|
1060
|
2160
|
M48
|
70
|
HOM-1800H
|
1800
|
78
|
1530
|
2880
|
1190
|
2430
|
M56
|
76
|
HOM-2000H
|
2000
|
80
|
1900
|
3200
|
1540
|
2920
|
M56
|
76
|
*Note: Other sizes can be customized according to the requirements. |
Hyper omega fender, Hyper Omega Type Fender, hyper fender, trelleborg cone fender catalogue

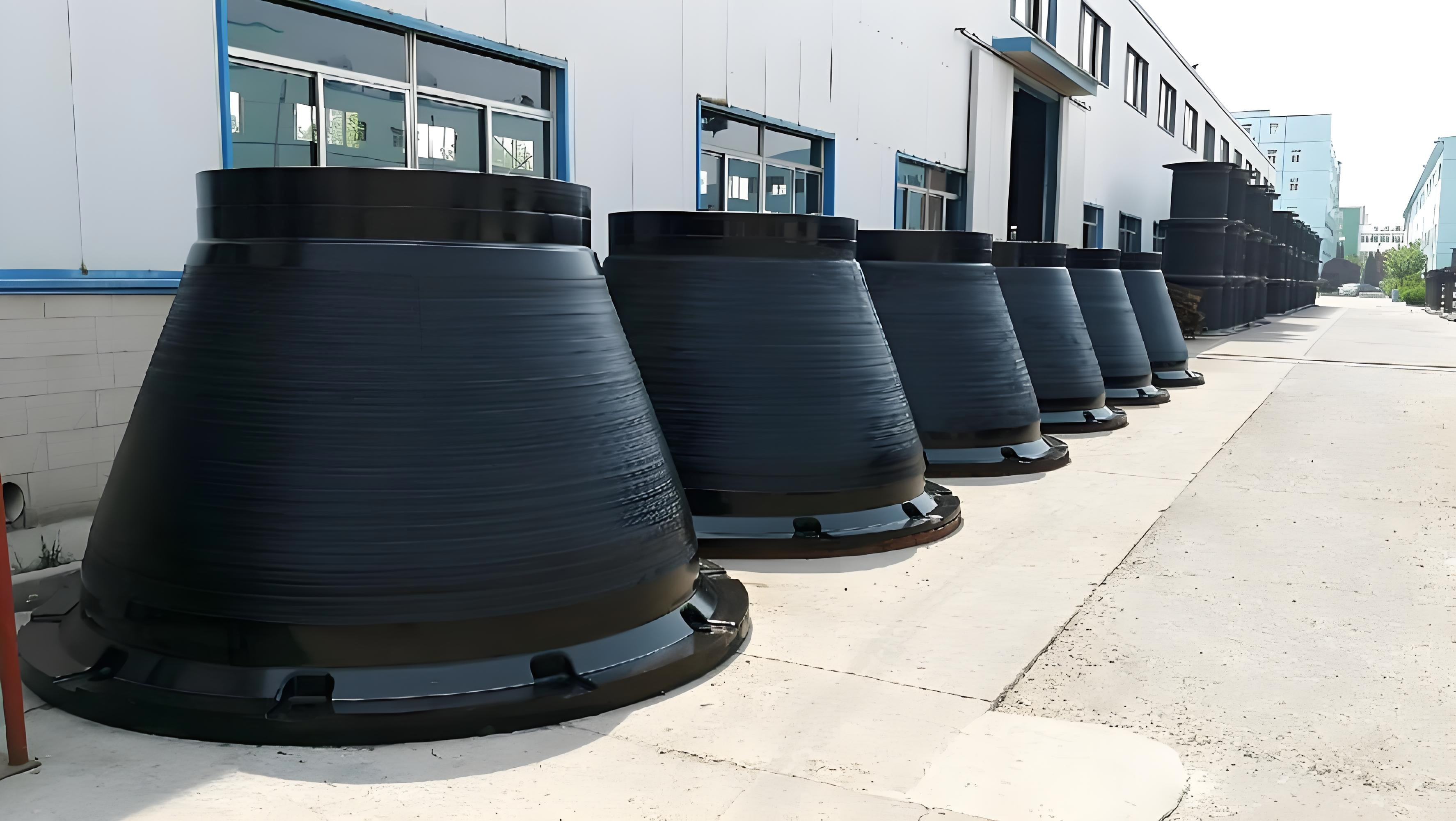

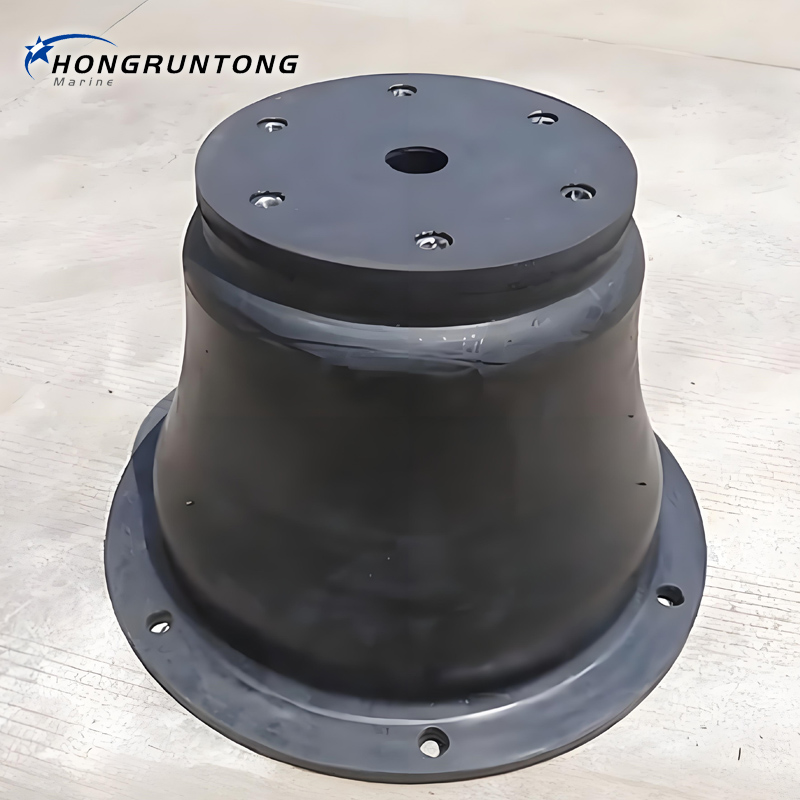

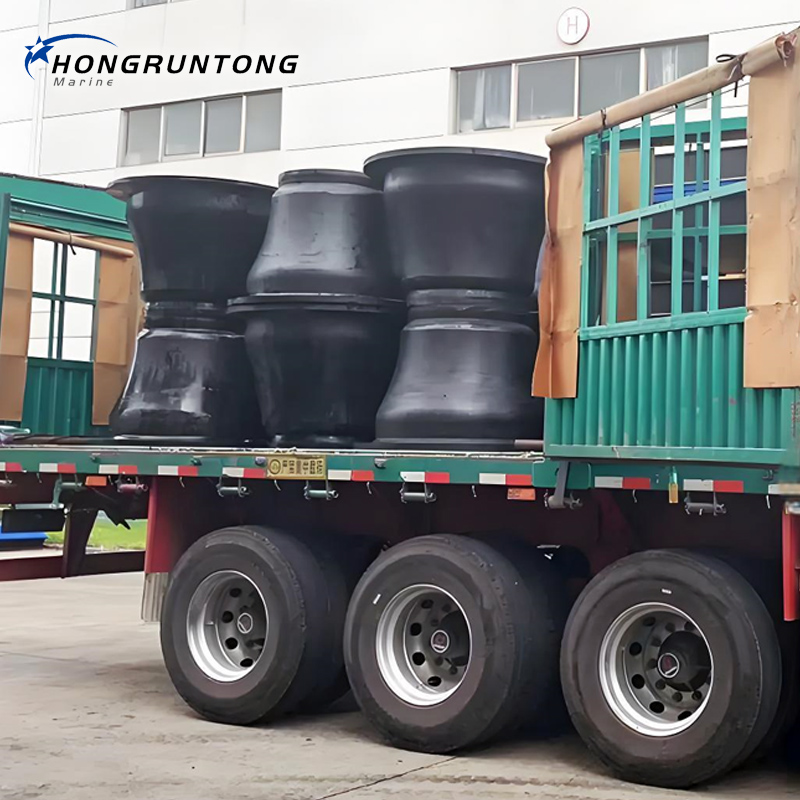

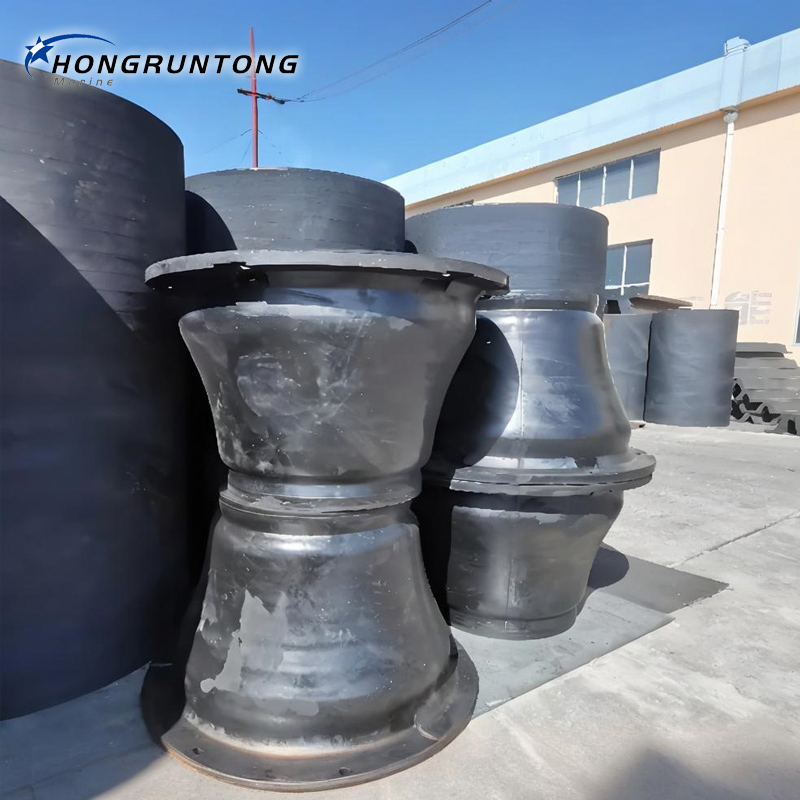

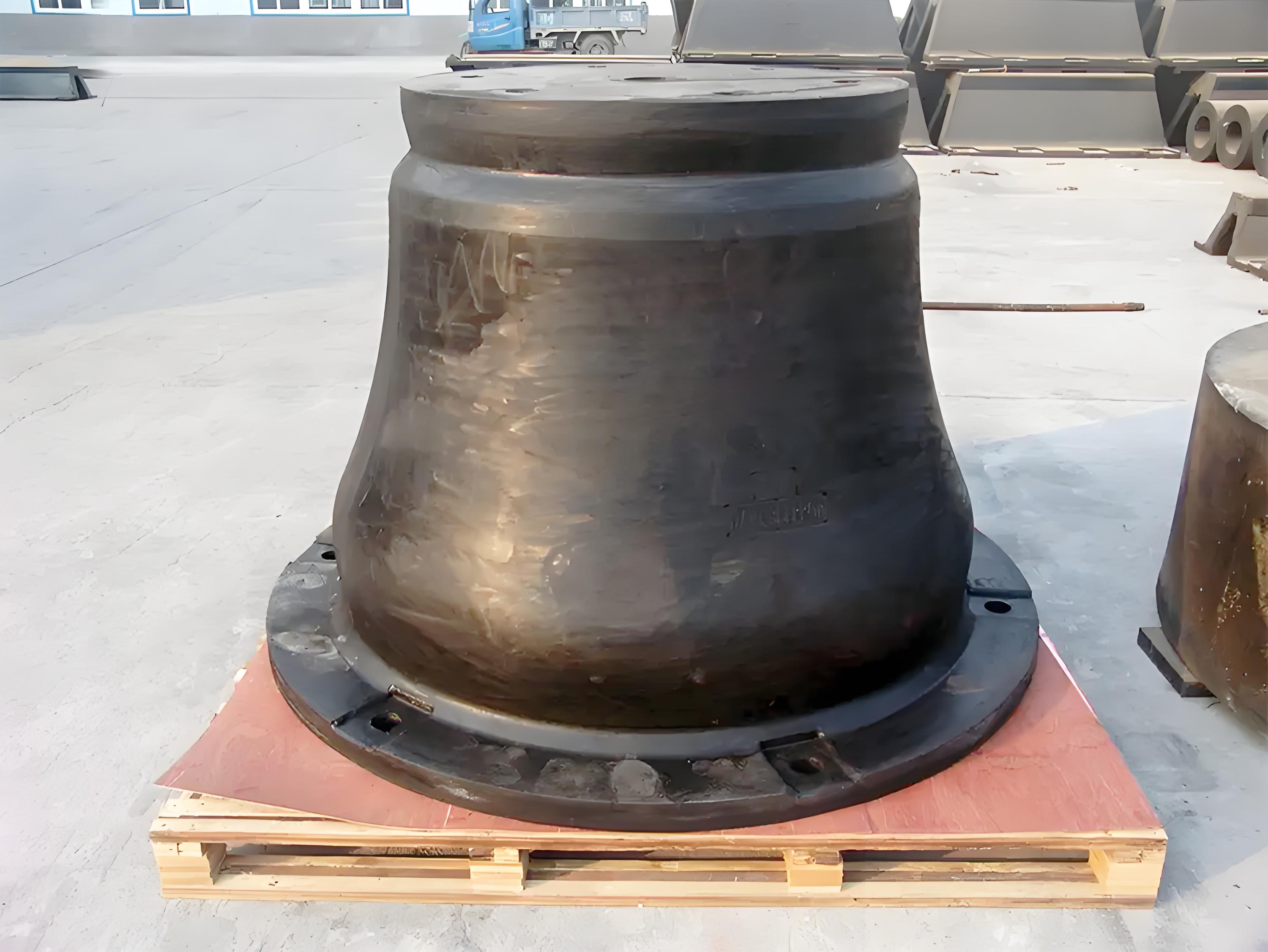

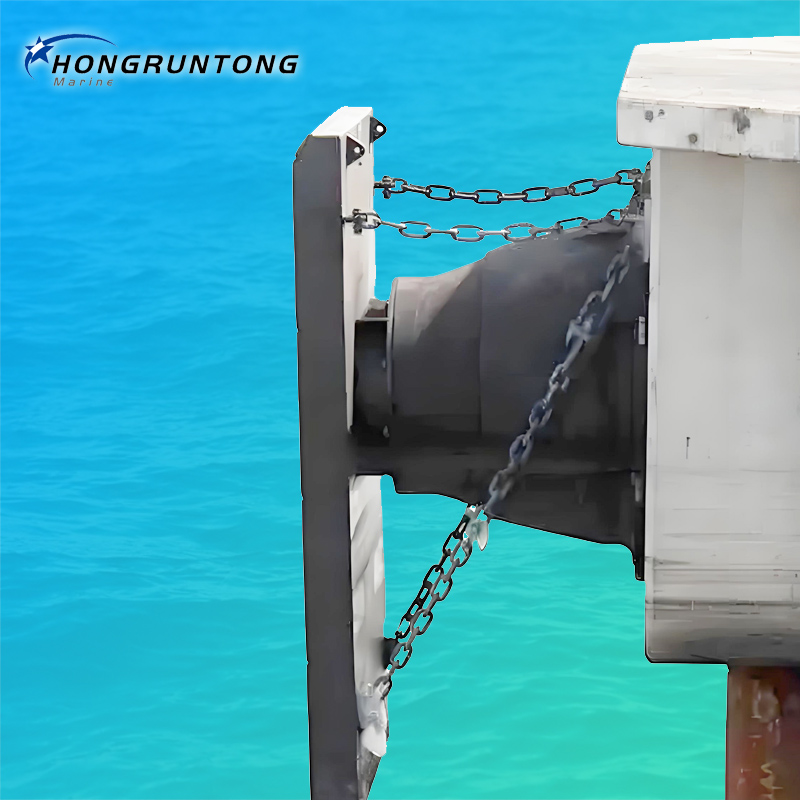

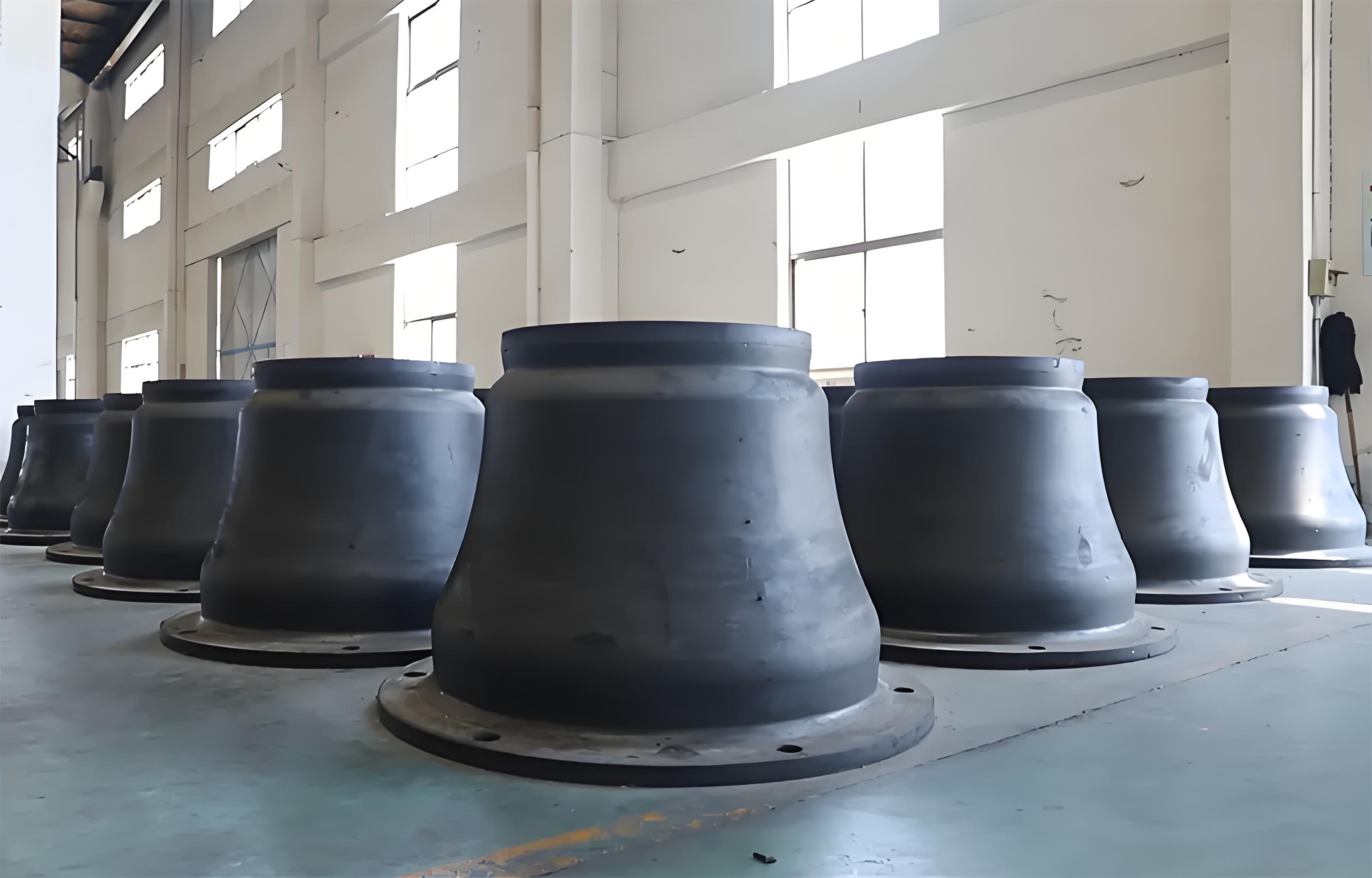

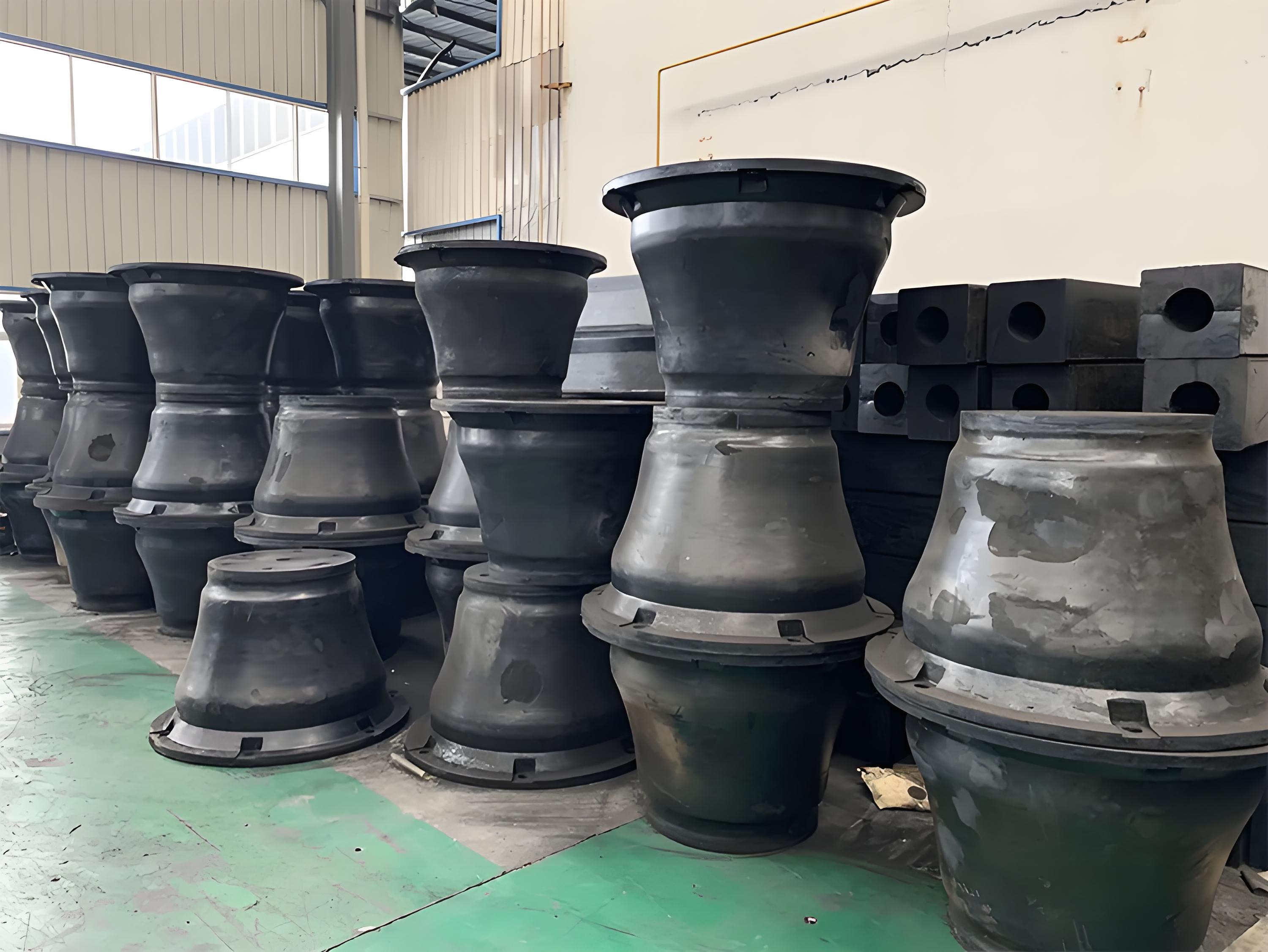

Details Photos
