OCIMF 2000 SPM Hawsers
In the manufacture of mooring hawsers, Hongruntong Marine uses premium quality yarns of multifilament nylon, HT polyester and blended fibres.
OCIMF recommends that when selecting hawsers, terminal operators should take into account Hawser selection criteria include strength but also energy absorption and fatigue performance. Detailed information can be found in the OCIMF 2000 ‘Guidelines for the Purchasing and Testing of SPM Hawsers’
Moreover, it should be borne in mind that the NWBS (New Wet Break Strength), energy absorption and fatigue performance of hawsers will deteriorate during service under the influence of factors such as service life, cyclic load history, hawser type, construction, environmental conditions, damage and stowage arrangements between use. Terminal operators should take these factors into account when determining the appropriate hawser for the mooring system and hawser retirement criteria.
Characteristics
► High energy absorption
► Excellent recovery from stretch, are suited to mooring
► Good resistance to solvents and chemicals
► UV stabilized
Specifications
Single Point Mooring Hawsers are manufactured in accordance with OCIMF 2000 regulations. Various sizes and materials can be customized according to requirements.
SPM-HM8
| Materials: | High tenacity HM-yarn and high tenacity polyester |
| Construction: | 8 strand plaited |
| Treatment: | Marine finish |
| Color of Rope: | White with blue and orange marker |
| Approx. Spec. Density: | 1.27 non-floating |
| Melting point: | 165°C / 260°C |
| Abrasion resistance: | Excellent |
| U.V. resistance: | Excellent |
| Temperature resistance: | 80°C max continuous |
| Chemical resistance: | Good, solvents and strong oxidisers may have a mild effect |
| Dry & wet conditions: | Wet strength ± 5% lower than dry strength |
| Weight: | ± 5% |
| Diameter: | ± 2% |
| Dia | Cir | Weight | MBL Single | MBL Grommet | ||
| mm | in | kg/100m | tf | kN | tf | kN |
| 80 | 10 | 412 | 151 | 1,483 | 257 | 2,521 |
| 88 | 11 | 500 | 181 | 1,772 | 307 | 3,013 |
| 96 | 12 | 590 | 213 | 2,085 | 361 | 3,544 |
| 104 | 13 | 680 | 247 | 2,421 | 420 | 4,116 |
| 112 | 14 | 800 | 283 | 2,781 | 482 | 4,728 |
| 120 | 15 | 918 | 322 | 3,164 | 548 | 5,378 |
| 128 | 16 | 1,055 | 364 | 3,569 | 618 | 6,067 |
| 136 | 17 | 1,185 | 407 | 3,997 | 693 | 6,795 |
| 144 | 18 | 1,330 | 453 | 4,448 | 771 | 7,561 |
SPM-HM12
| Materials: | Polyamide (nylon) |
| Construction: | 12 strand braided with a braided cover of polyamide |
| Treatment: | Marine finish |
| Color of Rope: | White with blue and orange marker |
| Approx. Spec. Density: | 1.27 non-floating |
| Melting point: | 215°C / 260°C |
| Abrasion resistance: | Excellent |
| U.V. resistance: | Excellent, due to jacket |
| Temperature resistance: | 80°C max continuous |
| Chemical resistance: | Reasonable; acids, oxidisers & solvents will affect nylon |
| Dry & wet conditions: | Wet strength ± 5% lower than dry strength |
| Weight: | ± 5% |
| Diameter: | ± 2% |
| Dia mm |
Cir in |
Weight kg/100m |
MBL Single | MBL Grommet | ||||||
| Dry | Wet | Dry | Wet | |||||||
| tf | kN | tf | kN | tf | kN | tf | kN | |||
| 80 | 10 | 397 | 176 | 1,724 | 165 | 1,624 | 299 | 2,932 | 281 | 2,760 |
| 88 | 11 | 481 | 214 | 2,100 | 202 | 1,977 | 364 | 3,571 | 343 | 3,362 |
| 96 | 12 | 572 | 256 | 2,515 | 241 | 2,367 | 436 | 4,275 | 410 | 4,025 |
| 104 | 13 | 671 | 302 | 2,967 | 285 | 2,794 | 514 | 5,045 | 484 | 4,749 |
| 112 | 14 | 779 | 353 | 3,459 | 332 | 3,257 | 599 | 5,880 | 564 | 5,536 |
| 120 | 15 | 893 | 407 | 3,990 | 383 | 3,756 | 691 | 6,783 | 651 | 6,386 |
| 128 | 16 | 1,020 | 465 | 4,560 | 438 | 4,293 | 790 | 7,751 | 744 | 7,298 |
| 136 | 17 | 1,150 | 527 | 5,169 | 496 | 4,866 | 896 | 8,787 | 843 | 8,273 |
| 144 | 18 | 1,280 | 593 | 5,818 | 558 | 5,477 | 1,008 | 9,890 | 949 | 9,311 |

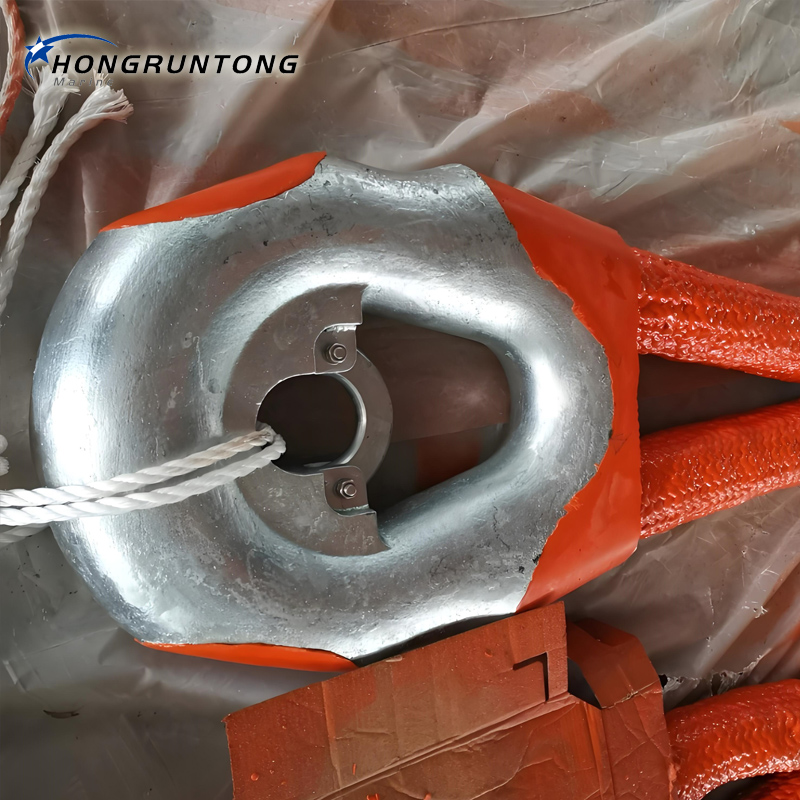

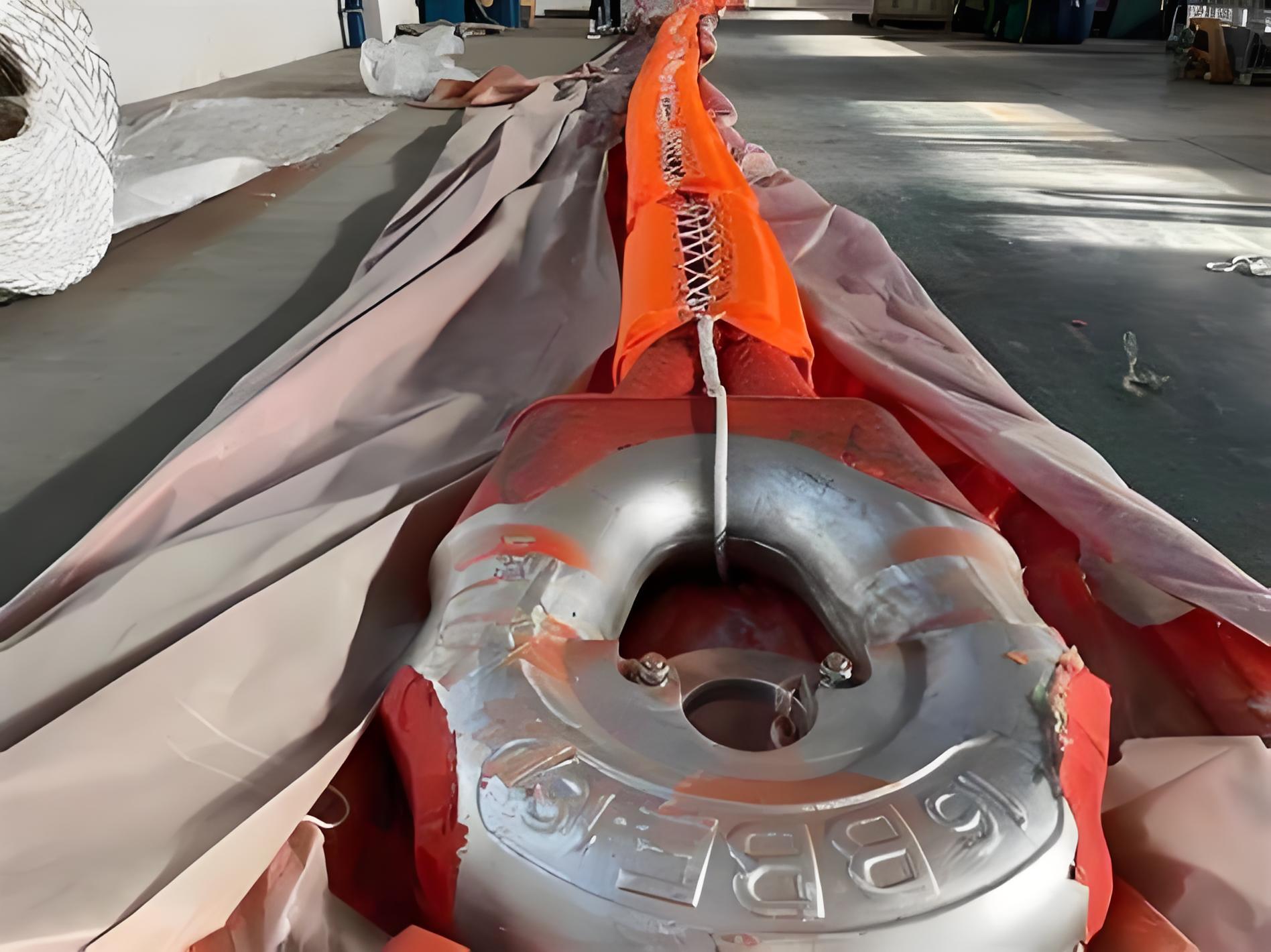

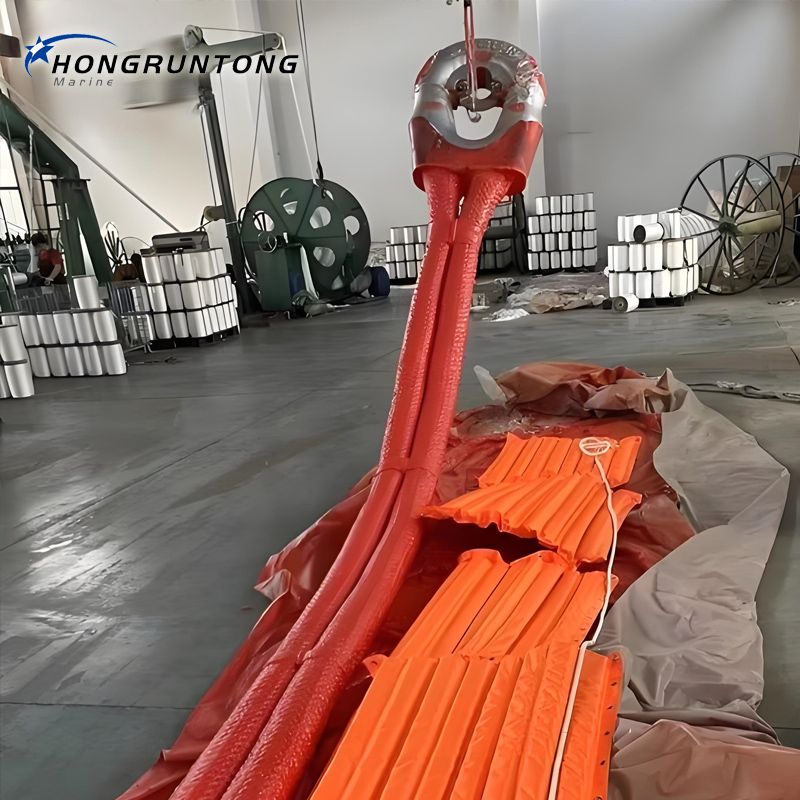

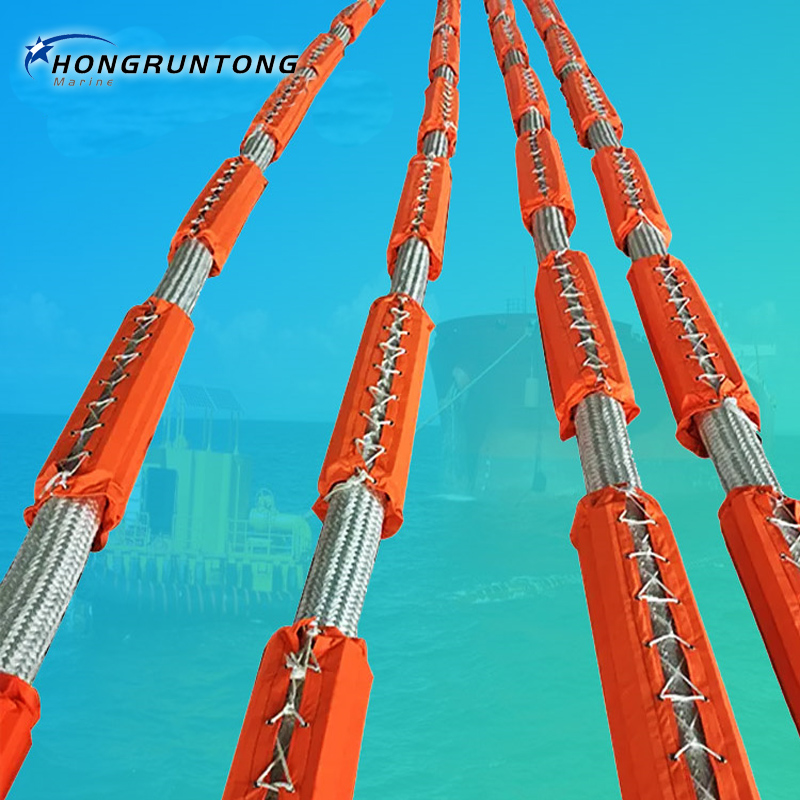

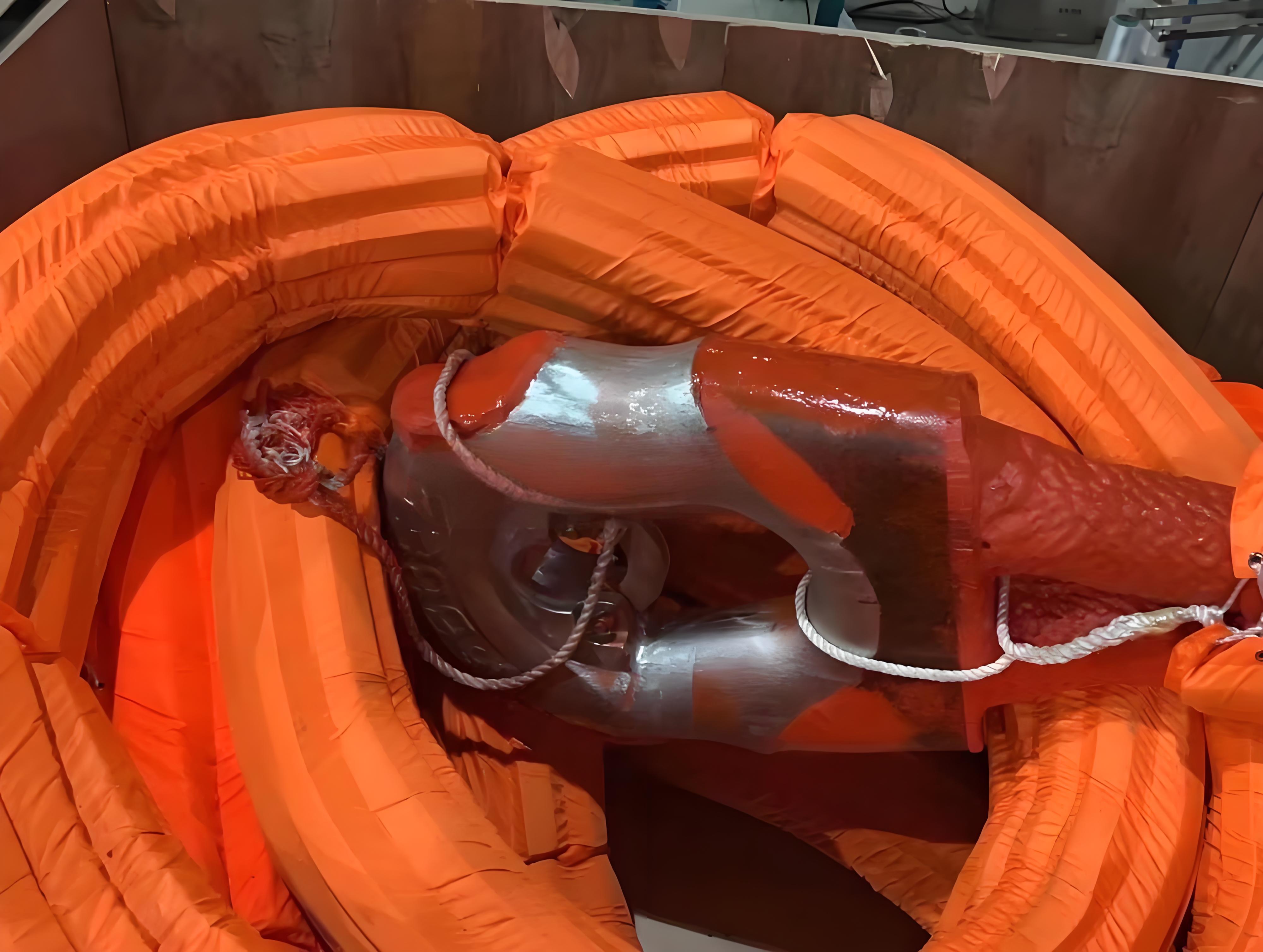

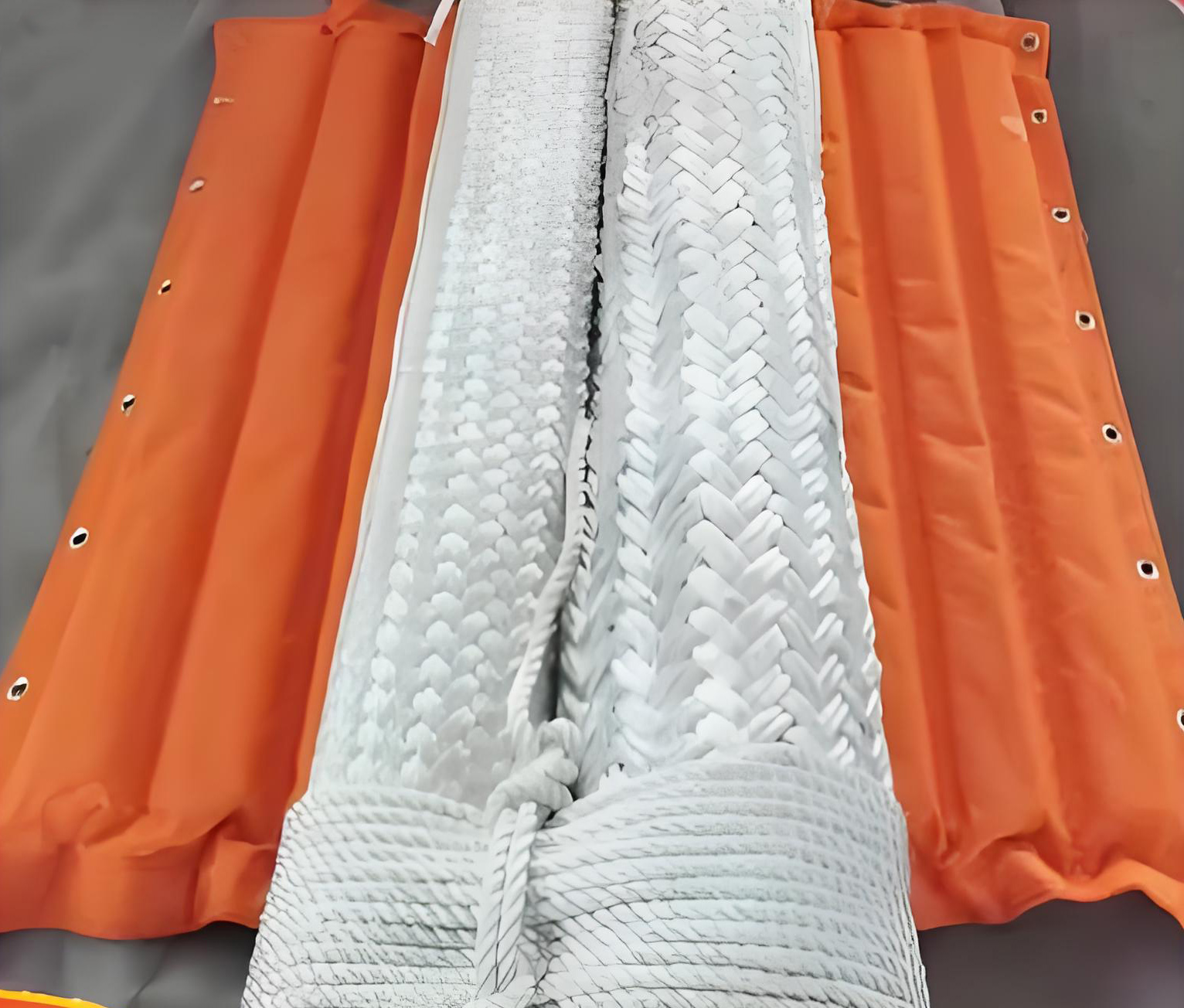

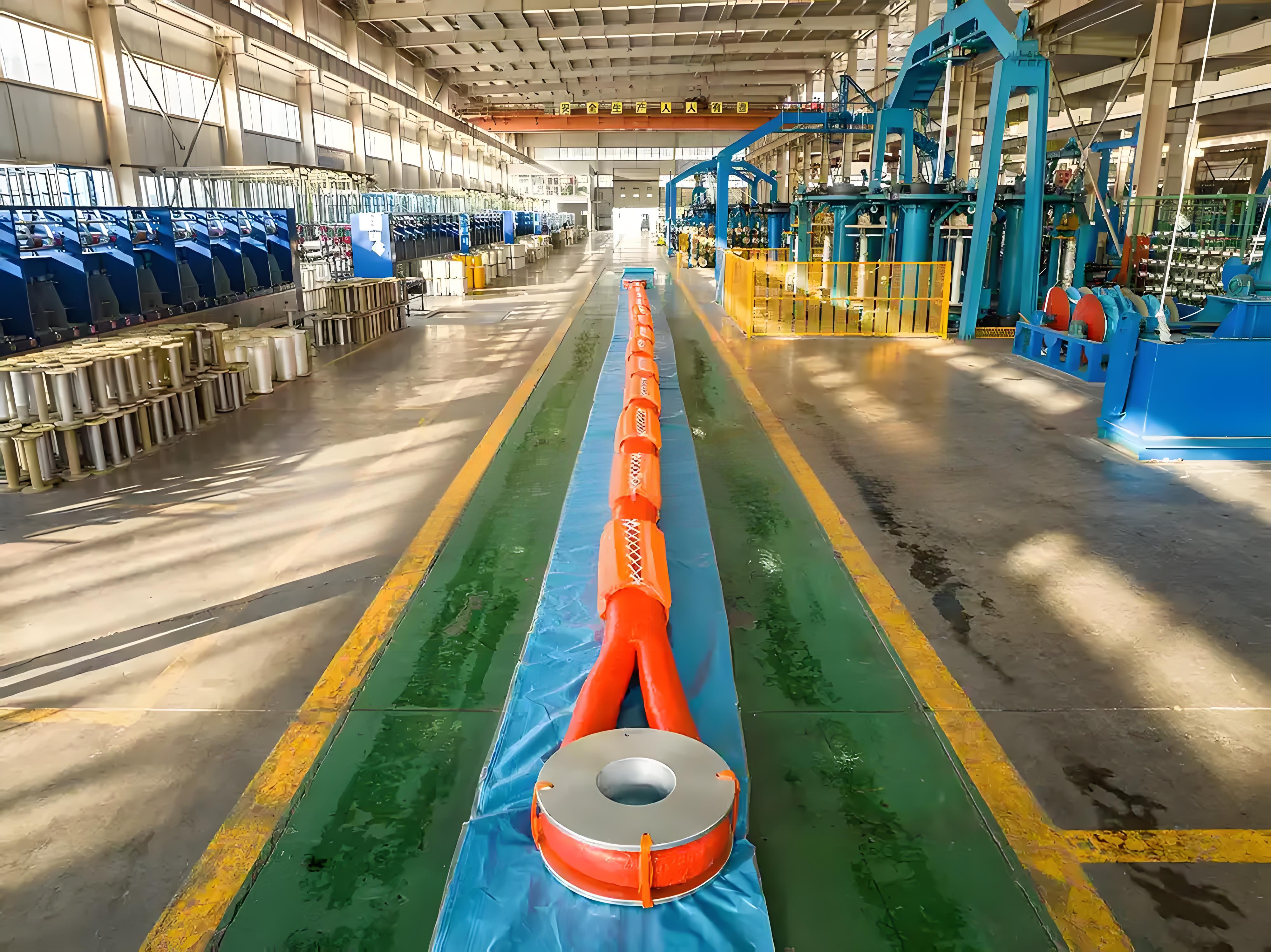

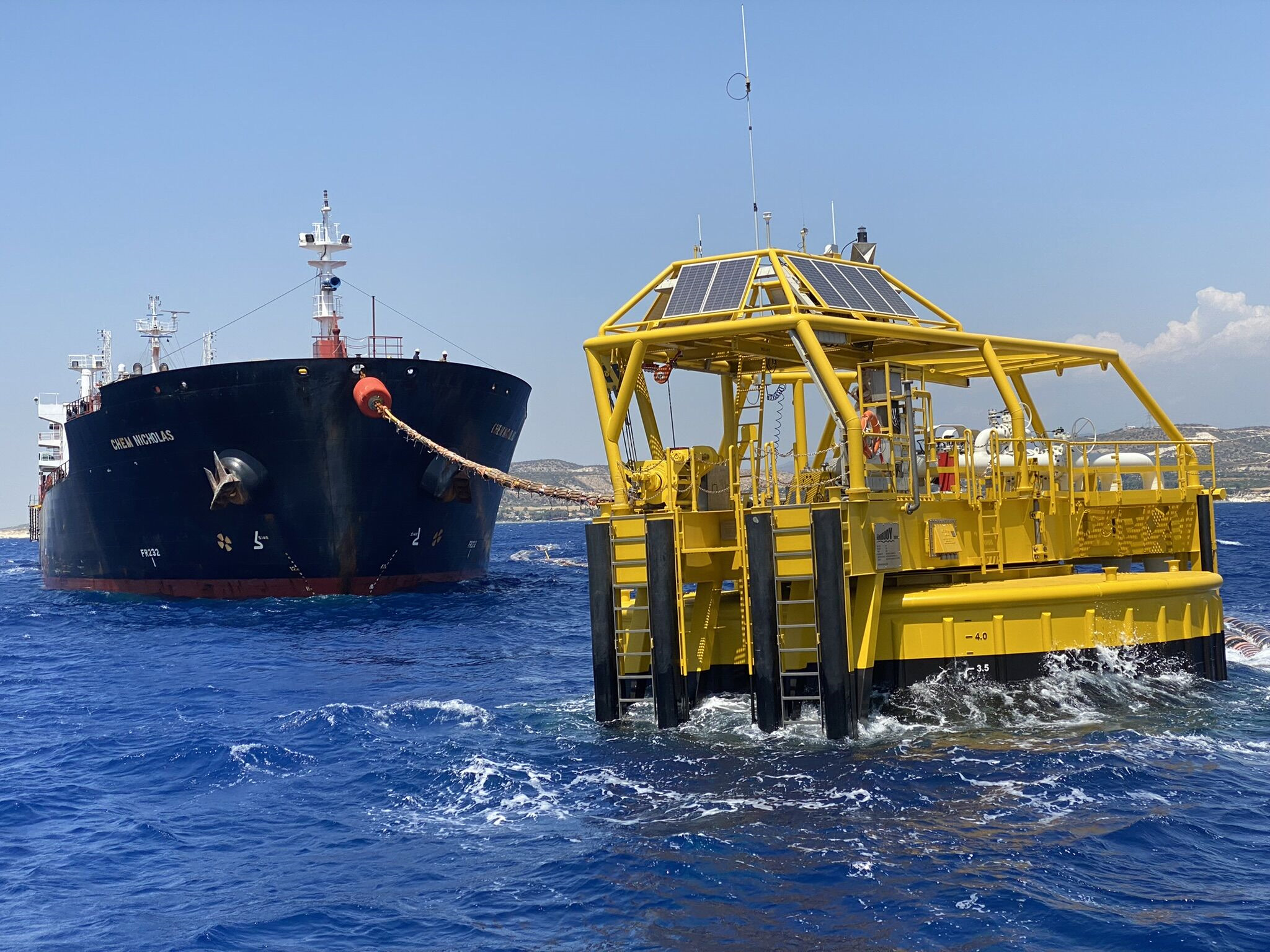

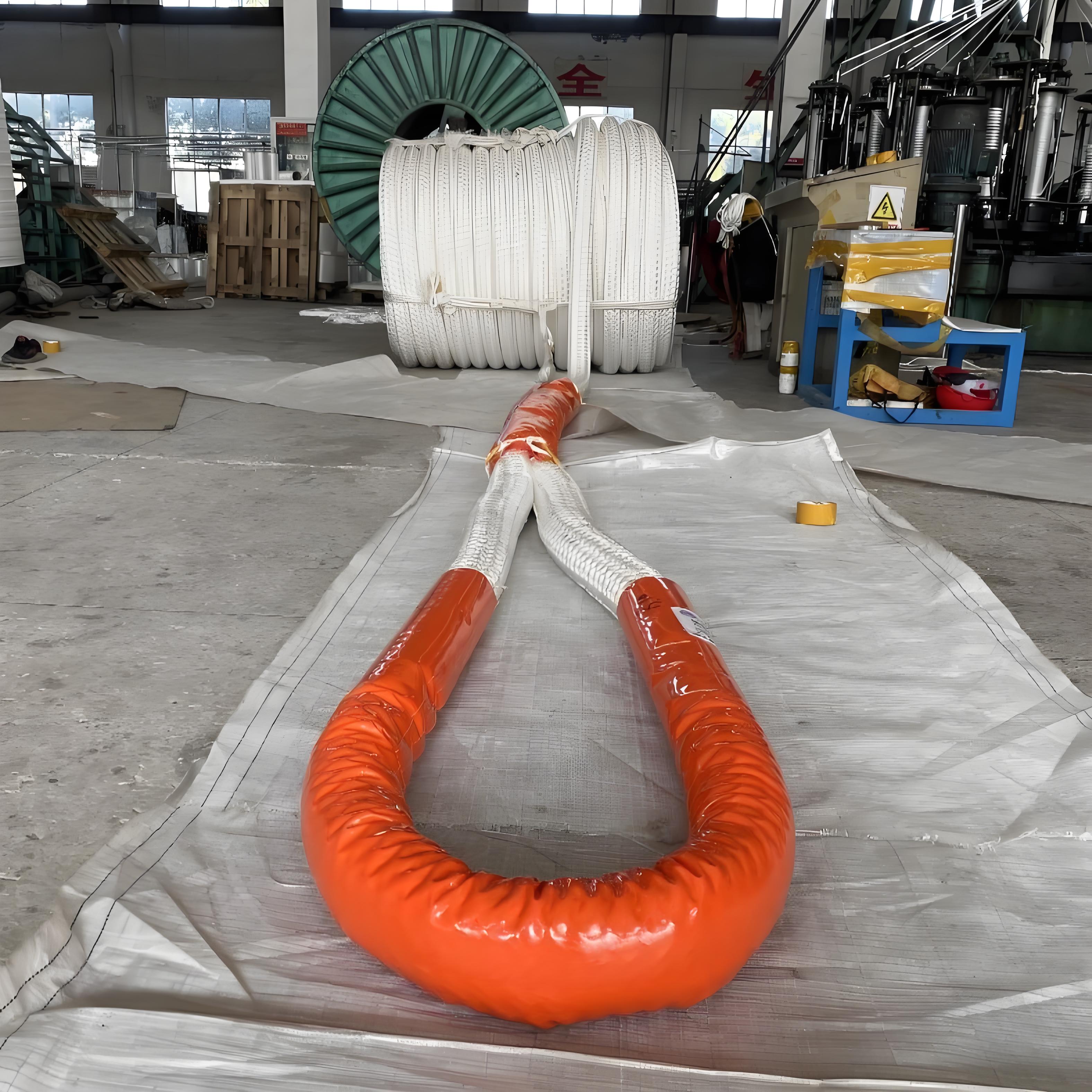

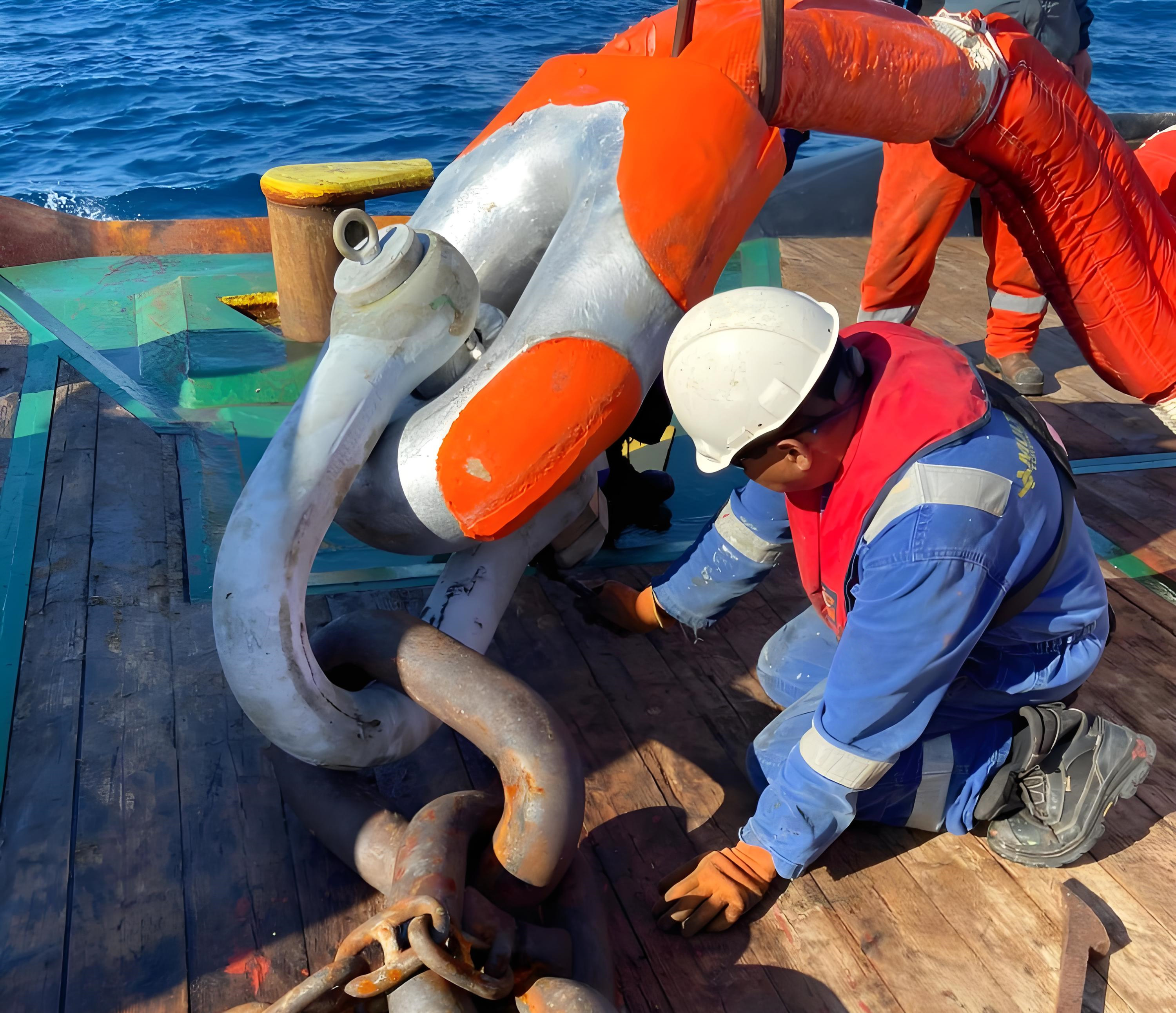

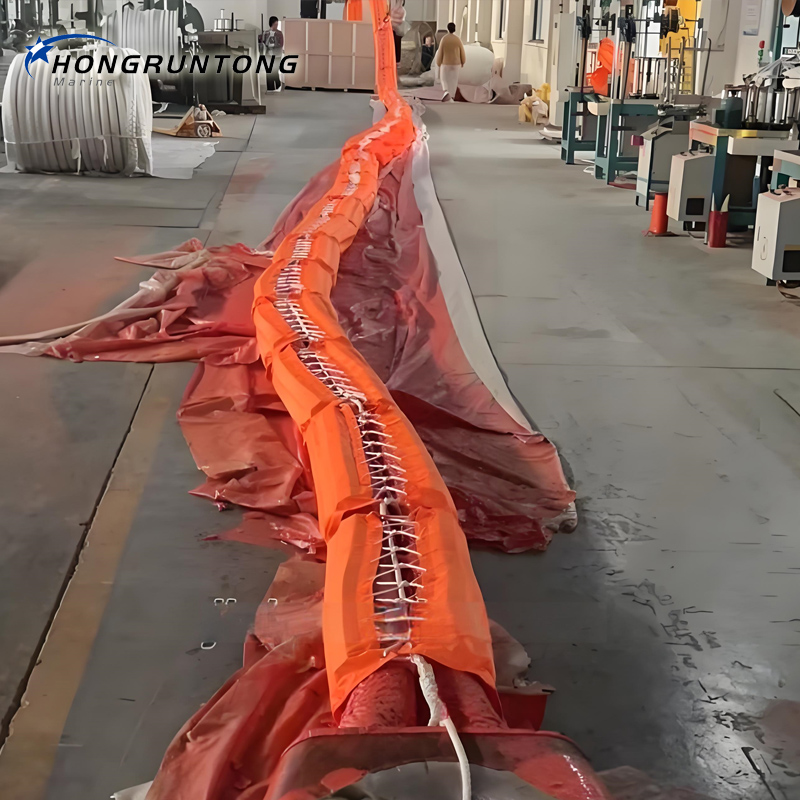

Detailed Images
