Dredge Suction Hose
Dedge suction hose is a vital component of a dredging system, designed to facilitate the transfer of materials like sediment, sand, or gravel from underwater locations to the surface. It serves as the conduit between the dredge pump and the suction inlet, allowing the efficient extraction and transportation of materials. These hoses are crafted with durability and flexibility in mind.
Dredge suction hose is an essential component of a dredging system. It is designed to connect the dredge pump to the suction inlet, allowing the transfer of materials such as sediment, sand, or gravel from underwater locations.
Dredge suction hoses are typically made from durable and flexible natural rubber materials, ensuring they can withstand the rigors of demanding dredging operations. They are designed to handle abrasive materials, water, and sometimes even chemicals, depending on the specific application.
Dredge suction hoses come in various lengths, diameters, and configurations to accommodate different dredging needs. They are often reinforced with layers of fabric, wire, or other materials to increase their strength and durability. Some hoses may also have built-in floatation devices to help keep them afloat during operations. It's crucial to choose the right dredge suction hose based on factors such as the type of material being dredged, operating conditions, and flow requirements.
Characteristics
1. Very high impact resistance.
2. Temperature range: -40℃ to +80℃.
3. Good corrosion resistance.
4. 6 times wear resistance higher than steel pipes under normal conditions.
5. Good solderability; its interface strength is higher than the pipe body.
6. Good flexibility and anti-scratch ability.
gold dredge suction hose, dredge suction hose, dredge suction pipe, dredge suction line, dredger suction pipe
Applications

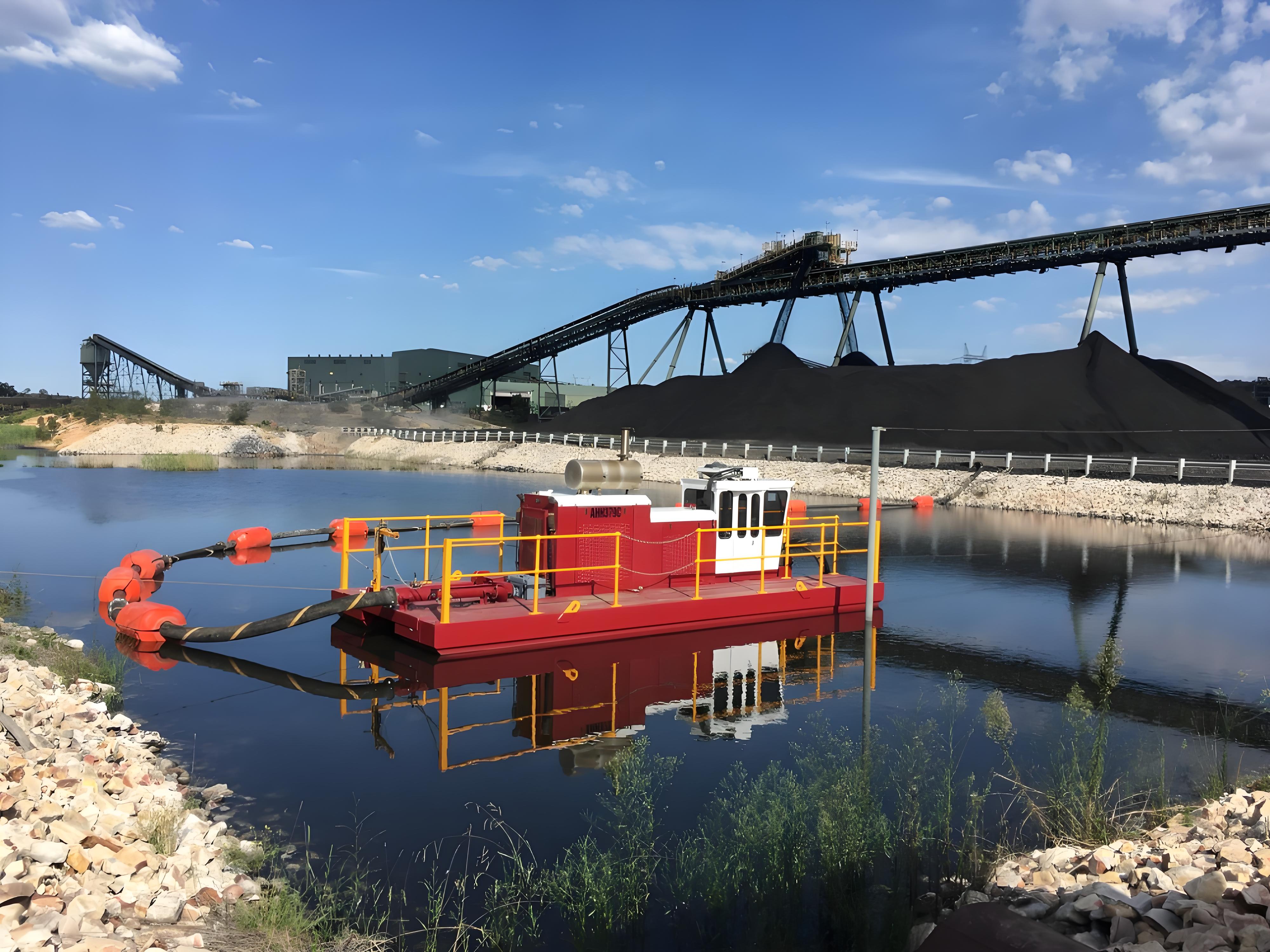

► Dredging Operations
► Mining and Quarrying
► Environmental Remediation
► Construction and Land Reclamation
► Coastal and Riverine Protection
Specifications
|
Inner Liner |
Hongruntong Grade A rubber (for high-wear slurry) containing slurry) slurry) |
 |
|
Reinforcement |
Synthetic fabric and annular steel ring construction |
|
| Outer Cover |
UV, ozone, and abrasion-resistant rubber |
|
|
End Connections |
Carbon steel (painted, galvanised, custom) |
gold dredge suction hose, dredge suction hose, dredge suction pipe, dredge suction line, dredger suction pipe
|
I.D. [mm] |
Working Pressure [bar] |
Length [m] |
Pipe Wall Thickness [mm] |
| 250 |
10-21 |
1-10 | 31-32 |
| 300 | 1-10 | 34-37 | |
| 414 | 1-10 | 35-37 | |
| 560 | 2-10 | 40-45 | |
| 600 | 2-10 | 40-45 | |
| 700 | 2-10 | 40-45 | |
| 800 | 2-10 | 50-52 | |
| 900 | 2-10 | 55-58 |
* We can customize the hose size according to your requirements.
Structure
Material
Dredge suction hoses are commonly made from high-quality rubber materials. These materials offer excellent flexibility, durability, and resistance to abrasion, allowing the hose to withstand the harsh conditions of dredging operations.
Reinforcement
To enhance strength and prevent kinking or collapsing under suction pressure, dredge suction hoses are typically reinforced with multiple layers of fabric, wire, or a combination of both. The reinforcement provides structural integrity to the hose while maintaining flexibility.
End Fittings
Dredge suction hoses are usually equipped with sturdy end fittings to ensure a secure connection to the dredge pump and suction inlet. These fittings can be made of materials like steel or brass, offering strength and corrosion resistance.
Length and Diameter
Dredge suction hoses are available in various lengths and diameters to suit different applications. The length of the hose determines the distance between the dredge pump and the suction point, while the diameter affects the flow rate and capacity of the dredging system.
Additional Features
Some dredge suction hoses may include additional features to enhance their performance, such as built-in floatation devices to keep the hose afloat in water during operations. These floatation devices help prevent the hose from sinking or getting tangled underwater.
Safety Considerations
It's important to handle dredge suction hoses with care and follow safety guidelines to prevent accidents. Proper maintenance, regular inspections, and adherence to recommended pressure and temperature limits are essential for safe and efficient dredging operations. Remember, specific profiles of dredge suction hoses may vary depending on the manufacturer and the unique requirements of the dredging project.
gold dredge suction hose, dredge suction hose, dredge suction pipe, dredge suction line, dredger suction pipe

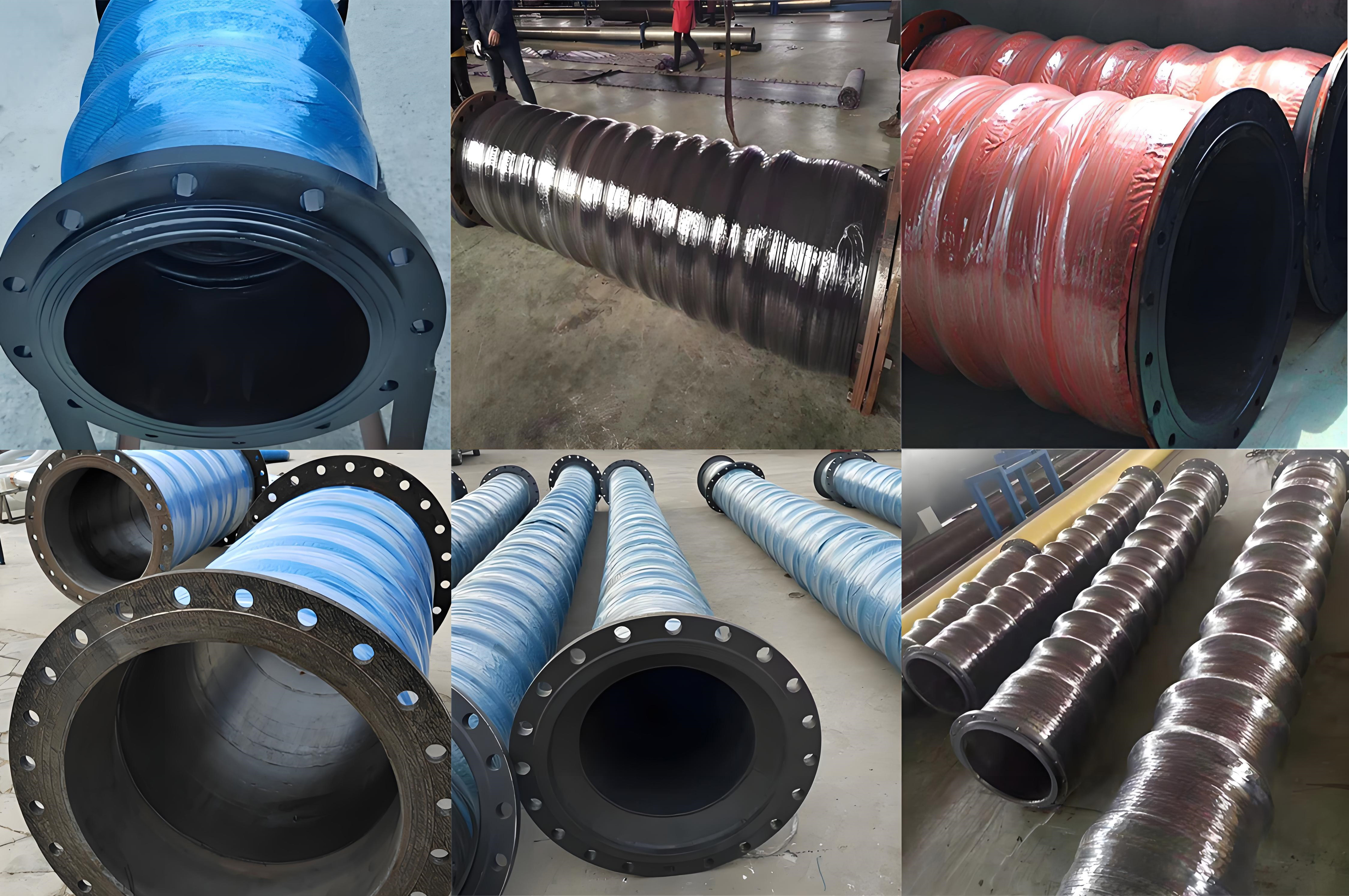

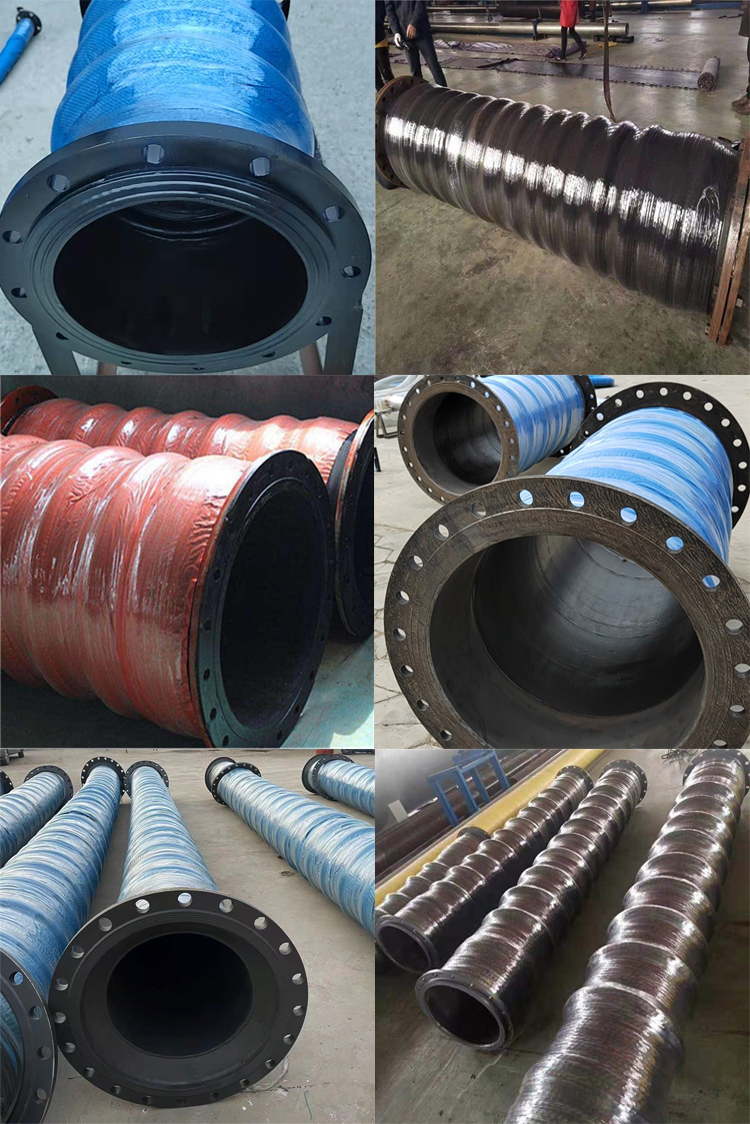

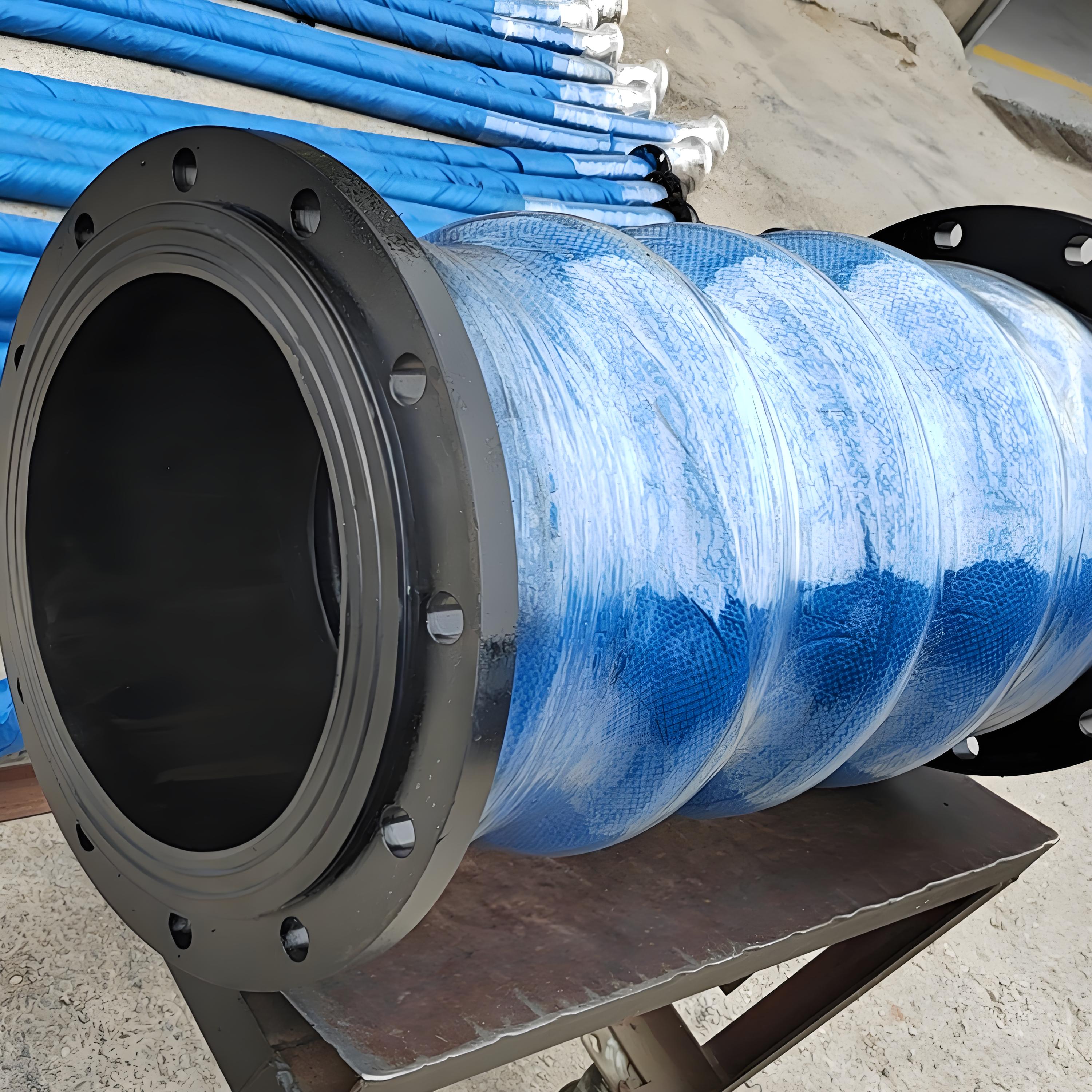

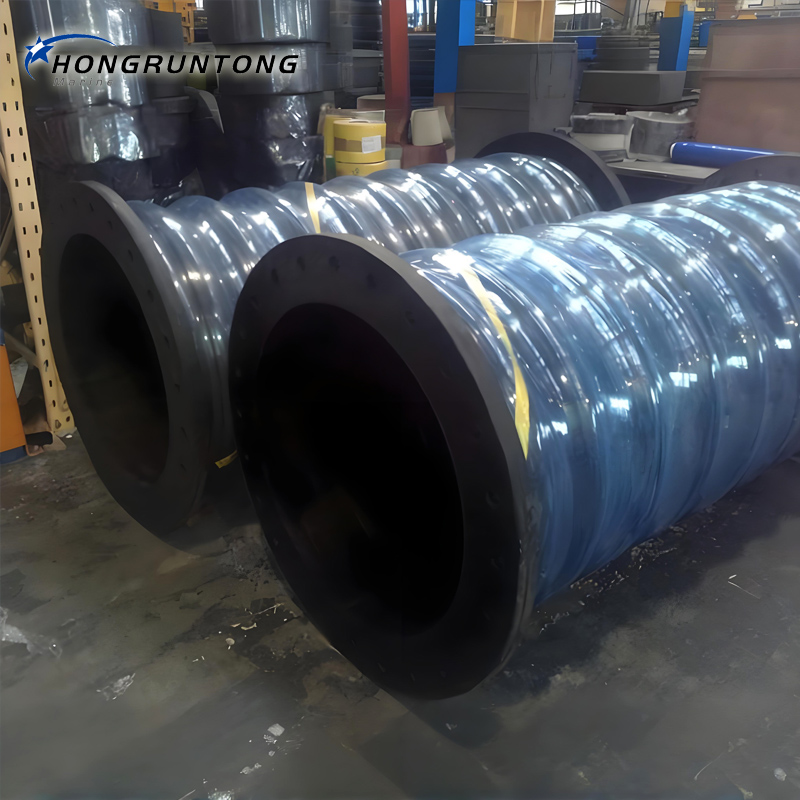

Details Photos
