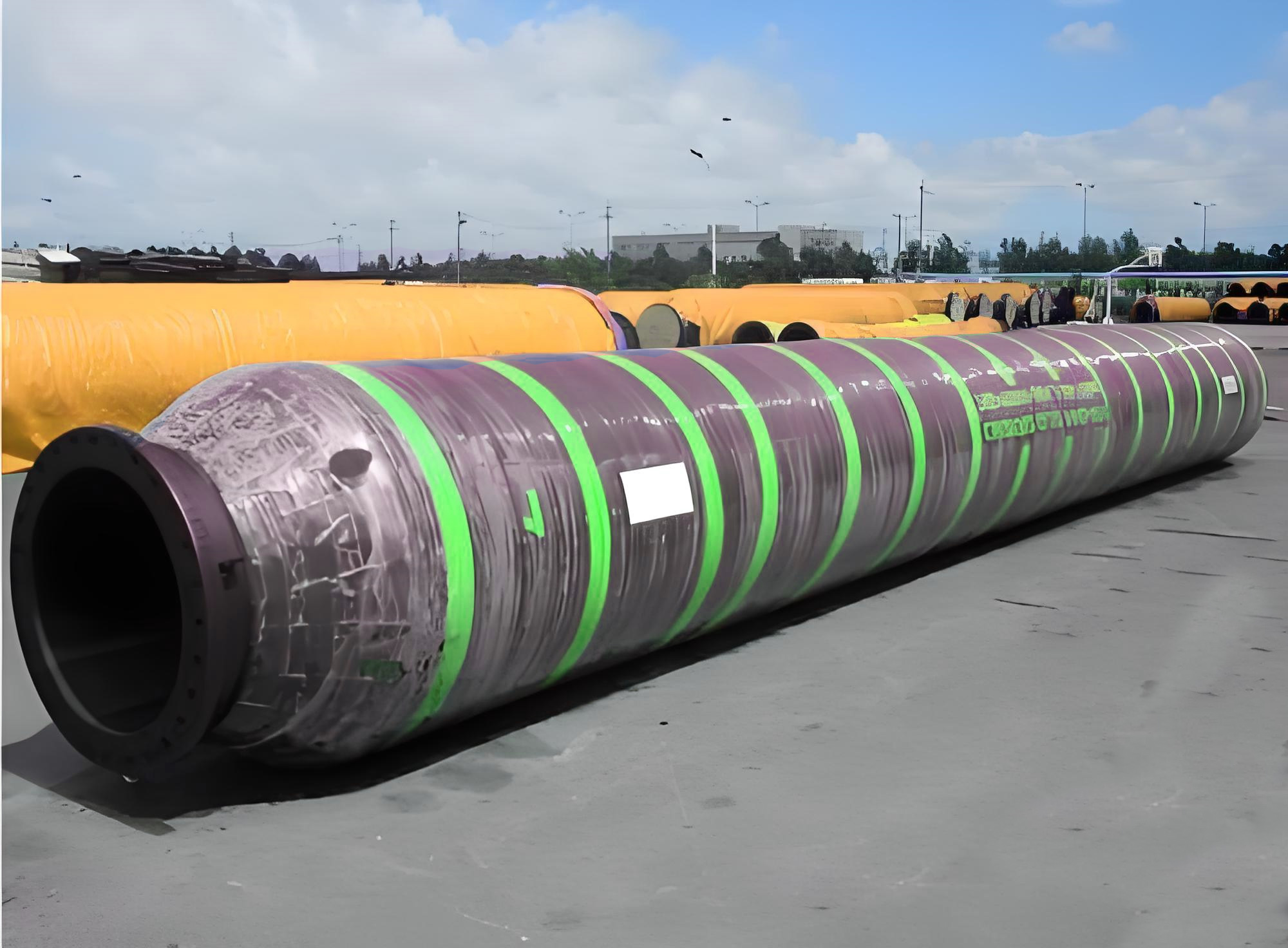

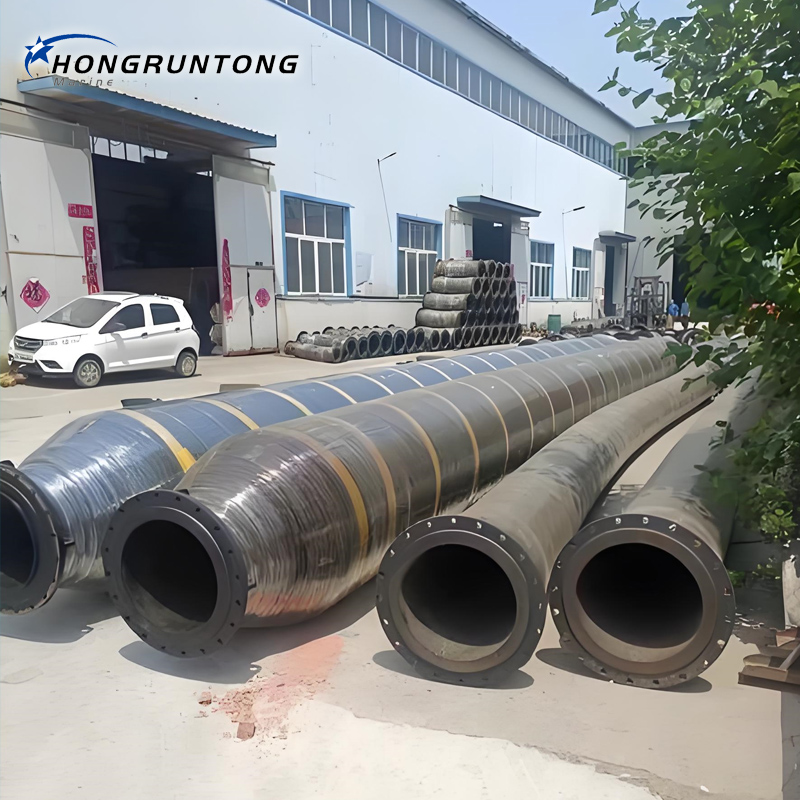

Self Floating Dredge Hose



Floating Dredging Hose are mainly used to suck and discharge the silt, slurry, sand and stone in the waterway. Flexible floating rubber dredging suction hose can extend the distance of dredging.

Our hose resists corrosion, high pressure, bending and abrasion. Floating Dredging Hose and dredge pipe could be connected with pipeline well. It reduces the sea wave and makes it smooth to convey medium.

self floating hose, floating hose manufacturers, floating flange hose

Characteristics



Special designed for self-floating on the seawater

Small bending radius. In working condition, the bending angle is from 0° to 45°

Synthetic rubber material is highly resistant to weather, UV, salty and ozone



Structure

Tube: Excellent abrasion resistant NR/SBR

Reinforcement: High tensile strength fabrics with helix steel wire and Independent foam

Cover: CR

Temperature: -25℃ to +80℃ ( -13℉ to +176℉ )

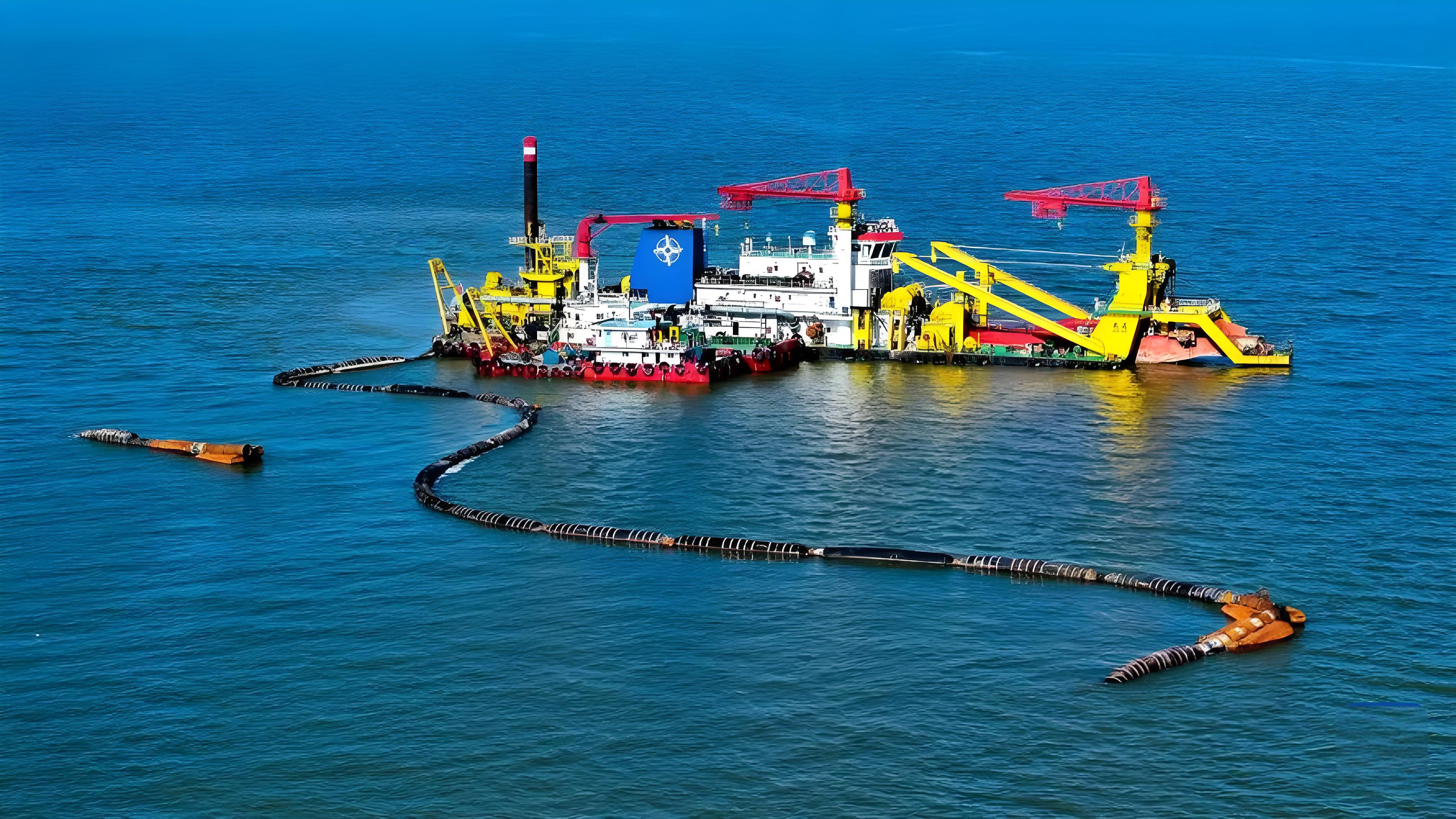

Application: For port and dock discharging of sea water, silt, sand and other materials. They are commonly used in part of the construction process of docks and ports.

self floating hose, floating hose manufacturers, floating flange hose

Specifications



I.D.

W.P.

B.P.

Min Bending
Radius

Wear Layer
Thickness

Cover
Thickness

Length

inch

mm

bar

bar

mm

mm

mm

m

6

150

5-10

15-30

1200

10-20

8-12

11.8

8

200

5-10

15-30

1600

10-20

8-12

11.8

10

250

5-10

15-30

2000

10-20

8-12

11.8

12

300

10-20

30-60

3600

12-25

10-15

11.8

14

350

10-20

30-60

4200

12-25

10-15

11.8

16

400

10-20

30-60

4800

12-25

10-15

11.8

18

450

10-20

30-60

5400

12-25

10-15

11.8

20

500

10-20

30-60

6000

12-25

10-15

11.8

24

600

15-20

45-60

9000

20-30

12-15

11.8

26

650

15-20

45-60

9750

20-30

12-15

11.8

28

700

20-25

60-75

10500

30-50

15-18

11.8

30

750

20-25

60-75

11250

30-50

15-18

11.8

32

800

20-25

60-75

12000

30-50

15-18

11.8

34

850

20-25

60-75

12750

30-50

15-18

11.8

36

900

25-30

75-90

13500

30-50

18-20

11.8

40

1000

25-30

75-90

15000

50-75

18-20

11.8

44

1100

25-30

75-90

16500

50-75

18-20

11.8

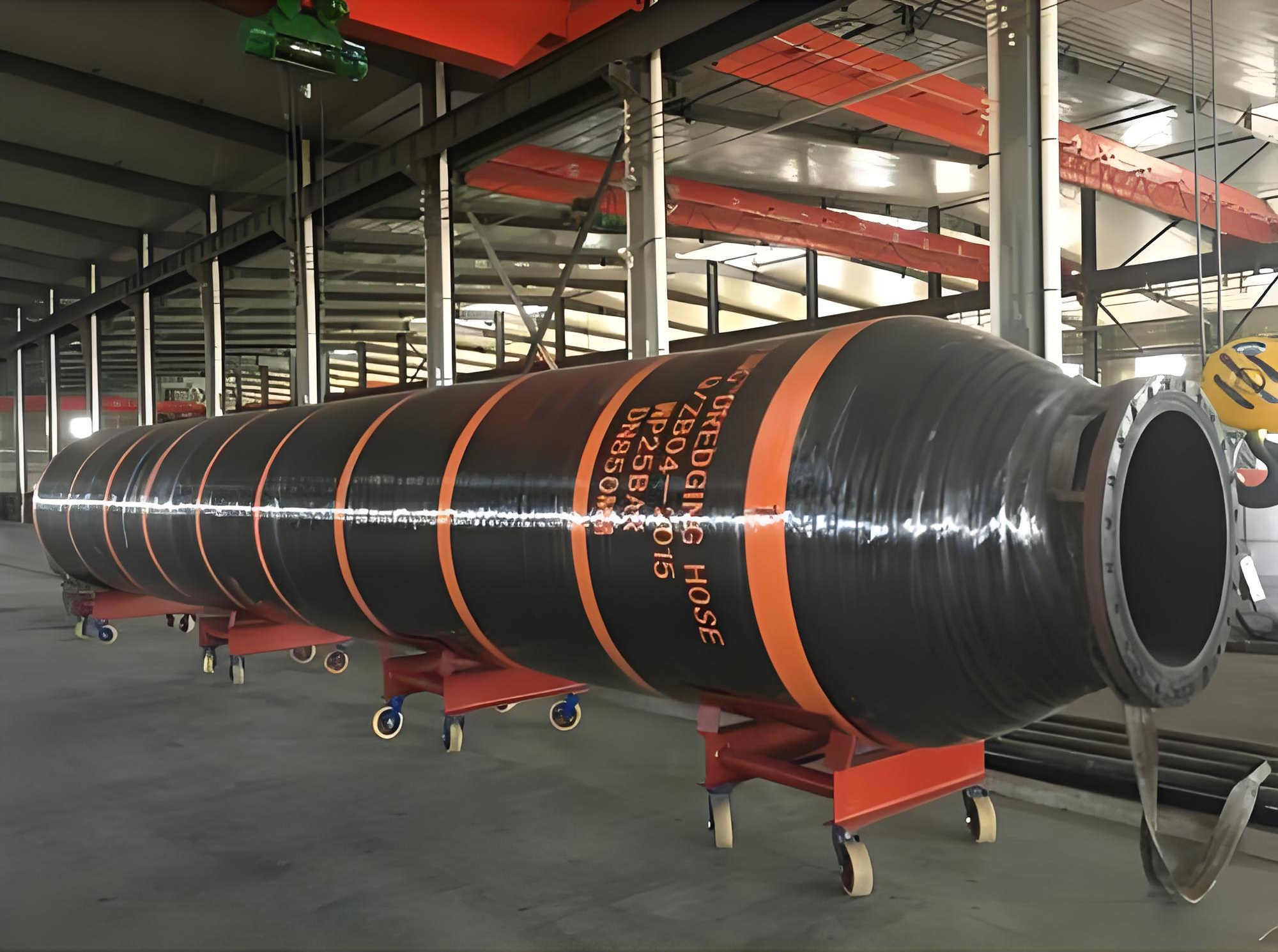

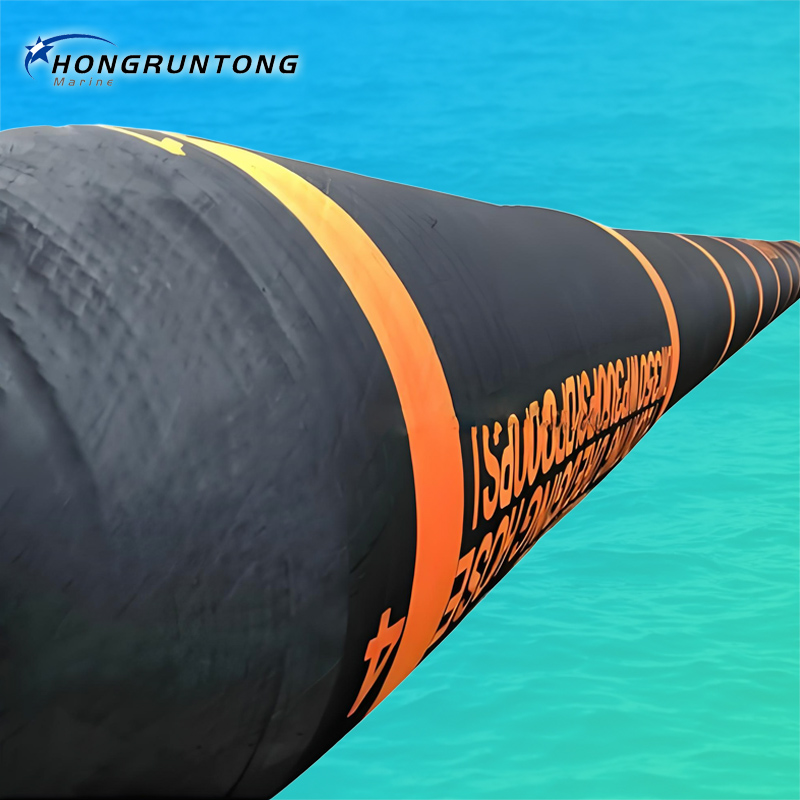

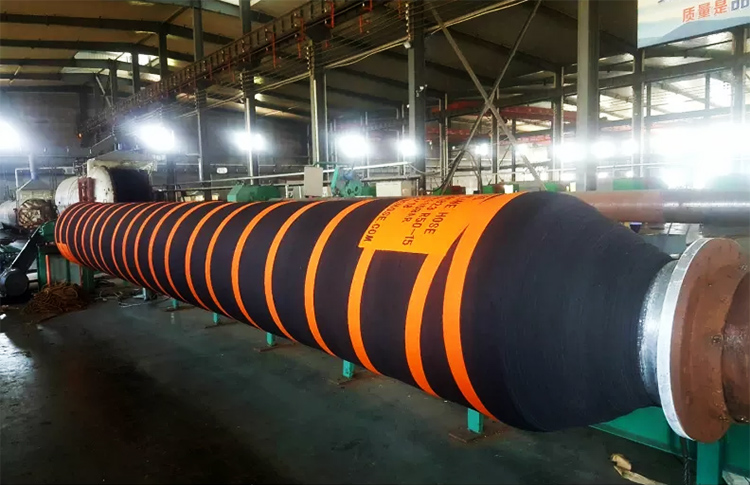

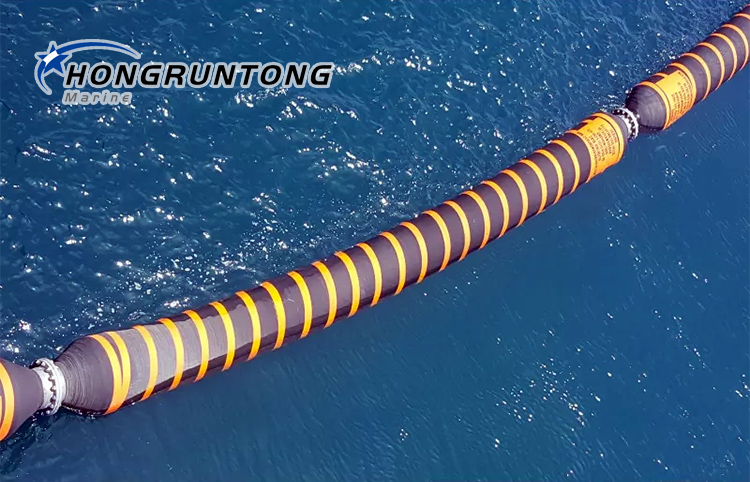

Details Images

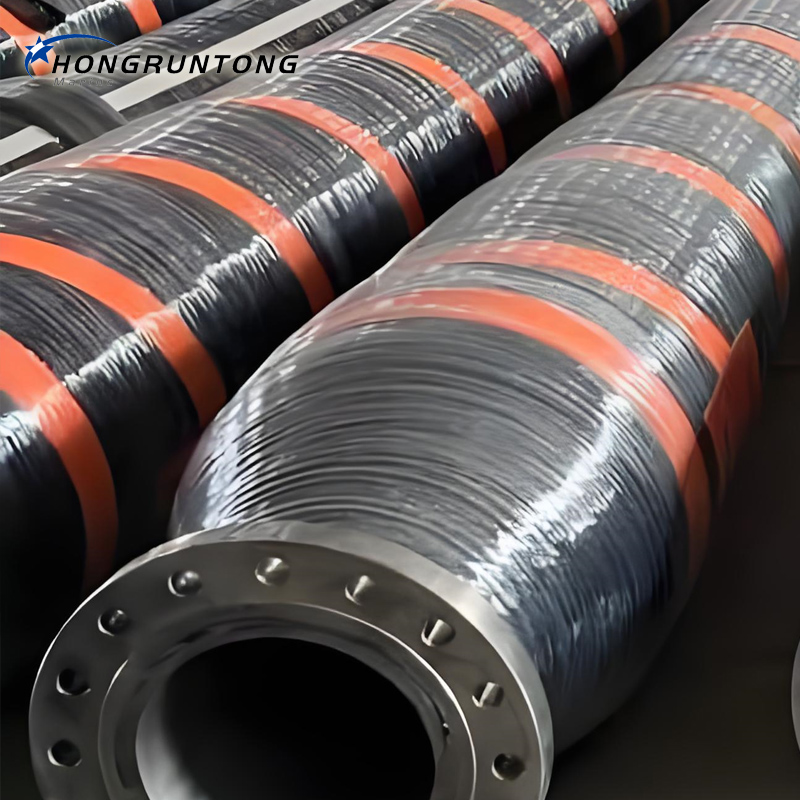

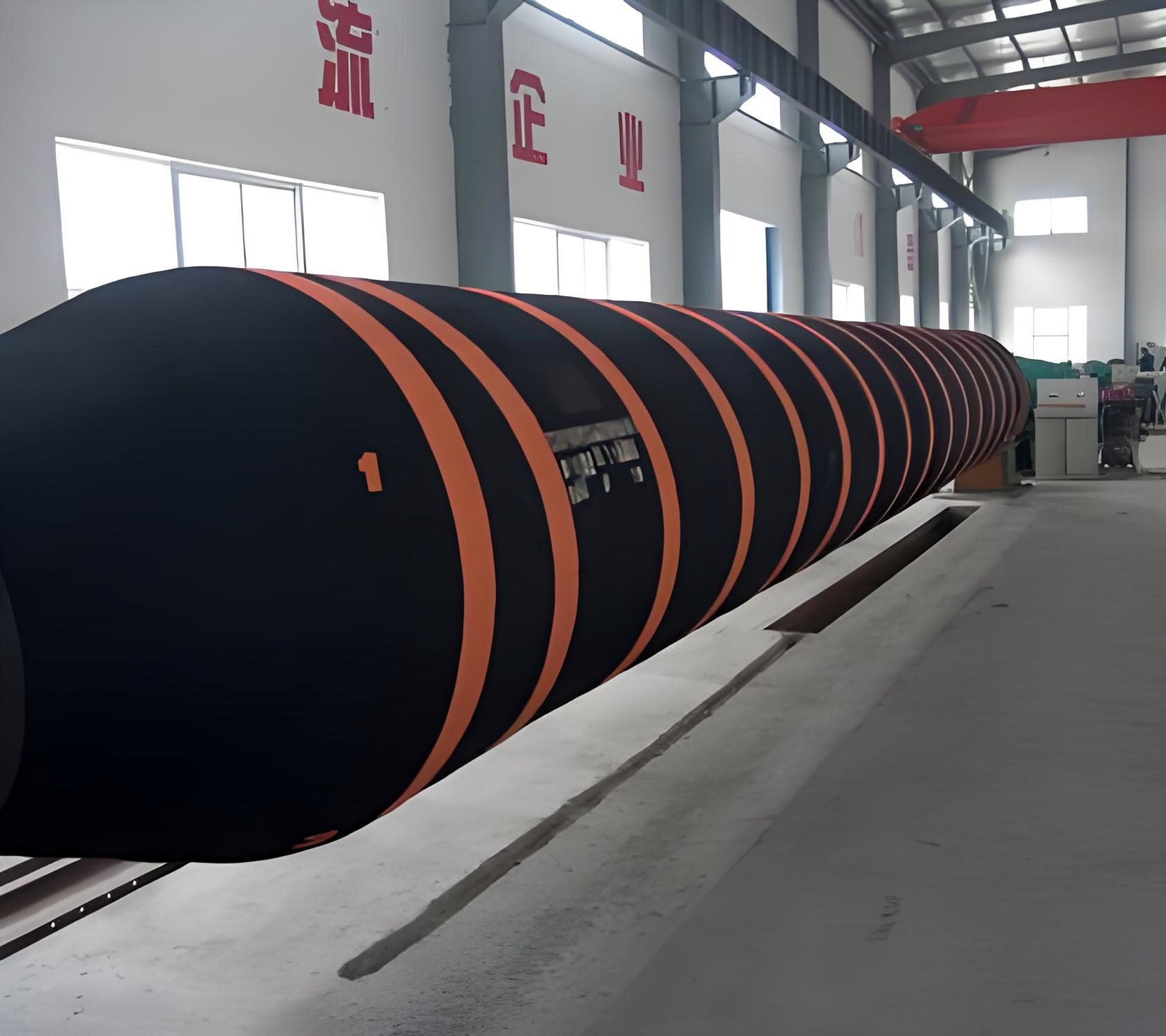

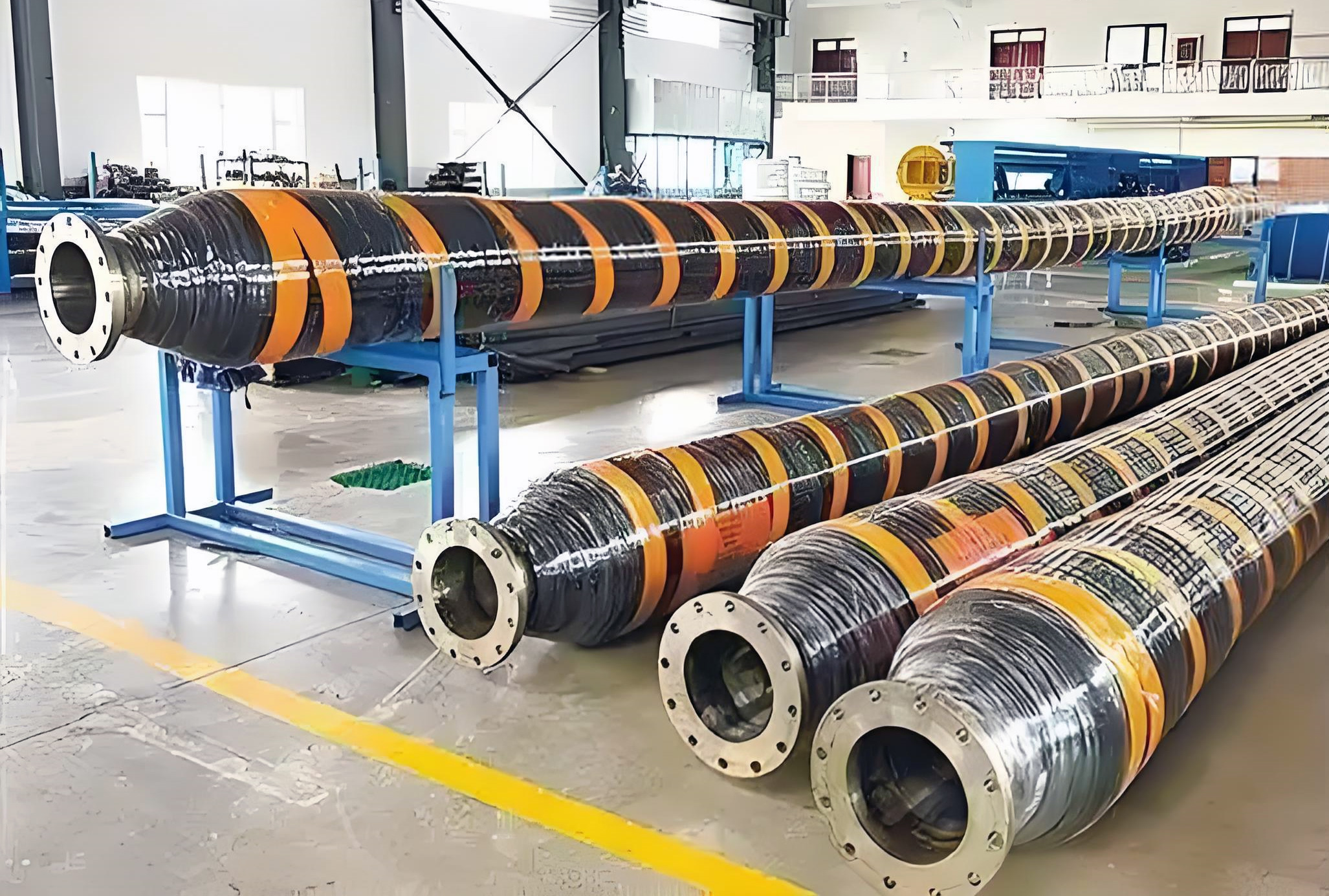

self floating hose



floating hose manufacturers



floating flange hose



self floating dredge hose

self floating hose, floating hose manufacturers, floating flange hose
