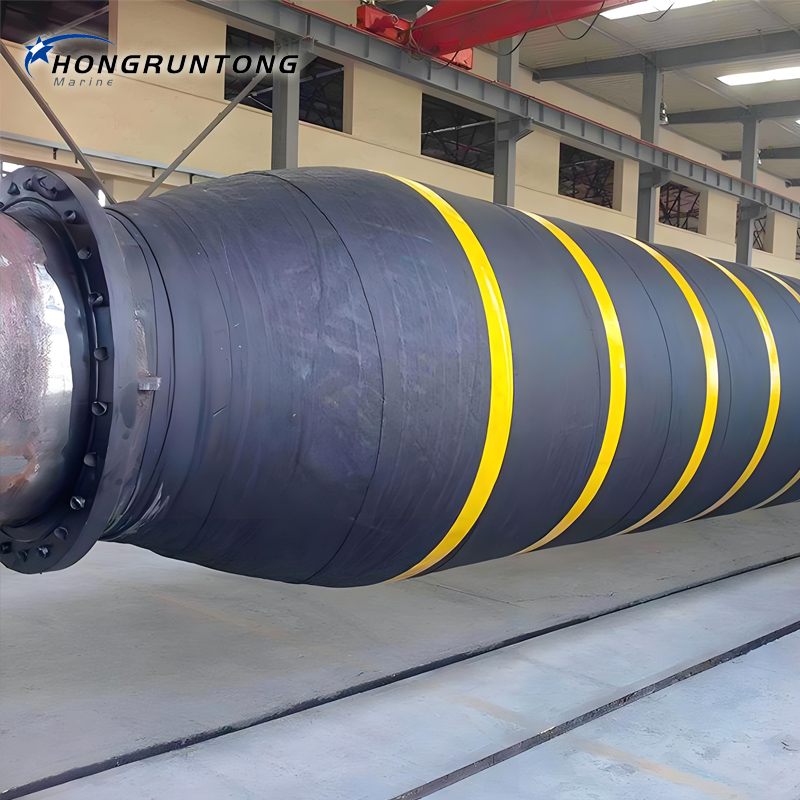

Floating Suction Dredge Hose
Floating suction dredge hoses are an important part of the discharge process for dredging or mining. We offer high performance floating hoses for slurry transport to the shore.
Floating hose assemblies are used in combination with cutter suction dredgers as well as trailing suction hopper dredgers. We offer you standardized as well as custom designed hoses. By floating hose is meant: all items in a floating hose assembly with a length of 11800 mm. This also includes the connection/sinker hose.
Self-floating suction dredge hose system is be used in the major reclamation and dredge waterway in the world. Self-floating hose have a buoyancy layer and it can float on the water by itself. It is easy operation in project. Self-floating suction hose constitute the major part of the self-floating hose pipeline.
floating rubber hose, floating suction hose, floating water hose
Features
● Extremely durable & grind-resistant rubber.
● Tensile Strength ≥ 15 MPa.
● Wear-out ≤ 0.45cm³/1.61km.
● Working Pressure 0.8-3.5 MPa.
● Under working operations status, where sand content of substance is less than 30%, the floating part should be not less than 30% of the hose’s largest tubular outer diameter.
● Strong flexural properties performance.
Similar to other hose products, reinforced / armored floating hoses are preferred for certain projects depending on project requirements. Different types of flanges and/or collars are available, too.
floating rubber hose, floating suction hose, floating water hose
|
Dimension |
|
|
Inner Diameter/ID(mm) |
100~1200 |
|
Length/L(mm) |
1000~11800 |
|

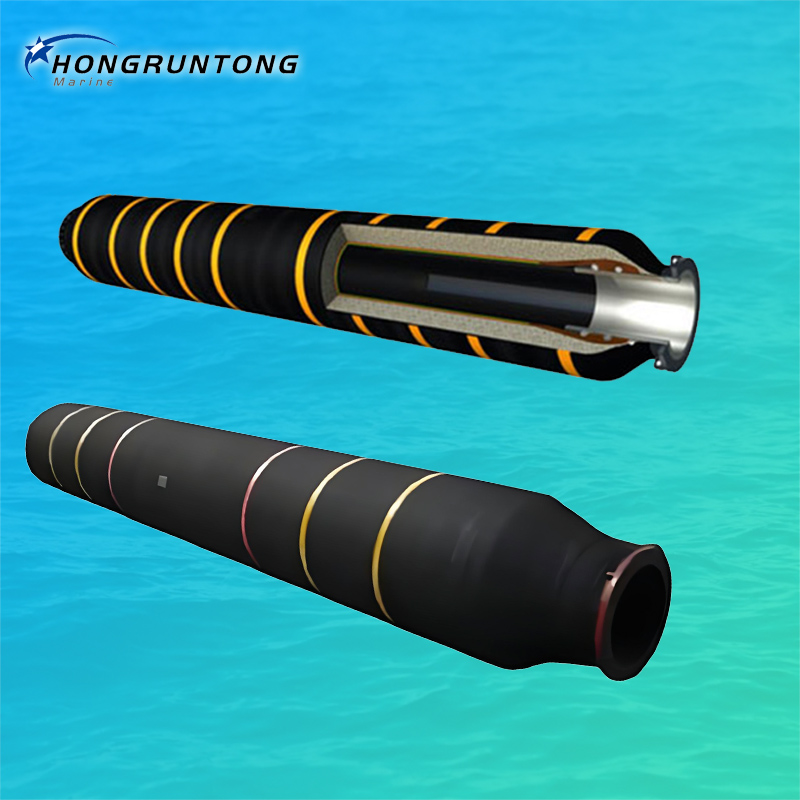

Construction |
|
|
Inner Layer |
Black,wear and corrosion resistant mixing rubber |
|
Reinforcement |
High tensile textile layer |
|
Buoyancy Layer |
A closed cell PE form |
|
Cover |
Back, weather and abrasion resistant rubber |
|
Marking |
Hongruntong (in orange letters) |
|
Technical Data |
|
|
Temperature(℃) |
-20 ~ +75 |
|
Working Pressure/WP(Mpa) |
0.5 ~ 2.5 |
|
Burst Pressure/BP(Mpa) |
1.5 ~ 7.5 |
|
Buoyancy/S.G(t/m³) |
1.4 ~ 2.4 |
|
* Note:Other size and technical date available on request. |
|

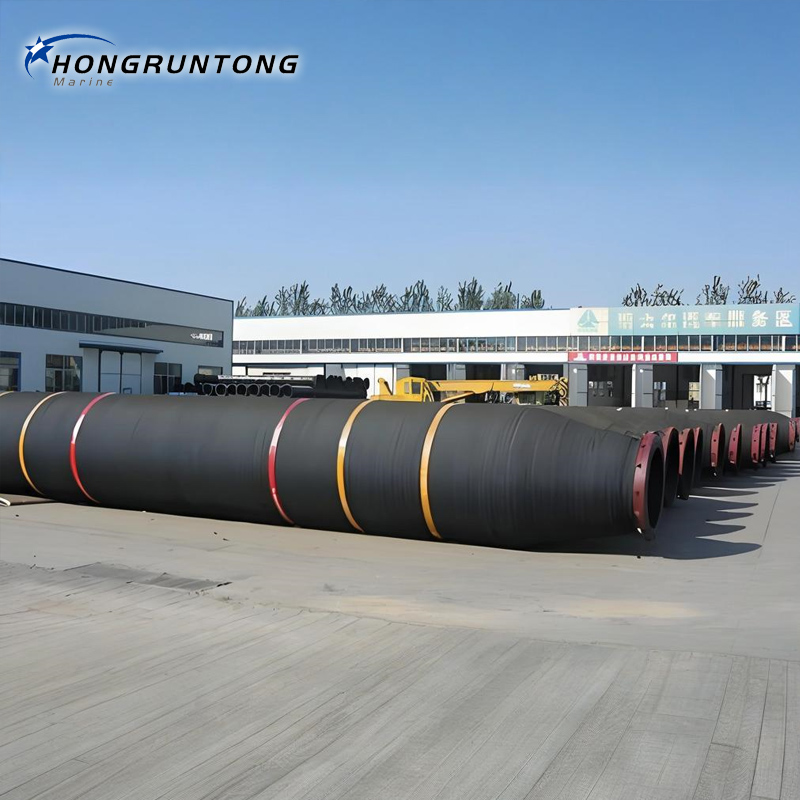

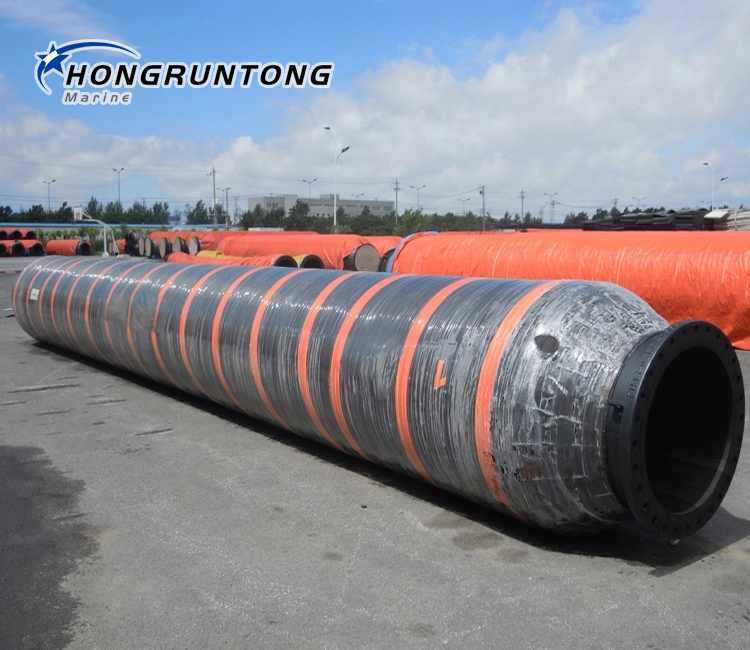

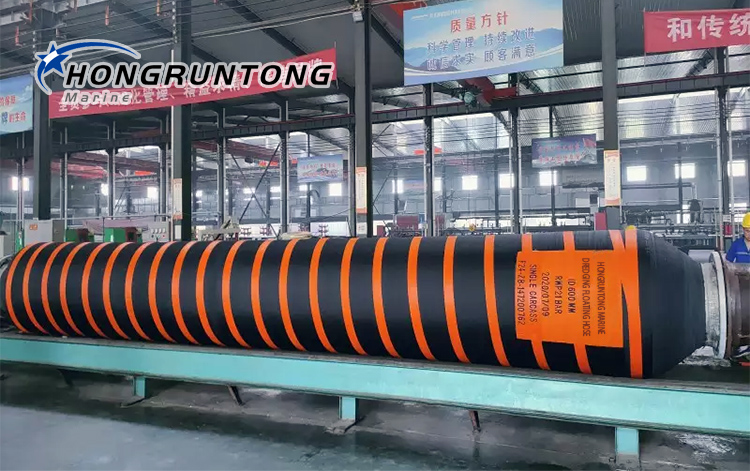

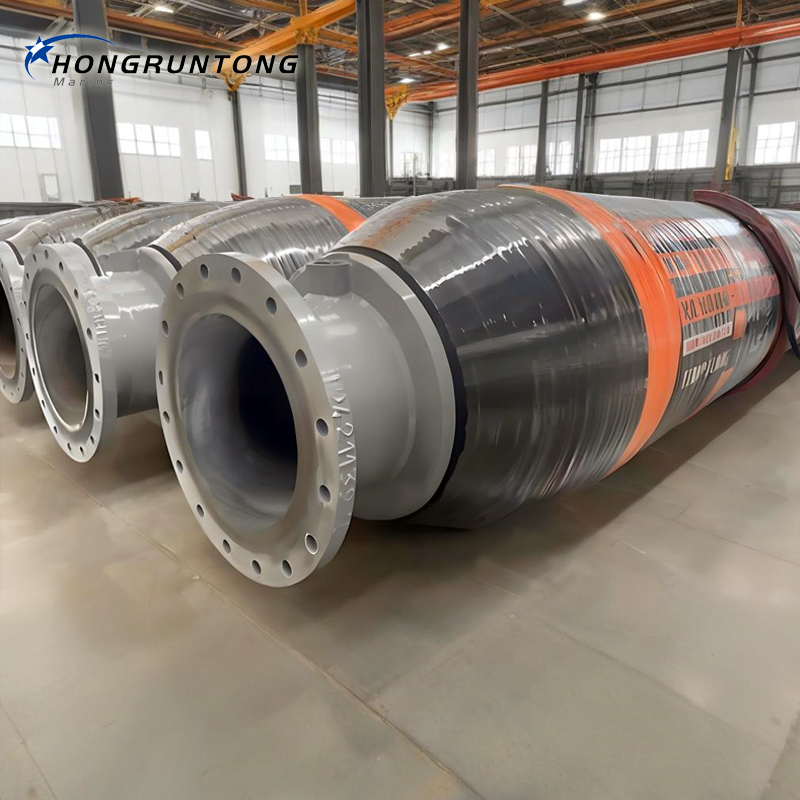

Details Images
floating rubber hose, floating suction hose, floating water hose
floating rubber hose, floating suction hose, floating water hose
